DODGE RAM 2001 Service Repair Manual 8W-45 CENTRAL TIMER MODULE
Component Page
Central Timer Module C1......... 8W-45-8, 9, 10
Central Timer Module C2...... 8W-45-2, 3, 4, 6, 7
Clockspring......................... 8W-45-7
Data Link Conne

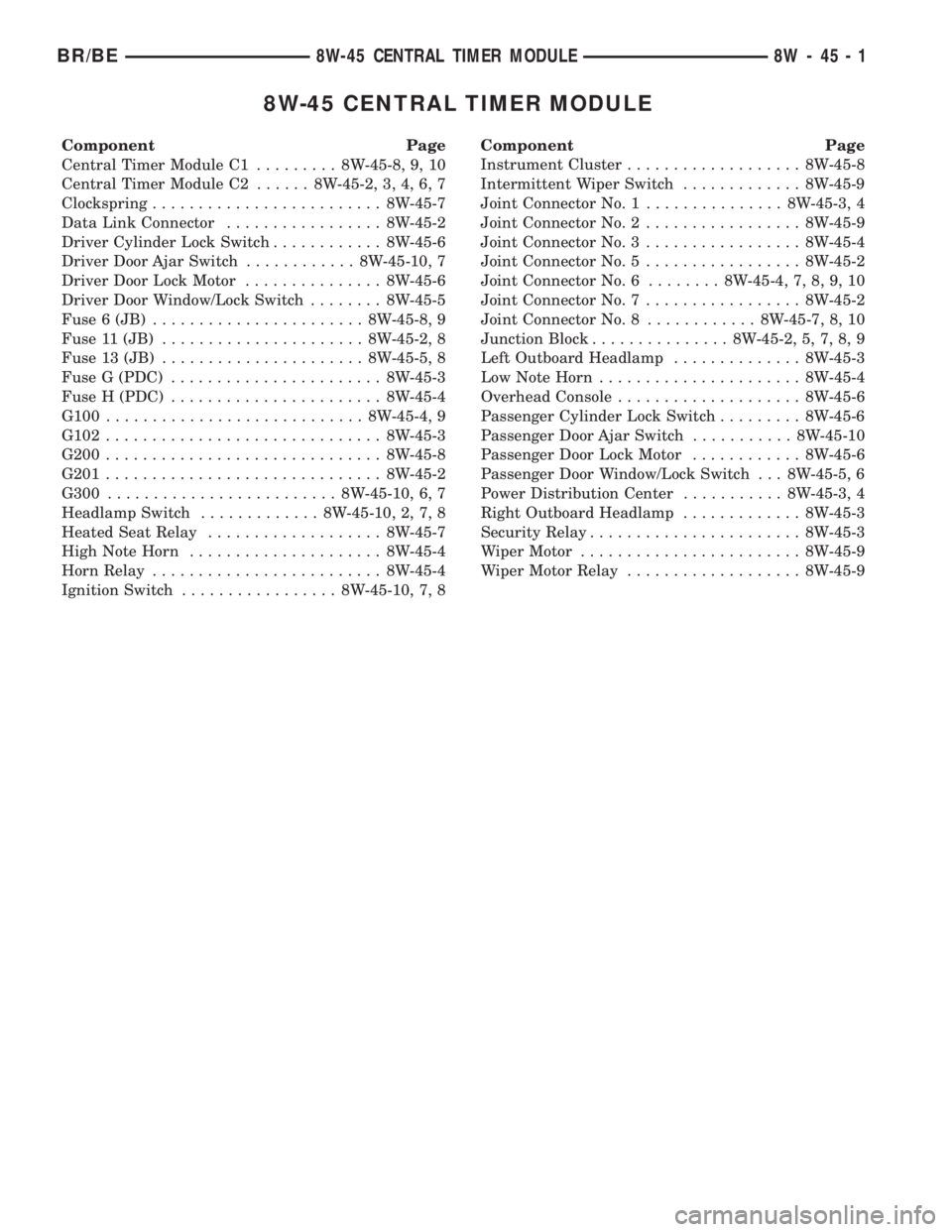

8W-45 CENTRAL TIMER MODULE
Component Page
Central Timer Module C1......... 8W-45-8, 9, 10
Central Timer Module C2...... 8W-45-2, 3, 4, 6, 7

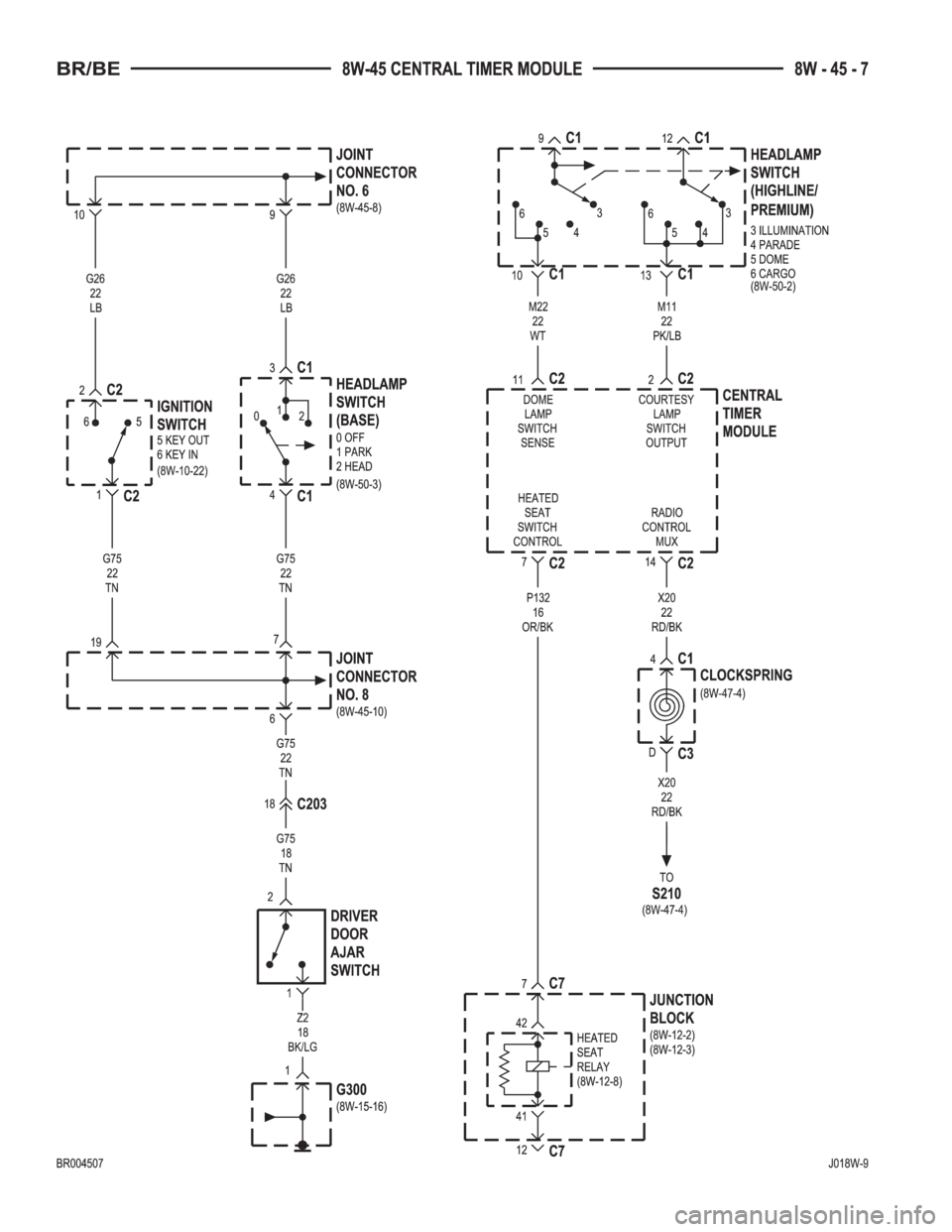

Clockspring......................... 8W-45-7

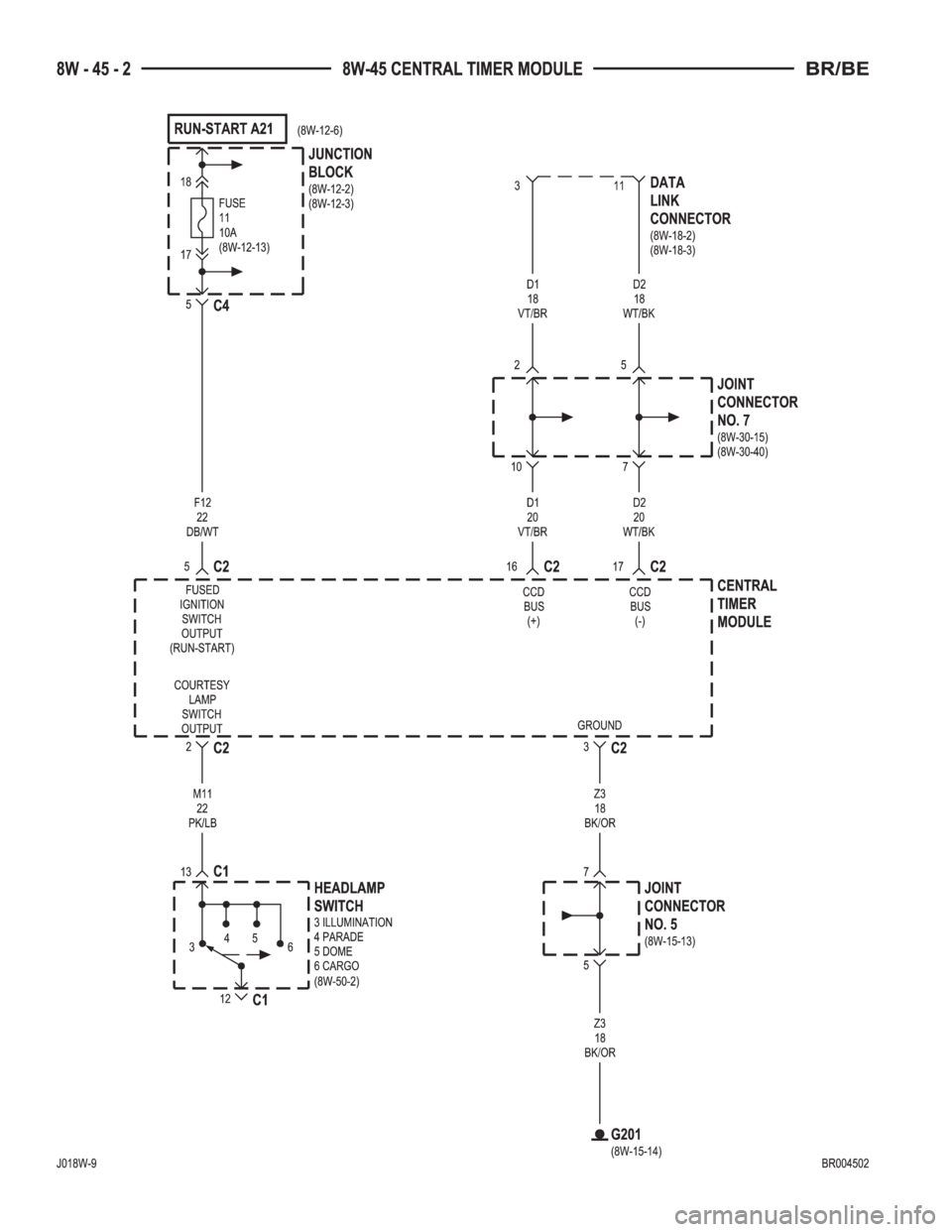

Data Link Connector................. 8W-45-2

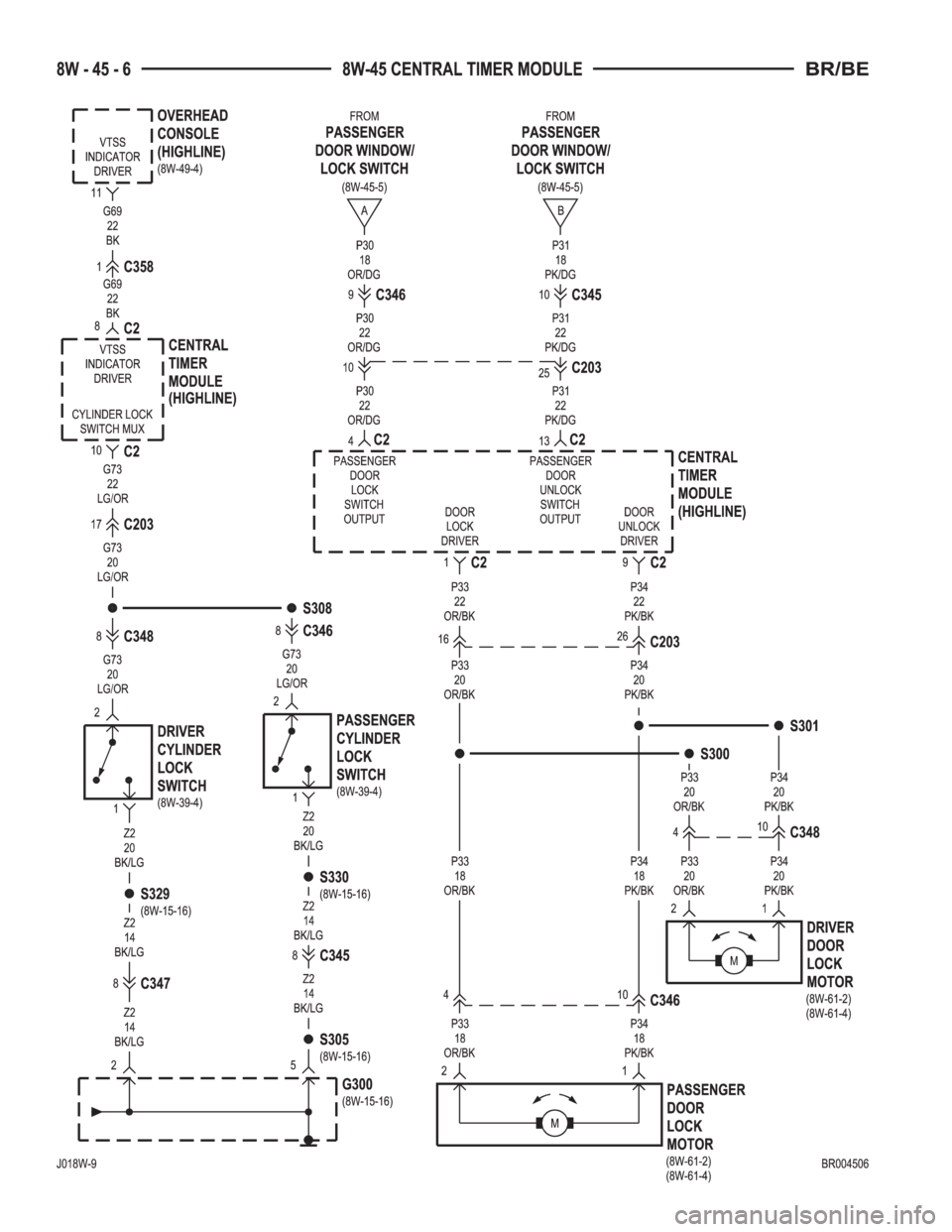

Driver Cylinder Lock Switch............ 8W-45-6
Driver Door Ajar Switch............ 8W-45-10, 7
Driver Door Lock Motor............... 8W-45-6

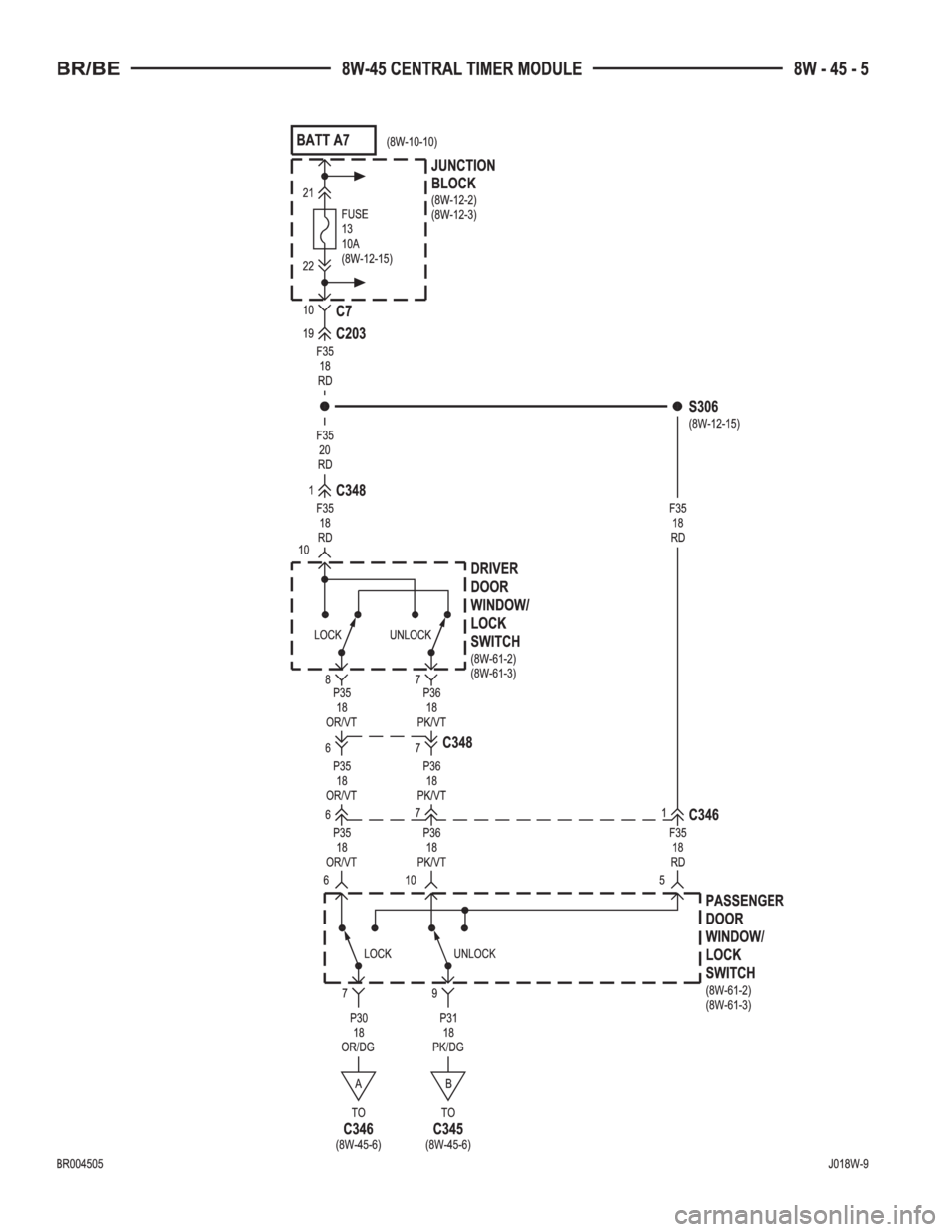

Driver Door Window/Lock Switch........ 8W-45-5
Fuse 6 (JB)....................... 8W-45-8, 9
Fuse 11 (JB)...................... 8W-45-2, 8
Fuse 13 (JB)...................... 8W-45-5, 8
Fuse G (PDC)....................... 8W-45-3
Fuse H (PDC)....................... 8W-45-4
G100............................ 8W-45-4, 9
G102.............................. 8W-45-3
G200.............................. 8W-45-8
G201.............................. 8W-45-2
G300......................... 8W-45-10, 6, 7
Headlamp Switch............. 8W-45-10, 2, 7, 8
Heated Seat Relay................... 8W-45-7

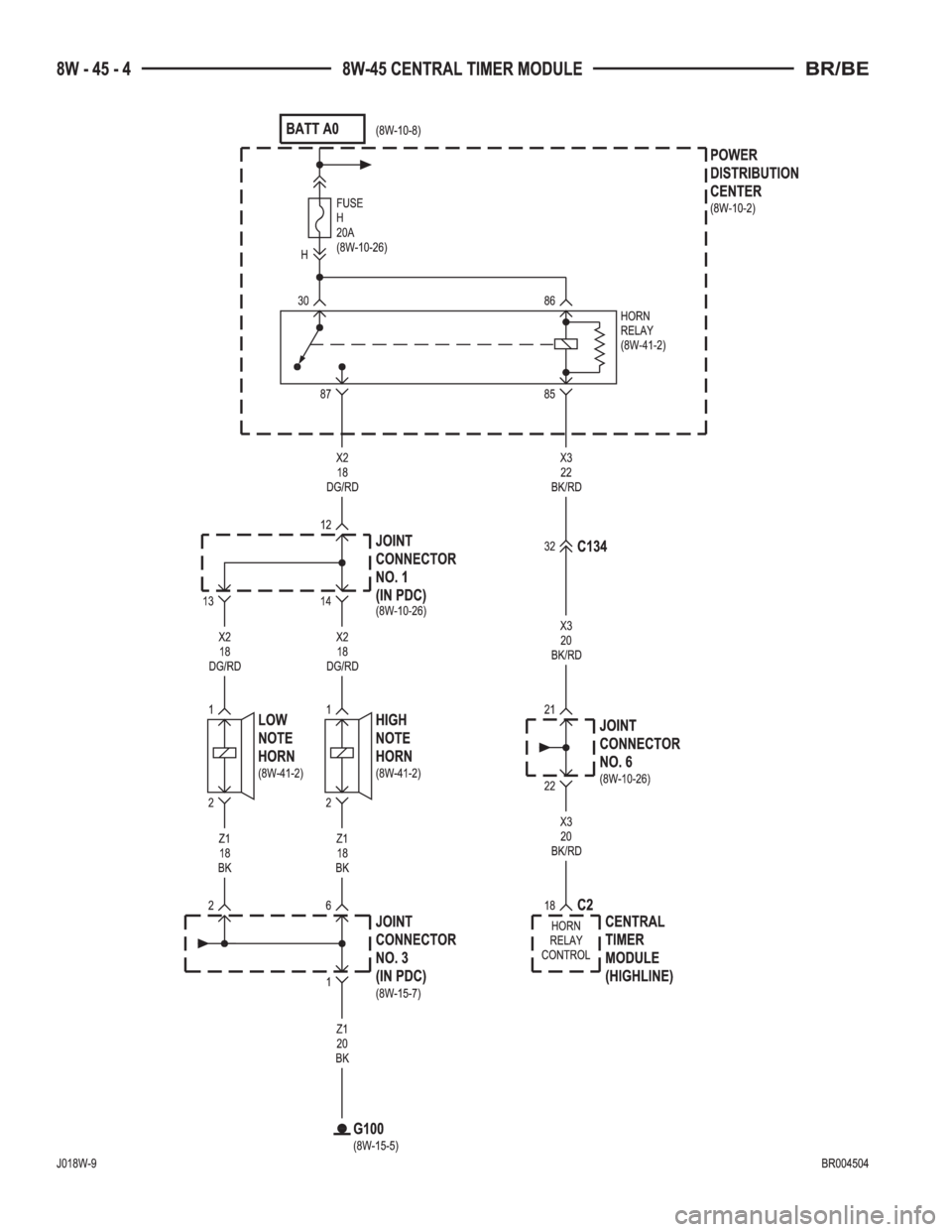

High Note Horn..................... 8W-45-4
Horn Relay......................... 8W-45-4
Ignition Switch................. 8W-45-10, 7, 8Component Page
Instrument Cluster................... 8W-45-8
Intermittent Wiper Switch............. 8W-45-9
Joint Connector No. 1............... 8W-45-3, 4
Joint Connector No. 2................. 8W-45-9
Joint Connector No. 3................. 8W-45-4
Joint Connector No. 5................. 8W-45-2
Joint Connector No. 6........ 8W-45-4, 7, 8, 9, 10
Joint Connector No. 7................. 8W-45-2
Joint Connector No. 8............ 8W-45-7, 8, 10
Junction Block............... 8W-45-2, 5, 7, 8, 9
Left Outboard Headlamp.............. 8W-45-3
Low Note Horn...................... 8W-45-4
Overhead Console.................... 8W-45-6
Passenger Cylinder Lock Switch......... 8W-45-6
Passenger Door Ajar Switch........... 8W-45-10
Passenger Door Lock Motor............ 8W-45-6
Passenger Door Window/Lock Switch . . . 8W-45-5, 6
Power Distribution Center........... 8W-45-3, 4
Right Outboard Headlamp............. 8W-45-3
Security Relay....................... 8W-45-3
Wiper Motor........................ 8W-45-9
Wiper Motor Relay................... 8W-45-9
BR/BE8W-45 CENTRAL TIMER MODULE 8W - 45 - 1
