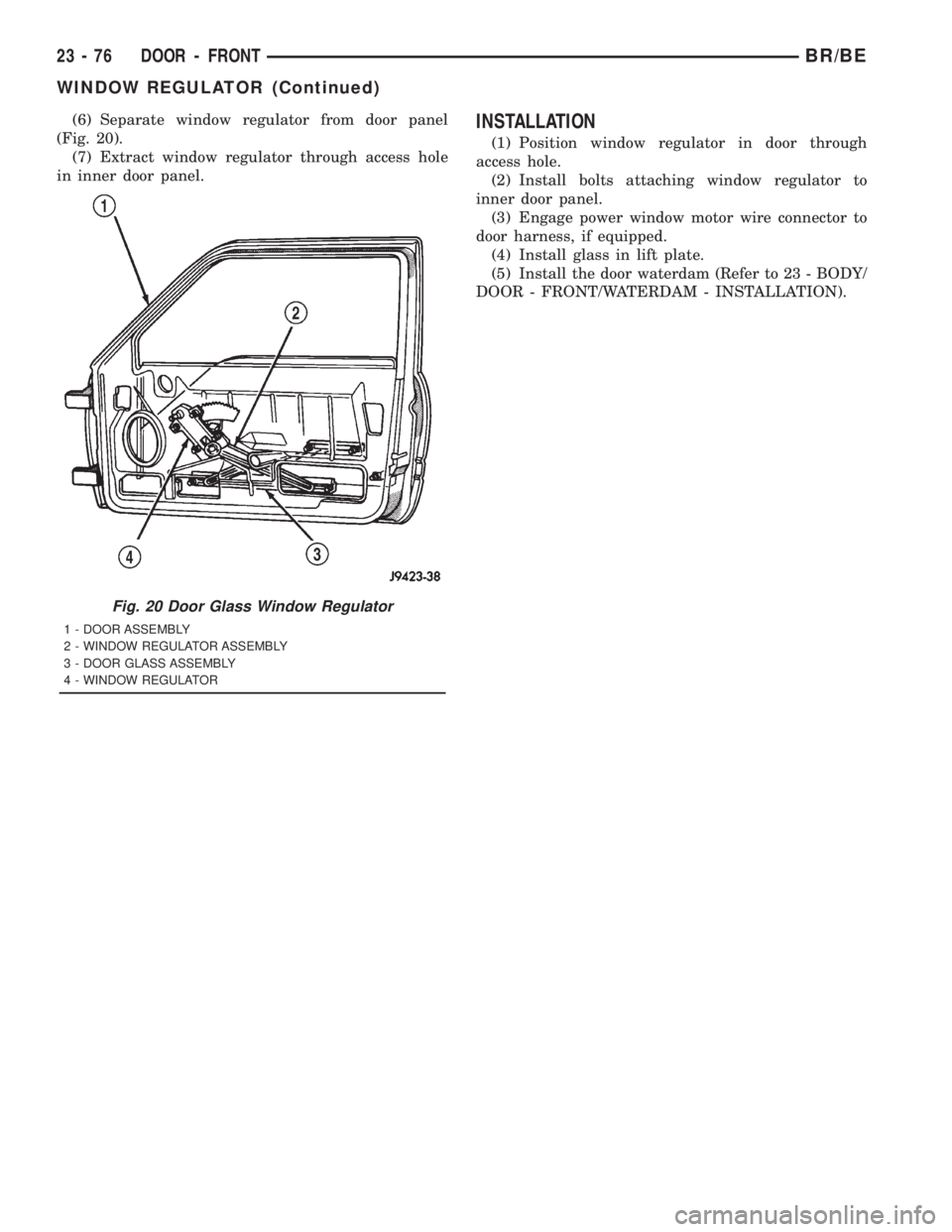

DODGE RAM 2001 Service Repair Manual (6) Separate window regulator from door panel
(Fig. 20).
(7) Extract window regulator through access hole
in inner door panel.INSTALLATION
(1) Position window regulator in door through
access hole.
(2

Page 2650 of 2889

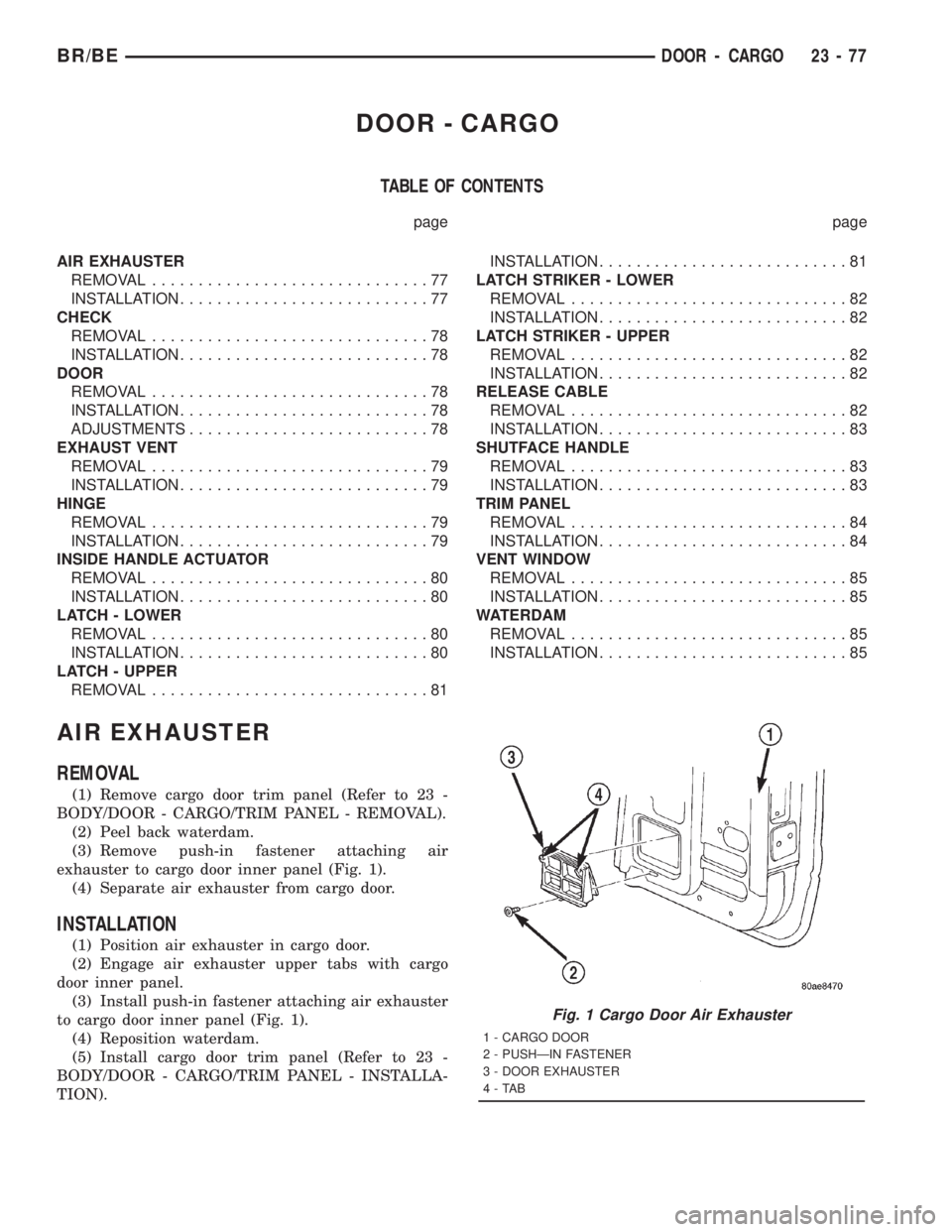

DODGE RAM 2001 Service Repair Manual DOOR - CARGO
TABLE OF CONTENTS
page page
AIR EXHAUSTER
REMOVAL..............................77
INSTALLATION...........................77
CHECK
REMOVAL..............................78
INSTALLATION.....

DOOR - CARGO
TABLE OF CONTENTS
page page
AIR EXHAUSTER
REMOVAL..............................77
INSTALLATION...........................77
CHECK
REMOVAL..............................78
INSTALLATION...........................78
DOOR
REMOVAL..............................78
INSTALLATION...........................78
ADJUSTMENTS..........................78
EXHAUST VENT
REMOVAL..............................79
INSTALLATION...........................79
HINGE
REMOVAL..............................79
INSTALLATION...........................79
INSIDE HANDLE ACTUATOR
REMOVAL..............................80
INSTALLATION...........................80
LATCH - LOWER
REMOVAL..............................80
INSTALLATION...........................80
LATCH - UPPER
REMOVAL..............................81INSTALLATION...........................81
LATCH STRIKER - LOWER
REMOVAL..............................82
INSTALLATION...........................82
LATCH STRIKER - UPPER
REMOVAL..............................82
INSTALLATION...........................82
RELEASE CABLE
REMOVAL..............................82
INSTALLATION...........................83
SHUTFACE HANDLE
REMOVAL..............................83
INSTALLATION...........................83
TRIM PANEL
REMOVAL..............................84
INSTALLATION...........................84
VENT WINDOW
REMOVAL..............................85
INSTALLATION...........................85
WATERDAM
REMOVAL..............................85
INSTALLATION...........................85
AIR EXHAUSTER
REMOVAL
(1) Remove cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - REMOVAL).
(2) Peel back waterdam.
(3) Remove push-in fastener attaching air
exhauster to cargo door inner panel (Fig. 1).
(4) Separate air exhauster from cargo door.
INSTALLATION
(1) Position air exhauster in cargo door.
(2) Engage air exhauster upper tabs with cargo
door inner panel.
(3) Install push-in fastener attaching air exhauster
to cargo door inner panel (Fig. 1).
(4) Reposition waterdam.
(5) Install cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - INSTALLA-
TION).
Fig. 1 Cargo Door Air Exhauster
1 - CARGO DOOR
2 - PUSHÐIN FASTENER
3 - DOOR EXHAUSTER
4-TAB
BR/BEDOOR - CARGO 23 - 77

Page 2651 of 2889

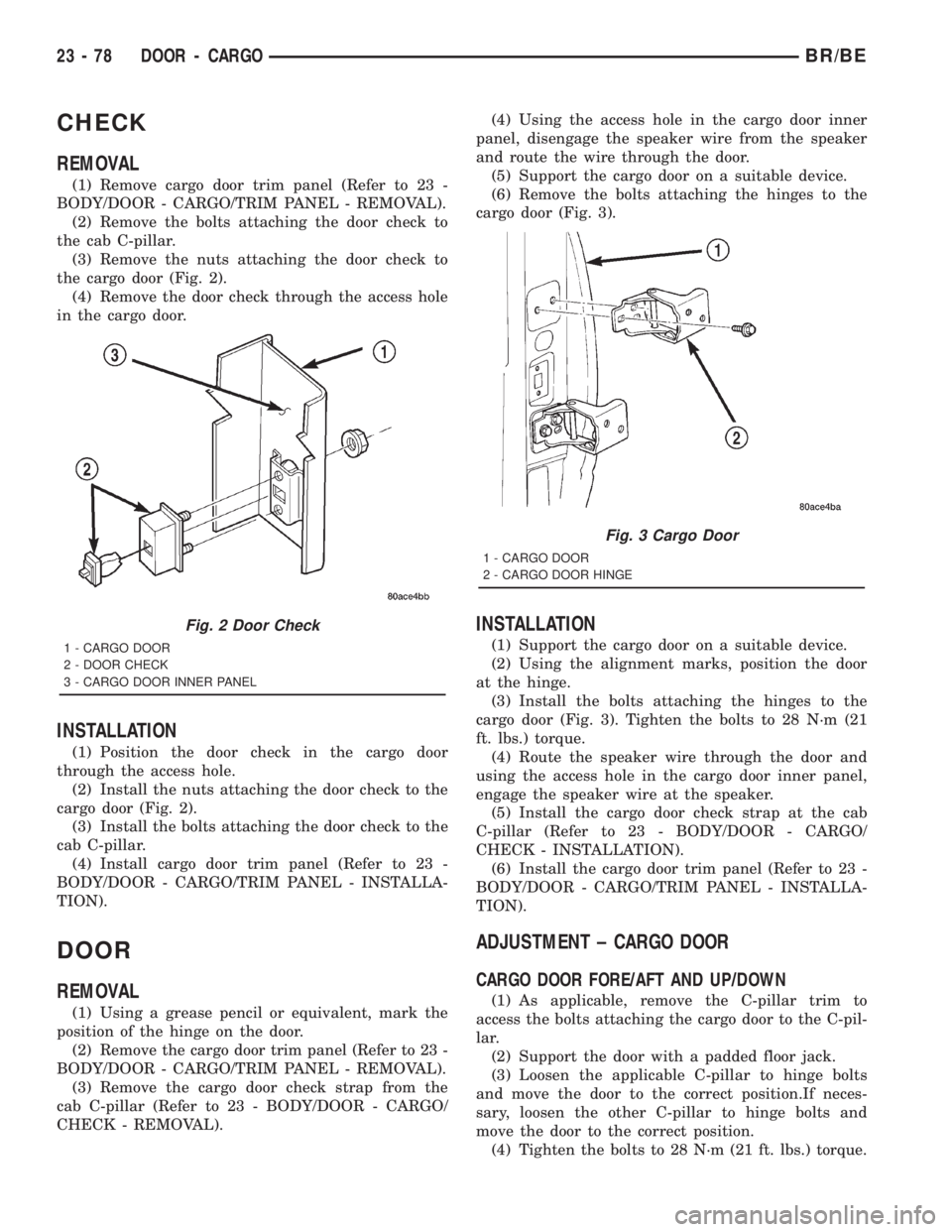

DODGE RAM 2001 Service Repair Manual CHECK
REMOVAL
(1) Remove cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - REMOVAL).
(2) Remove the bolts attaching the door check to
the cab C-pillar.
(3) Remove the nuts attaching

CHECK
REMOVAL
(1) Remove cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - REMOVAL).
(2) Remove the bolts attaching the door check to
the cab C-pillar.
(3) Remove the nuts attaching the door check to
the cargo door (Fig. 2).
(4) Remove the door check through the access hole
in the cargo door.
INSTALLATION
(1) Position the door check in the cargo door
through the access hole.
(2) Install the nuts attaching the door check to the
cargo door (Fig. 2).
(3) Install the bolts attaching the door check to the
cab C-pillar.
(4) Install cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - INSTALLA-
TION).
DOOR
REMOVAL
(1) Using a grease pencil or equivalent, mark the
position of the hinge on the door.
(2) Remove the cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - REMOVAL).
(3) Remove the cargo door check strap from the
cab C-pillar (Refer to 23 - BODY/DOOR - CARGO/
CHECK - REMOVAL).(4) Using the access hole in the cargo door inner
panel, disengage the speaker wire from the speaker
and route the wire through the door.
(5) Support the cargo door on a suitable device.
(6) Remove the bolts attaching the hinges to the
cargo door (Fig. 3).
INSTALLATION
(1) Support the cargo door on a suitable device.
(2) Using the alignment marks, position the door
at the hinge.
(3) Install the bolts attaching the hinges to the
cargo door (Fig. 3). Tighten the bolts to 28 N´m (21
ft. lbs.) torque.
(4) Route the speaker wire through the door and
using the access hole in the cargo door inner panel,
engage the speaker wire at the speaker.
(5) Install the cargo door check strap at the cab
C-pillar (Refer to 23 - BODY/DOOR - CARGO/
CHECK - INSTALLATION).
(6) Install the cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - INSTALLA-
TION).
ADJUSTMENT ± CARGO DOOR
CARGO DOOR FORE/AFT AND UP/DOWN
(1) As applicable, remove the C-pillar trim to
access the bolts attaching the cargo door to the C-pil-
lar.
(2) Support the door with a padded floor jack.
(3) Loosen the applicable C-pillar to hinge bolts
and move the door to the correct position.If neces-
sary, loosen the other C-pillar to hinge bolts and
move the door to the correct position.
(4) Tighten the bolts to 28 N´m (21 ft. lbs.) torque.
Fig. 2 Door Check
1 - CARGO DOOR
2 - DOOR CHECK
3 - CARGO DOOR INNER PANEL
Fig. 3 Cargo Door
1 - CARGO DOOR
2 - CARGO DOOR HINGE
23 - 78 DOOR - CARGOBR/BE

Page 2652 of 2889

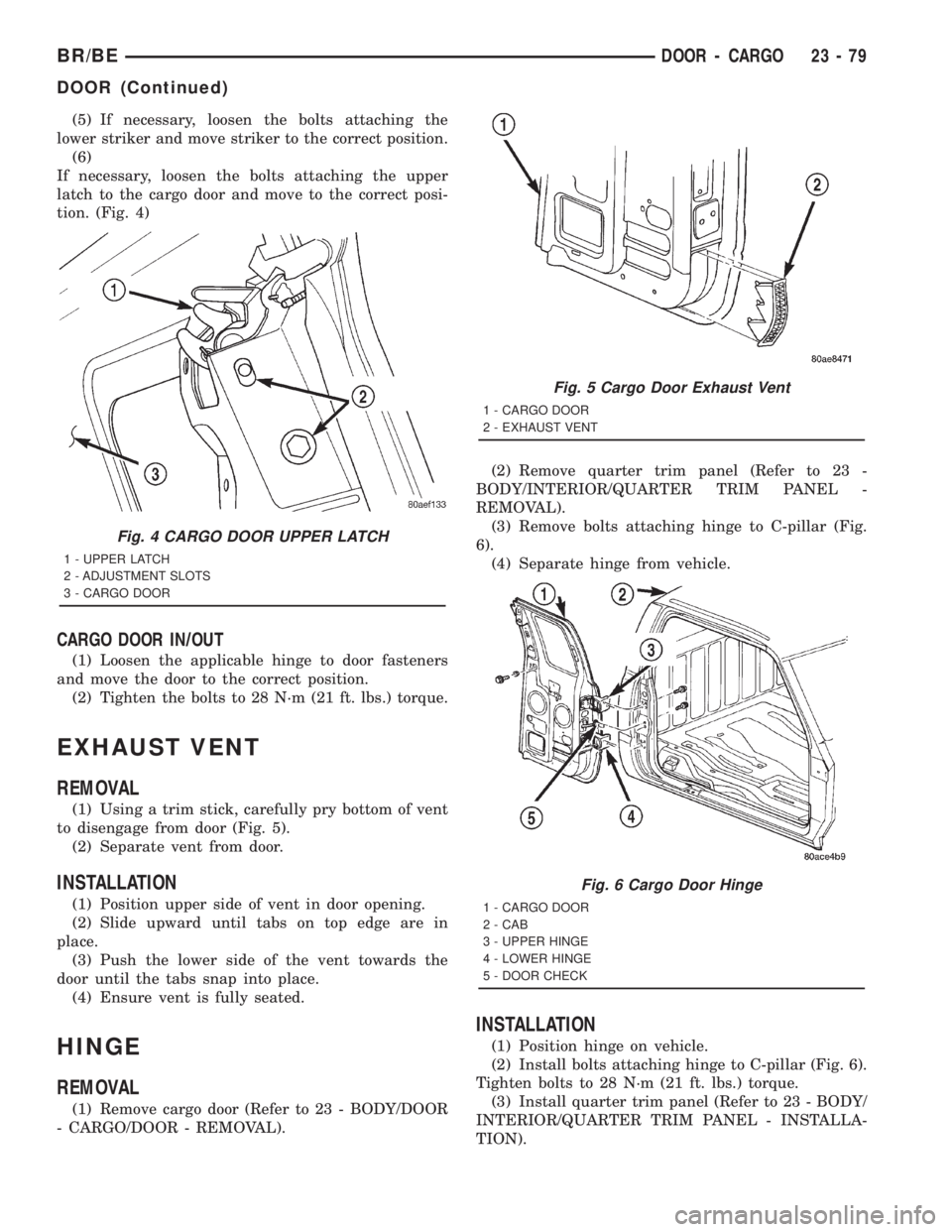

DODGE RAM 2001 Service Repair Manual (5) If necessary, loosen the bolts attaching the
lower striker and move striker to the correct position.
(6)
If necessary, loosen the bolts attaching the upper
latch to the cargo door and move to the

Page 2653 of 2889

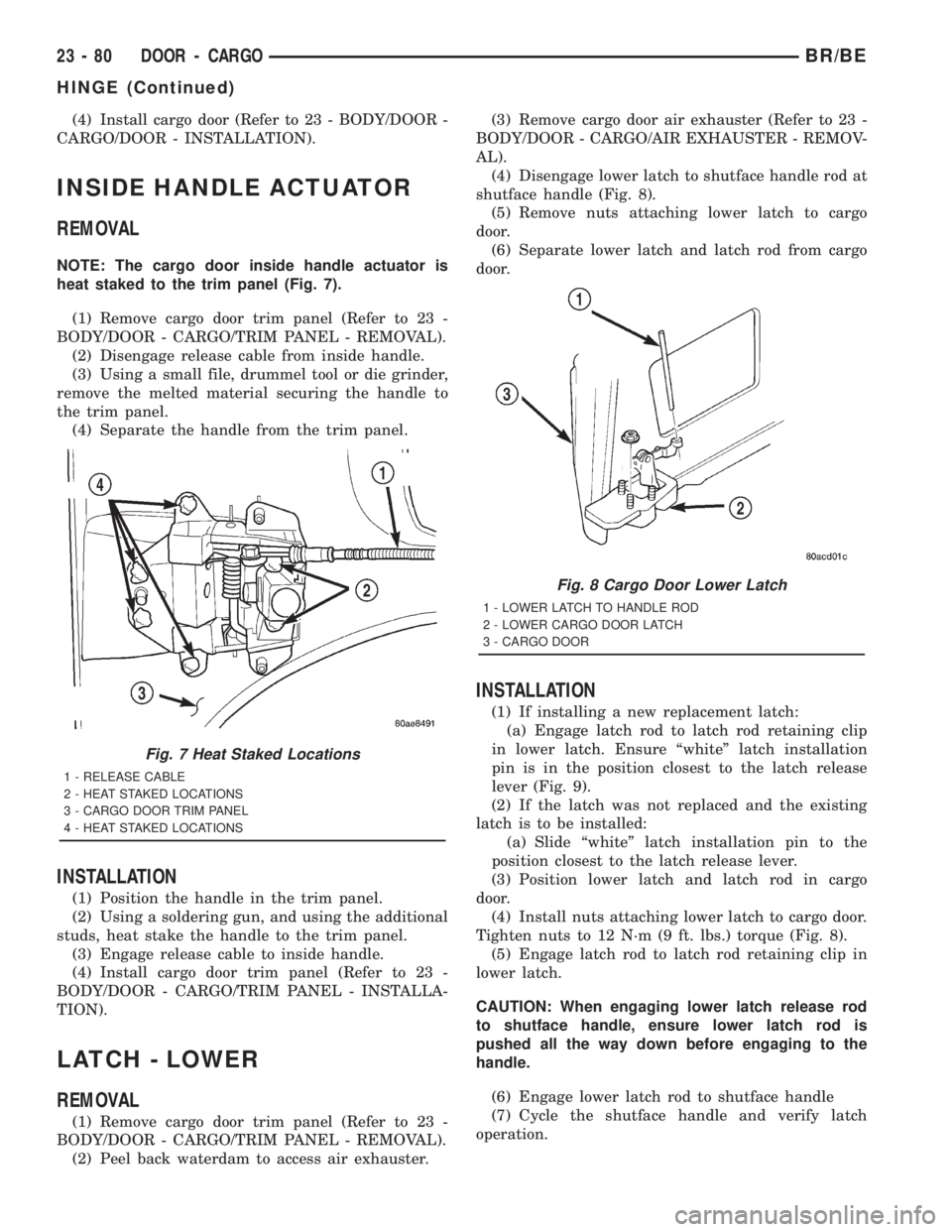

DODGE RAM 2001 Service Repair Manual (4) Install cargo door (Refer to 23 - BODY/DOOR -
CARGO/DOOR - INSTALLATION).
INSIDE HANDLE ACTUATOR
REMOVAL
NOTE: The cargo door inside handle actuator is
heat staked to the trim panel (Fig. 7).
(1)

(4) Install cargo door (Refer to 23 - BODY/DOOR -
CARGO/DOOR - INSTALLATION).
INSIDE HANDLE ACTUATOR
REMOVAL
NOTE: The cargo door inside handle actuator is
heat staked to the trim panel (Fig. 7).
(1) Remove cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - REMOVAL).
(2) Disengage release cable from inside handle.
(3) Using a small file, drummel tool or die grinder,
remove the melted material securing the handle to
the trim panel.
(4) Separate the handle from the trim panel.
INSTALLATION
(1) Position the handle in the trim panel.
(2) Using a soldering gun, and using the additional
studs, heat stake the handle to the trim panel.
(3) Engage release cable to inside handle.
(4) Install cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - INSTALLA-
TION).
LATCH - LOWER
REMOVAL
(1) Remove cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - REMOVAL).
(2) Peel back waterdam to access air exhauster.(3) Remove cargo door air exhauster (Refer to 23 -
BODY/DOOR - CARGO/AIR EXHAUSTER - REMOV-
AL).
(4) Disengage lower latch to shutface handle rod at
shutface handle (Fig. 8).
(5) Remove nuts attaching lower latch to cargo
door.
(6) Separate lower latch and latch rod from cargo
door.
INSTALLATION
(1) If installing a new replacement latch:
(a) Engage latch rod to latch rod retaining clip
in lower latch. Ensure ªwhiteº latch installation
pin is in the position closest to the latch release
lever (Fig. 9).
(2) If the latch was not replaced and the existing
latch is to be installed:
(a) Slide ªwhiteº latch installation pin to the
position closest to the latch release lever.
(3) Position lower latch and latch rod in cargo
door.
(4) Install nuts attaching lower latch to cargo door.
Tighten nuts to 12 N´m (9 ft. lbs.) torque (Fig. 8).
(5) Engage latch rod to latch rod retaining clip in
lower latch.
CAUTION: When engaging lower latch release rod
to shutface handle, ensure lower latch rod is
pushed all the way down before engaging to the
handle.
(6) Engage lower latch rod to shutface handle
(7) Cycle the shutface handle and verify latch
operation.
Fig. 7 Heat Staked Locations
1 - RELEASE CABLE
2 - HEAT STAKED LOCATIONS
3 - CARGO DOOR TRIM PANEL
4 - HEAT STAKED LOCATIONS
Fig. 8 Cargo Door Lower Latch
1 - LOWER LATCH TO HANDLE ROD
2 - LOWER CARGO DOOR LATCH
3 - CARGO DOOR
23 - 80 DOOR - CARGOBR/BE
HINGE (Continued)

Page 2654 of 2889

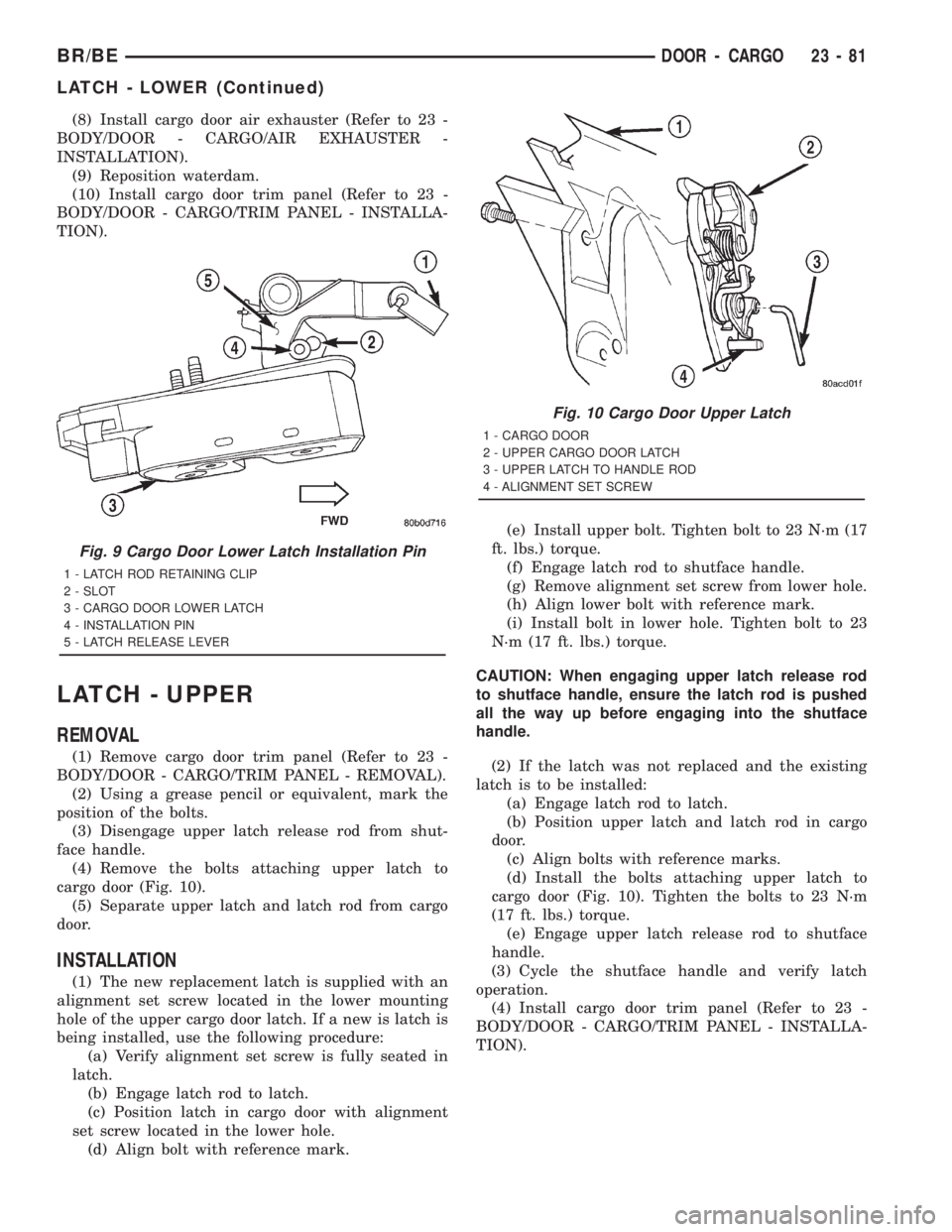

DODGE RAM 2001 Service Repair Manual (8) Install cargo door air exhauster (Refer to 23 -
BODY/DOOR - CARGO/AIR EXHAUSTER -
INSTALLATION).
(9) Reposition waterdam.
(10) Install cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM P

(8) Install cargo door air exhauster (Refer to 23 -
BODY/DOOR - CARGO/AIR EXHAUSTER -
INSTALLATION).
(9) Reposition waterdam.
(10) Install cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - INSTALLA-
TION).
LATCH - UPPER
REMOVAL
(1) Remove cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - REMOVAL).
(2) Using a grease pencil or equivalent, mark the
position of the bolts.
(3) Disengage upper latch release rod from shut-
face handle.
(4) Remove the bolts attaching upper latch to
cargo door (Fig. 10).
(5) Separate upper latch and latch rod from cargo
door.
INSTALLATION
(1) The new replacement latch is supplied with an
alignment set screw located in the lower mounting
hole of the upper cargo door latch. If a new is latch is
being installed, use the following procedure:
(a) Verify alignment set screw is fully seated in
latch.
(b) Engage latch rod to latch.
(c) Position latch in cargo door with alignment
set screw located in the lower hole.
(d) Align bolt with reference mark.(e) Install upper bolt. Tighten bolt to 23 N´m (17
ft. lbs.) torque.
(f) Engage latch rod to shutface handle.
(g) Remove alignment set screw from lower hole.
(h) Align lower bolt with reference mark.
(i) Install bolt in lower hole. Tighten bolt to 23
N´m (17 ft. lbs.) torque.
CAUTION: When engaging upper latch release rod
to shutface handle, ensure the latch rod is pushed
all the way up before engaging into the shutface
handle.
(2) If the latch was not replaced and the existing
latch is to be installed:
(a) Engage latch rod to latch.
(b) Position upper latch and latch rod in cargo
door.
(c) Align bolts with reference marks.
(d) Install the bolts attaching upper latch to
cargo door (Fig. 10). Tighten the bolts to 23 N´m
(17 ft. lbs.) torque.
(e) Engage upper latch release rod to shutface
handle.
(3) Cycle the shutface handle and verify latch
operation.
(4) Install cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - INSTALLA-
TION).
Fig. 9 Cargo Door Lower Latch Installation Pin
1 - LATCH ROD RETAINING CLIP
2 - SLOT
3 - CARGO DOOR LOWER LATCH
4 - INSTALLATION PIN
5 - LATCH RELEASE LEVER
Fig. 10 Cargo Door Upper Latch
1 - CARGO DOOR
2 - UPPER CARGO DOOR LATCH
3 - UPPER LATCH TO HANDLE ROD
4 - ALIGNMENT SET SCREW
BR/BEDOOR - CARGO 23 - 81
LATCH - LOWER (Continued)

Page 2655 of 2889

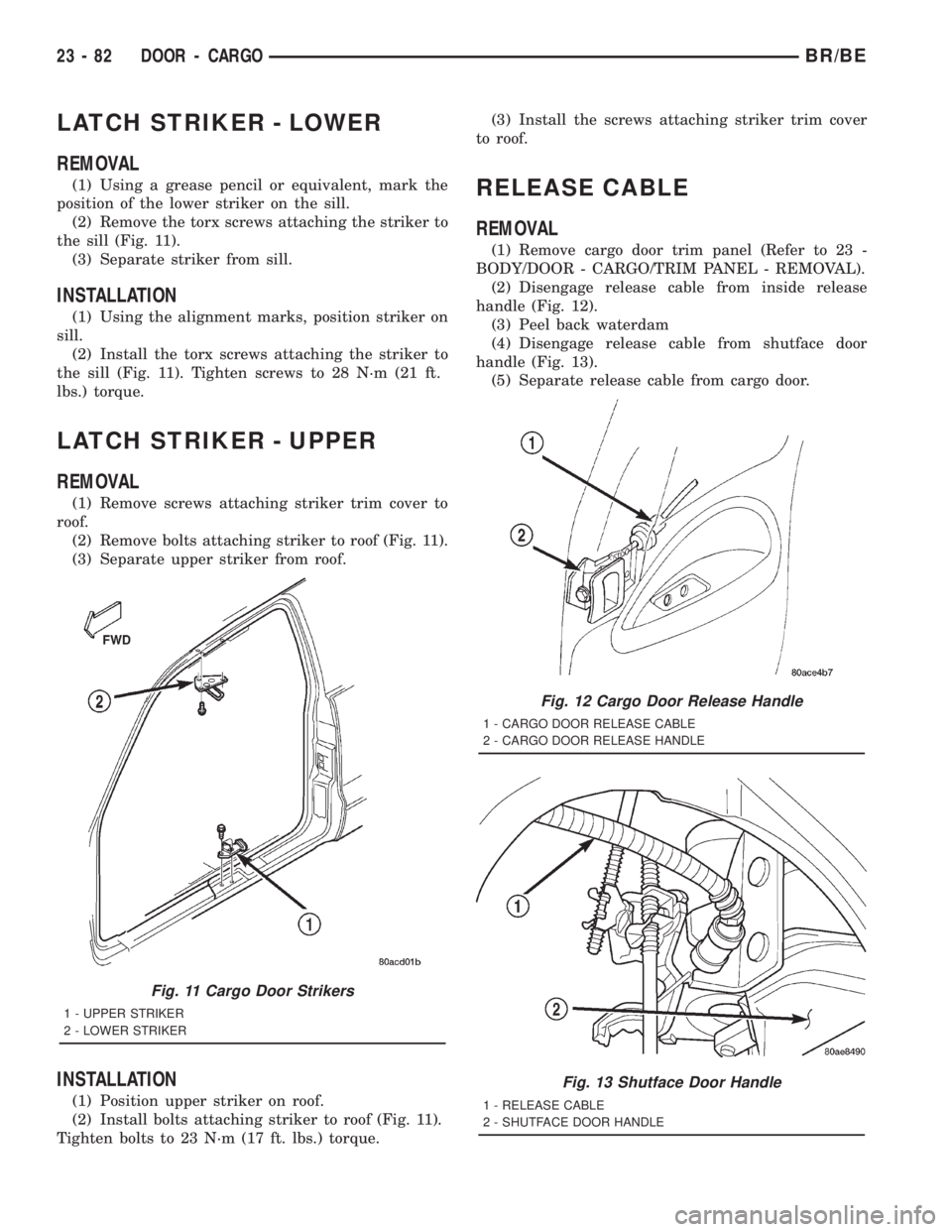

DODGE RAM 2001 Service Repair Manual LATCH STRIKER - LOWER
REMOVAL
(1) Using a grease pencil or equivalent, mark the
position of the lower striker on the sill.
(2) Remove the torx screws attaching the striker to
the sill (Fig. 11).
(3) S

Page 2656 of 2889

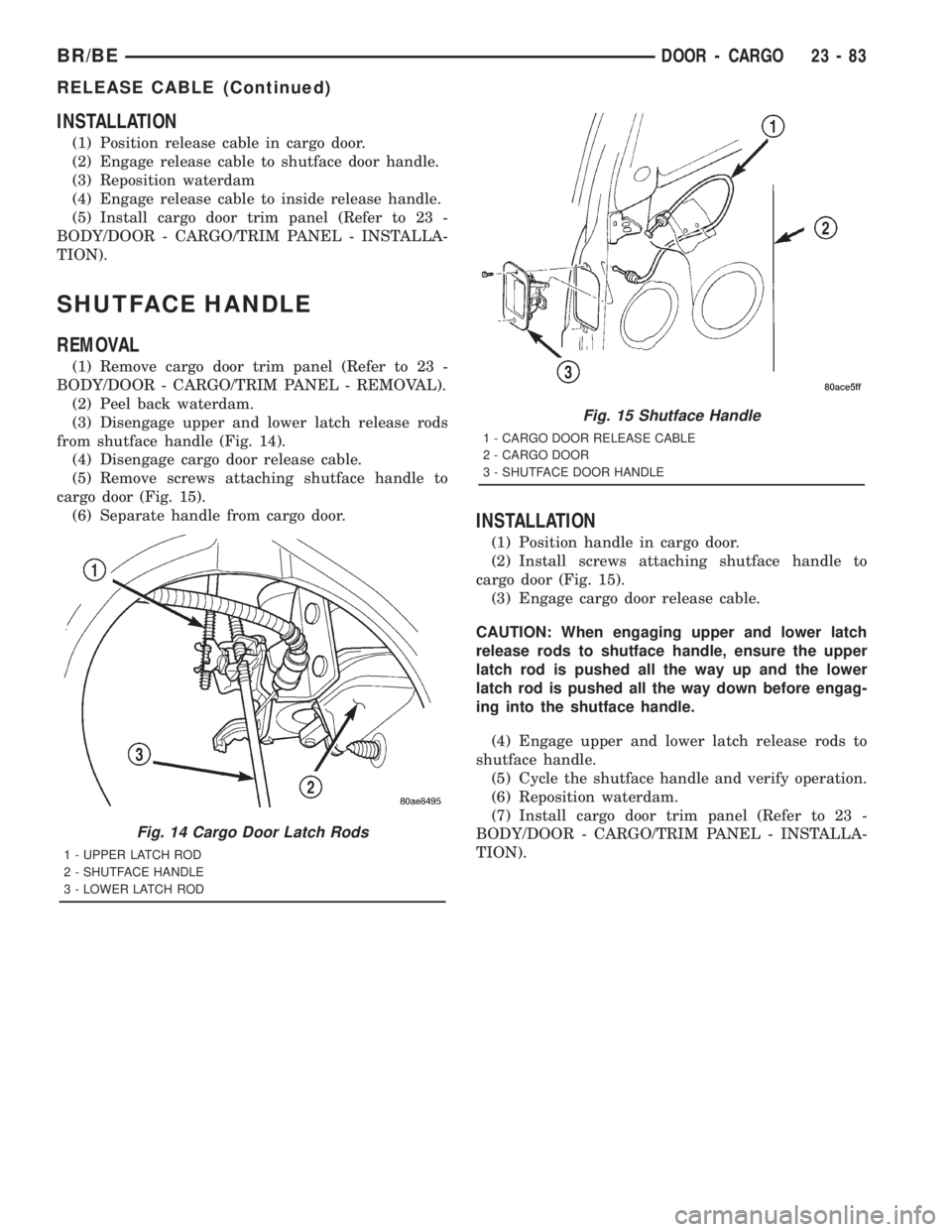

DODGE RAM 2001 Service Repair Manual INSTALLATION
(1) Position release cable in cargo door.
(2) Engage release cable to shutface door handle.
(3) Reposition waterdam
(4) Engage release cable to inside release handle.
(5) Install cargo do

Load next 8 pages

Page: < prev 1-10 ... 2617-2624 2625-2632 2633-2640 2641-2648 2649-2656 2657-2664 2665-2672 2673-2680 2681-2688 ... 2896 next >

oil filter change language rear entertainment battery language gas type
