DODGE RAM 2001 Service Repair Manual BODY OPENING DIMENSIONS
WINDSHIELD OPENING
DOOR OPENING Ð REGULAR CAB
BACKLITE OPENING
DOOR OPENING Ð QUAD CAB
23 - 60 BODYBR/BE
BODY (Continued)

Page 2634 of 2889

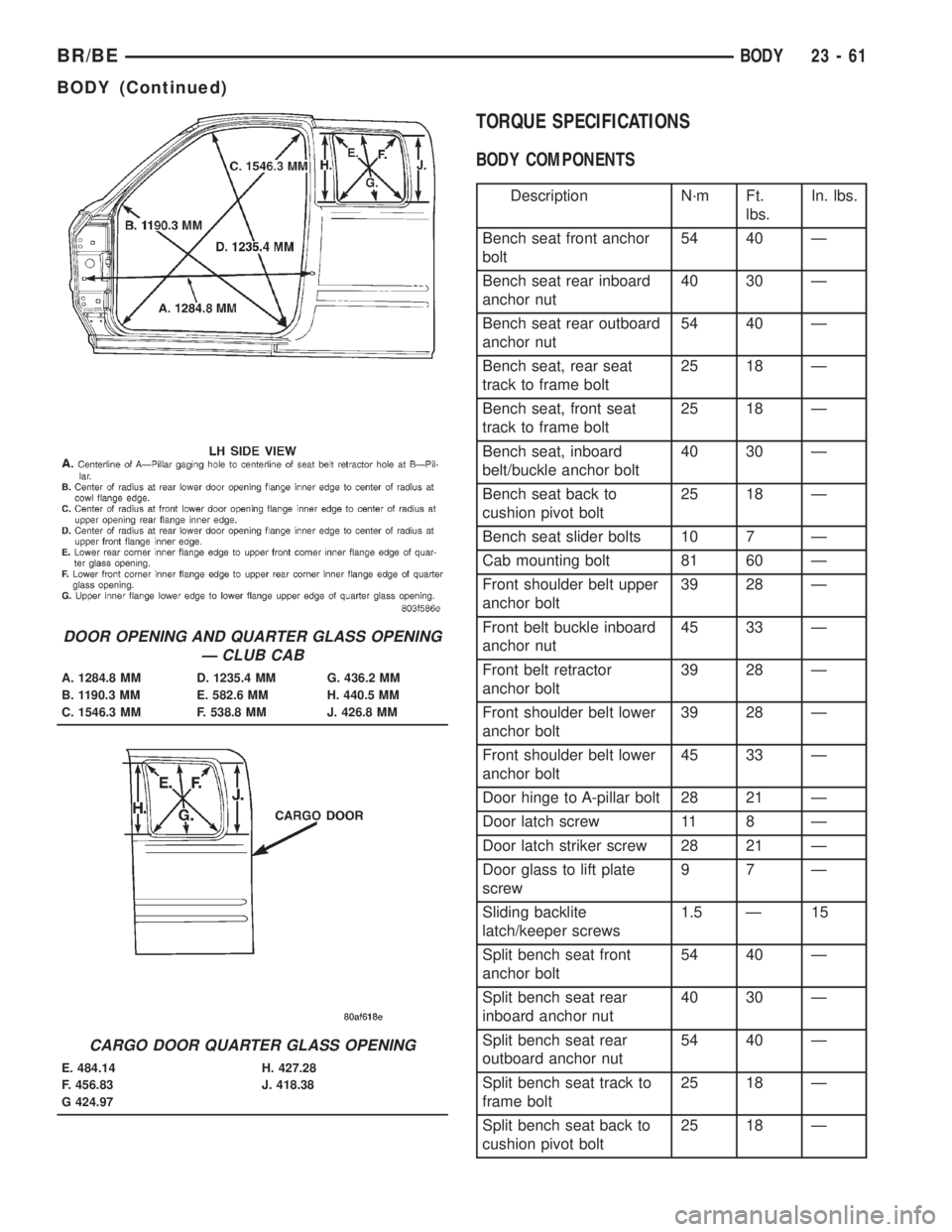

DODGE RAM 2001 Service Repair Manual TORQUE SPECIFICATIONS
BODY COMPONENTS
Description N´m Ft.
lbs.In. lbs.
Bench seat front anchor
bolt54 40 Ð
Bench seat rear inboard
anchor nut40 30 Ð
Bench seat rear outboard
anchor nut54 40 Ð
Benc

Page 2635 of 2889

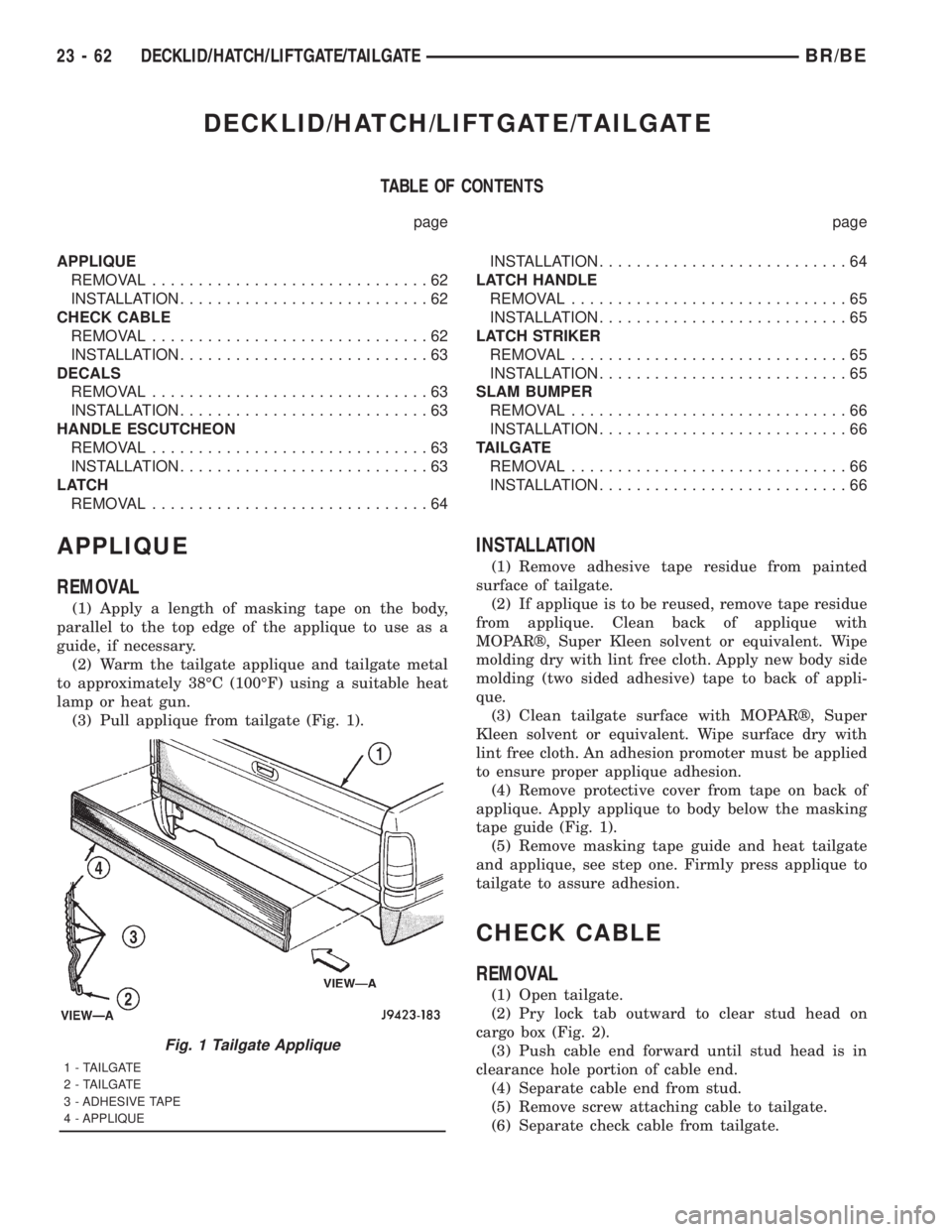

DODGE RAM 2001 Service Repair Manual DECKLID/HATCH/LIFTGATE/TAILGATE
TABLE OF CONTENTS
page page
APPLIQUE
REMOVAL..............................62
INSTALLATION...........................62
CHECK CABLE
REMOVAL..............................

DECKLID/HATCH/LIFTGATE/TAILGATE
TABLE OF CONTENTS
page page
APPLIQUE
REMOVAL..............................62
INSTALLATION...........................62
CHECK CABLE
REMOVAL..............................62
INSTALLATION...........................63
DECALS
REMOVAL..............................63
INSTALLATION...........................63

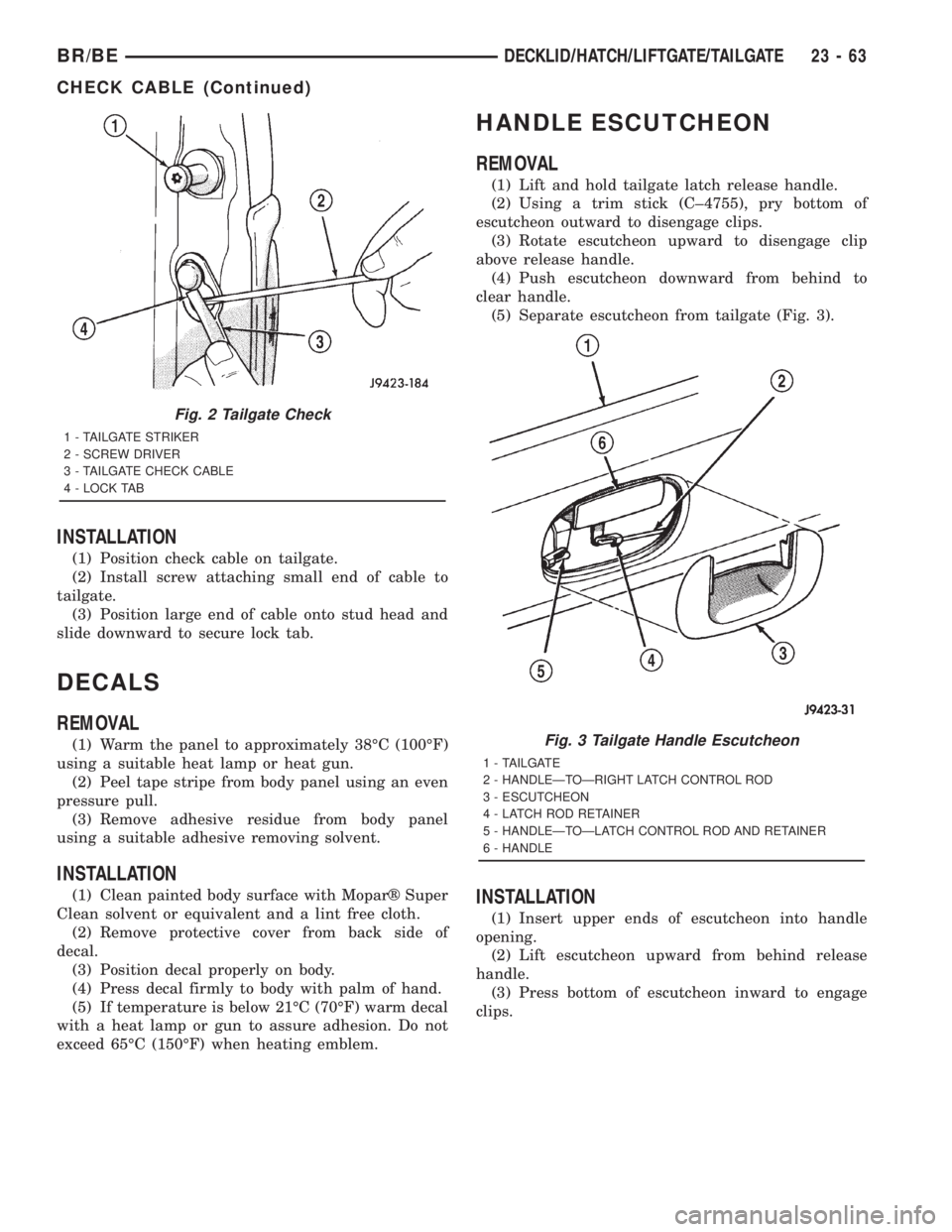

HANDLE ESCUTCHEON
REMOVAL..............................63
INSTALLATION...........................63
LATCH
REMOVAL..............................64INSTALLATION...........................64
LATCH HANDLE
REMOVAL..............................65
INSTALLATION...........................65
LATCH STRIKER
REMOVAL..............................65
INSTALLATION...........................65
SLAM BUMPER
REMOVAL..............................66
INSTALLATION...........................66
TAILGATE
REMOVAL..............................66
INSTALLATION...........................66
APPLIQUE
REMOVAL
(1) Apply a length of masking tape on the body,
parallel to the top edge of the applique to use as a
guide, if necessary.
(2) Warm the tailgate applique and tailgate metal
to approximately 38ÉC (100ÉF) using a suitable heat
lamp or heat gun.
(3) Pull applique from tailgate (Fig. 1).
INSTALLATION
(1) Remove adhesive tape residue from painted
surface of tailgate.
(2) If applique is to be reused, remove tape residue
from applique. Clean back of applique with
MOPARž, Super Kleen solvent or equivalent. Wipe
molding dry with lint free cloth. Apply new body side
molding (two sided adhesive) tape to back of appli-
que.
(3) Clean tailgate surface with MOPARž, Super
Kleen solvent or equivalent. Wipe surface dry with
lint free cloth. An adhesion promoter must be applied
to ensure proper applique adhesion.
(4) Remove protective cover from tape on back of
applique. Apply applique to body below the masking
tape guide (Fig. 1).
(5) Remove masking tape guide and heat tailgate
and applique, see step one. Firmly press applique to
tailgate to assure adhesion.
CHECK CABLE
REMOVAL
(1) Open tailgate.
(2) Pry lock tab outward to clear stud head on
cargo box (Fig. 2).
(3) Push cable end forward until stud head is in
clearance hole portion of cable end.
(4) Separate cable end from stud.
(5) Remove screw attaching cable to tailgate.
(6) Separate check cable from tailgate.
Fig. 1 Tailgate Applique
1 - TAILGATE
2 - TAILGATE
3 - ADHESIVE TAPE
4 - APPLIQUE
23 - 62 DECKLID/HATCH/LIFTGATE/TAILGATEBR/BE

Page 2636 of 2889

DODGE RAM 2001 Service Repair Manual INSTALLATION
(1) Position check cable on tailgate.
(2) Install screw attaching small end of cable to
tailgate.
(3) Position large end of cable onto stud head and
slide downward to secure lock tab.
DEC

Page 2637 of 2889

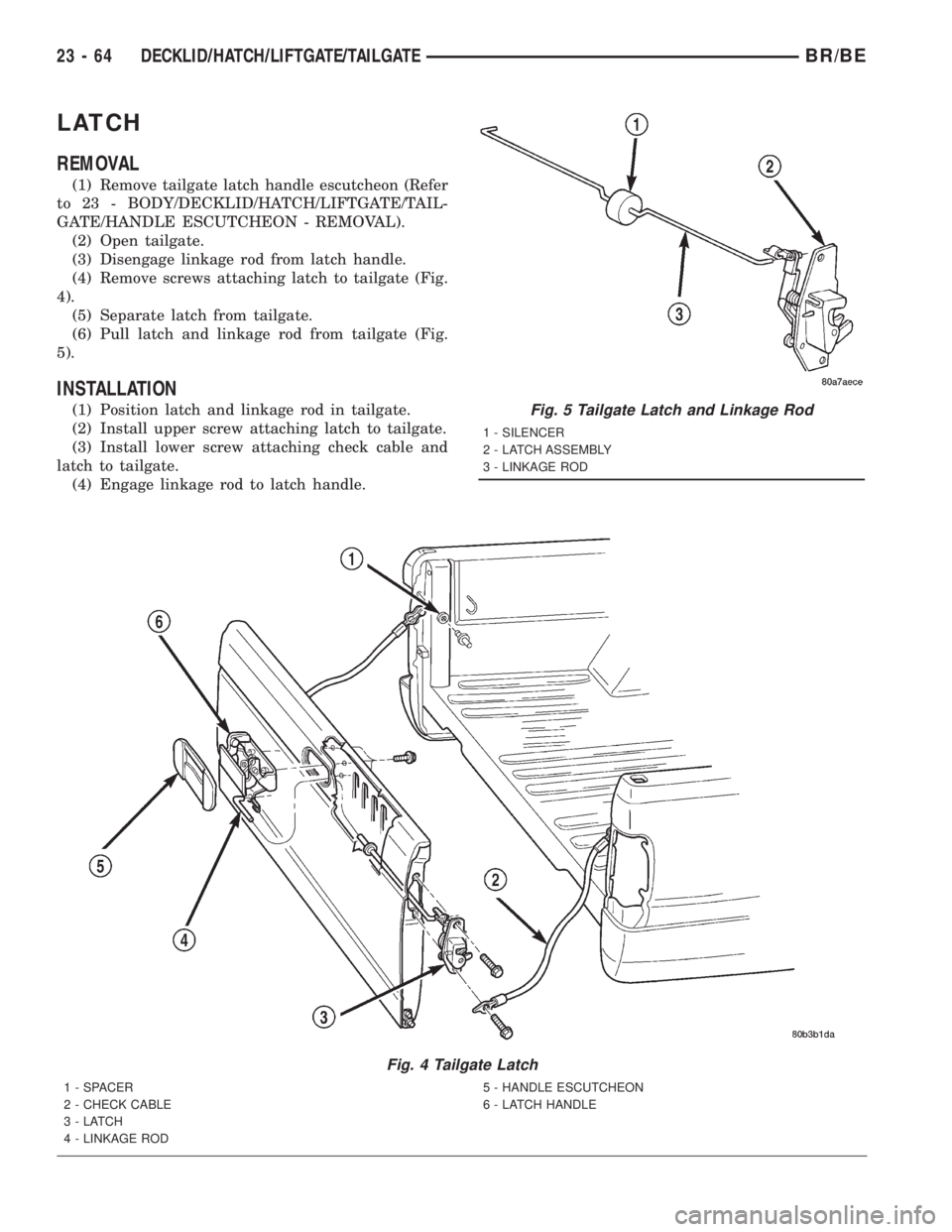

DODGE RAM 2001 Service Repair Manual LATCH
REMOVAL
(1) Remove tailgate latch handle escutcheon (Refer
to 23 - BODY/DECKLID/HATCH/LIFTGATE/TAIL-
GATE/HANDLE ESCUTCHEON - REMOVAL).
(2) Open tailgate.
(3) Disengage linkage rod from latch ha

Page 2638 of 2889

DODGE RAM 2001 Service Repair Manual (5) Install tailgate latch handle escutcheon (Refer
to 23 - BODY/DECKLID/HATCH/LIFTGATE/TAIL-
GATE/HANDLE ESCUTCHEON - INSTALLATION).

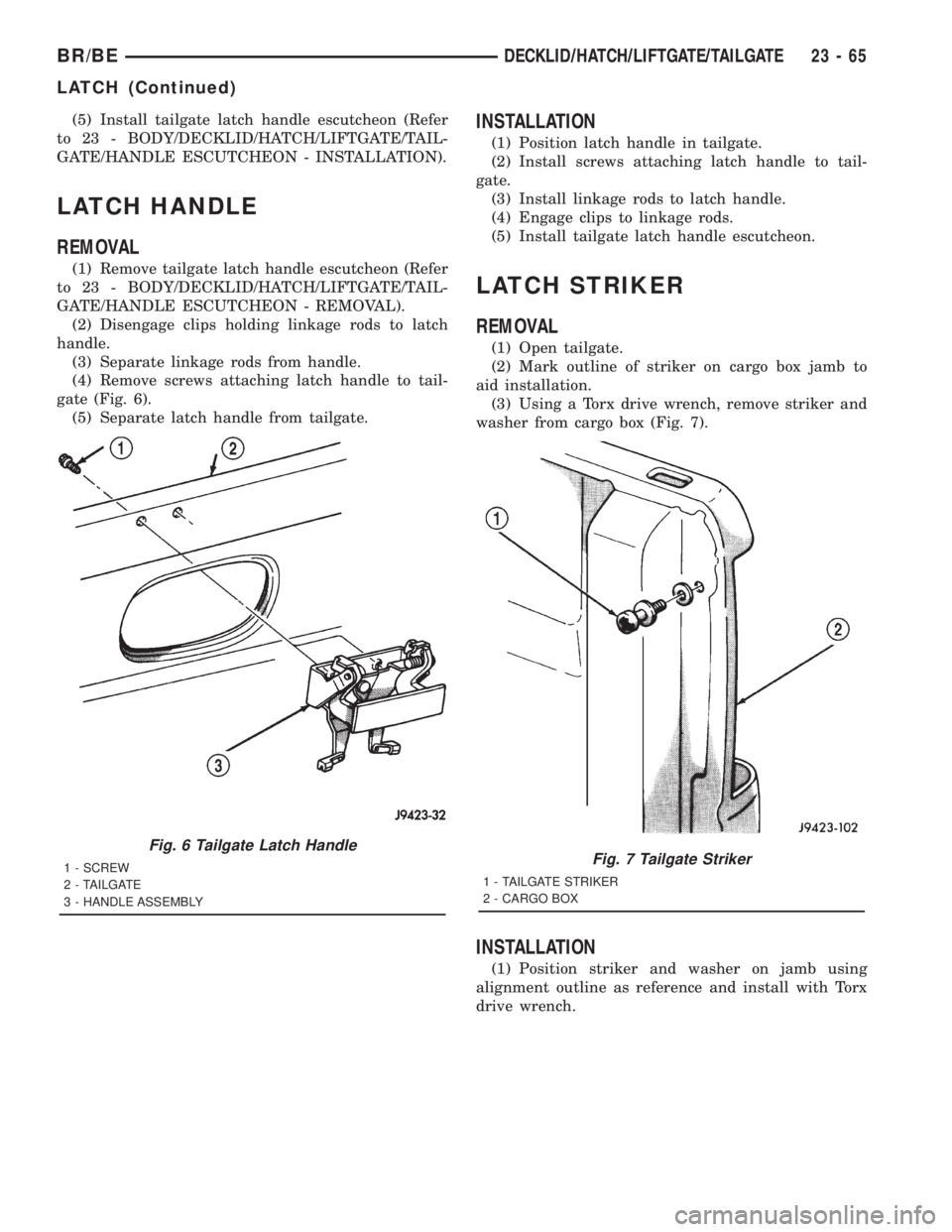

LATCH HANDLE
REMOVAL
(1) Remove tailgate latch handle escutcheon (

Page 2639 of 2889

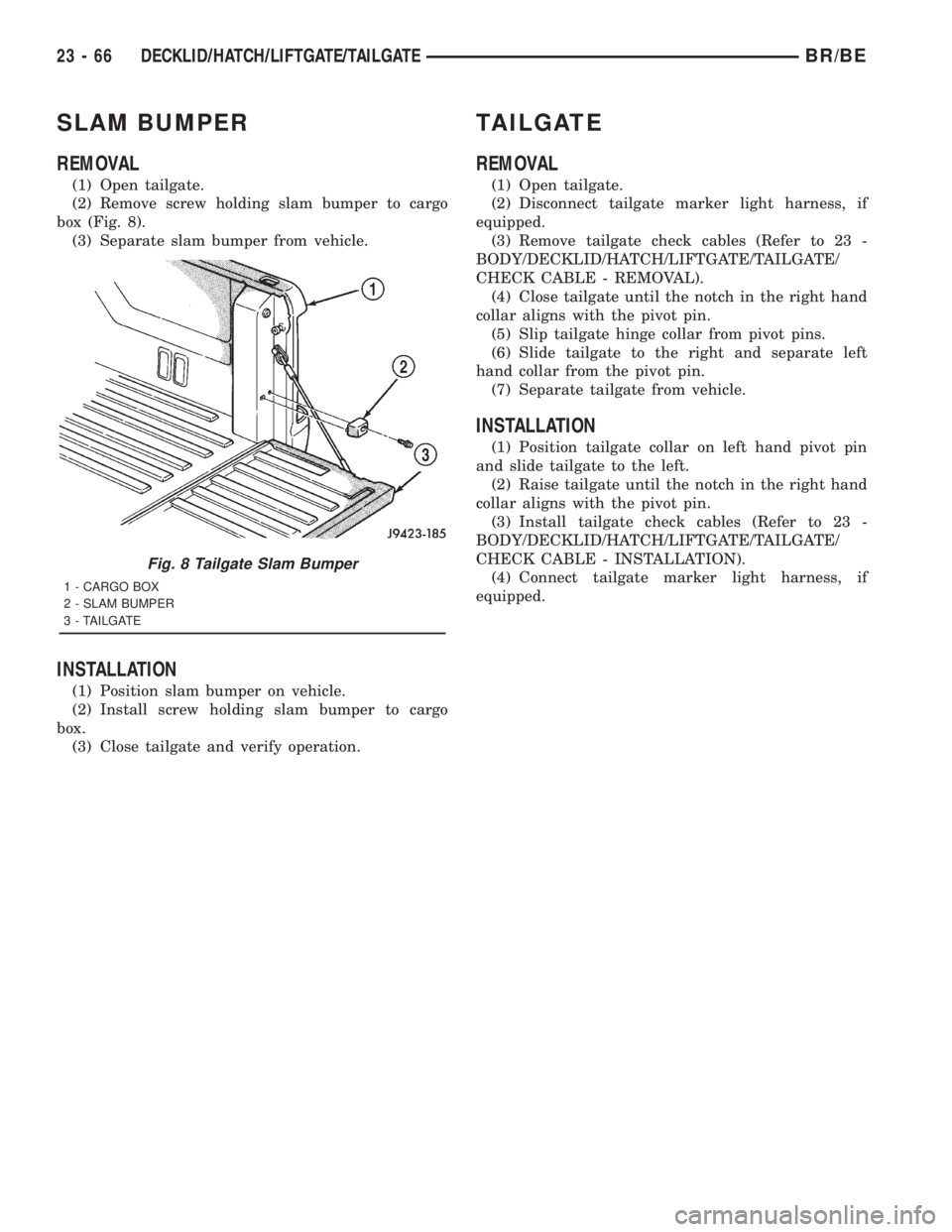

DODGE RAM 2001 Service Repair Manual SLAM BUMPER
REMOVAL
(1) Open tailgate.
(2) Remove screw holding slam bumper to cargo
box (Fig. 8).
(3) Separate slam bumper from vehicle.
INSTALLATION
(1) Position slam bumper on vehicle.
(2) Install

Page 2640 of 2889

DODGE RAM 2001 Service Repair Manual DOOR - FRONT
TABLE OF CONTENTS
page page
APPLIQUE
REMOVAL..............................67
INSTALLATION...........................67
DOOR
REMOVAL..............................68
INSTALLATION...........

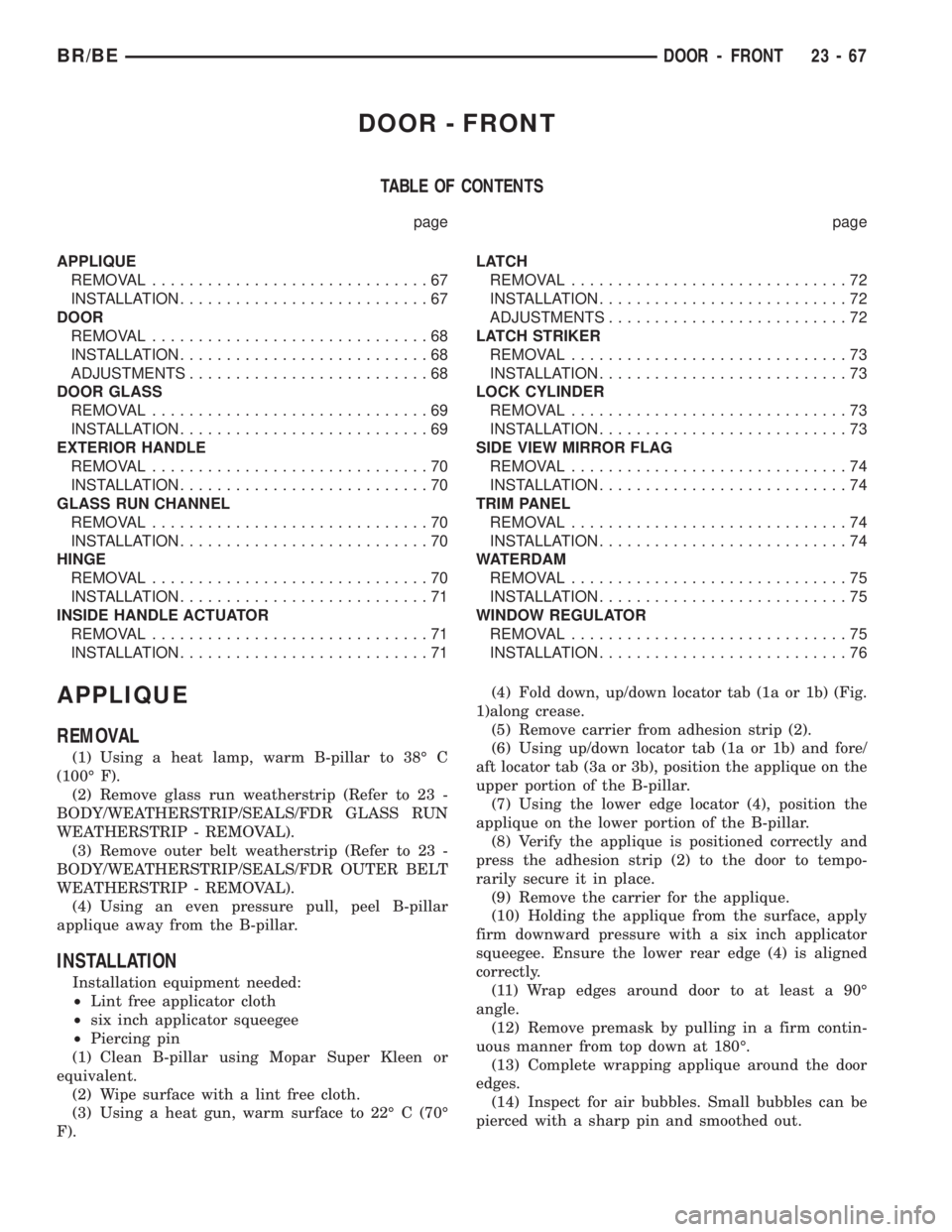

DOOR - FRONT
TABLE OF CONTENTS
page page
APPLIQUE
REMOVAL..............................67
INSTALLATION...........................67
DOOR
REMOVAL..............................68
INSTALLATION...........................68
ADJUSTMENTS..........................68
DOOR GLASS
REMOVAL..............................69
INSTALLATION...........................69
EXTERIOR HANDLE
REMOVAL..............................70
INSTALLATION...........................70
GLASS RUN CHANNEL
REMOVAL..............................70
INSTALLATION...........................70
HINGE
REMOVAL..............................70
INSTALLATION...........................71
INSIDE HANDLE ACTUATOR
REMOVAL..............................71
INSTALLATION...........................71LATCH
REMOVAL..............................72
INSTALLATION...........................72
ADJUSTMENTS..........................72
LATCH STRIKER
REMOVAL..............................73
INSTALLATION...........................73
LOCK CYLINDER
REMOVAL..............................73
INSTALLATION...........................73
SIDE VIEW MIRROR FLAG
REMOVAL..............................74
INSTALLATION...........................74
TRIM PANEL
REMOVAL..............................74
INSTALLATION...........................74
WATERDAM
REMOVAL..............................75
INSTALLATION...........................75
WINDOW REGULATOR
REMOVAL..............................75
INSTALLATION...........................76
APPLIQUE
REMOVAL
(1) Using a heat lamp, warm B-pillar to 38É C
(100É F).
(2) Remove glass run weatherstrip (Refer to 23 -
BODY/WEATHERSTRIP/SEALS/FDR GLASS RUN
WEATHERSTRIP - REMOVAL).
(3) Remove outer belt weatherstrip (Refer to 23 -
BODY/WEATHERSTRIP/SEALS/FDR OUTER BELT
WEATHERSTRIP - REMOVAL).
(4) Using an even pressure pull, peel B-pillar
applique away from the B-pillar.
INSTALLATION
Installation equipment needed:
²Lint free applicator cloth
²six inch applicator squeegee
²Piercing pin
(1) Clean B-pillar using Mopar Super Kleen or
equivalent.
(2) Wipe surface with a lint free cloth.
(3) Using a heat gun, warm surface to 22É C (70É
F).(4) Fold down, up/down locator tab (1a or 1b) (Fig.
1)along crease.
(5) Remove carrier from adhesion strip (2).
(6) Using up/down locator tab (1a or 1b) and fore/
aft locator tab (3a or 3b), position the applique on the
upper portion of the B-pillar.
(7) Using the lower edge locator (4), position the
applique on the lower portion of the B-pillar.
(8) Verify the applique is positioned correctly and
press the adhesion strip (2) to the door to tempo-
rarily secure it in place.
(9) Remove the carrier for the applique.
(10) Holding the applique from the surface, apply
firm downward pressure with a six inch applicator
squeegee. Ensure the lower rear edge (4) is aligned
correctly.
(11) Wrap edges around door to at least a 90É
angle.
(12) Remove premask by pulling in a firm contin-
uous manner from top down at 180É.
(13) Complete wrapping applique around the door
edges.
(14) Inspect for air bubbles. Small bubbles can be
pierced with a sharp pin and smoothed out.
BR/BEDOOR - FRONT 23 - 67
