2001 DODGE RAM Service Repair Manual

Page 1865 of 2889

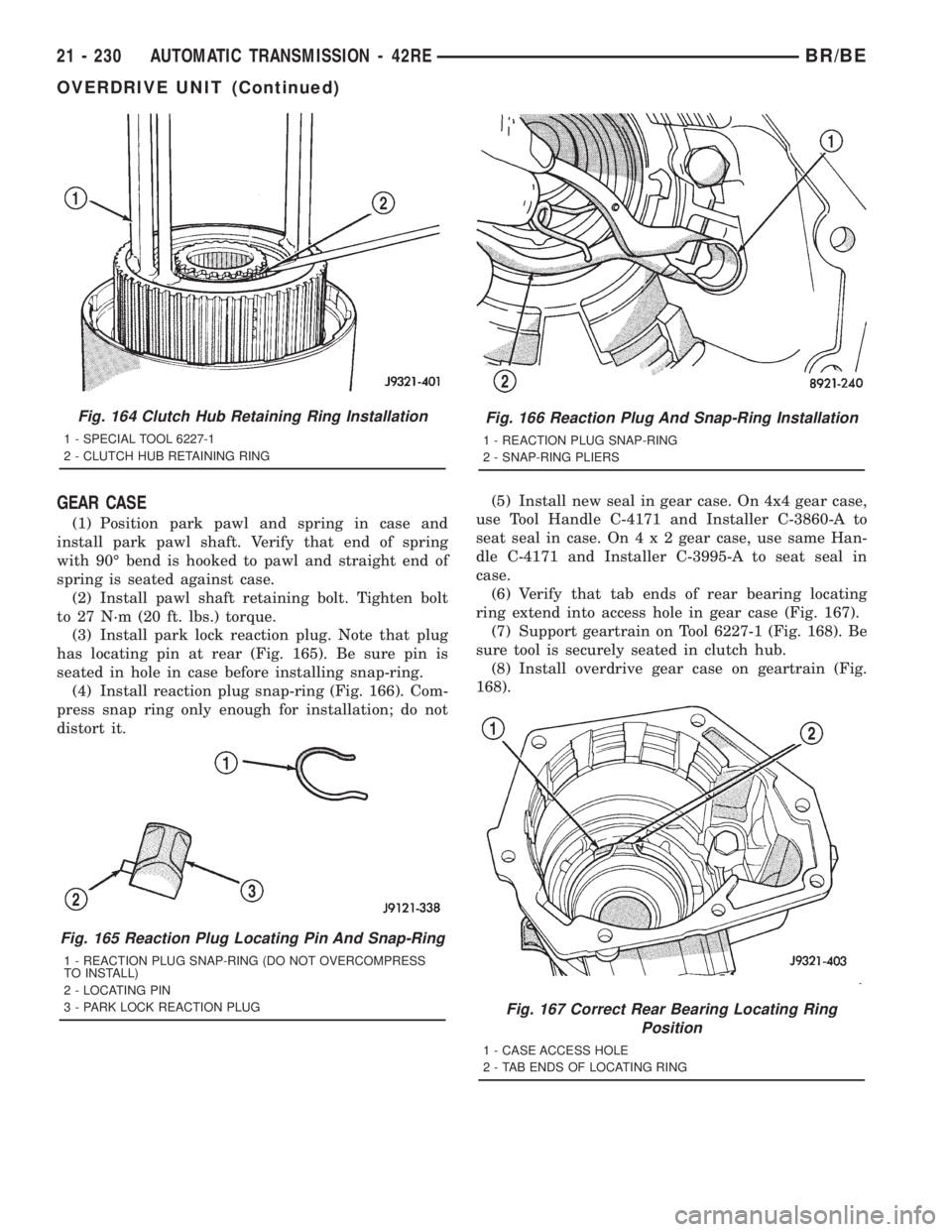

DODGE RAM 2001  Service Repair Manual GEAR CASE
(1) Position park pawl and spring in case and
install park pawl shaft. Verify that end of spring
with 90É bend is hooked to pawl and straight end of
spring is seated against case.
(2) Insta

Page 1866 of 2889

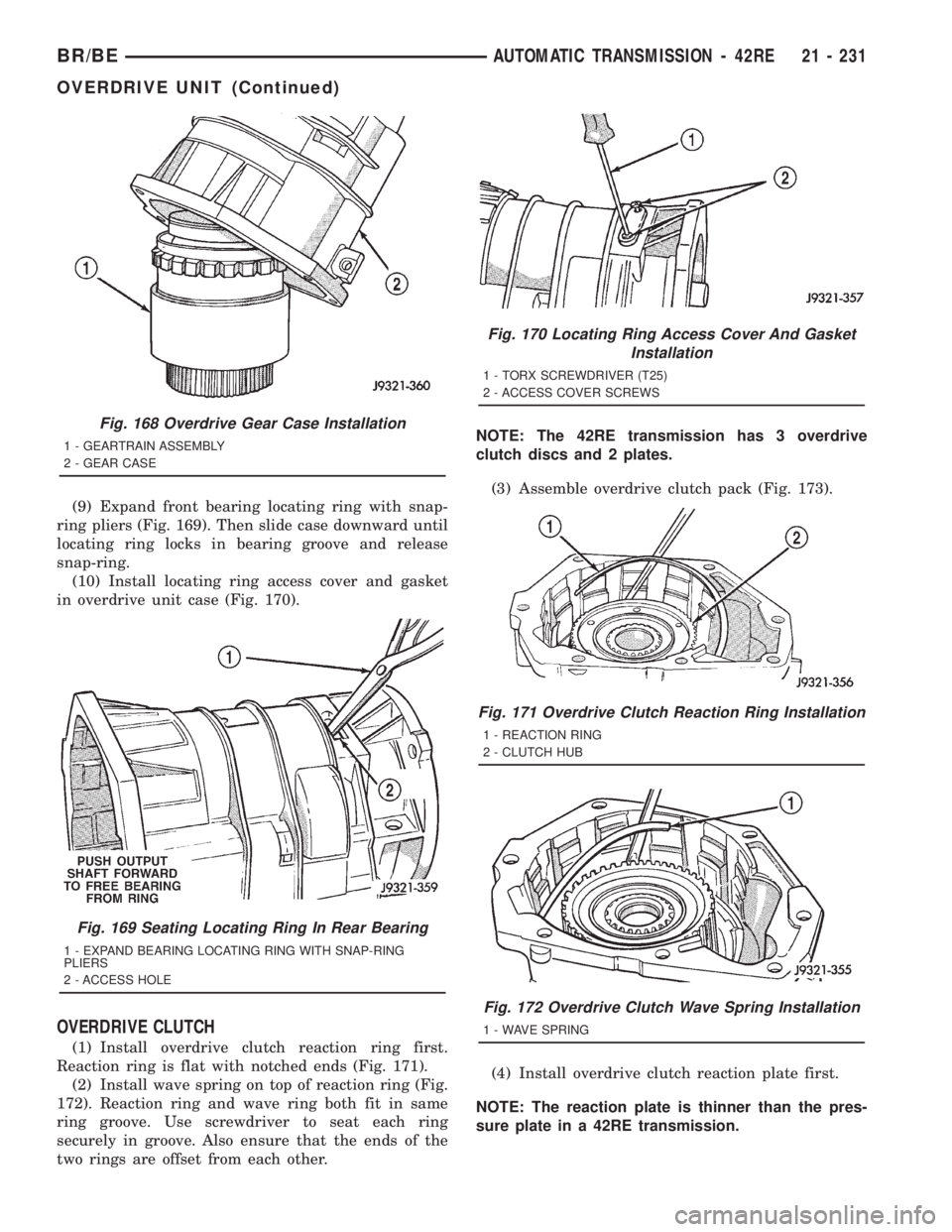

DODGE RAM 2001  Service Repair Manual (9) Expand front bearing locating ring with snap-
ring pliers (Fig. 169). Then slide case downward until
locating ring locks in bearing groove and release
snap-ring.
(10) Install locating ring access

Page 1867 of 2889

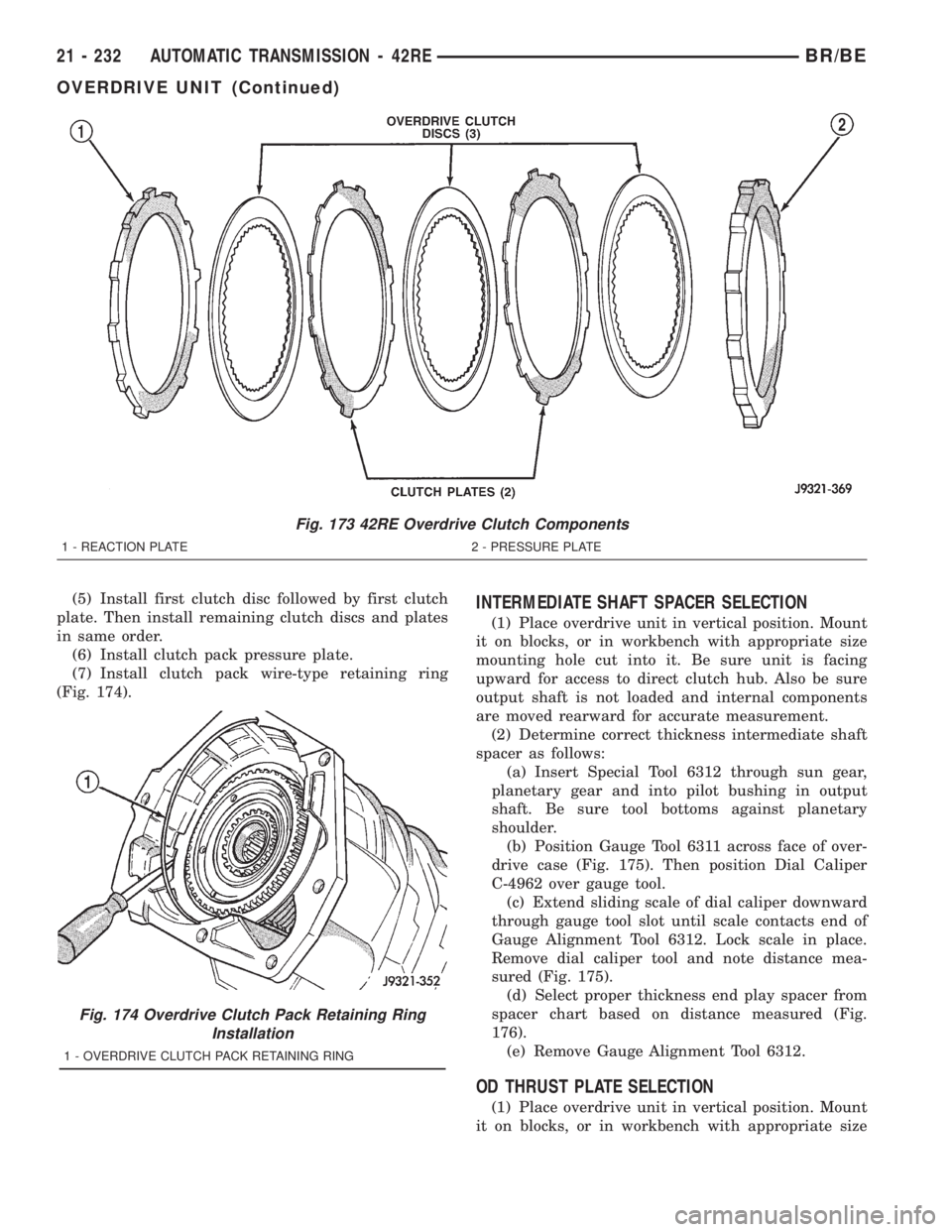

DODGE RAM 2001  Service Repair Manual (5) Install first clutch disc followed by first clutch
plate. Then install remaining clutch discs and plates
in same order.
(6) Install clutch pack pressure plate.
(7) Install clutch pack wire-type re

Page 1868 of 2889

DODGE RAM 2001  Service Repair Manual mounting hole cut into it. Be sure unit is facing
upward for access to direct clutch hub. Also be sure
output shaft is not loaded and internal components
are moved rearward for accurate measurement.
(

Page 1869 of 2889

DODGE RAM 2001  Service Repair Manual (d) Push overdrive piston into position in
retainer.
(e) Verify that the locating lugs entered the lug
bores in the retainer.
(6) Install intermediate shaft spacer on intermedi-
ate shaft.
(7) Install

Page 1870 of 2889

DODGE RAM 2001  Service Repair Manual OVERRUNNING CLUTCH
CAM/OVERDRIVE PISTON
RETAINER
DESCRIPTION
The overrunning clutch (Fig. 181) consists of an
inner race, an outer race (or cam), rollers and
springs, and the spring retainer. The numb

Page 1871 of 2889

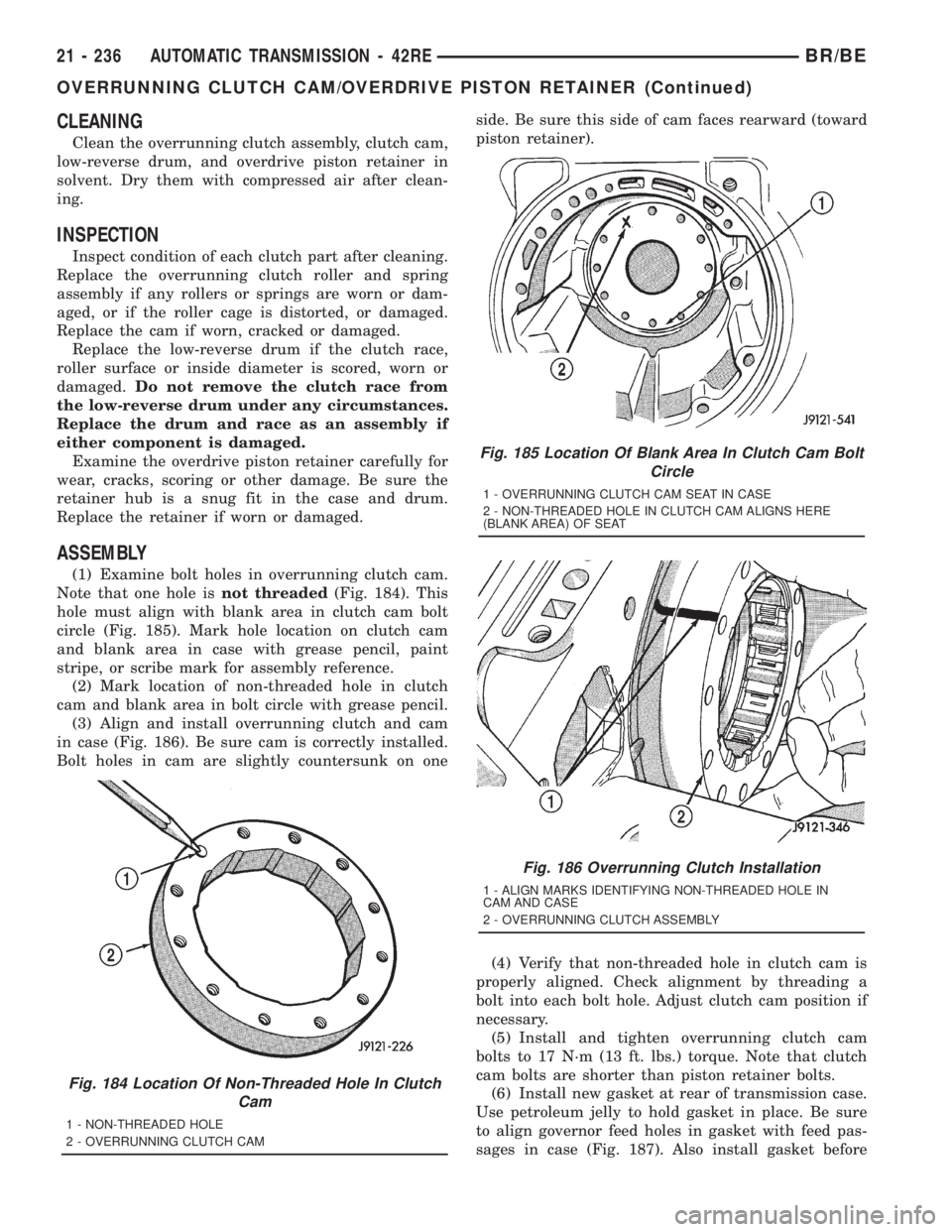

DODGE RAM 2001  Service Repair Manual CLEANING
Clean the overrunning clutch assembly, clutch cam,
low-reverse drum, and overdrive piston retainer in
solvent. Dry them with compressed air after clean-
ing.
INSPECTION
Inspect condition of e

Page 1872 of 2889

DODGE RAM 2001  Service Repair Manual overdrive piston retainer. Center hole in gasket is
smaller than retainer and cannot be installed over
retainer.
(7) Position overdrive piston retainer on transmis-
sion case and align bolt holes in r
