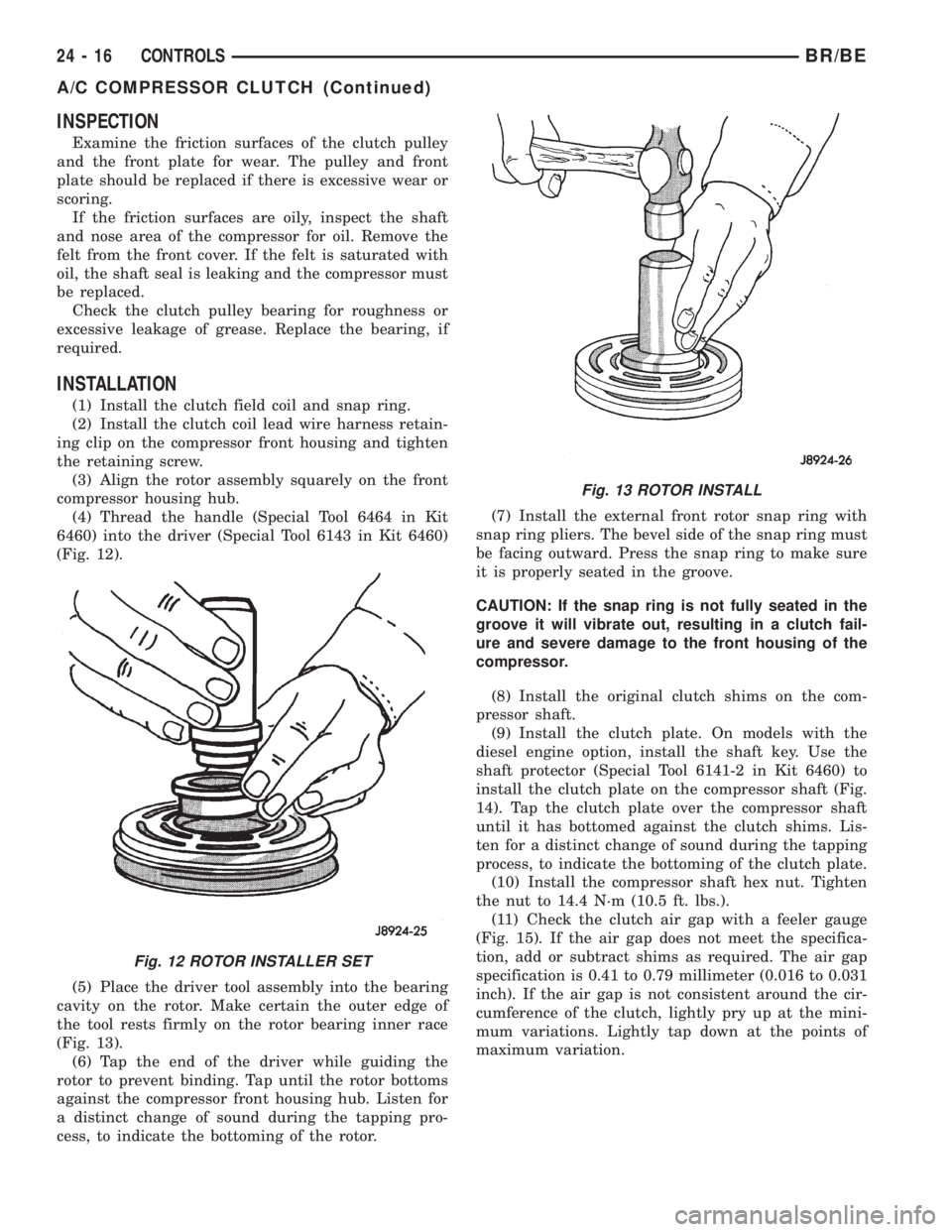

DODGE RAM 2001  Service Repair Manual INSPECTION
Examine the friction surfaces of the clutch pulley
and the front plate for wear. The pulley and front
plate should be replaced if there is excessive wear or
scoring.
If the friction surface

Page 2746 of 2889

DODGE RAM 2001  Service Repair Manual NOTE: The air gap is determined by the spacer
shims. When installing an original, or a new clutch
assembly, try the original shims first. When install-
ing a new clutch onto a compressor that previous

Page 2747 of 2889

DODGE RAM 2001  Service Repair Manual (1) The relay common feed terminal cavity (30) is
connected to fused battery feed. There should be bat-
tery voltage at the cavity for relay terminal 30 at all
times. If OK, go to Step 2. If not OK, r

Page 2748 of 2889

DODGE RAM 2001  Service Repair Manual tom of the a/c heater control panel. Refer to Heated
Mirrors for more information on this feature.
The heater-only or a/c heater control panel cannot
be repaired. If faulty or damaged, the entire unit

Page 2749 of 2889

DODGE RAM 2001  Service Repair Manual (5) Remove the four screws that secure the a/c
heater control to the instrument panel (Fig. 19).
(6) Pull the a/c heater control assembly away from
the instrument panel far enough to access the con-
n

Page 2750 of 2889

DODGE RAM 2001  Service Repair Manual REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Unplug the wire harness connector from the a/c
high pressure switch, which is mounted to a fitting
on the discharge line between the

Page 2751 of 2889

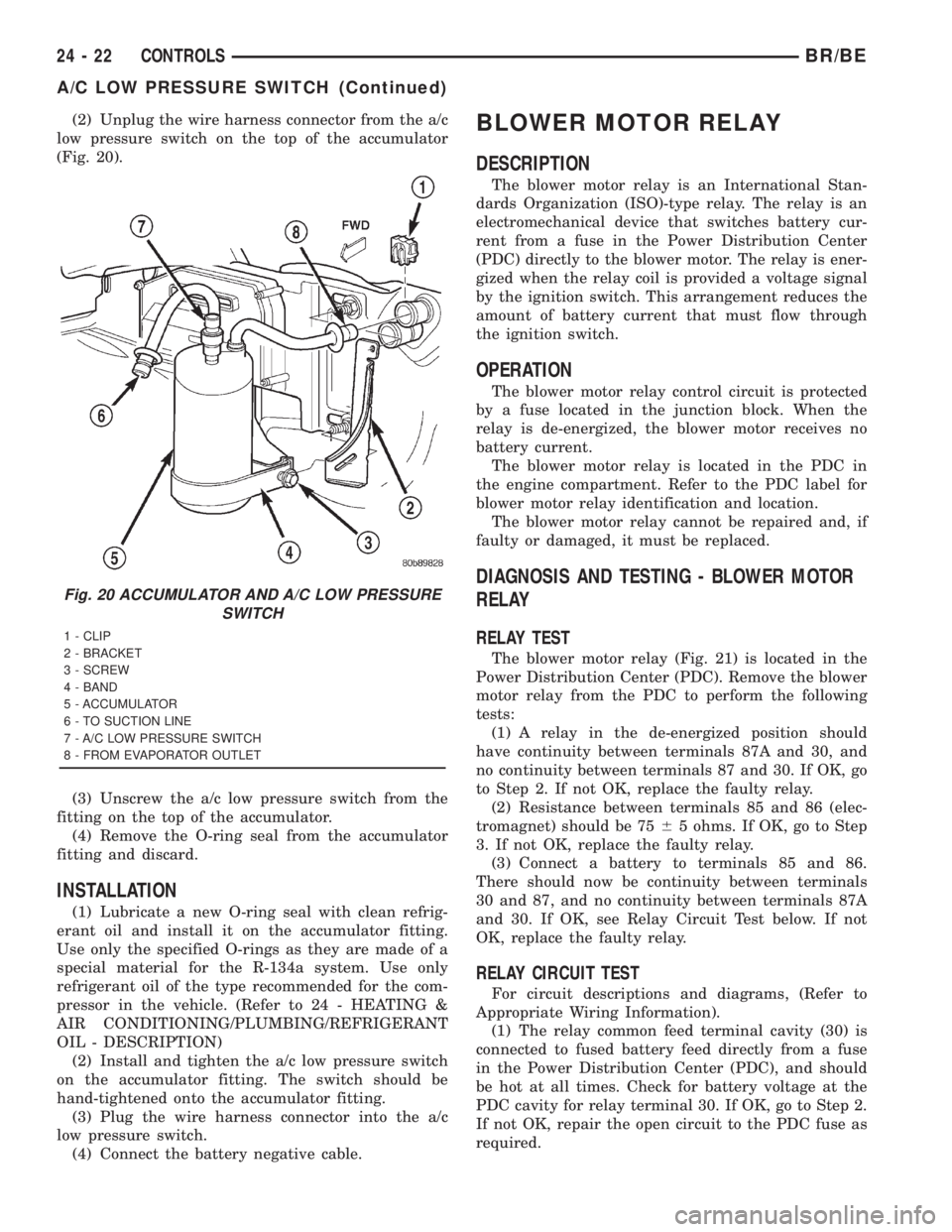

DODGE RAM 2001  Service Repair Manual (2) Unplug the wire harness connector from the a/c
low pressure switch on the top of the accumulator
(Fig. 20).
(3) Unscrew the a/c low pressure switch from the
fitting on the top of the accumulator.

Page 2752 of 2889

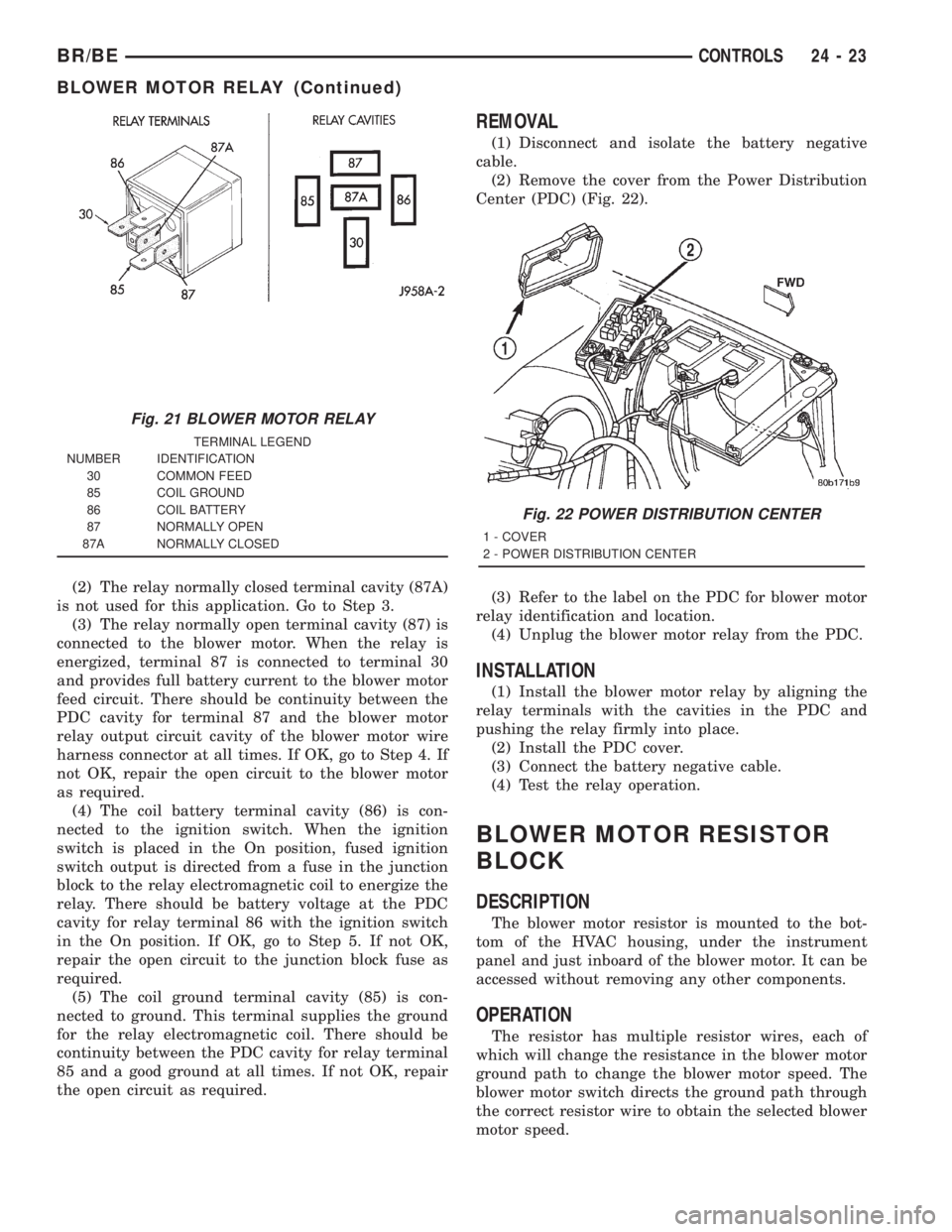

DODGE RAM 2001  Service Repair Manual (2) The relay normally closed terminal cavity (87A)
is not used for this application. Go to Step 3.
(3) The relay normally open terminal cavity (87) is
connected to the blower motor. When the relay is
