Page 1017 of 2889

DODGE RAM 2001 Service Repair Manual 4WD SWITCH - BLACK 2 CAV CIRCUIT FUNCTION 1 G107 18BK/GY 4WD SWITCH SENSE 2 Z1 18BK GROUND A/C COMPRESSOR CLUTCH - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 C3 18DB/BK A/C COMPRESSOR CLUTCH RELAY OUTPUT 2 Z1

Page 1018 of 2889

DODGE RAM 2001 Service Repair Manual A/C LOW PRESSURE SWITCH-2WAY CAV CIRCUIT FUNCTION 1 C20 18BR A/C SWITCH SENSE 2 C22 18DB A/C SWITCH SENSE ACCELERATOR PEDAL POSITION SENSOR (DIESEL)-6WAY CAV CIRCUIT FUNCTION 1 K104 18BK/LB SENSOR GRO

Page 1019 of 2889

DODGE RAM 2001 Service Repair Manual AMBIENT TEMPERATURE SENSOR-2WAY CAV CIRCUIT FUNCTION 1 G31 20VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL 2 G32 20BK/VT SENSOR GROUND ASH RECEIVER LAMP - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 E2 22OR FUSED PA

Page 1020 of 2889

DODGE RAM 2001 Service Repair Manual BLOWER MOTOR-2WAY CAV CIRCUIT FUNCTION 1 C1 12DG BLOWER MOTOR FEED 2 C7 12BK/TN HIGH SPEED BLOWER MOTOR BLOWER MOTOR RESISTOR BLOCK - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 C7 12BK/TN HIGH SPEED BLOWER MO

Page 1021 of 2889

DODGE RAM 2001 Service Repair Manual C105 - (HEADLAMP AND DASH SIDE) CAV CIRCUIT 1 L34 20RD/OR 2 L39 20LB C106 - BLACK (HEADLAMP AND DASH SIDE) CAV CIRCUIT 1 G107 20GY 2 Z1 20BK C106 - BLACK (4X4 INDICATOR SIDE) CAV CIRCUIT 1 G107 18BK/G

Page 1022 of 2889

DODGE RAM 2001 Service Repair Manual C125 (DIESEL) - (ENGINE SIDE) CAV CIRCUIT 1 F18 18LG/BK 2 G113 18OR 3 A14 12RD/WT 4 C3 18DB/BK 5 C90 18LG/WT 6 K22 18OR/DB 7 A40 14RD/LG 8 K131 18BR/WT 9 A93 12RD/BK 10 K104 18BK/LB 11 G7 18WT/OR C126

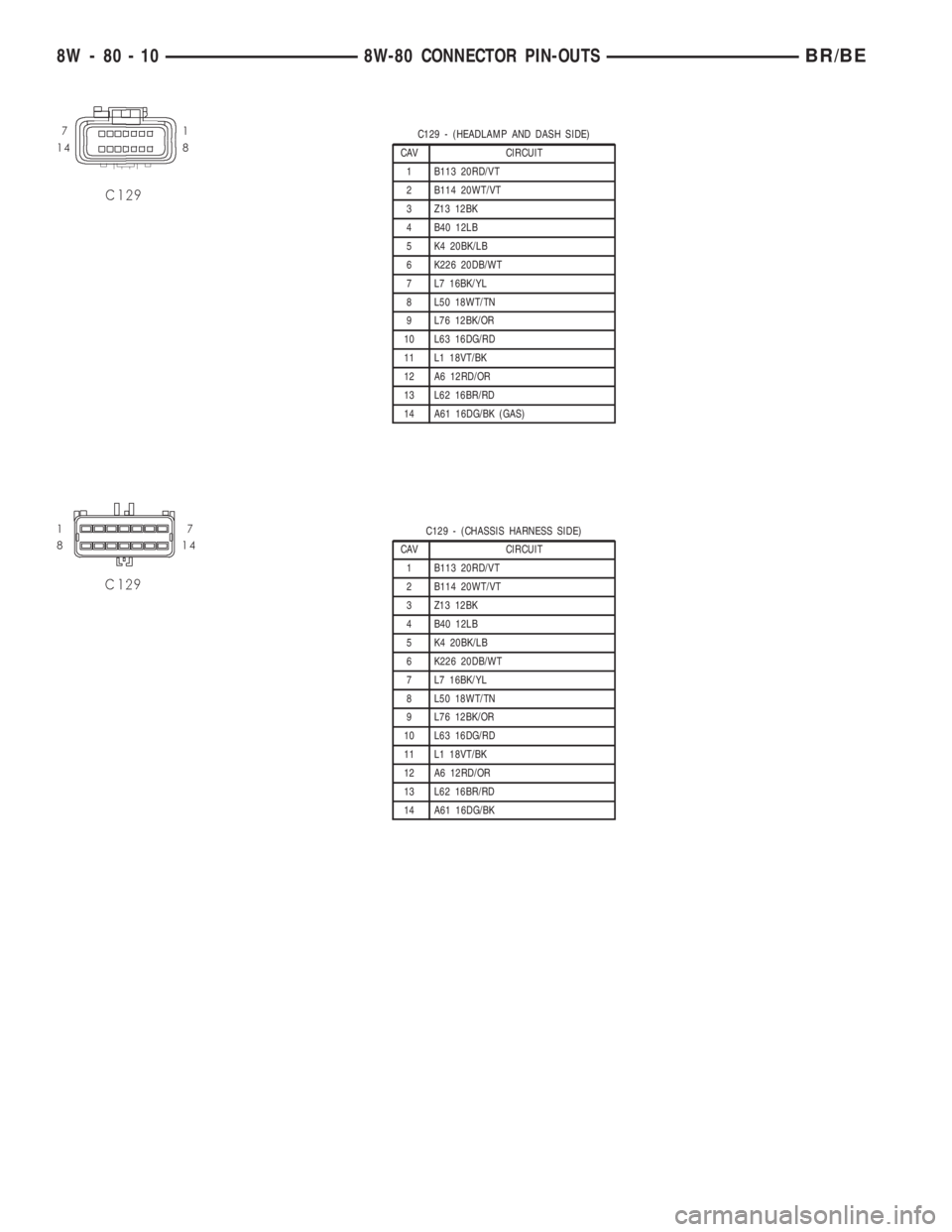

Page 1023 of 2889

DODGE RAM 2001 Service Repair Manual C129 - (HEADLAMP AND DASH SIDE) CAV CIRCUIT 1 B113 20RD/VT 2 B114 20WT/VT 3 Z13 12BK 4 B40 12LB 5 K4 20BK/LB 6 K226 20DB/WT 7 L7 16BK/YL 8 L50 18WT/TN 9 L76 12BK/OR 10 L63 16DG/RD 11 L1 18VT/BK 12 A6

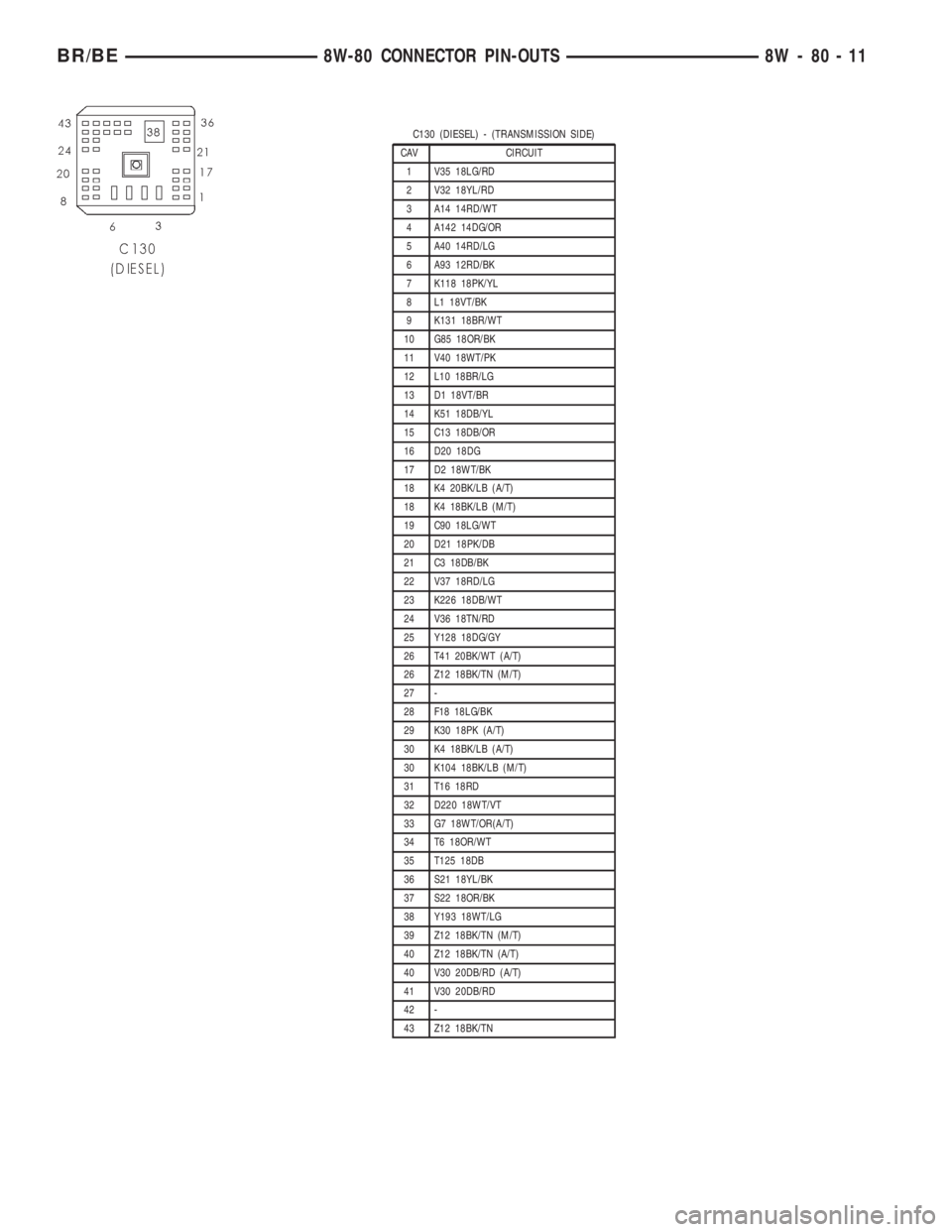

Page 1024 of 2889

DODGE RAM 2001 Service Repair Manual C130 (DIESEL) - (TRANSMISSION SIDE) CAV CIRCUIT 1 V35 18LG/RD 2 V32 18YL/RD 3 A14 14RD/WT 4 A142 14DG/OR 5 A40 14RD/LG 6 A93 12RD/BK 7 K118 18PK/YL 8 L1 18VT/BK 9 K131 18BR/WT 10 G85 18OR/BK 11 V40 18
