DODGE RAM 2001  Service Repair Manual (18) Remove front and rear clutch assemblies as a
unit (Fig. 28).
(19) Remove front band reaction pin and lever.
Start pin through lever and out of case bore with
drift or punch. Then use pencil magne

Page 2314 of 2889

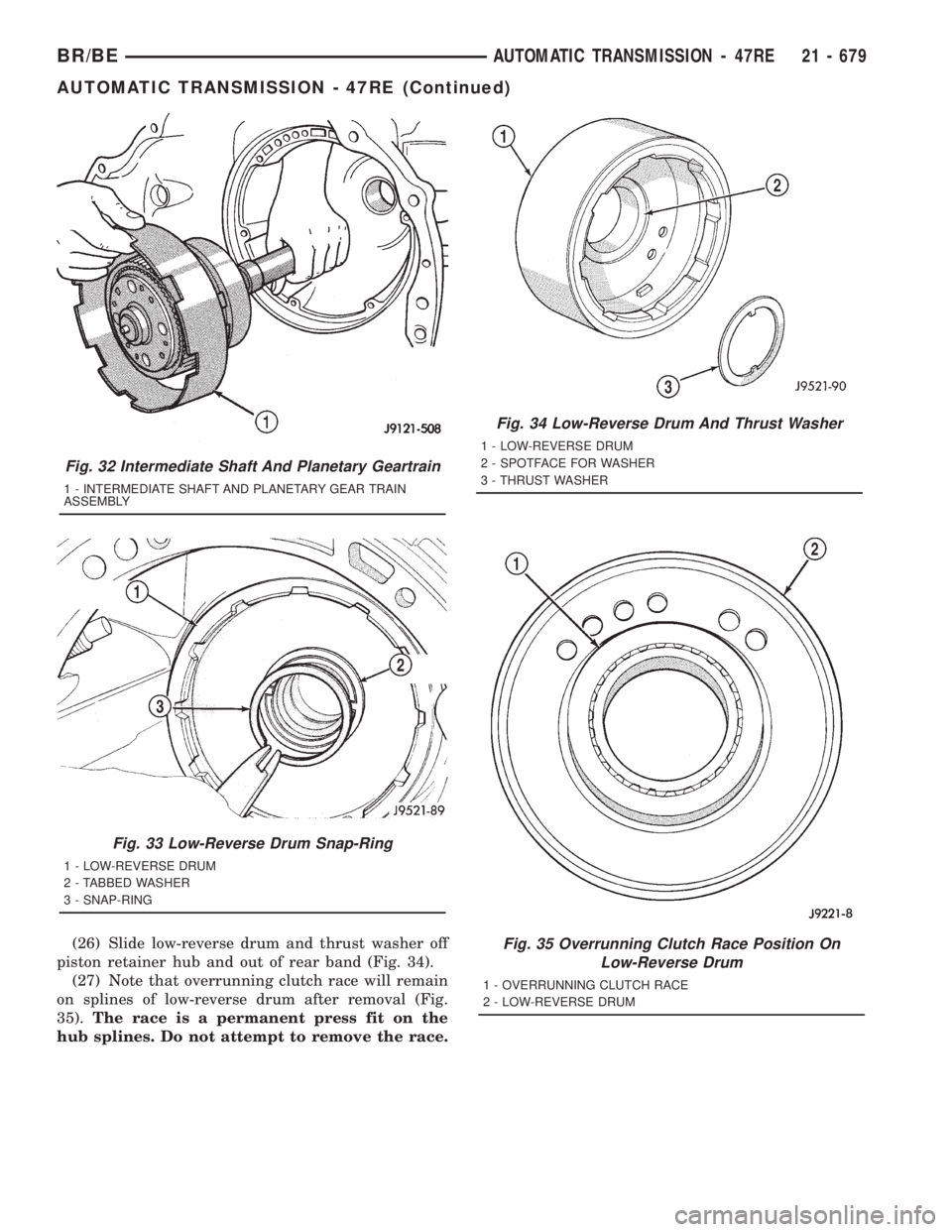

DODGE RAM 2001  Service Repair Manual (26) Slide low-reverse drum and thrust washer off
piston retainer hub and out of rear band (Fig. 34).
(27) Note that overrunning clutch race will remain
on splines of low-reverse drum after removal (F

Page 2315 of 2889

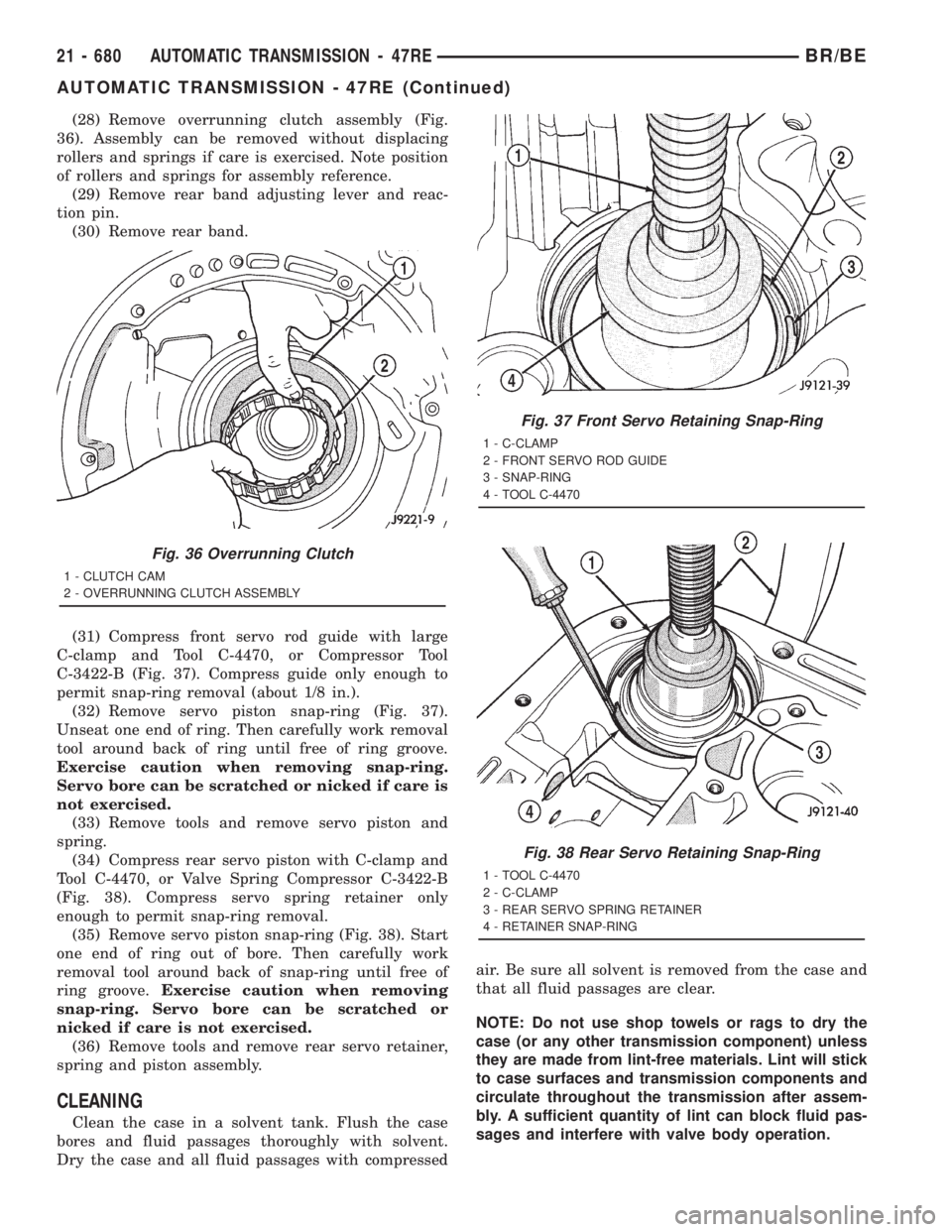

DODGE RAM 2001  Service Repair Manual (28) Remove overrunning clutch assembly (Fig.
36). Assembly can be removed without displacing
rollers and springs if care is exercised. Note position
of rollers and springs for assembly reference.
(29

Page 2316 of 2889

DODGE RAM 2001  Service Repair Manual Lubricate transmission parts with MopartATF +4,
type 9602, transmission fluid during overhaul and
assembly. Use petroleum jelly, MopartDoor Ease, or
Ru-GlydeŸ to prelubricate seals, O-rings, and thru

Page 2317 of 2889

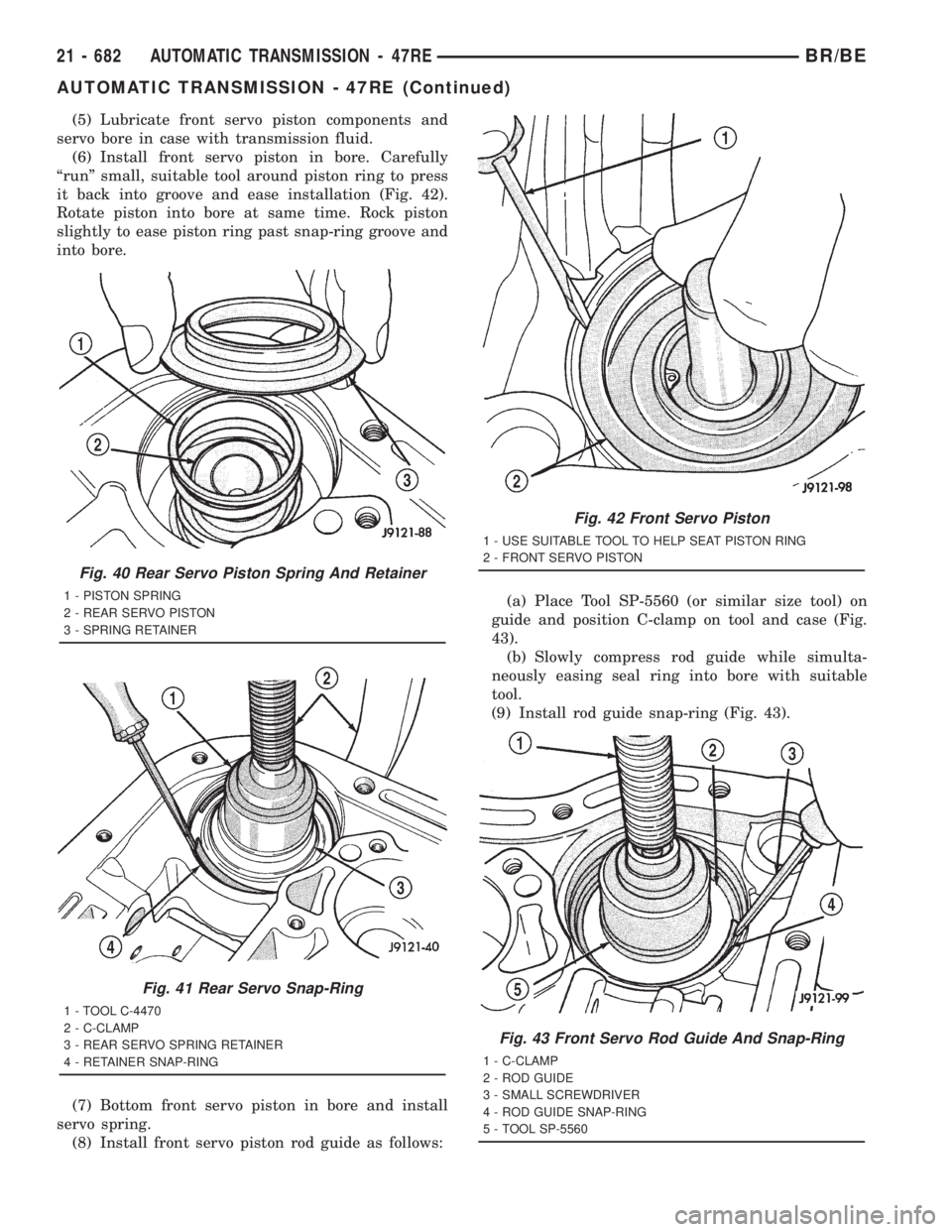

DODGE RAM 2001  Service Repair Manual (5) Lubricate front servo piston components and
servo bore in case with transmission fluid.
(6) Install front servo piston in bore. Carefully
ªrunº small, suitable tool around piston ring to press
i

Page 2318 of 2889

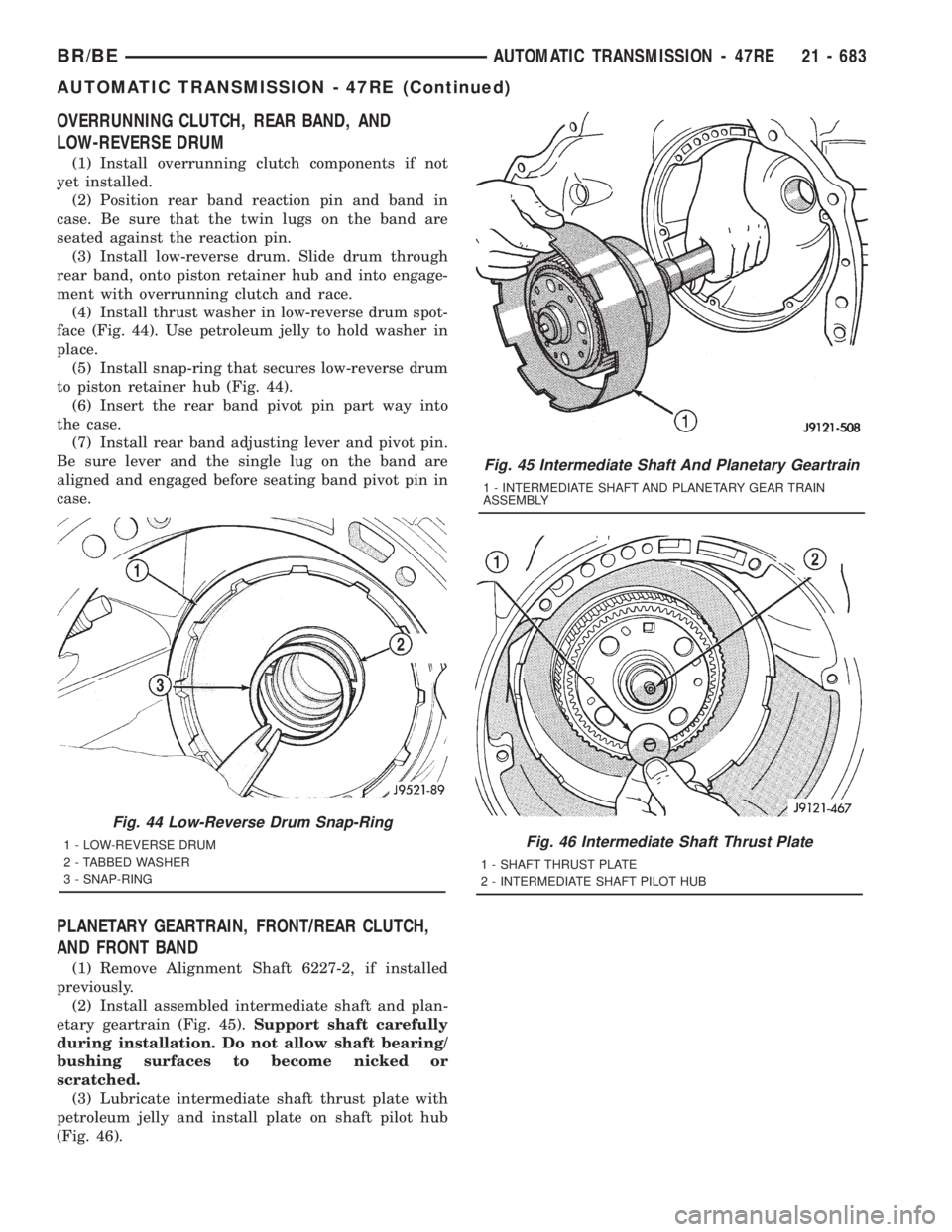

DODGE RAM 2001  Service Repair Manual OVERRUNNING CLUTCH, REAR BAND, AND
LOW-REVERSE DRUM
(1) Install overrunning clutch components if not
yet installed.
(2) Position rear band reaction pin and band in
case. Be sure that the twin lugs on

Page 2319 of 2889

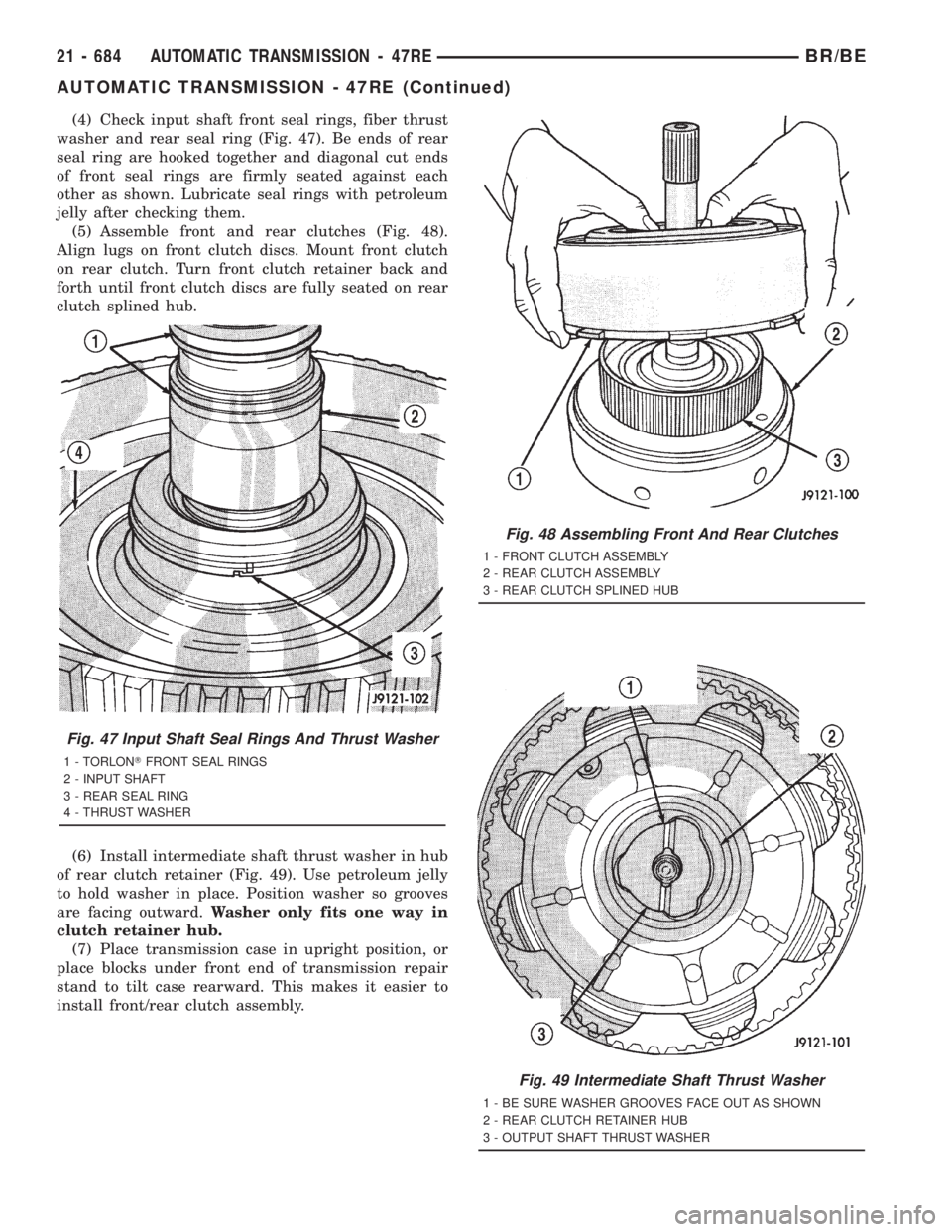

DODGE RAM 2001  Service Repair Manual (4) Check input shaft front seal rings, fiber thrust
washer and rear seal ring (Fig. 47). Be ends of rear
seal ring are hooked together and diagonal cut ends
of front seal rings are firmly seated agai

Page 2320 of 2889

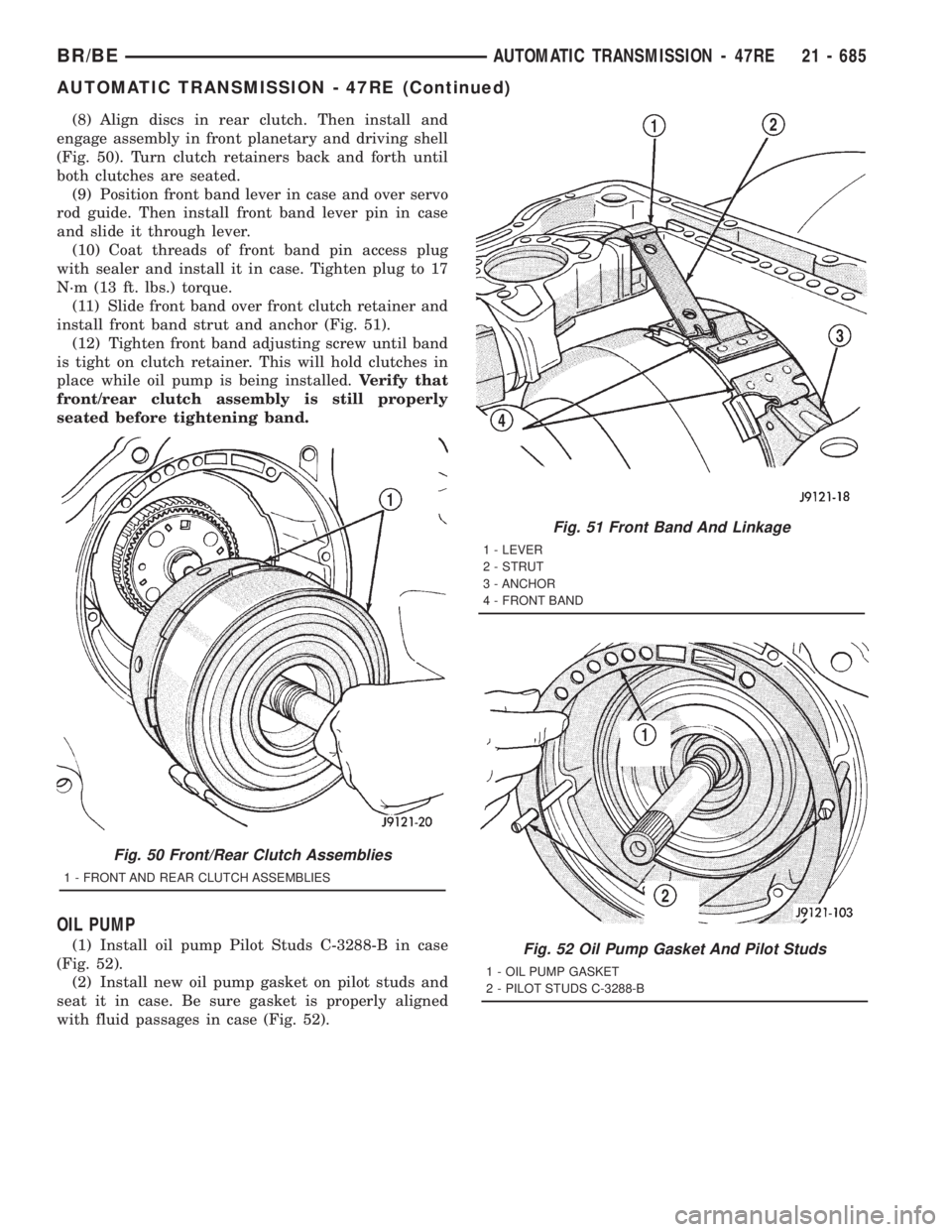

DODGE RAM 2001  Service Repair Manual (8) Align discs in rear clutch. Then install and
engage assembly in front planetary and driving shell
(Fig. 50). Turn clutch retainers back and forth until
both clutches are seated.
(9) Position front
