Page 1049 of 2889

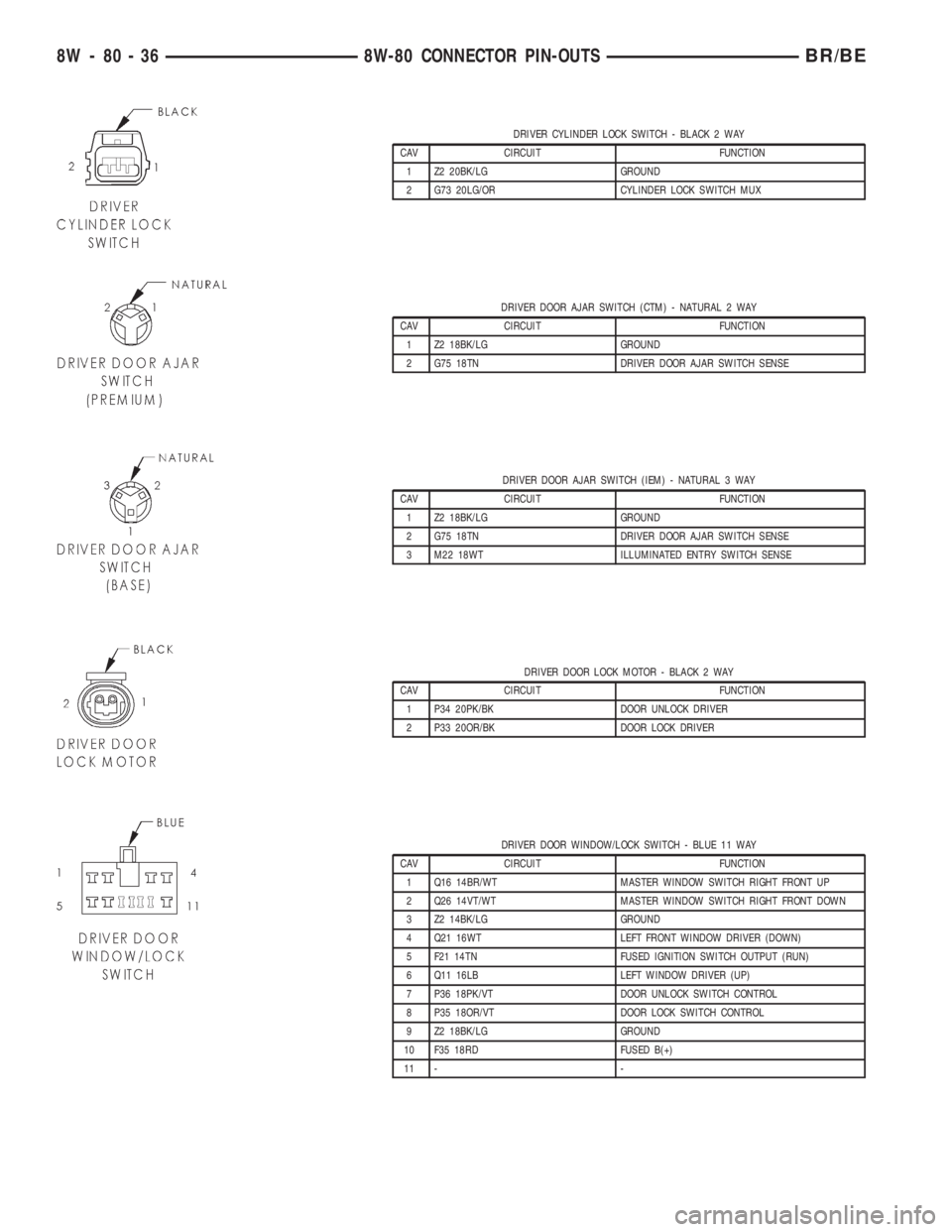

DODGE RAM 2001 Service Repair Manual DRIVER CYLINDER LOCK SWITCH - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Z2 20BK/LG GROUND 2 G73 20LG/OR CYLINDER LOCK SWITCH MUX DRIVER DOOR AJAR SWITCH (CTM) - NATURAL 2 WAY CAV CIRCUIT FUNCTION 1 Z2 18BK/L

Page 1050 of 2889

DODGE RAM 2001 Service Repair Manual DRIVER HEATED SEAT CUSHION - BLUE 4 WAY CAV CIRCUIT FUNCTION 1 P131 16RD/DG LEFT SEAT HEATER B(+) DRIVER 2 Z2 18BK/LG GROUND 3 P144 20BK/WT SEAT TEMPERATURE 5V SUPPLY 4 P141 20TN/LB LEFT SEAT TEMPERAT

Page 1051 of 2889

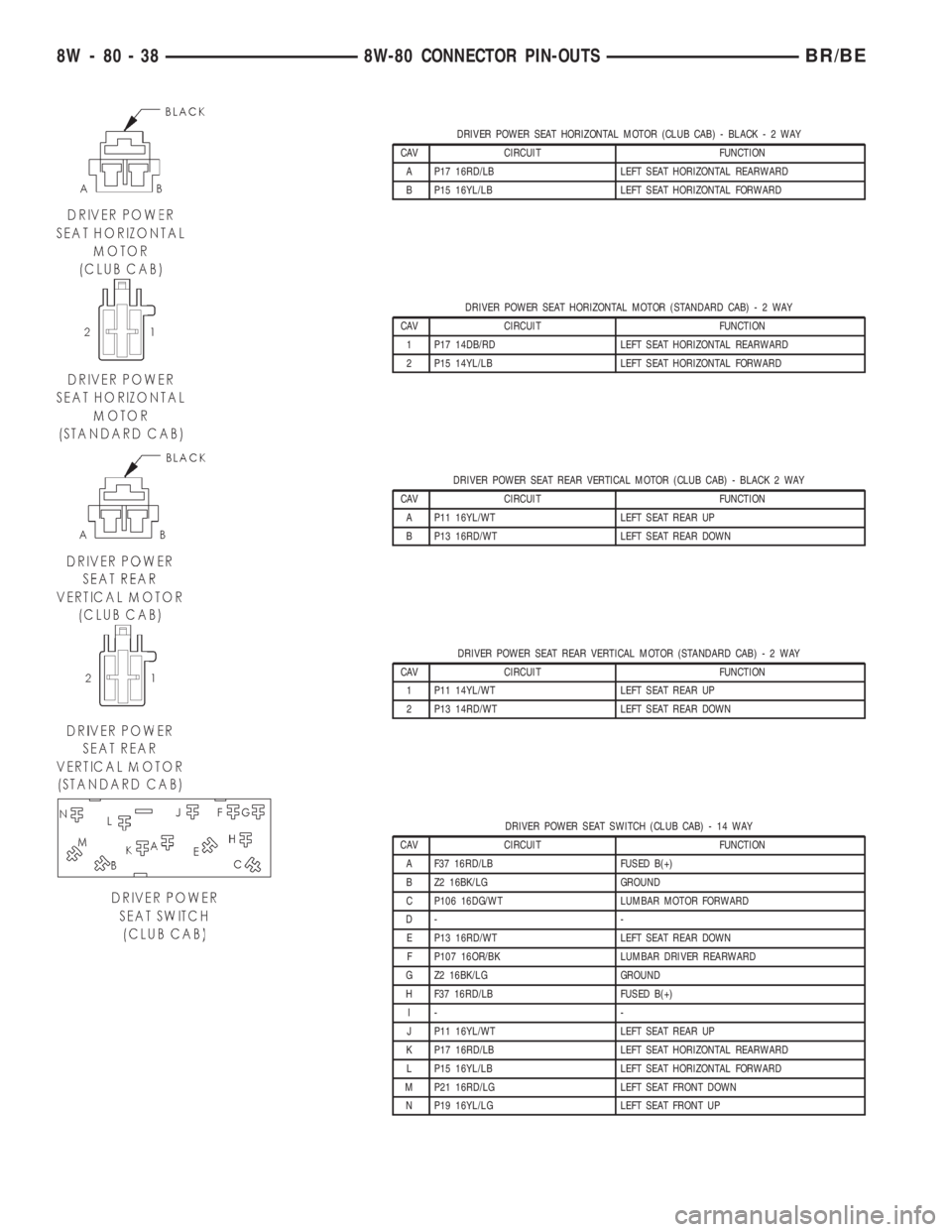

DODGE RAM 2001 Service Repair Manual DRIVER POWER SEAT HORIZONTAL MOTOR (CLUB CAB) - BLACK-2WAY CAV CIRCUIT FUNCTION A P17 16RD/LB LEFT SEAT HORIZONTAL REARWARD B P15 16YL/LB LEFT SEAT HORIZONTAL FORWARD DRIVER POWER SEAT HORIZONTAL MOTO

Page 1052 of 2889

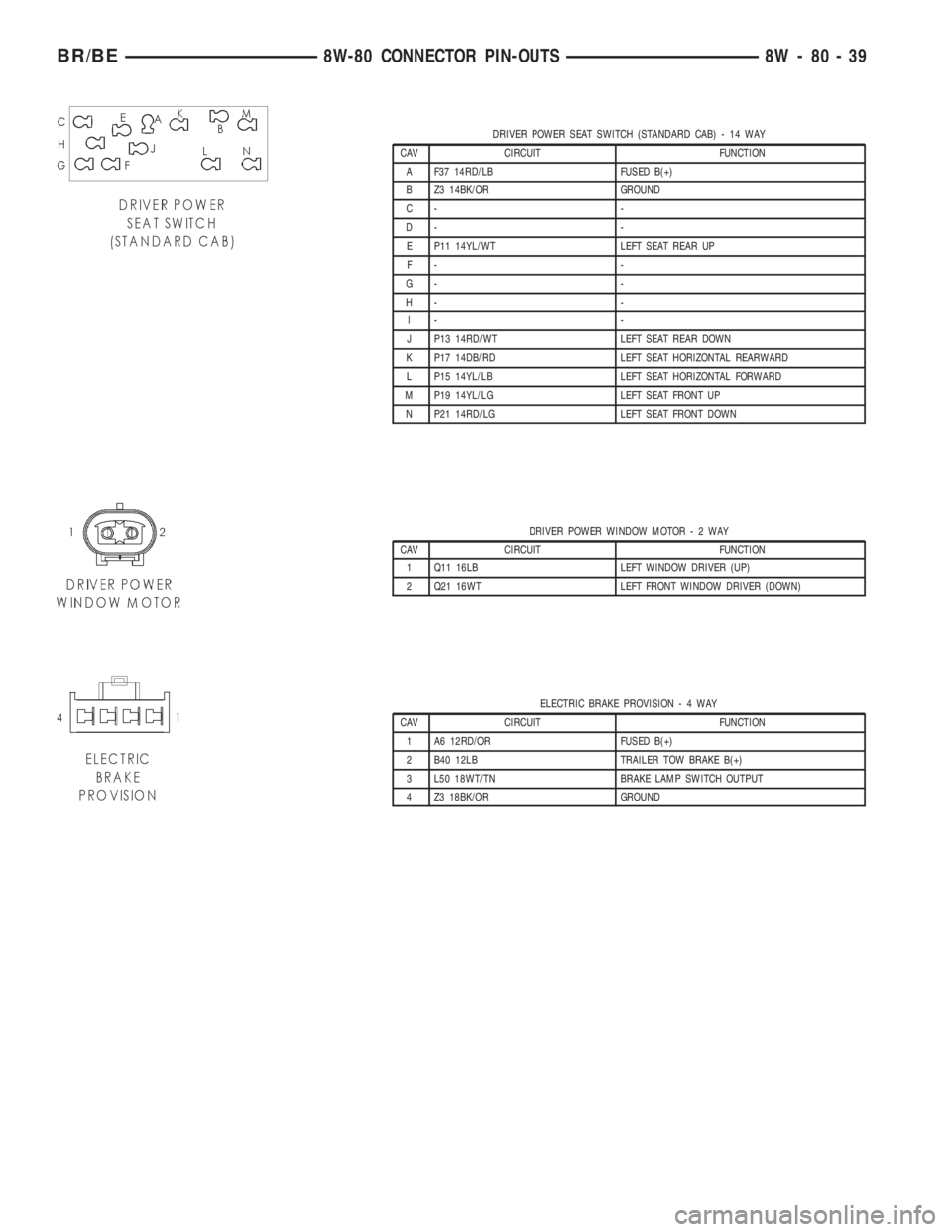

DODGE RAM 2001 Service Repair Manual DRIVER POWER SEAT SWITCH (STANDARD CAB) - 14 WAY CAV CIRCUIT FUNCTION A F37 14RD/LB FUSED B(+) B Z3 14BK/OR GROUND C- - D- - E P11 14YL/WT LEFT SEAT REAR UP F- - G- - H- - I- - J P13 14RD/WT LEFT SEAT

Page 1053 of 2889

DODGE RAM 2001 Service Repair Manual ENGINE CONTROL MODULE (DIESEL) - 50 WAY CAV CIRCUIT FUNCTION 1 H104 18BR/OR IDLE VALIDATION SWITCH NO. 1 2 K244 20YL/DB CUMMINS BUS (+) 3 K6 18VT/WT 5V SUPPLY 4 K14 18BK/DB SENSOR GROUND 5 F18 18LG/BK

Page 1054 of 2889

DODGE RAM 2001 Service Repair Manual ENGINE COOLANT TEMPERATURE SENSOR (DIESEL)-2WAY CAV CIRCUIT FUNCTION B K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL A K104 18BK/LB SENSOR GROUND ENGINE COOLANT TEMPERATURE SENSOR (GAS)-2WAY CAV

Page 1055 of 2889

DODGE RAM 2001 Service Repair Manual FUEL HEATER (DIESEL)-2WAY CAV CIRCUIT FUNCTION A Z11 14BK/TN GROUND B A93 12RD/BK FUEL HEATER RELAY OUTPUT FUEL INJECTION PUMP (DIESEL)-9WAY CAV CIRCUIT FUNCTION 1 K240 20BK DATA LINK (-) FUEL INJECTI

Page 1056 of 2889

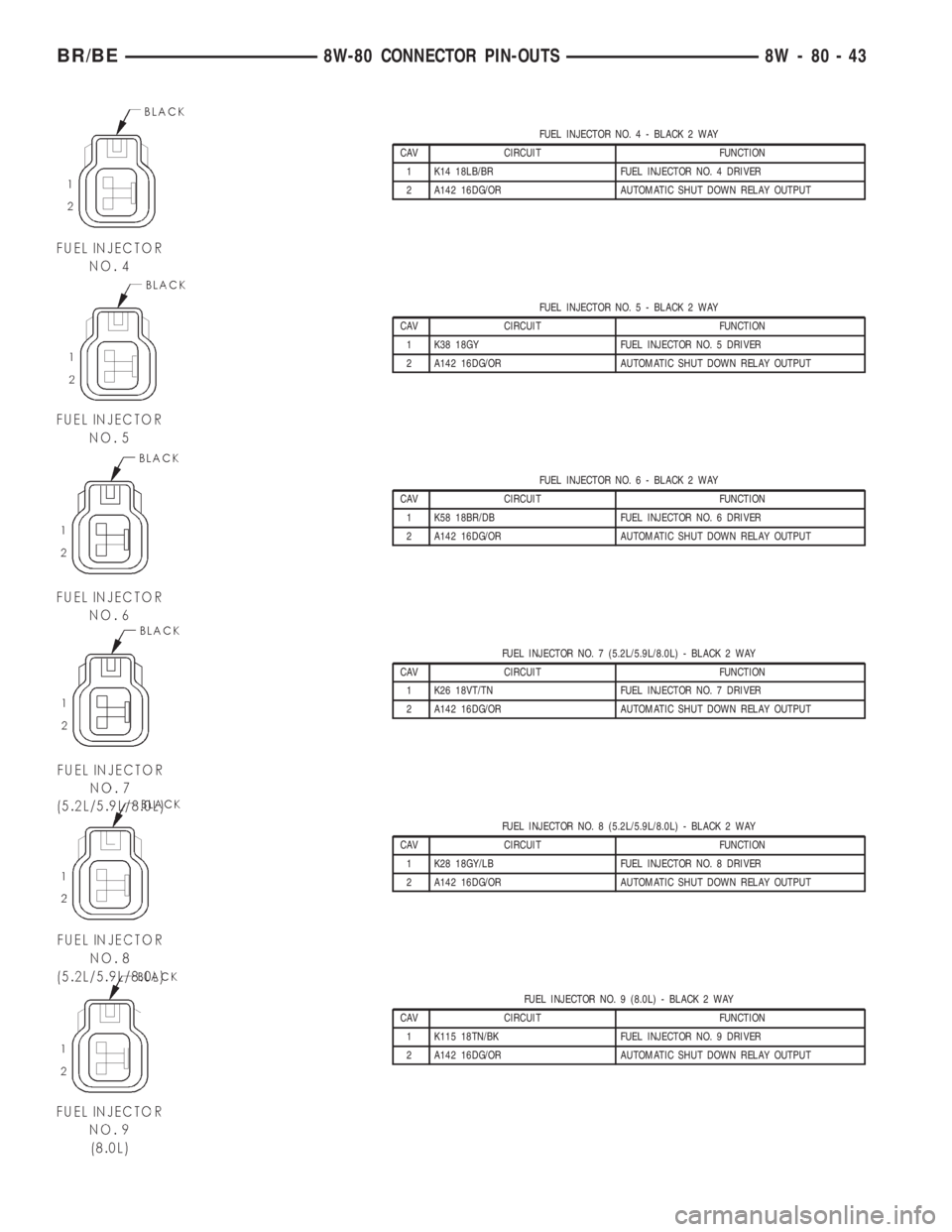

DODGE RAM 2001 Service Repair Manual FUEL INJECTOR NO. 4 - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 K14 18LB/BR FUEL INJECTOR NO. 4 DRIVER 2 A142 16DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT FUEL INJECTOR NO. 5 - BLACK 2 WAY CAV CIRCUIT FUNCTION 1
