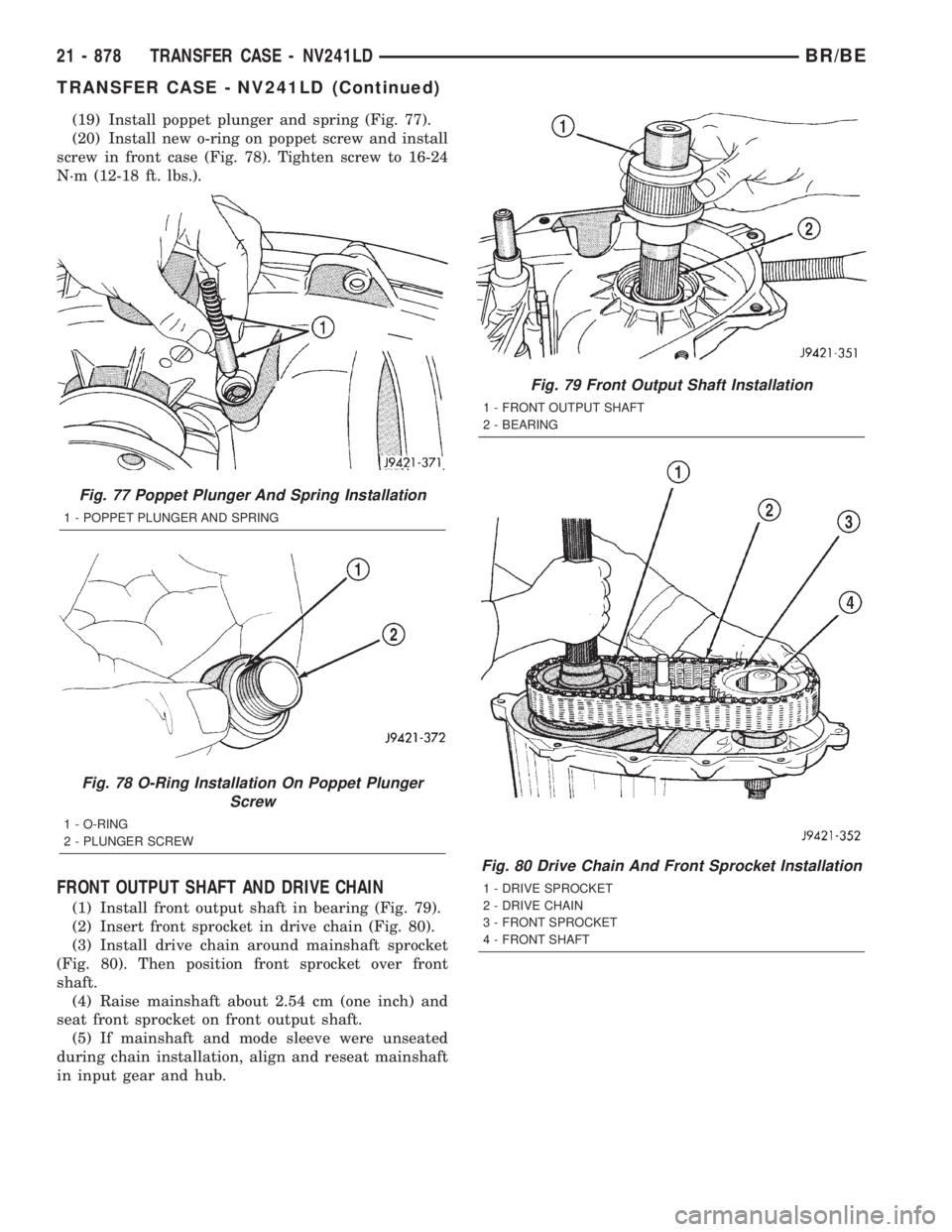

DODGE RAM 2001 Service Repair Manual (19) Install poppet plunger and spring (Fig. 77).
(20) Install new o-ring on poppet screw and install
screw in front case (Fig. 78). Tighten screw to 16-24
N´m (12-18 ft. lbs.).
FRONT OUTPUT SHAFT AN

Page 2514 of 2889

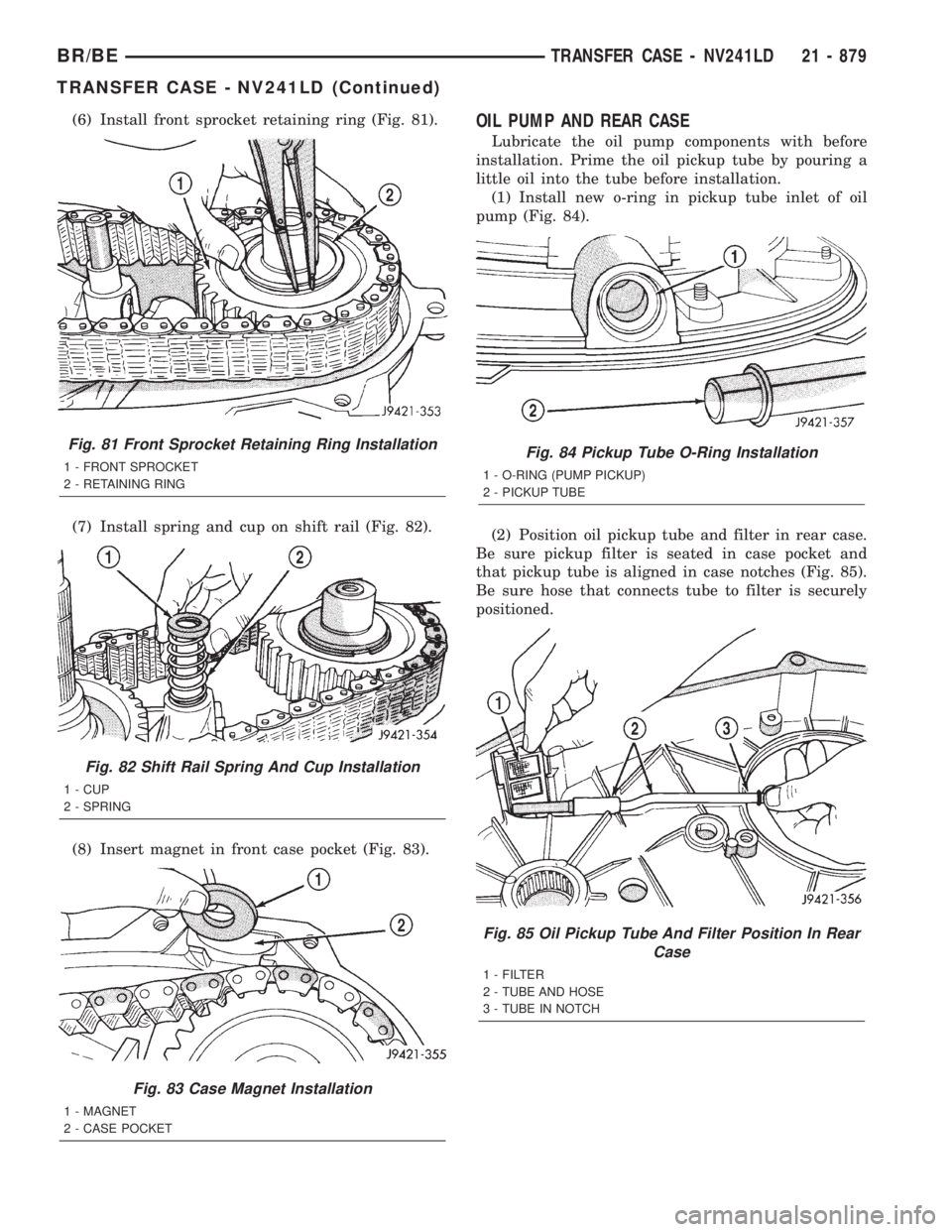

DODGE RAM 2001 Service Repair Manual (6) Install front sprocket retaining ring (Fig. 81).
(7) Install spring and cup on shift rail (Fig. 82).
(8) Insert magnet in front case pocket (Fig. 83).OIL PUMP AND REAR CASE
Lubricate the oil pump

Page 2515 of 2889

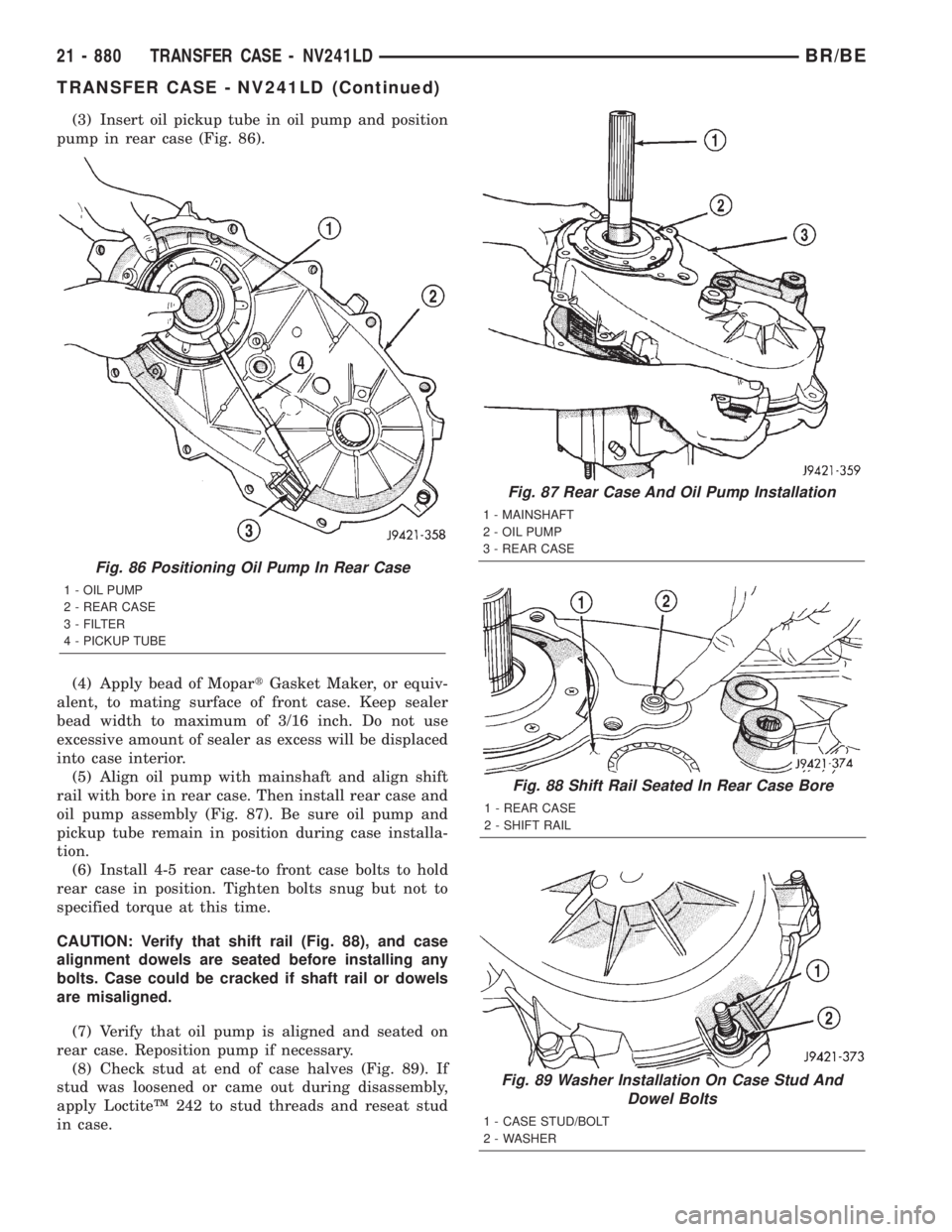

DODGE RAM 2001 Service Repair Manual (3) Insert oil pickup tube in oil pump and position
pump in rear case (Fig. 86).
(4) Apply bead of MopartGasket Maker, or equiv-
alent, to mating surface of front case. Keep sealer
bead width to maxim

Page 2516 of 2889

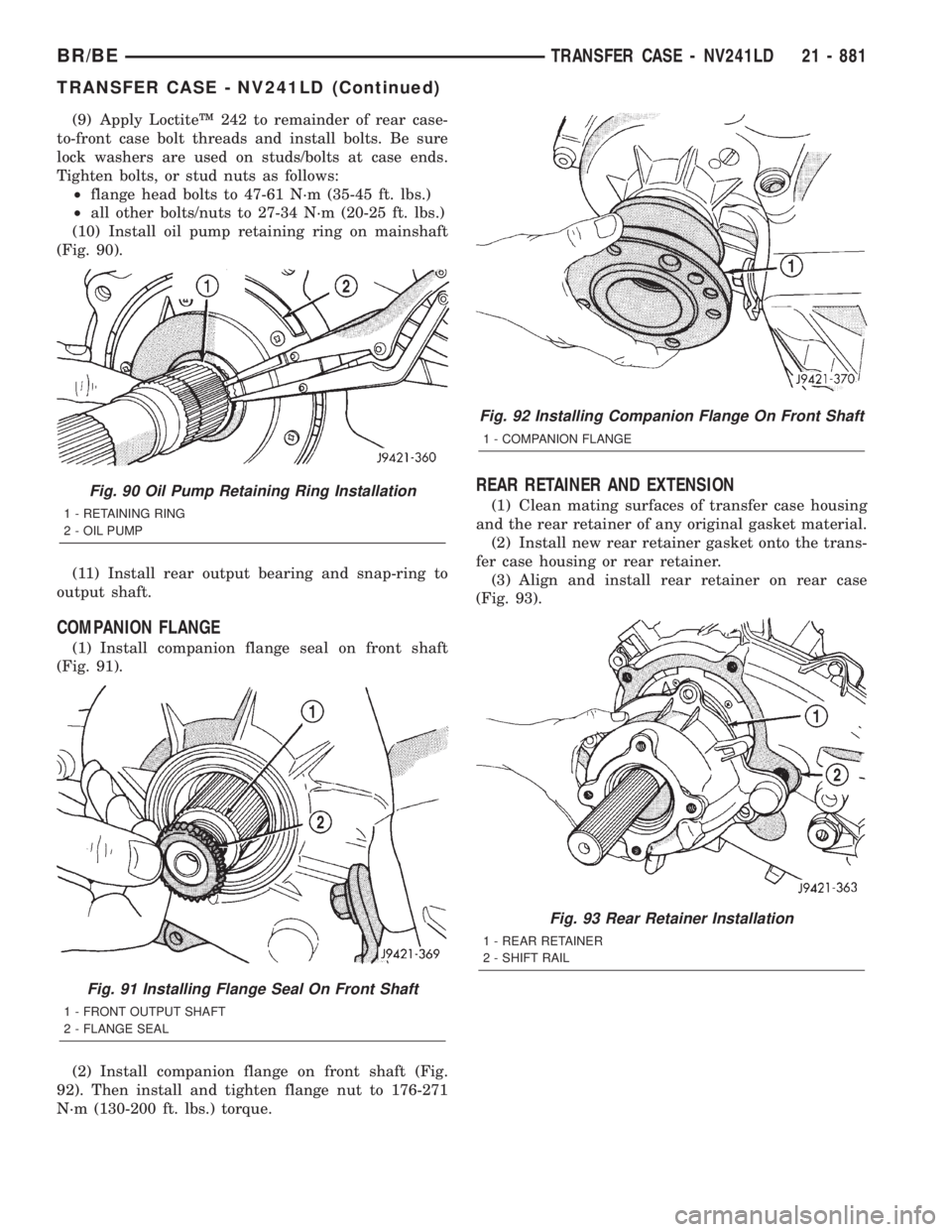

DODGE RAM 2001 Service Repair Manual (9) Apply LoctiteŸ 242 to remainder of rear case-
to-front case bolt threads and install bolts. Be sure
lock washers are used on studs/bolts at case ends.
Tighten bolts, or stud nuts as follows:
²fl

Page 2517 of 2889

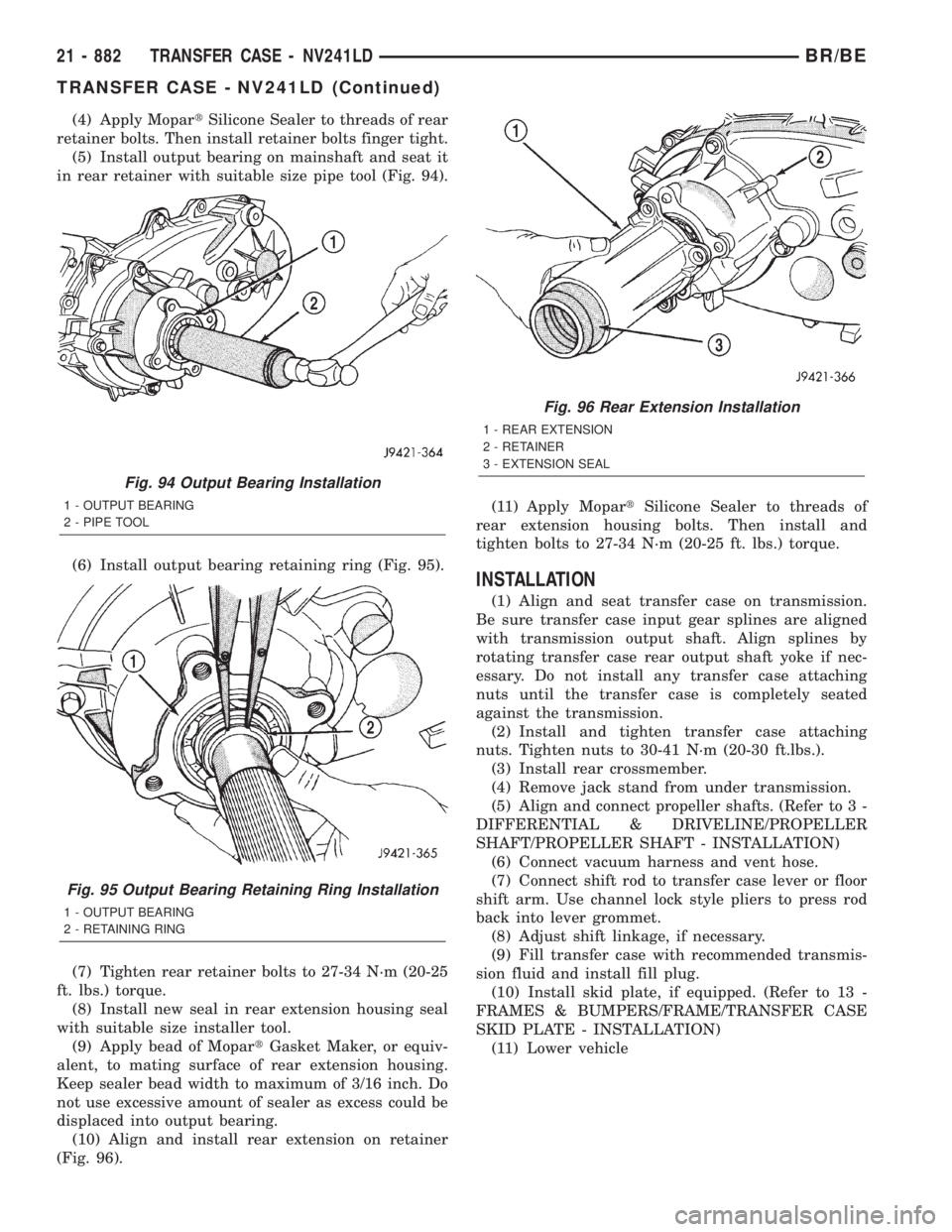

DODGE RAM 2001 Service Repair Manual (4) Apply MopartSilicone Sealer to threads of rear
retainer bolts. Then install retainer bolts finger tight.
(5) Install output bearing on mainshaft and seat it
in rear retainer with suitable size pip

(4) Apply MopartSilicone Sealer to threads of rear
retainer bolts. Then install retainer bolts finger tight.
(5) Install output bearing on mainshaft and seat it
in rear retainer with suitable size pipe tool (Fig. 94).
(6) Install output bearing retaining ring (Fig. 95).
(7) Tighten rear retainer bolts to 27-34 N´m (20-25
ft. lbs.) torque.
(8) Install new seal in rear extension housing seal
with suitable size installer tool.
(9) Apply bead of MopartGasket Maker, or equiv-
alent, to mating surface of rear extension housing.
Keep sealer bead width to maximum of 3/16 inch. Do
not use excessive amount of sealer as excess could be
displaced into output bearing.
(10) Align and install rear extension on retainer
(Fig. 96).(11) Apply MopartSilicone Sealer to threads of
rear extension housing bolts. Then install and
tighten bolts to 27-34 N´m (20-25 ft. lbs.) torque.
INSTALLATION
(1) Align and seat transfer case on transmission.
Be sure transfer case input gear splines are aligned
with transmission output shaft. Align splines by
rotating transfer case rear output shaft yoke if nec-
essary. Do not install any transfer case attaching
nuts until the transfer case is completely seated
against the transmission.
(2) Install and tighten transfer case attaching
nuts. Tighten nuts to 30-41 N´m (20-30 ft.lbs.).
(3) Install rear crossmember.
(4) Remove jack stand from under transmission.
(5) Align and connect propeller shafts. (Refer to 3 -
DIFFERENTIAL & DRIVELINE/PROPELLER
SHAFT/PROPELLER SHAFT - INSTALLATION)
(6) Connect vacuum harness and vent hose.
(7) Connect shift rod to transfer case lever or floor
shift arm. Use channel lock style pliers to press rod
back into lever grommet.
(8) Adjust shift linkage, if necessary.
(9) Fill transfer case with recommended transmis-
sion fluid and install fill plug.
(10) Install skid plate, if equipped. (Refer to 13 -
FRAMES & BUMPERS/FRAME/TRANSFER CASE
SKID PLATE - INSTALLATION)
(11) Lower vehicle
Fig. 94 Output Bearing Installation
1 - OUTPUT BEARING
2 - PIPE TOOL
Fig. 95 Output Bearing Retaining Ring Installation
1 - OUTPUT BEARING
2 - RETAINING RING
Fig. 96 Rear Extension Installation
1 - REAR EXTENSION
2 - RETAINER
3 - EXTENSION SEAL
21 - 882 TRANSFER CASE - NV241LDBR/BE
TRANSFER CASE - NV241LD (Continued)

Page 2518 of 2889

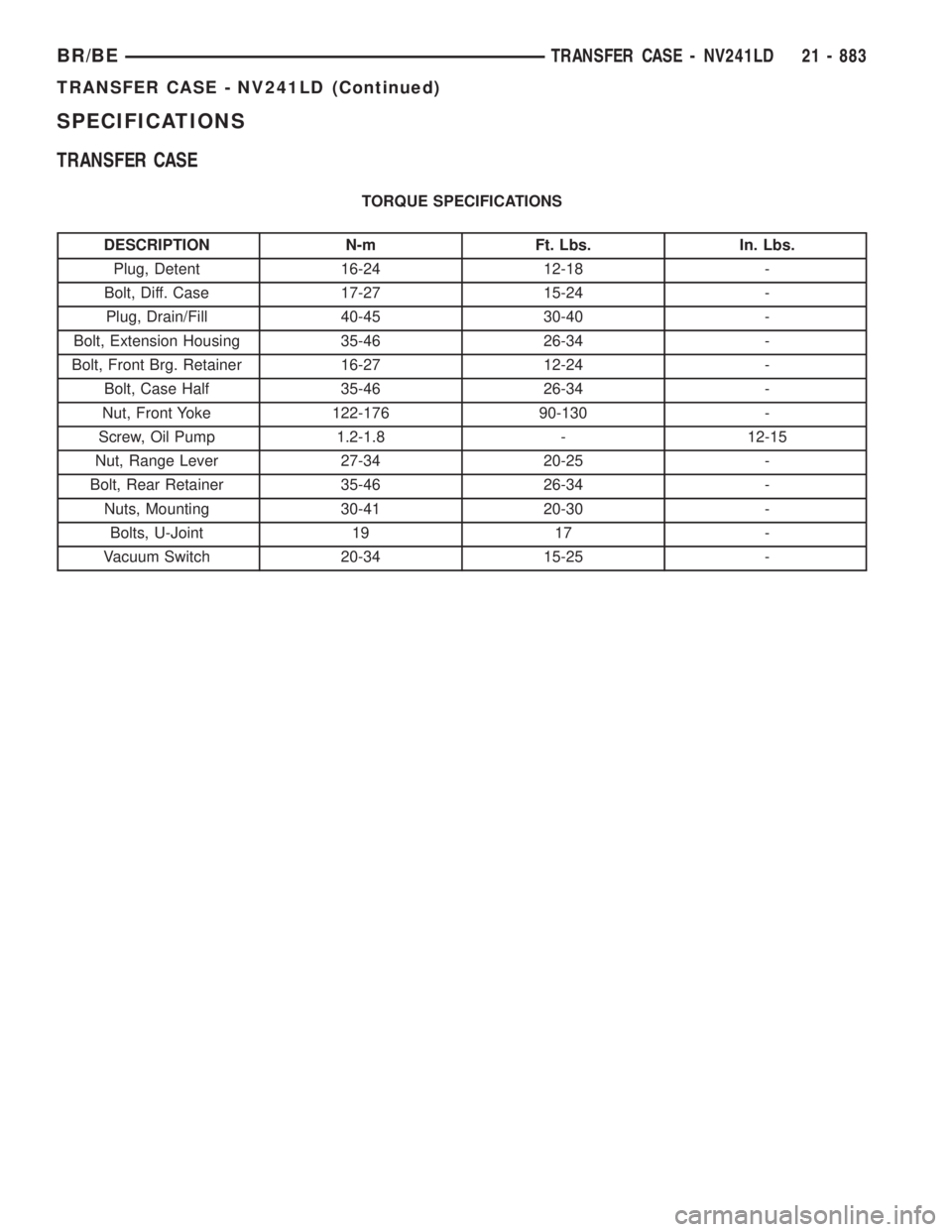

DODGE RAM 2001 Service Repair Manual SPECIFICATIONS
TRANSFER CASE
TORQUE SPECIFICATIONS
DESCRIPTION N-m Ft. Lbs. In. Lbs.
Plug, Detent 16-24 12-18 -
Bolt, Diff. Case 17-27 15-24 -
Plug, Drain/Fill 40-45 30-40 -
Bolt, Extension Housing 35

Page 2519 of 2889

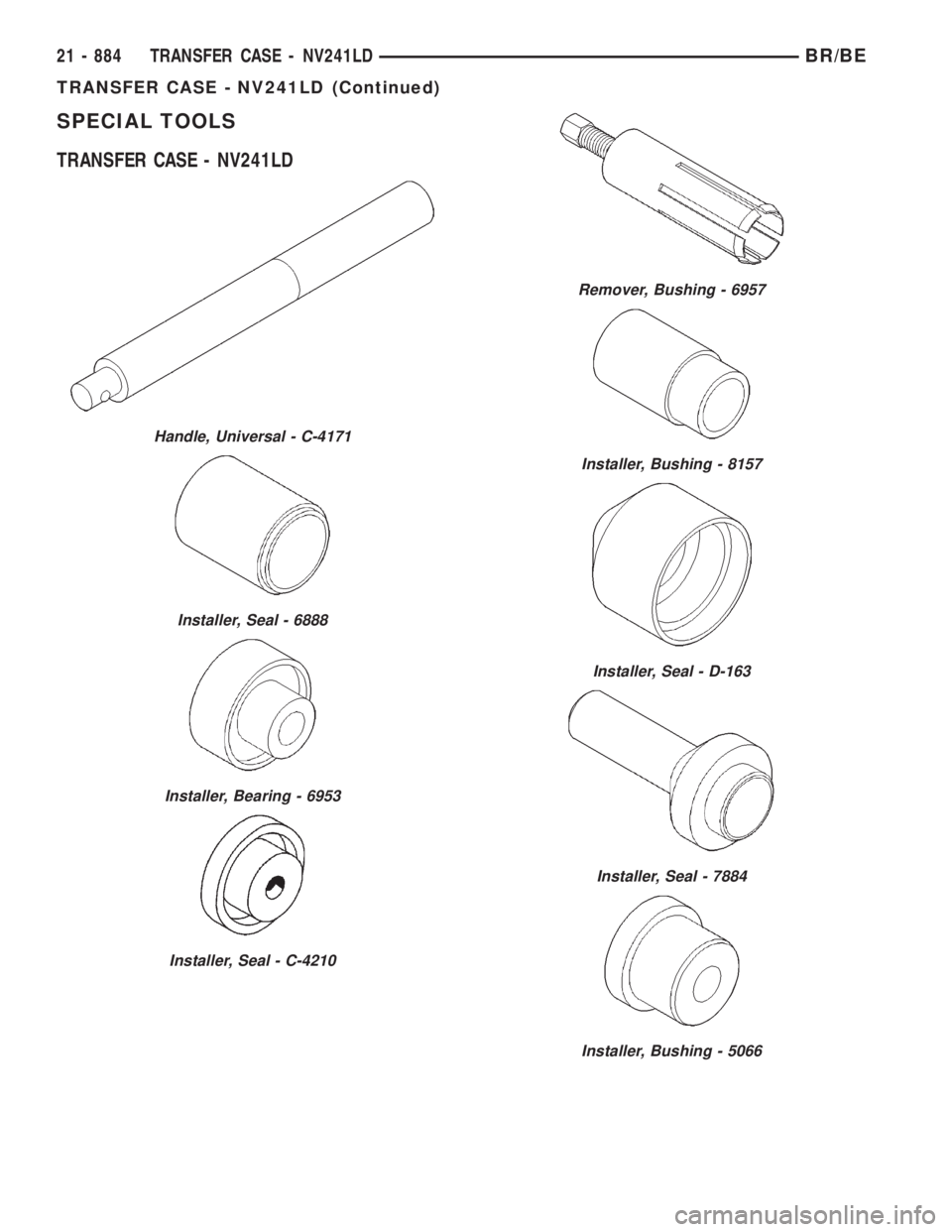

DODGE RAM 2001 Service Repair Manual SPECIAL TOOLS
TRANSFER CASE - NV241LD
Handle, Universal - C-4171
Installer, Seal - 6888
Installer, Bearing - 6953
Installer, Seal - C-4210
Remover, Bushing - 6957
Installer, Bushing - 8157
Installer,

Page 2520 of 2889

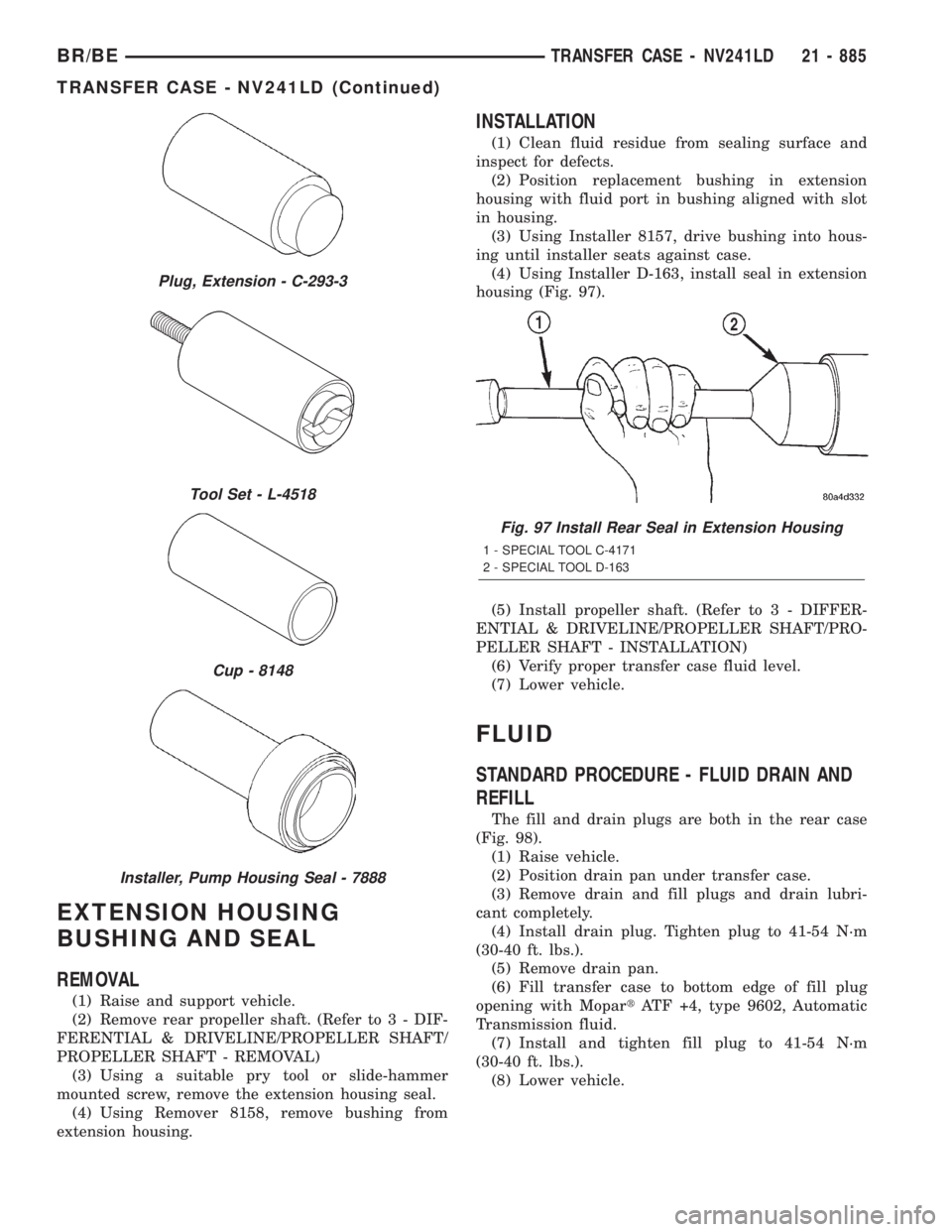

DODGE RAM 2001 Service Repair Manual EXTENSION HOUSING
BUSHING AND SEAL
REMOVAL
(1) Raise and support vehicle.
(2) Remove rear propeller shaft. (Refer to 3 - DIF-
FERENTIAL & DRIVELINE/PROPELLER SHAFT/
PROPELLER SHAFT - REMOVAL)
(3) Usin
