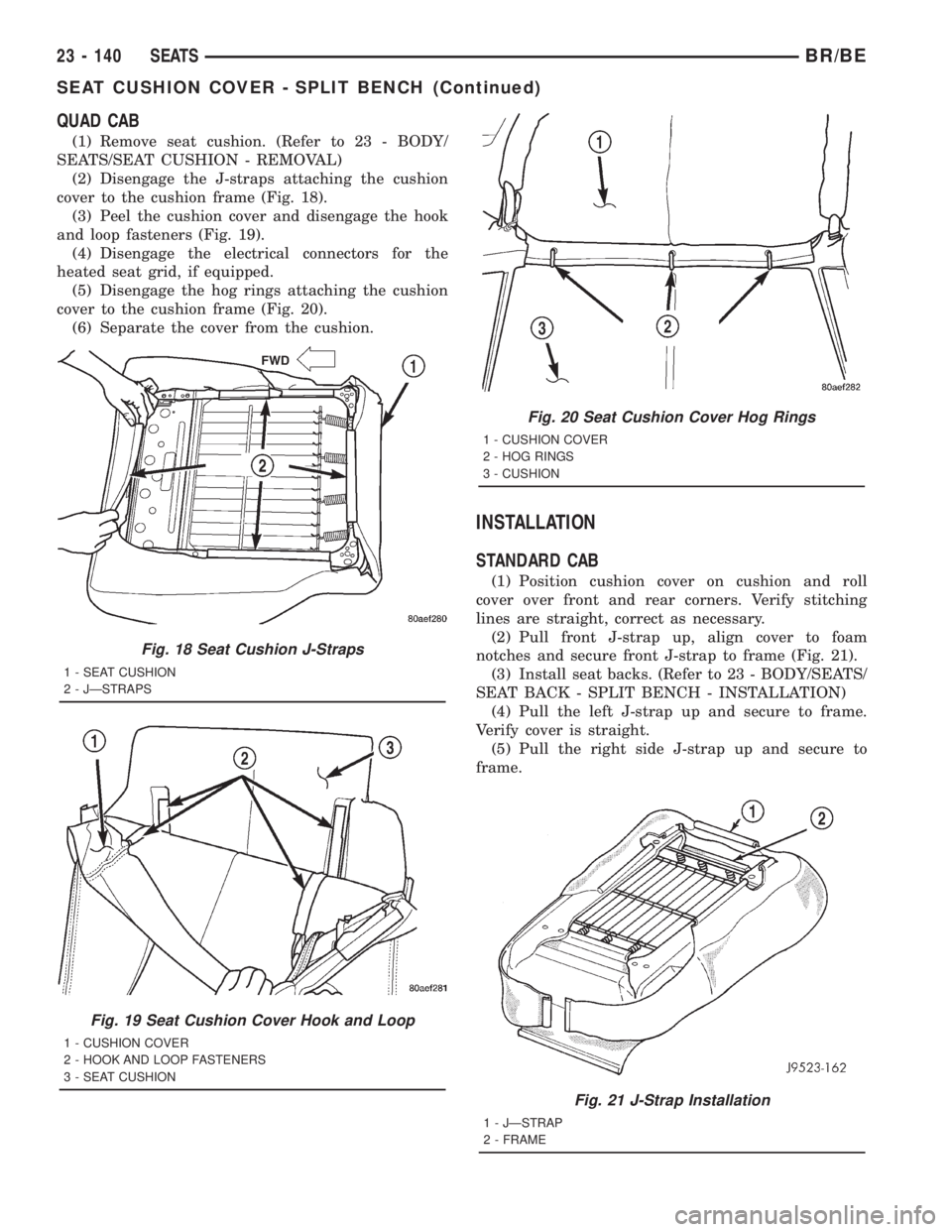

DODGE RAM 2001 Service Repair Manual QUAD CAB
(1) Remove seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - REMOVAL)
(2) Disengage the J-straps attaching the cushion
cover to the cushion frame (Fig. 18).
(3) Peel the cushion cover a

Page 2714 of 2889

DODGE RAM 2001 Service Repair Manual (6) Install seat tracks. (Refer to 23 - BODY/
SEATS/SEAT TRACK - SPLIT BENCH - INSTALLA-
TION)
QUAD CAB
(1) Position the cover on the cushion.
(2) Engage the hog rings attaching the cushion
cover to t

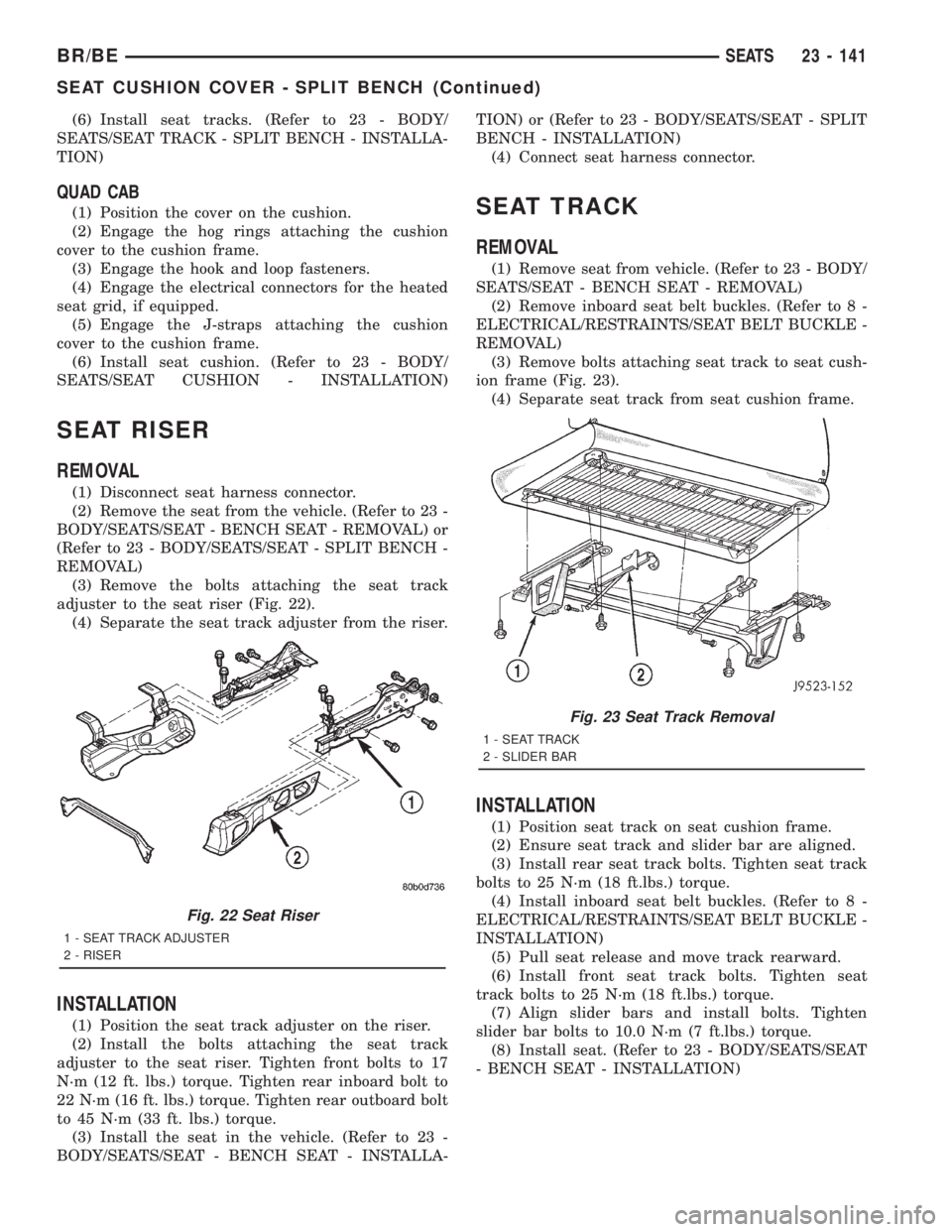

(6) Install seat tracks. (Refer to 23 - BODY/
SEATS/SEAT TRACK - SPLIT BENCH - INSTALLA-
TION)
QUAD CAB
(1) Position the cover on the cushion.
(2) Engage the hog rings attaching the cushion
cover to the cushion frame.
(3) Engage the hook and loop fasteners.
(4) Engage the electrical connectors for the heated
seat grid, if equipped.
(5) Engage the J-straps attaching the cushion
cover to the cushion frame.
(6) Install seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - INSTALLATION)
SEAT RISER
REMOVAL
(1) Disconnect seat harness connector.
(2) Remove the seat from the vehicle. (Refer to 23 -
BODY/SEATS/SEAT - BENCH SEAT - REMOVAL) or
(Refer to 23 - BODY/SEATS/SEAT - SPLIT BENCH -
REMOVAL)
(3) Remove the bolts attaching the seat track
adjuster to the seat riser (Fig. 22).
(4) Separate the seat track adjuster from the riser.
INSTALLATION
(1) Position the seat track adjuster on the riser.
(2) Install the bolts attaching the seat track
adjuster to the seat riser. Tighten front bolts to 17
N´m (12 ft. lbs.) torque. Tighten rear inboard bolt to
22 N´m (16 ft. lbs.) torque. Tighten rear outboard bolt
to 45 N´m (33 ft. lbs.) torque.
(3) Install the seat in the vehicle. (Refer to 23 -
BODY/SEATS/SEAT - BENCH SEAT - INSTALLA-TION) or (Refer to 23 - BODY/SEATS/SEAT - SPLIT
BENCH - INSTALLATION)
(4) Connect seat harness connector.
SEAT TRACK
REMOVAL
(1) Remove seat from vehicle. (Refer to 23 - BODY/
SEATS/SEAT - BENCH SEAT - REMOVAL)
(2) Remove inboard seat belt buckles. (Refer to 8 -
ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE -
REMOVAL)
(3) Remove bolts attaching seat track to seat cush-
ion frame (Fig. 23).
(4) Separate seat track from seat cushion frame.
INSTALLATION
(1) Position seat track on seat cushion frame.
(2) Ensure seat track and slider bar are aligned.
(3) Install rear seat track bolts. Tighten seat track
bolts to 25 N´m (18 ft.lbs.) torque.
(4) Install inboard seat belt buckles. (Refer to 8 -
ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE -
INSTALLATION)
(5) Pull seat release and move track rearward.
(6) Install front seat track bolts. Tighten seat
track bolts to 25 N´m (18 ft.lbs.) torque.
(7) Align slider bars and install bolts. Tighten
slider bar bolts to 10.0 N´m (7 ft.lbs.) torque.
(8) Install seat. (Refer to 23 - BODY/SEATS/SEAT
- BENCH SEAT - INSTALLATION)
Fig. 22 Seat Riser
1 - SEAT TRACK ADJUSTER
2 - RISER
Fig. 23 Seat Track Removal
1 - SEAT TRACK
2 - SLIDER BAR
BR/BESEATS 23 - 141
SEAT CUSHION COVER - SPLIT BENCH (Continued)

Page 2715 of 2889

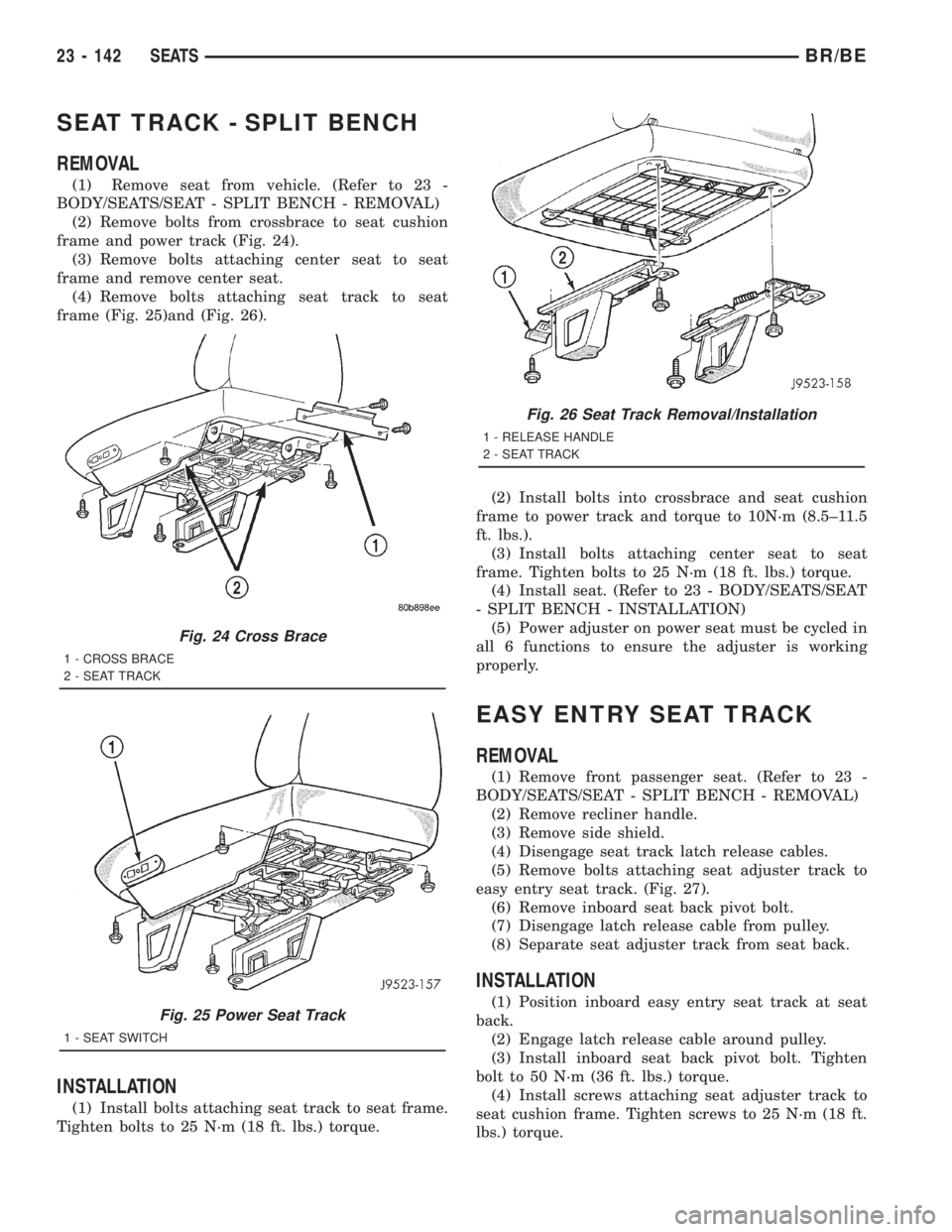

DODGE RAM 2001 Service Repair Manual SEAT TRACK - SPLIT BENCH
REMOVAL
(1) Remove seat from vehicle. (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - REMOVAL)
(2) Remove bolts from crossbrace to seat cushion
frame and power track (Fig. 24).

Page 2716 of 2889

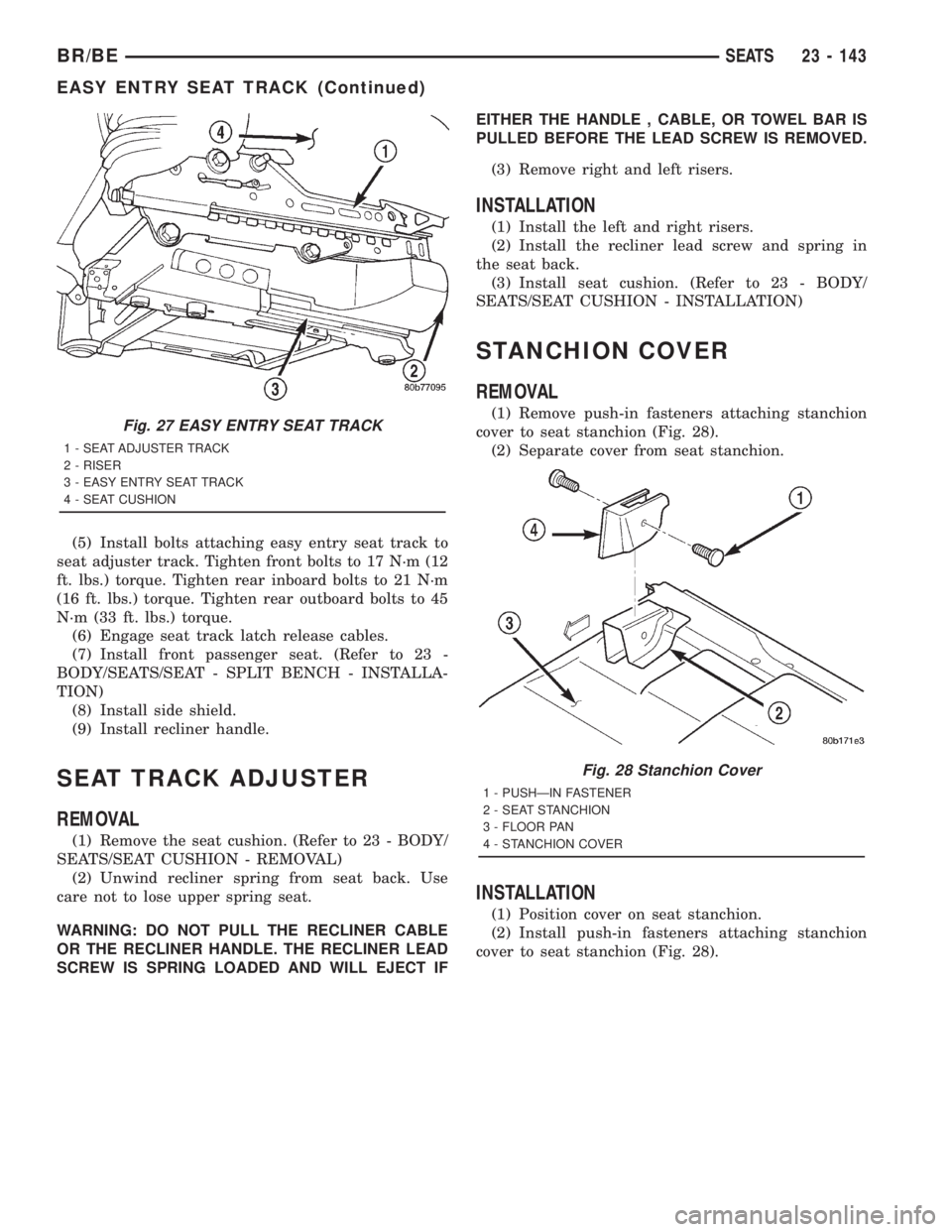

DODGE RAM 2001 Service Repair Manual (5) Install bolts attaching easy entry seat track to
seat adjuster track. Tighten front bolts to 17 N´m (12
ft. lbs.) torque. Tighten rear inboard bolts to 21 N´m
(16 ft. lbs.) torque. Tighten rear

Page 2717 of 2889

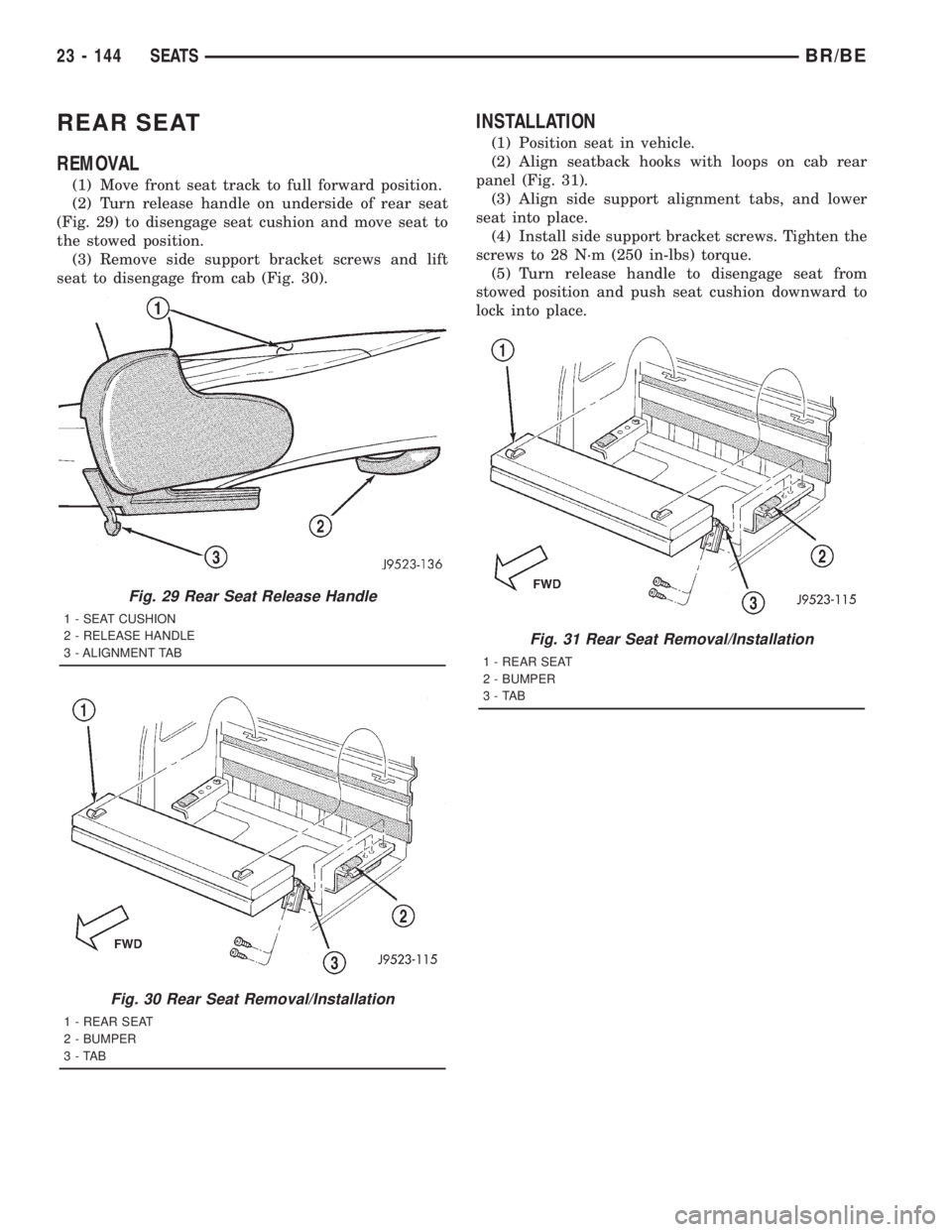

DODGE RAM 2001 Service Repair Manual REAR SEAT
REMOVAL
(1) Move front seat track to full forward position.
(2) Turn release handle on underside of rear seat
(Fig. 29) to disengage seat cushion and move seat to
the stowed position.
(3) Re

Page 2718 of 2889

DODGE RAM 2001 Service Repair Manual STATIONARY GLASS
TABLE OF CONTENTS
page page
STATIONARY GLASS
DESCRIPTION..........................145
OPERATION............................145
BACKLITE
REMOVAL.............................145
INSTALL

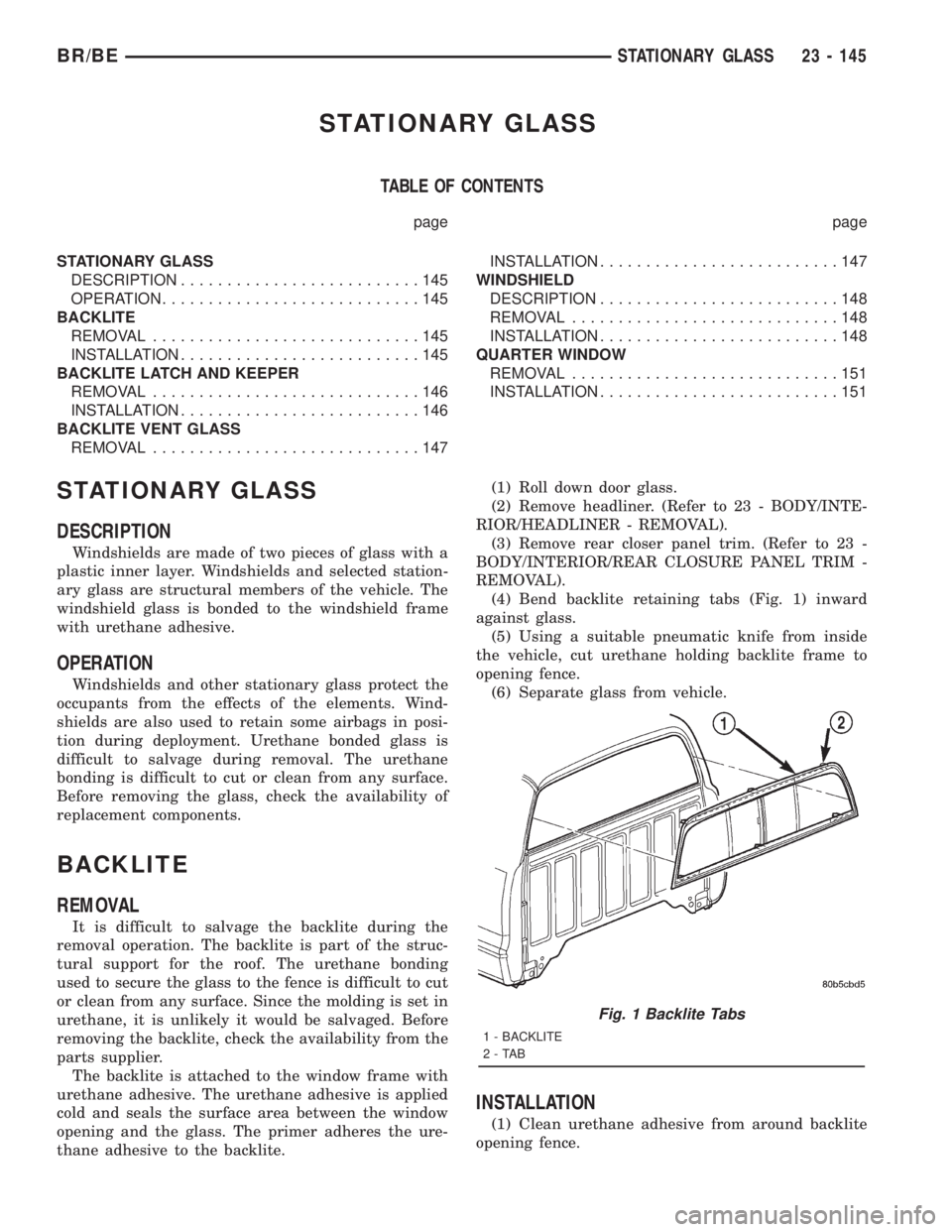

STATIONARY GLASS
TABLE OF CONTENTS
page page
STATIONARY GLASS
DESCRIPTION..........................145
OPERATION............................145
BACKLITE
REMOVAL.............................145
INSTALLATION..........................145
BACKLITE LATCH AND KEEPER
REMOVAL.............................146
INSTALLATION..........................146
BACKLITE VENT GLASS
REMOVAL.............................147INSTALLATION..........................147
WINDSHIELD
DESCRIPTION..........................148
REMOVAL.............................148
INSTALLATION..........................148
QUARTER WINDOW
REMOVAL.............................151
INSTALLATION..........................151
STATIONARY GLASS
DESCRIPTION
Windshields are made of two pieces of glass with a
plastic inner layer. Windshields and selected station-
ary glass are structural members of the vehicle. The
windshield glass is bonded to the windshield frame
with urethane adhesive.
OPERATION
Windshields and other stationary glass protect the
occupants from the effects of the elements. Wind-
shields are also used to retain some airbags in posi-
tion during deployment. Urethane bonded glass is
difficult to salvage during removal. The urethane
bonding is difficult to cut or clean from any surface.
Before removing the glass, check the availability of
replacement components.
BACKLITE
REMOVAL
It is difficult to salvage the backlite during the
removal operation. The backlite is part of the struc-
tural support for the roof. The urethane bonding
used to secure the glass to the fence is difficult to cut
or clean from any surface. Since the molding is set in
urethane, it is unlikely it would be salvaged. Before
removing the backlite, check the availability from the
parts supplier.
The backlite is attached to the window frame with
urethane adhesive. The urethane adhesive is applied
cold and seals the surface area between the window
opening and the glass. The primer adheres the ure-
thane adhesive to the backlite.(1) Roll down door glass.
(2) Remove headliner. (Refer to 23 - BODY/INTE-
RIOR/HEADLINER - REMOVAL).
(3) Remove rear closer panel trim. (Refer to 23 -
BODY/INTERIOR/REAR CLOSURE PANEL TRIM -
REMOVAL).
(4) Bend backlite retaining tabs (Fig. 1) inward
against glass.
(5) Using a suitable pneumatic knife from inside
the vehicle, cut urethane holding backlite frame to
opening fence.
(6) Separate glass from vehicle.
INSTALLATION
(1) Clean urethane adhesive from around backlite
opening fence.
Fig. 1 Backlite Tabs
1 - BACKLITE
2-TAB
BR/BESTATIONARY GLASS 23 - 145

Page 2719 of 2889

DODGE RAM 2001 Service Repair Manual (2) If necessary, apply black-out primer to outer
edge of replacement backlite frame.
(3) If black-out primer was pre-applied on backlite,
clean bonding surface with Isopropyl alcohol and
clean lint f

Page 2720 of 2889

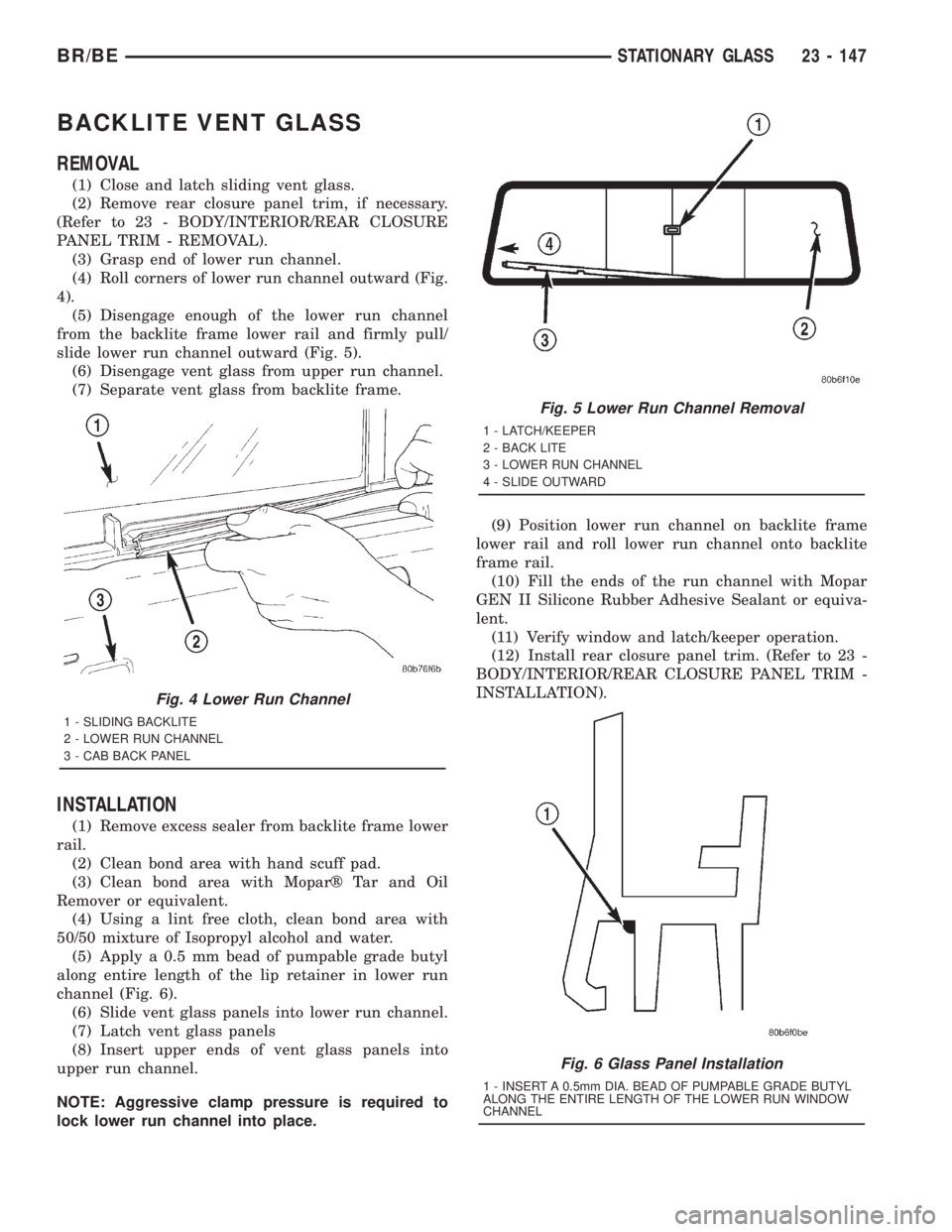

DODGE RAM 2001 Service Repair Manual BACKLITE VENT GLASS
REMOVAL
(1) Close and latch sliding vent glass.
(2) Remove rear closure panel trim, if necessary.
(Refer to 23 - BODY/INTERIOR/REAR CLOSURE
PANEL TRIM - REMOVAL).
(3) Grasp end of
