Page 1025 of 2255

DODGE RAM 2002 Service Repair Manual CONNECTOR NAME/
NUMBERCOLOR LOCATION FIG.
Right Park/Turn Signal Lamp BK At Lamp N/S
Right Power Mirror BK In Door N/S
Right Rear Fender Lamp BK On Fender 27
Right Rear Speaker BK Bottom of Right B Pi

Page 1026 of 2255

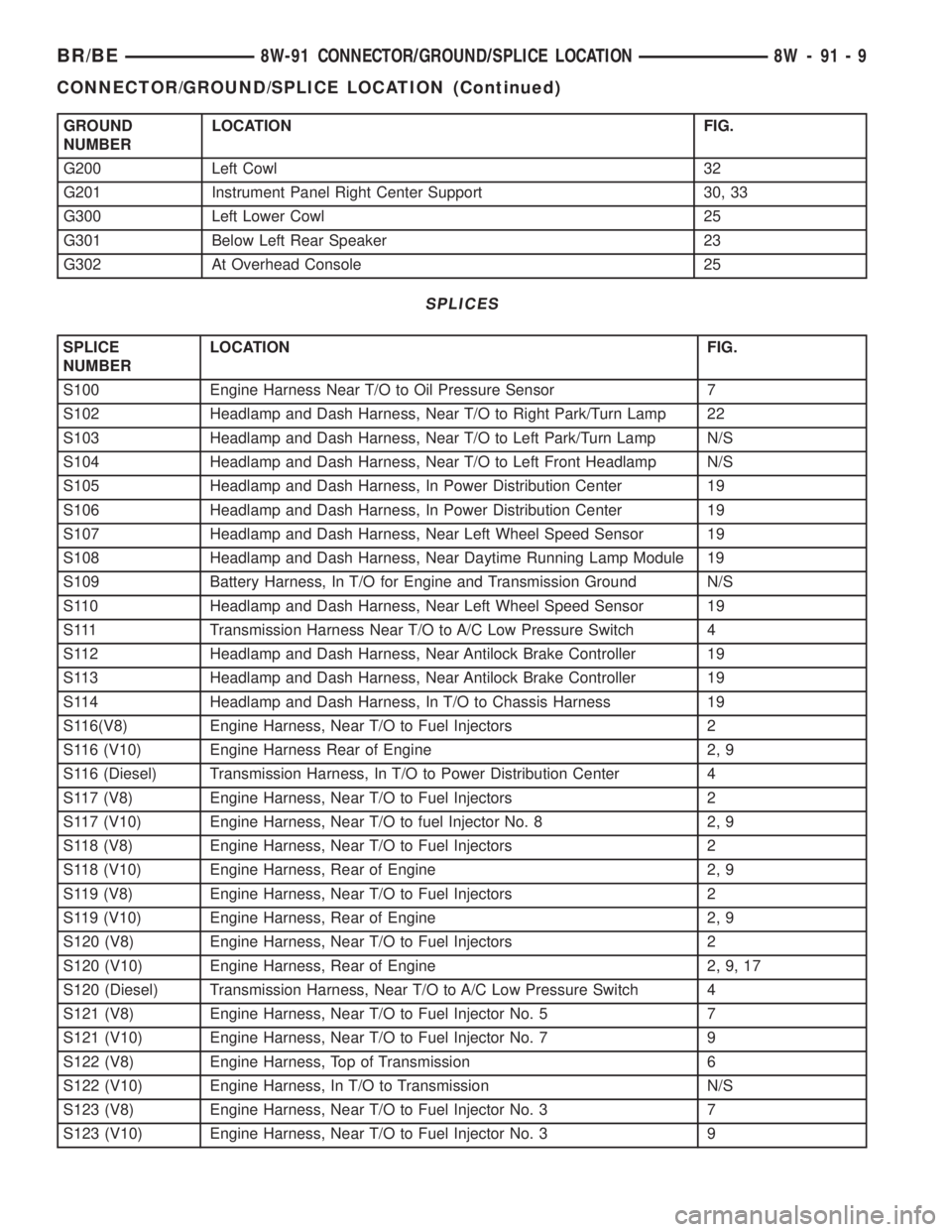

DODGE RAM 2002 Service Repair Manual GROUND
NUMBERLOCATION FIG.
G200 Left Cowl 32
G201 Instrument Panel Right Center Support 30, 33
G300 Left Lower Cowl 25
G301 Below Left Rear Speaker 23
G302 At Overhead Console 25
SPLICES
SPLICE
NUMBER

GROUND
NUMBERLOCATION FIG.
G200 Left Cowl 32
G201 Instrument Panel Right Center Support 30, 33
G300 Left Lower Cowl 25
G301 Below Left Rear Speaker 23
G302 At Overhead Console 25
SPLICES
SPLICE
NUMBERLOCATION FIG.
S100 Engine Harness Near T/O to Oil Pressure Sensor 7
S102 Headlamp and Dash Harness, Near T/O to Right Park/Turn Lamp 22
S103 Headlamp and Dash Harness, Near T/O to Left Park/Turn Lamp N/S
S104 Headlamp and Dash Harness, Near T/O to Left Front Headlamp N/S
S105 Headlamp and Dash Harness, In Power Distribution Center 19
S106 Headlamp and Dash Harness, In Power Distribution Center 19
S107 Headlamp and Dash Harness, Near Left Wheel Speed Sensor 19
S108 Headlamp and Dash Harness, Near Daytime Running Lamp Module 19
S109 Battery Harness, In T/O for Engine and Transmission Ground N/S
S110 Headlamp and Dash Harness, Near Left Wheel Speed Sensor 19
S111 Transmission Harness Near T/O to A/C Low Pressure Switch 4
S112 Headlamp and Dash Harness, Near Antilock Brake Controller 19
S113 Headlamp and Dash Harness, Near Antilock Brake Controller 19
S114 Headlamp and Dash Harness, In T/O to Chassis Harness 19
S116(V8) Engine Harness, Near T/O to Fuel Injectors 2
S116 (V10) Engine Harness Rear of Engine 2, 9
S116 (Diesel) Transmission Harness, In T/O to Power Distribution Center 4
S117 (V8) Engine Harness, Near T/O to Fuel Injectors 2
S117 (V10) Engine Harness, Near T/O to fuel Injector No. 8 2, 9
S118 (V8) Engine Harness, Near T/O to Fuel Injectors 2
S118 (V10) Engine Harness, Rear of Engine 2, 9
S119 (V8) Engine Harness, Near T/O to Fuel Injectors 2
S119 (V10) Engine Harness, Rear of Engine 2, 9
S120 (V8) Engine Harness, Near T/O to Fuel Injectors 2
S120 (V10) Engine Harness, Rear of Engine 2, 9, 17
S120 (Diesel) Transmission Harness, Near T/O to A/C Low Pressure Switch 4
S121 (V8) Engine Harness, Near T/O to Fuel Injector No. 5 7
S121 (V10) Engine Harness, Near T/O to Fuel Injector No. 7 9
S122 (V8) Engine Harness, Top of Transmission 6
S122 (V10) Engine Harness, In T/O to Transmission N/S
S123 (V8) Engine Harness, Near T/O to Fuel Injector No. 3 7
S123 (V10) Engine Harness, Near T/O to Fuel Injector No. 3 9
BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 9
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1027 of 2255

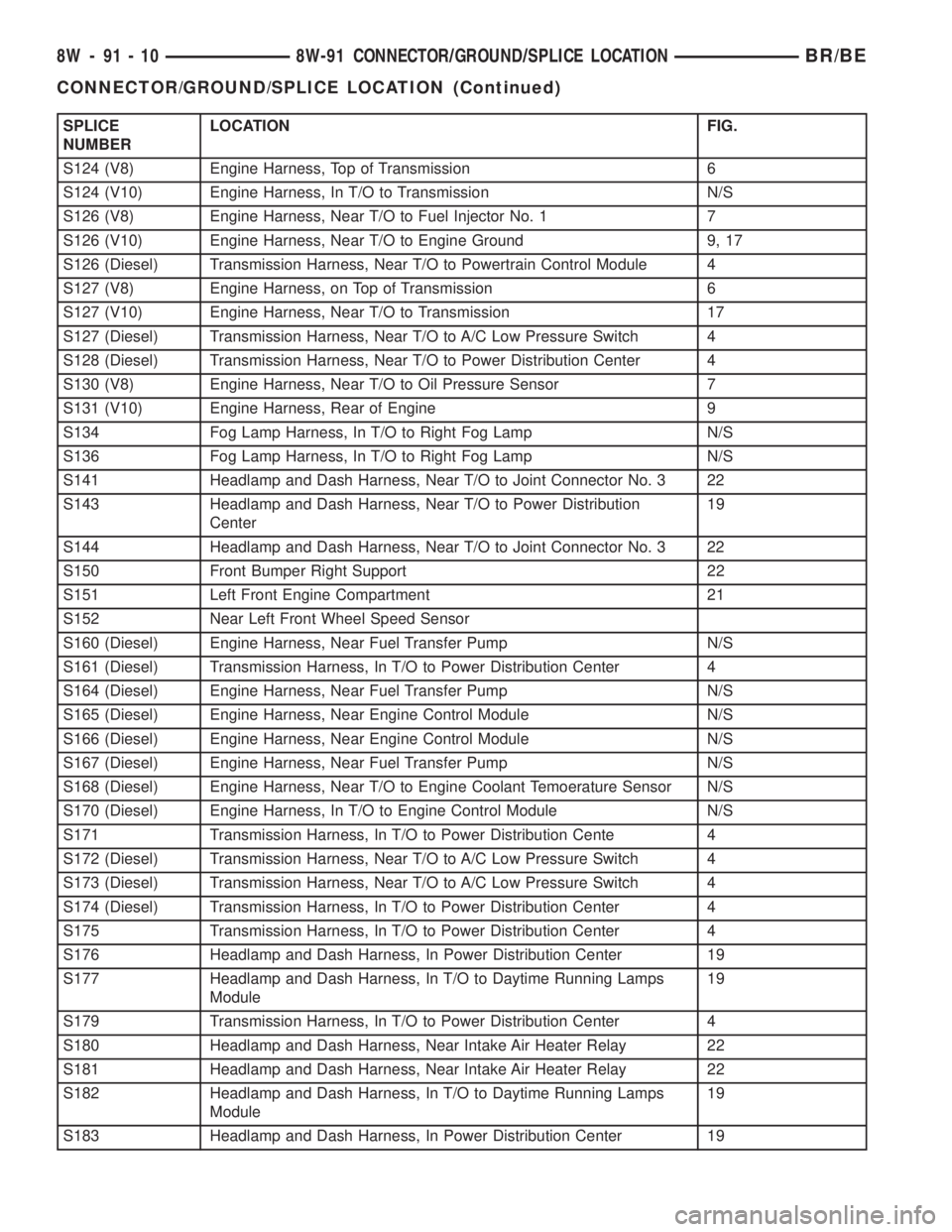

DODGE RAM 2002 Service Repair Manual SPLICE
NUMBERLOCATION FIG.
S124 (V8) Engine Harness, Top of Transmission 6
S124 (V10) Engine Harness, In T/O to Transmission N/S
S126 (V8) Engine Harness, Near T/O to Fuel Injector No. 1 7
S126 (V10)

SPLICE
NUMBERLOCATION FIG.
S124 (V8) Engine Harness, Top of Transmission 6
S124 (V10) Engine Harness, In T/O to Transmission N/S
S126 (V8) Engine Harness, Near T/O to Fuel Injector No. 1 7
S126 (V10) Engine Harness, Near T/O to Engine Ground 9, 17
S126 (Diesel) Transmission Harness, Near T/O to Powertrain Control Module 4
S127 (V8) Engine Harness, on Top of Transmission 6
S127 (V10) Engine Harness, Near T/O to Transmission 17
S127 (Diesel) Transmission Harness, Near T/O to A/C Low Pressure Switch 4
S128 (Diesel) Transmission Harness, Near T/O to Power Distribution Center 4
S130 (V8) Engine Harness, Near T/O to Oil Pressure Sensor 7
S131 (V10) Engine Harness, Rear of Engine 9
S134 Fog Lamp Harness, In T/O to Right Fog Lamp N/S
S136 Fog Lamp Harness, In T/O to Right Fog Lamp N/S
S141 Headlamp and Dash Harness, Near T/O to Joint Connector No. 3 22
S143 Headlamp and Dash Harness, Near T/O to Power Distribution
Center19
S144 Headlamp and Dash Harness, Near T/O to Joint Connector No. 3 22
S150 Front Bumper Right Support 22
S151 Left Front Engine Compartment 21
S152 Near Left Front Wheel Speed Sensor
S160 (Diesel) Engine Harness, Near Fuel Transfer Pump N/S
S161 (Diesel) Transmission Harness, In T/O to Power Distribution Center 4
S164 (Diesel) Engine Harness, Near Fuel Transfer Pump N/S
S165 (Diesel) Engine Harness, Near Engine Control Module N/S
S166 (Diesel) Engine Harness, Near Engine Control Module N/S
S167 (Diesel) Engine Harness, Near Fuel Transfer Pump N/S
S168 (Diesel) Engine Harness, Near T/O to Engine Coolant Temoerature Sensor N/S
S170 (Diesel) Engine Harness, In T/O to Engine Control Module N/S
S171 Transmission Harness, In T/O to Power Distribution Cente 4
S172 (Diesel) Transmission Harness, Near T/O to A/C Low Pressure Switch 4
S173 (Diesel) Transmission Harness, Near T/O to A/C Low Pressure Switch 4
S174 (Diesel) Transmission Harness, In T/O to Power Distribution Center 4
S175 Transmission Harness, In T/O to Power Distribution Center 4
S176 Headlamp and Dash Harness, In Power Distribution Center 19
S177 Headlamp and Dash Harness, In T/O to Daytime Running Lamps
Module19
S179 Transmission Harness, In T/O to Power Distribution Center 4
S180 Headlamp and Dash Harness, Near Intake Air Heater Relay 22
S181 Headlamp and Dash Harness, Near Intake Air Heater Relay 22
S182 Headlamp and Dash Harness, In T/O to Daytime Running Lamps
Module19
S183 Headlamp and Dash Harness, In Power Distribution Center 19
8W - 91 - 10 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1028 of 2255

DODGE RAM 2002 Service Repair Manual SPLICE
NUMBERLOCATION FIG.
S184 (Diesel) Engine Harnes, in T/O to Engine Control Module N/S
S202 Instrument Panel Harness, Near Overdrive Switch 31
S203 Instrument Panel Harness, Near Overdrive Switch

Page 1029 of 2255

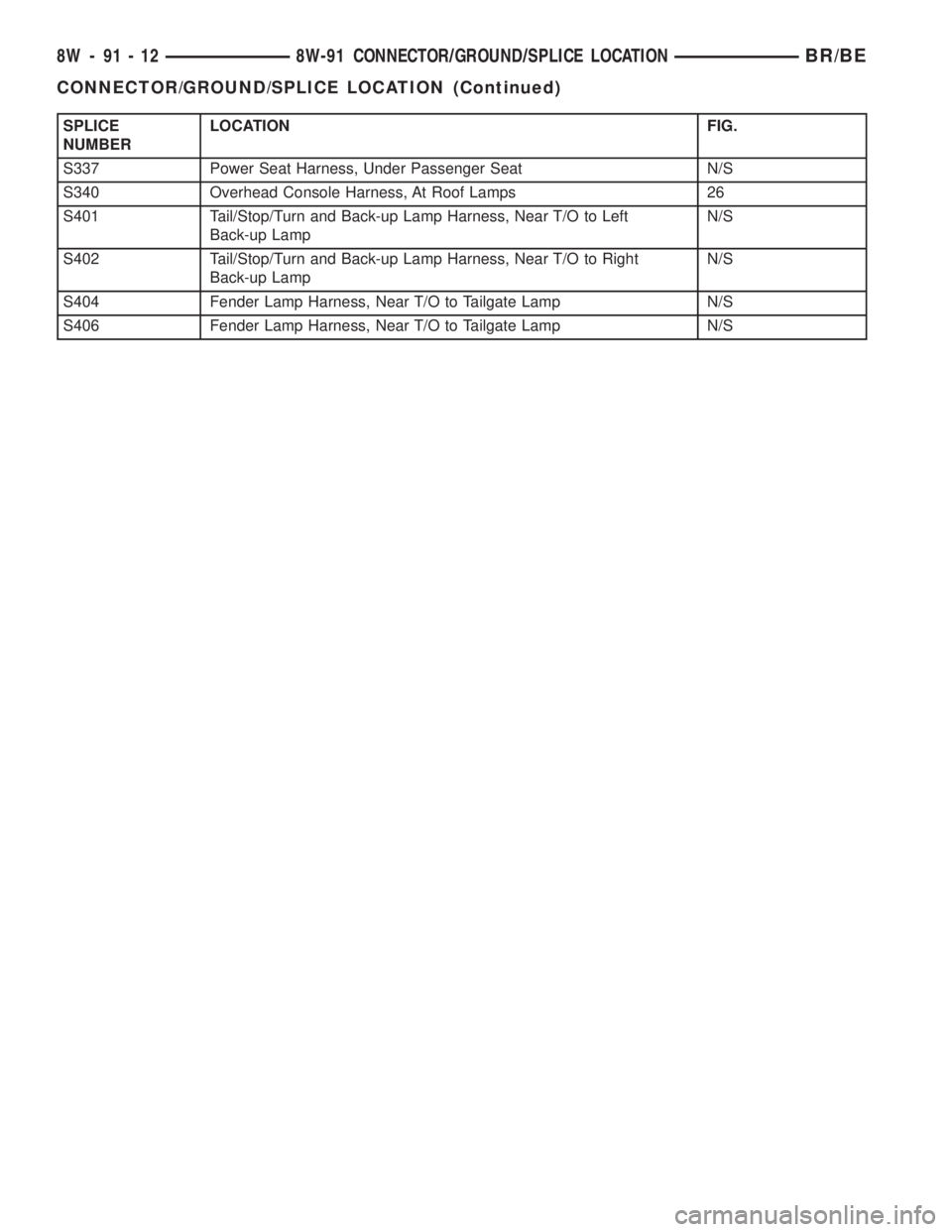

DODGE RAM 2002 Service Repair Manual SPLICE
NUMBERLOCATION FIG.
S337 Power Seat Harness, Under Passenger Seat N/S
S340 Overhead Console Harness, At Roof Lamps 26
S401 Tail/Stop/Turn and Back-up Lamp Harness, Near T/O to Left
Back-up Lamp

Page 1030 of 2255

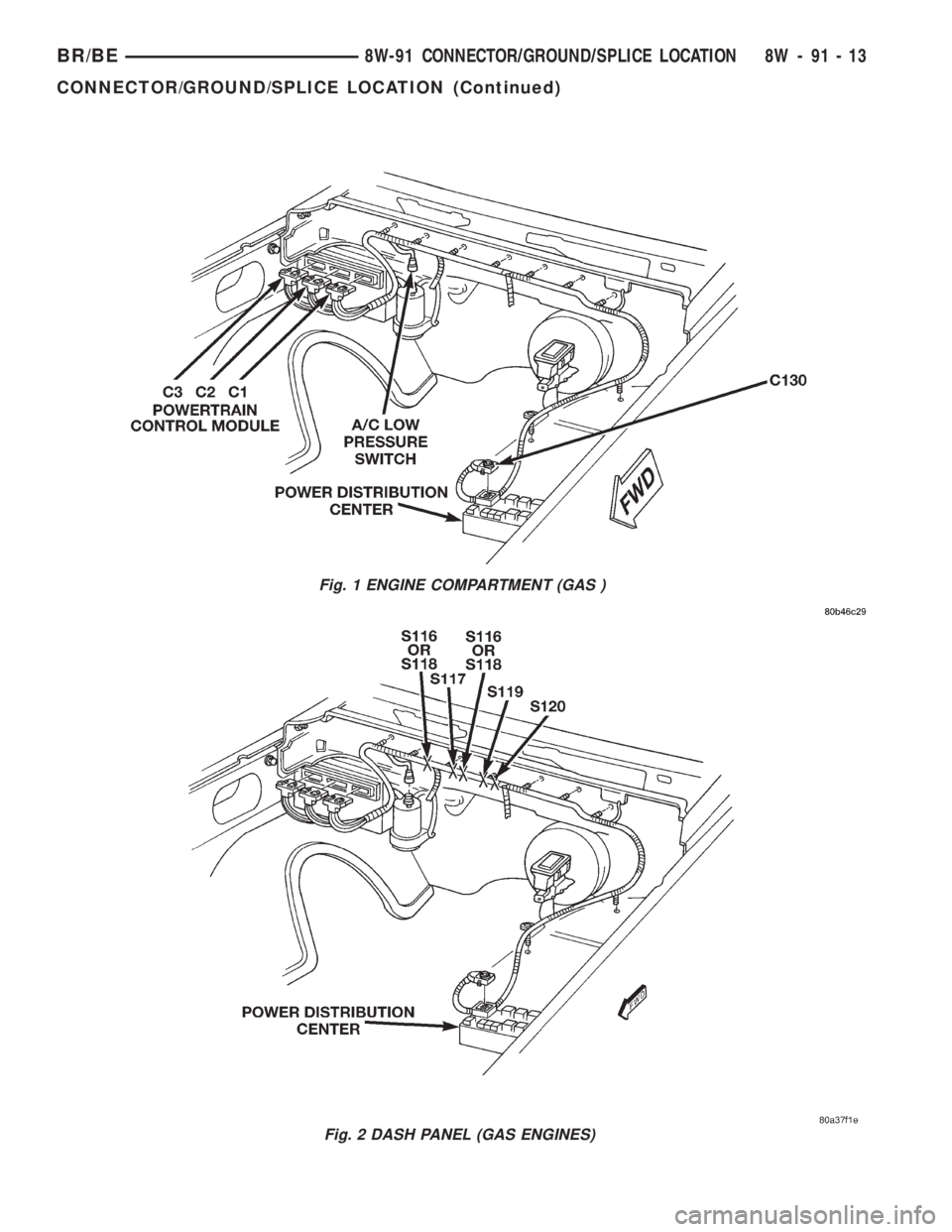

DODGE RAM 2002 Service Repair Manual Fig. 1 ENGINE COMPARTMENT (GAS )
Fig. 2 DASH PANEL (GAS ENGINES)
BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 13
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1031 of 2255

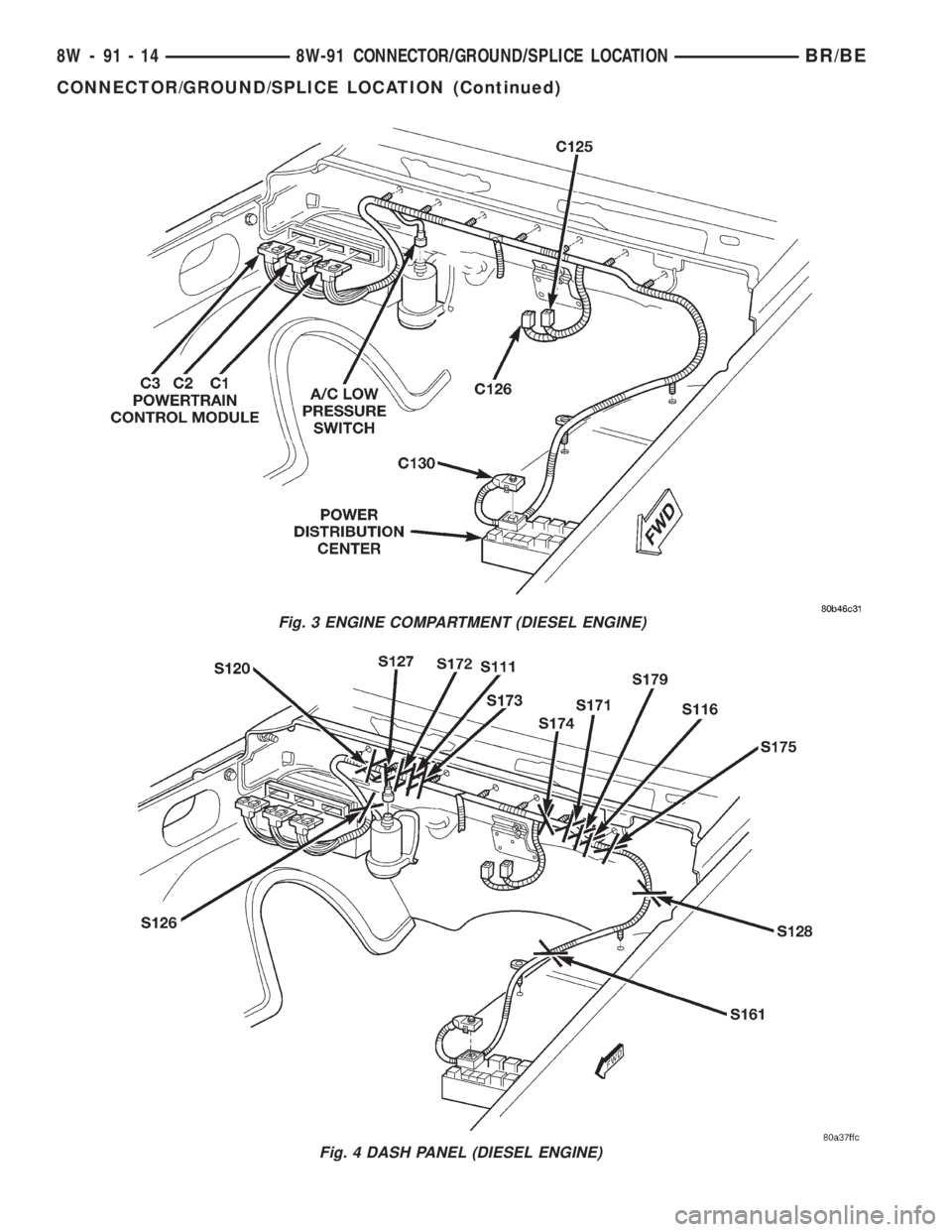

DODGE RAM 2002 Service Repair Manual Fig. 3 ENGINE COMPARTMENT (DIESEL ENGINE)
Fig. 4 DASH PANEL (DIESEL ENGINE)
8W - 91 - 14 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1032 of 2255

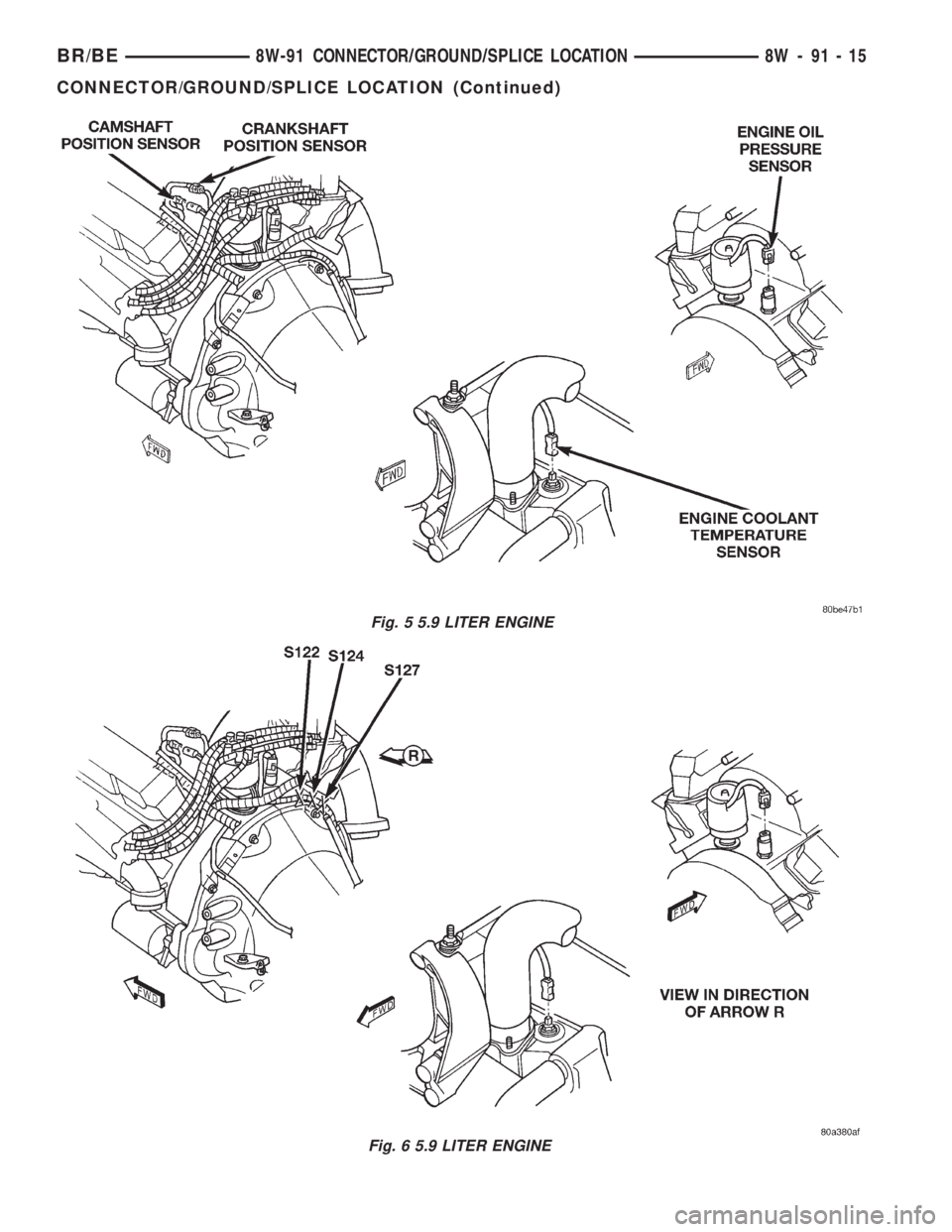

DODGE RAM 2002 Service Repair Manual Fig. 5 5.9 LITER ENGINE
Fig. 6 5.9 LITER ENGINE
BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 15
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
