Page 2105 of 2255

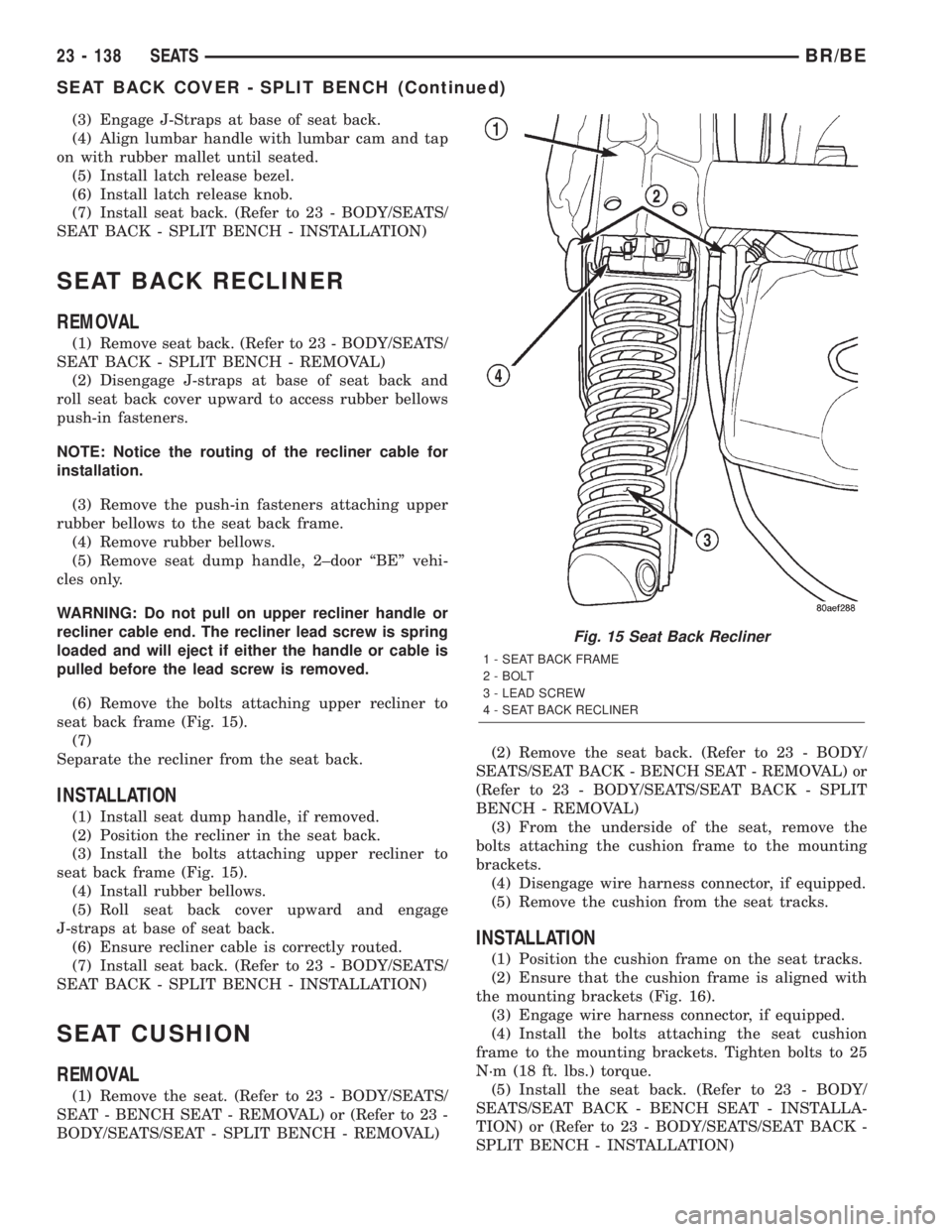

DODGE RAM 2002 Service Repair Manual (3) Engage J-Straps at base of seat back.
(4) Align lumbar handle with lumbar cam and tap
on with rubber mallet until seated.
(5) Install latch release bezel.
(6) Install latch release knob.
(7) Insta

(3) Engage J-Straps at base of seat back.
(4) Align lumbar handle with lumbar cam and tap
on with rubber mallet until seated.
(5) Install latch release bezel.
(6) Install latch release knob.
(7) Install seat back. (Refer to 23 - BODY/SEATS/
SEAT BACK - SPLIT BENCH - INSTALLATION)
SEAT BACK RECLINER
REMOVAL
(1) Remove seat back. (Refer to 23 - BODY/SEATS/
SEAT BACK - SPLIT BENCH - REMOVAL)
(2) Disengage J-straps at base of seat back and
roll seat back cover upward to access rubber bellows
push-in fasteners.
NOTE: Notice the routing of the recliner cable for
installation.
(3) Remove the push-in fasteners attaching upper
rubber bellows to the seat back frame.
(4) Remove rubber bellows.
(5) Remove seat dump handle, 2±door ªBEº vehi-
cles only.
WARNING: Do not pull on upper recliner handle or
recliner cable end. The recliner lead screw is spring
loaded and will eject if either the handle or cable is
pulled before the lead screw is removed.
(6) Remove the bolts attaching upper recliner to
seat back frame (Fig. 15).
(7)
Separate the recliner from the seat back.
INSTALLATION
(1) Install seat dump handle, if removed.
(2) Position the recliner in the seat back.
(3) Install the bolts attaching upper recliner to
seat back frame (Fig. 15).
(4) Install rubber bellows.
(5) Roll seat back cover upward and engage
J-straps at base of seat back.
(6) Ensure recliner cable is correctly routed.
(7) Install seat back. (Refer to 23 - BODY/SEATS/
SEAT BACK - SPLIT BENCH - INSTALLATION)
SEAT CUSHION
REMOVAL
(1) Remove the seat. (Refer to 23 - BODY/SEATS/
SEAT - BENCH SEAT - REMOVAL) or (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - REMOVAL)(2) Remove the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - BENCH SEAT - REMOVAL) or
(Refer to 23 - BODY/SEATS/SEAT BACK - SPLIT
BENCH - REMOVAL)
(3) From the underside of the seat, remove the
bolts attaching the cushion frame to the mounting
brackets.
(4) Disengage wire harness connector, if equipped.
(5) Remove the cushion from the seat tracks.
INSTALLATION
(1) Position the cushion frame on the seat tracks.
(2) Ensure that the cushion frame is aligned with
the mounting brackets (Fig. 16).
(3) Engage wire harness connector, if equipped.
(4) Install the bolts attaching the seat cushion
frame to the mounting brackets. Tighten bolts to 25
N´m (18 ft. lbs.) torque.
(5) Install the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - BENCH SEAT - INSTALLA-
TION) or (Refer to 23 - BODY/SEATS/SEAT BACK -
SPLIT BENCH - INSTALLATION)
Fig. 15 Seat Back Recliner
1 - SEAT BACK FRAME
2 - BOLT
3 - LEAD SCREW
4 - SEAT BACK RECLINER
23 - 138 SEATSBR/BE
SEAT BACK COVER - SPLIT BENCH (Continued)

Page 2106 of 2255

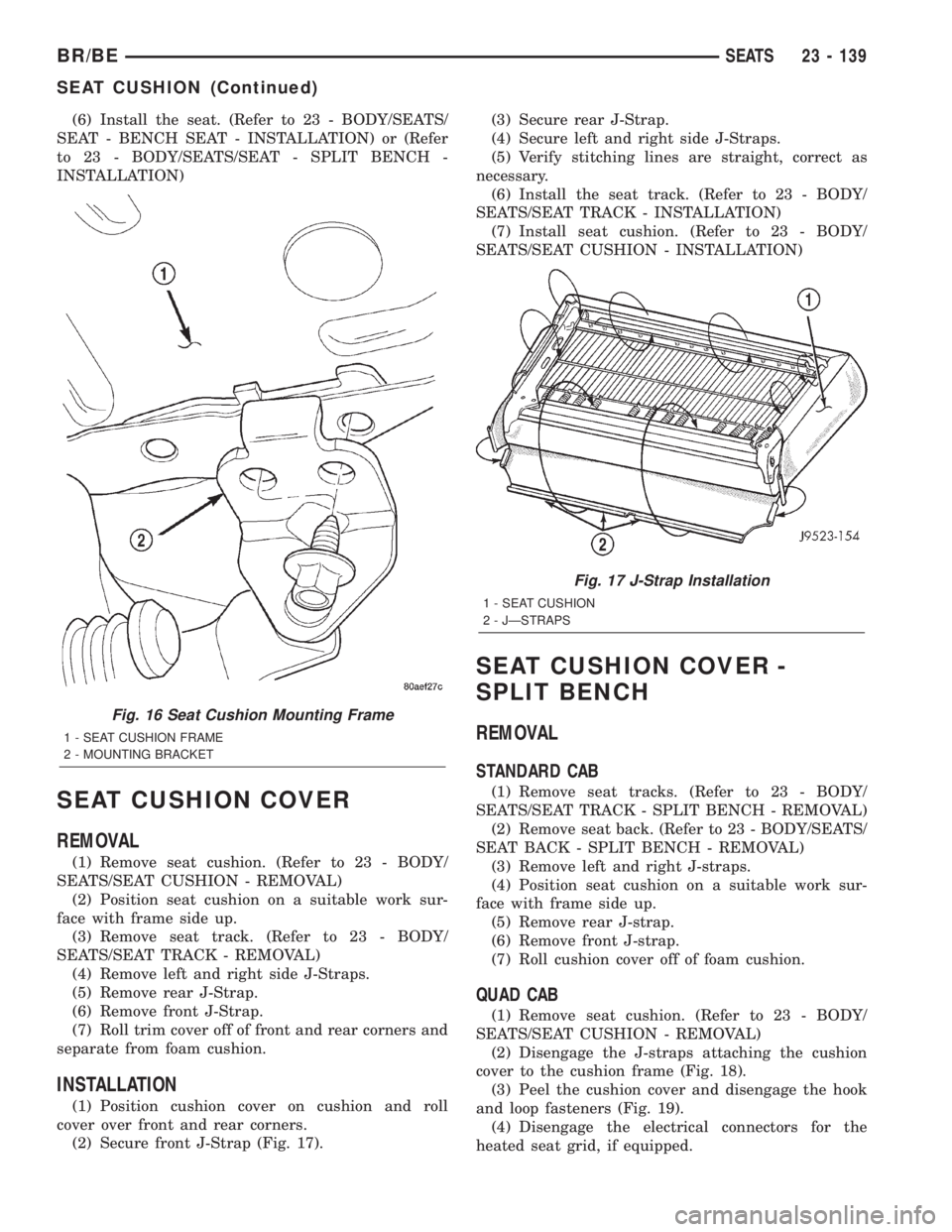

DODGE RAM 2002 Service Repair Manual (6) Install the seat. (Refer to 23 - BODY/SEATS/
SEAT - BENCH SEAT - INSTALLATION) or (Refer
to 23 - BODY/SEATS/SEAT - SPLIT BENCH -
INSTALLATION)
SEAT CUSHION COVER
REMOVAL
(1) Remove seat cushion. (

Page 2107 of 2255

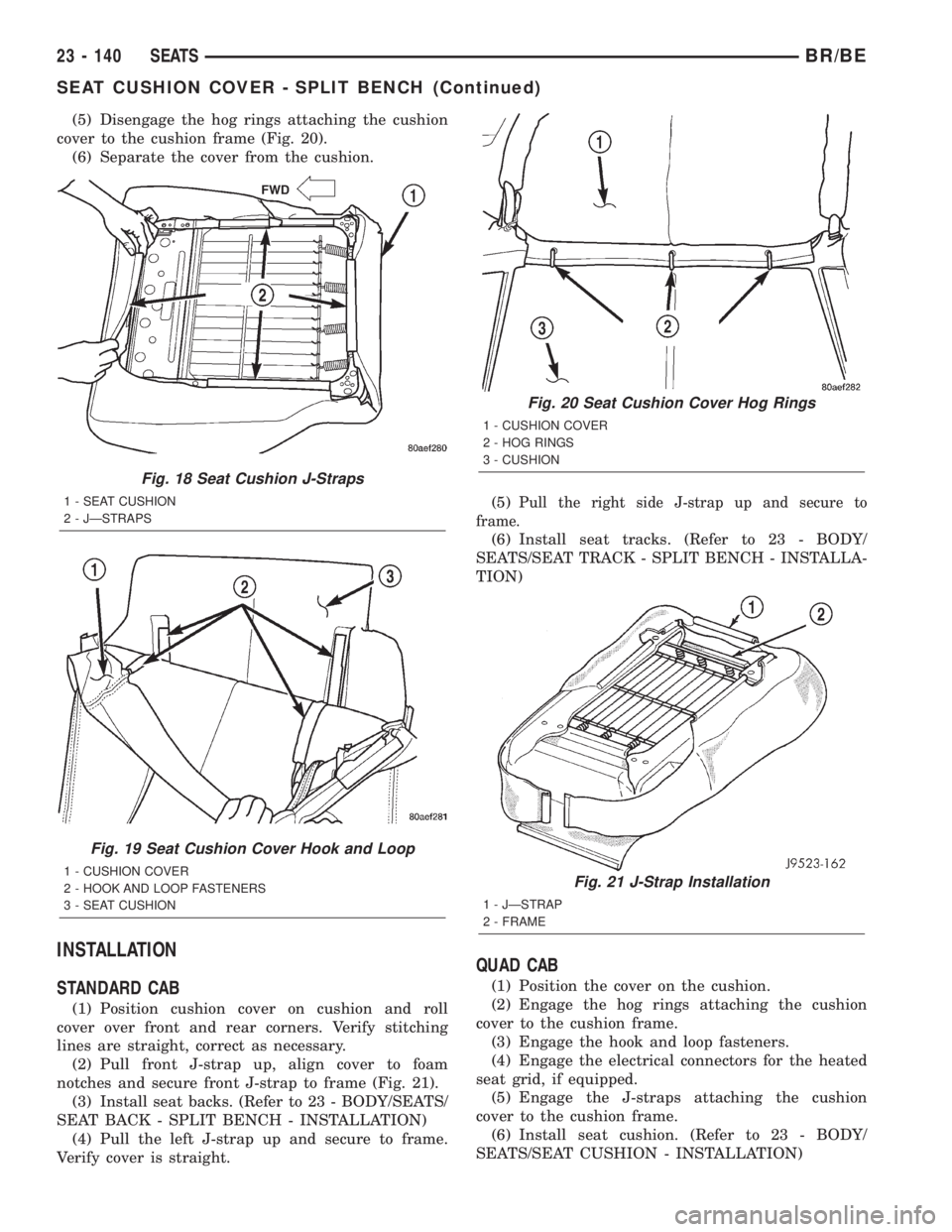

DODGE RAM 2002 Service Repair Manual (5) Disengage the hog rings attaching the cushion
cover to the cushion frame (Fig. 20).
(6) Separate the cover from the cushion.
INSTALLATION
STANDARD CAB
(1) Position cushion cover on cushion and rol

Page 2108 of 2255

DODGE RAM 2002 Service Repair Manual SEAT RISER
REMOVAL
(1) Disconnect seat harness connector.
(2) Remove the seat from the vehicle. (Refer to 23 -
BODY/SEATS/SEAT - BENCH SEAT - REMOVAL) or
(Refer to 23 - BODY/SEATS/SEAT - SPLIT BENCH -

Page 2109 of 2255

DODGE RAM 2002 Service Repair Manual SEAT TRACK - SPLIT BENCH
REMOVAL
(1) Remove seat from vehicle. (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - REMOVAL)
(2) Remove bolts from crossbrace to seat cushion
frame and power track (Fig. 24).

Page 2110 of 2255

DODGE RAM 2002 Service Repair Manual EASY ENTRY SEAT TRACK
REMOVAL
(1) Remove front passenger seat. (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - REMOVAL)
(2) Remove recliner handle.
(3) Remove side shield.
(4) Disengage seat track latc

EASY ENTRY SEAT TRACK
REMOVAL
(1) Remove front passenger seat. (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - REMOVAL)
(2) Remove recliner handle.
(3) Remove side shield.
(4) Disengage seat track latch release cables.
(5) Remove bolts attaching seat adjuster track to
easy entry seat track. (Fig. 27).
(6) Remove inboard seat back pivot bolt.
(7) Disengage latch release cable from pulley.
(8) Separate seat adjuster track from seat back.
INSTALLATION
(1) Position inboard easy entry seat track at seat
back.
(2) Engage latch release cable around pulley.
(3) Install inboard seat back pivot bolt. Tighten
bolt to 50 N´m (36 ft. lbs.) torque.
(4) Install screws attaching seat adjuster track to
seat cushion frame. Tighten screws to 25 N´m (18 ft.
lbs.) torque.
(5) Install bolts attaching easy entry seat track to
seat adjuster track. Tighten front bolts to 17 N´m (12
ft. lbs.) torque. Tighten rear inboard bolts to 21 N´m
(16 ft. lbs.) torque. Tighten rear outboard bolts to 45
N´m (33 ft. lbs.) torque.
(6) Engage seat track latch release cables.
(7) Install front passenger seat. (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - INSTALLA-
TION)
(8) Install side shield.
(9) Install recliner handle.
SEAT TRACK ADJUSTER
REMOVAL
(1) Remove the seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - REMOVAL)
(2) Unwind recliner spring from seat back. Use
care not to lose upper spring seat.
WARNING: DO NOT PULL THE RECLINER CABLE
OR THE RECLINER HANDLE. THE RECLINER LEAD
SCREW IS SPRING LOADED AND WILL EJECT IF
EITHER THE HANDLE , CABLE, OR TOWEL BAR IS
PULLED BEFORE THE LEAD SCREW IS REMOVED.
(3) Remove right and left risers.
INSTALLATION
(1) Install the left and right risers.
(2) Install the recliner lead screw and spring in
the seat back.
(3) Install seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - INSTALLATION)
STANCHION COVER
REMOVAL
(1) Remove push-in fasteners attaching stanchion
cover to seat stanchion (Fig. 28).
(2) Separate cover from seat stanchion.
INSTALLATION
(1) Position cover on seat stanchion.
(2) Install push-in fasteners attaching stanchion
cover to seat stanchion (Fig. 28) .
Fig. 27 EASY ENTRY SEAT TRACK
1 - SEAT ADJUSTER TRACK
2 - RISER
3 - EASY ENTRY SEAT TRACK
4 - SEAT CUSHION
Fig. 28 Stanchion Cover
1 - PUSHÐIN FASTENER
2 - SEAT STANCHION
3 - FLOOR PAN
4 - STANCHION COVER
BR/BESEATS 23 - 143

Page 2111 of 2255

DODGE RAM 2002 Service Repair Manual REAR SEAT
REMOVAL
(1) Move front seat track to full forward position.
(2) Turn release handle on underside of rear seat
(Fig. 29) to disengage seat cushion and move seat to
the stowed position.
(3) Re

Page 2112 of 2255

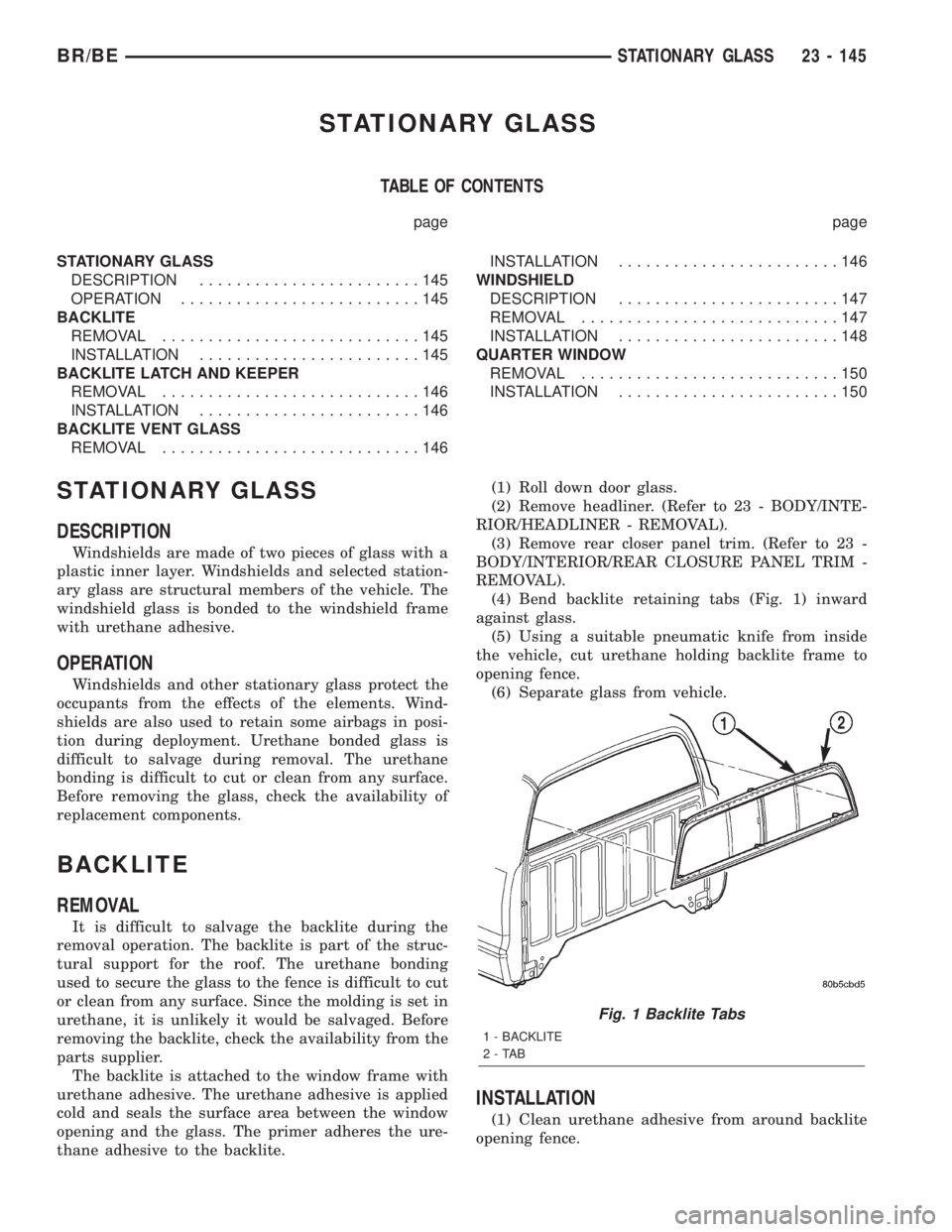

DODGE RAM 2002 Service Repair Manual STATIONARY GLASS
TABLE OF CONTENTS
page page
STATIONARY GLASS
DESCRIPTION........................145
OPERATION..........................145
BACKLITE
REMOVAL............................145
INSTALLATION

STATIONARY GLASS
TABLE OF CONTENTS
page page
STATIONARY GLASS
DESCRIPTION........................145
OPERATION..........................145
BACKLITE
REMOVAL............................145
INSTALLATION........................145
BACKLITE LATCH AND KEEPER
REMOVAL............................146
INSTALLATION........................146
BACKLITE VENT GLASS
REMOVAL............................146INSTALLATION........................146
WINDSHIELD
DESCRIPTION........................147
REMOVAL............................147
INSTALLATION........................148
QUARTER WINDOW
REMOVAL............................150
INSTALLATION........................150
STATIONARY GLASS
DESCRIPTION
Windshields are made of two pieces of glass with a
plastic inner layer. Windshields and selected station-
ary glass are structural members of the vehicle. The
windshield glass is bonded to the windshield frame
with urethane adhesive.
OPERATION
Windshields and other stationary glass protect the
occupants from the effects of the elements. Wind-
shields are also used to retain some airbags in posi-
tion during deployment. Urethane bonded glass is
difficult to salvage during removal. The urethane
bonding is difficult to cut or clean from any surface.
Before removing the glass, check the availability of
replacement components.
BACKLITE
REMOVAL
It is difficult to salvage the backlite during the
removal operation. The backlite is part of the struc-
tural support for the roof. The urethane bonding
used to secure the glass to the fence is difficult to cut
or clean from any surface. Since the molding is set in
urethane, it is unlikely it would be salvaged. Before
removing the backlite, check the availability from the
parts supplier.
The backlite is attached to the window frame with
urethane adhesive. The urethane adhesive is applied
cold and seals the surface area between the window
opening and the glass. The primer adheres the ure-
thane adhesive to the backlite.(1) Roll down door glass.
(2) Remove headliner. (Refer to 23 - BODY/INTE-
RIOR/HEADLINER - REMOVAL).
(3) Remove rear closer panel trim. (Refer to 23 -
BODY/INTERIOR/REAR CLOSURE PANEL TRIM -
REMOVAL).
(4) Bend backlite retaining tabs (Fig. 1) inward
against glass.
(5) Using a suitable pneumatic knife from inside
the vehicle, cut urethane holding backlite frame to
opening fence.
(6) Separate glass from vehicle.
INSTALLATION
(1) Clean urethane adhesive from around backlite
opening fence.
Fig. 1 Backlite Tabs
1 - BACKLITE
2-TAB
BR/BESTATIONARY GLASS 23 - 145
