2002 DODGE RAM Service Repair Manual

seat memory seat adjustmentinfotainmentapple carplaygearboxremote start
Popular search:
battery locationwheel torquewater pumpservice indicatorlug patternservice resetkey fob battery
Previous
Next
Load previous 8 pages

Page 1049 of 2255

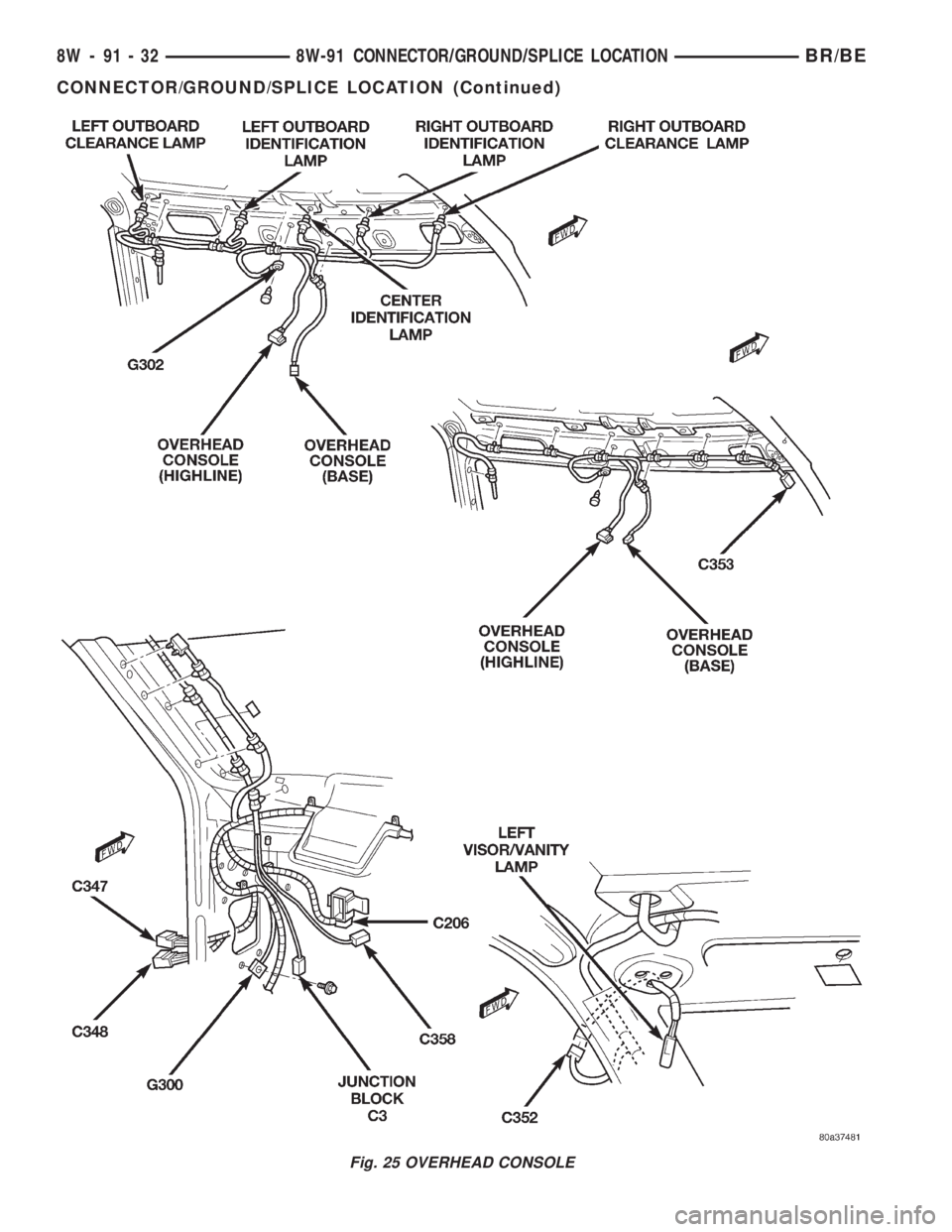

DODGE RAM 2002 Service Repair Manual Fig. 25 OVERHEAD CONSOLE 8W - 91 - 32 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1050 of 2255

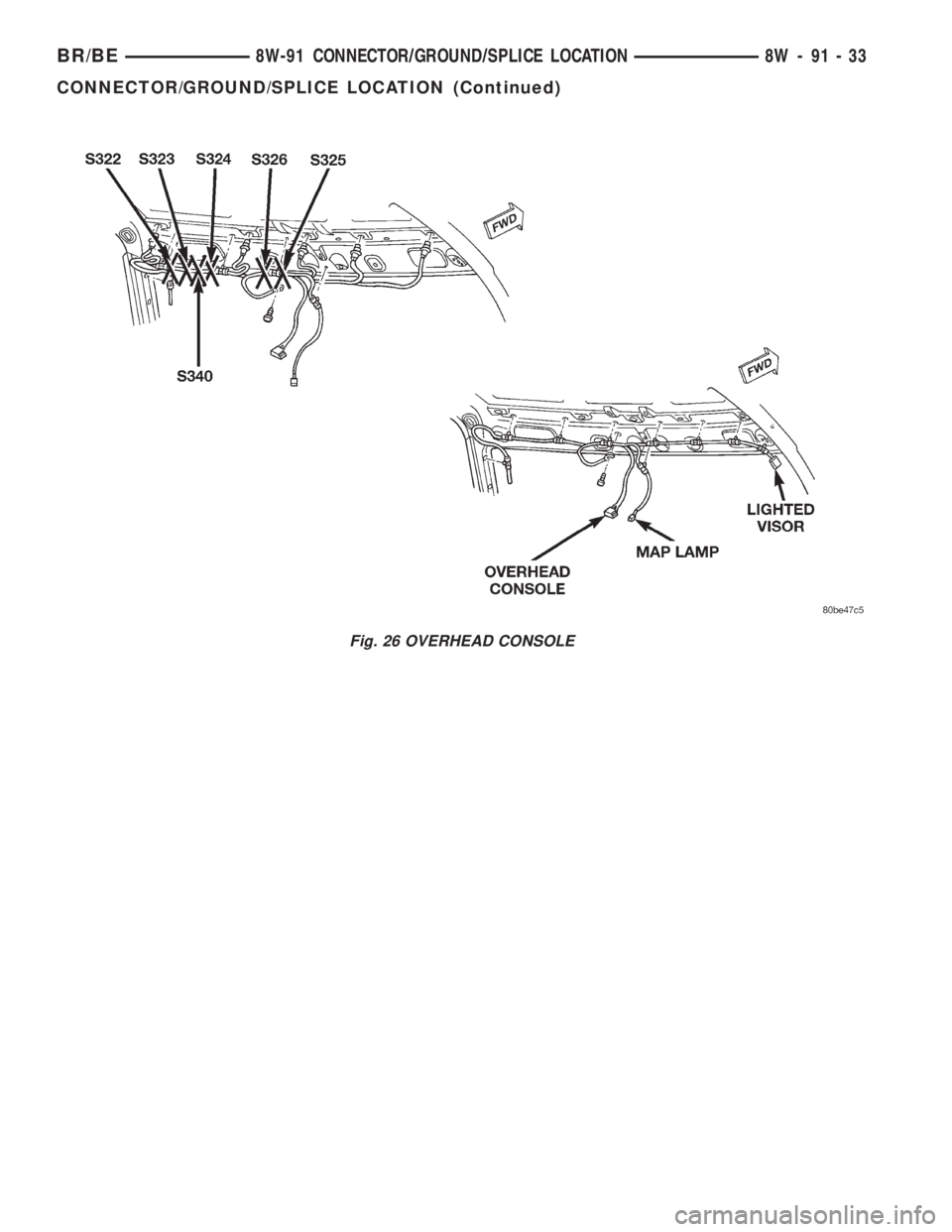

DODGE RAM 2002 Service Repair Manual Fig. 26 OVERHEAD CONSOLE BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 33 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1051 of 2255

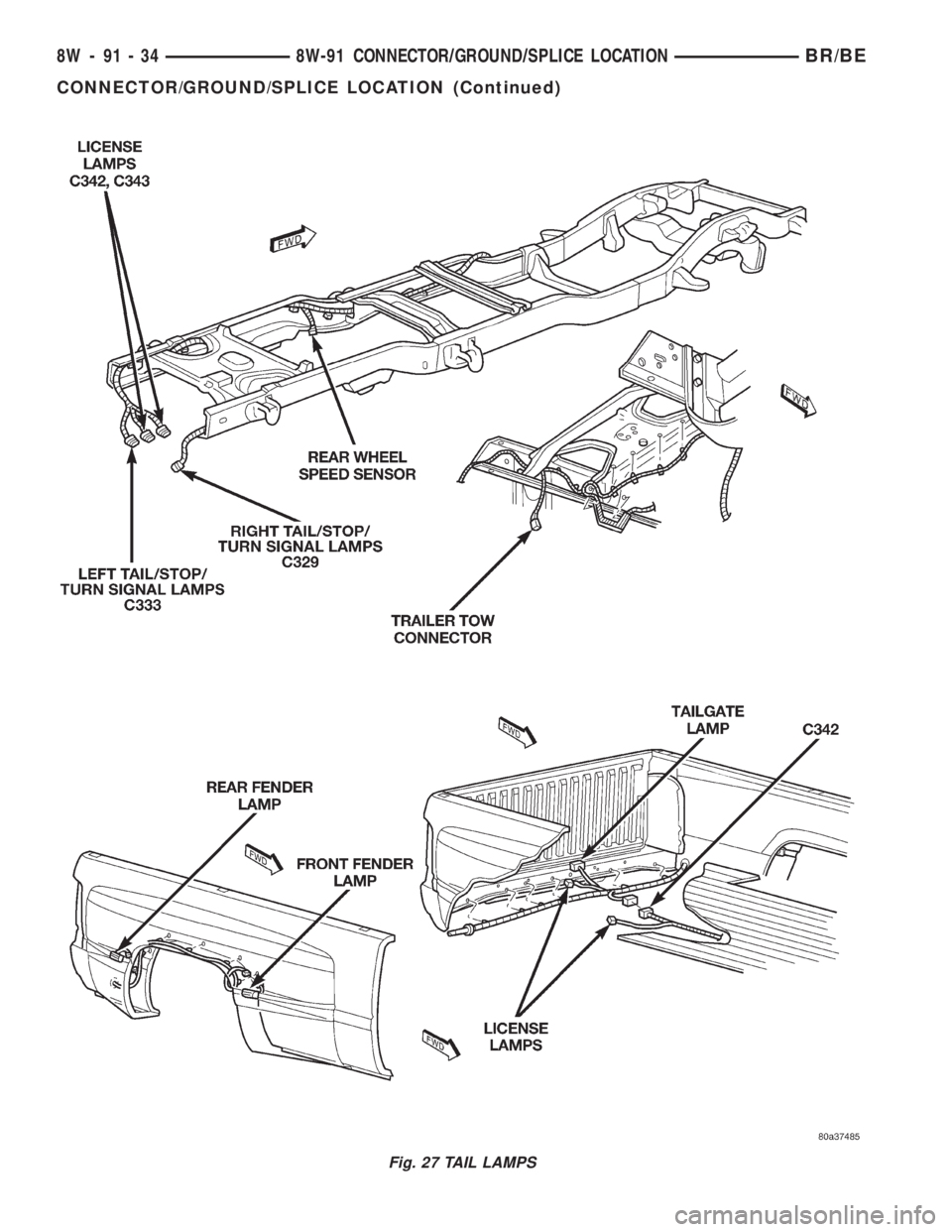

DODGE RAM 2002 Service Repair Manual Fig. 27 TAIL LAMPS 8W - 91 - 34 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1052 of 2255

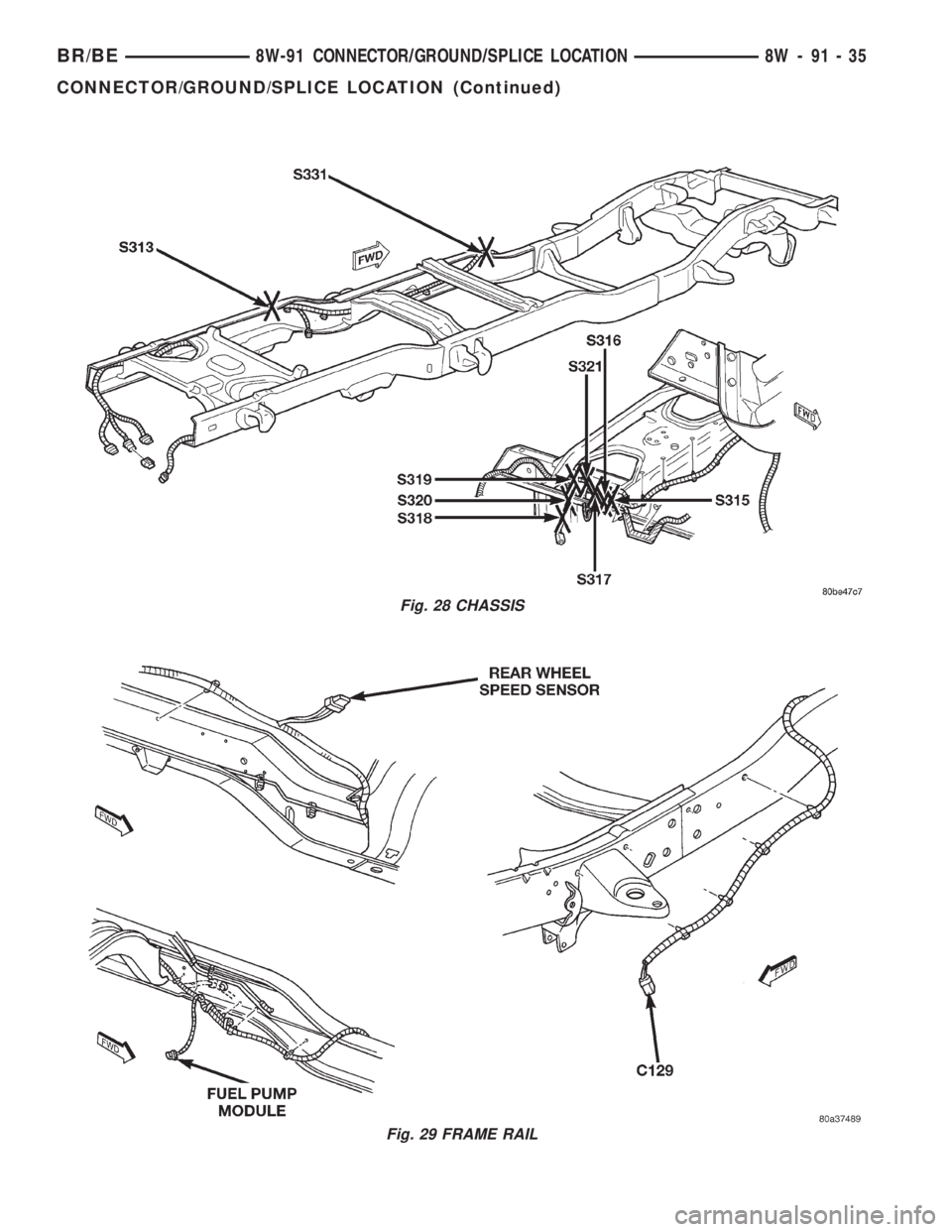

DODGE RAM 2002 Service Repair Manual Fig. 28 CHASSIS Fig. 29 FRAME RAIL BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 35 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1053 of 2255

DODGE RAM 2002 Service Repair Manual Fig. 30 INSTRUMENT PANEL 8W - 91 - 36 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1054 of 2255

DODGE RAM 2002 Service Repair Manual Fig. 31 INSTRUMENT PANEL BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 37 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1055 of 2255

DODGE RAM 2002 Service Repair Manual Fig. 32 STEERING COLUMN 8W - 91 - 38 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1056 of 2255

DODGE RAM 2002 Service Repair Manual Fig. 33 INSTRUMENT PANEL BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 39 CONNECTOR/GROUND/SPLICE LOCATION (Continued)
