DODGE RAM 2002 Service Repair Manual PASSENGER AIRBAG-2WAY CAV CIRCUIT FUNCTION 1 R42 18BK/YL PASSENGER AIRBAG LINE 1 2 R44 18DG/YL PASSENGER AIRBAG LINE 2 PASSENGER AIRBAG ON/OFF SWITCH C1-2WAY CAV CIRCUIT FUNCTION 1 F14 18LG/YL FUSED I

Page 1002 of 2255

DODGE RAM 2002 Service Repair Manual PASSENGER DOOR WINDOW/LOCK SWITCH - 11 WAY CAV CIRCUIT FUNCTION 1 Q16 14BR/WT MASTER WINDOW SWITCH RIGHT FRONT (UP) 2 Q26 14VT/WT MASTER WINDOW SWITCH RIGHT FRONT (DOWN) 3 Q22 14VT RIGHT FRONT WINDOW

Page 1003 of 2255

DODGE RAM 2002 Service Repair Manual PASSENGER POWER SEAT FRONT VERTICAL MOTOR (CLUB CAB)-2WAY CAV CIRCUIT FUNCTION A P20 16RD/LG RIGHT SEAT FRONT DOWN B P18 16YL/LG RIGHT SEAT FRONT UP PASSENGER POWER SEAT HORIZONTAL MOTOR (CLUB CAB)-2W

Page 1004 of 2255

DODGE RAM 2002 Service Repair Manual POWER MIRROR SWITCH-8WAY CAV CIRCUIT FUNCTION 1 P71 22YL LEFT MIRROR UP DRIVER 2 P75 22DB/WT LEFT MIRROR LEFT DRIVER 3 P73 22YL/PK LEFT MIRROR COMMON DRIVER (RIGHT/DOWN) 4 P72 22YL/BK RIGHT MIRROR UP

Page 1005 of 2255

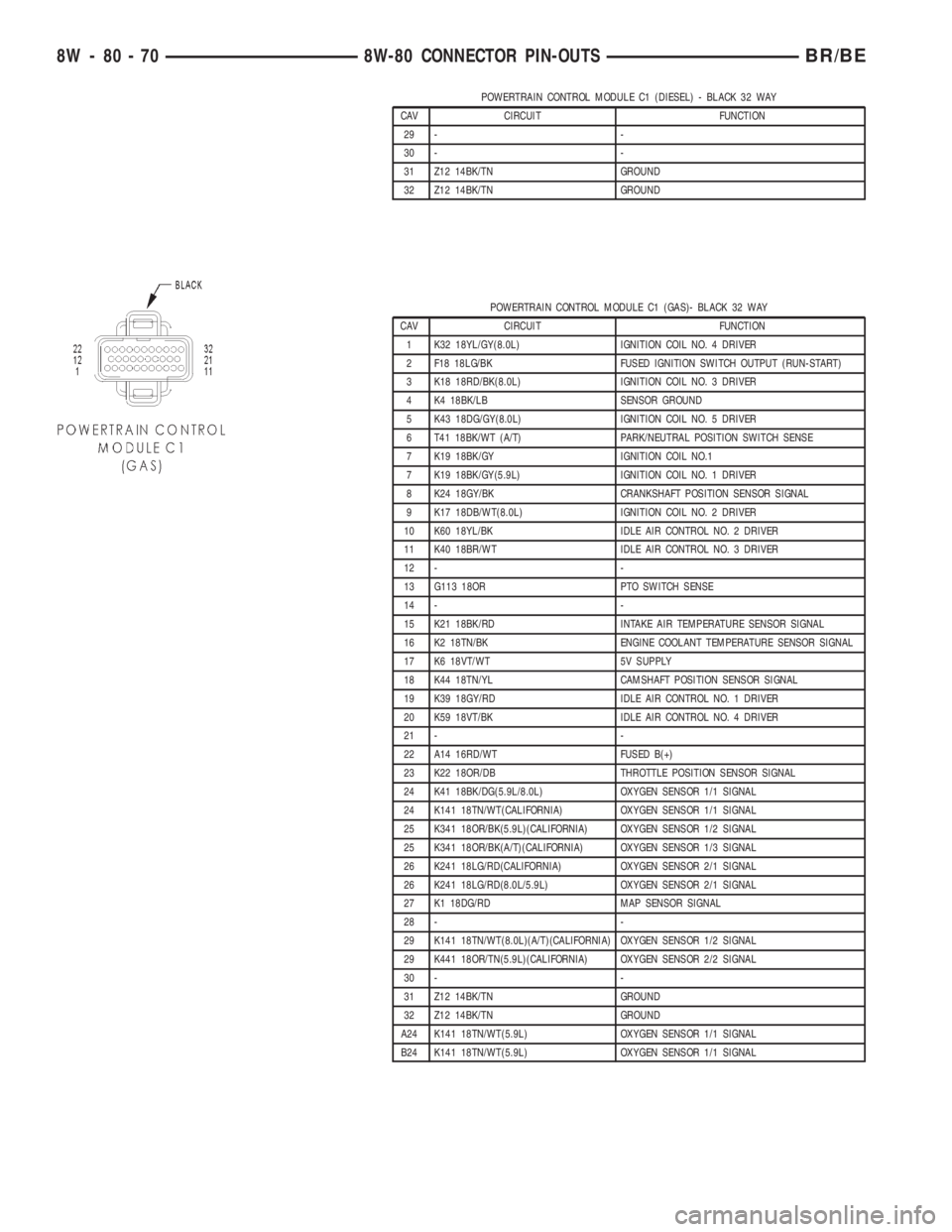

DODGE RAM 2002 Service Repair Manual POWERTRAIN CONTROL MODULE C1 (DIESEL) - BLACK 32 WAY CAV CIRCUIT FUNCTION 29 - - 30 - - 31 Z12 14BK/TN GROUND 32 Z12 14BK/TN GROUND POWERTRAIN CONTROL MODULE C1 (GAS)- BLACK 32 WAY CAV CIRCUIT FUNCTIO

Page 1006 of 2255

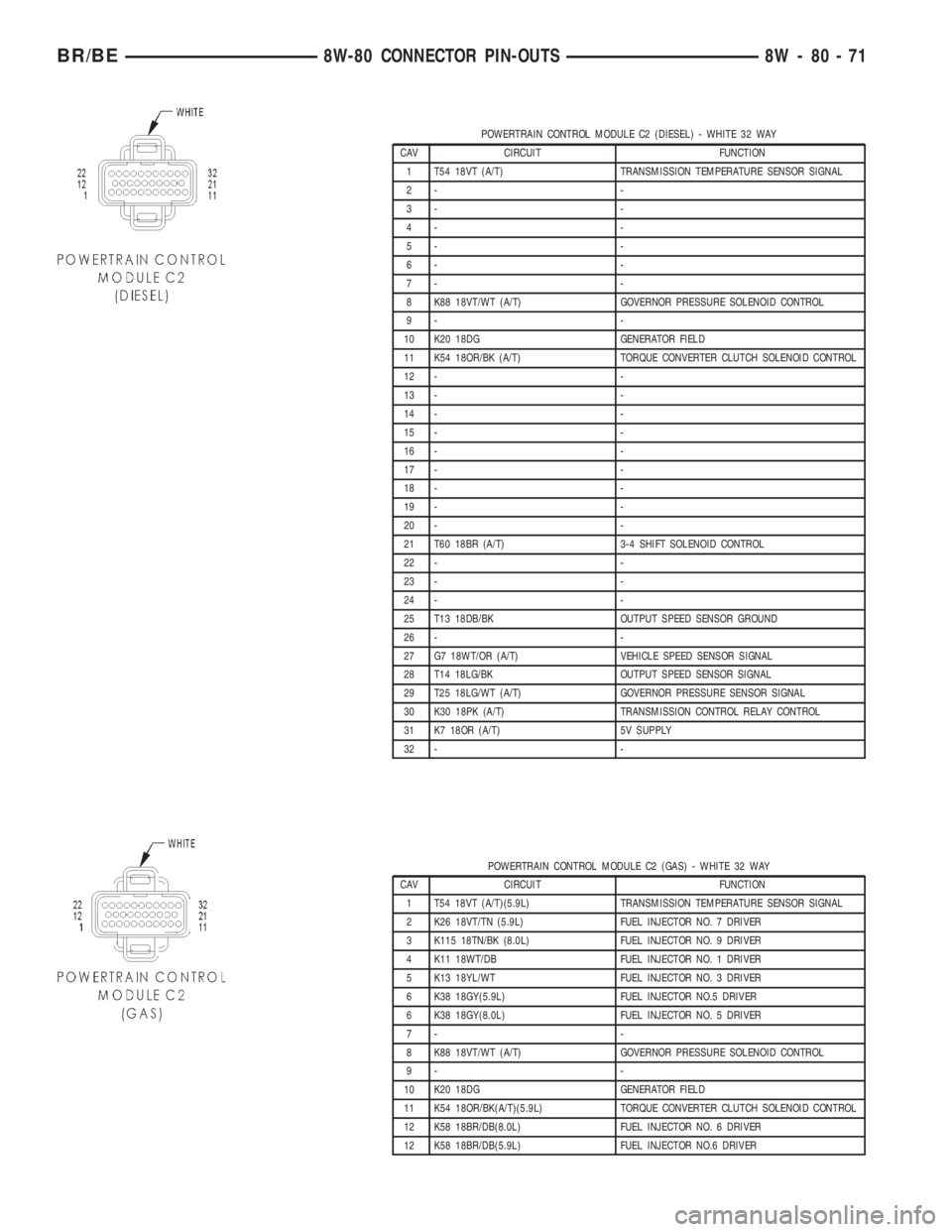

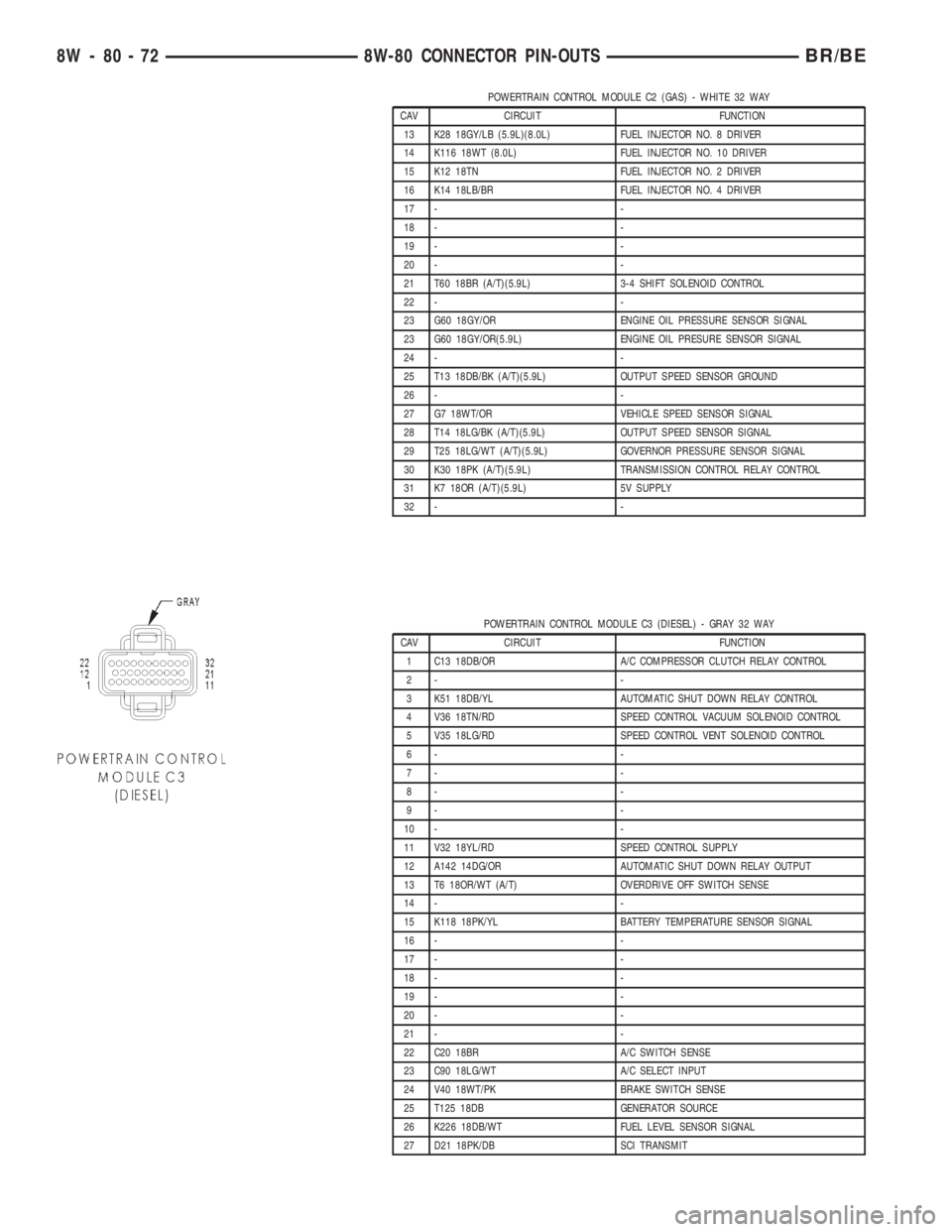

DODGE RAM 2002 Service Repair Manual POWERTRAIN CONTROL MODULE C2 (DIESEL) - WHITE 32 WAY CAV CIRCUIT FUNCTION 1 T54 18VT (A/T) TRANSMISSION TEMPERATURE SENSOR SIGNAL 2- - 3- - 4- - 5- - 6- - 7- - 8 K88 18VT/WT (A/T) GOVERNOR PRESSURE SO

Page 1007 of 2255

DODGE RAM 2002 Service Repair Manual POWERTRAIN CONTROL MODULE C2 (GAS) - WHITE 32 WAY CAV CIRCUIT FUNCTION 13 K28 18GY/LB (5.9L)(8.0L) FUEL INJECTOR NO. 8 DRIVER 14 K116 18WT (8.0L) FUEL INJECTOR NO. 10 DRIVER 15 K12 18TN FUEL INJECTOR

Page 1008 of 2255

DODGE RAM 2002 Service Repair Manual POWERTRAIN CONTROL MODULE C3 (DIESEL) - GRAY 32 WAY CAV CIRCUIT FUNCTION 28 D2 18WT/BK CCD BUS(-) 29 D220 18WT/VT SCI RECEIVE 30 D1 18VT/BR CCD BUS(+) 31 - - 32 V37 18RD/LG SPEED CONTROL SWITCH SIGNAL
