Page 2017 of 2255

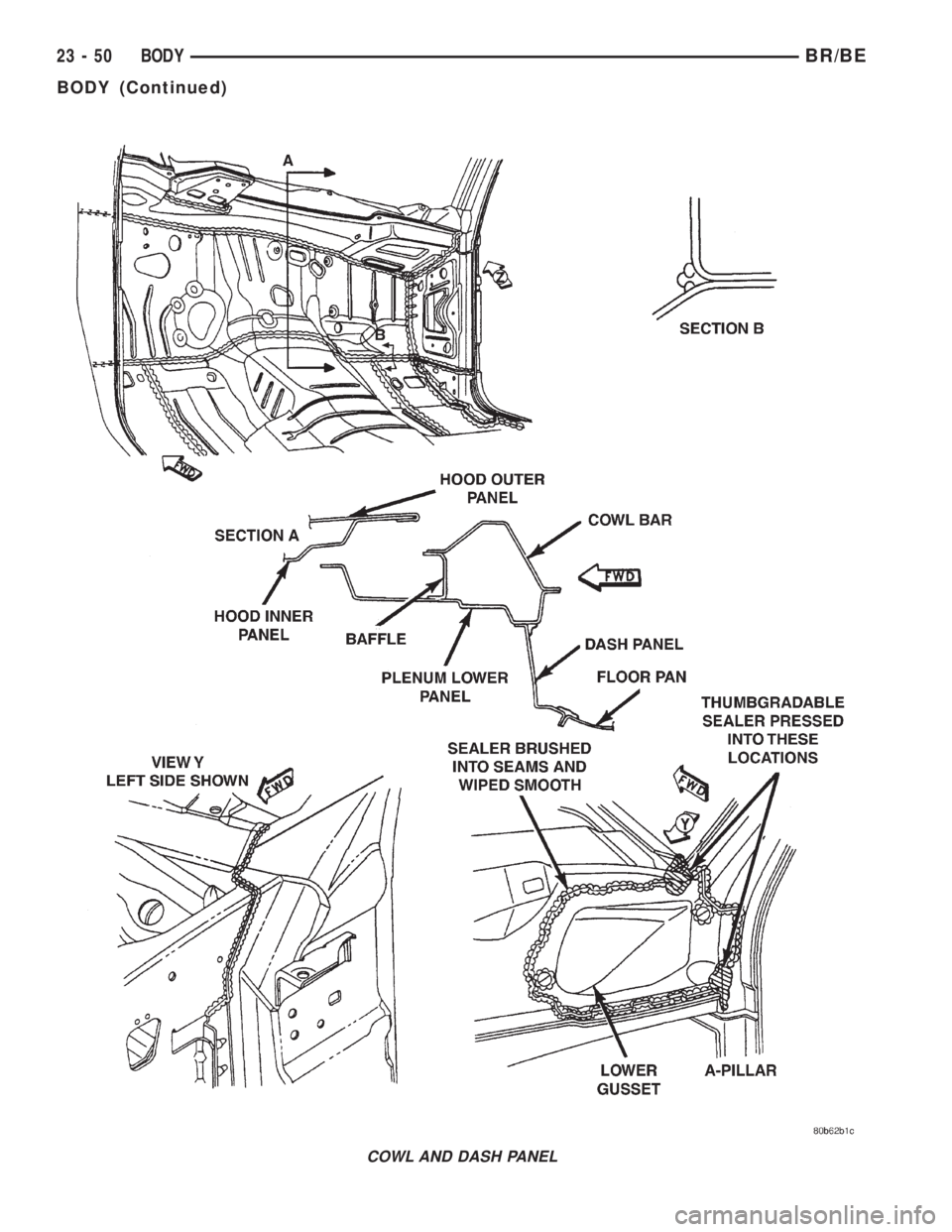

DODGE RAM 2002 Service Repair Manual COWL AND DASH PANEL 23 - 50 BODYBR/BE BODY (Continued)

Page 2018 of 2255

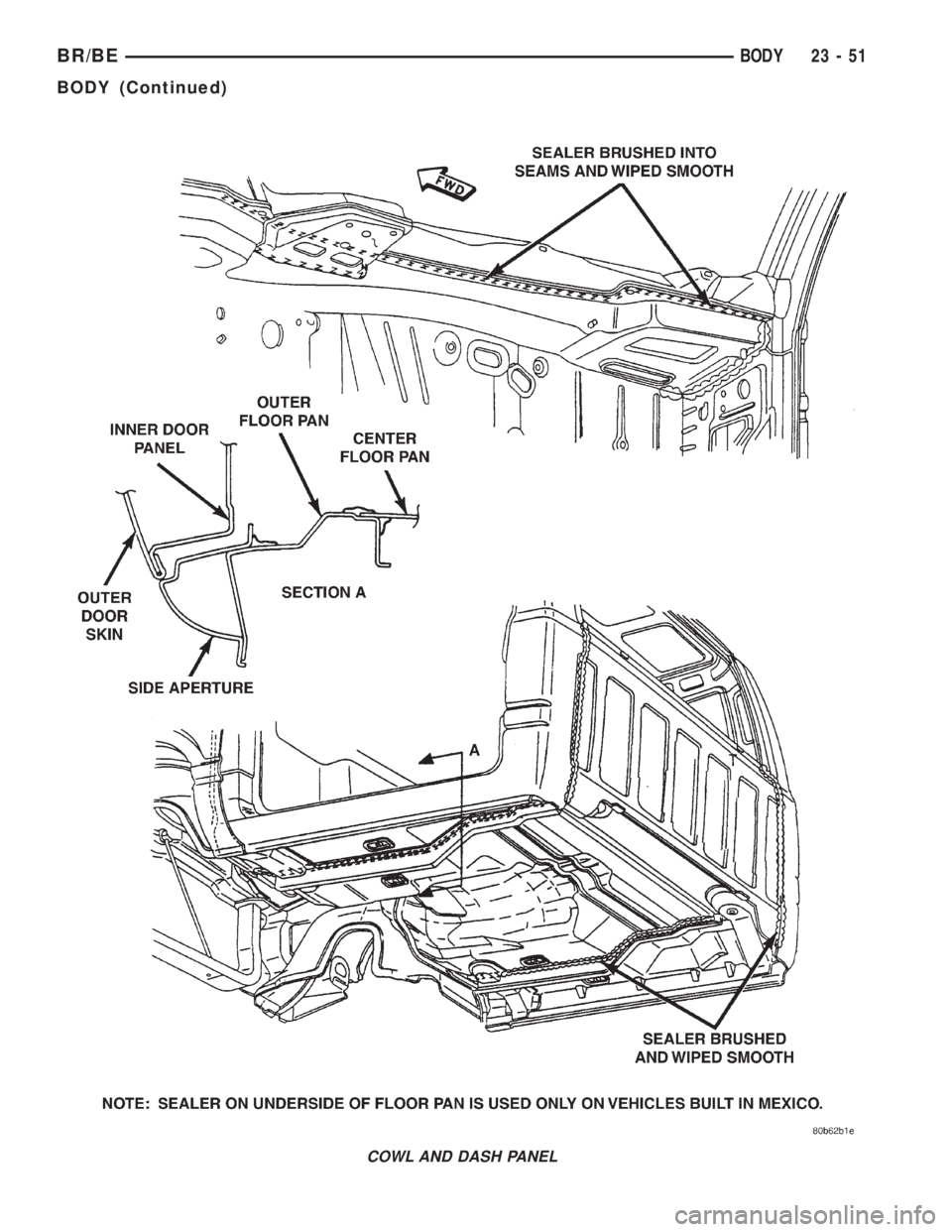

DODGE RAM 2002 Service Repair Manual COWL AND DASH PANEL BR/BEBODY 23 - 51 BODY (Continued)

Page 2019 of 2255

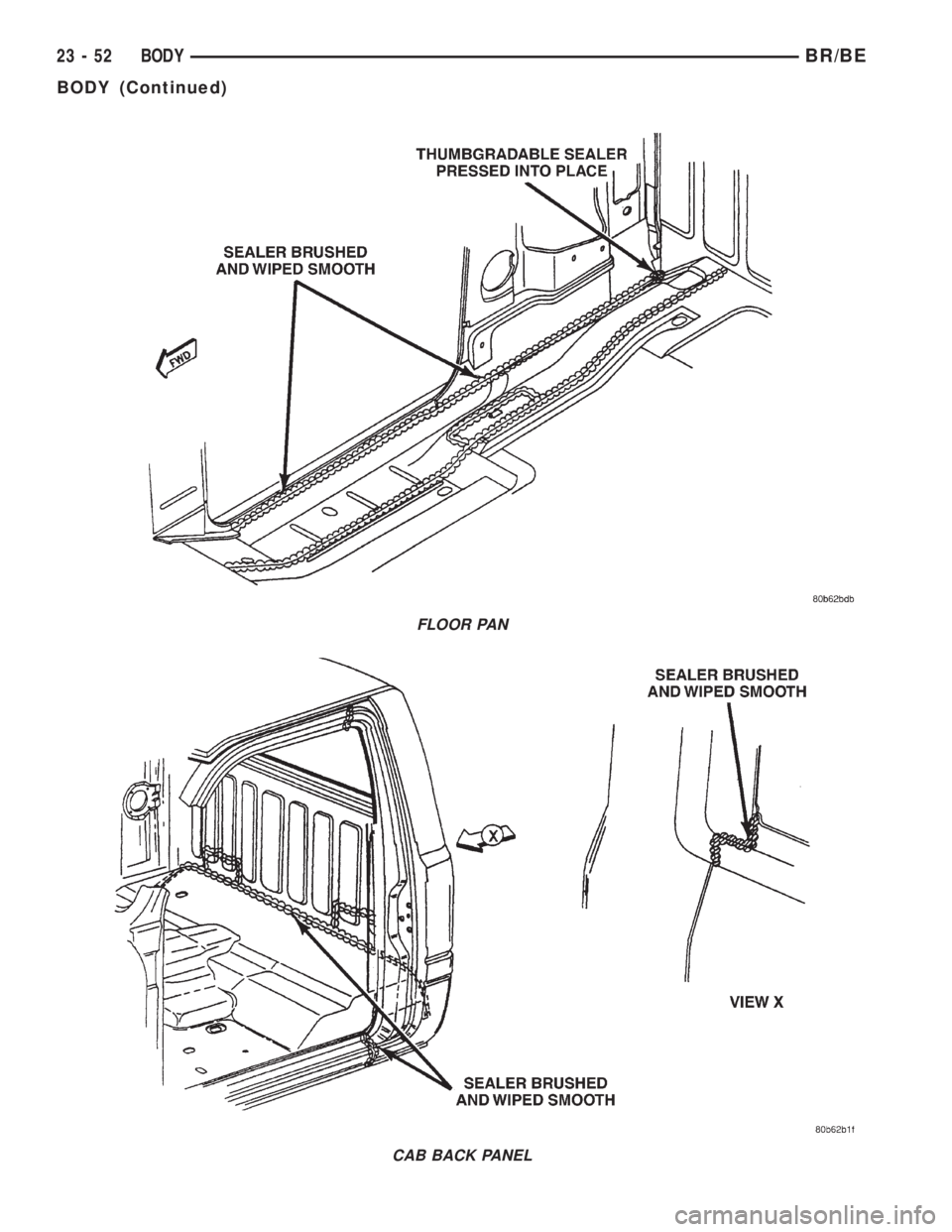

DODGE RAM 2002 Service Repair Manual FLOOR PAN CAB BACK PANEL 23 - 52 BODYBR/BE BODY (Continued)

Page 2020 of 2255

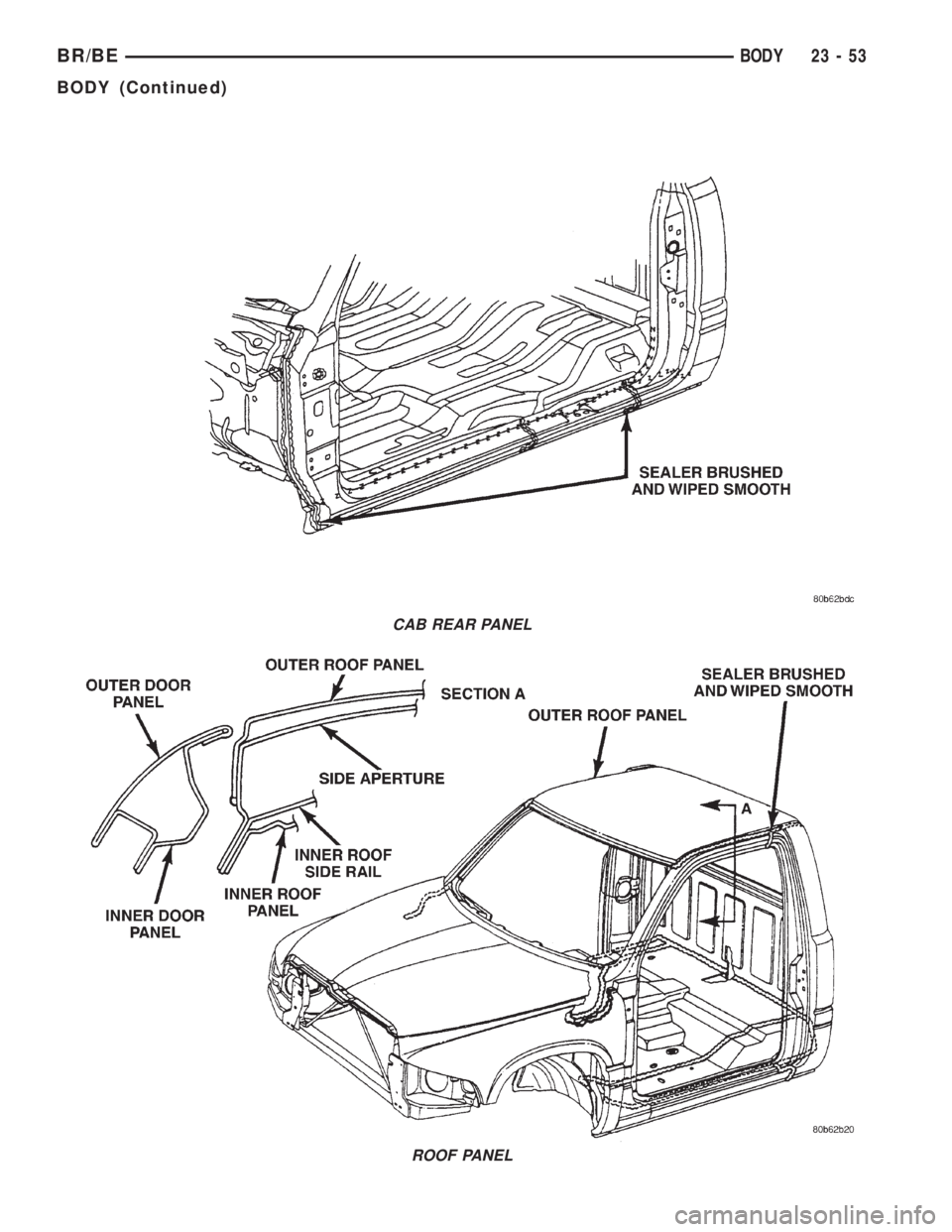

DODGE RAM 2002 Service Repair Manual CAB REAR PANEL ROOF PANEL BR/BEBODY 23 - 53 BODY (Continued)

Page 2021 of 2255

DODGE RAM 2002 Service Repair Manual CARGO BOX 23 - 54 BODYBR/BE BODY (Continued)

Page 2022 of 2255

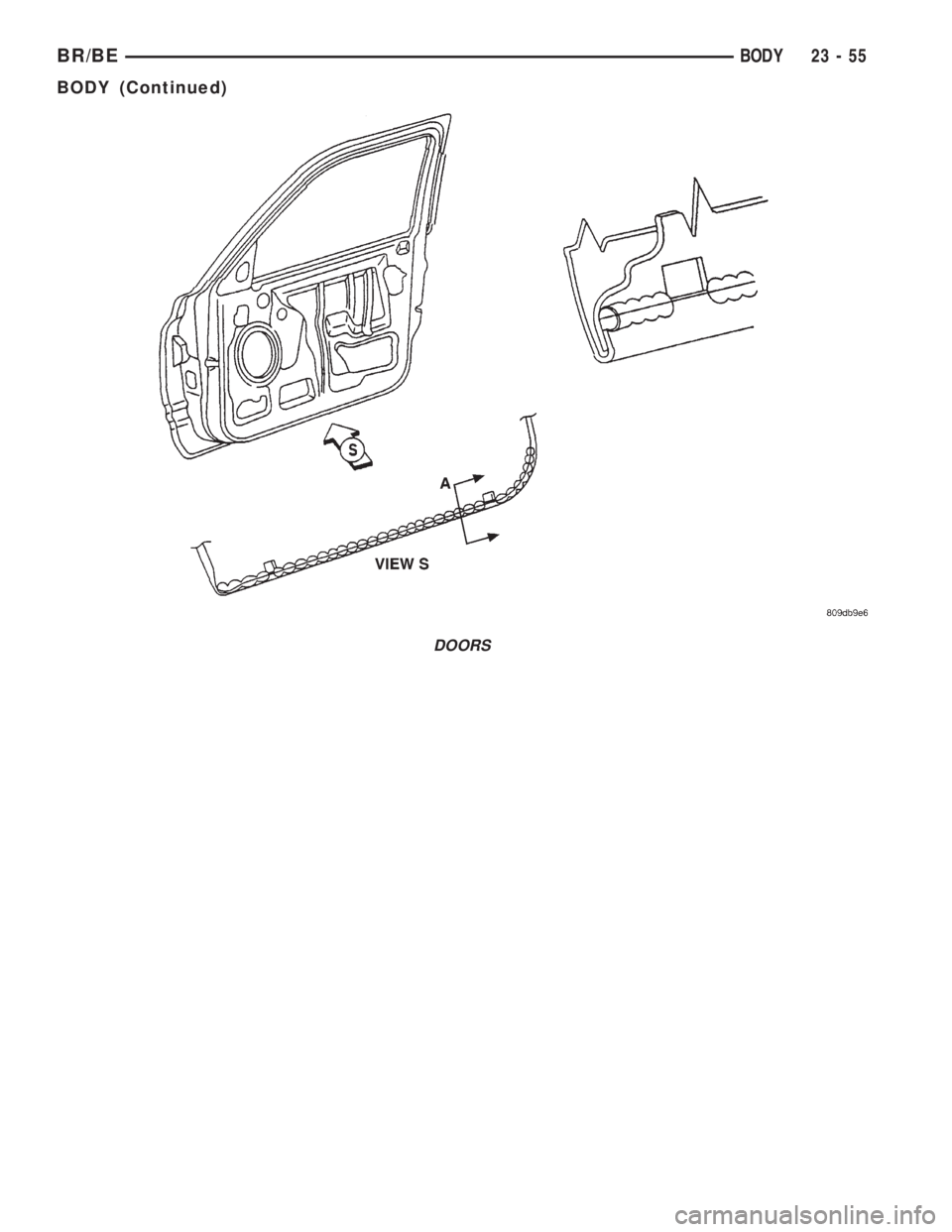

DODGE RAM 2002 Service Repair Manual DOORS BR/BEBODY 23 - 55 BODY (Continued)

Page 2023 of 2255

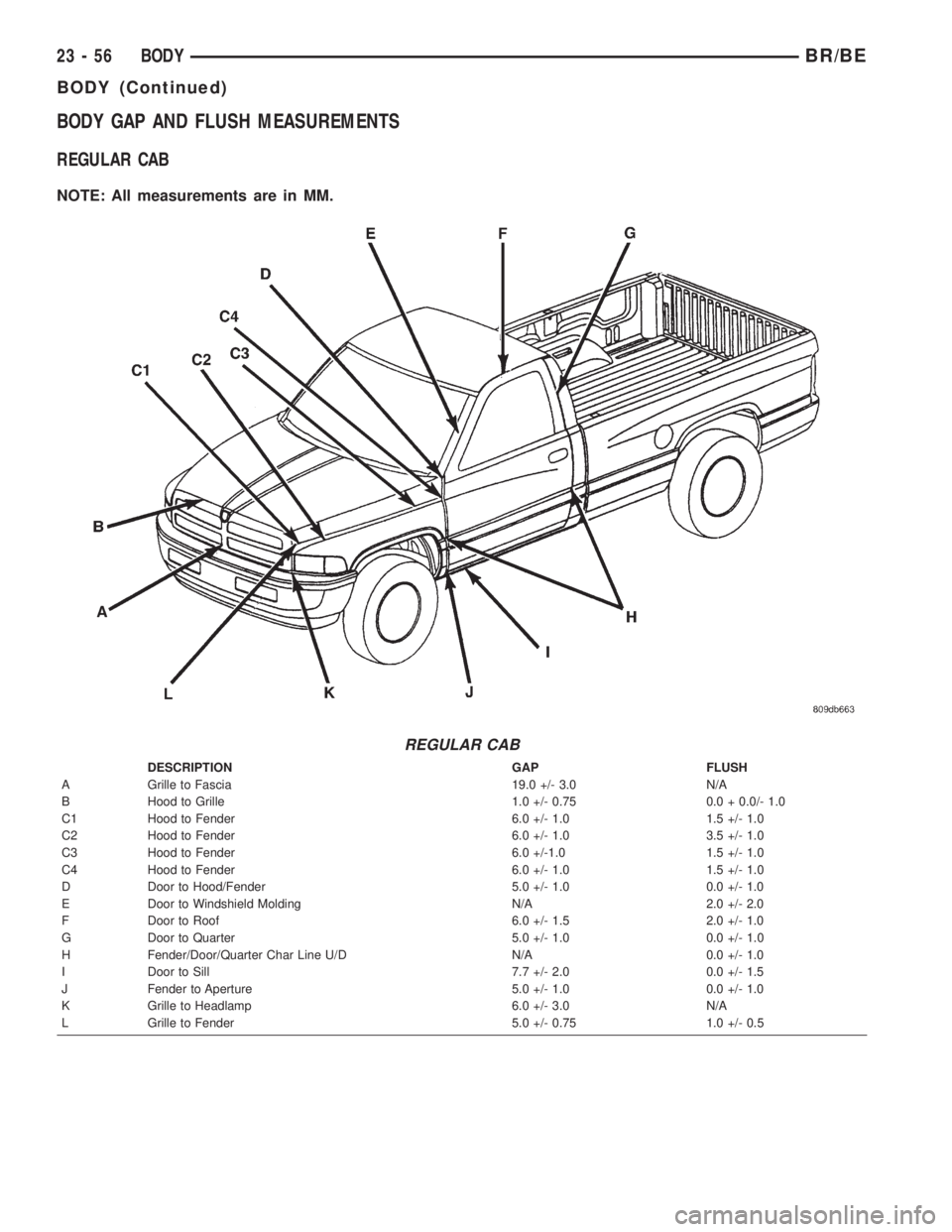

DODGE RAM 2002 Service Repair Manual BODY GAP AND FLUSH MEASUREMENTS REGULAR CAB NOTE: All measurements are in MM. REGULAR CAB DESCRIPTION GAP FLUSH A Grille to Fascia 19.0 +/- 3.0 N/A B Hood to Grille 1.0 +/- 0.75 0.0 + 0.0/- 1.0 C1 Hoo

Page 2024 of 2255

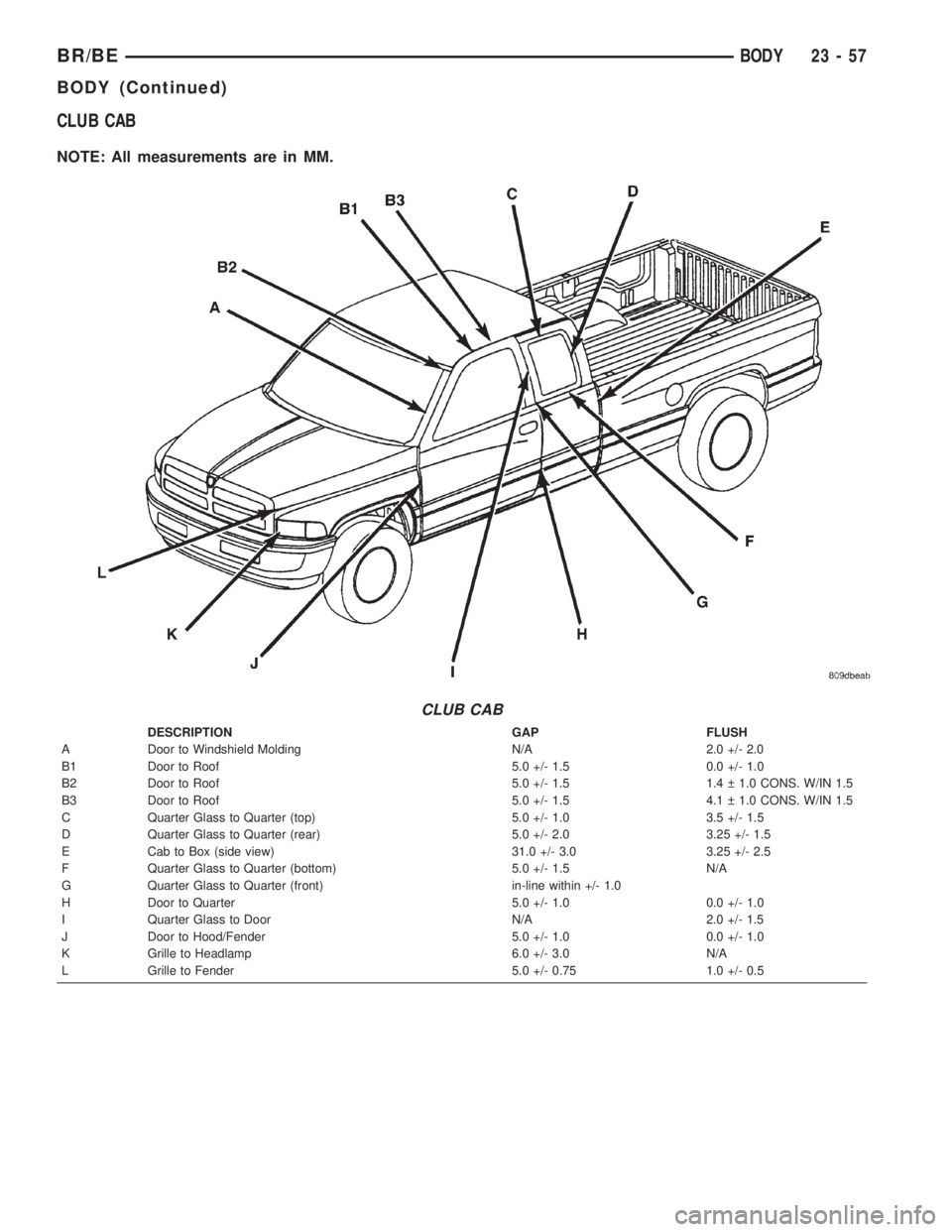

DODGE RAM 2002 Service Repair Manual CLUB CAB NOTE: All measurements are in MM. CLUB CAB DESCRIPTION GAP FLUSH A Door to Windshield Molding N/A 2.0 +/- 2.0 B1 Door to Roof 5.0 +/- 1.5 0.0 +/- 1.0 B2 Door to Roof 5.0 +/- 1.5 1.4   1.0 CO
