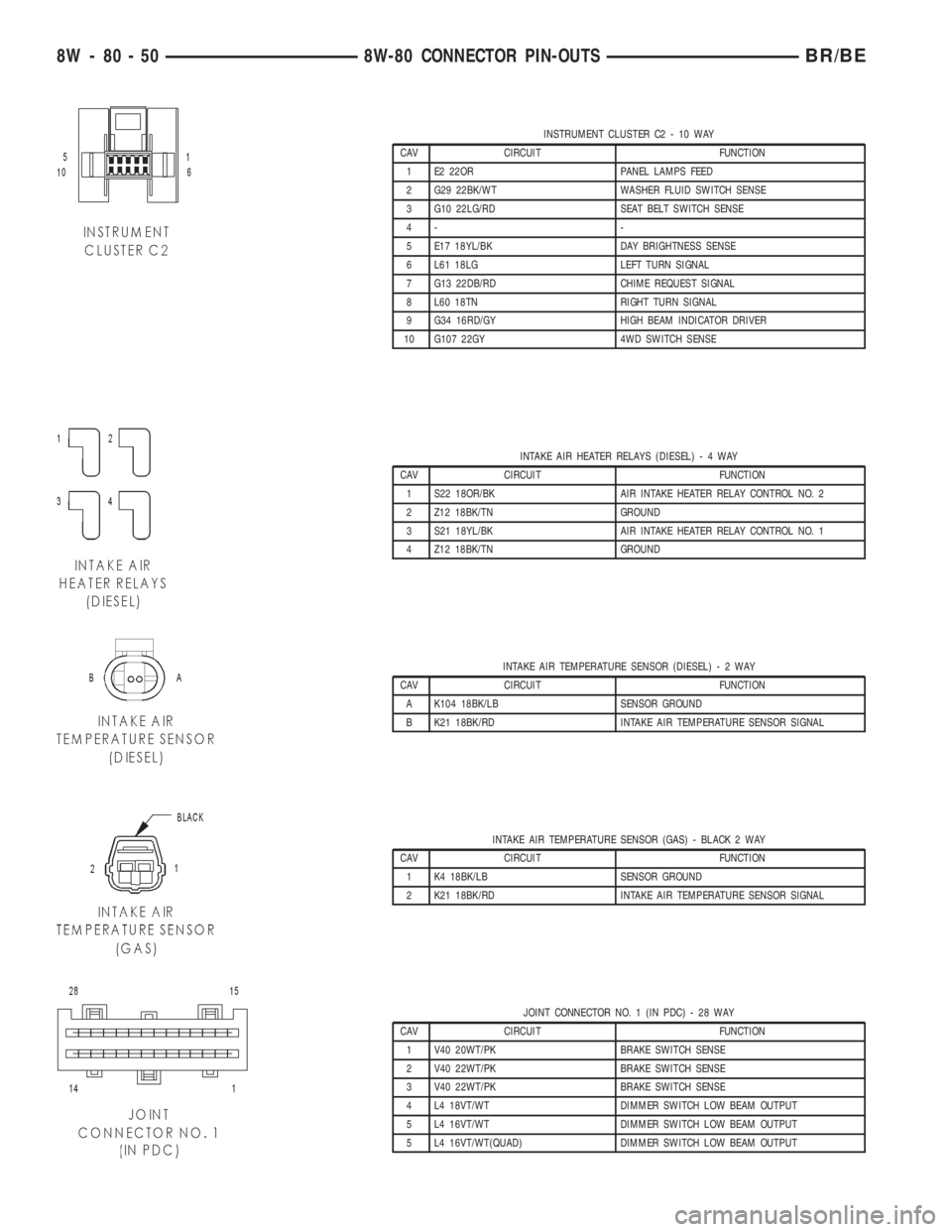

DODGE RAM 2002 Service Repair Manual INSTRUMENT CLUSTER C2 - 10 WAY CAV CIRCUIT FUNCTION 1 E2 22OR PANEL LAMPS FEED 2 G29 22BK/WT WASHER FLUID SWITCH SENSE 3 G10 22LG/RD SEAT BELT SWITCH SENSE 4- - 5 E17 18YL/BK DAY BRIGHTNESS SENSE 6 L6

Page 986 of 2255

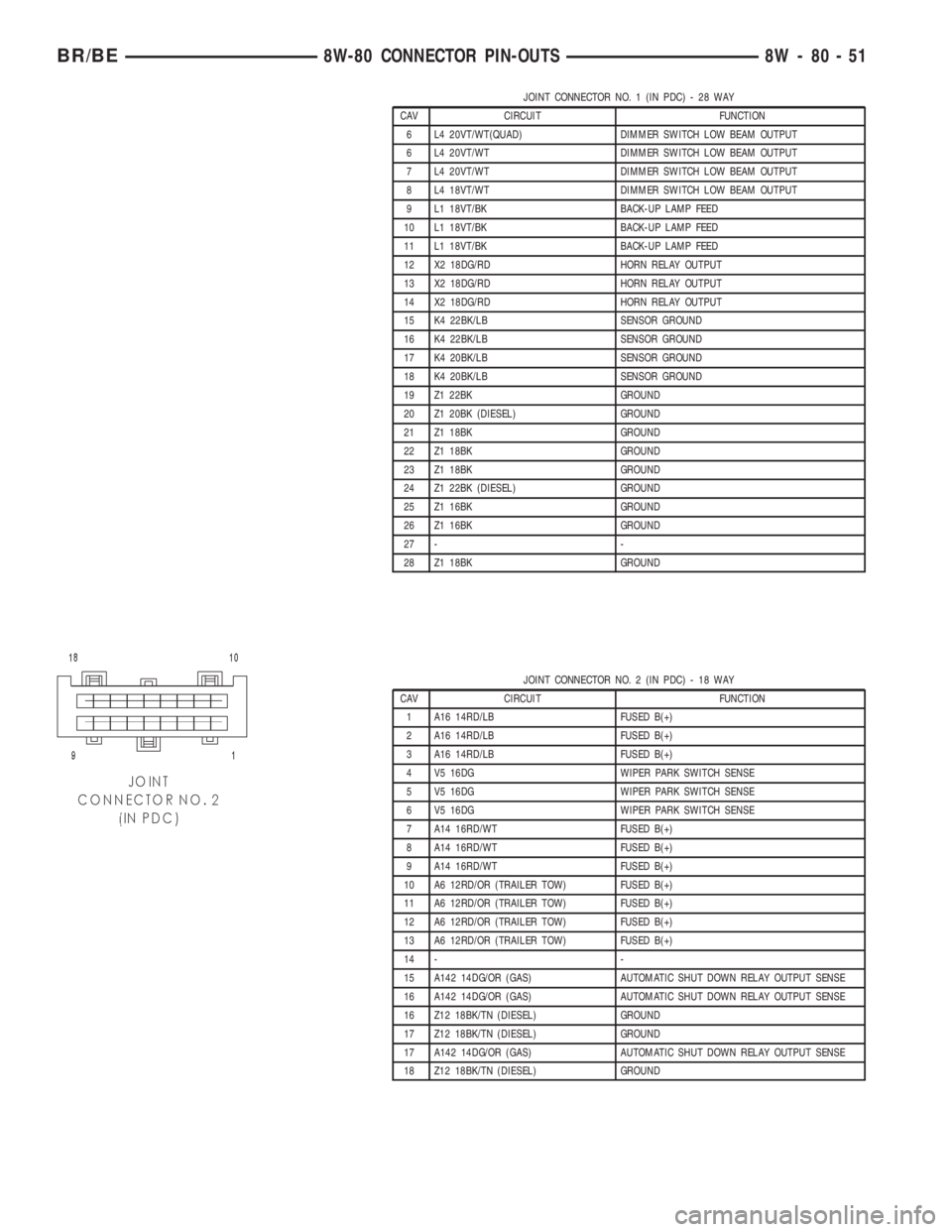

DODGE RAM 2002 Service Repair Manual JOINT CONNECTOR NO. 1 (IN PDC) - 28 WAY CAV CIRCUIT FUNCTION 6 L4 20VT/WT(QUAD) DIMMER SWITCH LOW BEAM OUTPUT 6 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT 7 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT 8 L4

Page 987 of 2255

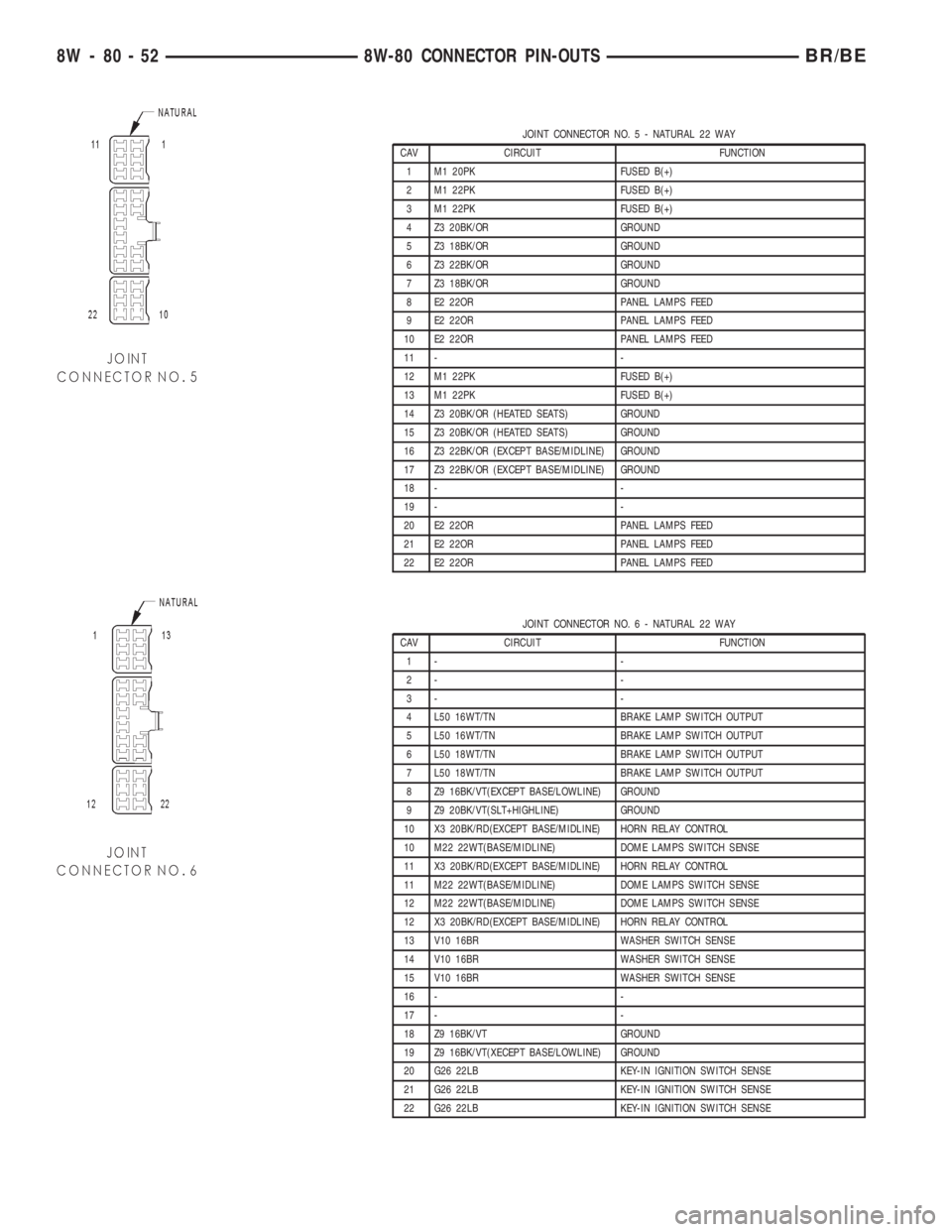

DODGE RAM 2002 Service Repair Manual JOINT CONNECTOR NO.5-NATURAL 22 WAY CAV CIRCUIT FUNCTION 1 M1 20PK FUSED B(+) 2 M1 22PK FUSED B(+) 3 M1 22PK FUSED B(+) 4 Z3 20BK/OR GROUND 5 Z3 18BK/OR GROUND 6 Z3 22BK/OR GROUND 7 Z3 18BK/OR GROUND

Page 988 of 2255

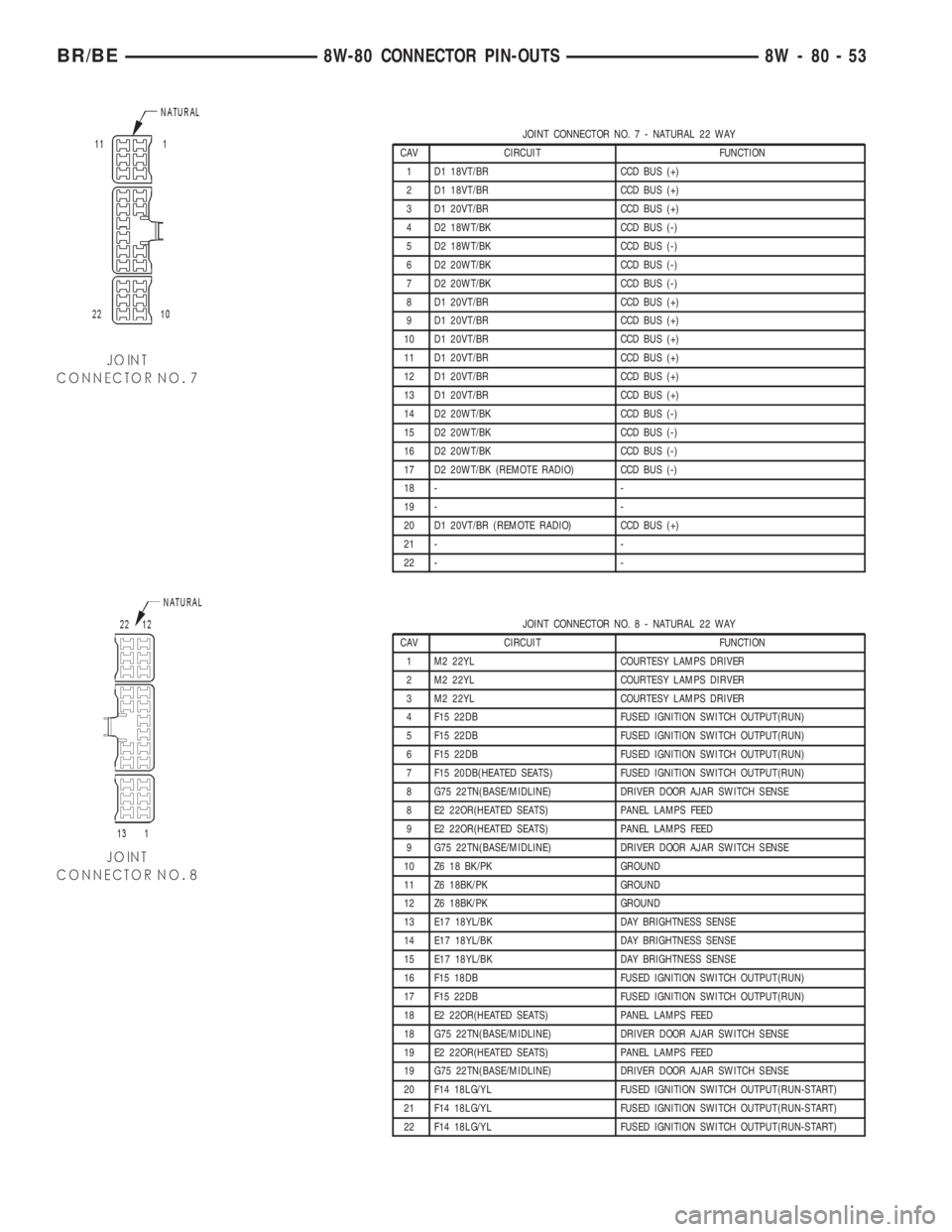

DODGE RAM 2002 Service Repair Manual JOINT CONNECTOR NO.7-NATURAL 22 WAY CAV CIRCUIT FUNCTION 1 D1 18VT/BR CCD BUS (+) 2 D1 18VT/BR CCD BUS (+) 3 D1 20VT/BR CCD BUS (+) 4 D2 18WT/BK CCD BUS (-) 5 D2 18WT/BK CCD BUS (-) 6 D2 20WT/BK CCD B

Page 989 of 2255

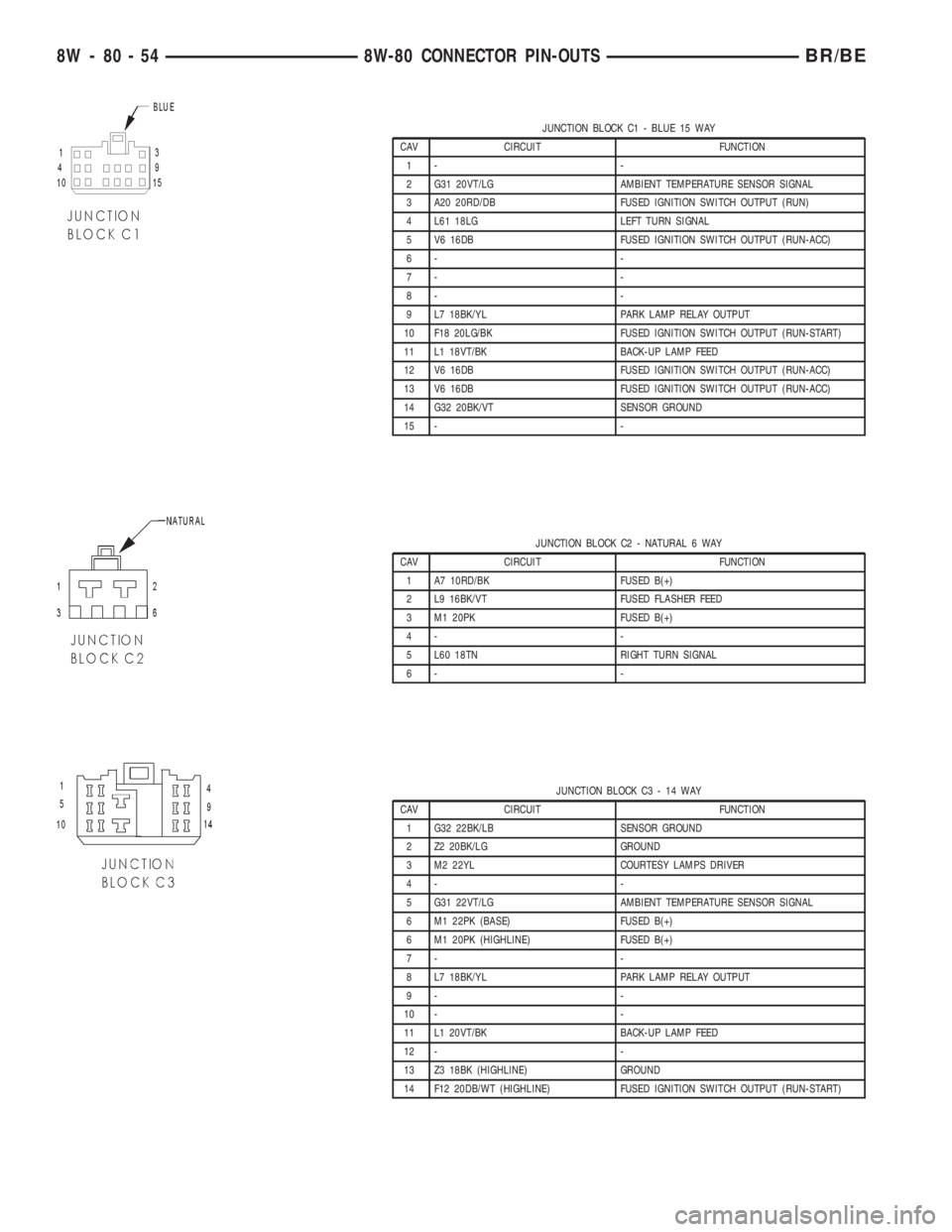

DODGE RAM 2002 Service Repair Manual JUNCTION BLOCK C1 - BLUE 15 WAY CAV CIRCUIT FUNCTION 1- - 2 G31 20VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL 3 A20 20RD/DB FUSED IGNITION SWITCH OUTPUT (RUN) 4 L61 18LG LEFT TURN SIGNAL 5 V6 16DB FUSED I

Page 990 of 2255

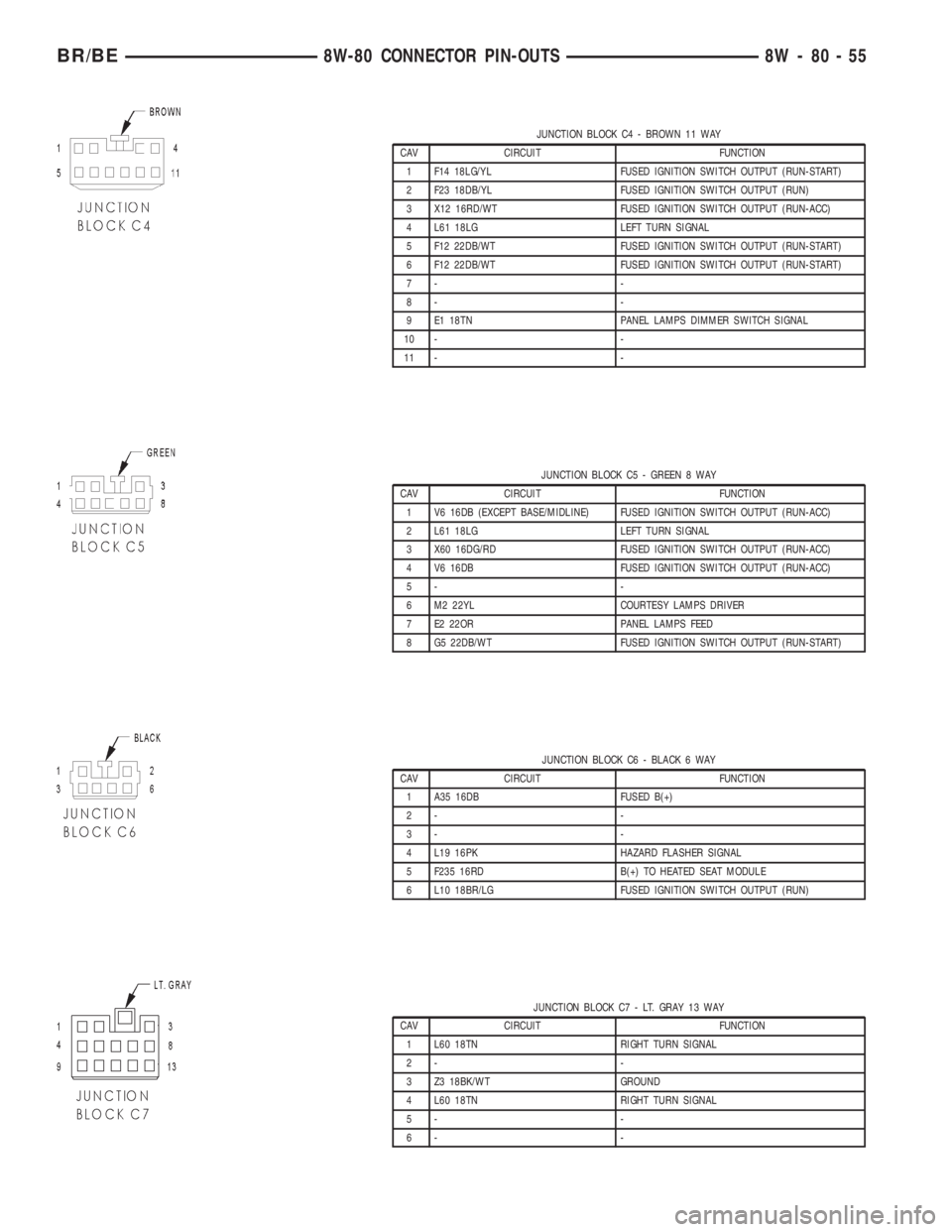

DODGE RAM 2002 Service Repair Manual JUNCTION BLOCK C4 - BROWN 11 WAY CAV CIRCUIT FUNCTION 1 F14 18LG/YL FUSED IGNITION SWITCH OUTPUT (RUN-START) 2 F23 18DB/YL FUSED IGNITION SWITCH OUTPUT (RUN) 3 X12 16RD/WT FUSED IGNITION SWITCH OUTPUT

Page 991 of 2255

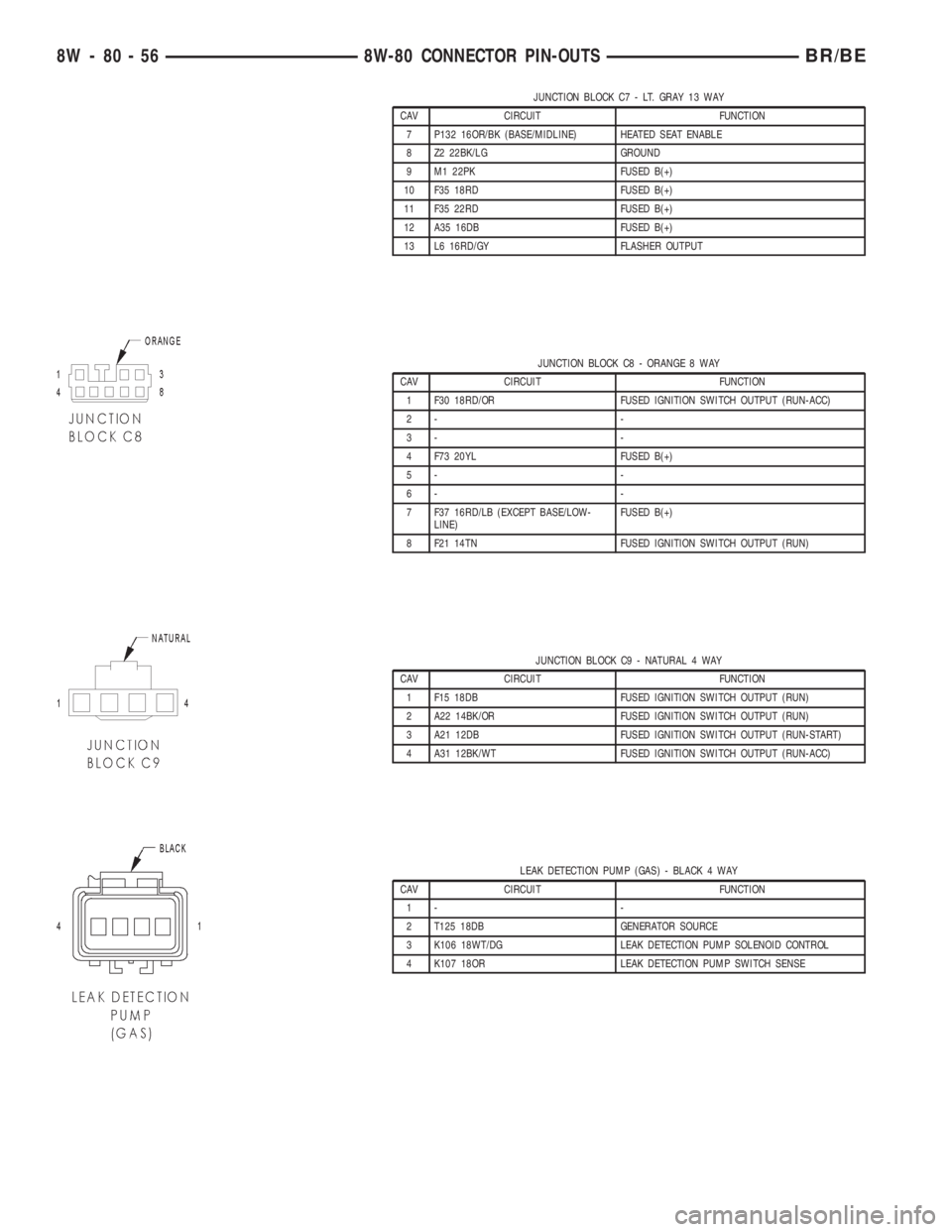

DODGE RAM 2002 Service Repair Manual JUNCTION BLOCK C7 - LT. GRAY 13 WAY CAV CIRCUIT FUNCTION 7 P132 16OR/BK (BASE/MIDLINE) HEATED SEAT ENABLE 8 Z2 22BK/LG GROUND 9 M1 22PK FUSED B(+) 10 F35 18RD FUSED B(+) 11 F35 22RD FUSED B(+) 12 A35

Page 992 of 2255

DODGE RAM 2002 Service Repair Manual LEFT BACK-UP LAMP - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 Z13 18BK GROUND 2 L1 18VT/BK BACK-UP LAMP FEED LEFT FOG LAMP - WHITE 2 WAY CAV CIRCUIT FUNCTION A L34 20RD/OR FUSED B(+) B L39 20LB FOG LAMP SWITC
