DODGE RAM 2002 Service Repair Manual 8W-12 JUNCTION BLOCK
Component Page
A/C Compressor Clutch Relay.......... 8W-12-13
A/C Heater Temperature Select......... 8W-12-8
A/C-Heater Control................... 8W-12-9
Airbag Control Module...

8W-12 JUNCTION BLOCK
Component Page
A/C Compressor Clutch Relay.......... 8W-12-13
A/C Heater Temperature Select......... 8W-12-8
A/C-Heater Control................... 8W-12-9
Airbag Control Module............... 8W-12-17
Ambient Temperature Sensor.......... 8W-12-19
Ash Receiver Lamp................... 8W-12-9
Automatic Day/Night Mirror..... 8W-12-13, 15, 21
Back-Up Lamp Switch............. 8W-12-11, 21
Blend Door Actuator.................. 8W-12-8
Blower Motor Relay.................. 8W-12-8
Cargo Lamp No. 1................... 8W-12-14
Cargo Lamp No. 2................... 8W-12-14
Central Timer Module........ 8W-12-8, 10, 13, 15
Cigar Lighter...................... 8W-12-16
Circuit Breaker 1.................. 8W-12-6, 7
Circuit Breaker 2.................... 8W-12-7

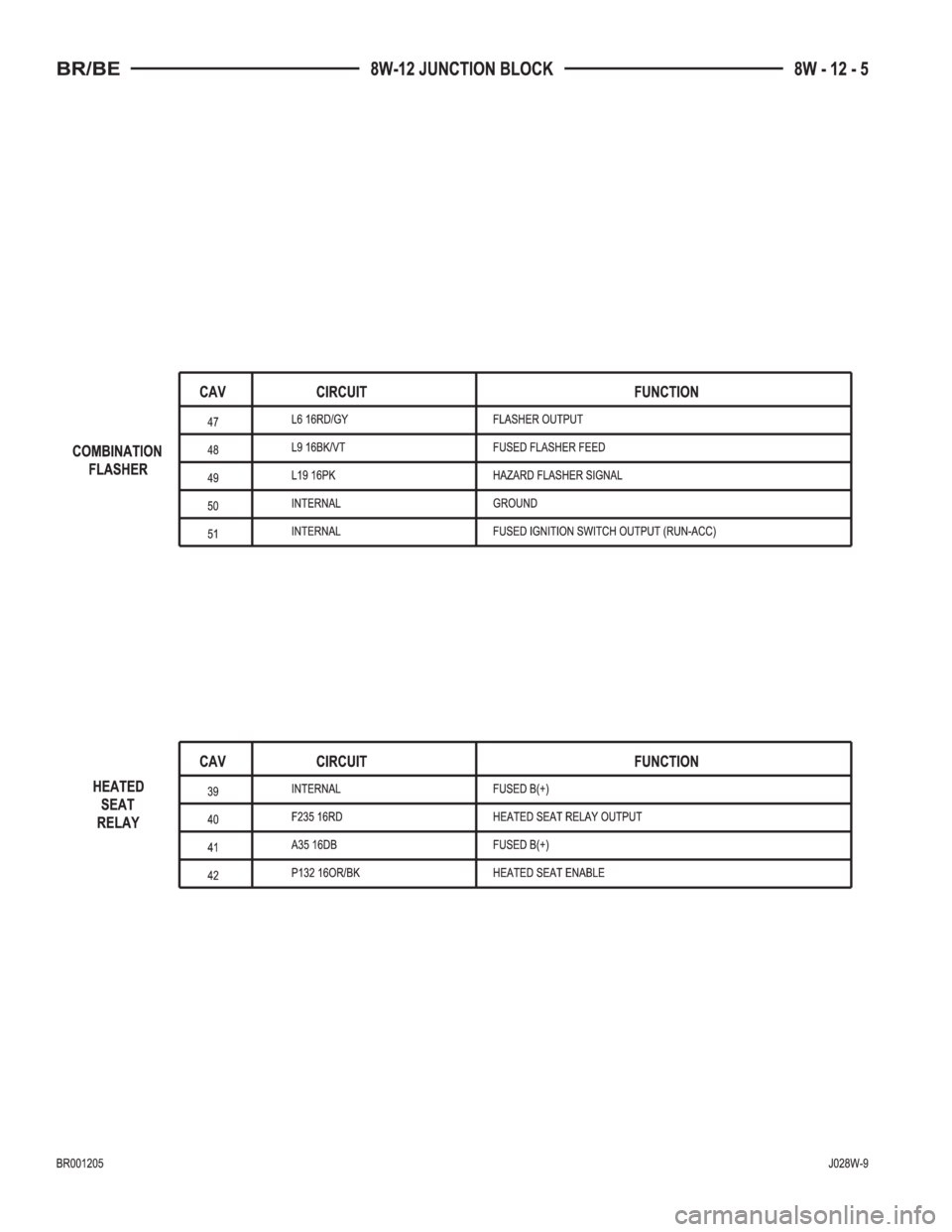

Combination Flasher......... 8W-12-6, 12, 15, 20
Controller Antilock Brake.............. 8W-12-8
Cup Holder Lamp.................... 8W-12-9
Data Link Connector................. 8W-12-14
Daytime Running Lamp Module........ 8W-12-11
Dome Lamp....................... 8W-12-14
Driver Door Window/Lock Switch..... 8W-12-7, 15
Driver Heated Seat Switch........... 8W-12-8, 9
Driver Power Seat Switch.............. 8W-12-7
Engine Control Module............... 8W-12-12
EVAP/Purge Solenoid................ 8W-12-13
Fuel Heater Relay................... 8W-12-13
Fuel Pump Relay................... 8W-12-12

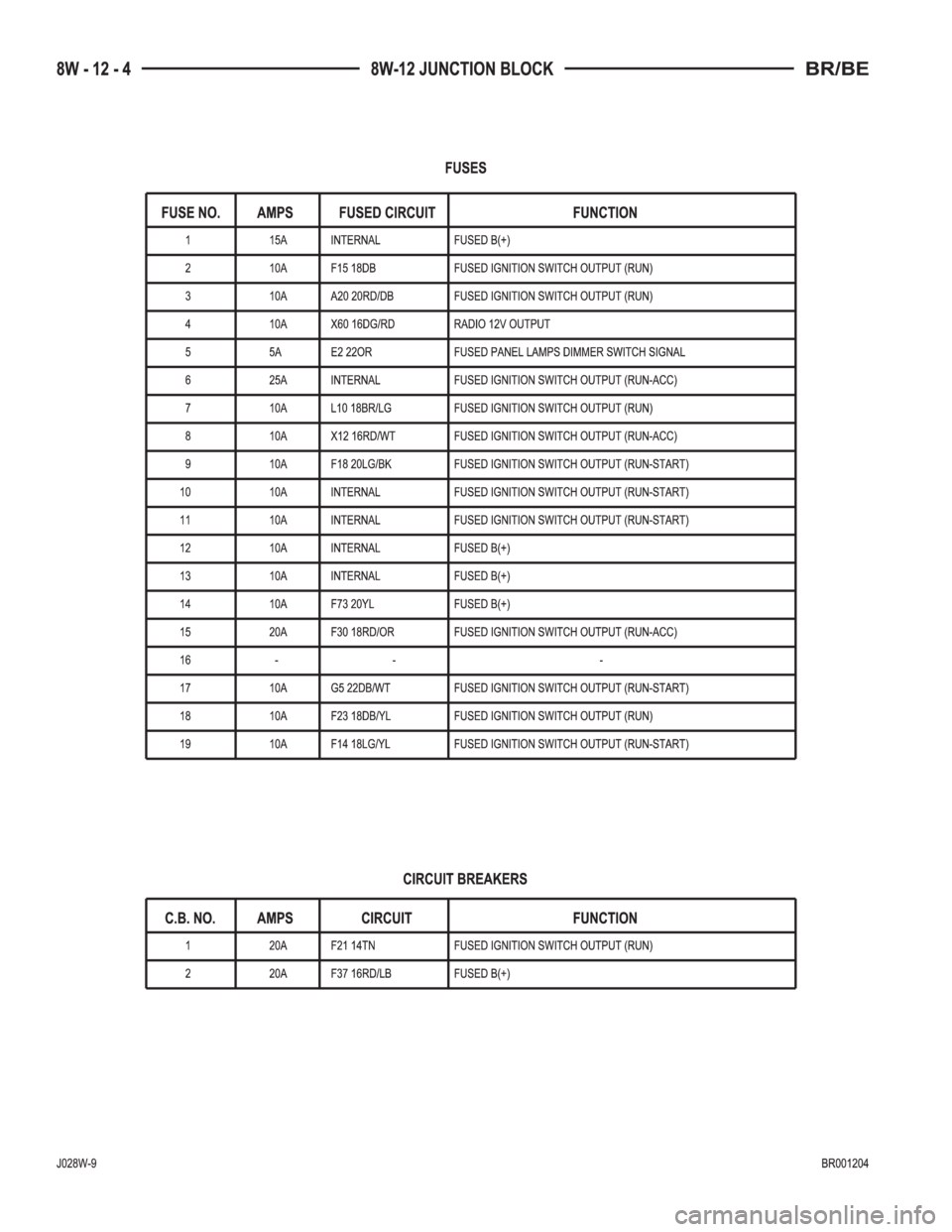

Fuse 1 (JB)......................... 8W-12-8
Fuse 1 (PDC)...................... 8W-12-16
Fuse 2 (JB)....................... 8W-12-6, 8
Fuse 3 (JB)....................... 8W-12-6, 8
Fuse 4 (JB)........................ 8W-12-10
Fuse 4 (PDC)...................... 8W-12-20
Fuse 5 (JB)......................... 8W-12-9
Fuse 6 (JB)...................... 8W-12-6, 10
Fuse 7 (JB)...................... 8W-12-6, 11
Fuse 8 (JB)...................... 8W-12-6, 11
Fuse 9 (JB)...................... 8W-12-6, 11
Fuse 10 (JB).................. 8W-12-6, 12, 20
Fuse 11 (JB)..................... 8W-12-6, 13
Fuse 12 (JB)....................... 8W-12-14
Fuse 13 (JB)....................... 8W-12-15Component Page
Fuse 14 (JB)....................... 8W-12-16
Fuse 15 (JB)..................... 8W-12-6, 16
Fuse 16 (JB)..................... 8W-12-6, 16
Fuse 17 (JB)..................... 8W-12-6, 17
Fuse 18 (JB)..................... 8W-12-6, 17
Fuse 19 (JB)..................... 8W-12-6, 17
G100............................. 8W-12-18
G200.......................... 8W-12-15, 19
G201....................... 8W-12-15, 18, 20
Glove Box Lamp And Switch........... 8W-12-14
Headlamp Switch.................... 8W-12-9
Heated Mirror Switch................. 8W-12-8
Heated Seat Relay................... 8W-12-8
Ignition Switch................... 8W-12-6, 20
Instrument Cluster.......... 8W-12-9, 16, 17, 18
Intermittent Wiper Switch............ 8W-12-10
Joint Connector No. 1............. 8W-12-11, 21
Joint Connector No. 5.............. 8W-12-9, 14
Joint Connector No. 6................ 8W-12-10
Joint Connector No. 8............ 8W-12-8, 9, 17
Junction Block...... 8W-12-2, 3, 6, 7, 8, 9, 10, 11,
12, 13, 14, 15, 16, 17, 18, 19, 20, 21
Left Park/Turn Signal Lamp........... 8W-12-18
Left Visor/Vanity Lamp............ 8W-12-14, 15
Overhead Console.......... 8W-12-13, 14, 19, 21
Park/Neutral Position Switch....... 8W-12-11, 21
Passenger Airbag On/Off Switch........ 8W-12-17
Passenger Door Window/Lock Switch . . 8W-12-7, 15
Passenger Heated Seat Switch........ 8W-12-8, 9
Passenger Power Seat Switch........... 8W-12-7
Power Distribution Center......... 8W-12-16, 20
Power Mirror Switch.............. 8W-12-14, 21
Powertrain Control Module............ 8W-12-12
Radio........................ 8W-12-9, 11, 14
Radio Choke Relay.................. 8W-12-10
Right Park/Turn Signal Lamp.......... 8W-12-18
Right Visor/Vanity Lamp........... 8W-12-14, 15
Seat Heat Interface Module............ 8W-12-8
Turn Signal/Hazard Switch......... 8W-12-18, 20
Underhood Lamp................... 8W-12-14
Windshield Washer Pump............. 8W-12-10
Wiper Motor....................... 8W-12-10
Wiper Motor Relay.................. 8W-12-10
BR/BE8W-12 JUNCTION BLOCK 8W - 12 - 1
