2002 DODGE RAM Service Repair Manual

Page 2097 of 2255

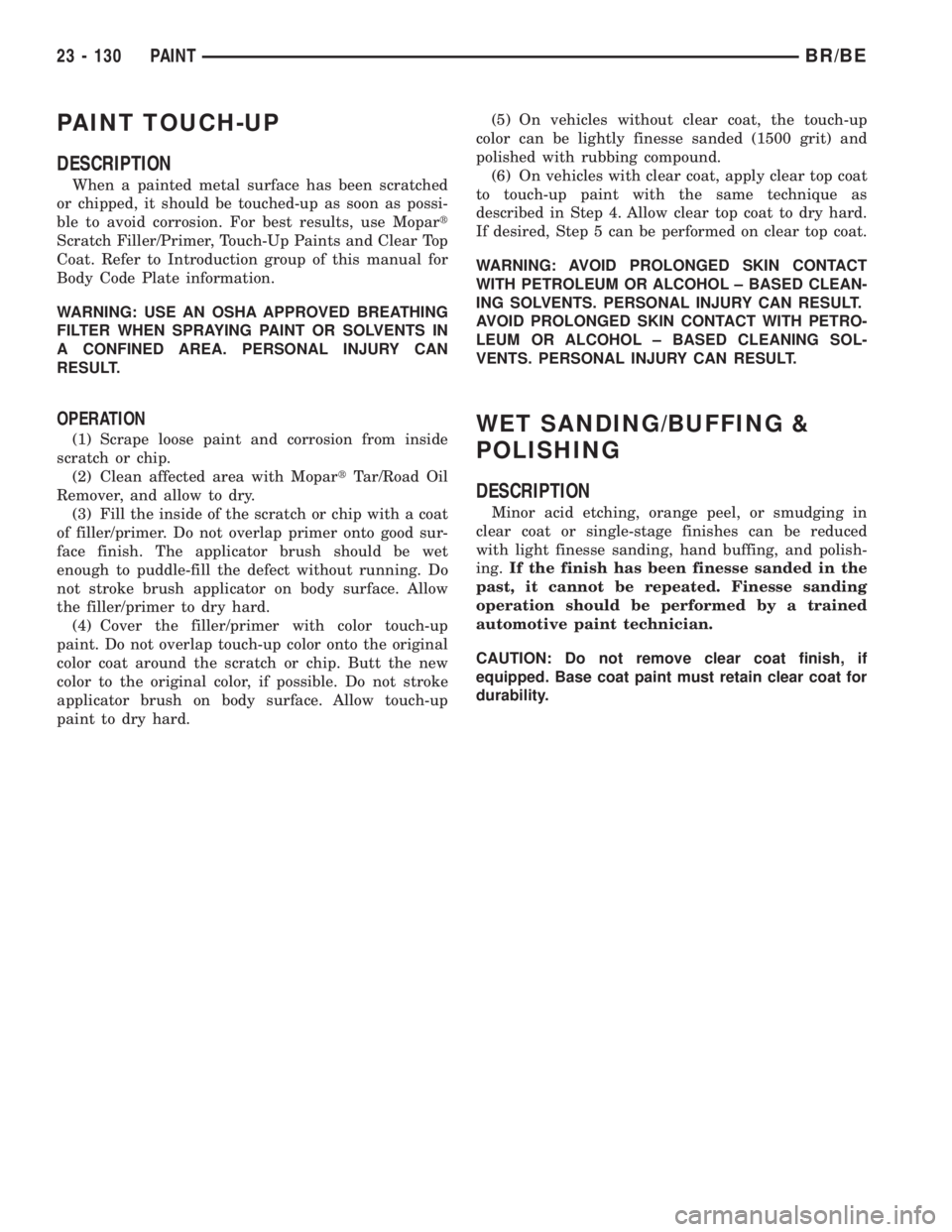

DODGE RAM 2002  Service Repair Manual PAINT TOUCH-UP
DESCRIPTION
When a painted metal surface has been scratched
or chipped, it should be touched-up as soon as possi-
ble to avoid corrosion. For best results, use Mopart
Scratch Filler/Pri

Page 2098 of 2255

DODGE RAM 2002  Service Repair Manual SEATS
TABLE OF CONTENTS
page page
SEATS
DESCRIPTION........................131
OPERATION..........................131
CENTER CONSOLE LID
REMOVAL............................131
INSTALLATION............

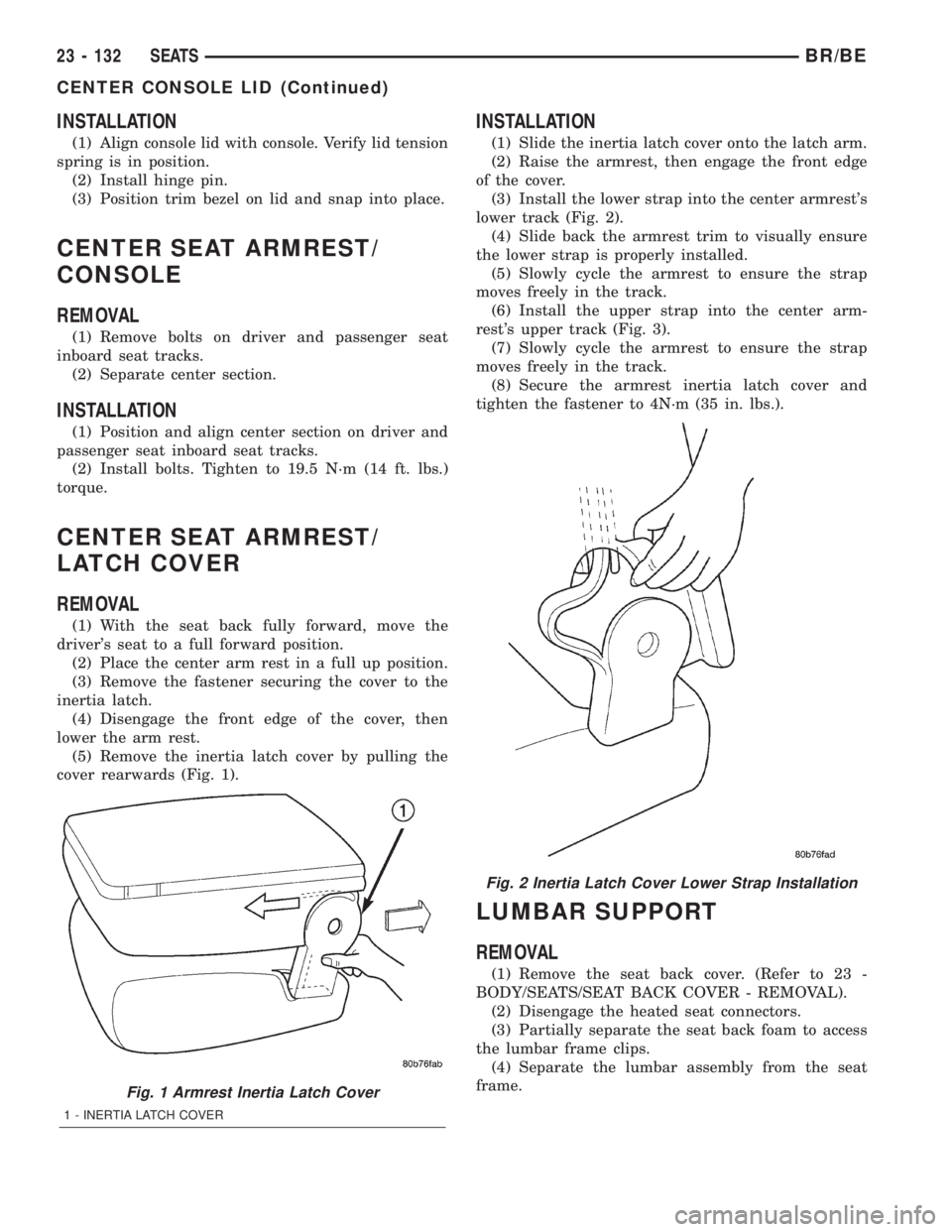

Page 2099 of 2255

DODGE RAM 2002  Service Repair Manual INSTALLATION
(1) Align console lid with console. Verify lid tension
spring is in position.
(2) Install hinge pin.
(3) Position trim bezel on lid and snap into place.
CENTER SEAT ARMREST/
CONSOLE
REMOV

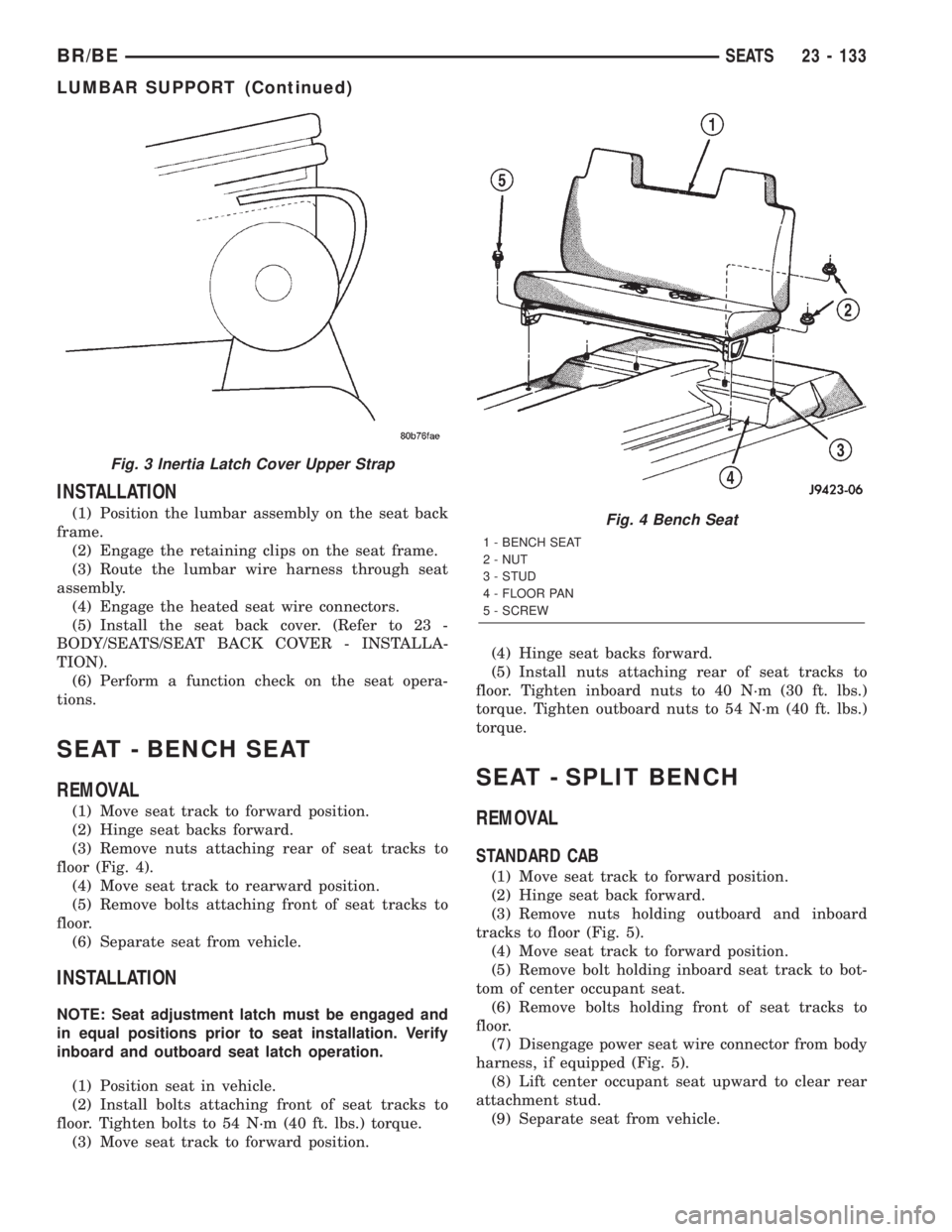

Page 2100 of 2255

DODGE RAM 2002  Service Repair Manual INSTALLATION
(1) Position the lumbar assembly on the seat back
frame.
(2) Engage the retaining clips on the seat frame.
(3) Route the lumbar wire harness through seat
assembly.
(4) Engage the heated s

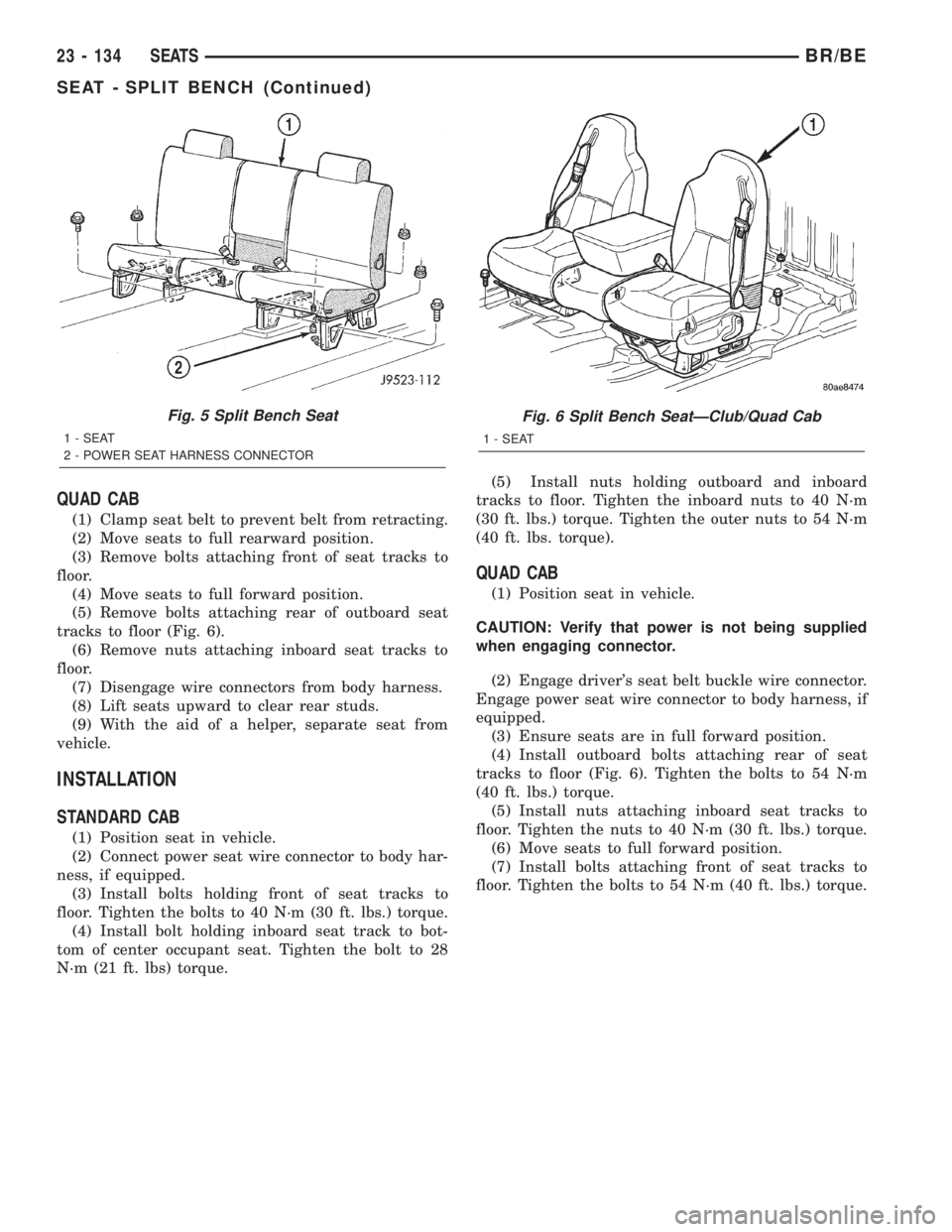

Page 2101 of 2255

DODGE RAM 2002  Service Repair Manual QUAD CAB
(1) Clamp seat belt to prevent belt from retracting.
(2) Move seats to full rearward position.
(3) Remove bolts attaching front of seat tracks to
floor.
(4) Move seats to full forward positio

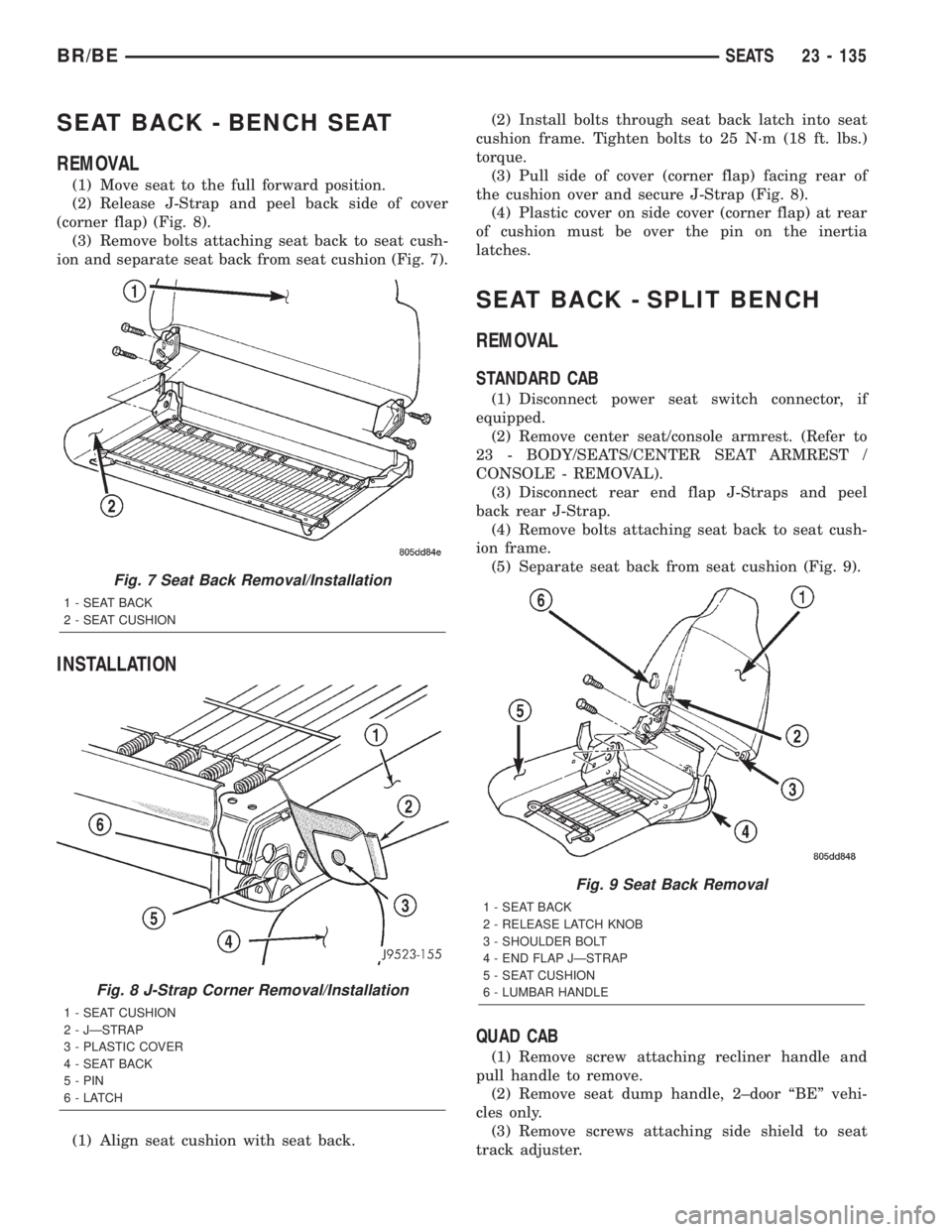

Page 2102 of 2255

DODGE RAM 2002  Service Repair Manual SEAT BACK - BENCH SEAT
REMOVAL
(1) Move seat to the full forward position.
(2) Release J-Strap and peel back side of cover
(corner flap) (Fig. 8).
(3) Remove bolts attaching seat back to seat cush-
io

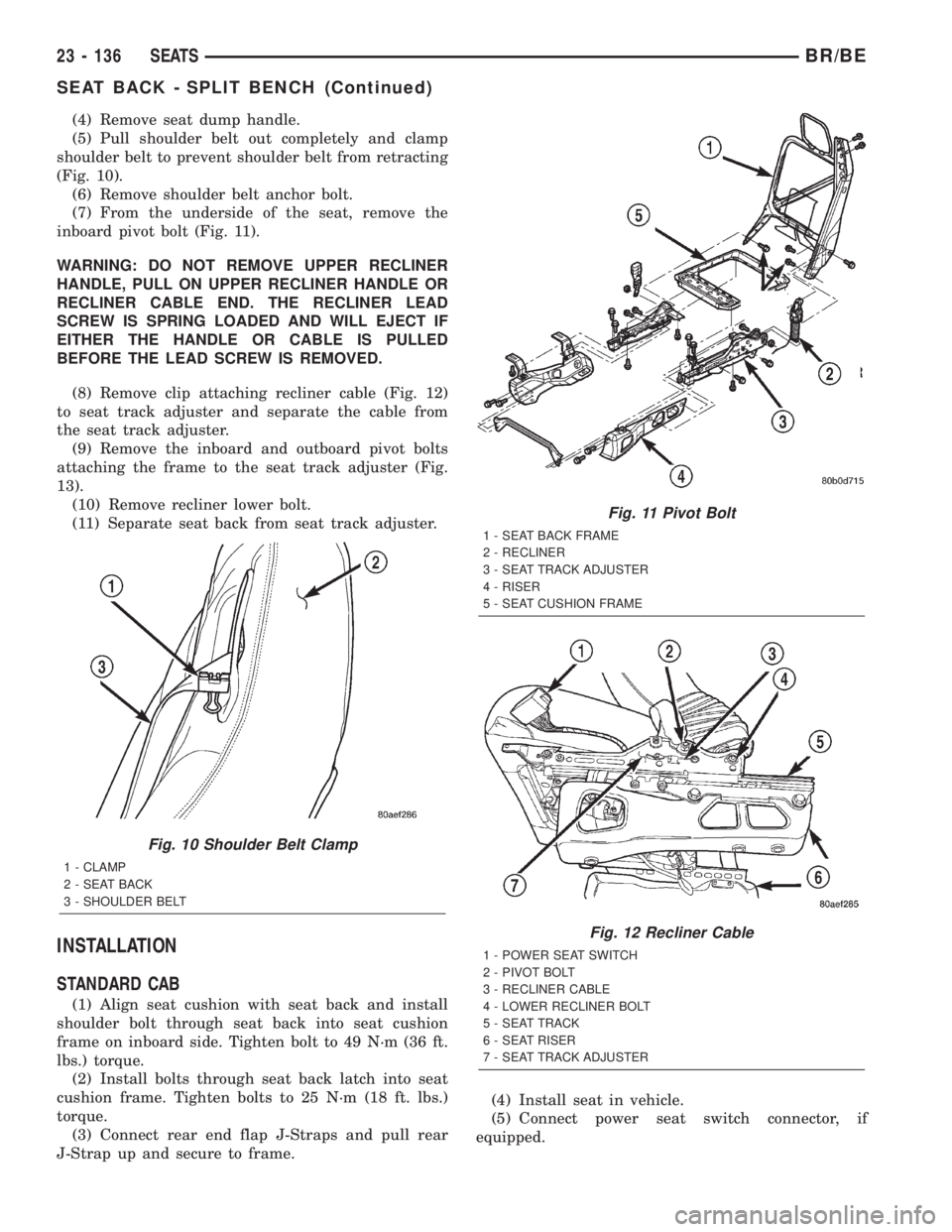

Page 2103 of 2255

DODGE RAM 2002  Service Repair Manual (4) Remove seat dump handle.
(5) Pull shoulder belt out completely and clamp
shoulder belt to prevent shoulder belt from retracting
(Fig. 10).
(6) Remove shoulder belt anchor bolt.
(7) From the unders

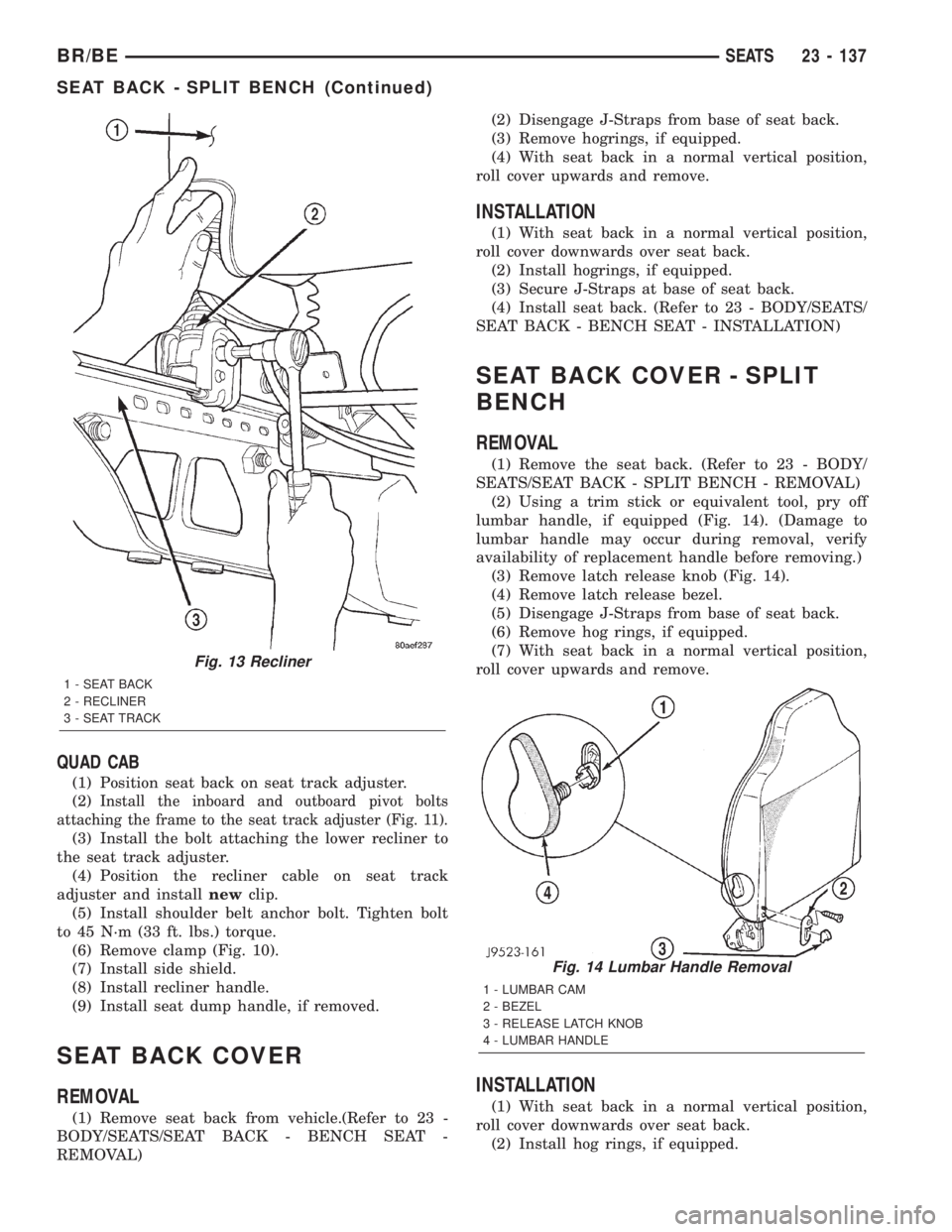

Page 2104 of 2255

DODGE RAM 2002  Service Repair Manual QUAD CAB
(1) Position seat back on seat track adjuster.
(2)
Install the inboard and outboard pivot bolts
attaching the frame to the seat track adjuster (Fig. 11).
(3) Install the bolt attaching the lo
