Page 1761 of 2255

DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW IN DRIVE THIRD GEAR (CONVERTER CLUTCH APPLIED) 21 - 308 AUTOMATIC TRANSMISSION - 47REBR/BE AUTOMATIC TRANSMISSION - 47RE (Continued)

Page 1762 of 2255

DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW IN DRIVE FOURTH GEAR (CONVERTER CLUTCH NOT APPLIED) BR/BEAUTOMATIC TRANSMISSION - 47RE 21 - 309 AUTOMATIC TRANSMISSION - 47RE (Continued)

Page 1763 of 2255

DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW IN DRIVE FOURTH GEAR (CONVERTER CLUTCH APPLIED) 21 - 310 AUTOMATIC TRANSMISSION - 47REBR/BE AUTOMATIC TRANSMISSION - 47RE (Continued)

Page 1764 of 2255

DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW IN MANUAL LOW (1) BR/BEAUTOMATIC TRANSMISSION - 47RE 21 - 311 AUTOMATIC TRANSMISSION - 47RE (Continued)

Page 1765 of 2255

DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW IN MANUAL SECOND (2) 21 - 312 AUTOMATIC TRANSMISSION - 47REBR/BE AUTOMATIC TRANSMISSION - 47RE (Continued)

Page 1766 of 2255

DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW DURING FULL THROTTLE 3-2 DOWNSHIFT (PASSING) BR/BEAUTOMATIC TRANSMISSION - 47RE 21 - 313 AUTOMATIC TRANSMISSION - 47RE (Continued)

Page 1767 of 2255

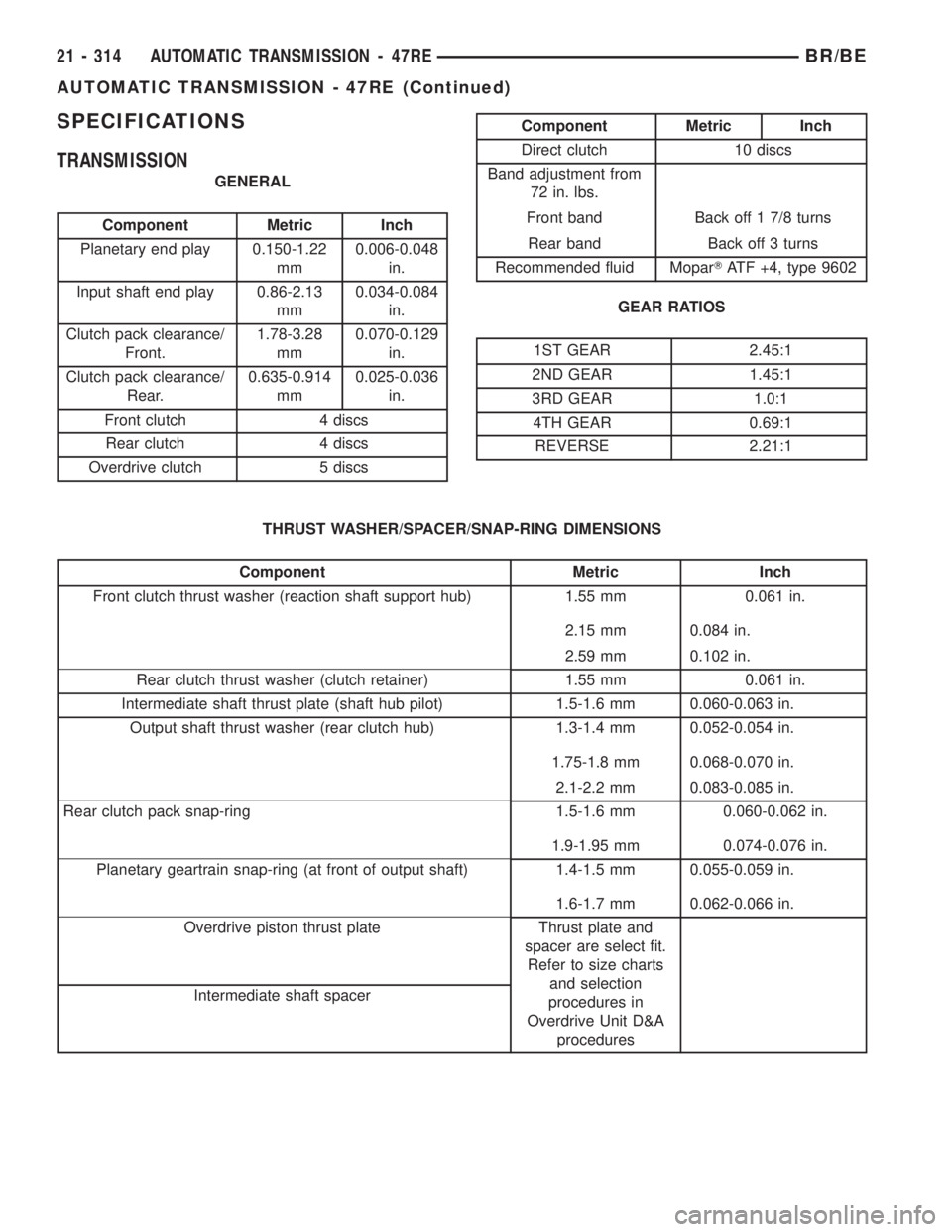

DODGE RAM 2002 Service Repair Manual SPECIFICATIONS TRANSMISSION GENERAL Component Metric Inch Planetary end play 0.150-1.22 mm0.006-0.048 in. Input shaft end play 0.86-2.13 mm0.034-0.084 in. Clutch pack clearance/ Front.1.78-3.28 mm0.07

Page 1768 of 2255

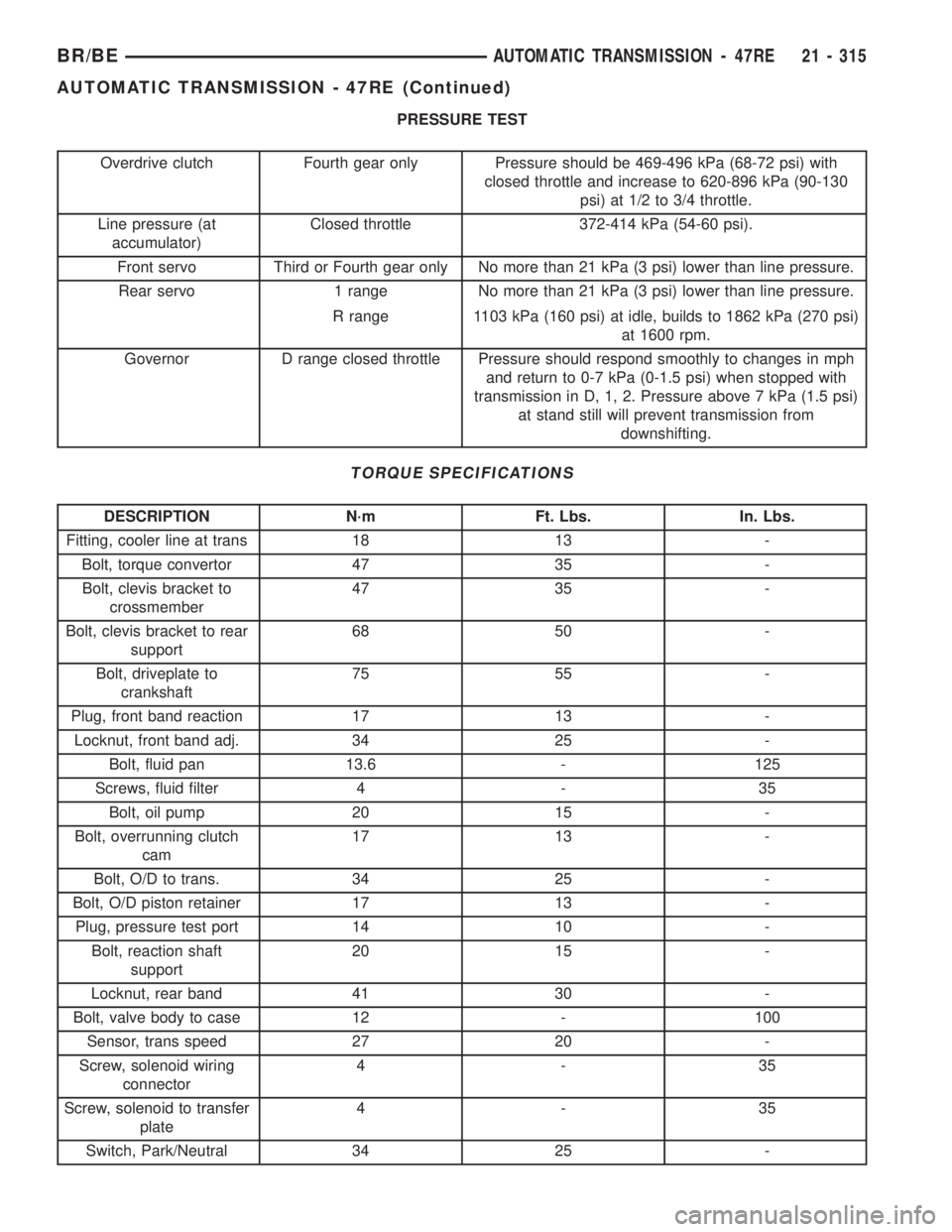

DODGE RAM 2002 Service Repair Manual PRESSURE TEST Overdrive clutch Fourth gear only Pressure should be 469-496 kPa (68-72 psi) with closed throttle and increase to 620-896 kPa (90-130 psi) at 1/2 to 3/4 throttle. Line pressure (at accum
