DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW IN DRIVE FOURTH GEAR (CONVERTER CLUTCH APPLIED) 21 - 140 AUTOMATIC TRANSMISSION - 46REBR/BE AUTOMATIC TRANSMISSION - 46RE (Continued)

Page 1594 of 2255

DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW IN MANUAL LOW (1) BR/BEAUTOMATIC TRANSMISSION - 46RE 21 - 141 AUTOMATIC TRANSMISSION - 46RE (Continued)

Page 1595 of 2255

DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW IN MANUAL SECOND (2) 21 - 142 AUTOMATIC TRANSMISSION - 46REBR/BE AUTOMATIC TRANSMISSION - 46RE (Continued)

Page 1596 of 2255

DODGE RAM 2002 Service Repair Manual HYDRAULIC FLOW DURING FULL THROTTLE 3-2 DOWNSHIFT (PASSING) BR/BEAUTOMATIC TRANSMISSION - 46RE 21 - 143 AUTOMATIC TRANSMISSION - 46RE (Continued)

Page 1597 of 2255

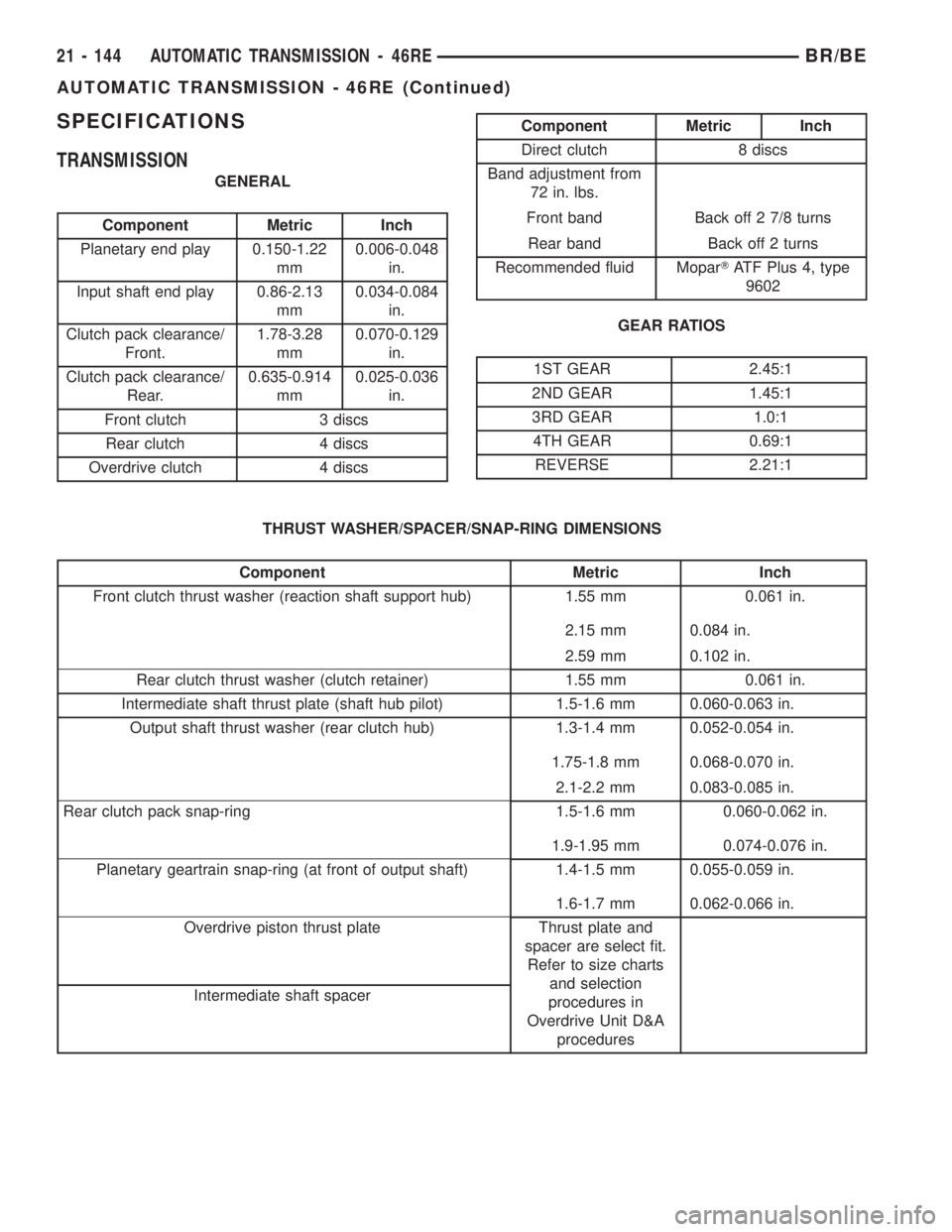

DODGE RAM 2002 Service Repair Manual SPECIFICATIONS TRANSMISSION GENERAL Component Metric Inch Planetary end play 0.150-1.22 mm0.006-0.048 in. Input shaft end play 0.86-2.13 mm0.034-0.084 in. Clutch pack clearance/ Front.1.78-3.28 mm0.07

Page 1598 of 2255

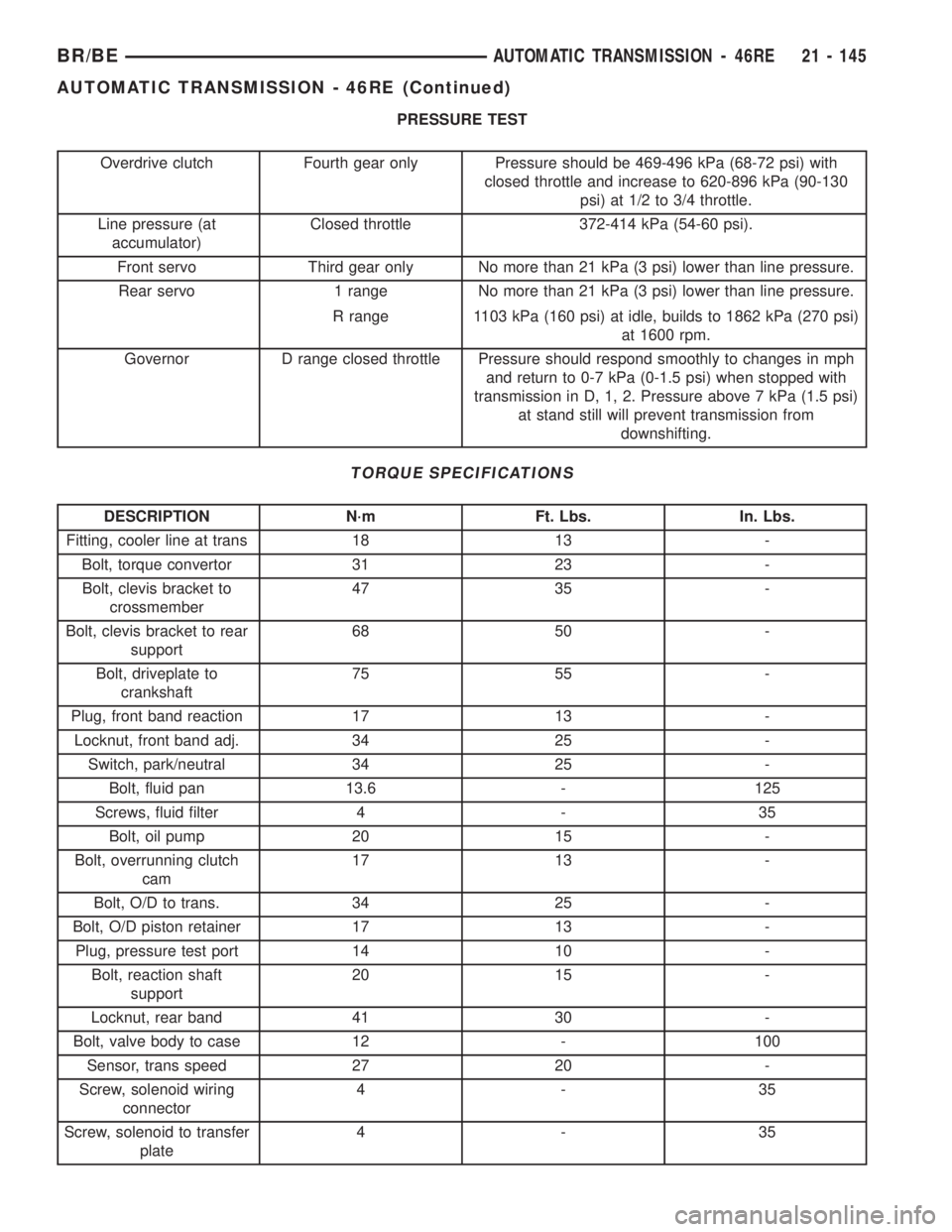

DODGE RAM 2002 Service Repair Manual PRESSURE TEST Overdrive clutch Fourth gear only Pressure should be 469-496 kPa (68-72 psi) with closed throttle and increase to 620-896 kPa (90-130 psi) at 1/2 to 3/4 throttle. Line pressure (at accum

Page 1599 of 2255

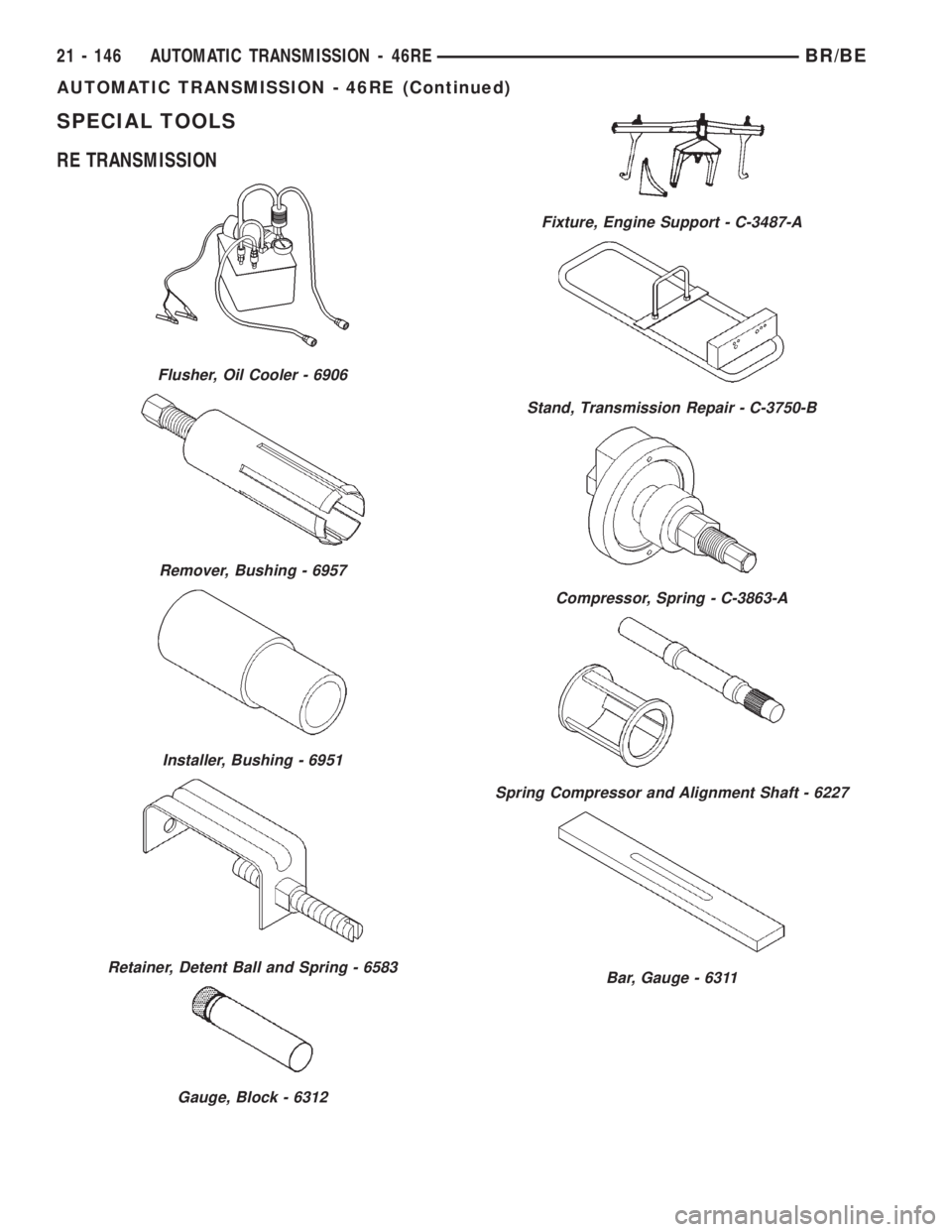

DODGE RAM 2002 Service Repair Manual SPECIAL TOOLS RE TRANSMISSION Flusher, Oil Cooler - 6906 Remover, Bushing - 6957 Installer, Bushing - 6951 Retainer, Detent Ball and Spring - 6583 Gauge, Block - 6312 Fixture, Engine Support - C-3487-

Page 1600 of 2255

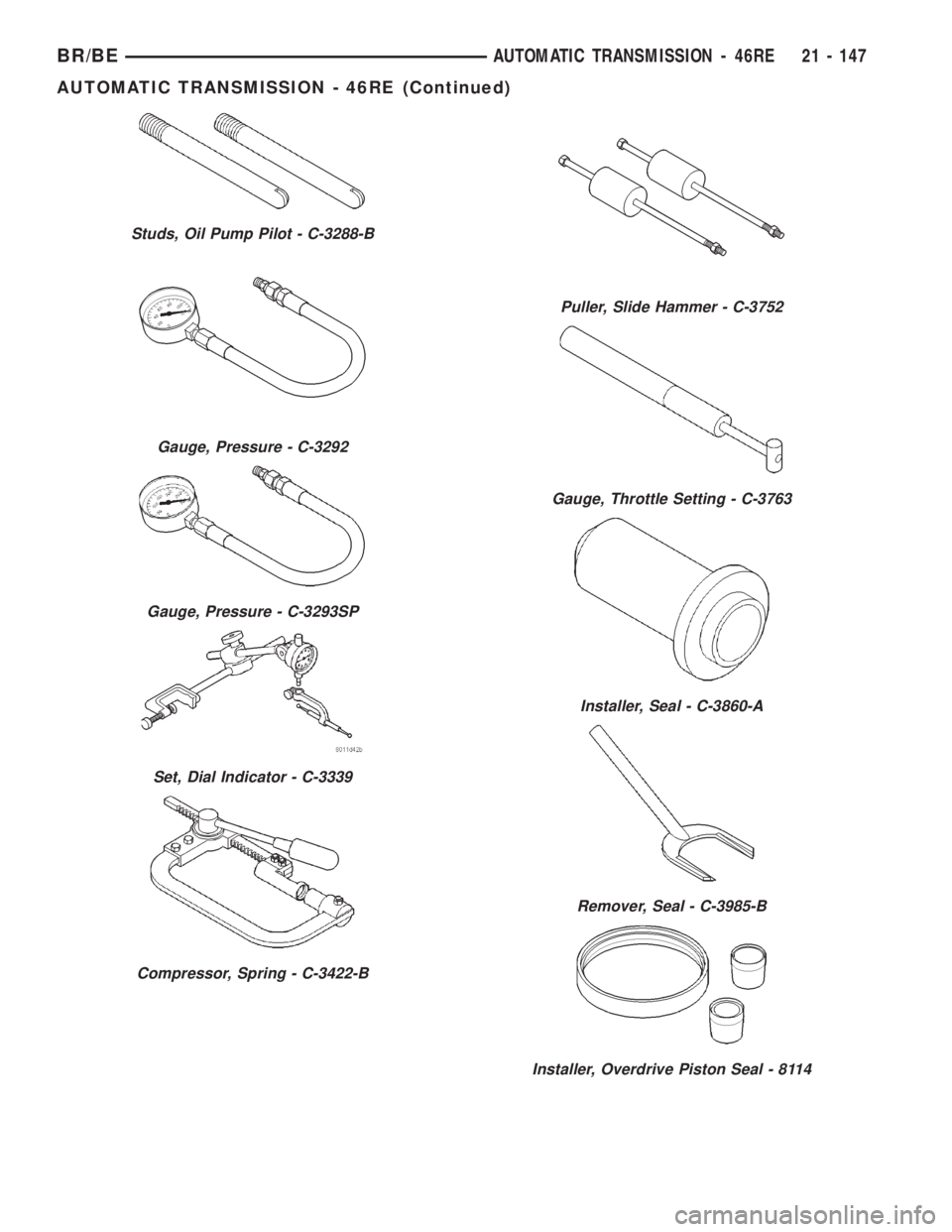

DODGE RAM 2002 Service Repair Manual Studs, Oil Pump Pilot - C-3288-B Gauge, Pressure - C-3292 Gauge, Pressure - C-3293SP Set, Dial Indicator - C-3339 Compressor, Spring - C-3422-B Puller, Slide Hammer - C-3752 Gauge, Throttle Setting -
