2002 DODGE RAM Service Repair Manual

Page 1793 of 2255

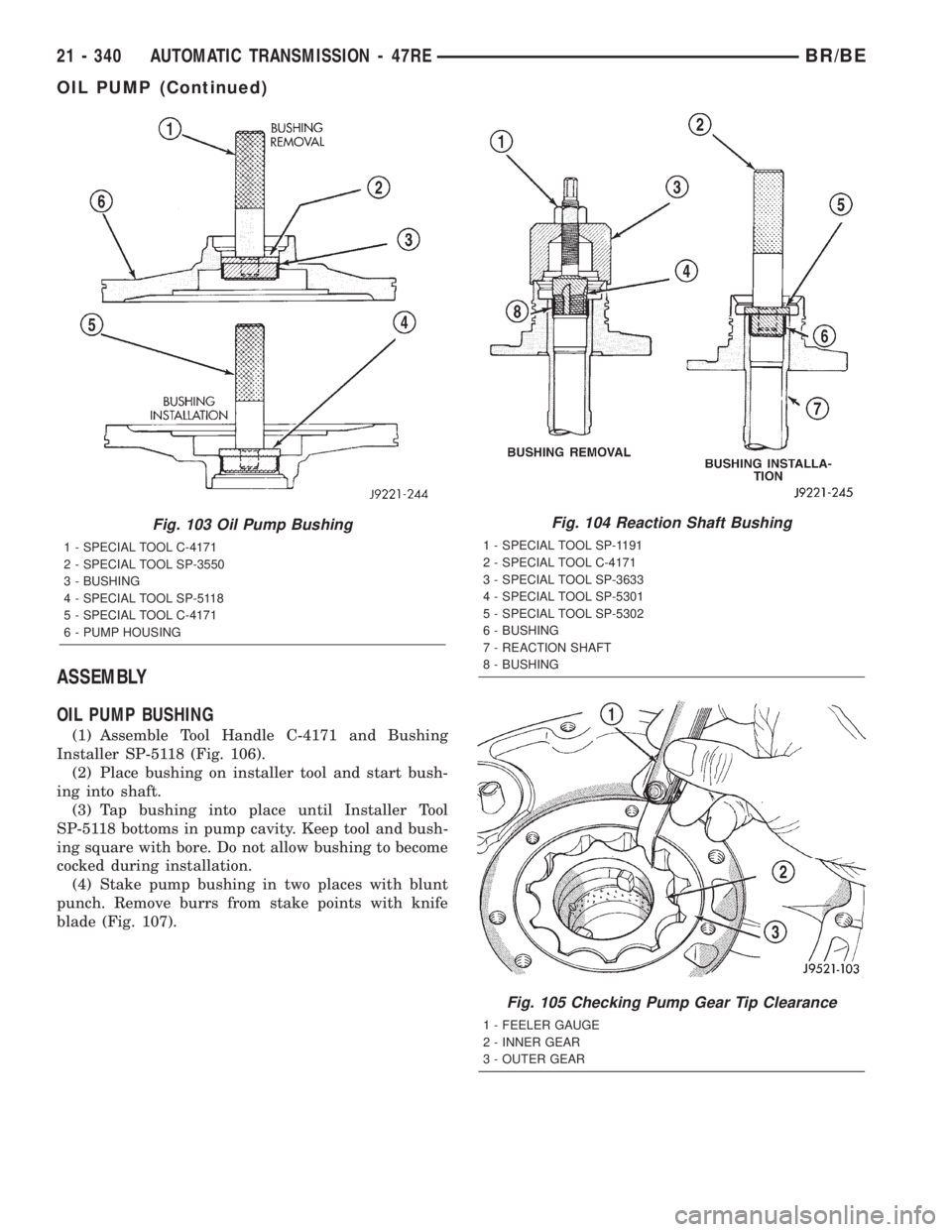

DODGE RAM 2002  Service Repair Manual ASSEMBLY
OIL PUMP BUSHING
(1) Assemble Tool Handle C-4171 and Bushing
Installer SP-5118 (Fig. 106).
(2) Place bushing on installer tool and start bush-
ing into shaft.
(3) Tap bushing into place until

Page 1794 of 2255

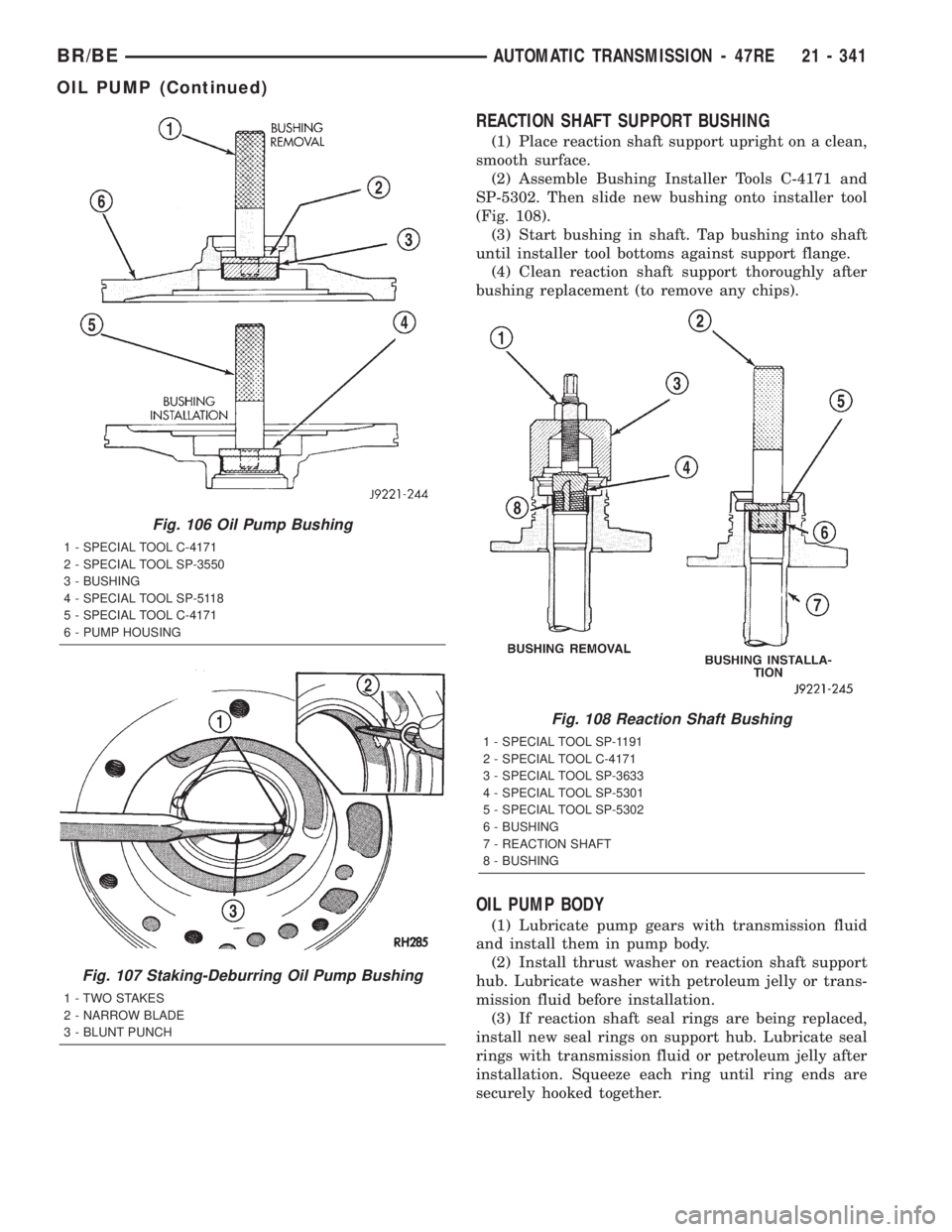

DODGE RAM 2002  Service Repair Manual REACTION SHAFT SUPPORT BUSHING
(1) Place reaction shaft support upright on a clean,
smooth surface.
(2) Assemble Bushing Installer Tools C-4171 and
SP-5302. Then slide new bushing onto installer tool

Page 1795 of 2255

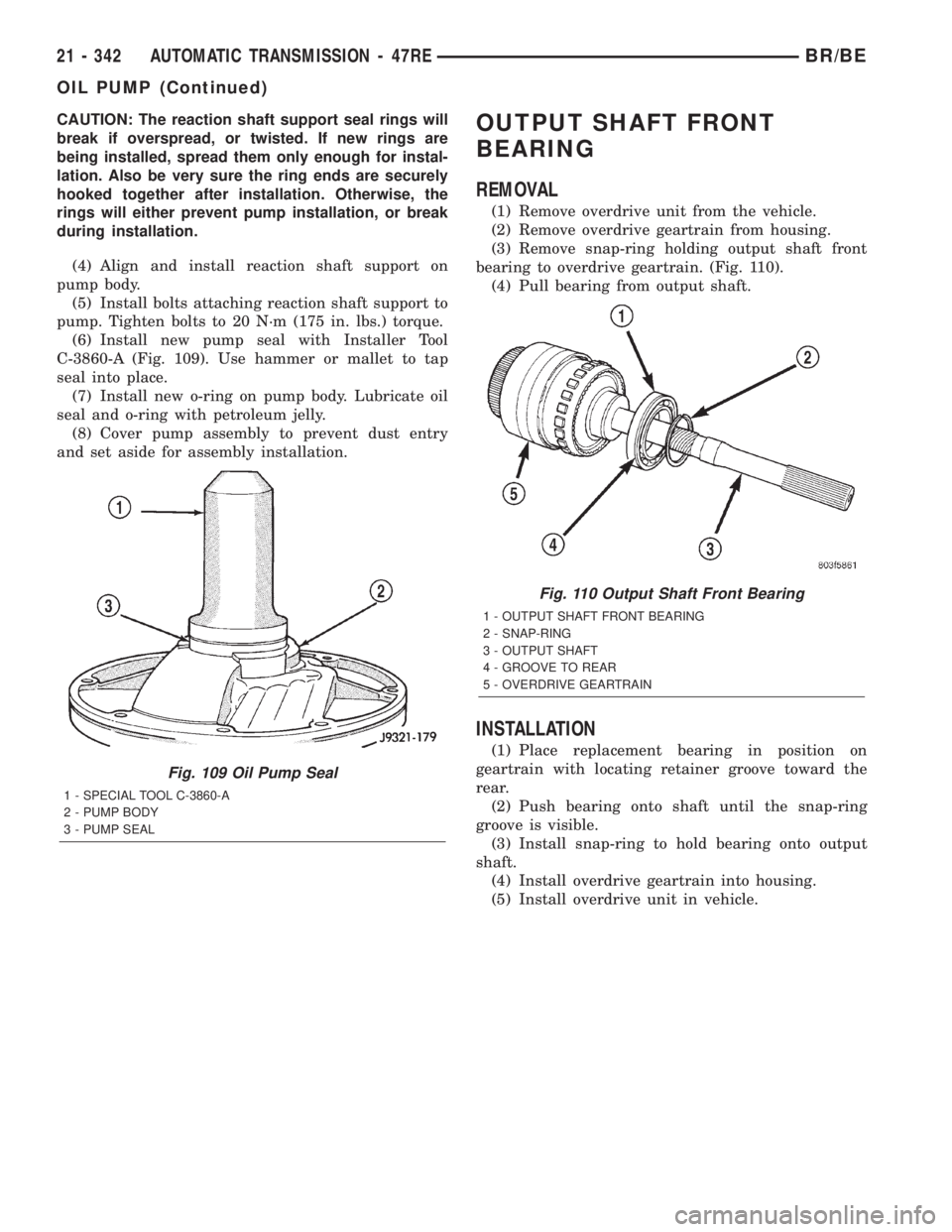

DODGE RAM 2002  Service Repair Manual CAUTION: The reaction shaft support seal rings will
break if overspread, or twisted. If new rings are
being installed, spread them only enough for instal-
lation. Also be very sure the ring ends are s

Page 1796 of 2255

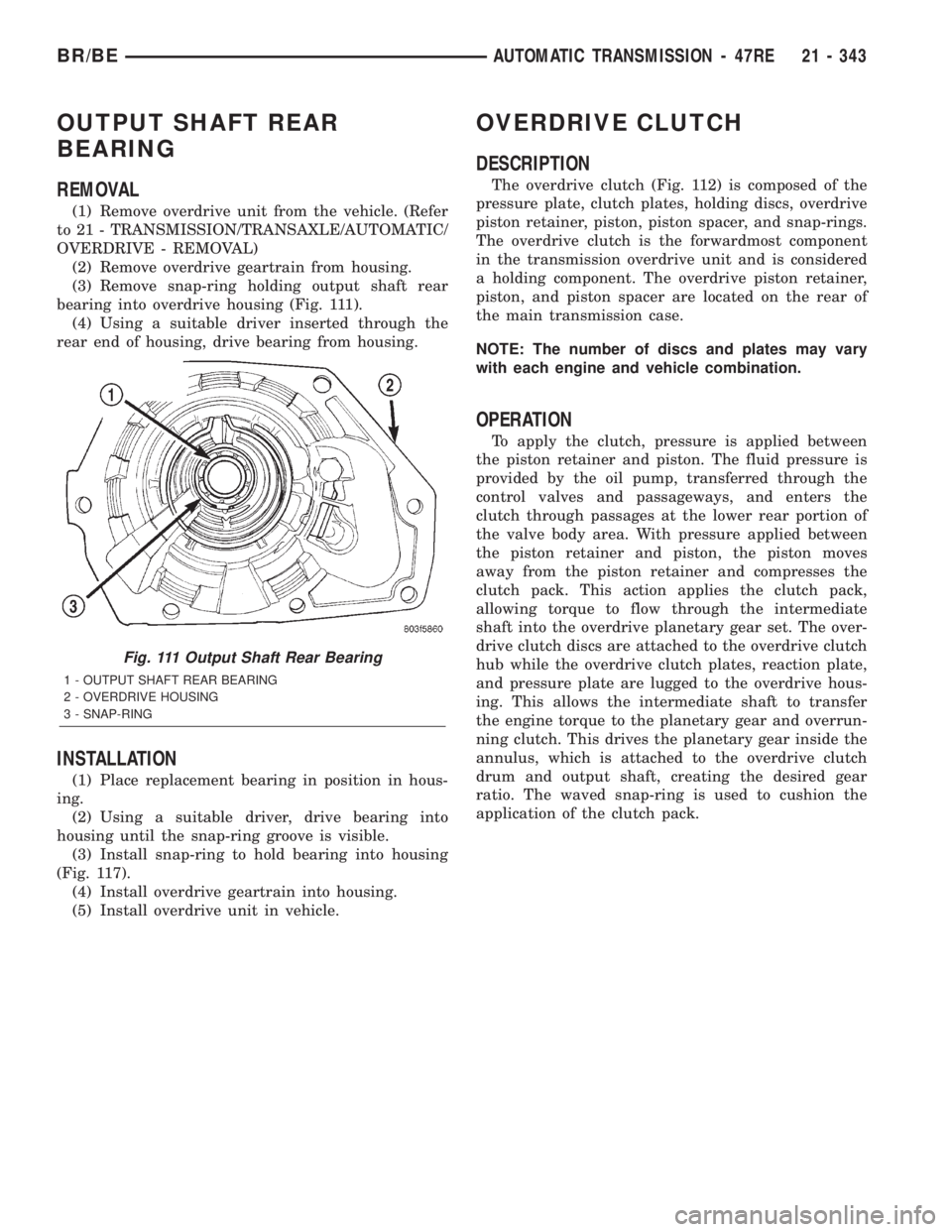

DODGE RAM 2002  Service Repair Manual OUTPUT SHAFT REAR
BEARING
REMOVAL
(1) Remove overdrive unit from the vehicle. (Refer
to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC/
OVERDRIVE - REMOVAL)
(2) Remove overdrive geartrain from housing.
(3) Rem

Page 1797 of 2255

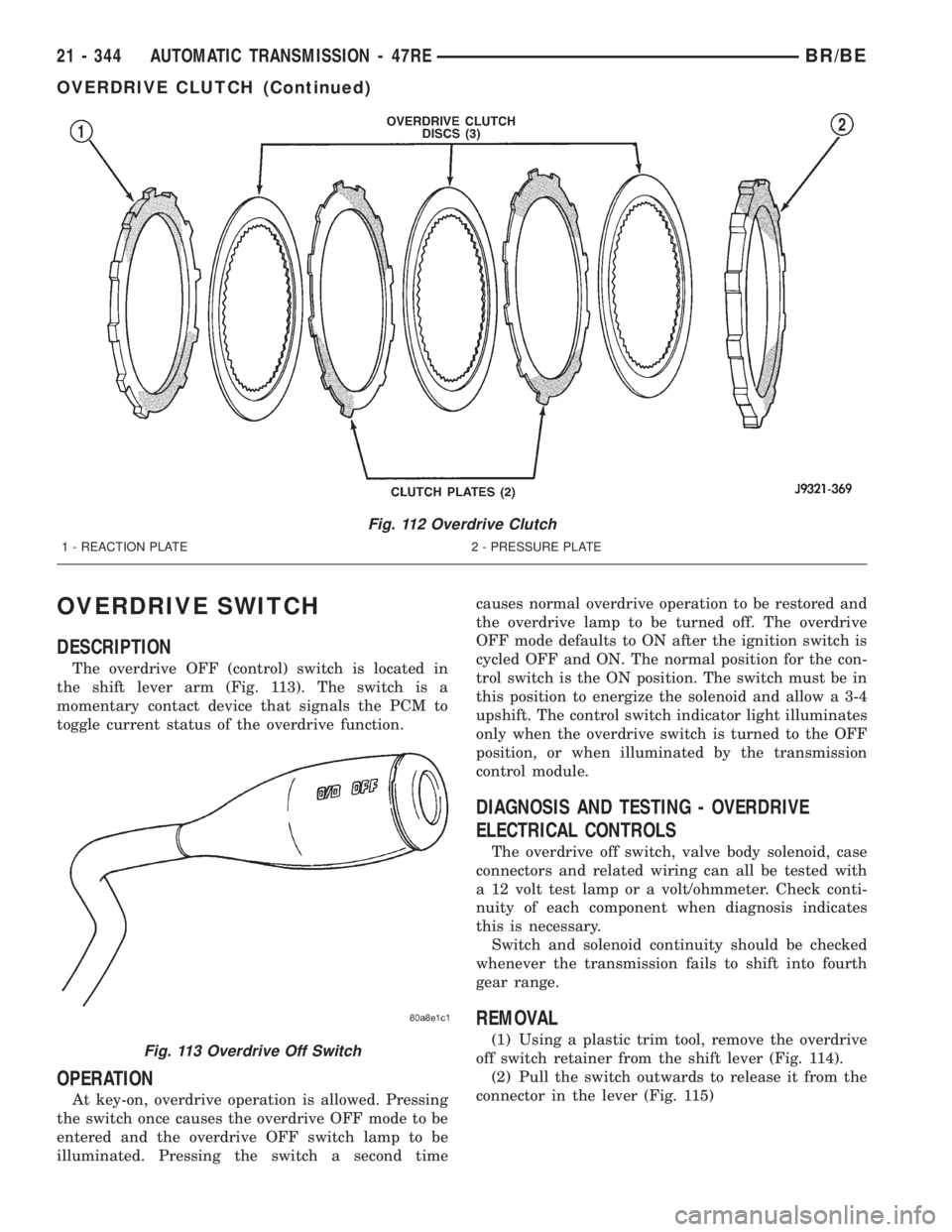

DODGE RAM 2002  Service Repair Manual OVERDRIVE SWITCH
DESCRIPTION
The overdrive OFF (control) switch is located in
the shift lever arm (Fig. 113). The switch is a
momentary contact device that signals the PCM to
toggle current status of

Page 1798 of 2255

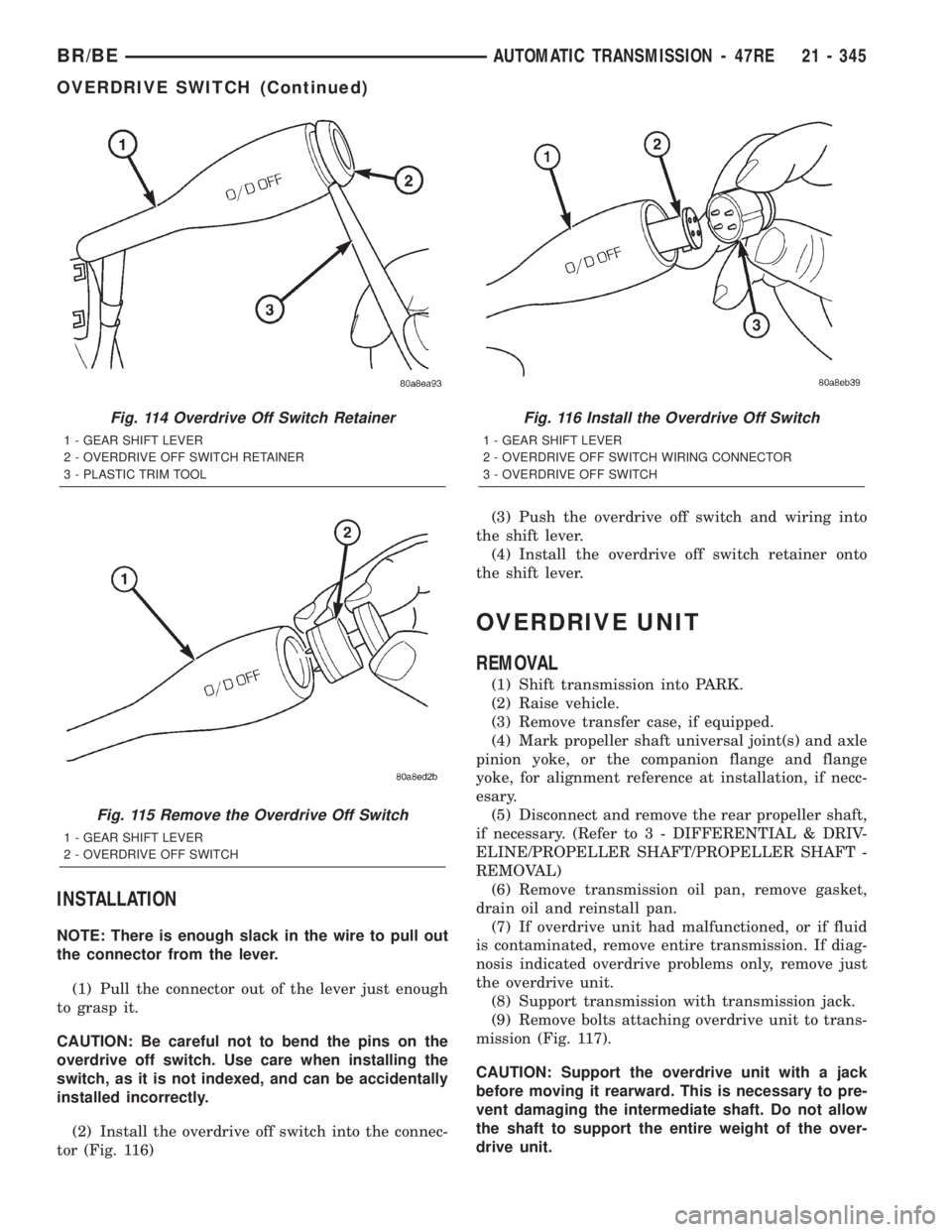

DODGE RAM 2002  Service Repair Manual INSTALLATION
NOTE: There is enough slack in the wire to pull out
the connector from the lever.
(1) Pull the connector out of the lever just enough
to grasp it.
CAUTION: Be careful not to bend the pins

Page 1799 of 2255

DODGE RAM 2002  Service Repair Manual (10) Carefully work overdrive unit off intermediate
shaft. Do not tilt unit during removal. Keep it as
level as possible.
(11) If overdrive unit does not require service,
immediately insert Alignment

Page 1800 of 2255

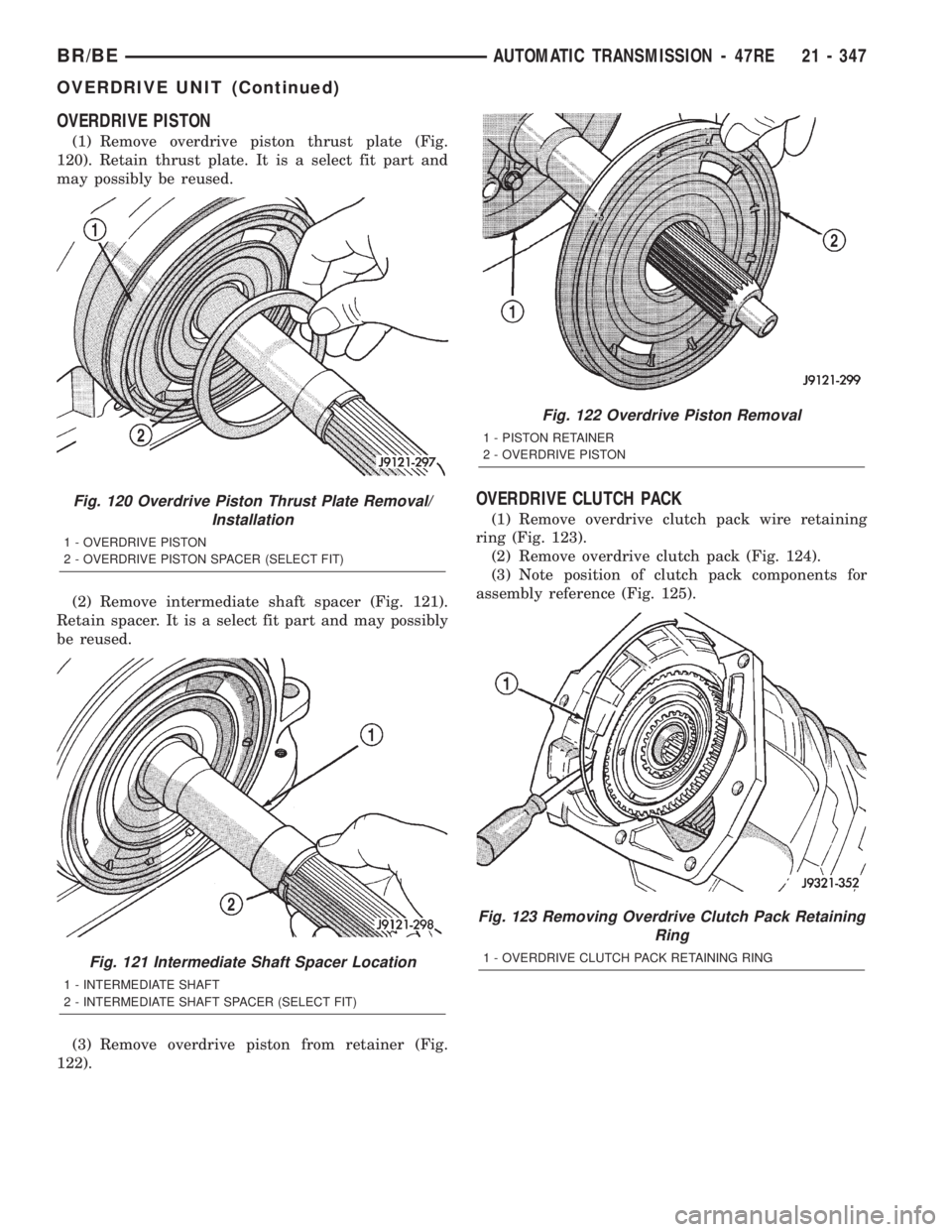

DODGE RAM 2002  Service Repair Manual OVERDRIVE PISTON
(1) Remove overdrive piston thrust plate (Fig.
120). Retain thrust plate. It is a select fit part and
may possibly be reused.
(2) Remove intermediate shaft spacer (Fig. 121).
Retain s
