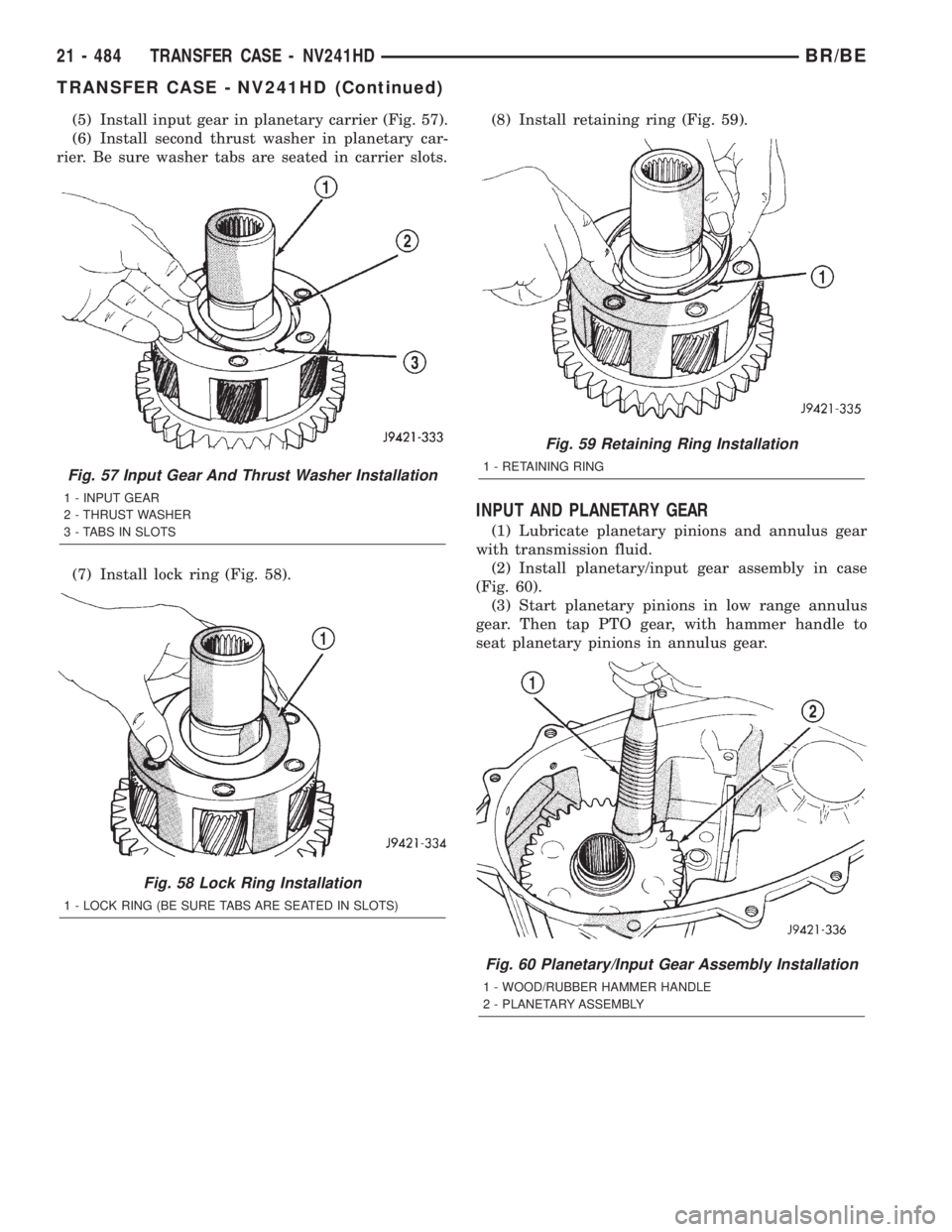

(5) Install input gear in planetary carrier (Fig. 57).
(6) Install second thrust washer in planetary car-
rier. Be sure washer tabs are seated in carrier slots.
(7) Install lock ring (Fig. 58).(8) Install retaining ring (Fig. 59).
INPUT AND PLANETARY GEAR
(1) Lubricate planetary pinions and annulus gear
with transmission fluid.
(2) Install planetary/input gear assembly in case
(Fig. 60).
(3) Start planetary pinions in low range annulus
gear. Then tap PTO gear, with hammer handle to
seat planetary pinions in annulus gear.
Fig. 57 Input Gear And Thrust Washer Installation
1 - INPUT GEAR
2 - THRUST WASHER
3 - TABS IN SLOTS
Fig. 58 Lock Ring Installation
1 - LOCK RING (BE SURE TABS ARE SEATED IN SLOTS)
Fig. 59 Retaining Ring Installation
1 - RETAINING RING
Fig. 60 Planetary/Input Gear Assembly Installation
1 - WOOD/RUBBER HAMMER HANDLE
2 - PLANETARY ASSEMBLY
21 - 484 TRANSFER CASE - NV241HDBR/BE
TRANSFER CASE - NV241HD (Continued)
Page 1938 of 2255

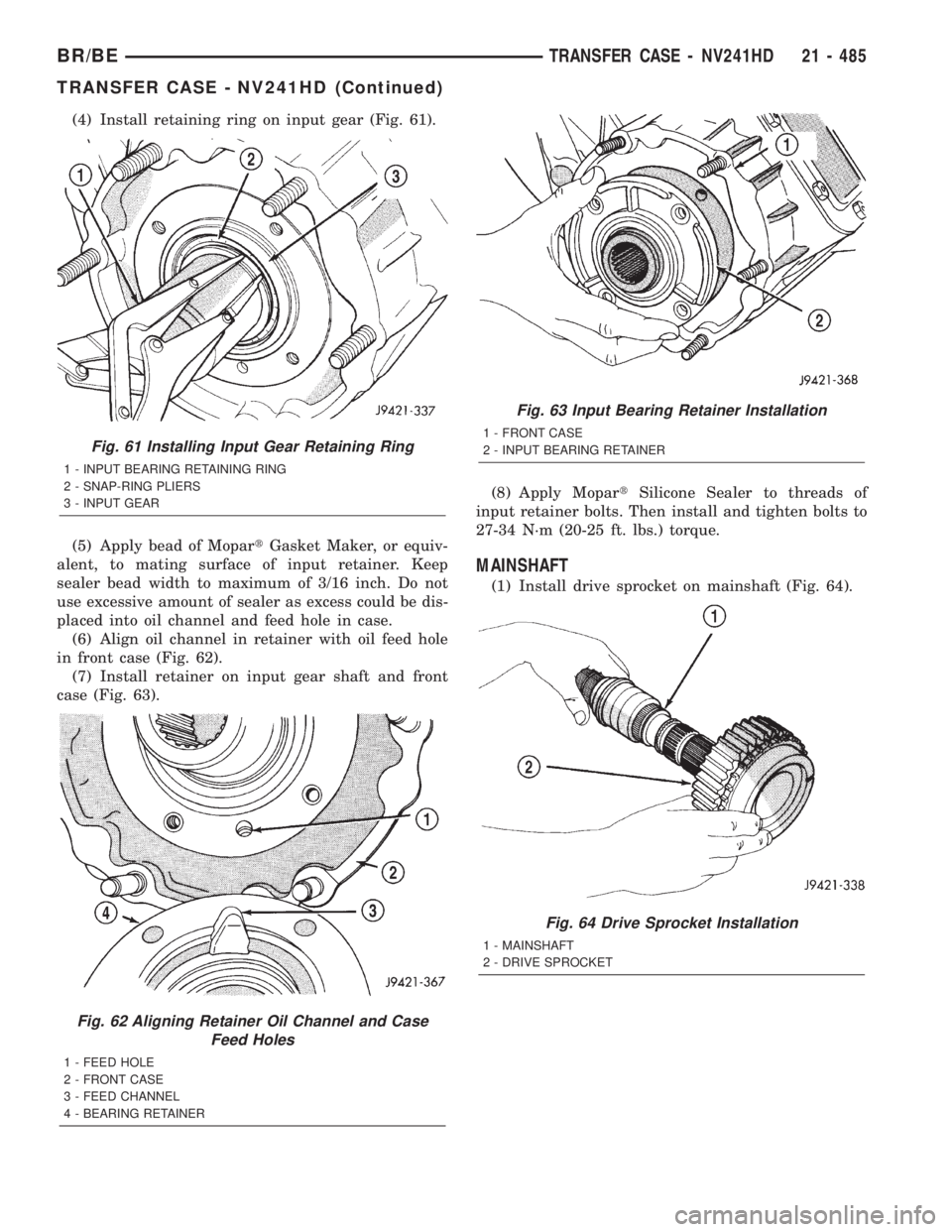

(4) Install retaining ring on input gear (Fig. 61).
(5) Apply bead of MopartGasket Maker, or equiv-
alent, to mating surface of input retainer. Keep
sealer bead width to maximum of 3/16 inch. Do not
use excessive amount of sealer as excess could be dis-
placed into oil channel and feed hole in case.
(6) Align oil channel in retainer with oil feed hole
in front case (Fig. 62).
(7) Install retainer on input gear shaft and front
case (Fig. 63).(8) Apply MopartSilicone Sealer to threads of
input retainer bolts. Then install and tighten bolts to
27-34 N´m (20-25 ft. lbs.) torque.
MAINSHAFT
(1) Install drive sprocket on mainshaft (Fig. 64).
Fig. 61 Installing Input Gear Retaining Ring
1 - INPUT BEARING RETAINING RING
2 - SNAP-RING PLIERS
3 - INPUT GEAR
Fig. 62 Aligning Retainer Oil Channel and Case
Feed Holes
1 - FEED HOLE
2 - FRONT CASE
3 - FEED CHANNEL
4 - BEARING RETAINER
Fig. 63 Input Bearing Retainer Installation
1 - FRONT CASE
2 - INPUT BEARING RETAINER
Fig. 64 Drive Sprocket Installation
1 - MAINSHAFT
2 - DRIVE SPROCKET
BR/BETRANSFER CASE - NV241HD 21 - 485
TRANSFER CASE - NV241HD (Continued)
Page 1939 of 2255

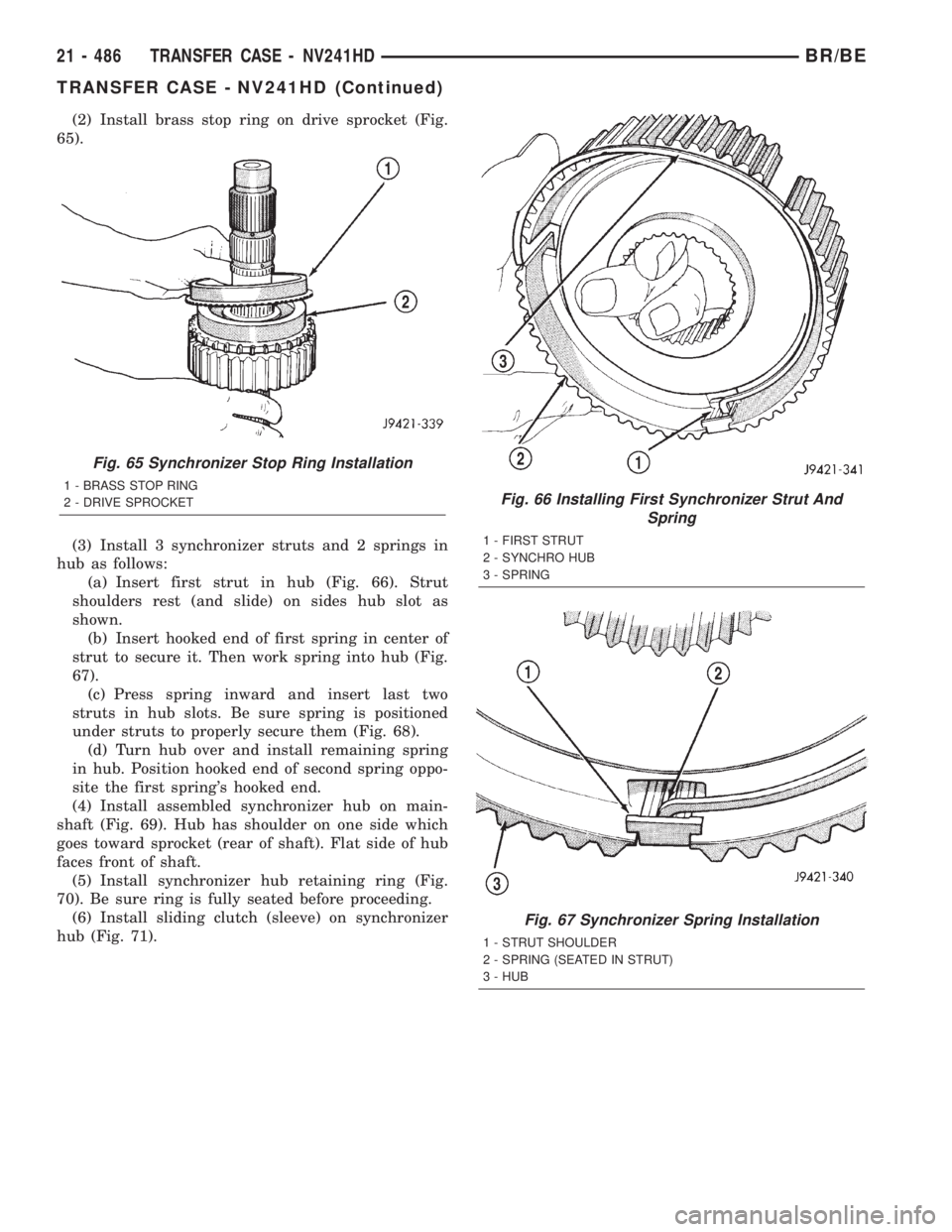

(2) Install brass stop ring on drive sprocket (Fig.
65).
(3) Install 3 synchronizer struts and 2 springs in
hub as follows:
(a) Insert first strut in hub (Fig. 66). Strut
shoulders rest (and slide) on sides hub slot as
shown.
(b) Insert hooked end of first spring in center of
strut to secure it. Then work spring into hub (Fig.
67).
(c) Press spring inward and insert last two
struts in hub slots. Be sure spring is positioned
under struts to properly secure them (Fig. 68).
(d) Turn hub over and install remaining spring
in hub. Position hooked end of second spring oppo-
site the first spring's hooked end.
(4) Install assembled synchronizer hub on main-
shaft (Fig. 69). Hub has shoulder on one side which
goes toward sprocket (rear of shaft). Flat side of hub
faces front of shaft.
(5) Install synchronizer hub retaining ring (Fig.
70). Be sure ring is fully seated before proceeding.
(6) Install sliding clutch (sleeve) on synchronizer
hub (Fig. 71).
Fig. 65 Synchronizer Stop Ring Installation
1 - BRASS STOP RING
2 - DRIVE SPROCKETFig. 66 Installing First Synchronizer Strut And
Spring
1 - FIRST STRUT
2 - SYNCHRO HUB
3 - SPRING
Fig. 67 Synchronizer Spring Installation
1 - STRUT SHOULDER
2 - SPRING (SEATED IN STRUT)
3 - HUB
21 - 486 TRANSFER CASE - NV241HDBR/BE
TRANSFER CASE - NV241HD (Continued)
Page 1940 of 2255

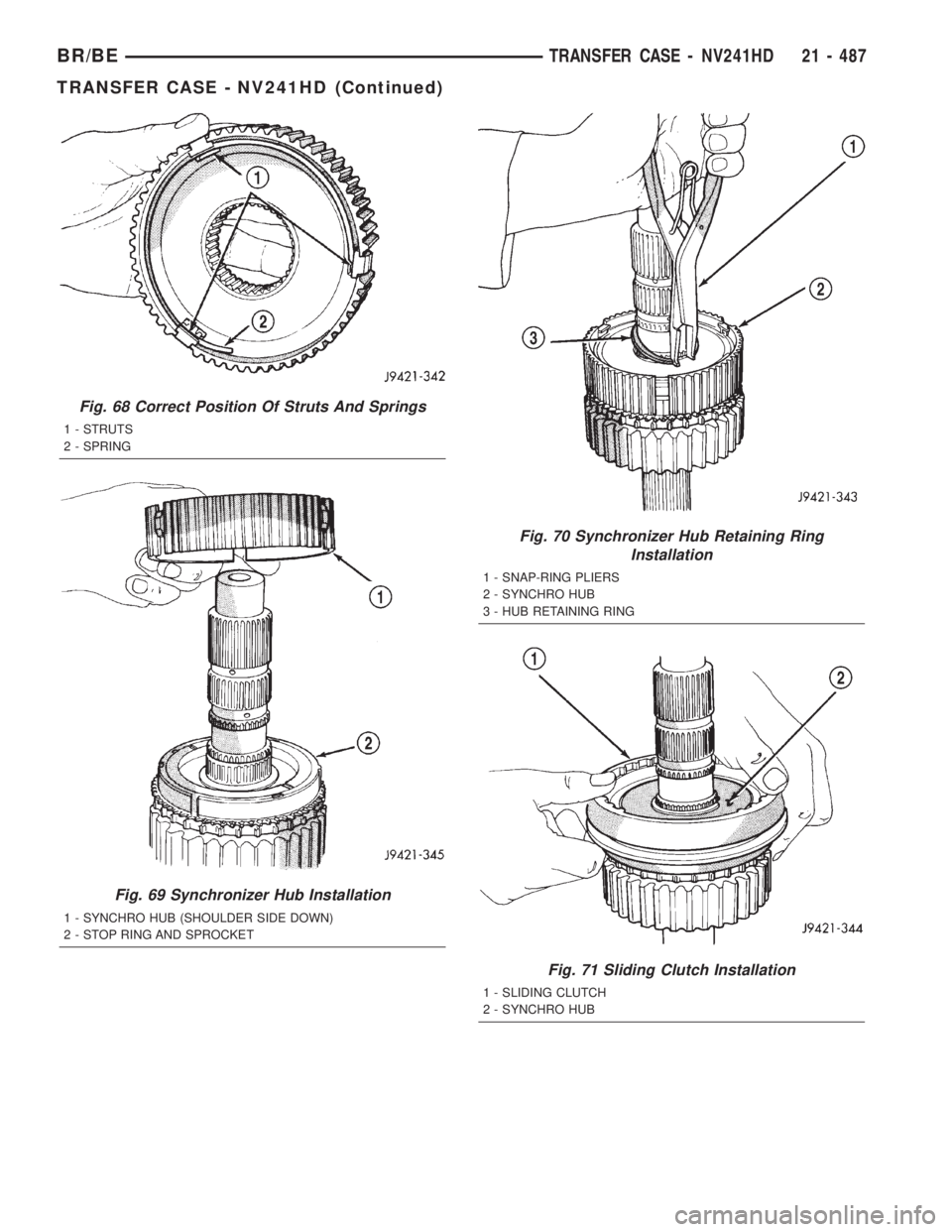

Fig. 68 Correct Position Of Struts And Springs
1 - STRUTS
2 - SPRING
Fig. 69 Synchronizer Hub Installation
1 - SYNCHRO HUB (SHOULDER SIDE DOWN)
2 - STOP RING AND SPROCKET
Fig. 70 Synchronizer Hub Retaining Ring
Installation
1 - SNAP-RING PLIERS
2 - SYNCHRO HUB
3 - HUB RETAINING RING
Fig. 71 Sliding Clutch Installation
1 - SLIDING CLUTCH
2 - SYNCHRO HUB
BR/BETRANSFER CASE - NV241HD 21 - 487
TRANSFER CASE - NV241HD (Continued)
Page 1941 of 2255

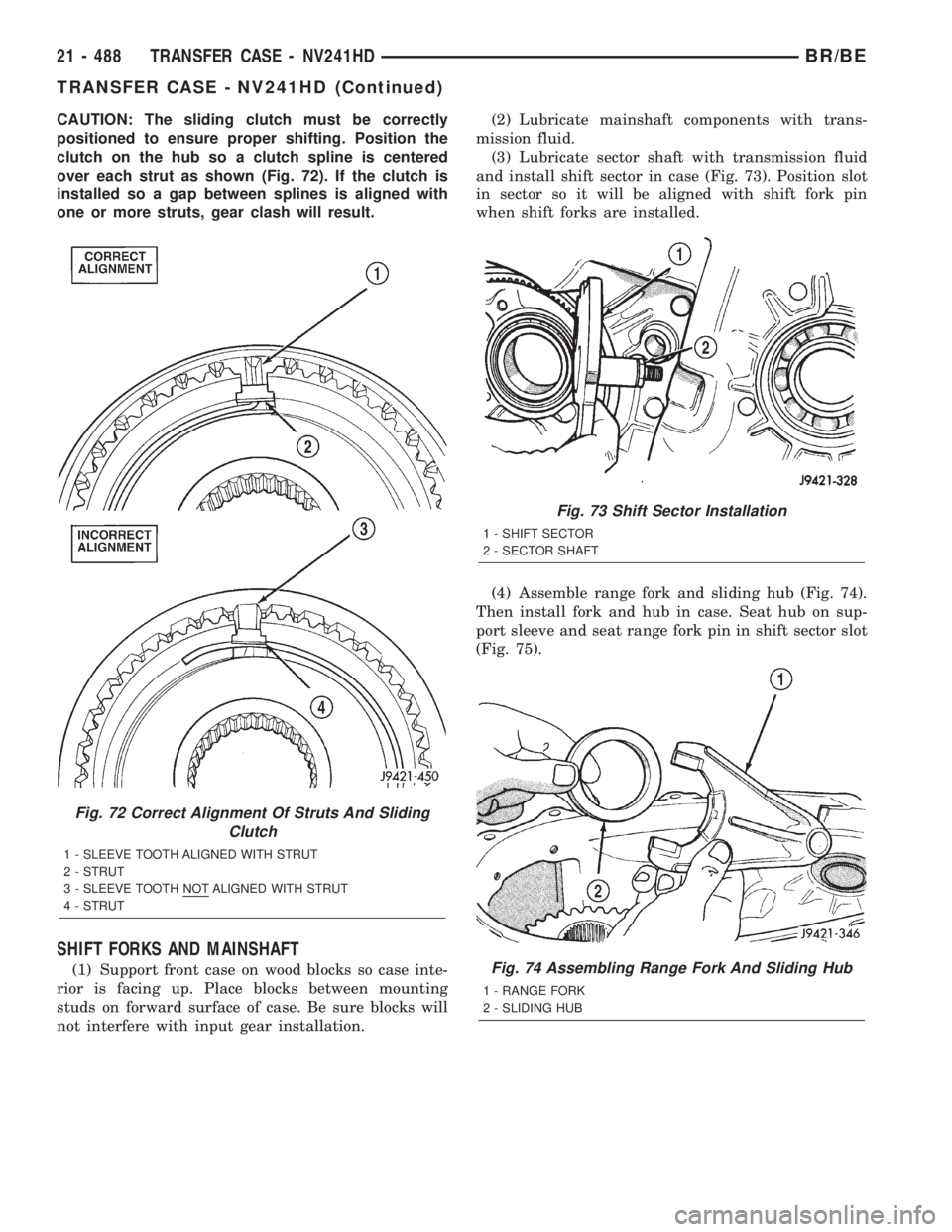

CAUTION: The sliding clutch must be correctly
positioned to ensure proper shifting. Position the
clutch on the hub so a clutch spline is centered
over each strut as shown (Fig. 72). If the clutch is
installed so a gap between splines is aligned with
one or more struts, gear clash will result.
SHIFT FORKS AND MAINSHAFT
(1) Support front case on wood blocks so case inte-
rior is facing up. Place blocks between mounting
studs on forward surface of case. Be sure blocks will
not interfere with input gear installation.(2) Lubricate mainshaft components with trans-
mission fluid.
(3) Lubricate sector shaft with transmission fluid
and install shift sector in case (Fig. 73). Position slot
in sector so it will be aligned with shift fork pin
when shift forks are installed.
(4) Assemble range fork and sliding hub (Fig. 74).
Then install fork and hub in case. Seat hub on sup-
port sleeve and seat range fork pin in shift sector slot
(Fig. 75).
Fig. 72 Correct Alignment Of Struts And Sliding
Clutch
1 - SLEEVE TOOTH ALIGNED WITH STRUT
2 - STRUT
3 - SLEEVE TOOTH NOT ALIGNED WITH STRUT
4 - STRUT
Fig. 73 Shift Sector Installation
1 - SHIFT SECTOR
2 - SECTOR SHAFT
Fig. 74 Assembling Range Fork And Sliding Hub
1 - RANGE FORK
2 - SLIDING HUB
21 - 488 TRANSFER CASE - NV241HDBR/BE
TRANSFER CASE - NV241HD (Continued)
Page 1942 of 2255

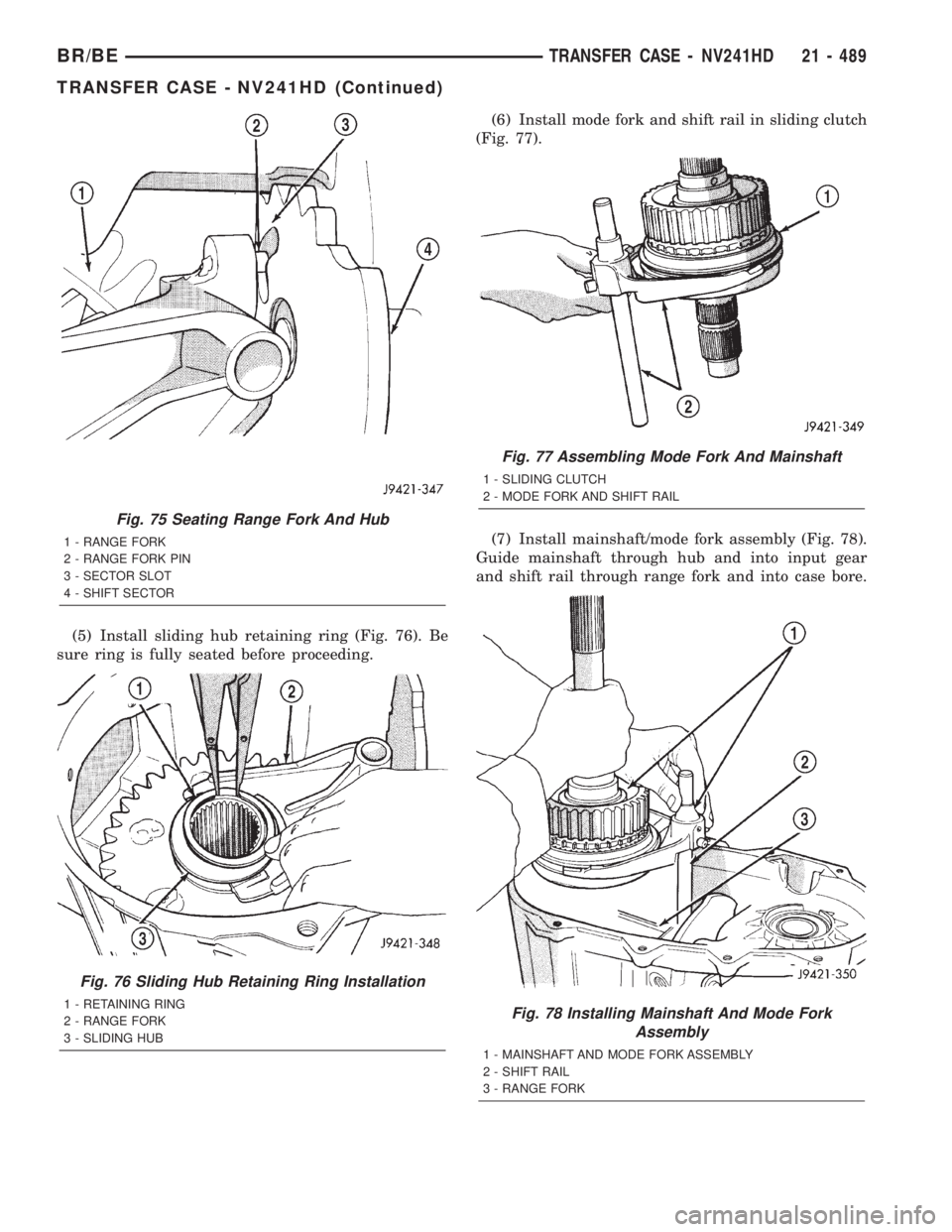

(5) Install sliding hub retaining ring (Fig. 76). Be
sure ring is fully seated before proceeding.(6) Install mode fork and shift rail in sliding clutch
(Fig. 77).
(7) Install mainshaft/mode fork assembly (Fig. 78).
Guide mainshaft through hub and into input gear
and shift rail through range fork and into case bore.
Fig. 75 Seating Range Fork And Hub
1 - RANGE FORK
2 - RANGE FORK PIN
3 - SECTOR SLOT
4 - SHIFT SECTOR
Fig. 76 Sliding Hub Retaining Ring Installation
1 - RETAINING RING
2 - RANGE FORK
3 - SLIDING HUB
Fig. 77 Assembling Mode Fork And Mainshaft
1 - SLIDING CLUTCH
2 - MODE FORK AND SHIFT RAIL
Fig. 78 Installing Mainshaft And Mode Fork
Assembly
1 - MAINSHAFT AND MODE FORK ASSEMBLY
2 - SHIFT RAIL
3 - RANGE FORK
BR/BETRANSFER CASE - NV241HD 21 - 489
TRANSFER CASE - NV241HD (Continued)
Page 1943 of 2255

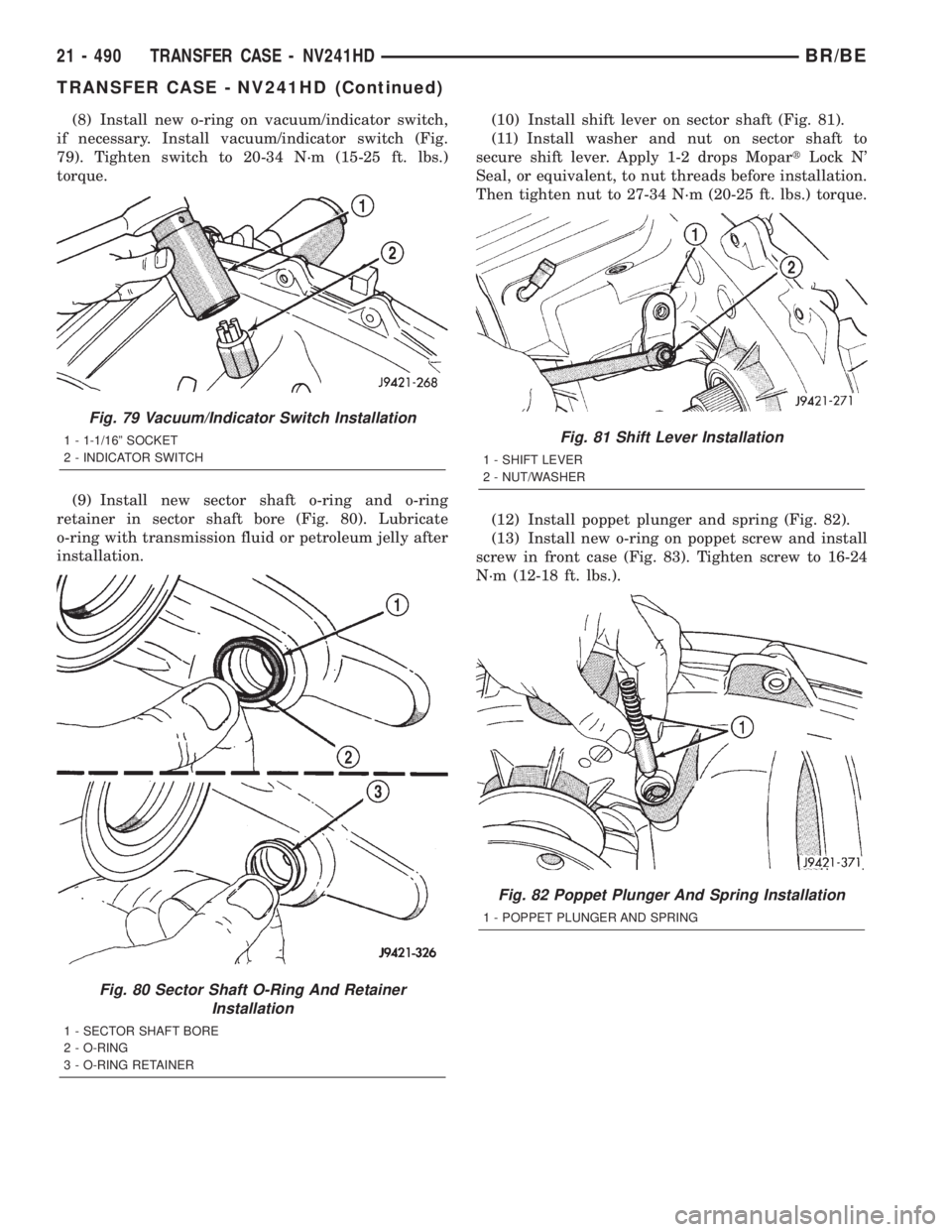

(8) Install new o-ring on vacuum/indicator switch,
if necessary. Install vacuum/indicator switch (Fig.
79). Tighten switch to 20-34 N´m (15-25 ft. lbs.)
torque.
(9) Install new sector shaft o-ring and o-ring
retainer in sector shaft bore (Fig. 80). Lubricate
o-ring with transmission fluid or petroleum jelly after
installation.(10) Install shift lever on sector shaft (Fig. 81).
(11) Install washer and nut on sector shaft to
secure shift lever. Apply 1-2 drops MopartLock N'
Seal, or equivalent, to nut threads before installation.
Then tighten nut to 27-34 N´m (20-25 ft. lbs.) torque.
(12) Install poppet plunger and spring (Fig. 82).
(13) Install new o-ring on poppet screw and install
screw in front case (Fig. 83). Tighten screw to 16-24
N´m (12-18 ft. lbs.).
Fig. 79 Vacuum/Indicator Switch Installation
1 - 1-1/16º SOCKET
2 - INDICATOR SWITCH
Fig. 80 Sector Shaft O-Ring And Retainer
Installation
1 - SECTOR SHAFT BORE
2 - O-RING
3 - O-RING RETAINER
Fig. 81 Shift Lever Installation
1 - SHIFT LEVER
2 - NUT/WASHER
Fig. 82 Poppet Plunger And Spring Installation
1 - POPPET PLUNGER AND SPRING
21 - 490 TRANSFER CASE - NV241HDBR/BE
TRANSFER CASE - NV241HD (Continued)
Page 1944 of 2255

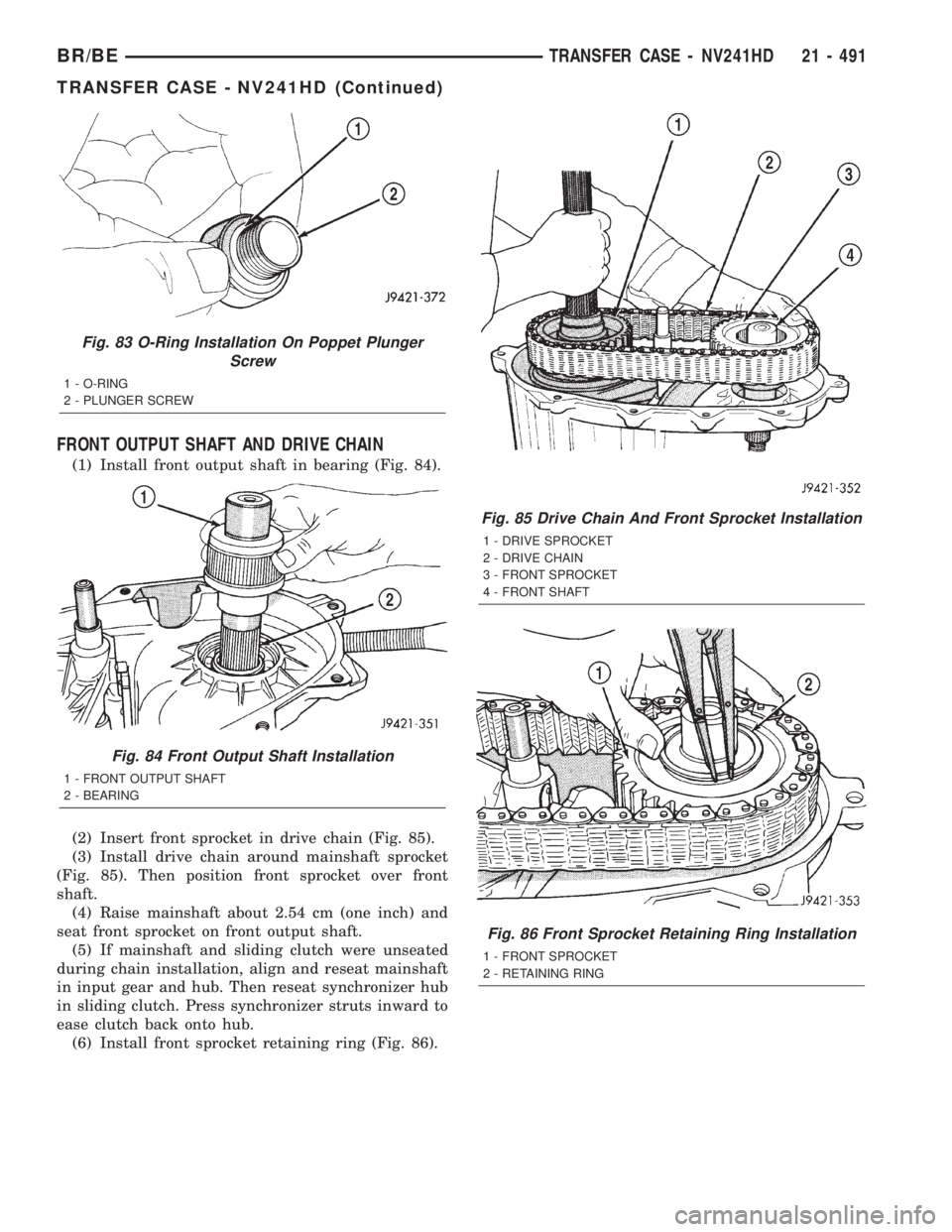

FRONT OUTPUT SHAFT AND DRIVE CHAIN
(1) Install front output shaft in bearing (Fig. 84).
(2) Insert front sprocket in drive chain (Fig. 85).
(3) Install drive chain around mainshaft sprocket
(Fig. 85). Then position front sprocket over front
shaft.
(4) Raise mainshaft about 2.54 cm (one inch) and
seat front sprocket on front output shaft.
(5) If mainshaft and sliding clutch were unseated
during chain installation, align and reseat mainshaft
in input gear and hub. Then reseat synchronizer hub
in sliding clutch. Press synchronizer struts inward to
ease clutch back onto hub.
(6) Install front sprocket retaining ring (Fig. 86).
Fig. 83 O-Ring Installation On Poppet Plunger
Screw
1 - O-RING
2 - PLUNGER SCREW
Fig. 84 Front Output Shaft Installation
1 - FRONT OUTPUT SHAFT
2 - BEARING
Fig. 85 Drive Chain And Front Sprocket Installation
1 - DRIVE SPROCKET
2 - DRIVE CHAIN
3 - FRONT SPROCKET
4 - FRONT SHAFT
Fig. 86 Front Sprocket Retaining Ring Installation
1 - FRONT SPROCKET
2 - RETAINING RING
BR/BETRANSFER CASE - NV241HD 21 - 491
TRANSFER CASE - NV241HD (Continued)
