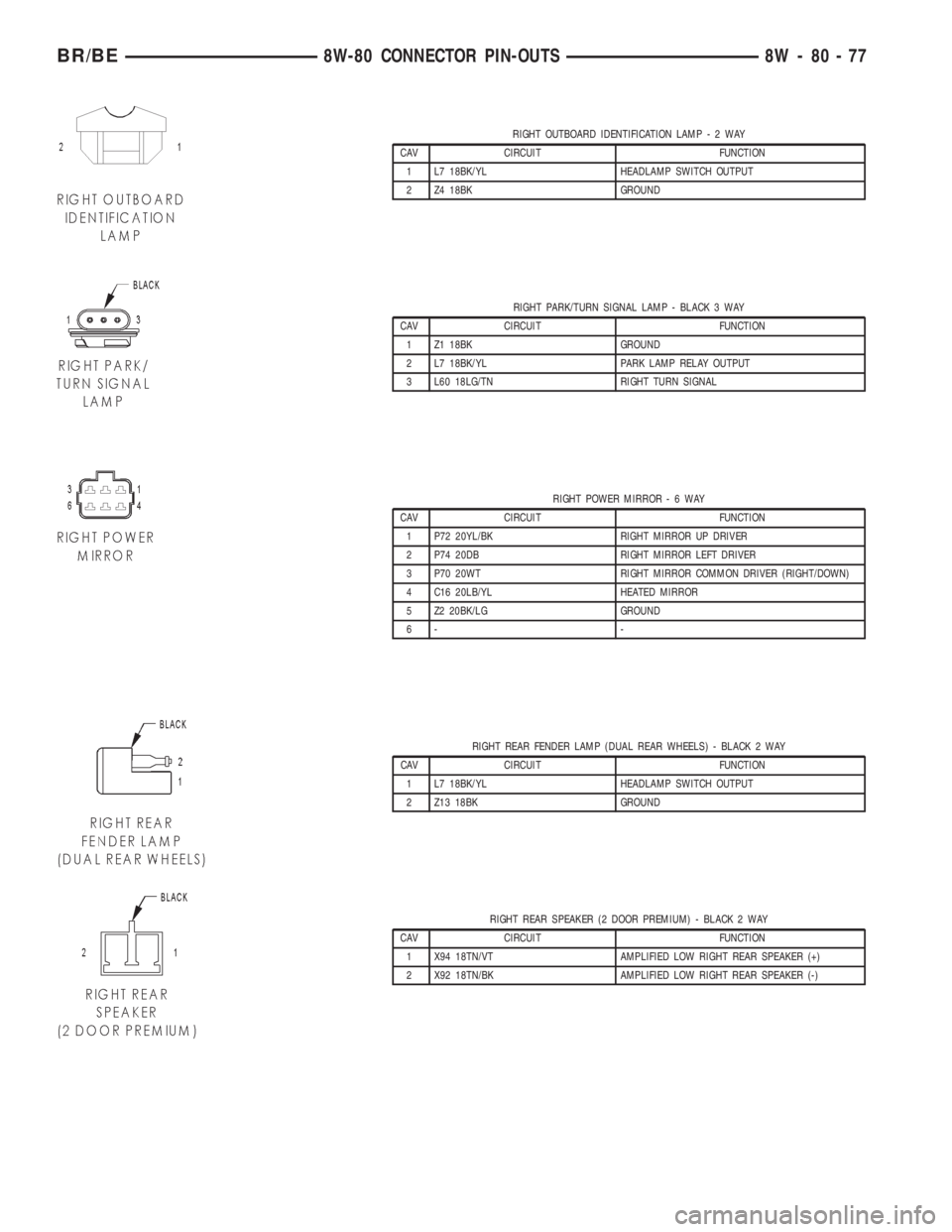

DODGE RAM 2002 Service Repair Manual RADIO C1 - GRAY 7 WAY CAV CIRCUIT FUNCTION 1- - 2 X55 18BR/RD LEFT FRONT DOOR SPEAKER (-) 3 X56 18DB/RD RIGHT FRONT DOOR SPEAKER (-) 4 E17 18YL/BK DAY BRIGHTNESS SENSE 5 E2 22OR PANEL LAMPS FEED 6 X12

Page 1010 of 2255

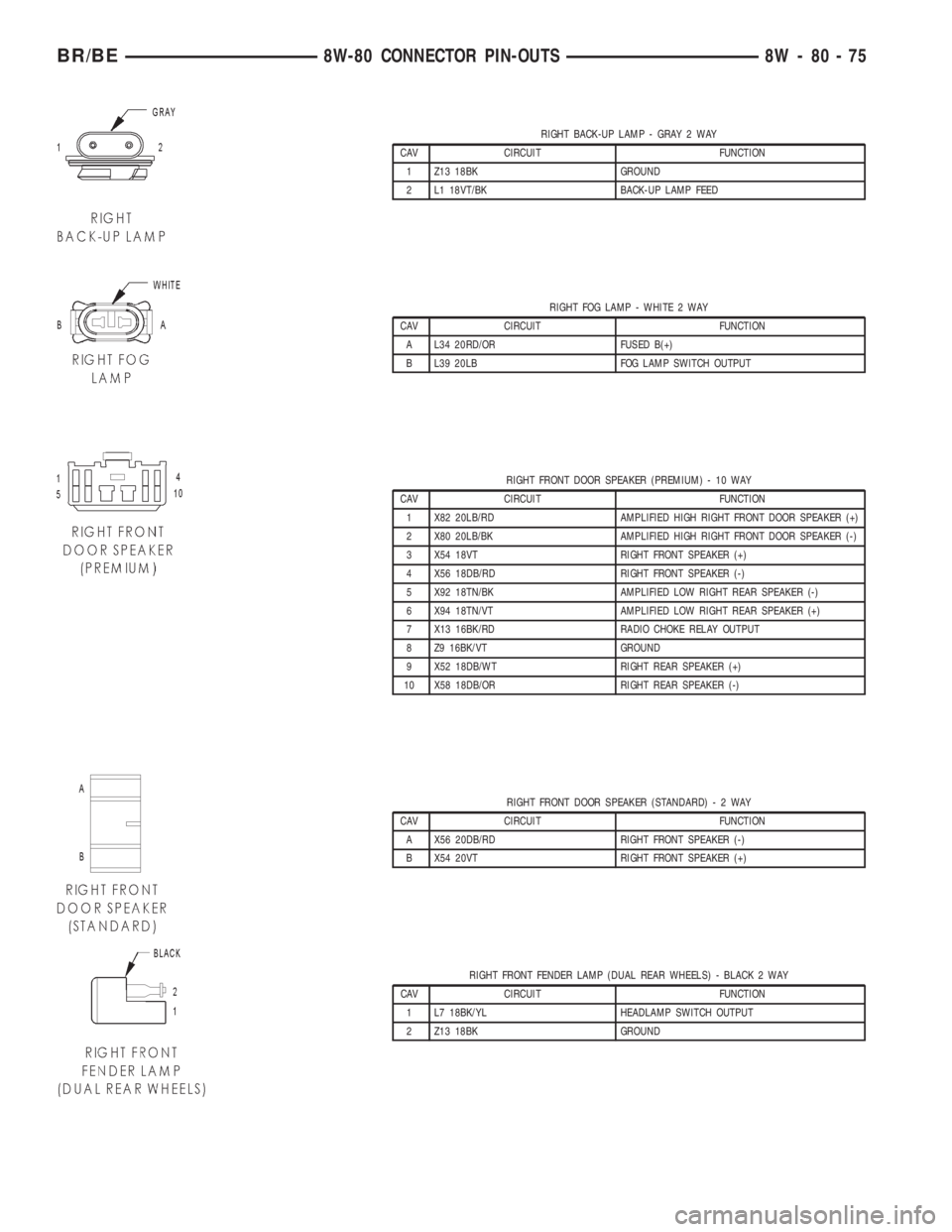

DODGE RAM 2002 Service Repair Manual RIGHT BACK-UP LAMP - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 Z13 18BK GROUND 2 L1 18VT/BK BACK-UP LAMP FEED RIGHT FOG LAMP - WHITE 2 WAY CAV CIRCUIT FUNCTION A L34 20RD/OR FUSED B(+) B L39 20LB FOG LAMP SWI

Page 1011 of 2255

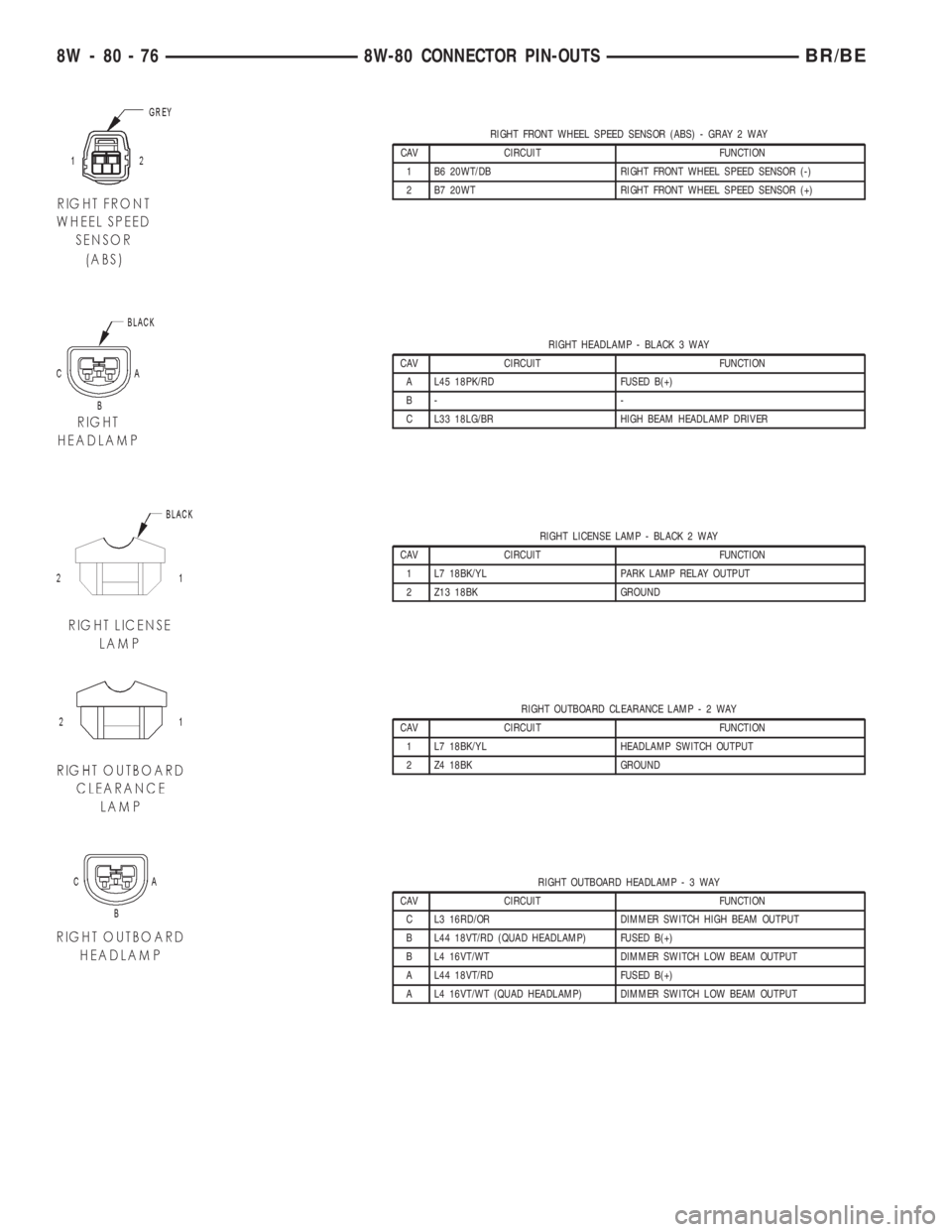

DODGE RAM 2002 Service Repair Manual RIGHT FRONT WHEEL SPEED SENSOR (ABS) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR (-) 2 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR (+) RIGHT HEADLAMP - BLACK 3 WAY CAV CIR

Page 1012 of 2255

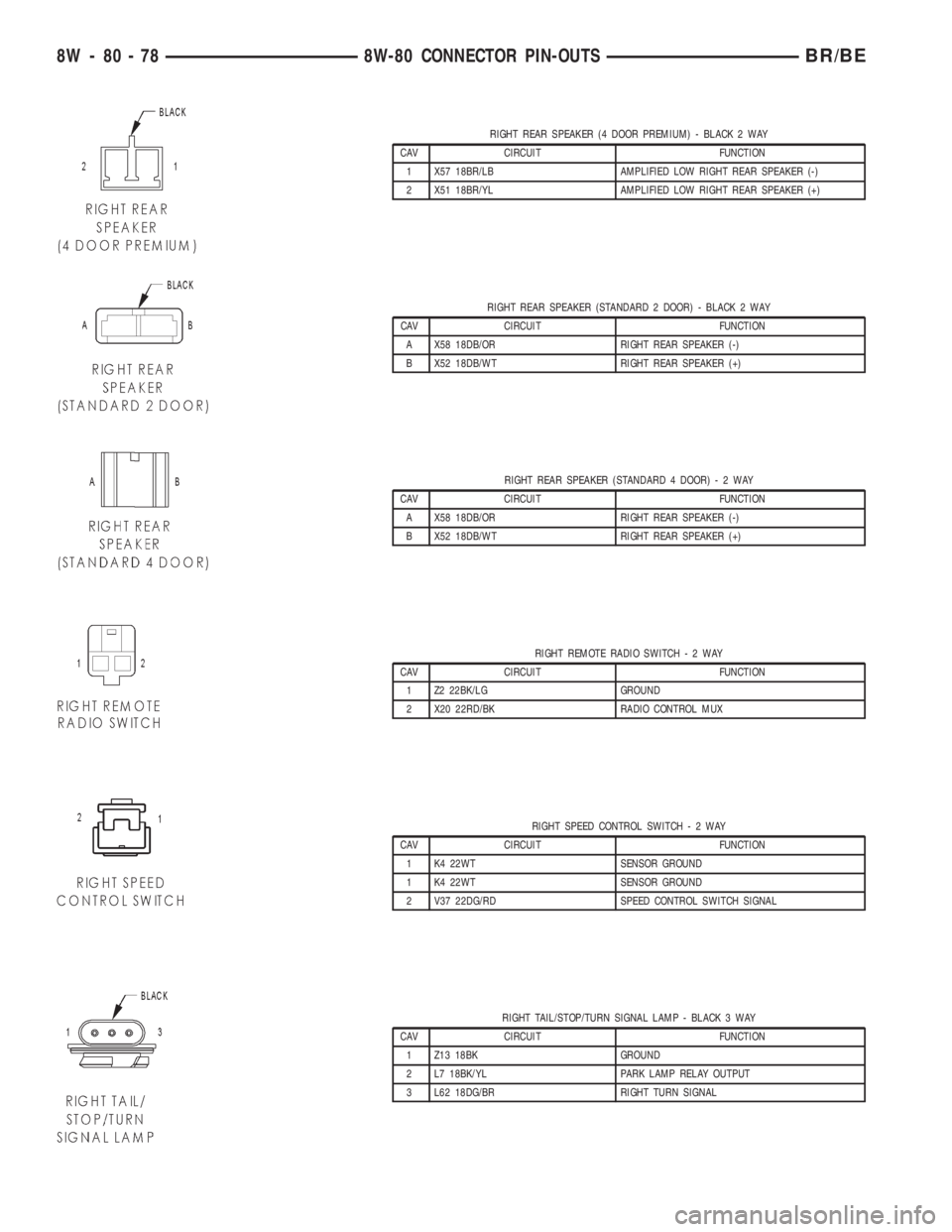

DODGE RAM 2002 Service Repair Manual RIGHT OUTBOARD IDENTIFICATION LAMP-2WAY CAV CIRCUIT FUNCTION 1 L7 18BK/YL HEADLAMP SWITCH OUTPUT 2 Z4 18BK GROUND RIGHT PARK/TURN SIGNAL LAMP - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 Z1 18BK GROUND 2 L7 1

Page 1013 of 2255

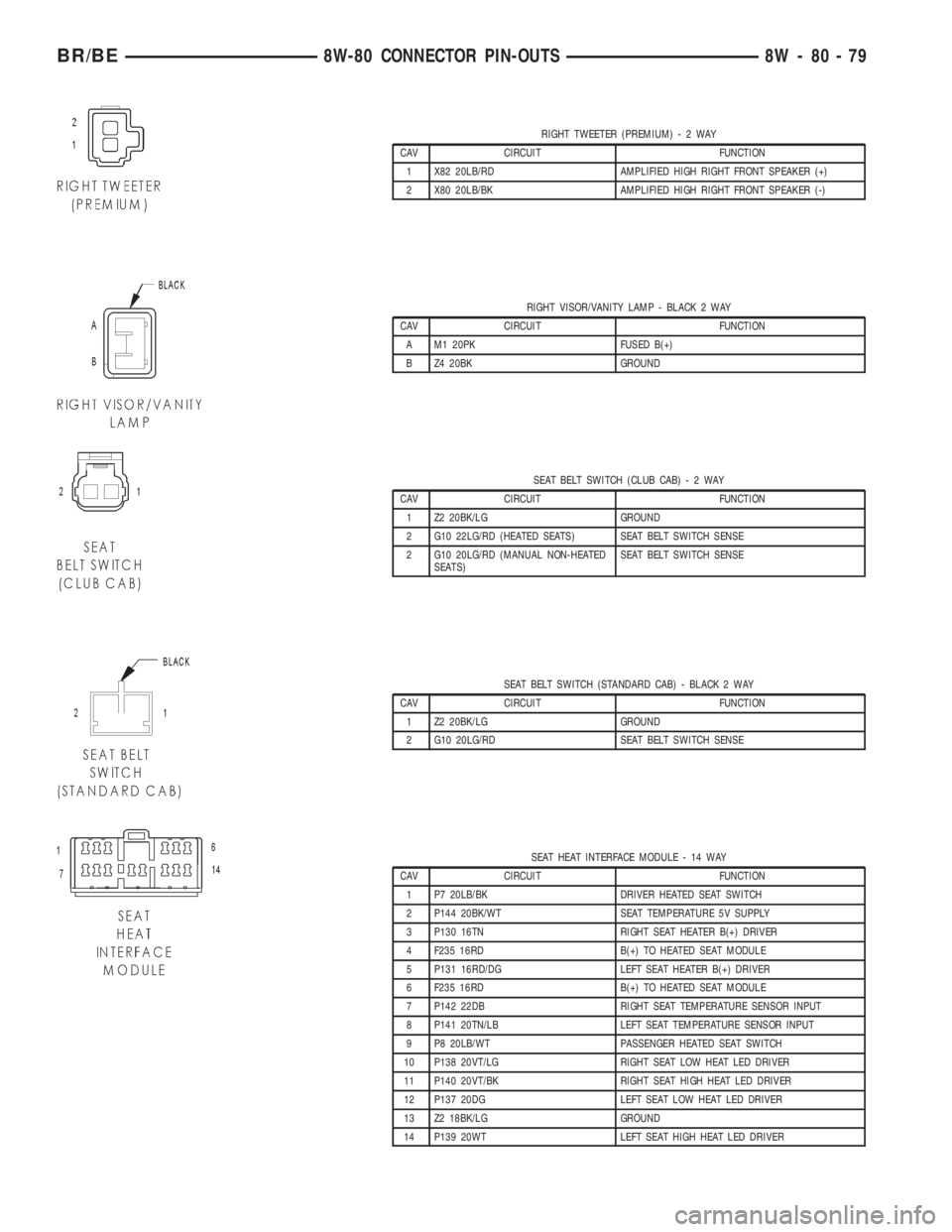

DODGE RAM 2002 Service Repair Manual RIGHT REAR SPEAKER (4 DOOR PREMIUM) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 X57 18BR/LB AMPLIFIED LOW RIGHT REAR SPEAKER (-) 2 X51 18BR/YL AMPLIFIED LOW RIGHT REAR SPEAKER (+) RIGHT REAR SPEAKER (STANDAR

Page 1014 of 2255

DODGE RAM 2002 Service Repair Manual RIGHT TWEETER (PREMIUM)-2WAY CAV CIRCUIT FUNCTION 1 X82 20LB/RD AMPLIFIED HIGH RIGHT FRONT SPEAKER (+) 2 X80 20LB/BK AMPLIFIED HIGH RIGHT FRONT SPEAKER (-) RIGHT VISOR/VANITY LAMP - BLACK 2 WAY CAV CI

Page 1015 of 2255

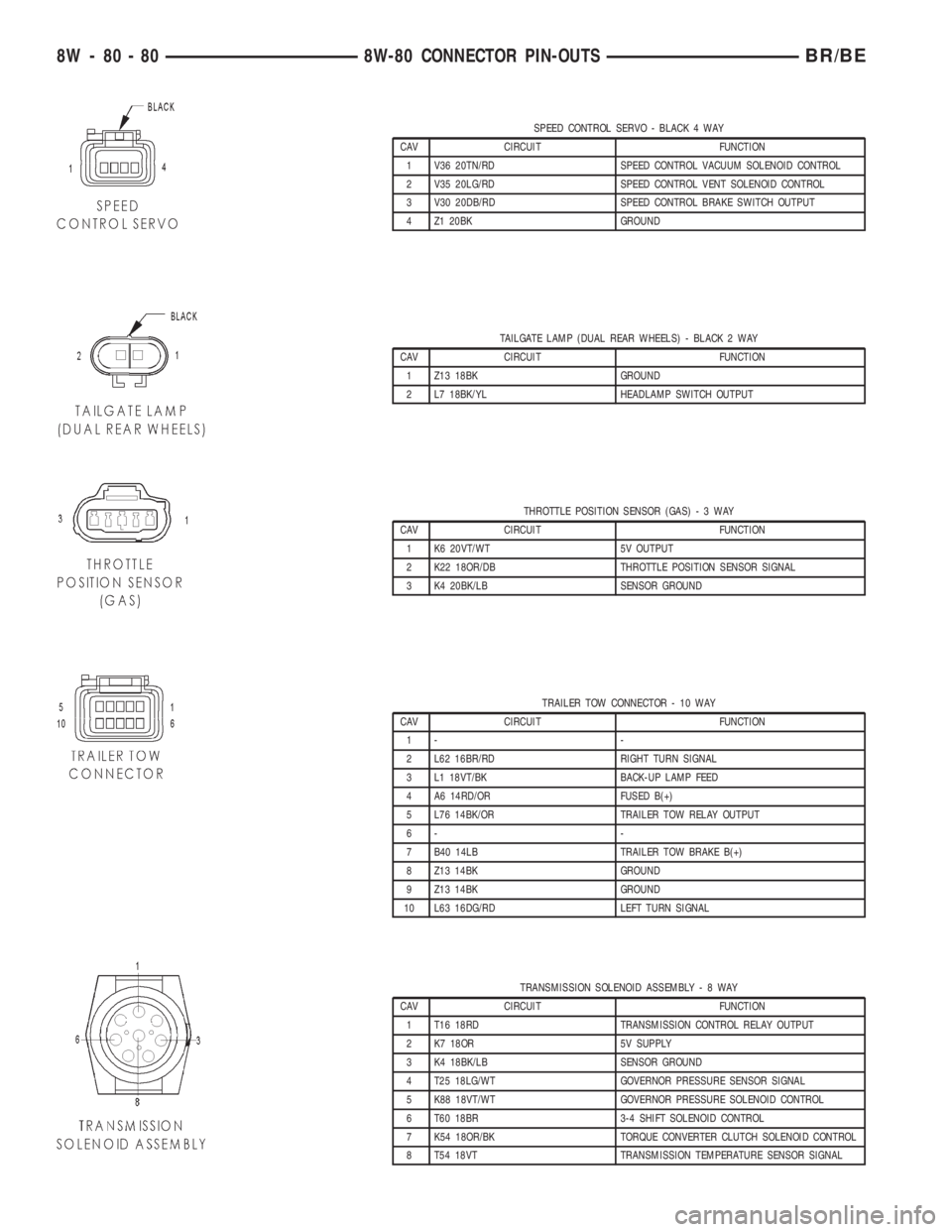

DODGE RAM 2002 Service Repair Manual SPEED CONTROL SERVO - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 V36 20TN/RD SPEED CONTROL VACUUM SOLENOID CONTROL 2 V35 20LG/RD SPEED CONTROL VENT SOLENOID CONTROL 3 V30 20DB/RD SPEED CONTROL BRAKE SWITCH OU

Page 1016 of 2255

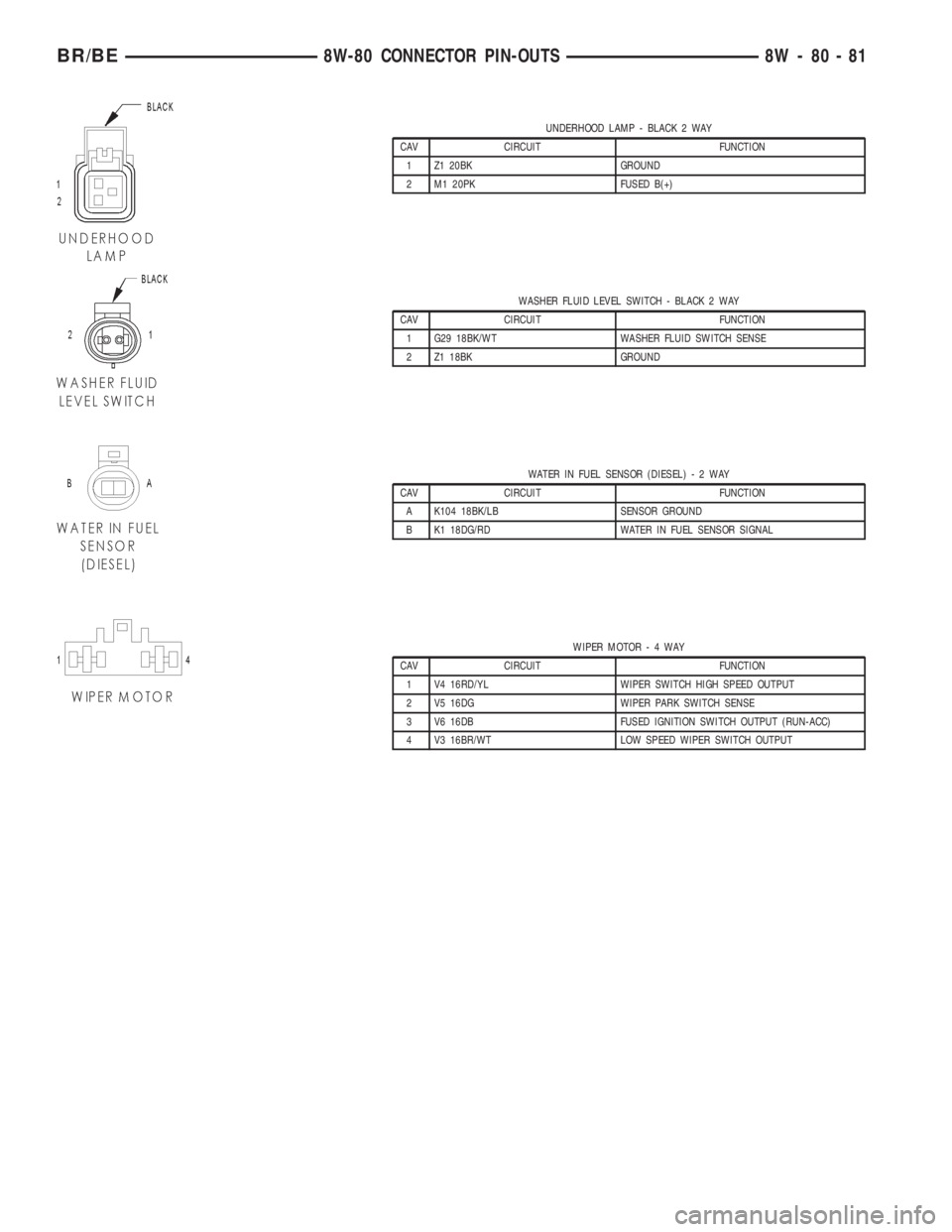

DODGE RAM 2002 Service Repair Manual UNDERHOOD LAMP - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Z1 20BK GROUND 2 M1 20PK FUSED B(+) WASHER FLUID LEVEL SWITCH - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 G29 18BK/WT WASHER FLUID SWITCH SENSE 2 Z1 18BK G
