(3) Remove the front cable from the cable connec-
tor.
(4) Compress cable end fitting at underbody
bracket and remove the cable from the bracket.
(5) Lower vehicle.
(6) Push ball end of cable out of pedal clevis with
small screwdriver.
(7) Compress cable end fitting at the pedal bracket
and remove the cable (Fig. 55).
(8) Remove the left cowl trim and sill plate.
(9) Pull up the carpet and remove the cable from
the body clip.
(10) Pull up on the cable and remove the cable
with the body grommet.
INSTALLATION
INSTALLATION - REAR PARK BRAKE CABLE
(1) Push each cable end through the brake cable
support plate hole until the cable end fitting tabs
lock into place.
NOTE: Pull on the cable to ensure it is locked into
place.
(2) Push the cable through the frame bracket.
(3) Lock the left cable end fitting tabs into the
frame bracket hole.
(4) Install the rear cables into the tensioner rod
behind the rear of the brake assembly.(5) Install the cable to the intermediate cable con-
nector.
(6) Release and remove the lock out device.
(7) Perform the park brake adjustment procedure,
(Refer to 5 - BRAKES/PARKING BRAKE/CABLE
TENSIONER - ADJUSTMENTS).
(8) Remove the supports and lower the vehicle.
INSTALLATION - FRONT PARKING BRAKE
CABLE
(1) From inside the vehicle, insert the cable end
fitting into the hole in the pedal assembly.
(2) Seat the cable retainer in the pedal assembly.
(3) Engage the cable ball end in clevis on the pedal
assembly.
(4) Route the cable along the top of the wheel well
and clip in place.
(5) Route the cable through the floorpan and
install the body grommet.
(6) Place the carpet down and install the left cowl
trim and sill plate.
(7) Raise and support the vehicle.
(8) Route the cable through the underbody bracket
and seat the cable housing retainer in the bracket.
(9) Connect the cable to the cable connector.
(10) Perform the park brake adjustment proce-
dure, (Refer to 5 - BRAKES/PARKING BRAKE/CA-
BLE TENSIONER - ADJUSTMENTS).
(11) Lower the vehicle.
CABLE TENSIONER
ADJUSTMENTS
ADJUSTMENT
NOTE: Tensioner adjustment is only necessary
when the tensioner, or a cable has been replaced or
disconnected for service. When adjustment is nec-
essary, perform adjustment only as described in the
following procedure. This is necessary to avoid
faulty park brake operation.
(1) Raise the vehicle.
(2) Back off the cable tensioner adjusting nut to
create slack in the cables.
(3) Remove the rear wheel/tire assemblies. Then
remove the brake drum in hat assembly.
(4) Verify the brakes are in good condition and
operating properly.
(5) Verify the park brake cables operate freely and
are not binding, or seized.
(6) Check the rear brake shoe adjustment with
standard brake gauge.
Fig. 55 Parking Brake Pedal
1 - PARK BRAKE PEDAL
2 - FRONT CABLE
5 - 30 BRAKES - BASEBR/BE
CABLES (Continued)

(3) Remove the shipping lock pin if necessary.
(4) Install the column through the floor pan.
(5) Position the column bracket breakaway cap-
sules on the mounting studs. Install, butloose
assemblethe two upper bracket nuts.
(6) With the front wheels in the straight-ahead
position. Align steering column shaft to the coupler.
Install anewpinch bolt and tighten to 49 N´m (36
ft. lbs.).
(7) Clip the wiring harness on the steering column.
Connect the multi- function switch wiring and
tighten with 7mm socket.
(8) Install the upper fixed shroud.
(9) Be sure both breakaway capsules are fully
seated in the slots in the column support bracket.
Pull the column rearward then tighten upper bracket
nuts to 12 N´m (105 in. lbs.).
(10) Tighten the toe plate to floor pan attaching
nuts to 22.5 N´m (200 in. lbs.).
(11) Install the wiring connections to the column.
Install the lower fixed shroud.
(12) Column shift vehicles, install the PRNDL
driver cable. Place shifter in Park position. If indica-tor needs adjusting, turn thumb screw on cable
retainer to adjust cable.
(13) Install the lock housing shrouds. Install the
tilt lever (if equipped).
(14) Install the knee blocker and steering column
opening cover, (Refer to 23 - BODY/INSTRUMENT
PANEL/STEERING COLUMN OPENING COVER -
INSTALLATION).
(15) Install steering wheel and tighten nut to 61
N´m (45 ft. lbs.), (Refer to 19 - STEERING/COL-
UMN/STEERING WHEEL - INSTALLATION).
(16) Install the airbag, (Refer to 8 - ELECTRICAL/
RESTRAINTS/DRIVER AIRBAG - INSTALLATION).
(17) Column shift vehicles, connect the shift link
rod to the transmission shift lever. Use multi-purpose
lubricant, or an equivalent product, to aid the instal-
lation.
(18) Install the battery ground (negative) cable.
(19) Verify operation of the automatic transmission
shift linkage and adjust as necessary, (Refer to 21 -
TRANSMISSION/TRANSAXLE/AUTOMATIC -
44RE/GEAR SHIFT CABLE - ADJUSTMENTS).
SPECIFICATIONS
TORQUE CHART
TORQUE SPECIFICATIONS
DESCRIPTION N´m Ft. Lbs. In. Lbs.
Steering Wheel
Nut61 45 Ð
Steering Coupler
Bolt49 36 Ð
Steering Column
Upper Bracket12 Ð 105
Steering Column
Toe Plate23 Ð 200
KEY-IN IGNITION SWITCH
DESCRIPTION
The key-in ignition switch is integral to the igni-
tion switch, which is mounted on the left side of the
steering column. It closes a path to ground for the
Central Timer Module (CTM) when the ignition key
is inserted in the ignition lock cylinder and the
driver door ajar switch is closed (driver door is open).
The key-in ignition switch opens the ground path
when the key is removed from the ignition lock cyl-
inder. The ground path is also opened when the
driver door ajar switch is open (driver door is closed).The key-in ignition switch cannot be repaired and,
if faulty or damaged, the entire ignition switch must
be replaced, (Refer to 19 - STEERING/COLUMN/IG-
NITION SWITCH - REMOVAL).
DIAGNOSIS AND TESTING - IGNITION SWITCH
AND KEY LOCK CYLINDER
ELECTRICAL DIAGNOSIS
For ignition switch electrical schematics, refer to
Ignition Switch in the appropriate section of Electri-
cal Wiring Diagrams.
BR/BECOLUMN 19 - 9
COLUMN (Continued)

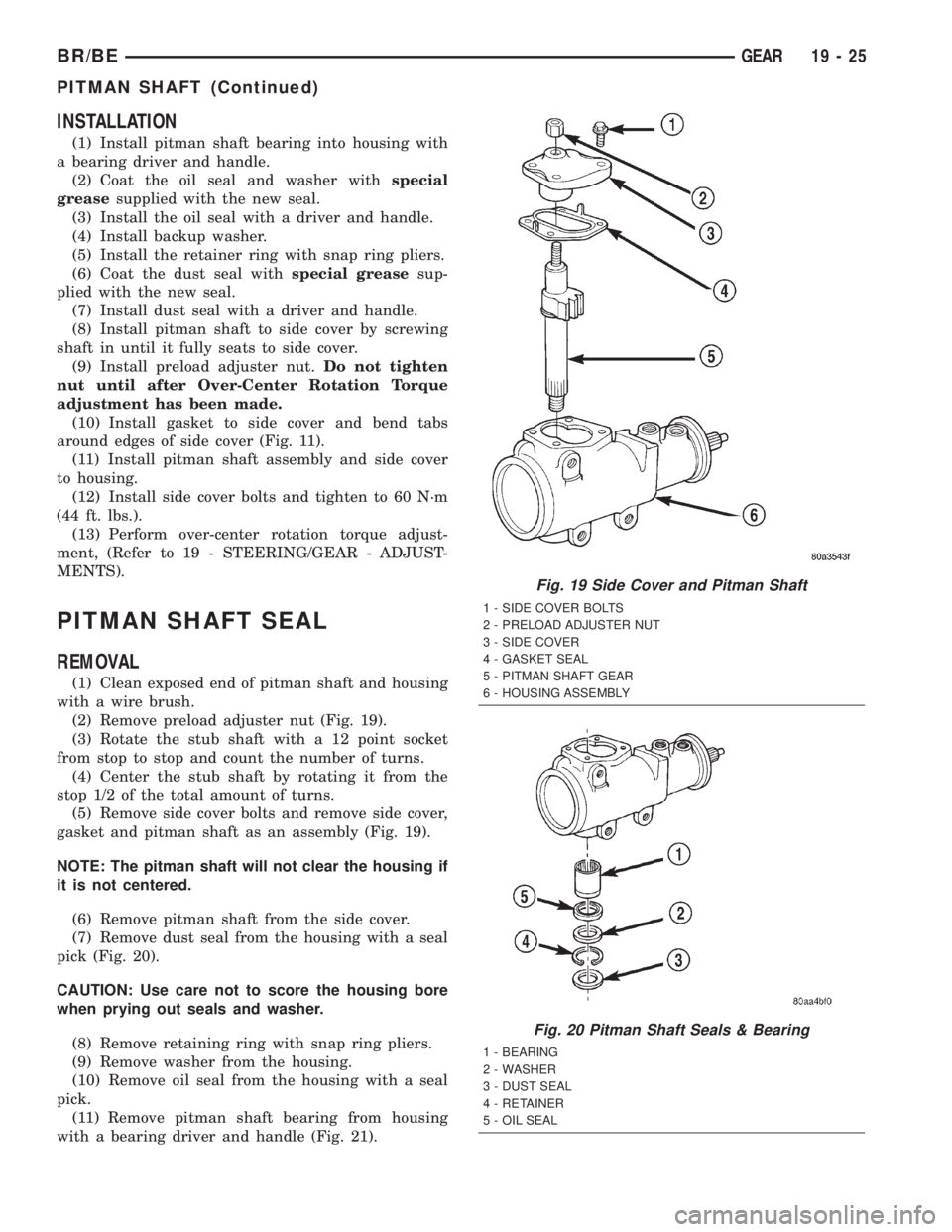

INSTALLATION
(1) Install pitman shaft bearing into housing with
a bearing driver and handle.
(2) Coat the oil seal and washer withspecial
greasesupplied with the new seal.
(3) Install the oil seal with a driver and handle.
(4) Install backup washer.
(5) Install the retainer ring with snap ring pliers.
(6) Coat the dust seal withspecial greasesup-
plied with the new seal.
(7) Install dust seal with a driver and handle.
(8) Install pitman shaft to side cover by screwing
shaft in until it fully seats to side cover.
(9) Install preload adjuster nut.Do not tighten
nut until after Over-Center Rotation Torque
adjustment has been made.
(10) Install gasket to side cover and bend tabs
around edges of side cover (Fig. 11).
(11) Install pitman shaft assembly and side cover
to housing.
(12) Install side cover bolts and tighten to 60 N´m
(44 ft. lbs.).
(13) Perform over-center rotation torque adjust-
ment, (Refer to 19 - STEERING/GEAR - ADJUST-
MENTS).
PITMAN SHAFT SEAL
REMOVAL
(1) Clean exposed end of pitman shaft and housing
with a wire brush.
(2) Remove preload adjuster nut (Fig. 19).
(3) Rotate the stub shaft with a 12 point socket
from stop to stop and count the number of turns.
(4) Center the stub shaft by rotating it from the
stop 1/2 of the total amount of turns.
(5) Remove side cover bolts and remove side cover,
gasket and pitman shaft as an assembly (Fig. 19).
NOTE: The pitman shaft will not clear the housing if
it is not centered.
(6) Remove pitman shaft from the side cover.
(7) Remove dust seal from the housing with a seal
pick (Fig. 20).
CAUTION: Use care not to score the housing bore
when prying out seals and washer.
(8) Remove retaining ring with snap ring pliers.
(9) Remove washer from the housing.
(10) Remove oil seal from the housing with a seal
pick.
(11) Remove pitman shaft bearing from housing
with a bearing driver and handle (Fig. 21).
Fig. 19 Side Cover and Pitman Shaft
1 - SIDE COVER BOLTS
2 - PRELOAD ADJUSTER NUT
3 - SIDE COVER
4 - GASKET SEAL
5 - PITMAN SHAFT GEAR
6 - HOUSING ASSEMBLY
Fig. 20 Pitman Shaft Seals & Bearing
1 - BEARING
2 - WASHER
3 - DUST SEAL
4 - RETAINER
5 - OIL SEAL
BR/BEGEAR 19 - 25
PITMAN SHAFT (Continued)

AIR LEAK VACUUM TEST - DIAGNOSIS
AND TESTING, FUEL SYSTEM...........14-57
AIR PUMP FILTER - INSTALLATION......25-30
AIR PUMP FILTER - REMOVAL..........25-30
AIR TESTING TRANSMISSION CLUTCH
AND BAND OPERATION - DIAGNOSIS
AND TESTING................21-100,21-272
AIR TO OIL COOLER - INSTALLATION.....7-87
AIR TO OIL COOLER - REMOVAL.........7-86
AIRBAG - ASSEMBLY, DRIVER..........8O-16
AIRBAG - DESCRIPTION, DRIVER........8O-14
AIRBAG - DESCRIPTION, PASSENGER....8O-21
AIRBAG - DISASSEMBLY, DRIVER.......8O-15
AIRBAG - INSTALLATION, DRIVER.......8O-17
AIRBAG - INSTALLATION, PASSENGER . . . 8O-23
AIRBAG - OPERATION, DRIVER.........8O-14
AIRBAG - OPERATION, PASSENGER......8O-21
AIRBAG - REMOVAL, DRIVER...........8O-14
AIRBAG - REMOVAL, PASSENGER.......8O-21
AIRBAG CONTROL MODULE -
DESCRIPTION........................8O-6
AIRBAG CONTROL MODULE -
INSTALLATION.......................8O-8
AIRBAG CONTROL MODULE -
OPERATION..........................8O-6
AIRBAG CONTROL MODULE - REMOVAL . . . 8O-7
AIRBAG DEPLOYMENT - STANDARD
PROCEDURE, SERVICE AFTER AN........8O-4
AIRBAG INDICATOR - DESCRIPTION.......8J-15
AIRBAG INDICATOR - OPERATION.......8J-15
AIRBAG ON/OFF SWITCH -
DESCRIPTION, PASSENGER............8O-23
AIRBAG ON/OFF SWITCH -
INSTALLATION, PASSENGER...........8O-25
AIRBAG ON/OFF SWITCH - OPERATION,
PASSENGER........................8O-24
AIRBAG ON/OFF SWITCH - REMOVAL,
PASSENGER........................8O-24
AIRBAG SYSTEM - DIAGNOSIS AND
TESTING............................8O-4
AIRBAG SYSTEM - SPECIAL TOOLS.......8O-6
AIRBAGS - STANDARD PROCEDURE,
HANDLING NON-DEPLOYED.............8O-4
AIRFLOW - DESCRIPTION, HVAC
SYSTEM............................24-30
AJAR SWITCH - DESCRIPTION, DOOR....8L-34
AJAR SWITCH - DIAGNOSIS AND
TESTING, DOOR.....................8L-34
AJAR SWITCH - INSTALLATION, DOOR . . . 8L-35
AJAR SWITCH - REMOVAL, DOOR.......8L-35
ALIGNMENT - DESCRIPTION, WHEEL.......2-1
ALIGNMENT - OPERATION, WHEEL........2-2
ALIGNMENT I.F.S. - STANDARD
PROCEDURES.........................2-3
ALIGNMENT LINK/COIL SUSPENSION -
STANDARD PROCEDURE.................2-5
ALIGNMENT, SPECIAL TOOLS -
HEADLAMP..........................8L-4
ALIGNMENT, SPECIFICATIONS............2-6
ALUMINUM THREAD REPAIR -
STANDARD PROCEDURE........21-114,21-286
AMBIENT TEMP SENSOR - DESCRIPTION . 8M-12
AMBIENT TEMP SENSOR -
INSTALLATION......................8M-13
AMBIENT TEMP SENSOR - OPERATION . . 8M-12
AMBIENT TEMP SENSOR - REMOVAL
....8M-12
AMBIENT TEMPERATURE SENSOR -
DIAGNOSIS AND TESTING
.............8M-12
AMPERAGE TEST - DIAGNOSIS AND
TESTING, FUEL PUMP
.................14-10
ANTENNA - DIAGNOSIS AND TESTING
.....8A-5
ANTENNA BODY & CABLE -
DESCRIPTION
........................8A-4
ANTENNA BODY & CABLE -
INSTALLATION
.......................8A-6
ANTENNA BODY & CABLE - OPERATION
. . . 8A-4
ANTENNA BODY & CABLE - REMOVAL
.....8A-6
ANTENNA CABLE - INSTALLATION,
INSTRUMENT PANEL
..................8A-9
ANTENNA CABLE - REMOVAL,
INSTRUMENT PANEL
..................8A-9
ANTILOCK BRAKE - DESCRIPTION,
CONTROLLER
.......................8E-11
ANTILOCK BRAKE - INSTALLATION,
CONTROLLER
.......................8E-12
ANTILOCK BRAKE - OPERATION,
CONTROLLER
.......................8E-11ANTILOCK BRAKE - REMOVAL,
CONTROLLER.......................8E-11
ANTILOCK BRAKES - DIAGNOSIS AND
TESTING............................5-36
A-PILLAR GRAB HANDLE -
INSTALLATION......................23-119
A-PILLAR GRAB HANDLE - REMOVAL . . . 23-119
A-PILLAR TRIM - INSTALLATION.......23-119
A-PILLAR TRIM - REMOVAL...........23-119
A-PILLAR TWEETER SPEAKER -
INSTALLATION.......................8A-19
A-PILLAR TWEETER SPEAKER -
REMOVAL..........................8A-18
APPLICATION TABLE, SPECIFICATIONS -
A/C ................................24-7
APPLIQUE - INSTALLATION........23-63,23-68
APPLIQUE - REMOVAL...........23-63,23-68
ARM / ADJUSTER ASSEMBLY -
INSTALLATION, ROCKER................9-26
ARM / ADJUSTER ASSEMBLY -
REMOVAL, ROCKER...................9-26
ARM / ADJUSTER ASSY - CLEANING,
ROCKER............................9-146
ARM / ADJUSTER ASSY - DESCRIPTION,
ROCKER............................9-145
ARM / ADJUSTER ASSY - INSPECTION,
ROCKER............................9-146
ARM / ADJUSTER ASSY -
INSTALLATION, ROCKER...........9-148,9-84
ARM / ADJUSTER ASSY - REMOVAL,
ROCKER.......................9-145,9-84
ARM - DESCRIPTION, WIPER............8R-11
ARM - INSTALLATION, LOWER
CONTROL.......................2-10,2-20
ARM - INSTALLATION, UPPER
CONTROL.......................2-13,2-19
ARM - INSTALLATION, WIPER..........8R-12
ARM - OPERATION, WIPER............8R-11
ARM - REMOVAL, LOWER CONTROL . . 2-10,2-20
ARM - REMOVAL, UPPER CONTROL . . 2-13,2-19
ARM - REMOVAL, WIPER..............8R-12
ARMREST/CONSOLE - INSTALLATION,
CENTER SEAT......................23-132
ARMREST/CONSOLE - REMOVAL,
CENTER SEAT......................23-132
ARMREST/LATCH COVER -
INSTALLATION, CENTER SEAT.........23-132
ARMREST/LATCH COVER - REMOVAL,
CENTER SEAT......................23-132
ASD AND FUEL PUMP RELAYS -
DIAGNOSIS AND TESTING...............8I-4
ASD SENSE - PCM INPUT - OPERATION....8I-4
ASH RECEIVER - INSTALLATION........23-107
ASH RECEIVER - REMOVAL...........23-107
ASSEMBLY - INSTALLATION,
INSTRUMENT PANEL.................23-117
ASSEMBLY - INSTALLATION, ROCKER
ARM / ADJUSTER.....................9-26
ASSEMBLY - OVERHEAD CONSOLE
ASSEMBLY..........................8M-8
ASSEMBLY - REMOVAL, INSTRUMENT
PANEL............................23-115
ASSEMBLY - REMOVAL, ROCKER ARM /
ADJUSTER...........................9-26
ASSEMBLY, ASSEMBLY - OVERHEAD
CONSOLE...........................8M-8
ASSEMBLY, AXLE VACUUM MOTOR.......3-34
ASSEMBLY, DIAGNOSIS AND
TESTING....................21-122,21-294
ASSEMBLY, DIFFERENTIAL . 3-126,3-38,3-66,3-97
ASSEMBLY, DIFFERENTIAL - POWR-LOK . . . 3-99
ASSEMBLY, DIFFERENTIAL -
TRAC-LOK......................3-129,3-70
ASSEMBLY, DOUBLE CARDAN
UNIVERSAL JOINTS
...................3-11
ASSEMBLY, DRIVER AIRBAG
...........8O-16
ASSEMBLY, FLYWHEEL
.................6-14
ASSEMBLY, FRONT CLUTCH
.....21-162,21-333
ASSEMBLY, FRONT SERVO
......21-164,21-335
ASSEMBLY, GLOVE BOX
..............23-111
ASSEMBLY, HVAC HOUSING
............24-36
ASSEMBLY, INSTRUMENT CLUSTER
......8J-12
ASSEMBLY, MANUAL - NV4500
.........21-21
ASSEMBLY, MANUAL - NV5600
.........21-64
ASSEMBLY, OIL PUMP
.................9-49
ASSEMBLY, OIL PUMP
.........21-169,21-340
ASSEMBLY, OVERDRIVE UNIT
....21-180,21-354ASSEMBLY, OVERRUNNING CLUTCH
CAM/OVERDRIVE PISTON
RETAINER...................21-193,21-364
ASSEMBLY, PLANETARY GEARTRAIN/
OUTPUT SHAFT...............21-199,21-371
ASSEMBLY, REAR CLUTCH......21-205,21-377
ASSEMBLY, REAR SERVO.......21-207,21-379
ASSEMBLY, SINGLE CARDAN
UNIVERSAL JOINTS....................3-9
ASSEMBLY, TRANSFER CASE - NV241HD . 21-480
ASSEMBLY, TRANSFER CASE - NV241LD . 21-445
ASSEMBLY, VALVE BODY.......21-248,21-420
ASSIST HANDLE - INSTALLATION.......23-124
ASSIST HANDLE - REMOVAL..........23-124
ASSY - CLEANING, ROCKER ARM /
ADJUSTER..........................9-146
ASSY - DESCRIPTION, ROCKER ARM /
ADJUSTER..........................9-145
ASSY - INSPECTION, ROCKER ARM /
ADJUSTER..........................9-146
ASSY - INSTALLATION, ROCKER ARM /
ADJUSTER......................9-148,9-84
ASSY - REMOVAL, ROCKER ARM /
ADJUSTER......................9-145,9-84
AUDIO - DESCRIPTION.................8A-1
AUDIO - DIAGNOSIS AND TESTING.......8A-2
AUDIO - OPERATION...................8A-2
AUDIO SYSTEMS, SPECIAL TOOLS.......8A-4
AUTO. TRANS. - INSTALLATION, DIESEL
WITH..........................8P-12,8P-6
AUTO. TRANS. - REMOVAL, DIESEL
WITH...........................8P-5,8P-9
AUTOMATIC DAY / NIGHT MIRROR -
DESCRIPTION.......................8N-11
AUTOMATIC DAY / NIGHT MIRROR -
INSTALLATION......................8N-13
AUTOMATIC DAY / NIGHT MIRROR -
OPERATION.........................8N-12
AUTOMATIC DAY / NIGHT MIRROR -
REMOVAL..........................8N-13
AUTOMATIC DAY/NIGHT MIRROR -
DIAGNOSIS AND TESTING.............8N-12
AUTOMATIC TRANSMISSION - 46RE -
DESCRIPTION.......................21-89
AUTOMATIC TRANSMISSION - 46RE -
OPERATION.........................21-91
AUTOMATIC TRANSMISSION - 47RE -
DESCRIPTION......................21-261
AUTOMATIC TRANSMISSION - 47RE -
OPERATION........................21-263
AUTOMATIC TRANSMISSION -
DIAGNOSIS AND TESTING.......21-268,21-96
AUTOMATIC TRANSMISSION FLUID -
DESCRIPTION.........................0-6
AUTOMATIC TRANSMISSION FLUID -
OPERATION...........................0-6
AXLE - 248FBI - ADJUSTMENTS, FRONT . . . 3-19
AXLE - 248FBI - DESCRIPTION, FRONT....3-14
AXLE - 248FBI - INSTALLATION, FRONT....3-18
AXLE - 248FBI - OPERATION, FRONT......3-14
AXLE - 248FBI - REMOVAL, FRONT.......3-18
AXLE - 248RBI - ADJUSTMENTS, REAR....3-51
AXLE - 248RBI - DESCRIPTION, REAR.....3-46
AXLE - 248RBI - INSTALLATION, REAR....3-51
AXLE - 248RBI - OPERATION, REAR.......3-46
AXLE - 248RBI - REMOVAL, REAR........3-51
AXLE - 267RBI - ADJUSTMENTS, REAR....3-83
AXLE - 267RBI - DESCRIPTION, REAR.....3-78
AXLE - 267RBI - INSTALLATION, REAR....3-82
AXLE - 267RBI - OPERATION, REAR.......3-78
AXLE - 267RBI - REMOVAL, REAR........3-82
AXLE - 286RBI - ADJUSTMENTS, REAR . . . 3-112
AXLE - 286RBI - DESCRIPTION, REAR....3-107
AXLE - 286RBI - INSTALLATION, REAR . . . 3-112
AXLE - 286RBI - OPERATION, REAR......3-108
AXLE - 286RBI - REMOVAL, REAR.......3-112
AXLE - DIAGNOSIS AND
TESTING...............3-108,3-15,3-47,3-80
AXLE - INSTALLATION, DANA 44.....2-20,2-21
AXLE - INSTALLATION, DANA 60.....2-20,2-22
AXLE - INSTALLATION, INTERMEDIATE....3-30
AXLE - REMOVAL, DANA 44.............2-21
AXLE - REMOVAL, DANA 60.............2-21
AXLE, 248FBI - FRONT
.................3-27
AXLE, 248RBI - REAR
..................3-59
AXLE, 267RBI - REAR
..................3-91
AXLE, 286 RBI - REAR
................3-120
AXLE, 286RBI - REAR
.................3-120
2 INDEXBR/BE
Description Group-Page Description Group-Page Description Group-Page

GRID - DIAGNOSIS AND TESTING,
HEATED MIRROR.....................8G-4
GRID - OPERATION, HEATED MIRROR.....8G-4
GRILLE - INSTALLATION...............23-91
GRILLE - INSTALLATION, COWL.........23-90
GRILLE - REMOVAL..................23-91
GRILLE - REMOVAL, COWL............23-90
GRILLE FRAME - INSTALLATION.........23-92
GRILLE FRAME - REMOVAL............23-91
GRILLES - INSTALLATION, DEMISTER....24-31
GRILLES - REMOVAL, DEMISTER........24-31
GROUND STRAP - INSTALLATION,
CAB-TO-BED........................8A-14
GROUND STRAP - INSTALLATION,
ENGINE-TO-BODY....................8A-13
GROUND STRAP - INSTALLATION,
HEATER CORE.......................8A-14
GROUND STRAP - REMOVAL,
CAB-TO-BED........................8A-13
GROUND STRAP - REMOVAL,
ENGINE-TO-BODY....................8A-12
GROUND STRAP - REMOVAL, HEATER
CORE..............................8A-14
GUIDES AND SPRINGS - STANDARD
PROCEDURE, VALVES..................9-23
HANDLE - INSTALLATION, A-PILLAR
GRAB.............................23-119
HANDLE - INSTALLATION, ASSIST......23-124
HANDLE - INSTALLATION, EXTERIOR.....23-71
HANDLE - INSTALLATION, LATCH.........23-66
HANDLE - INSTALLATION, RELEASE.......5-32
HANDLE - INSTALLATION, SHUTFACE.....23-83
HANDLE - REMOVAL, A-PILLAR GRAB . . . 23-119
HANDLE - REMOVAL, ASSIST..........23-124
HANDLE - REMOVAL, EXTERIOR........23-71
HANDLE - REMOVAL, LATCH...........23-66
HANDLE - REMOVAL, RELEASE..........5-31
HANDLE - REMOVAL, SHUTFACE........23-83
HANDLE ACTUATOR - INSTALLATION,
INSIDE........................23-72,23-80
HANDLE ACTUATOR - REMOVAL, INSIDE . 23-72,
23-80
HANDLE ESCUTCHEON - INSTALLATION . . 23-64
HANDLE ESCUTCHEON - REMOVAL......23-64
HANDLING NON-DEPLOYED AIRBAGS -
STANDARD PROCEDURE...............8O-4
HARNESS - DIAGNOSIS AND TESTING,
WIRING..........................8W-01-7
HAZARD WARNING SYSTEM -
DESCRIPTION, TURN SIGNAL............8L-2
HAZARD WARNING SYSTEM -
DIAGNOSIS AND TESTING, TURN
SIGNAL.............................8L-3
HAZARD WARNING SYSTEM -
OPERATION, TURN SIGNAL.............8L-2
HCU (HYDRAULIC CONTROL UNIT) -
DESCRIPTION........................5-40
HCU (HYDRAULIC CONTROL UNIT) -
INSTALLATION........................5-41
HCU (HYDRAULIC CONTROL UNIT) -
OPERATION..........................5-40
HCU (HYDRAULIC CONTROL UNIT) -
REMOVAL...........................5-41
HD/8.0L - DESCRIPTION, CATALYTIC
CONVERTER - 5.9L....................11-6
HD/8.0L - INSPECTION, CATALYTIC
CONVERTER - 5.9L....................11-6
HD/8.0L - INSPECTION, EXHAUST PIPE -
5.9L................................11-8
HD/8.0L - INSPECTION, TAILPIPE - 5.9L . . 11-12
HD/8.0L - INSTALLATION, CATALYTIC
CONVERTER - 5.9L....................11-7
HD/8.0L - INSTALLATION, EXHAUST PIPE
- 5.9L..............................11-8
HD/8.0L - INSTALLATION, TAILPIPE -
5.9L...............................11-12
HD/8.0L - OPERATION, CATALYTIC
CONVERTER - 5.9L....................11-6
HD/8.0L - REMOVAL, CATALYTIC
CONVERTER - 5.9L....................11-6
HD/8.0L - REMOVAL, EXHAUST PIPE -
5.9L................................11-7
HD/8.0L - REMOVAL, TAILPIPE - 5.9L
....11-12
HEAD - CLEANING, CYLINDER
......9-134,9-77
HEAD - DESCRIPTION, CYLINDER
. . . 9-130,9-20,
9-76
HEAD - INSPECTION, CYLINDER
.....9-134,9-77
HEAD - INSTALLATION, CYLINDER
........9-77HEAD - OPERATION, CYLINDER..........9-21
HEAD - REMOVAL, CYLINDER......9-130,9-76
HEAD COVER GASKET - DESCRIPTION,
CYLINDER...........................9-20
HEAD COVER GASKET - OPERATION,
CYLINDER...........................9-21
HEAD COVER(S) - CLEANING, CYLINDER . 9-137,
9-23,9-79
HEAD COVER(S) - DESCRIPTION,
CYLINDER...........................9-78
HEAD COVER(S) - INSPECTION,
CYLINDER..................9-138,9-23,9-79
HEAD COVER(S) - INSTALLATION,
CYLINDER..................9-138,9-23,9-79
HEAD COVER(S) - REMOVAL, CYLINDER . 9-137,
9-23,9-78
HEAD GASKET FAILURE - DIAGNOSIS
AND TESTING, CYLINDER...........9-21,9-76
HEADLAMP - DESCRIPTION............8L-13
HEADLAMP - DIAGNOSIS AND TESTING . . 8L-14
HEADLAMP - INSTALLATION............8L-16
HEADLAMP - OPERATION..............8L-13
HEADLAMP - REMOVAL...............8L-16
HEADLAMP ALIGNMENT, SPECIAL
TOOLS..............................8L-4
HEADLAMP RELAY - DESCRIPTION . . . 8W-97-13
HEADLAMP RELAY - DESCRIPTION......8L-17
HEADLAMP RELAY - DIAGNOSIS AND
TESTING...........................8L-17
HEADLAMP RELAY - INSTALLATION . . . 8W-97-13
HEADLAMP RELAY - INSTALLATION......8L-18
HEADLAMP RELAY - OPERATION........8L-17
HEADLAMP RELAY - REMOVAL......8W-97-13
HEADLAMP RELAY - REMOVAL.........8L-18
HEADLAMP SWITCH - DESCRIPTION.....8L-18
HEADLAMP SWITCH - DIAGNOSIS AND
TESTING...........................8L-19
HEADLAMP SWITCH - INSTALLATION....8L-20
HEADLAMP SWITCH - OPERATION.......8L-18
HEADLAMP SWITCH - REMOVAL........8L-19
HEADLAMP UNIT - ADJUSTMENTS......8L-21
HEADLAMP UNIT - INSTALLATION.......8L-21
HEADLAMP UNIT - REMOVAL...........8L-20
HEADLINER - INSTALLATION..........23-125
HEADLINER - REMOVAL..............23-125
HEAT SHIELDS - DESCRIPTION.........11-10
HEAT SHIELDS - INSTALLATION.........11-10
HEAT SHIELDS - REMOVAL.............11-10
HEAT/DEFROST DOOR - INSTALLATION . . . 24-38
HEAT/DEFROST DOOR - REMOVAL.......24-37
HEAT/DEFROST DOOR ACTUATOR -
INSTALLATION.......................24-27
HEAT/DEFROST DOOR ACTUATOR -
REMOVAL..........................24-26
HEATED MIRROR GRID - DESCRIPTION . . . 8G-4
HEATED MIRROR GRID - DIAGNOSIS
AND TESTING........................8G-4
HEATED MIRROR GRID - OPERATION.....8G-4
HEATED MIRROR SWITCH - DIAGNOSIS
AND TESTING........................8G-3
HEATED MIRROR SYSTEM -
DESCRIPTION........................8G-1
HEATED MIRROR SYSTEM - DIAGNOSIS
AND TESTING........................8G-2
HEATED MIRROR SYSTEM - OPERATION . . . 8G-2
HEATED SEAT ELEMENT - DESCRIPTION . . 8G-10
HEATED SEAT ELEMENT - INSTALLATION . 8G-13
HEATED SEAT ELEMENT - OPERATION....8G-11
HEATED SEAT ELEMENT - REMOVAL.....8G-13
HEATED SEAT ELEMENT AND SENSOR -
DIAGNOSIS AND TESTING.............8G-11
HEATED SEAT MODULE - DESCRIPTION . . . 8E-20
HEATED SEAT MODULE - DIAGNOSIS
AND TESTING.......................8E-21
HEATED SEAT MODULE - INSTALLATION . . 8E-23
HEATED SEAT MODULE - OPERATION....8E-20
HEATED SEAT MODULE - REMOVAL......8E-23
HEATED SEAT RELAY - DESCRIPTION....8G-14
HEATED SEAT RELAY - DIAGNOSIS AND
TESTING...........................8G-15
HEATED SEAT RELAY - INSTALLATION....8G-16
HEATED SEAT RELAY - OPERATION
......8G-15
HEATED SEAT RELAY - REMOVAL
.......8G-16
HEATED SEAT SWITCH - DIAGNOSIS
AND TESTING
...................8G-17,8G-8
HEATED SEAT SYSTEM - DESCRIPTION
....8G-5
HEATED SEAT SYSTEM - DIAGNOSIS
AND TESTING
........................8G-6HEATED SEAT SYSTEM - OPERATION.....8G-6
HEATER - 5.9L - DESCRIPTION, ENGINE
BLOCK..............................7-44
HEATER - 5.9L - INSTALLATION, ENGINE
BLOCK..............................7-44
HEATER - 5.9L - OPERATION, ENGINE
BLOCK..............................7-44
HEATER - 5.9L - REMOVAL, ENGINE
BLOCK..............................7-44
HEATER - 5.9L DIESEL - DESCRIPTION,
ENGINE BLOCK.......................7-46
HEATER - 5.9L DIESEL - INSTALLATION,
ENGINE BLOCK.......................7-46
HEATER - 5.9L DIESEL - OPERATION,
ENGINE BLOCK.......................7-46
HEATER - 5.9L DIESEL - REMOVAL,
ENGINE BLOCK.......................7-46
HEATER - 8.0L - DESCRIPTION, ENGINE
BLOCK..............................7-45
HEATER - 8.0L - INSTALLATION, ENGINE
BLOCK..............................7-45
HEATER - 8.0L - OPERATION, ENGINE
BLOCK..............................7-45
HEATER - 8.0L - REMOVAL, ENGINE
BLOCK..............................7-45
HEATER - DESCRIPTION, FUEL..........14-66
HEATER - DESCRIPTION, INTAKE AIR....14-104
HEATER - DIAGNOSIS AND TESTING,
FUEL..............................14-66
HEATER - INSTALLATION, INTAKE AIR . . . 14-105
HEATER - OPERATION, FUEL............14-66
HEATER - OPERATION, INTAKE AIR.......14-104
HEATER - REMOVAL, INTAKE AIR.......14-104
HEATER - REMOVAL/INSTALLATION,
FUEL..............................14-67
HEATER AND AIR CONDITIONER -
DESCRIPTION........................24-1
HEATER AND AIR CONDITIONER -
OPERATION..........................24-1
HEATER CONTROL - DIAGNOSIS AND
TESTING, A/C.......................24-18
HEATER CORE - DESCRIPTION..........24-56
HEATER CORE - INSTALLATION.........24-56
HEATER CORE - OPERATION............24-56
HEATER CORE - REMOVAL.............24-56
HEATER CORE GROUND STRAP -
INSTALLATION.......................8A-14
HEATER CORE GROUND STRAP -
REMOVAL..........................8A-14
HEATER PERFORMANCE - DIAGNOSIS
AND TESTING........................24-6
HEATER RELAY - DESCRIPTION, FUEL....14-67
HEATER RELAY - DESCRIPTION, INTAKE
AIR ..............................14-105
HEATER RELAY - DIAGNOSIS AND
TESTING, FUEL......................14-68
HEATER RELAY - INSTALLATION, FUEL . . . 14-69
HEATER RELAY - INSTALLATION, INTAKE
AIR ..............................14-106
HEATER RELAY - OPERATION, FUEL......14-67
HEATER RELAY - OPERATION, INTAKE
AIR ..............................14-105
HEATER RELAY - REMOVAL, FUEL.......14-69
HEATER RELAY - REMOVAL, INTAKE AIR . 14-106
HEATER SWITCH - DESCRIPTION,
DRIVER SEAT........................8G-7
HEATER SWITCH - DESCRIPTION,
PASSENGER SEAT....................8G-16
HEATER SWITCH - INSTALLATION,
DRIVER SEAT.......................8G-10
HEATER SWITCH - INSTALLATION,
PASSENGER SEAT....................8G-19
HEATER SWITCH - OPERATION, DRIVER
SEAT ...............................8G-8
HEATER SWITCH - OPERATION,
PASSENGER SEAT....................8G-17
HEATER SWITCH - REMOVAL, DRIVER
SEAT ...............................8G-9
HEATER SWITCH - REMOVAL,
PASSENGER SEAT....................8G-18
HGT ADJUSTER KNOB - INSTALLATION,
TURNING LOOP
.....................8O-30
HGT ADJUSTER KNOB - REMOVAL,
TURNING LOOP
.....................8O-30
HIGH BEAM INDICATOR - DESCRIPTION
. . 8J-21
HIGH BEAM INDICATOR - DIAGNOSIS
AND TESTING
.......................8J-21
HIGH BEAM INDICATOR - OPERATION
....8J-21
BR/BEINDEX 15
Description Group-Page Description Group-Page Description Group-Page
