INTRODUCTION
TABLE OF CONTENTS
page page
VEHICLE SAFETY CERTIFICATION LABEL
DESCRIPTION..........................1
VEHICLE IDENTIFICATION NUMBER
DESCRIPTION..........................1
VEHICLE EMISSION CONTROL INFORMATION
(VECI)
DESCRIPTION..........................3
EQUIPMENT IDENTIFICATION PLATE
DESCRIPTION..........................3
BODY CODE PLATE
DESCRIPTION..........................4
INTERNATIONAL VEHICLE CONTROL &
DISPLAY SYMBOLS
DESCRIPTION - INTERNATIONAL SYMBOLS . . . 5FASTENER IDENTIFICATION
DESCRIPTION..........................6
FASTENER USAGE
DESCRIPTION..........................9
THREADED HOLE REPAIR
DESCRIPTION..........................9
METRIC SYSTEM
DESCRIPTION..........................9
TORQUE REFERENCES
DESCRIPTION.........................11
VEHICLE SAFETY
CERTIFICATION LABEL
DESCRIPTION
A vehicle safety certification label (Fig. 1) is
attached to every Chrysler Corporation vehicle. The
label certifies that the vehicle conforms to all appli-
cable Federal Motor Vehicle Safety Standards. The
label also lists:
²Month and year of vehicle manufacture.
²Gross Vehicle Weight Rating (GVWR). The gross
front and rear axle weight ratings (GAWR's) are
based on a minimum rim size and maximum cold tire
inflation pressure.
²Vehicle Identification Number (VIN).
²Type of vehicle.
²Type of rear wheels.
²Bar code.
²Month, Day and Hour (MDH) of final assembly.
²Paint and Trim codes.
²Country of origin.
The label is located on the driver-side door shut-
face.
VEHICLE IDENTIFICATION
NUMBER
DESCRIPTION
VIN CODING/LOCATIONS
The Vehicle Identification Number (VIN) plate is
located on the lower windshield fence near the left
A-pillar (Fig. 2). The VIN contains 17 characters that
provide data concerning the vehicle. Refer to the VIN
decoding chart to determine the identification of a
vehicle.
The Vehicle Identification Number is also
imprinted on the:
²Body Code Plate.
²Equipment Identification Plate.
²Vehicle Safety Certification Label.
²Frame rail.
Fig. 1 Vehicle Safety Certification Label
BR/BEINTRODUCTION 1

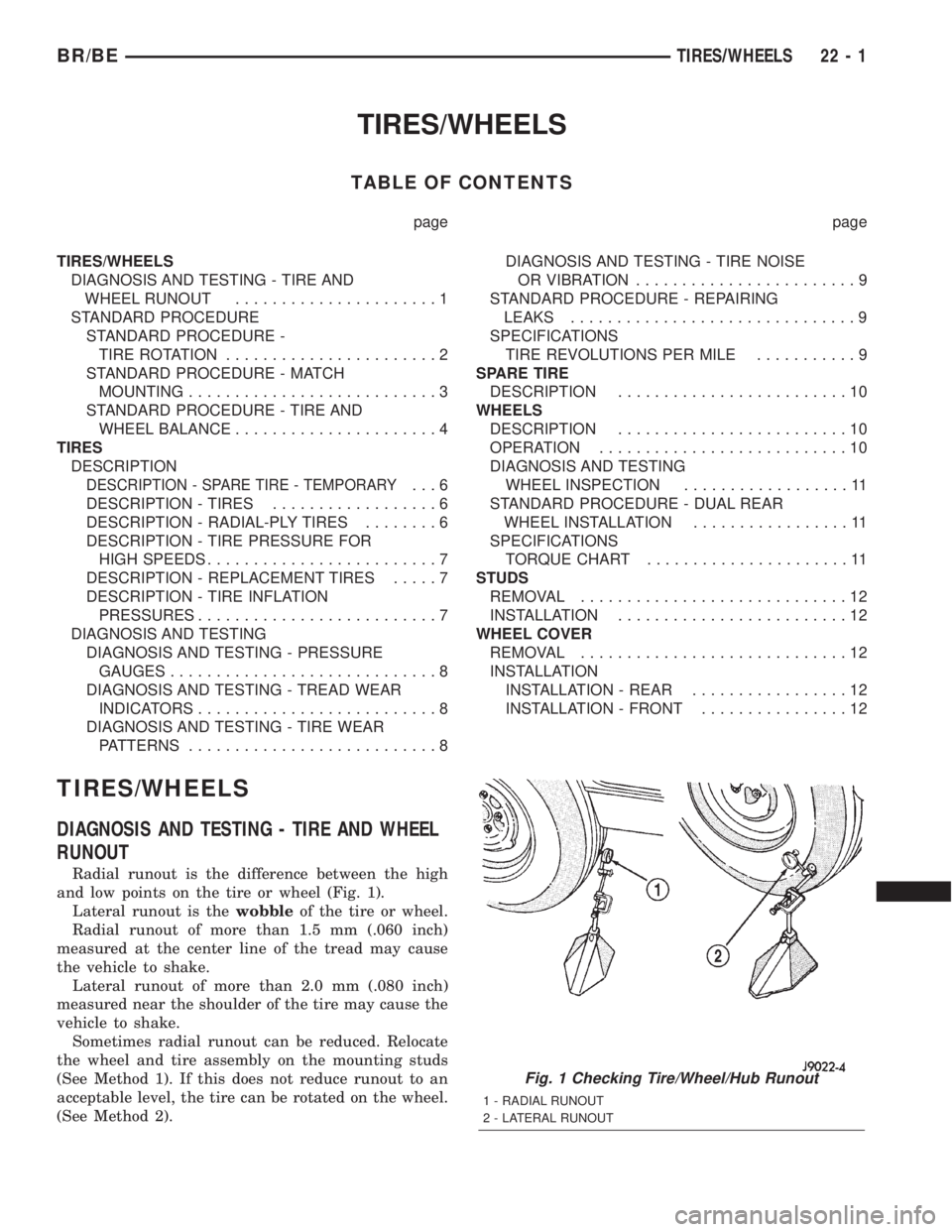

TIRES/WHEELS
TABLE OF CONTENTS
page page
TIRES/WHEELS
DIAGNOSIS AND TESTING - TIRE AND
WHEEL RUNOUT......................1
STANDARD PROCEDURE
STANDARD PROCEDURE -
TIRE ROTATION.......................2
STANDARD PROCEDURE - MATCH
MOUNTING...........................3
STANDARD PROCEDURE - TIRE AND
WHEEL BALANCE......................4
TIRES
DESCRIPTION
DESCRIPTION - SPARE TIRE - TEMPORARY...6
DESCRIPTION - TIRES..................6
DESCRIPTION - RADIAL-PLY TIRES........6
DESCRIPTION - TIRE PRESSURE FOR
HIGH SPEEDS.........................7
DESCRIPTION - REPLACEMENT TIRES.....7
DESCRIPTION - TIRE INFLATION
PRESSURES..........................7
DIAGNOSIS AND TESTING
DIAGNOSIS AND TESTING - PRESSURE
GAUGES.............................8
DIAGNOSIS AND TESTING - TREAD WEAR
INDICATORS..........................8
DIAGNOSIS AND TESTING - TIRE WEAR
PATTERNS...........................8DIAGNOSIS AND TESTING - TIRE NOISE
OR VIBRATION........................9
STANDARD PROCEDURE - REPAIRING
LEAKS...............................9
SPECIFICATIONS
TIRE REVOLUTIONS PER MILE...........9
SPARE TIRE
DESCRIPTION.........................10
WHEELS
DESCRIPTION.........................10
OPERATION...........................10
DIAGNOSIS AND TESTING
WHEEL INSPECTION..................11
STANDARD PROCEDURE - DUAL REAR
WHEEL INSTALLATION.................11
SPECIFICATIONS
TORQUE CHART......................11
STUDS
REMOVAL.............................12
INSTALLATION.........................12
WHEEL COVER
REMOVAL.............................12
INSTALLATION
INSTALLATION - REAR.................12
INSTALLATION - FRONT................12
TIRES/WHEELS
DIAGNOSIS AND TESTING - TIRE AND WHEEL
RUNOUT
Radial runout is the difference between the high
and low points on the tire or wheel (Fig. 1).
Lateral runout is thewobbleof the tire or wheel.
Radial runout of more than 1.5 mm (.060 inch)
measured at the center line of the tread may cause
the vehicle to shake.
Lateral runout of more than 2.0 mm (.080 inch)
measured near the shoulder of the tire may cause the
vehicle to shake.
Sometimes radial runout can be reduced. Relocate
the wheel and tire assembly on the mounting studs
(See Method 1). If this does not reduce runout to an
acceptable level, the tire can be rotated on the wheel.
(See Method 2).
Fig. 1 Checking Tire/Wheel/Hub Runout
1 - RADIAL RUNOUT
2 - LATERAL RUNOUT
BR/BETIRES/WHEELS 22 - 1

TIRES
DESCRIPTION
DESCRIPTION - SPARE TIRE - TEMPORARY
The temporary spare tire is designed for emer-
gency use only. The original tire should be repaired
or replaced at the first opportunity, then reinstalled.
Do not exceed speeds of 50 M.P.H. when using the
temporary spare tire. Refer to Owner's Manual for
complete details.
DESCRIPTION - TIRES
Tires are designed and engineered for each specific
vehicle. They provide the best overall performance
for normal operation. The ride and handling charac-
teristics match the vehicle's requirements. With
proper care they will give excellent reliability, trac-
tion, skid resistance, and tread life.
Driving habits have more effect on tire life than
any other factor. Careful drivers will obtain in most
cases, much greater mileage than severe use or care-
less drivers. A few of the driving habits which will
shorten the life of any tire are:
²Rapid acceleration
²Severe brake applications
²High speed driving
²Excessive speeds on turns
²Striking curbs and other obstacles
Radial-ply tires are more prone to irregular tread
wear. It is important to follow the tire rotation inter-
val shown in the section on Tire Rotation, (Refer to
22 - TIRES/WHEELS - STANDARD PROCEDURE).
This will help to achieve a greater tread life.
TIRE IDENTIFICATION
Tire type, size, aspect ratio and speed rating are
encoded in the letters and numbers imprinted on the
side wall of the tire. Refer to the chart to decipher
the tire identification code (Fig. 11).
Performance tires have a speed rating letter after
the aspect ratio number. The speed rating is not
always printed on the tire sidewall. These ratings
are:
²Qup to 100 mph
²Rup to 106 mph
²Sup to 112 mph
²Tup to 118 mph
²Uup to 124 mph
²Hup to 130 mph
²Vup to 149 mph
²Zmore than 149 mph (consult the tire manu-
facturer for the specific speed rating)An All Season type tire will have eitherM+S,M
&SorM±S(indicating mud and snow traction)
imprinted on the side wall.
TIRE CHAINS
Tire snow chains may be used oncertainmodels.
Refer to the Owner's Manual for more information.
DESCRIPTION - RADIAL-PLY TIRES
Radial-ply tires improve handling, tread life and
ride quality, and decrease rolling resistance.
Radial-ply tires must always be used in sets of
four. Under no circumstances should they be used on
the front only. They may be mixed with temporary
spare tires when necessary. A maximum speed of 50
MPH is recommended while a temporary spare is in
use.
Radial-ply tires have the same load-carrying capac-
ity as other types of tires of the same size. They also
use the same recommended inflation pressures.
The use of oversized tires, either in the front or
rear of the vehicle, can cause vehicle drive train fail-
ure. This could also cause inaccurate wheel speed
signals when the vehicle is equipped with Anti-Lock
Brakes.
The use of tires from different manufactures on the
same vehicle is NOT recommended. The proper tire
pressure should be maintained on all four tires.
Fig. 11 Tire Identification
22 - 6 TIRES/WHEELSBR/BE

DESCRIPTION - TIRE PRESSURE FOR HIGH
SPEEDS
Where speed limits allow the vehicle to be driven
at high speeds, correct tire inflation pressure is very
important. For speeds up to and including 120 km/h
(75 mph), tires must be inflated to the pressures
shown on the tire placard. For continuous speeds in
excess of 120 km/h (75 mph), tires must be inflated
to the maximum pressure specified on the tire side-
wall.
Vehicles loaded to the maximum capacity should
not be driven at continuous speeds above 75 mph
(120 km/h).
For emergency vehicles that are driven at speeds
over 90 mph (144 km/h), special high speed tires
must be used. Consult tire manufacturer for correct
inflation pressure recommendations.
DESCRIPTION - REPLACEMENT TIRES
The original equipment tires provide a proper bal-
ance of many characteristics such as:
²Ride
²Noise
²Handling
²Durability
²Tread life
²Traction
²Rolling resistance
²Speed capability
It is recommended that tires equivalent to the orig-
inal equipment tires be used when replacement is
needed.
Failure to use equivalent replacement tires may
adversely affect the safety and handling of the vehi-
cle.
The use of oversize tires may cause interference
with vehicle components. Under extremes of suspen-
sion and steering travel, interference with vehicle
components may cause tire damage.
WARNING: FAILURE TO EQUIP THE VEHICLE WITH
TIRES HAVING ADEQUATE SPEED CAPABILITY
CAN RESULT IN SUDDEN TIRE FAILURE.
DESCRIPTION - TIRE INFLATION PRESSURES
Under inflation will cause rapid shoulder wear, tire
flexing, and possible tire failure (Fig. 12).
Over inflation will cause rapid center wear and
loss of the tire's ability to cushion shocks (Fig. 13).
Improper inflation can cause:
²Uneven wear patterns
²Reduced tread life
²Reduced fuel economy
²Unsatisfactory ride
²Vehicle driftFor proper tire pressure specification refer to the
Tire Inflation Pressure Chart provided with the vehi-
cles Owners Manual. A Certification Label on the
drivers side door pillar provides the minimum tire
and rim size for the vehicle. The label also list the
cold inflation pressure for these tires at full load
operation
Tire pressures have been chosen to provide safe
operation, vehicle stability, and a smooth ride. Tire
pressure should be checked cold once a month. Tire
pressure decreases as the ambient temperature
drops. Check tire pressure frequently when ambient
temperature varies widely.
Tire inflation pressures are cold inflation pressure.
The vehicle must sit for at least 3 hours to obtain the
correct cold inflation pressure reading. Or be driven
less than one mile after sitting for 3 hours. Tire
inflation pressures may increase from 2 to 6 pounds
Fig. 12 Under Inflation Wear
1 - THIN TIRE THREAD AREAS
Fig. 13 Over Inflation Wear
1 - THIN TIRE THREAD AREA
BR/BETIRES/WHEELS 22 - 7
TIRES (Continued)

per square inch (psi) during operation. Do not reduce
this normal pressure build-up.
WARNING: OVER OR UNDER INFLATED TIRES CAN
AFFECT VEHICLE HANDLING AND TREAD WEAR.
THIS MAY CAUSE THE TIRE TO FAIL SUDDENLY,
RESULTING IN LOSS OF VEHICLE CONTROL.
DIAGNOSIS AND TESTING
DIAGNOSIS AND TESTING - PRESSURE
GAUGES
A quality air pressure gauge is recommended to
check tire pressure. After checking the air pressure,
replace valve cap finger tight.
DIAGNOSIS AND TESTING - TREAD WEAR
INDICATORS
Tread wear indicators are molded into the bottom
of the tread grooves. When tread depth is 1.6 mm
(1/16 in.), the tread wear indicators will appear as a
13 mm (1/2 in.) band (Fig. 14).
Tire replacement is necessary when indicators
appear in two or more grooves or if localized balding
occurs.
DIAGNOSIS AND TESTING - TIRE WEAR
PATTERNS
Under inflation will cause wear on the shoulders of
tire. Over inflation will cause wear at the center of tire.
Excessive camber causes the tire to run at an
angle to the road. One side of tread is then worn
more than the other (Fig. 15).Excessive toe-in or toe-out causes wear on the
tread edges and a feathered effect across the tread
(Fig. 15).
Fig. 15 Tire Wear Patterns
Fig. 14 Tread Wear Indicators
1 - TREAD ACCEPTABLE
2 - TREAD UNACCEPTABLE
3 - WEAR INDICATOR
22 - 8 TIRES/WHEELSBR/BE
TIRES (Continued)

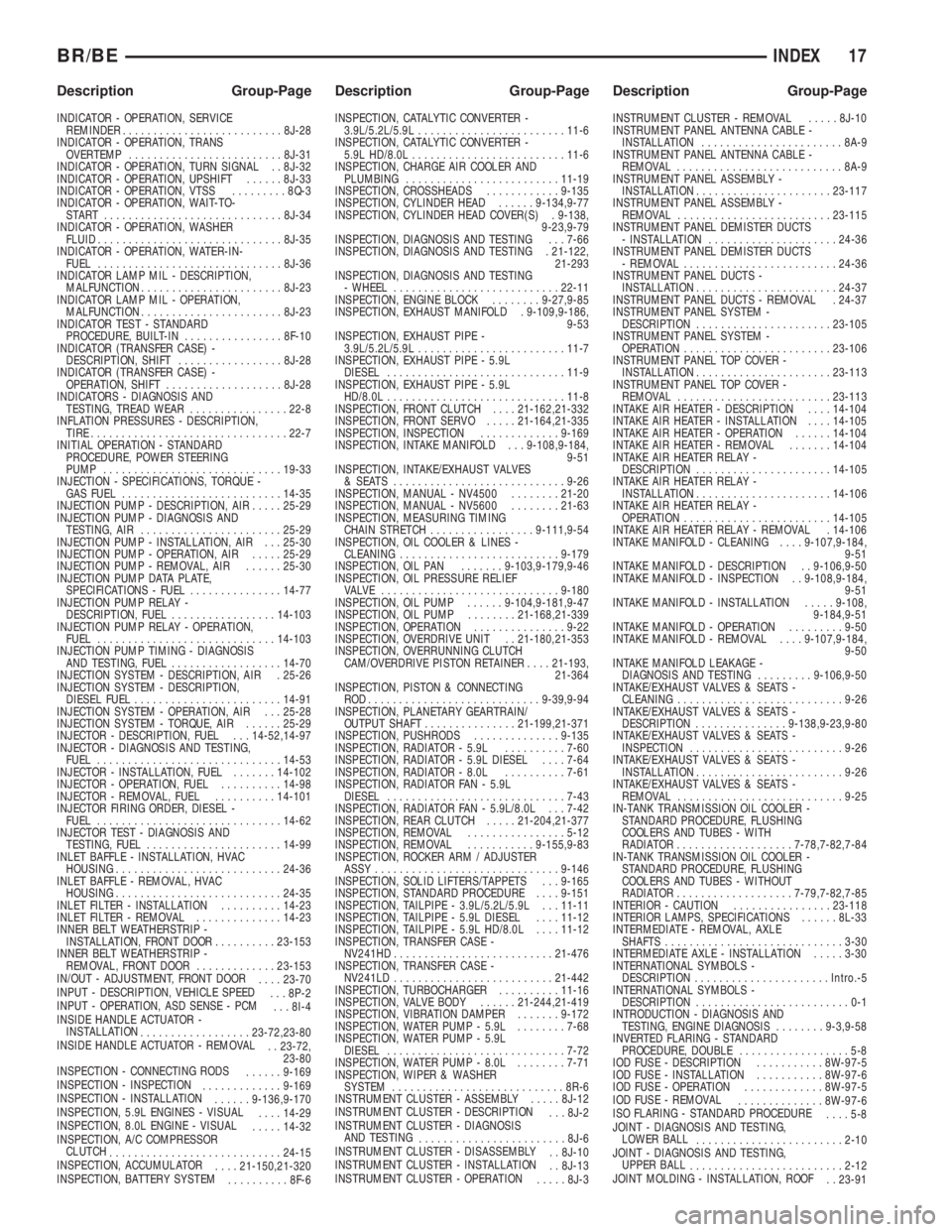

INDICATOR - OPERATION, SERVICE
REMINDER..........................8J-28
INDICATOR - OPERATION, TRANS
OVERTEMP.........................8J-31
INDICATOR - OPERATION, TURN SIGNAL . . 8J-32
INDICATOR - OPERATION, UPSHIFT......8J-33
INDICATOR - OPERATION, VTSS.........8Q-3
INDICATOR - OPERATION, WAIT-TO-
START .............................8J-34
INDICATOR - OPERATION, WASHER
FLUID..............................8J-35
INDICATOR - OPERATION, WATER-IN-
FUEL..............................8J-36
INDICATOR LAMP MIL - DESCRIPTION,
MALFUNCTION.......................8J-23
INDICATOR LAMP MIL - OPERATION,
MALFUNCTION.......................8J-23
INDICATOR TEST - STANDARD
PROCEDURE, BUILT-IN................8F-10
INDICATOR (TRANSFER CASE) -
DESCRIPTION, SHIFT.................8J-28
INDICATOR (TRANSFER CASE) -
OPERATION, SHIFT...................8J-28
INDICATORS - DIAGNOSIS AND
TESTING, TREAD WEAR................22-8
INFLATION PRESSURES - DESCRIPTION,
TIRE................................22-7
INITIAL OPERATION - STANDARD
PROCEDURE, POWER STEERING
PUMP.............................19-33
INJECTION - SPECIFICATIONS, TORQUE -
GAS FUEL..........................14-35
INJECTION PUMP - DESCRIPTION, AIR.....25-29
INJECTION PUMP - DIAGNOSIS AND
TESTING, AIR.......................25-29
INJECTION PUMP - INSTALLATION, AIR . . . 25-30
INJECTION PUMP - OPERATION, AIR.....25-29
INJECTION PUMP - REMOVAL, AIR......25-30
INJECTION PUMP DATA PLATE,
SPECIFICATIONS - FUEL...............14-77
INJECTION PUMP RELAY -
DESCRIPTION, FUEL.................14-103
INJECTION PUMP RELAY - OPERATION,
FUEL.............................14-103
INJECTION PUMP TIMING - DIAGNOSIS
AND TESTING, FUEL..................14-70
INJECTION SYSTEM - DESCRIPTION, AIR . 25-26
INJECTION SYSTEM - DESCRIPTION,
DIESEL FUEL........................14-91
INJECTION SYSTEM - OPERATION, AIR . . . 25-28
INJECTION SYSTEM - TORQUE, AIR......25-29
INJECTOR - DESCRIPTION, FUEL . . . 14-52,14-97
INJECTOR - DIAGNOSIS AND TESTING,
FUEL..............................14-53
INJECTOR - INSTALLATION, FUEL.......14-102
INJECTOR - OPERATION, FUEL..........14-98
INJECTOR - REMOVAL, FUEL..........14-101
INJECTOR FIRING ORDER, DIESEL -
FUEL..............................14-62
INJECTOR TEST - DIAGNOSIS AND
TESTING, FUEL......................14-99
INLET BAFFLE - INSTALLATION, HVAC
HOUSING...........................24-36
INLET BAFFLE - REMOVAL, HVAC
HOUSING...........................24-35
INLET FILTER - INSTALLATION..........14-23
INLET FILTER - REMOVAL..............14-23
INNER BELT WEATHERSTRIP -
INSTALLATION, FRONT DOOR..........23-153
INNER BELT WEATHERSTRIP -
REMOVAL, FRONT DOOR.............23-153
IN/OUT - ADJUSTMENT, FRONT DOOR
....23-70
INPUT - DESCRIPTION, VEHICLE SPEED
. . . 8P-2
INPUT - OPERATION, ASD SENSE - PCM
. . . 8I-4
INSIDE HANDLE ACTUATOR -
INSTALLATION
..................23-72,23-80
INSIDE HANDLE ACTUATOR - REMOVAL
. . 23-72,
23-80
INSPECTION - CONNECTING RODS
......9-169
INSPECTION - INSPECTION
.............9-169
INSPECTION - INSTALLATION
......9-136,9-170
INSPECTION, 5.9L ENGINES - VISUAL
....14-29
INSPECTION, 8.0L ENGINE - VISUAL
.....14-32
INSPECTION, A/C COMPRESSOR
CLUTCH
............................24-15
INSPECTION, ACCUMULATOR
....21-150,21-320
INSPECTION, BATTERY SYSTEM
..........8F-6INSPECTION, CATALYTIC CONVERTER -
3.9L/5.2L/5.9L........................11-6
INSPECTION, CATALYTIC CONVERTER -
5.9L HD/8.0L.........................11-6
INSPECTION, CHARGE AIR COOLER AND
PLUMBING.........................11-19
INSPECTION, CROSSHEADS............9-135
INSPECTION, CYLINDER HEAD......9-134,9-77
INSPECTION, CYLINDER HEAD COVER(S) . 9-138,
9-23,9-79
INSPECTION, DIAGNOSIS AND TESTING . . . 7-66
INSPECTION, DIAGNOSIS AND TESTING . 21-122,
21-293
INSPECTION, DIAGNOSIS AND TESTING
- WHEEL...........................22-11
INSPECTION, ENGINE BLOCK........9-27,9-85
INSPECTION, EXHAUST MANIFOLD . 9-109,9-186,
9-53
INSPECTION, EXHAUST PIPE -
3.9L/5.2L/5.9L........................11-7
INSPECTION, EXHAUST PIPE - 5.9L
DIESEL.............................11-9
INSPECTION, EXHAUST PIPE - 5.9L
HD/8.0L.............................11-8
INSPECTION, FRONT CLUTCH....21-162,21-332
INSPECTION, FRONT SERVO.....21-164,21-335
INSPECTION, INSPECTION.............9-169
INSPECTION, INTAKE MANIFOLD . . . 9-108,9-184,
9-51
INSPECTION, INTAKE/EXHAUST VALVES
& SEATS ............................9-26
INSPECTION, MANUAL - NV4500........21-20
INSPECTION, MANUAL - NV5600........21-63
INSPECTION, MEASURING TIMING
CHAIN STRETCH.................9-111,9-54
INSPECTION, OIL COOLER & LINES -
CLEANING..........................9-179
INSPECTION, OIL PAN.......9-103,9-179,9-46
INSPECTION, OIL PRESSURE RELIEF
VALVE .............................9-180
INSPECTION, OIL PUMP......9-104,9-181,9-47
INSPECTION, OIL PUMP........21-168,21-339
INSPECTION, OPERATION...............9-22
INSPECTION, OVERDRIVE UNIT . . 21-180,21-353
INSPECTION, OVERRUNNING CLUTCH
CAM/OVERDRIVE PISTON RETAINER....21-193,
21-364
INSPECTION, PISTON & CONNECTING
ROD............................9-39,9-94
INSPECTION, PLANETARY GEARTRAIN/
OUTPUT SHAFT...............21-199,21-371
INSPECTION, PUSHRODS..............9-135
INSPECTION, RADIATOR - 5.9L..........7-60
INSPECTION, RADIATOR - 5.9L DIESEL....7-64
INSPECTION, RADIATOR - 8.0L..........7-61
INSPECTION, RADIATOR FAN - 5.9L
DIESEL.............................7-43
INSPECTION, RADIATOR FAN - 5.9L/8.0L . . . 7-42
INSPECTION, REAR CLUTCH.....21-204,21-377
INSPECTION, REMOVAL................5-12
INSPECTION, REMOVAL...........9-155,9-83
INSPECTION, ROCKER ARM / ADJUSTER
ASSY..............................9-146
INSPECTION, SOLID LIFTERS/TAPPETS . . . 9-165
INSPECTION, STANDARD PROCEDURE....9-151
INSPECTION, TAILPIPE - 3.9L/5.2L/5.9L . . . 11-11
INSPECTION, TAILPIPE - 5.9L DIESEL....11-12
INSPECTION, TAILPIPE - 5.9L HD/8.0L....11-12
INSPECTION, TRANSFER CASE -
NV241HD..........................21-476
INSPECTION, TRANSFER CASE -
NV241LD..........................21-442
INSPECTION, TURBOCHARGER..........11-16
INSPECTION, VALVE BODY......21-244,21-419
INSPECTION, VIBRATION DAMPER.......9-172
INSPECTION, WATER PUMP - 5.9L........7-68
INSPECTION, WATER PUMP - 5.9L
DIESEL.............................7-72
INSPECTION, WATER PUMP - 8.0L........7-71
INSPECTION, WIPER & WASHER
SYSTEM............................8R-6
INSTRUMENT CLUSTER - ASSEMBLY.....8J-12
INSTRUMENT CLUSTER - DESCRIPTION
. . . 8J-2
INSTRUMENT CLUSTER - DIAGNOSIS
AND TESTING
........................8J-6
INSTRUMENT CLUSTER - DISASSEMBLY
. . 8J-10
INSTRUMENT CLUSTER - INSTALLATION
. . 8J-13
INSTRUMENT CLUSTER - OPERATION
.....8J-3INSTRUMENT CLUSTER - REMOVAL.....8J-10
INSTRUMENT PANEL ANTENNA CABLE -
INSTALLATION.......................8A-9
INSTRUMENT PANEL ANTENNA CABLE -
REMOVAL...........................8A-9
INSTRUMENT PANEL ASSEMBLY -
INSTALLATION......................23-117
INSTRUMENT PANEL ASSEMBLY -
REMOVAL.........................23-115
INSTRUMENT PANEL DEMISTER DUCTS
- INSTALLATION.....................24-36
INSTRUMENT PANEL DEMISTER DUCTS
- REMOVAL.........................24-36
INSTRUMENT PANEL DUCTS -
INSTALLATION.......................24-37
INSTRUMENT PANEL DUCTS - REMOVAL . 24-37
INSTRUMENT PANEL SYSTEM -
DESCRIPTION......................23-105
INSTRUMENT PANEL SYSTEM -
OPERATION........................23-106
INSTRUMENT PANEL TOP COVER -
INSTALLATION......................23-113
INSTRUMENT PANEL TOP COVER -
REMOVAL.........................23-113
INTAKE AIR HEATER - DESCRIPTION....14-104
INTAKE AIR HEATER - INSTALLATION....14-105
INTAKE AIR HEATER - OPERATION......14-104
INTAKE AIR HEATER - REMOVAL.......14-104
INTAKE AIR HEATER RELAY -
DESCRIPTION......................14-105
INTAKE AIR HEATER RELAY -
INSTALLATION.......................14-106
INTAKE AIR HEATER RELAY -
OPERATION........................14-105
INTAKE AIR HEATER RELAY - REMOVAL . 14-106
INTAKE MANIFOLD - CLEANING....9-107,9-184,
9-51
INTAKE MANIFOLD - DESCRIPTION . . 9-106,9-50
INTAKE MANIFOLD - INSPECTION . . 9-108,9-184,
9-51
INTAKE MANIFOLD - INSTALLATION.....9-108,
9-184,9-51
INTAKE MANIFOLD - OPERATION.........9-50
INTAKE MANIFOLD - REMOVAL....9-107,9-184,
9-50
INTAKE MANIFOLD LEAKAGE -
DIAGNOSIS AND TESTING.........9-106,9-50
INTAKE/EXHAUST VALVES & SEATS -
CLEANING...........................9-26
INTAKE/EXHAUST VALVES & SEATS -
DESCRIPTION...............9-138,9-23,9-80
INTAKE/EXHAUST VALVES & SEATS -
INSPECTION.........................9-26
INTAKE/EXHAUST VALVES & SEATS -
INSTALLATION........................9-26
INTAKE/EXHAUST VALVES & SEATS -
REMOVAL...........................9-25
IN-TANK TRANSMISSION OIL COOLER -
STANDARD PROCEDURE, FLUSHING
COOLERS AND TUBES - WITH
RADIATOR...................7-78,7-82,7-84
IN-TANK TRANSMISSION OIL COOLER -
STANDARD PROCEDURE, FLUSHING
COOLERS AND TUBES - WITHOUT
RADIATOR...................7-79,7-82,7-85
INTERIOR - CAUTION................23-118
INTERIOR LAMPS, SPECIFICATIONS......8L-33
INTERMEDIATE - REMOVAL, AXLE
SHAFTS.............................3-30
INTERMEDIATE AXLE - INSTALLATION.....3-30
INTERNATIONAL SYMBOLS -
DESCRIPTION......................Intro.-5
INTERNATIONAL SYMBOLS -
DESCRIPTION.........................0-1
INTRODUCTION - DIAGNOSIS AND
TESTING, ENGINE DIAGNOSIS........9-3,9-58
INVERTED FLARING - STANDARD
PROCEDURE, DOUBLE..................5-8
IOD FUSE - DESCRIPTION...........8W-97-5
IOD FUSE - INSTALLATION...........8W-97-6
IOD FUSE - OPERATION.............8W-97-5
IOD FUSE - REMOVAL
..............8W-97-6
ISO FLARING - STANDARD PROCEDURE
....5-8
JOINT - DIAGNOSIS AND TESTING,
LOWER BALL
........................2-10
JOINT - DIAGNOSIS AND TESTING,
UPPER BALL
.........................2-12
JOINT MOLDING - INSTALLATION, ROOF
. . 23-91
BR/BEINDEX 17
Description Group-Page Description Group-Page Description Group-Page

PRESSURE SWITCH - OPERATION, A/C
HIGH..............................24-20
PRESSURE SWITCH - OPERATION, A/C
LOW ..............................24-21
PRESSURE SWITCH - REMOVAL, A/C
HIGH..............................24-20
PRESSURE SWITCH - REMOVAL, A/C
LOW ..............................24-21
PRESSURE TEST - DIAGNOSIS AND
TESTING, FUEL PUMP..................14-9
PRESSURE TEST - DIAGNOSIS AND
TESTING, HYDRAULIC...........21-270,21-98
PRESSURES - DESCRIPTION, TIRE
INFLATION...........................22-7
PRESSURES, DIESEL ENGINES - FUEL
SYSTEM............................14-62
PROGRAMMING - STANDARD
PROCEDURE, RKE TRANSMITTER........8N-8
PROPELLER SHAFT - DIAGNOSIS AND
TESTING.............................3-1
PROPELLER SHAFT - FRONT -
INSTALLATION.........................3-7
PROPELLER SHAFT - FRONT - REMOVAL . . . 3-6
PROPELLER SHAFT - REAR -
INSTALLATION.........................3-7
PROPELLER SHAFT - REAR - REMOVAL....3-7
PROPELLER SHAFT - STANDARD
PROCEDURES.........................3-3
PROPELLER SHAFT, SPECIAL TOOLS.......3-6
PROPELLER SHAFT, SPECIFICATIONS.......3-6
PTO SWITCH - DESCRIPTION...........14-47
PTO SWITCH - OPERATION..............14-47
PULLEY - INSTALLATION..............19-39
PULLEY - REMOVAL..................19-38
PUMP - 5.9L - CLEANING, WATER........7-68
PUMP - 5.9L - DESCRIPTION, WATER.....7-66
PUMP - 5.9L - INSPECTION, WATER......7-68
PUMP - 5.9L - INSTALLATION, WATER.....7-68
PUMP - 5.9L - OPERATION, WATER.......7-66
PUMP - 5.9L - REMOVAL, WATER........7-66
PUMP - 5.9L DIESEL - CLEANING,
WATER .............................7-72
PUMP - 5.9L DIESEL - DESCRIPTION,
VACUUM............................7-33
PUMP - 5.9L DIESEL - DESCRIPTION,
WATER .............................7-72
PUMP - 5.9L DIESEL - INSPECTION,
WATER .............................7-72
PUMP - 5.9L DIESEL - INSTALLATION,
VACUUM............................7-36
PUMP - 5.9L DIESEL - INSTALLATION,
WATER .............................7-72
PUMP - 5.9L DIESEL - OPERATION,
VACUUM............................7-34
PUMP - 5.9L DIESEL - OPERATION,
WATER .............................7-72
PUMP - 5.9L DIESEL - REMOVAL,
VACUUM............................7-34
PUMP - 5.9L DIESEL - REMOVAL,
WATER .............................7-72
PUMP - 8.0L - CLEANING, WATER........7-71
PUMP - 8.0L - INSPECTION, WATER......7-71
PUMP - 8.0L - INSTALLATION, WATER.....7-71
PUMP - 8.0L - REMOVAL, WATER........7-69
PUMP - ASSEMBLY, OIL................9-49
PUMP - ASSEMBLY, OIL........21-169,21-340
PUMP - CLEANING, OIL..........9-104,9-181
PUMP - CLEANING, OIL........21-168,21-338
PUMP - DESCRIPTION................19-33
PUMP - DESCRIPTION, AIR INJECTION . . . 25-29
PUMP - DESCRIPTION, FUEL
............14-9
PUMP - DESCRIPTION, FUEL TRANSFER
. . 14-83
PUMP - DESCRIPTION, LEAK DETECTION
. 25-34
PUMP - DESCRIPTION, OIL
......21-166,21-336
PUMP - DIAGNOSIS AND TESTING, AIR
INJECTION
..........................25-29
PUMP - DIAGNOSIS AND TESTING,
WATER
.....................7-66,7-69,7-72
PUMP - DISASSEMBLY, OIL
.............9-47
PUMP - DISASSEMBLY, OIL
.....21-167,21-337
PUMP - INITIAL OPERATION -
STANDARD PROCEDURE, POWER
STEERING
..........................19-33
PUMP - INSPECTION, OIL
.....9-104,9-181,9-47
PUMP - INSPECTION, OIL
.......21-168,21-339
PUMP - INSTALLATION, AIR INJECTION
. . . 25-30
PUMP - INSTALLATION, FUEL TRANSFER
. 14-87PUMP - INSTALLATION, LEAK
DETECTION.........................25-34
PUMP - INSTALLATION, OIL . . . 9-106,9-182,9-50
PUMP - OPERATION..................19-33
PUMP - OPERATION, AIR INJECTION.....25-29
PUMP - OPERATION, FUEL..............14-9
PUMP - OPERATION, FUEL TRANSFER....14-83
PUMP - OPERATION, LEAK DETECTION . . . 25-34
PUMP - OPERATION, OIL.......21-166,21-336
PUMP - REMOVAL, AIR INJECTION......25-30
PUMP - REMOVAL, FUEL TRANSFER.....14-86
PUMP - REMOVAL, LEAK DETECTION....25-34
PUMP - REMOVAL, OIL.......9-104,9-181,9-47
PUMP 235 H.P. - DESCRIPTION, FUEL....14-69
PUMP 245 H.P. - DESCRIPTION, FUEL....14-69
PUMP AMPERAGE TEST - DIAGNOSIS
AND TESTING, FUEL..................14-10
PUMP BYPASS HOSE WITH AIR
CONDITIONING - INSTALLATION,
WATER .............................7-76
PUMP BYPASS HOSE WITH AIR
CONDITIONING - REMOVAL, WATER......7-73
PUMP BYPASS HOSE WITHOUT AIR
CONDITIONING - INSTALLATION,
WATER .............................7-77
PUMP BYPASS HOSE WITHOUT AIR
CONDITIONING - REMOVAL, WATER......7-76
PUMP CAPACITY TEST - DIAGNOSIS
AND TESTING, FUEL...................14-9
PUMP DATA PLATE, SPECIFICATIONS -
FUEL INJECTION.....................14-77
PUMP FILTER - INSTALLATION, AIR......25-30
PUMP FILTER - REMOVAL, AIR.........25-30
PUMP LEAKAGE - DIAGNOSIS AND
TESTING...........................19-33
PUMP MODULE - DESCRIPTION, FUEL....14-12
PUMP MODULE - INSTALLATION, FUEL . . . 14-13
PUMP MODULE - OPERATION, FUEL.....14-13
PUMP MODULE - REMOVAL, FUEL.......14-13
PUMP OUTPUT - DIAGNOSIS AND
TESTING, VACUUM....................7-34
PUMP PRESSURE - DIAGNOSIS AND
TESTING, FUEL TRANSFER.............14-84
PUMP PRESSURE TEST - DIAGNOSIS
AND TESTING, FUEL...................14-9
PUMP RELAY - DESCRIPTION, FUEL.....14-40
PUMP RELAY - DESCRIPTION, FUEL
INJECTION.........................14-103
PUMP RELAY - INSTALLATION, FUEL.....14-40
PUMP RELAY - OPERATION, FUEL.......14-40
PUMP RELAY - OPERATION, FUEL
INJECTION.........................14-103
PUMP RELAY - REMOVAL, FUEL........14-40
PUMP RELAYS - DIAGNOSIS AND
TESTING, ASD AND FUEL...............8I-4
PUMP, SPECIAL TOOLS - POWER
STEERING..........................19-38
PUMP TIMING - DIAGNOSIS AND
TESTING, FUEL INJECTION.............14-70
PUMP VOLUME CHECK - STANDARD
PROCEDURE, OIL.............21-166,21-336
PUMP/MOTOR - DESCRIPTION, WASHER . . 8R-9
PUMP/MOTOR - INSTALLATION,
WASHER...........................8R-10
PUMP/MOTOR - OPERATION, WASHER....8R-9
PUMP/MOTOR - REMOVAL, WASHER....8R-10
PUSHRODS - CLEANING...............9-134
PUSHRODS - INSPECTION.............9-135
QUARTER TRIM PANEL - INSTALLATION . 23-128
QUARTER TRIM PANEL - REMOVAL.....23-128
QUARTER WINDOW - INSTALLATION....23-150
QUARTER WINDOW - REMOVAL
........23-150
QUICK CONNECT FITTING -
DESCRIPTION
.......................14-24
QUICK-CONNECT FITTINGS - STANDARD
PROCEDURE
........................14-24
RADIAL-PLY TIRES - DESCRIPTION
.......22-6
RADIATOR - 5.9L - CLEANING
...........7-59
RADIATOR - 5.9L - DESCRIPTION
........7-58
RADIATOR - 5.9L - INSPECTION
..........7-60
RADIATOR - 5.9L - INSTALLATION
........7-60
RADIATOR - 5.9L - OPERATION
..........7-58
RADIATOR - 5.9L - REMOVAL
............7-58
RADIATOR - 5.9L DIESEL - CLEANING
.....7-64
RADIATOR - 5.9L DIESEL -
DESCRIPTION
........................7-62
RADIATOR - 5.9L DIESEL - INSPECTION
. . . 7-64RADIATOR - 5.9L DIESEL -
INSTALLATION........................7-64
RADIATOR - 5.9L DIESEL - OPERATION....7-62
RADIATOR - 5.9L DIESEL - REMOVAL.....7-62
RADIATOR - 8.0L - CLEANING...........7-61
RADIATOR - 8.0L - DESCRIPTION........7-60
RADIATOR - 8.0L - INSPECTION..........7-61
RADIATOR - 8.0L - INSTALLATION........7-61
RADIATOR - 8.0L - OPERATION..........7-60
RADIATOR - 8.0L - REMOVAL............7-60
RADIATOR CAP - DIAGNOSIS AND
TESTING............................7-65
RADIATOR CAP-TO-FILLER NECK SEAL -
DIAGNOSIS AND TESTING..............7-65
RADIATOR COOLANT FLOW -
DIAGNOSIS AND TESTING......7-58,7-60,7-62
RADIATOR FAN - 5.9L DIESEL -
CLEANING...........................7-43
RADIATOR FAN - 5.9L DIESEL -
INSPECTION.........................7-43
RADIATOR FAN - 5.9L DIESEL -
INSTALLATION........................7-44
RADIATOR FAN - 5.9L DIESEL -
REMOVAL...........................7-43
RADIATOR FAN - 5.9L/8.0L - CLEANING....7-42
RADIATOR FAN - 5.9L/8.0L -
INSPECTION.........................7-42
RADIATOR FAN - 5.9L/8.0L -
INSTALLATION........................7-42
RADIATOR FAN - 5.9L/8.0L - REMOVAL....7-41
RADIATOR PRESSURE CAP -
DESCRIPTION........................7-64
RADIATOR PRESSURE CAP - OPERATION . . 7-64
RADIO - DESCRIPTION................8A-10
RADIO - DIAGNOSIS AND TESTING......8A-10
RADIO - INSTALLATION...............8A-11
RADIO - OPERATION..................8A-10
RADIO - REMOVAL...................8A-11
RADIO CHOKE RELAY - DESCRIPTION.....8A-7
RADIO CHOKE RELAY - DIAGNOSIS AND
TESTING............................8A-8
RADIO CHOKE RELAY - INSTALLATION....8A-9
RADIO CHOKE RELAY - OPERATION.......8A-8
RADIO CHOKE RELAY - REMOVAL........8A-8
RADIO NOISE SUPPRESSION
COMPONENTS - DESCRIPTION..........8A-12
RADIO NOISE SUPPRESSION
COMPONENTS - DIAGNOSIS AND
TESTING...........................8A-12
RATINGS, SPECIFICATIONS -
GENERATOR........................8F-26
RBI - REAR AXLE, 286................3-120
RE TRANSMISSION, SPECIAL TOOLS . . . 21-146,
21-316
READING LAMP - DESCRIPTION.........8L-36
READING LAMP - INSTALLATION........8L-37
READING LAMP - OPERATION..........8L-36
READING LAMP - REMOVAL............8L-36
REAR - DESCRIPTION..................2-25
REAR - DESCRIPTION, CRANKSHAFT OIL
SEAL...............................9-33
REAR - INSTALLATION.........5-14,5-22,5-25
REAR - INSTALLATION................22-12
REAR - INSTALLATION, CRANKSHAFT
OIL SEAL...................9-162,9-34,9-90
REAR - INSTALLATION, PROPELLER
SHAFT...............................3-7
REAR - OPERATION, CRANKSHAFT OIL
SEAL...............................9-33
REAR - REMOVAL.............5-10,5-21,5-23
REAR - REMOVAL, CRANKSHAFT OIL
SEAL......................9-161,9-33,9-90
REAR - REMOVAL, PROPELLER SHAFT.....3-7
REAR AXLE - 248RBI - ADJUSTMENTS....3-51
REAR AXLE - 248RBI - DESCRIPTION.....3-46
REAR AXLE - 248RBI - INSTALLATION.....3-51
REAR AXLE - 248RBI - OPERATION.......3-46
REAR AXLE - 248RBI - REMOVAL........3-51
REAR AXLE - 267RBI - ADJUSTMENTS....3-83
REAR AXLE - 267RBI - DESCRIPTION.....3-78
REAR AXLE - 267RBI - INSTALLATION.....3-82
REAR AXLE - 267RBI - OPERATION.......3-78
REAR AXLE - 267RBI - REMOVAL........3-82
REAR AXLE - 286RBI - ADJUSTMENTS
. . . 3-112
REAR AXLE - 286RBI - DESCRIPTION
....3-107
REAR AXLE - 286RBI - INSTALLATION
....3-112
REAR AXLE - 286RBI - OPERATION
......3-108
REAR AXLE - 286RBI - REMOVAL
.......3-112

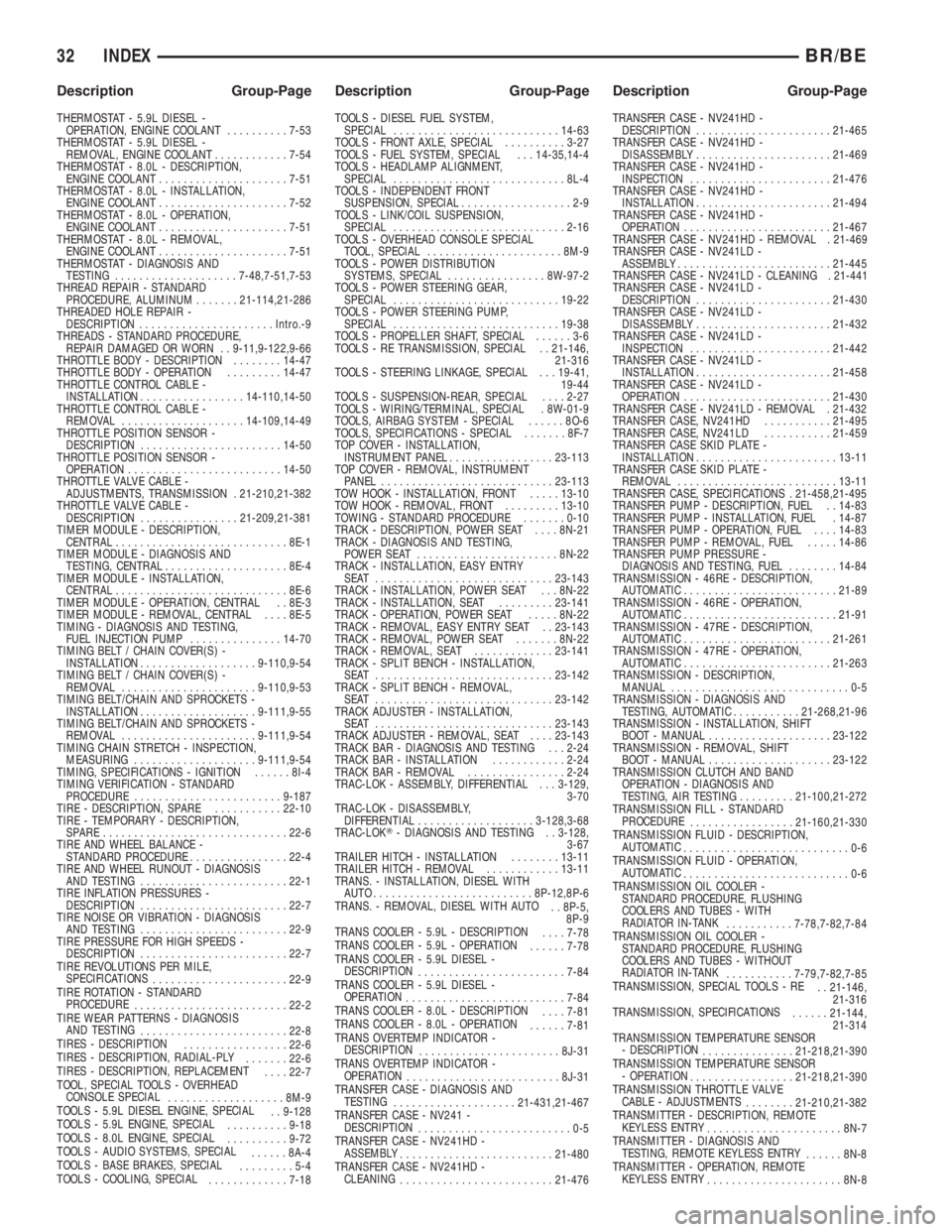

24 INDEXBR/BE
Description Group-Page Description Group-Page Description Group-Page

THERMOSTAT - 5.9L DIESEL -
OPERATION, ENGINE COOLANT..........7-53
THERMOSTAT - 5.9L DIESEL -
REMOVAL, ENGINE COOLANT............7-54
THERMOSTAT - 8.0L - DESCRIPTION,
ENGINE COOLANT.....................7-51
THERMOSTAT - 8.0L - INSTALLATION,
ENGINE COOLANT.....................7-52
THERMOSTAT - 8.0L - OPERATION,
ENGINE COOLANT.....................7-51
THERMOSTAT - 8.0L - REMOVAL,
ENGINE COOLANT.....................7-51
THERMOSTAT - DIAGNOSIS AND
TESTING....................7-48,7-51,7-53
THREAD REPAIR - STANDARD
PROCEDURE, ALUMINUM.......21-114,21-286
THREADED HOLE REPAIR -
DESCRIPTION......................Intro.-9
THREADS - STANDARD PROCEDURE,
REPAIR DAMAGED OR WORN . . 9-11,9-122,9-66
THROTTLE BODY - DESCRIPTION........14-47
THROTTLE BODY - OPERATION.........14-47
THROTTLE CONTROL CABLE -
INSTALLATION.................14-110,14-50
THROTTLE CONTROL CABLE -
REMOVAL....................14-109,14-49
THROTTLE POSITION SENSOR -
DESCRIPTION.......................14-50
THROTTLE POSITION SENSOR -
OPERATION.........................14-50
THROTTLE VALVE CABLE -
ADJUSTMENTS, TRANSMISSION . 21-210,21-382
THROTTLE VALVE CABLE -
DESCRIPTION................21-209,21-381
TIMER MODULE - DESCRIPTION,
CENTRAL............................8E-1
TIMER MODULE - DIAGNOSIS AND
TESTING, CENTRAL....................8E-4
TIMER MODULE - INSTALLATION,
CENTRAL............................8E-6
TIMER MODULE - OPERATION, CENTRAL . . 8E-3
TIMER MODULE - REMOVAL, CENTRAL....8E-5
TIMING - DIAGNOSIS AND TESTING,
FUEL INJECTION PUMP...............14-70
TIMING BELT / CHAIN COVER(S) -
INSTALLATION...................9-110,9-54
TIMING BELT / CHAIN COVER(S) -
REMOVAL......................9-110,9-53
TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION...................9-111,9-55
TIMING BELT/CHAIN AND SPROCKETS -
REMOVAL......................9-111,9-54
TIMING CHAIN STRETCH - INSPECTION,
MEASURING....................9-111,9-54
TIMING, SPECIFICATIONS - IGNITION......8I-4
TIMING VERIFICATION - STANDARD
PROCEDURE........................9-187
TIRE - DESCRIPTION, SPARE...........22-10
TIRE - TEMPORARY - DESCRIPTION,
SPARE..............................22-6
TIRE AND WHEEL BALANCE -
STANDARD PROCEDURE................22-4
TIRE AND WHEEL RUNOUT - DIAGNOSIS
AND TESTING........................22-1
TIRE INFLATION PRESSURES -
DESCRIPTION........................22-7
TIRE NOISE OR VIBRATION - DIAGNOSIS
AND TESTING........................22-9
TIRE PRESSURE FOR HIGH SPEEDS -
DESCRIPTION........................22-7
TIRE REVOLUTIONS PER MILE,
SPECIFICATIONS
......................22-9
TIRE ROTATION - STANDARD
PROCEDURE
.........................22-2
TIRE WEAR PATTERNS - DIAGNOSIS
AND TESTING
........................22-8
TIRES - DESCRIPTION
.................22-6
TIRES - DESCRIPTION, RADIAL-PLY
.......22-6
TIRES - DESCRIPTION, REPLACEMENT
....22-7
TOOL, SPECIAL TOOLS - OVERHEAD
CONSOLE SPECIAL
...................8M-9
TOOLS - 5.9L DIESEL ENGINE, SPECIAL
. . 9-128
TOOLS - 5.9L ENGINE, SPECIAL
..........9-18
TOOLS - 8.0L ENGINE, SPECIAL
..........9-72
TOOLS - AUDIO SYSTEMS, SPECIAL
......8A-4
TOOLS - BASE BRAKES, SPECIAL
.........5-4
TOOLS - COOLING, SPECIAL
.............7-18TOOLS - DIESEL FUEL SYSTEM,
SPECIAL...........................14-63
TOOLS - FRONT AXLE, SPECIAL..........3-27
TOOLS - FUEL SYSTEM, SPECIAL . . . 14-35,14-4
TOOLS - HEADLAMP ALIGNMENT,
SPECIAL............................8L-4
TOOLS - INDEPENDENT FRONT
SUSPENSION, SPECIAL..................2-9
TOOLS - LINK/COIL SUSPENSION,
SPECIAL............................2-16
TOOLS - OVERHEAD CONSOLE SPECIAL
TOOL, SPECIAL......................8M-9
TOOLS - POWER DISTRIBUTION
SYSTEMS, SPECIAL................8W-97-2
TOOLS - POWER STEERING GEAR,
SPECIAL...........................19-22
TOOLS - POWER STEERING PUMP,
SPECIAL...........................19-38
TOOLS - PROPELLER SHAFT, SPECIAL......3-6
TOOLS - RE TRANSMISSION, SPECIAL . . 21-146,
21-316
TOOLS - STEERING LINKAGE, SPECIAL . . . 19-41,
19-44
TOOLS - SUSPENSION-REAR, SPECIAL....2-27
TOOLS - WIRING/TERMINAL, SPECIAL . 8W-01-9
TOOLS, AIRBAG SYSTEM - SPECIAL......8O-6
TOOLS, SPECIFICATIONS - SPECIAL.......8F-7
TOP COVER - INSTALLATION,
INSTRUMENT PANEL.................23-113
TOP COVER - REMOVAL, INSTRUMENT
PANEL............................23-113
TOW HOOK - INSTALLATION, FRONT.....13-10
TOW HOOK - REMOVAL, FRONT.........13-10
TOWING - STANDARD PROCEDURE.......0-10
TRACK - DESCRIPTION, POWER SEAT....8N-21
TRACK - DIAGNOSIS AND TESTING,
POWER SEAT.......................8N-22
TRACK - INSTALLATION, EASY ENTRY
SEAT .............................23-143
TRACK - INSTALLATION, POWER SEAT . . . 8N-22
TRACK - INSTALLATION, SEAT.........23-141
TRACK - OPERATION, POWER SEAT.....8N-22
TRACK - REMOVAL, EASY ENTRY SEAT . . 23-143
TRACK - REMOVAL, POWER SEAT.......8N-22
TRACK - REMOVAL, SEAT.............23-141
TRACK - SPLIT BENCH - INSTALLATION,
SEAT .............................23-142
TRACK - SPLIT BENCH - REMOVAL,
SEAT .............................23-142
TRACK ADJUSTER - INSTALLATION,
SEAT .............................23-143
TRACK ADJUSTER - REMOVAL, SEAT....23-143
TRACK BAR - DIAGNOSIS AND TESTING . . . 2-24
TRACK BAR - INSTALLATION............2-24
TRACK BAR - REMOVAL................2-24
TRAC-LOK - ASSEMBLY, DIFFERENTIAL . . . 3-129,
3-70
TRAC-LOK - DISASSEMBLY,
DIFFERENTIAL...................3-128,3-68
TRAC-LOKT- DIAGNOSIS AND TESTING . . 3-128,
3-67
TRAILER HITCH - INSTALLATION........13-11
TRAILER HITCH - REMOVAL............13-11
TRANS. - INSTALLATION, DIESEL WITH
AUTO..........................8P-12,8P-6
TRANS. - REMOVAL, DIESEL WITH AUTO
. . 8P-5,
8P-9
TRANS COOLER - 5.9L - DESCRIPTION
....7-78
TRANS COOLER - 5.9L - OPERATION
......7-78
TRANS COOLER - 5.9L DIESEL -
DESCRIPTION
........................7-84
TRANS COOLER - 5.9L DIESEL -
OPERATION
..........................7-84
TRANS COOLER - 8.0L - DESCRIPTION
....7-81
TRANS COOLER - 8.0L - OPERATION
......7-81
TRANS OVERTEMP INDICATOR -
DESCRIPTION
.......................8J-31
TRANS OVERTEMP INDICATOR -
OPERATION
.........................8J-31
TRANSFER CASE - DIAGNOSIS AND
TESTING
....................21-431,21-467
TRANSFER CASE - NV241 -
DESCRIPTION
.........................0-5
TRANSFER CASE - NV241HD -
ASSEMBLY
.........................21-480
TRANSFER CASE - NV241HD -
CLEANING
.........................21-476TRANSFER CASE - NV241HD -
DESCRIPTION......................21-465
TRANSFER CASE - NV241HD -
DISASSEMBLY......................21-469
TRANSFER CASE - NV241HD -
INSPECTION.......................21-476
TRANSFER CASE - NV241HD -
INSTALLATION......................21-494
TRANSFER CASE - NV241HD -
OPERATION........................21-467
TRANSFER CASE - NV241HD - REMOVAL . 21-469
TRANSFER CASE - NV241LD -
ASSEMBLY.........................21-445
TRANSFER CASE - NV241LD - CLEANING . 21-441
TRANSFER CASE - NV241LD -
DESCRIPTION......................21-430
TRANSFER CASE - NV241LD -
DISASSEMBLY......................21-432
TRANSFER CASE - NV241LD -
INSPECTION.......................21-442
TRANSFER CASE - NV241LD -
INSTALLATION......................21-458
TRANSFER CASE - NV241LD -
OPERATION........................21-430
TRANSFER CASE - NV241LD - REMOVAL . 21-432
TRANSFER CASE, NV241HD...........21-495
TRANSFER CASE, NV241LD...........21-459
TRANSFER CASE SKID PLATE -
INSTALLATION.......................13-11
TRANSFER CASE SKID PLATE -
REMOVAL..........................13-11
TRANSFER CASE, SPECIFICATIONS . 21-458,21-495
TRANSFER PUMP - DESCRIPTION, FUEL . . 14-83
TRANSFER PUMP - INSTALLATION, FUEL . 14-87
TRANSFER PUMP - OPERATION, FUEL....14-83
TRANSFER PUMP - REMOVAL, FUEL.....14-86
TRANSFER PUMP PRESSURE -
DIAGNOSIS AND TESTING, FUEL........14-84
TRANSMISSION - 46RE - DESCRIPTION,
AUTOMATIC.........................21-89
TRANSMISSION - 46RE - OPERATION,
AUTOMATIC.........................21-91
TRANSMISSION - 47RE - DESCRIPTION,
AUTOMATIC........................21-261
TRANSMISSION - 47RE - OPERATION,
AUTOMATIC........................21-263
TRANSMISSION - DESCRIPTION,
MANUAL.............................0-5
TRANSMISSION - DIAGNOSIS AND
TESTING, AUTOMATIC...........21-268,21-96
TRANSMISSION - INSTALLATION, SHIFT
BOOT - MANUAL....................23-122
TRANSMISSION - REMOVAL, SHIFT
BOOT - MANUAL....................23-122
TRANSMISSION CLUTCH AND BAND
OPERATION - DIAGNOSIS AND
TESTING, AIR TESTING.........21-100,21-272
TRANSMISSION FILL - STANDARD
PROCEDURE
.................21-160,21-330
TRANSMISSION FLUID - DESCRIPTION,
AUTOMATIC
...........................0-6
TRANSMISSION FLUID - OPERATION,
AUTOMATIC
...........................0-6
TRANSMISSION OIL COOLER -
STANDARD PROCEDURE, FLUSHING
COOLERS AND TUBES - WITH
RADIATOR IN-TANK
...........7-78,7-82,7-84
TRANSMISSION OIL COOLER -
STANDARD PROCEDURE, FLUSHING
COOLERS AND TUBES - WITHOUT
RADIATOR IN-TANK
...........7-79,7-82,7-85
TRANSMISSION, SPECIAL TOOLS - RE
. . 21-146,
21-316
TRANSMISSION, SPECIFICATIONS
......21-144,
21-314
TRANSMISSION TEMPERATURE SENSOR
- DESCRIPTION
...............21-218,21-390
TRANSMISSION TEMPERATURE SENSOR
- OPERATION
.................21-218,21-390
TRANSMISSION THROTTLE VALVE
CABLE - ADJUSTMENTS
........21-210,21-382
TRANSMITTER - DESCRIPTION, REMOTE
KEYLESS ENTRY
......................8N-7
TRANSMITTER - DIAGNOSIS AND
TESTING, REMOTE KEYLESS ENTRY
......8N-8
TRANSMITTER - OPERATION, REMOTE
KEYLESS ENTRY
......................8N-8
32 INDEXBR/BE
Description Group-Page Description Group-Page Description Group-Page
