DISASSEMBLY 7C
76G07C-106
76G07C-107

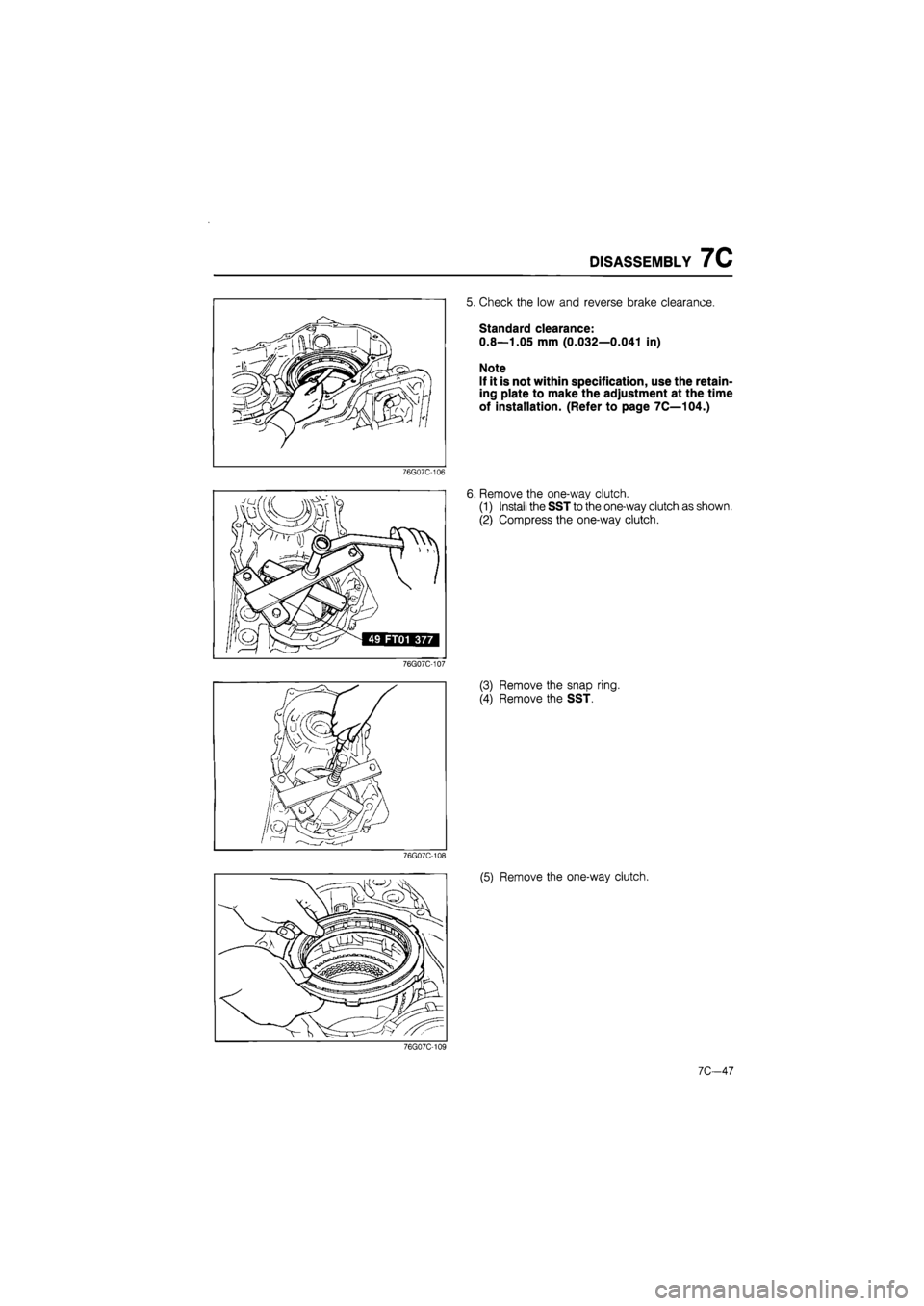

5. Check the low and reverse brake clearance.
Standard clearance:
0.8—1.05 mm (0.032—0.041 in)
Note
If it is not within specification, use the retain-
ing plate to make the adjustment at the time
of installation. (Refer to page 7C—104.)
6. Remove the one-way clutch.
(1) Install the SST to the one-way clutch as shown.
(2) Compress the one-way clutch.
(3) Remove the snap ring.
(4) Remove the SST.
76G07C-108
(5) Remove the one-way clutch.
76G07C-109
7C—47

7C DISASSEMBLY
76G07C-110
76G07C-111
76G07C-112

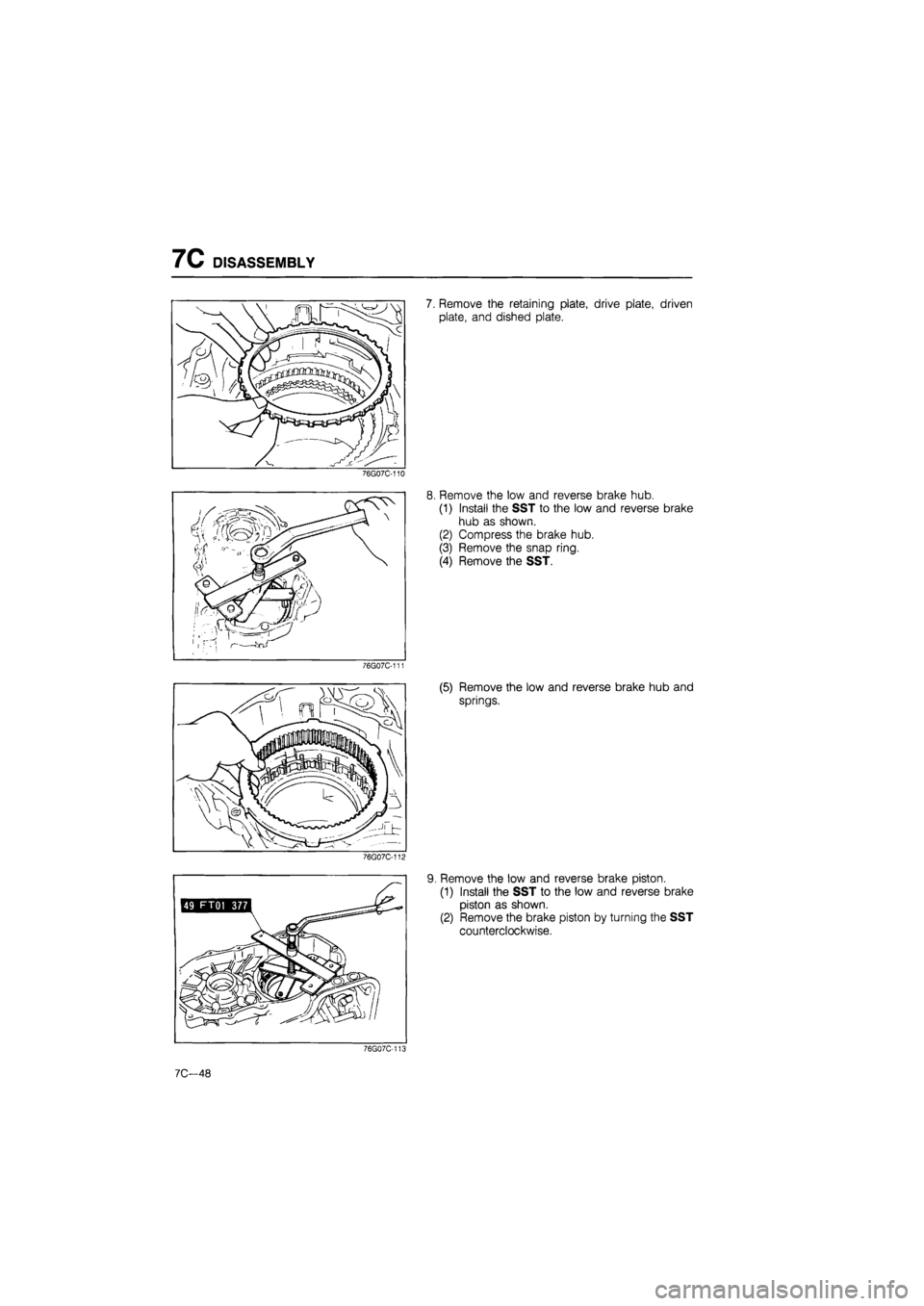

7. Remove the retaining plate, drive plate, driven
plate, and dished plate.
8. Remove the low and reverse brake hub.
(1) Install the SST to the low and reverse brake
hub as shown.
(2) Compress the brake hub.
(3) Remove the snap ring.
(4) Remove the SST.
(5) Remove the low and reverse brake hub and
springs.
9. Remove the low and reverse brake piston.
(1) Install the SST to the low and reverse brake
piston as shown.
(2) Remove the brake piston by turning the SST
counterclockwise.
76G07C-113
7C—48

DISASSEMBLY 7C

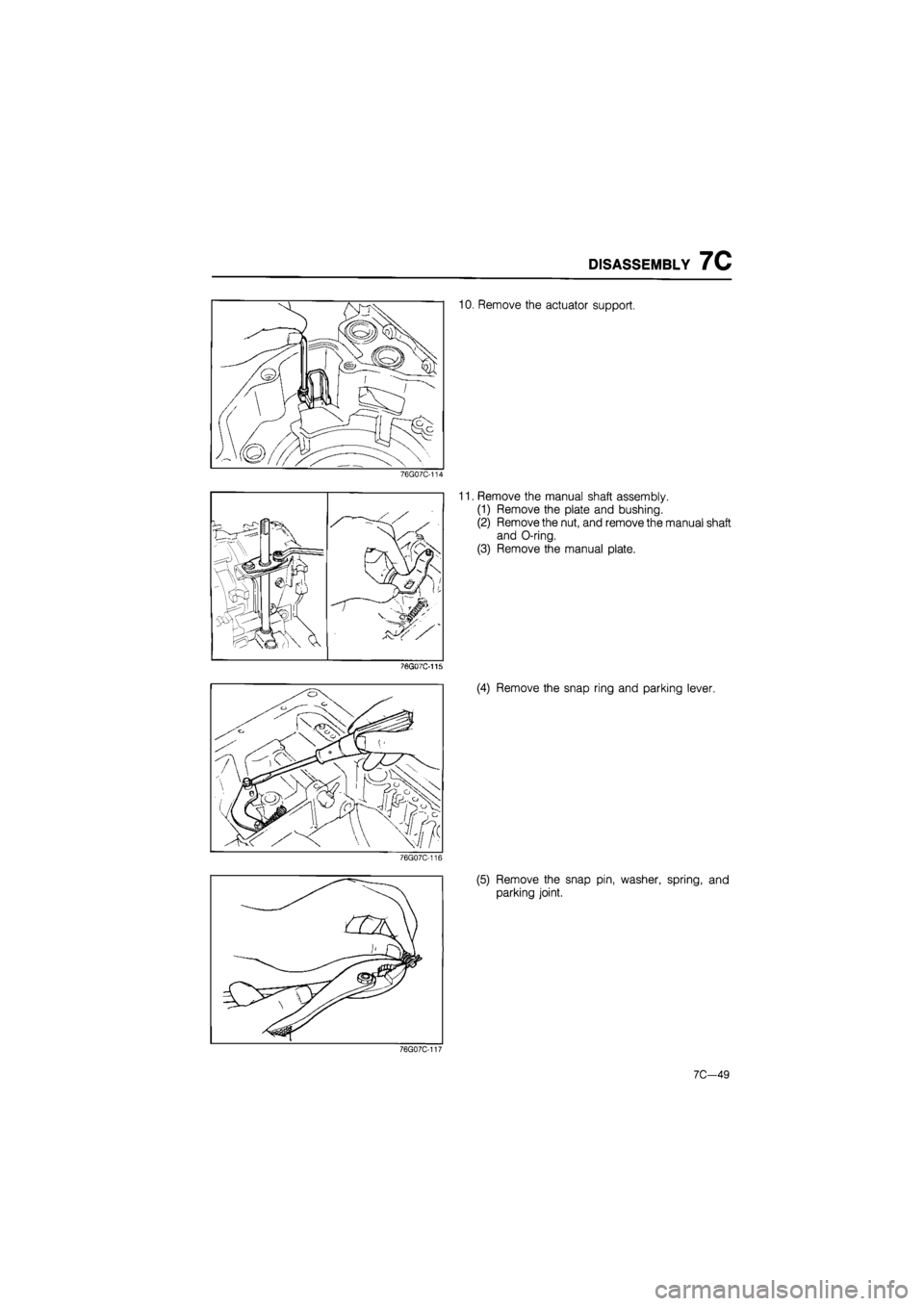

10. Remove the actuator support.
76G07C-114
76GQ7C-115
11. Remove the manual shaft assembly.
(1) Remove the plate and bushing.
(2) Remove the nut, and remove the manual shaft
and O-ring.
(3) Remove the manual plate.
(4) Remove the snap ring and parking lever.
(5) Remove the snap pin, washer, spring, and
parking joint.
76G07C-117
7C-49

7C DISASSEMBLY

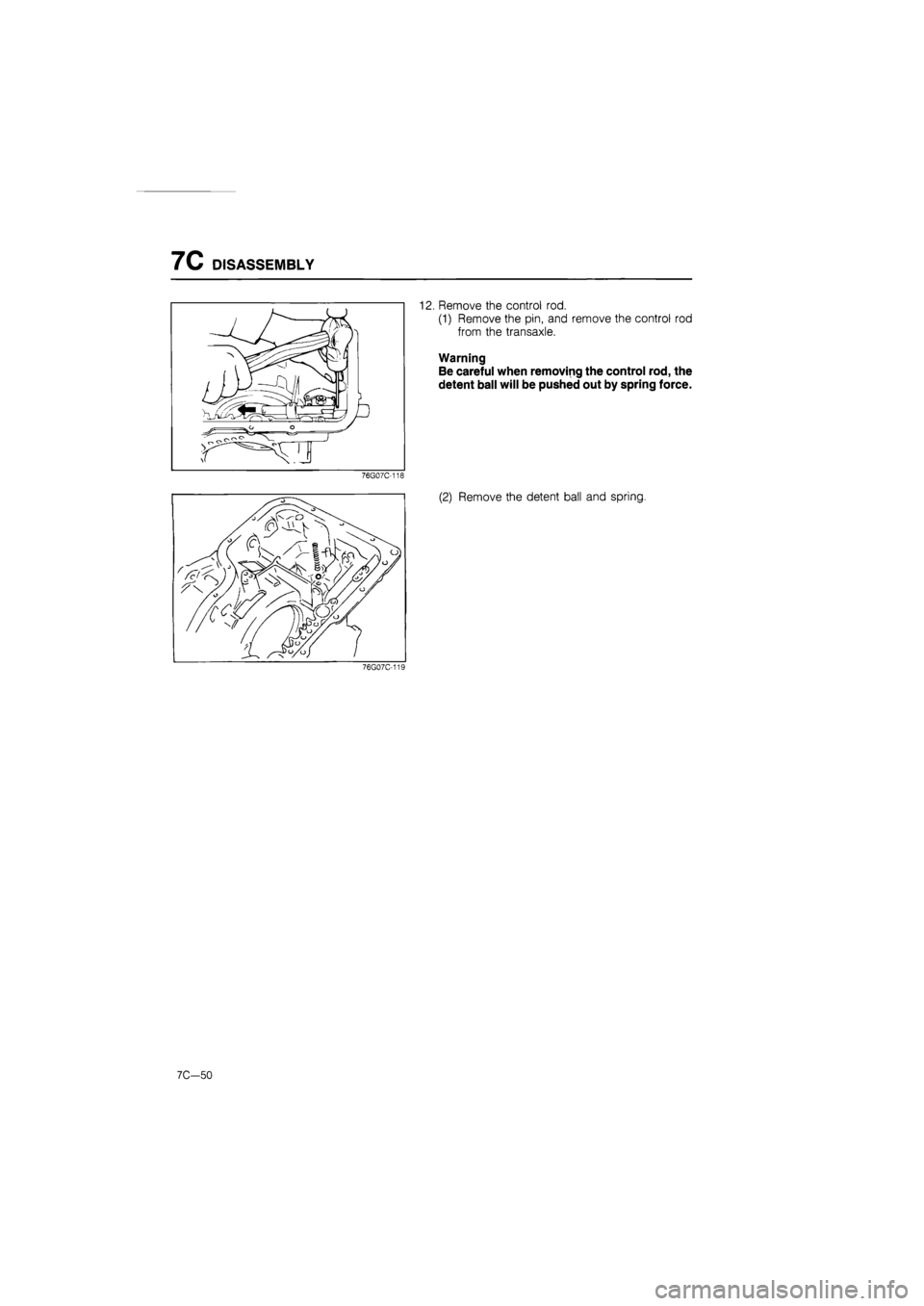

12. Remove the control rod.
(1) Remove the pin, and remove the control rod
from the transaxle.
Warning
Be careful when removing the control rod, the
detent ball will be pushed out by spring force.
(2) Remove the detent ball and spring.
76G07C-119
7C-50

DISASSEMBLY 7C

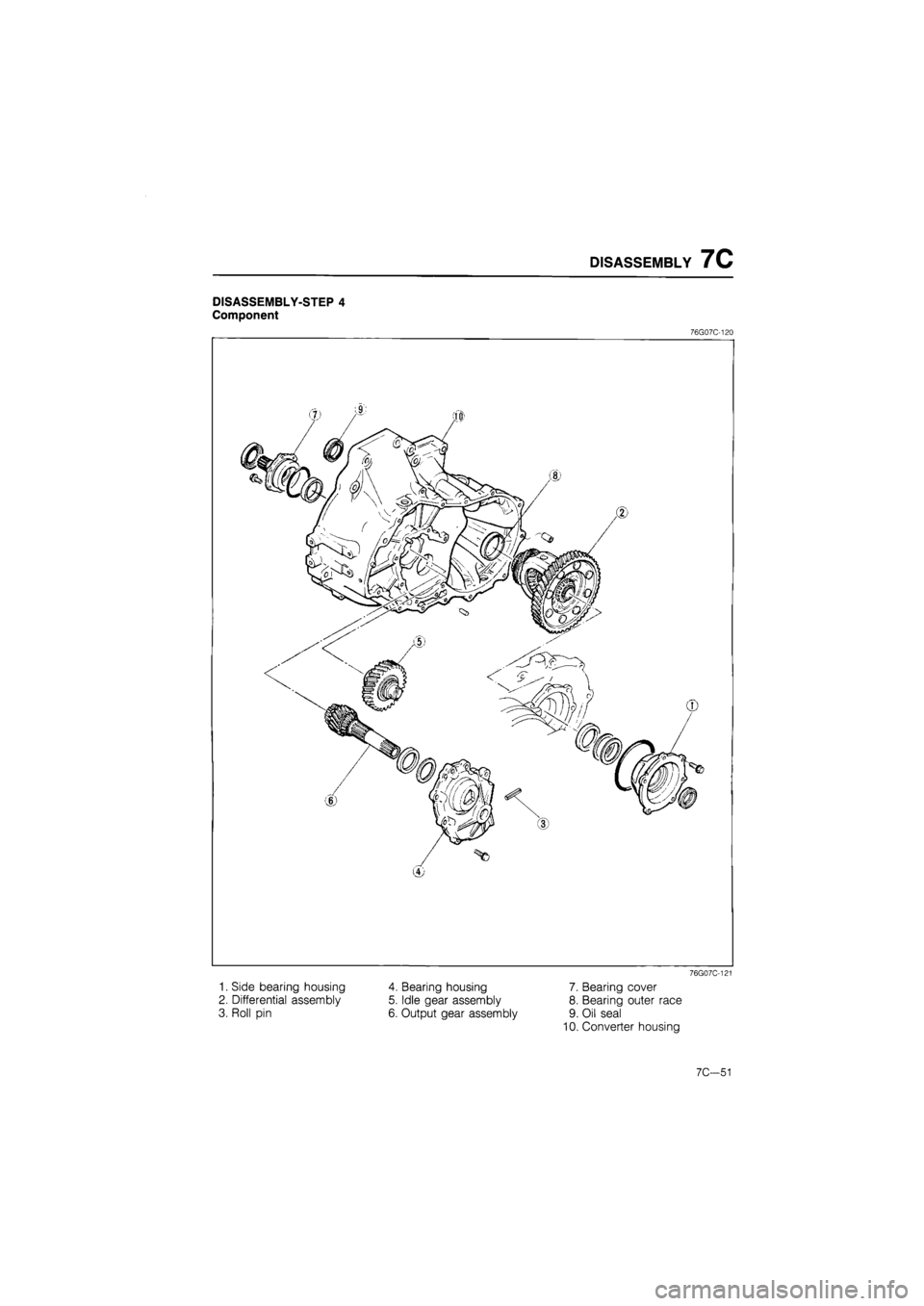

DISASSEMBLY-STEP 4
Component
76G07C-120
76G07C-121
1. Side bearing housing
2. Differential assembly
3. Roll pin
4. Bearing housing
5. Idle gear assembly
6. Output gear assembly
7. Bearing cover
8. Bearing outer race
9. Oil seal
10. Converter housing
7C—51

7C DISASSEMBLY
76G07C-122
76G07C-123
76G07C-124

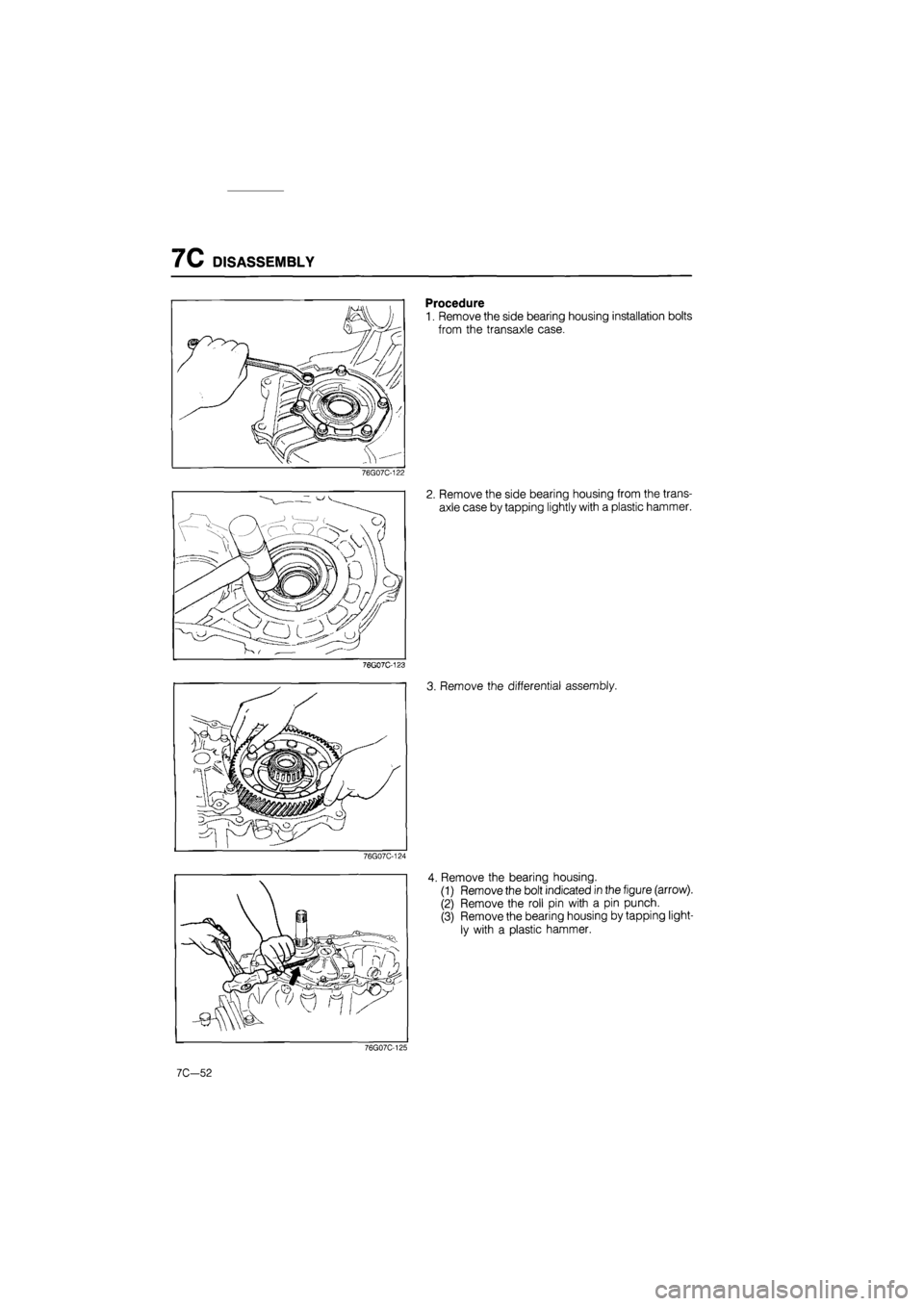

Procedure
1. Remove the side bearing housing installation bolts
from the transaxle case.
2. Remove the side bearing housing from the trans-
axle case by tapping lightly with a plastic hammer.
3. Remove the differential assembly.
4. Remove the bearing housing.
(1) Remove the bolt indicated in the figure (arrow).
(2) Remove the roll pin with a pin punch.
(3) Remove the bearing housing by tapping light-
ly with a plastic hammer.
76G07C-125
7C-52

DISASSEMBLY 7C
76G07C-126
76G07C-127
86U07B-169
-fct
„ 1 / V.
Bearing race
49 FT01 361

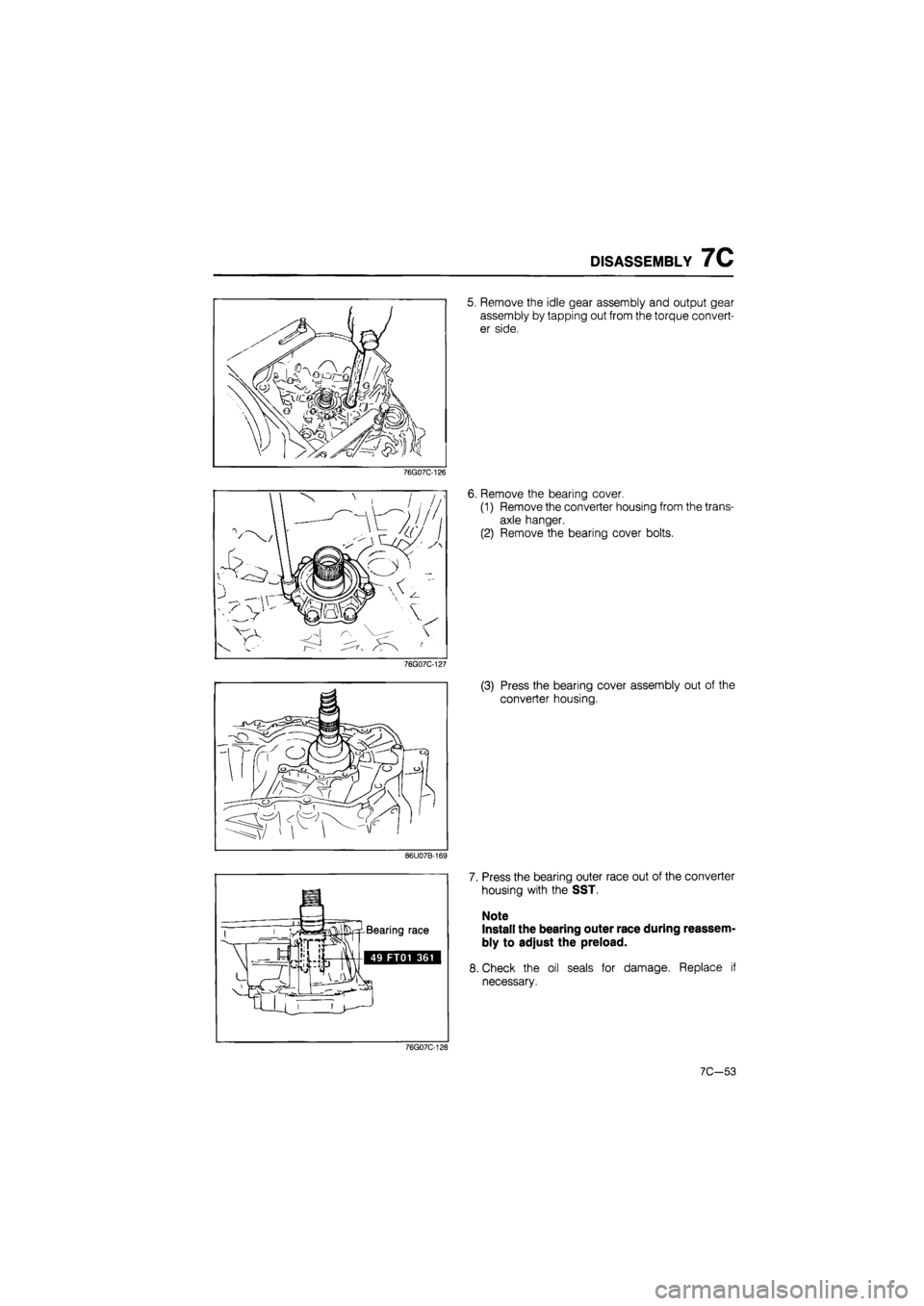

5. Remove the idle gear assembly and output gear
assembly by tapping out from the torque convert-
er side.
6. Remove the bearing cover.
(1) Remove the converter housing from the trans-
axle hanger.
(2) Remove the bearing cover bolts.
(3) Press the bearing cover assembly out of the
converter housing.
7. Press the bearing outer race out of the converter
housing with the SST.
Note
Install the bearing outer race during reassem-
bly to adjust the preload.
8. Check the oil seals for damage. Replace if
necessary.
76G07C-128
7C-53

7C INSPECTION AND REPAIR

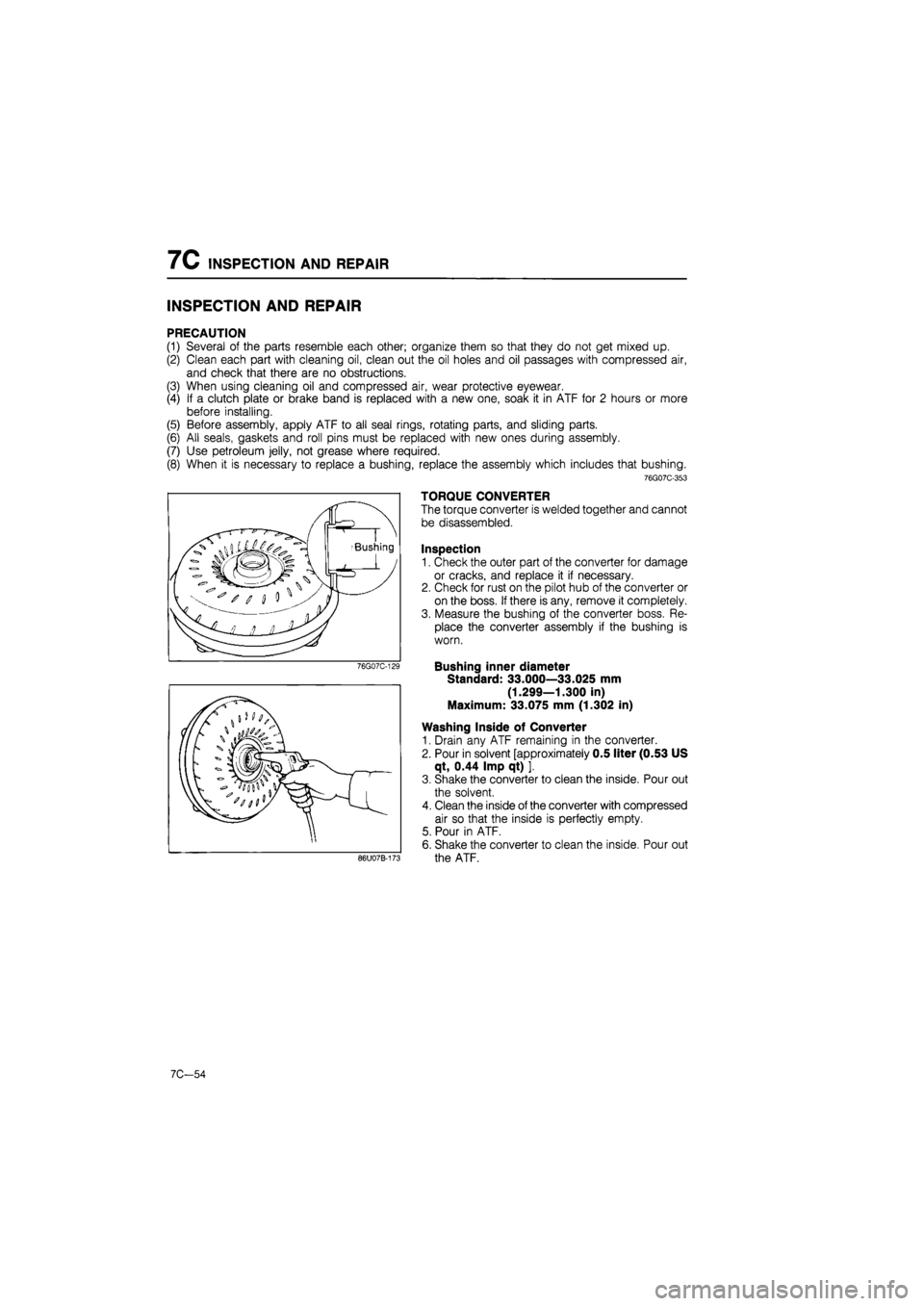

INSPECTION AND REPAIR
PRECAUTION
(1) Several of the parts resemble each other; organize them so that they do not get mixed up.
(2) Clean each part with cleaning oil, clean out the oil holes and oil passages with compressed air,
and check that there are no obstructions.
(3) When using cleaning oil and compressed air, wear protective eyewear.
(4) If a clutch plate or brake band is replaced with a new one, soak it in ATF for 2 hours or more
before installing.
(5) Before assembly, apply ATF to all seal rings, rotating parts, and sliding parts.
(6) All seals, gaskets and roll pins must be replaced with new ones during assembly.
(7) Use petroleum jelly, not grease where required.
(8) When it is necessary to replace a bushing, replace the assembly which includes that bushing.
76G07C-353
TORQUE CONVERTER
The torque converter is welded together and cannot
be disassembled.
Inspection
1. Check the outer part of the converter for damage
or cracks, and replace it if necessary.
2. Check for rust on the pilot hub of the converter or
on the boss. If there is any, remove it completely.
3. Measure the bushing of the converter boss. Re-
place the converter assembly if the bushing is
worn.
Bushing inner diameter
Standard: 33.000—33.025 mm
(1.299—1.300 in)
Maximum: 33.075 mm (1.302 in)
Washing Inside of Converter
1. Drain any ATF remaining in the converter.
2. Pour in solvent [approximately 0.5 liter (0.53 US
qt, 0.44 Imp qt) ].
3. Shake the converter to clean the inside. Pour out
the solvent.
4. Clean the inside of the converter with compressed
air so that the inside is perfectly empty.
5. Pour in ATF.
6. Shake the converter to clean the inside. Pour out
the ATF.
