1987 MAZDA 626 Workshop Manual

4A TROUBLESHOOTING GUIDE
FE and F8 (GENERAL)
The Troubleshooting Guide lists the systems most likely to cause a given symptom. After finding the
system(s) to check, refer to the pages shown for detailed guides for each system.
POSSIBLE CAUSE
\ PAGE
SYMPTOM

Air

cleaner

(Air

cleaner

element)

Intake

air

temperature

control

system

Idle

adjustment

Fuel

system

(Carburetor,

Fuel

pump)

Idle-up

control
system
PTC
heater
system
Positive
crankcase

ventilation

system

Deceleration

control
system
POSSIBLE CAUSE
\ PAGE
SYMPTOM 4A-23 4A—60 4A—38 4A—24 4A—68 4A—42 4A—67 4A—45
1 Hard start or won't start (Cranks OK) 1 2
2 Engine stalls During warm up 5 4 1 6 2 3 2 Engine stalls After warm up 3 2 4 1
3 Rough idle During warm up 5 4 1 6 2 3 3 Rough idle After warm up 3 2 4 1
4 High idle speed after warm up 1 4 2 3
5 Poor acceleration, hesitation, or lack of power 1 4 3 2
6 Runs rough on deceleration 2 1
7 Afterburn in exhaust system 2 1
8 Poor fuel consumption 2 1 3
9 Fails emission test 3 2 4 1
76G04A-018
The numbers of the list show the priorities of inspections from the most possible to that with the lowest
possibility.
These were determined on the following basis:
Ease of inspection Most possible system Most possible point in system
TROUBLESHOOTING PROCEDURE:
1st Check the following items:
Electrical system
1) Battery condition
2) Fuses
Ignition system
1) Spark plugs
2) Ignition timing
Fuel system
1) Fuel level
2) Fuel leakage
3) Fuel filter
4) Idle speed
Intake air system
1) Vacuum or air leakage
2) Vacuum hose routing
3) Accelerator cable
Engine
1) Compression
2) Overheating
Others
1) Clutch slippage
2) Brake dragging
2nd Check the Fuel and Emission Control Systems
4A—20

TROUBLESHOOTING GUIDE 4A
FE (MIDDLE EAST)
The Troubleshooting Guide lists the systems most likely to cause a given symptom. After finding the
system(s) to check, refer to pages shown for detailed guides for each system.
V. POSSIBLE CAUSE
\ PAGE
SYMPTOM

I
Air

cleaner

(Air

cleaner

element)

Intake

air

temperature

control

system

Idle

adjustment

Fuel

system

(Carburetor,

Fuel

pump)

Idle-up

control

system
Dashpot

(Only

MTX)

Positive

crankcase

ventilation

system
Exhaust
system

Evaporative

emission

control

system

Auto-return

choke

system

V. POSSIBLE CAUSE
\ PAGE
SYMPTOM 4A—23 4A-60 4 A—38 4A-24 4A-68 4A-50 4A-67 4A-96 4A-78 4A-40
1 Hard start or won't start
(Cranks OK) 1 2 3
2 Engine stalls During warm up 3 2 1 4 2 Engine stalls After warm up 3 2 4 1
3 Rough idle During warm up 3 2 1 4 3 Rough idle After warm up 3 2 4 1
4 High idle speed after warm up 1 5 3 4 2
5 Poor acceleration, hesitation, or lack of power 1 2 3
6 Runs rough on deceleration 2 1
7 Afterburn in exhaust system 3 1 2
8 Poor fuel consumption 5 1 6 2 3 4
9 Falls emission test 5 4 6 3 1 2
76G04A-019
The numbers of the list show the priorities of inspections from the most possible to that with the lowest
possibility.
These were determined on the following basis:
• Ease of inspection • Most possible system • Most possible point in system
TROUBLESHOOTING PROCEDURE:
1st Check the following items:
Electrical system
1) Battery condition
2) Fuses
Ignition system
1) Spark plugs
2) Ignition timing
Fuel system
1) Fuel level
2) Fuel leakage
3) Fuel filter
4) Idle speed
Intake air system
1) Vacuum or air leakage
2) Vacuum hose routing
3) Accelerator cable
4) Choke cable
Engine
1) Compression
2) Overheating
Others
1) Clutch slippage
2) Brake dragging
2nd Check the Fuel and Emission Control Systems
4 A—21

4A TROUBLESHOOTING GUIDE
FE 8VALVE—UNLEADED FUEL
The Troubleshooting Guide lists the systems most likely to cause a given symptom. After finding the
system(s) to check, refer to the pages shown for detailed guides for each system.
V POSSIBLE CAUSE
\ PAGE
SYMPTOM
Air

cleaner

(Air

cleaner

element)

Idle

adjustment

Fuel

system
(Carburetor,

Fuel

pump)
PTC

heater

system

Air

injection
system

Positive

crankcase

ventilation

system

Deceleration

control
system
Exhaust
gas

recirculation

(EGR)
system

Exhaust

system
Intake
air

temperature

control
system

Idle-up

control

system
Purge

control

system
Auto-return
choke
system
V POSSIBLE CAUSE
\ PAGE
SYMPTOM 4A-23 4A-38 4A-24 4A—42 4A-58 4A—67 4A—45 4A-96 4A-97 4A—60 4A—68 4A--63 4A—40
1 Hard start or won't start
(Cranks OK) 1 2
2 Engine stalls During warm up 6 1 2 5 3 4 2 Engine stalls After warm up 4 2 3 1
3 Rough Idle During warm up 5 1 2 4 3 6 3 Rough Idle After warm up 4 2 3 1
4 High idle speed after warm up 1 5 4 3 2
5 Poor acceleration, hesitation, or lack of power 1 2 5 3 4
6 Runs rough on deceleratio 2 1
7 Afterburn in exhaust system 2 1
8 Poor fuel consumption 4 1 2 3 5
9 Fails emission test 5 1 6 4 3 2
76G04A-020
The numbers of the list show the priorities of inspections from the most possible to that with the lowest
possibility.
These were determined on the following basis:
• Ease of inspection • Most possible system • Most possible point in system
TROUBLESHOOTING PROCEDURE:
1st Check the following items:
Electrical system
1) Battery condition
2) Fuses
Intake air system
1) Vacuum or air leakage
2) Vacuum hose routing
3) Accelerator cable
4) Choke cable
2nd Check the Fuel and Emission Control Systems
Ignition system
1) Spark plugs
2) Ignition timing
Engine
1) Compression
2) Overheating
Fuel system
1) Fuel level
2) Fuel leakage
3) Fuel filter
4) Idle speed
Others
1) Clutch slippage
2) Brake dragging
4A-22

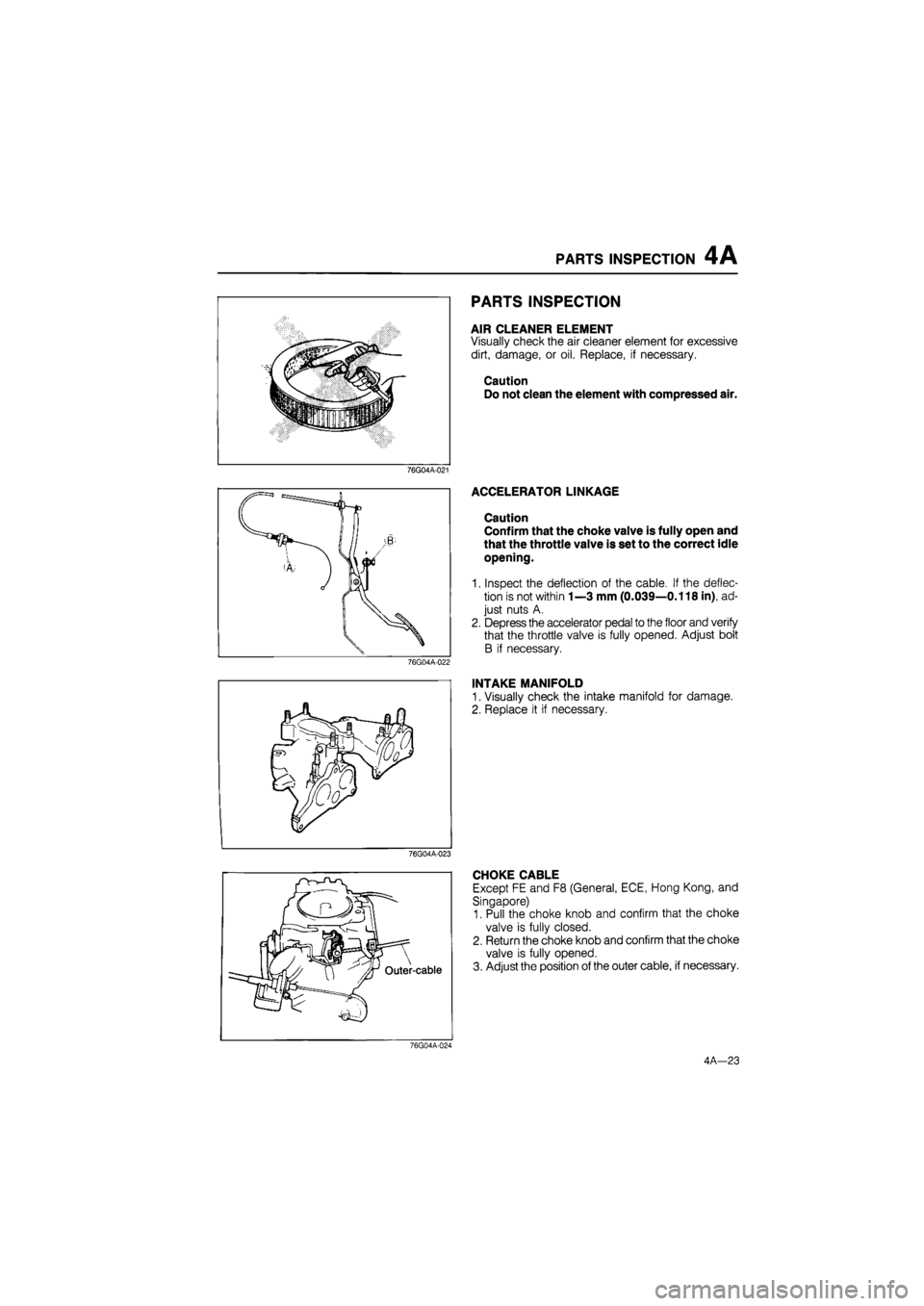

PARTS INSPECTION 4A
PARTS INSPECTION
AIR CLEANER ELEMENT
Visually check the air cleaner element for excessive
dirt, damage, or oil. Replace, if necessary.
Caution
Do not clean the element with compressed air.
76G04A-021
76G04A-022
76G04A-023
ACCELERATOR LINKAGE
Caution
Confirm that the choke valve is fully open and
that the throttle valve is set to the correct idle
opening.
1. Inspect the deflection of the cable. If the deflec-
tion is not within 1—3 mm (0.039—0.118 in), ad-
just nuts A.
2. Depress the accelerator pedal to the floor and verify
that the throttle valve is fully opened. Adjust bolt
B if necessary.
INTAKE MANIFOLD
1. Visually check the intake manifold for damage.
2. Replace it if necessary.
CHOKE CABLE
Except FE and F8 (General, ECE, Hong Kong, and
Singapore)
1. Pull the choke knob and confirm that the choke
valve is fully closed.
2. Return the choke knob and confirm that the choke
valve is fully opened.
3. Adjust the position of the outer cable, if necessary.
76G04A-024
4A-23

4A FUEL SYSTEM
FUEL SYSTEM
This system consists of the fuel pump, fuel filters, and carburetor, and supplies the necessary fuel for
operation of the engine.
76G04A-025
4A—24

FUEL SYSTEM 4A
TROUBLESHOOTING
POSSIBLE CAUSE
\ PAGE Carburetor Fuel pump Separator
Two-way check valve (Except Middle East) Three-way check valve (Middle East)
SYMPTOM 4A—26 4A—35 4A—37 4A—37
1 Hard start or won't start (Cranks OK) 2 1
2 Engine stalls During warm up 2 1 2 Engine stalls After warm up 2 1
3 Rough idle During warm up 2 1 3 Rough idle After warm up 2 1
4 High idle speed after warm up 1
5 Poor acceleration, hesitation, or lack of power 2 1
6 Runs rough on deceleration 1
7 Afterburn in exhaust system 1
8 Poor fuel consumption 1 2 3
9 Fails emission test 1
76G04A-026
4A-25

4A FUEL SYSTEM
CARBURETOR
Removal
Remove in the sequence shown in the figure.
1. Secondary air hoses (If equipped) and air
cleaner
2. Water hoses
3. Fuel hose
4. Vacuum hoses
76G04A-027
5. Accelerator cable
6. Connector
7. Carburetor
8. PTC heater (If equipped)
9. Gasket (If equipped)
Installation
Install the reverse order of removal, referring following points.
1. Check for fuel leaks.
2. Check the vacuum hose installation.
3. Check the idle speed and idle mixture (Refer to page 4A—38).
4. Warm up the engine to the normal operating temperature and check that fuel level is at the center
of the float level indicator window.
4A—26
