1987 MAZDA 626 Workshop Manual

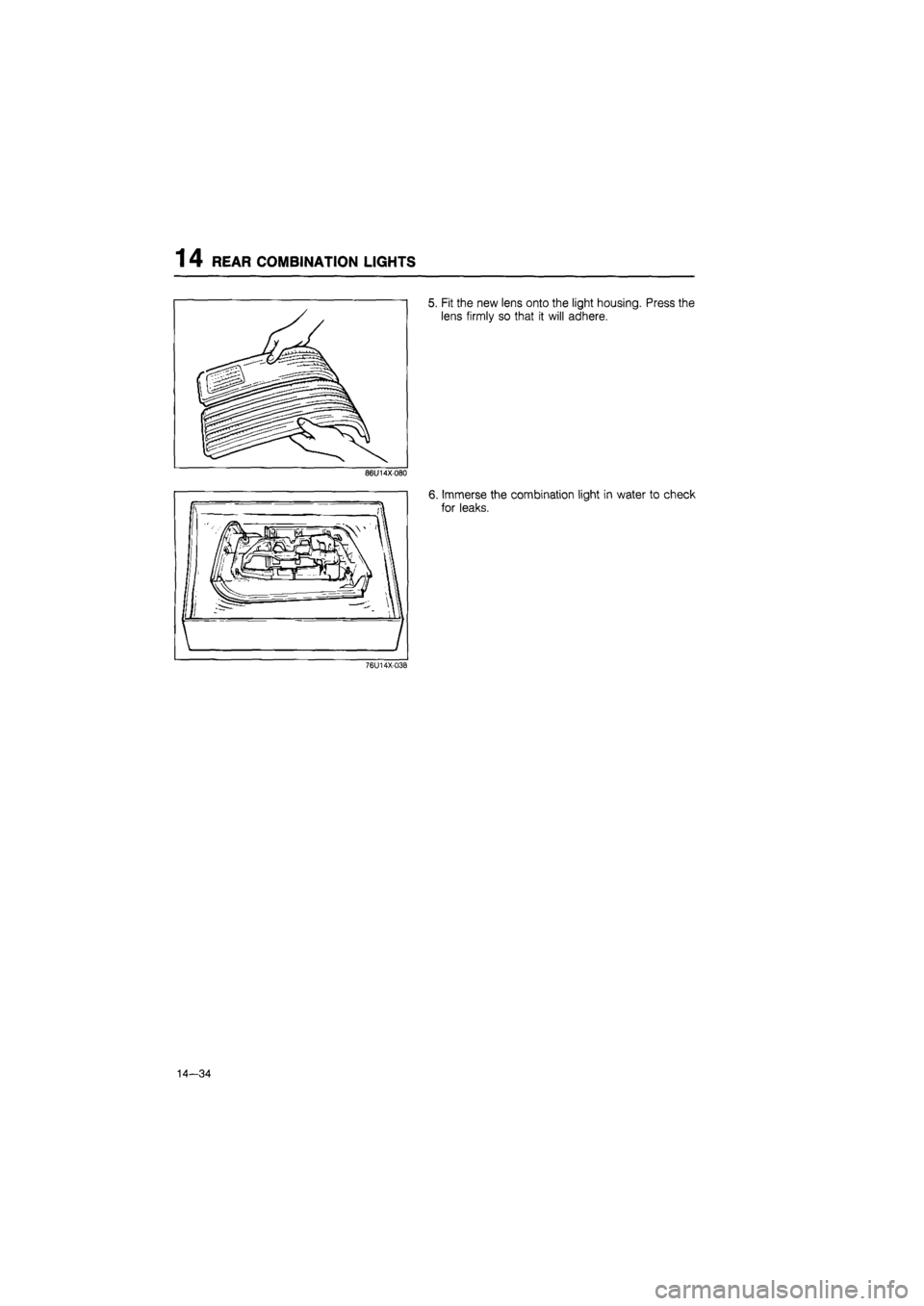

1 4 REAR COMBINATION LIGHTS
5. Fit the new lens onto the light housing. Press the
lens firmly so that it will adhere.
86U14X080
6. Immerse the combination light in water to check
for leaks.
76U14X-038
14—34

LICENSE PLATE
LIGHT
AND CORGO ROOM LIGHT
1
4
LICENSE PLATE LIGHT AND CORGO ROOM LIGHT
REMOVAL AND INSTALLATION
1. Disconnect the negative battery cable.
2. Remove in the sequence shown in the figure.
3. Install in the reverse order of removal.
76G14X-011
Sedan and Coupe/MX-6
License plate light
1. Screws
2. Lens
3. Bulb 5W x 2
Back up light
4. End trim
5. Bulb 21W
6. Nuts
7. Rear finisher
Hatchback
Corgo room light
1. Lens
2. Switch and bulb assembly 5W
License plate light
3. Side trim
4. Lower trim
5. End trim
6. Screws
7. Lens
8. Bulb 5W x 2
9. Rear finisher
14-35

1 4 INTERIOR
LIGHT AND
MAP LIGHT
INTERIOR LIGHT AND MAP LIGHT
REMOVAL AND INSTALLATION
1. Disconnect the negative battery cable.
2. Remove in the sequence shown in the figure.
3. Install in the reverse order of removal.
Map light
86U14X-082
Interior Light Map Light
1. Lens 1. Lens
2. Bulb 10W 2. Bulb 8W
14-36

MOLDING AND GARNISH 1 4
MOLDING AND GARNISH
STRUCTURAL VIEW
Coupe/MX-6
Sedan
76G14X-012
1. Windshield molding 6. Rear window lower molding 11. Rear window upper
2. Windshield lower molding 7. Rear window side molding molding
3. Drip molding 8. Bonnet molding 12. Center pillar garnish
4. Beltline molding 9. Front lower molding 13. Rear finisher
5. Quarter window molding 10. Trunk lid molding 14. Sail garnish
14—37

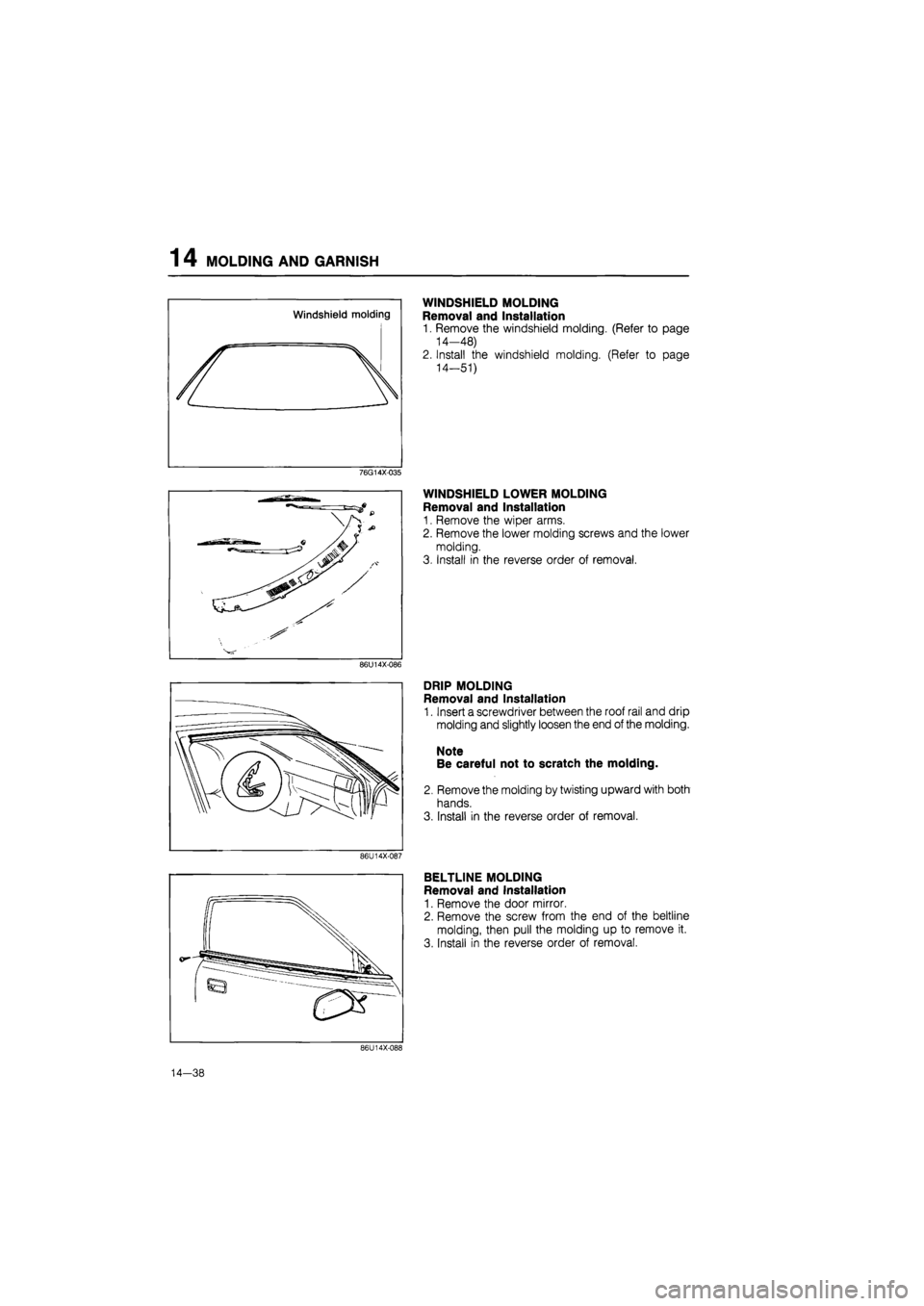

1 4 MOLDING AND GARNISH
WINDSHIELD MOLDING
Removal and Installation
1. Remove the windshield molding. (Refer to page
14-48)
2. Install the windshield molding. (Refer to page
14-51)
76G14X035
WINDSHIELD LOWER MOLDING
Removal and Installation
1. Remove the wiper arms.
2. Remove the lower molding screws and the lower
molding.
3. Install in the reverse order of removal.
86U14X-086
DRIP MOLDING
Removal and Installation
1. Insert a screwdriver between the roof rail and drip
molding and slightly loosen the end of the molding.
Note
Be careful not to scratch the molding.
2. Remove the molding by twisting upward with both
hands.
3. Install in the reverse order of removal.
86U14X-087
BELTLINE MOLDING
Removal and Installation
1. Remove the door mirror.
2. Remove the screw from the end of the beltline
molding, then pull the molding up to remove it.
3. Install in the reverse order of removal.
86U14X-088
14-38

MOLDING AND GARNISH 14
REAR WINDOW SIDE MOLDING (SEDAN)
Removal and Installation
1. Remove the rear side seatback bolt, then the rear
side seatback.
2. Remove the rear pillar trim.
3. Remove the window side molding nuts, then the
window side molding.
4. Install in the reverse order of removal.
86U14X-089
Vi
REAR WINDOW LOWER MOLDING
(SEDAN AND COUPE/MX-6)
Removal and Installation
1. Remove the rear window lower molding screws,
then the rear window lower molding.
2. Install in the reverse order of removal.
76G14X-013
REAR WINDOW UPPER MOLDING
(SEDAN, HATCHBACK AND COUPE/MX-6)
Removal and Installation
1. Remove the rear window side molding. (Refer to
page 14—54)
2. Remove the rear window upper molding.
3. Install in the reverse order of removal.
76G14X-014
BONNET MOLDING
(SEDAN AND HATCHBACK)
Removal and Installation
1. Remove the bonnet molding screws, then the bon-
net molding.
2. Install in the reverse order of removal.
76G14X-015
14-39

14 MOLDING AND GARNISH
QUARTER WINDOW MOLDING (COUPE/MX-6)
Removal and Installation
1. Remove the seat belts.
2. Remove the rear header screw.
3. Remove the screws and the quarter trim.
4. Remove the screws and the center pillar trim.
5. Remove the quarter window molding mounting in-
stallation nuts.
6. Remove the screws and the quarter window
molding.
7. Install in the reverse order of removal.
76G14X-016
QUARTER WINDOW MOLDING
(HATCHBACK)
Removal and Installation
1. Remove the rear header screw.
2. Remove the bolt and the rear side seatback.
3. Remove the screws and the package side shelf.
4. Remove the screws and the rear pillar trim.
5. Remove the nuts and the quarter window molding.
6. Install in the reverse order of removal.
76G14X-017
QUARTER WINDOW MOLDING (SEDAN)
Removal and Installation
1. Remove the rear header screw.
2. Remove the bolt and the rear side seatback.
3. Remove the quarter trim.
4. Remove the nuts and the quarter window molding.
5. Install in the reverse order of removal.
86U14X-095
REAR WINDOW SIDE MOLDING (COUPE/MX-6)
Removal and Installation
1. Remove the seat belts.
2. Remove the rear header screw.
3. Remove the screws and the quarter side trim.
4. Remove the screws and the center pillar trim.
5. Remove the nuts and the rear window side
molding.
6. Install in the reverse order of removal.
76G14X-018
14-40

MOLDING AND GARNISH 1 4
TRUNK LID MOLDING
(SEDAN AND HATCHBACK)
Removal and Installation
1. Remove the rear finisher.
2. Remove the nuts and screws and remove the trunk
lid molding.
3. Install in the reverse order of removal.
CENTER PILLAR GARNISH
(SEDAN AND HATCHBACK)
Removal and Installation
1. Remove the seat belts.
2. Remove the front header trim.
3. Remove the center pillar trim.
4. Remove the nuts with a deep socket wrench, then
remove the garnish.
5. Install in the reverse order of removal.
76G14X020
REAR FINISHER (COUPE/MX-6 AND SEDAN)
Removal and Installation
1. Remove the nuts and the rear finisher.
2. Install in the reverse order of removal.
76G14X-021
REAR FINISHER (HATCHBACK)
Removal and Installation
1. Remove the hatchback door side trims.
2. Remove the hatchback door lower trim.
3. Remove the hatchback door screen.
4. Remove the nuts and the rear finisher.
5. Install in the reverse order of removal.
76G14X-022
