1987 MAZDA 626 Workshop Manual

FUEL SYSTEM 4B
3. Install the injectors and the injector insulators.
86U04A-109
Delivery Pipe
1. Remove the pulsation damper and pressure regu-
lator from the delivery pipe.
2. Remove the injectors (Refer to page 4B—58).
76G04B-081
Replace the delivery pipe.
Install in the reverse order of removal, referring to
installation note.
Tightening torque:
Pressure regulator
8—11 Nm (0.8—1.1 m-kg, 69—95 in-lb)
Delivery pipe
19—25
N
m (1.9—2.6 m-kg, 14—19 ft-lb)
76G04B-082
Installation note
Injector
Refer to page 4B—58.
4B—59

4B FUEL SYSTEM
Pressure Regulator
1. Disconnect the vacuum hose and fuel return hose.
2. Remove the pressure regulator.
3. Install in the reverse order of removal.
Tightening torque:
8—11 N-m (0.8—1.1 m-kg, 69—95 in-lb)
76G04B-084
Pulsation Damper
1. Loosen the pulsation damper and remove it.
2. Install in the reverse order of removal.
76G04B-085
^-Fuel hose
ML*? ^-Fuel pump
^silntank filter
ti* e
76G04B-086
h
tS

Is o
Sjfbj
Fuel Filter
Low pressure side
Refer to page 4B—57.
86U04A-116
High pressure side
The fuel filter must be replaced at the intervals out-
lined in the maintenance schedule.
Warning
Always work away from sparks or open
flames.
1. Disconnect the fuel hoses from the fuel filter.
2. Remove the fuel filter and the bracket.
3. Install a new filter and the bracket.
4. Connect the fuel hoses.
Note
When installing the filter, push the fuel hoses
fully onto the fuel filter and secure the hoses
with spring clamps.
4B-60

FUEL SYSTEM 4B
FUEL TANK
Removal
Caution
a) Before performing the following procedure, release the fuel pressure from the fuel sys-
tem to reduce the possibility of injury or fire. (Refer to page 4B—45)
b) When removing the fuel tank, keep sparks, cigarettes, and open flames away from the
fuel tank.
Remove in the sequence shown in the figure.
76G04B-087
Note
Drain the fuel from the fuel tank before removing the tank.
1. Fuel pump connectors 5. Breather hose
2. Fuel hoses 6. Fuel tank strap
3. Evaporative hoses 7. Fuel tank
4. Fuel filler hose
4B—61

4B FUEL SYSTEM
Inspection
1. Check the fuel tank for cracks and corrosion.
2. If any defect is found, repair or replace the tank.
Warning
Before repairing, clean the fuel tank thorough-
ly with steam to sufficiently remove all explo-
sive gas.
86U04A-118
Installation
Install in the reverse order of removal, referring to the installation note.
Torque Specifications
22—30 N-m (2.2—3.1 m-kg, 16—22 ft-lb)
4B—62
86U04A-119

FUEL SYSTEM 4B
Fuel filler hose: Push in at least 35 mm (1.4 in)
Others: At least 25 mm (1.0 in)
Installation note
1. Push the hose ends of the main fuel hose, fuel re-
turn hose and evaporation hoses onto the fuel tank
fittings at least 25 mm (1.0 in).
2. Push the fuel filler hose ends onto the fuel tank pipe
and filler pipe at least 35 mm (1.4 in).
86u04a-120
4B-63

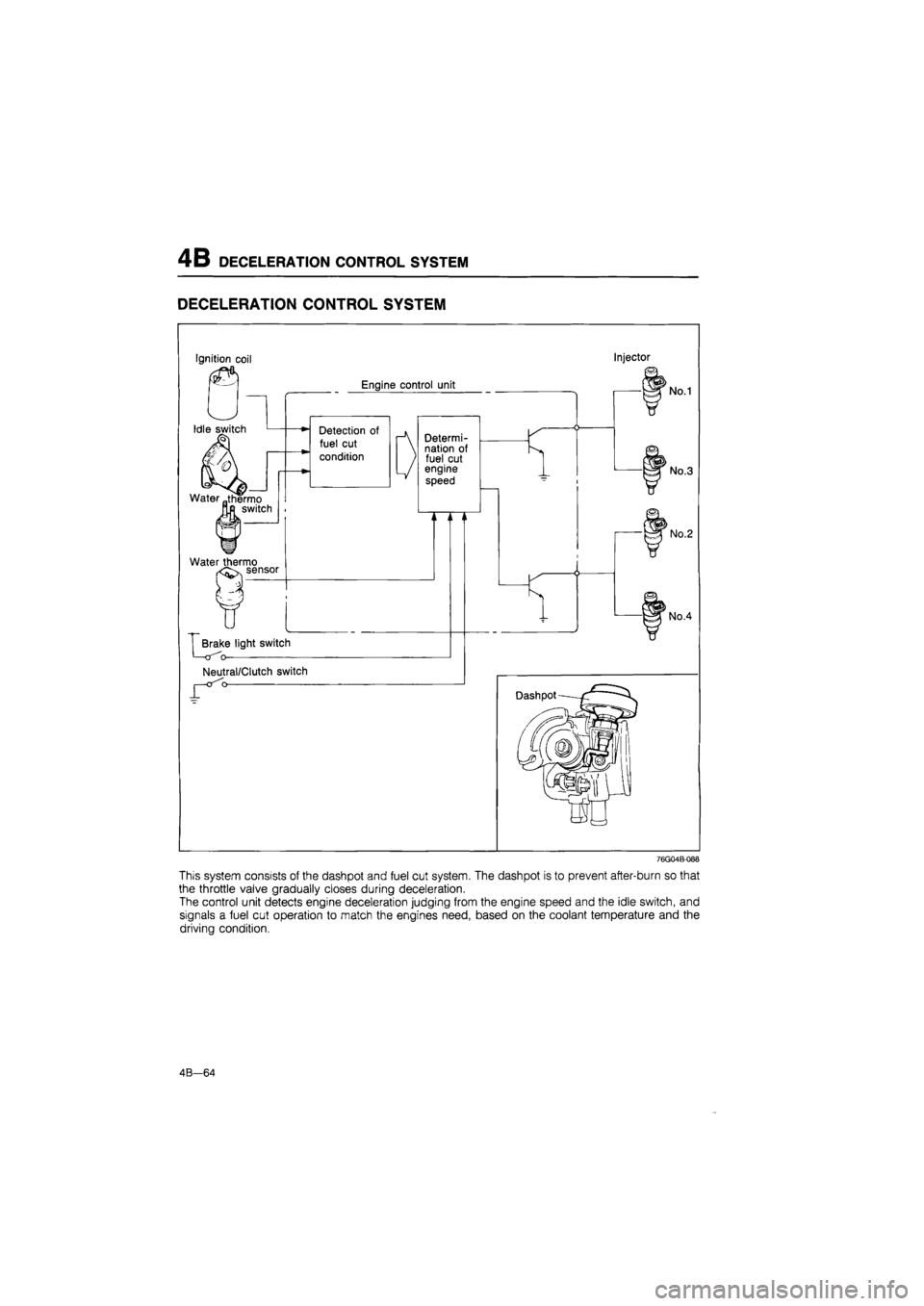

4B DECELERATION CONTROL SYSTEM
DECELERATION CONTROL SYSTEM
This system consists of the dashpot and fuel cut system. The dashpot is to prevent after-burn so that
the throttle valve gradually closes during deceleration.
The control unit detects engine deceleration judging from the engine speed and the idle switch, and
signals a fuel cut operation to match the engines need, based on the coolant temperature and the
driving condition.
4B—64

DECELERATION CONTROL SYSTEM 4B
COMPONENT DESCRIPTIONS
Component Function Remarks
Brake light switch Detects braking operation (deceleration);
sends signal to engine control unit
Clutch switch Detects in-gear condition;
sends signal to engine control unit Switch ON when clutch pedal released
Dashpot (MTX) Prevents sudden closing of throttle valve during deceleration or shifting Adjustment speed: 1,900—2,100 rpm
Engine control unit Detects signals from input sensors and switches; cuts fuel injection
Idle switch Detects when throttle valve fully closed; sends signal to engine control unit Installed in throttle sensor
Ignition coil (-) terminal Detects engine speed; sends signal to engine control unit
Neutral switch Detects in-gear condition; sends signal to engine control unit Switch ON when in-gear
Water thermo sensor Detects coolant temperature; sends signal to engine control unit
Water thermo switch Detects radiator coolant temperature; sends signal to engine control unit ON: above 17°C (63°F)
76G04B-089
4B—65

4B DECELERATION CONTROL SYSTEM
TROUBLESHOOTING
Check the condition of the wiring harness and connectors before checking the sensor or switches below.
Note
Make the system inspection first. If no problem is found, continue with the next system
inspection of the Troubleshooting Guide. (Refer to page 4B—7 and 8.)
Possible
^^ cause
Symptom
Dashpot Water thermo
sensor
Electrical signal
inspection
(Injector)
Possible
^^ cause
Symptom 4B—67 4B—97 4B-66
High idle speed after warming up 1
Runs rough on deceleration 1 3 2
Afterburn in exhaust system 1 3 2
Poor fuel consumption 1 3 2
Fails emission test 1 3 2
76G04B-090
Electrical Signal Inspection (Injector)
1. Connect the SST between the wiring harness and
engine control unit.
2. Set 3C or 3E position on the SST.
Note
3C — For No. 2 and No. 4 injectors
3E — For No. 1 and No. 3 injectors
76G04B-091
0-6V 0-20V
3. Check that the indicator lamps alternately flash at
idle.
86U04A-125
4B—66
