1987 MAZDA 626 Workshop Manual

INSPECTION AND REPAIR 7B

P
0©
1(9
© © Q
86U07B-282
86U07B-283
86U07B-284
6. Install the N-R accumulator gasket and plate; then
tighten the plate.
Tightening torque:
6—8
N
m (66—80 cm-kg, 57—69 in-lb)
7. Apply ATF to the O-rings, and install them onto the
piston; then install the 1-2 accumulator piston and
1-2 accumulator springs.
8. Install the 1-2 accumulator gasket and plate; then
tighten the plate.
Tightening torque:
6—8 N-m (66—80 cm-kg, 57—69 in-lb)
9. Install the bypass spring, bypass valve, stopper
plug, and stopper pin.
10. Install the servo control spring, servo control valve,
stopper plug, and stopper pin.
11. Install the 2-3 timing valve, 2-3 timing spring, and
retainer.
86U07B-285
7B—143

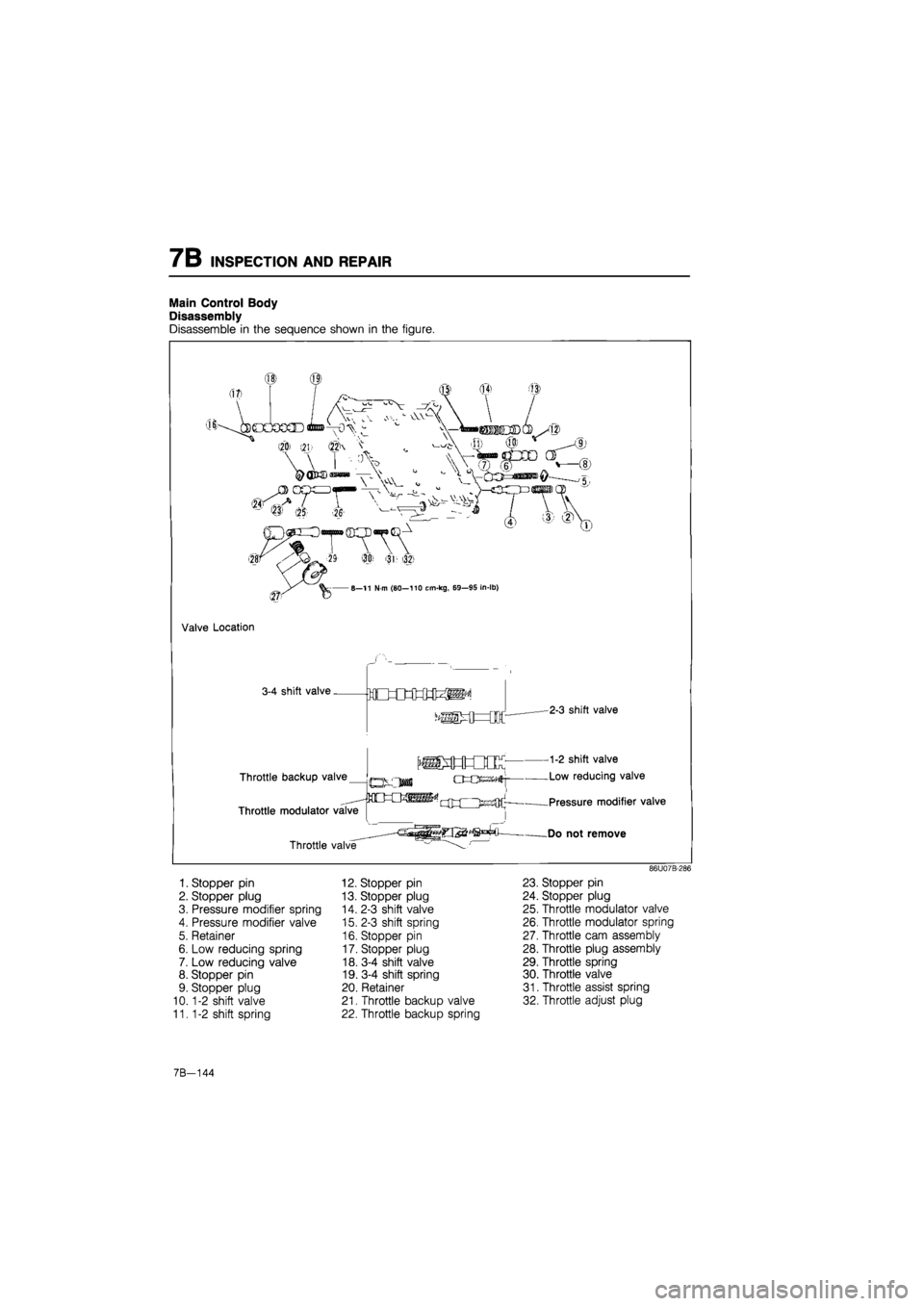

7B INSPECTION AND REPAIR
Main Control Body
Disassembly
Disassemble in the sequence shown in the figure.

AS
(!_'
" ^
—r
C. \
n$
i \ AW^-^

iji)
® (j^®
Qt^ ti # '3D (32)
8—11 N m (80—110 cm-kg, 69—95 In-lb)
Valve Location
3-4 shift valve. EtOfflHHKW
ifflMJ=DDC
Throttle backup valve
Throttle modulator valve
Throttle valve'
G^jm
OrQKS&Mfrr

-2-3 shift valve
-1-2 shift valve
-Low reducing valve
-Pressure modifier valve
.Do not remove
86U07B-286
1. Stopper pin
2. Stopper plug
3. Pressure modifier spring
4. Pressure modifier valve
5. Retainer
6. Low reducing spring
7. Low reducing valve
8. Stopper pin
9. Stopper plug
10.1-2 shift valve
11.1-2 shift spring
12. Stopper pin 23. Stopper
13. Stopper plug 24. Stopper
14. 2-3 shift valve 25. Throttle
15. 2-3 shift spring 26. Throttle
16. Stopper pin 27. Throttle
17. Stopper plug 28. Throttle
18. 3-4 shift valve 29. Throttle
19. 3-4 shift spring 30. Throttle
20. Retainer 31. Throttle
21. Throttle backup valve 32. Throttle
22. Throttle backup spring
pin
plug
modulator valve
modulator spring
cam assembly
plug assembly
spring
valve
assist spring
adjust plug
7B—144

INSPECTION AND REPAIR 7B

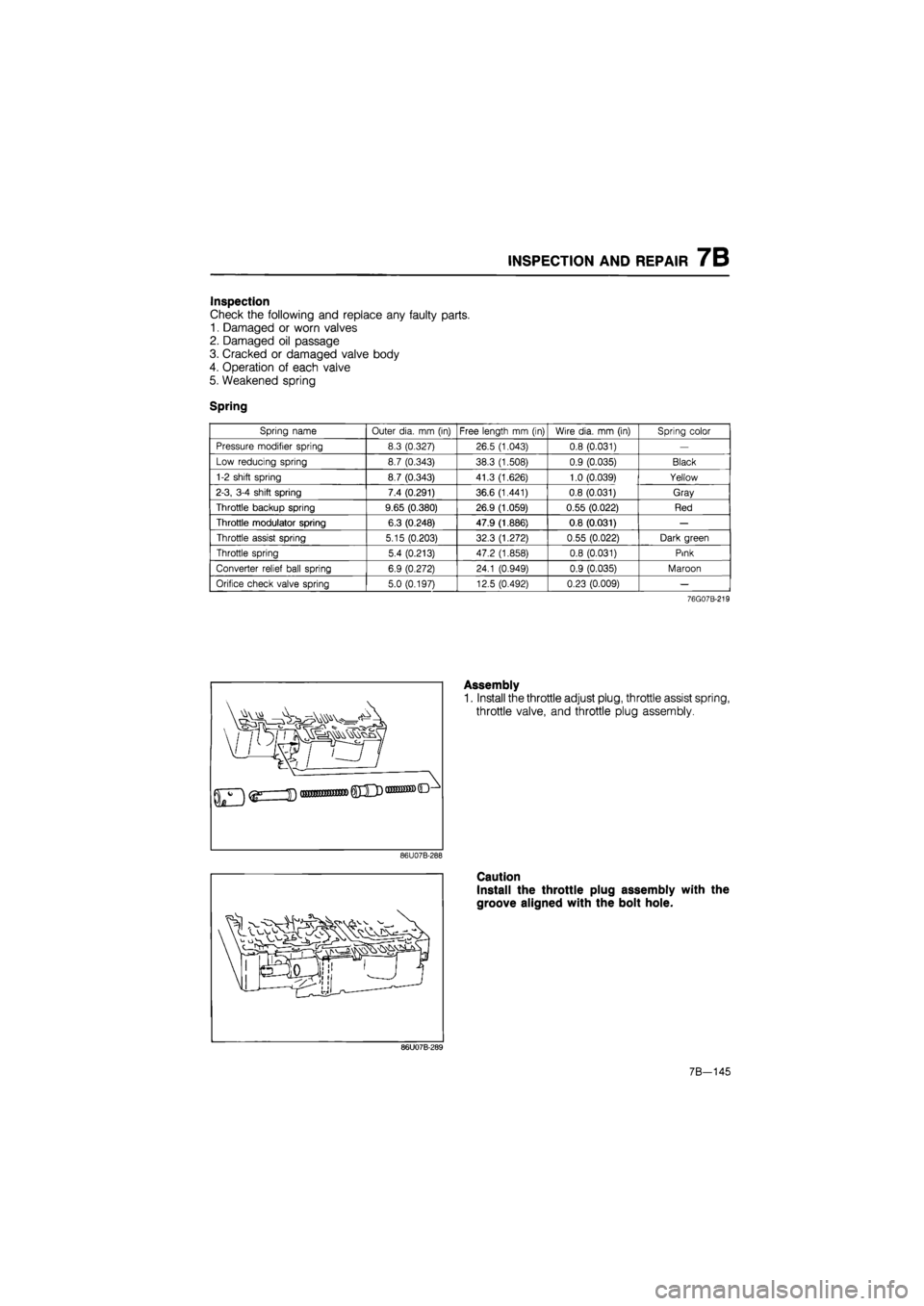

Inspection
Check the following and replace any faulty parts.
1. Damaged or worn valves
2. Damaged oil passage
3. Cracked or damaged valve body
4. Operation of each valve
5. Weakened spring
Spring

Spring name Outer dia.
mm
(in) Free length
mm (in)
Wire dia.
mm
(in) Spring color
Pressure modifier spring 8.3 (0.327) 26.5 (1.043) 0.8 (0.031)
—

Low reducing spring 8.7 (0.343) 38.3 (1.508) 0.9 (0.035) Black
1-2 shift spring 8.7 (0.343) 41.3 (1.626) 1.0 (0.039) Yellow
2-3, 3-4 shift spring 7.4 (0.291) 36.6 (1.441) 0.8 (0.031) Gray
Throttle backup spring 9.65 (0.380) 26.9 (1.059) 0.55 (0.022) Red
Throttle modulator spring 6.3 (0.248) 47.9 (1.886) 0.8 (0.031)
—

Throttle assist spring 5.15 (0.203) 32.3 (1.272) 0.55 (0.022) Dark green
Throttle spring 5.4 (0.213) 47.2 (1.858) 0.8 (0.031) Pink
Converter relief ball spring 6.9 (0.272) 24.1 (0.949) 0.9 (0.035) Maroon
Orifice check valve spring 5.0 (0.197) 12.5 (0.492) 0.23 (0.009)
—
76G07B-219
]
Assembly
1. Install the throttle adjust plug, throttle assist spring,
throttle valve, and throttle plug assembly.
86U07B-288
Caution
Install the throttle plug assembly with the
groove aligned with the bolt hole.
86U07B-289
7B-145

7B INSPECTION AND REPAIR

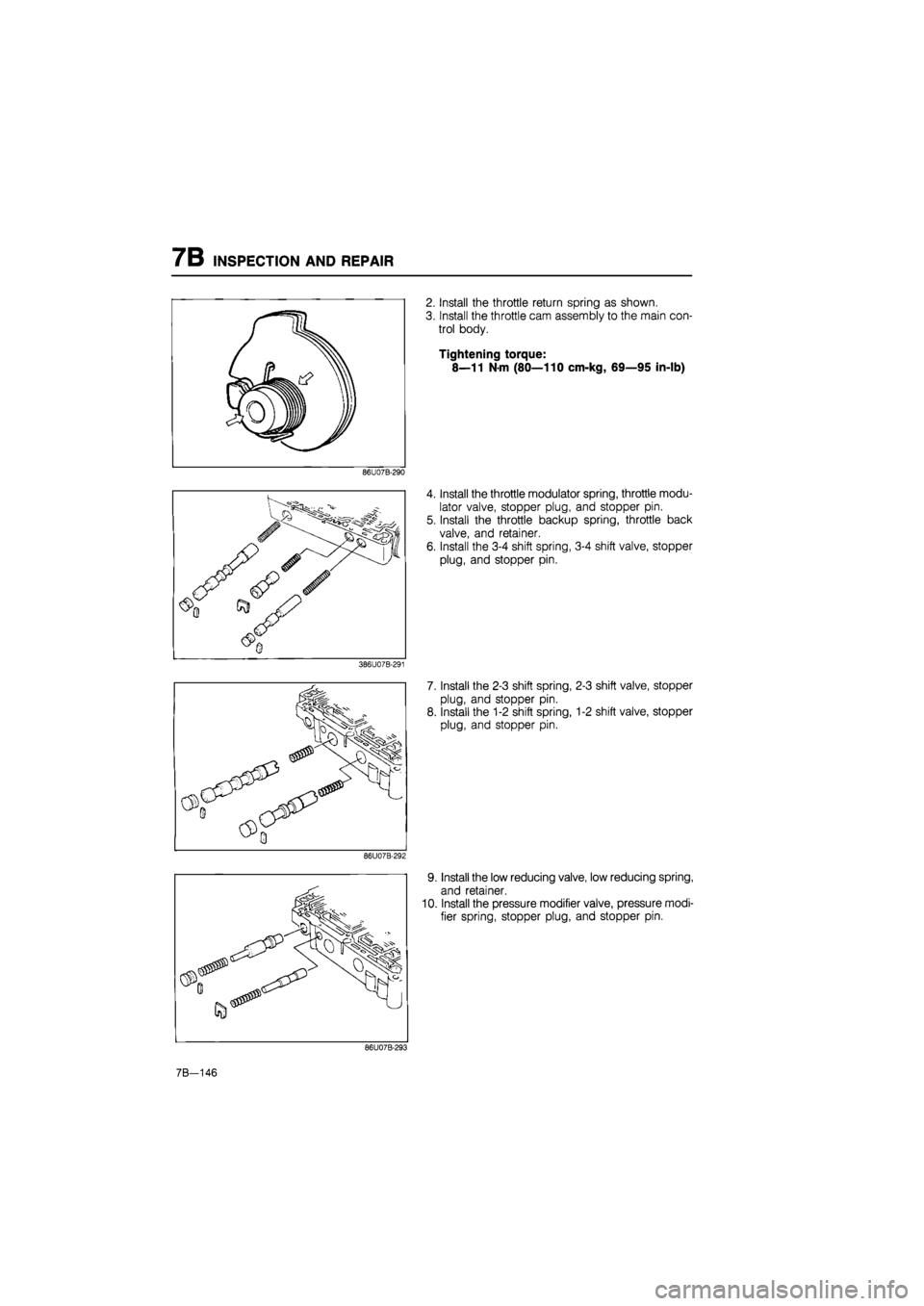

2. Install the throttle return spring as shown.
3. Install the throttle cam assembly to the main con-
trol body.
Tightening torque:
8—11 N-m (80—110 cm-kg, 69—95 in-lb)
86U07B-290
4. Install the throttle modulator spring, throttle modu-
lator valve, stopper plug, and stopper pin.
5. Install the throttle backup spring, throttle back
valve, and retainer.
6. Install the 3-4 shift spring, 3-4 shift valve, stopper
plug, and stopper pin.
386U07B-291
7. Install the 2-3 shift spring, 2-3 shift valve, stopper
plug, and stopper pin.
8. Install the 1-2 shift spring, 1-2 shift valve, stopper
plug, and stopper pin.
86U07B-292
9. Install the low reducing valve, low reducing spring,
and retainer.
10. Install the pressure modifier valve, pressure modi-
fier spring, stopper plug, and stopper pin.
86U07B-293
7B—146

INSPECTION AND REPAIR 7B

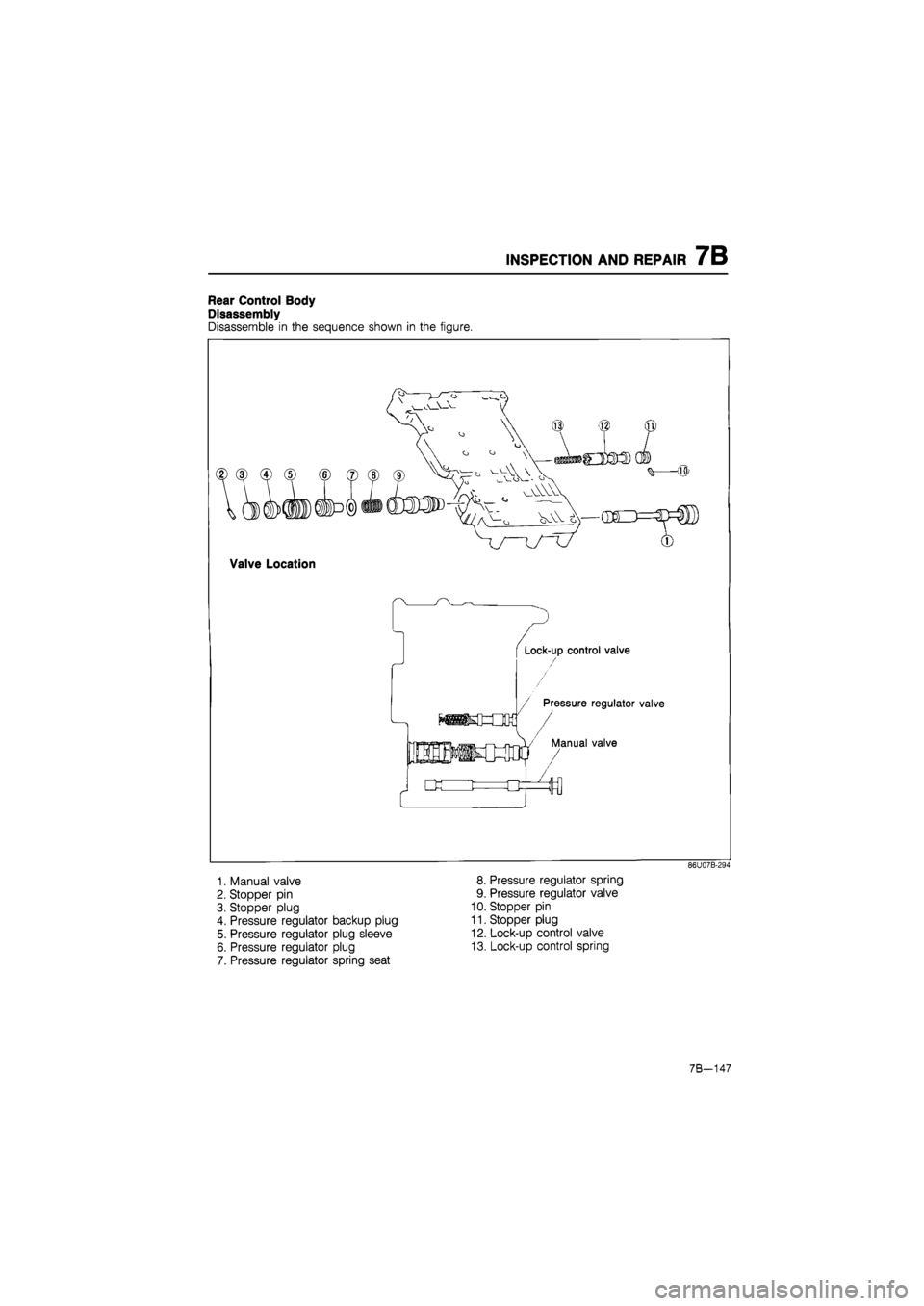

Rear Control Body
Disassembly
Disassemble in the sequence shown in the figure.
Valve Location
r\ /~v
Lock-up control valve
Pressure regulator valve
Manual valve
86U07B-294
1. Manual valve
2. Stopper pin
3. Stopper plug
4. Pressure regulator backup plug
5. Pressure regulator plug sleeve
6. Pressure regulator plug
7. Pressure regulator spring seat
8. Pressure regulator spring
9. Pressure regulator valve
10. Stopper pin
11. Stopper plug
12. Lock-up control valve
13. Lock-up control spring
7B-147

7B INSPECTION AND REPAIR
Inspection
Check the following and replace any faulty parts.
1. Damaged or worn valves
2. Damaged oil passage
3. Cracked or damaged valve body
4. Operation of each valve
5. Weakened spring
Spring

Spring name Outer dia.
mm
(in) Free length
mm
(in) Wire dia.
mm (in)
Spring color
Pressure regulator spring 11.5 (0.453) 26.5 (1.043) 1.0 (0.039) Maroon
Lock-up control spring 5.0 (0.197) 35.2 (1.386) 0.6 (0.024) Purple

86U07B-295
Assembly
1. Install the lock-up control spring, lock-up control
valve, stopper plug, and stopper pin.
86U07B-296
Install the pressure regulator valve, pressure regu-
lator spring, pressure regulator spring seat, pres-
sure regulator plug, pressure regulator plug sleeve,
pressure regulator backup plug, stopper plug, and
stopper pin.
Note
Install the stopper plug larger end first.
86U07B-297
3. Install the manual valve.
86U07B-298
7B-148

INSPECTION AND REPAIR 7B

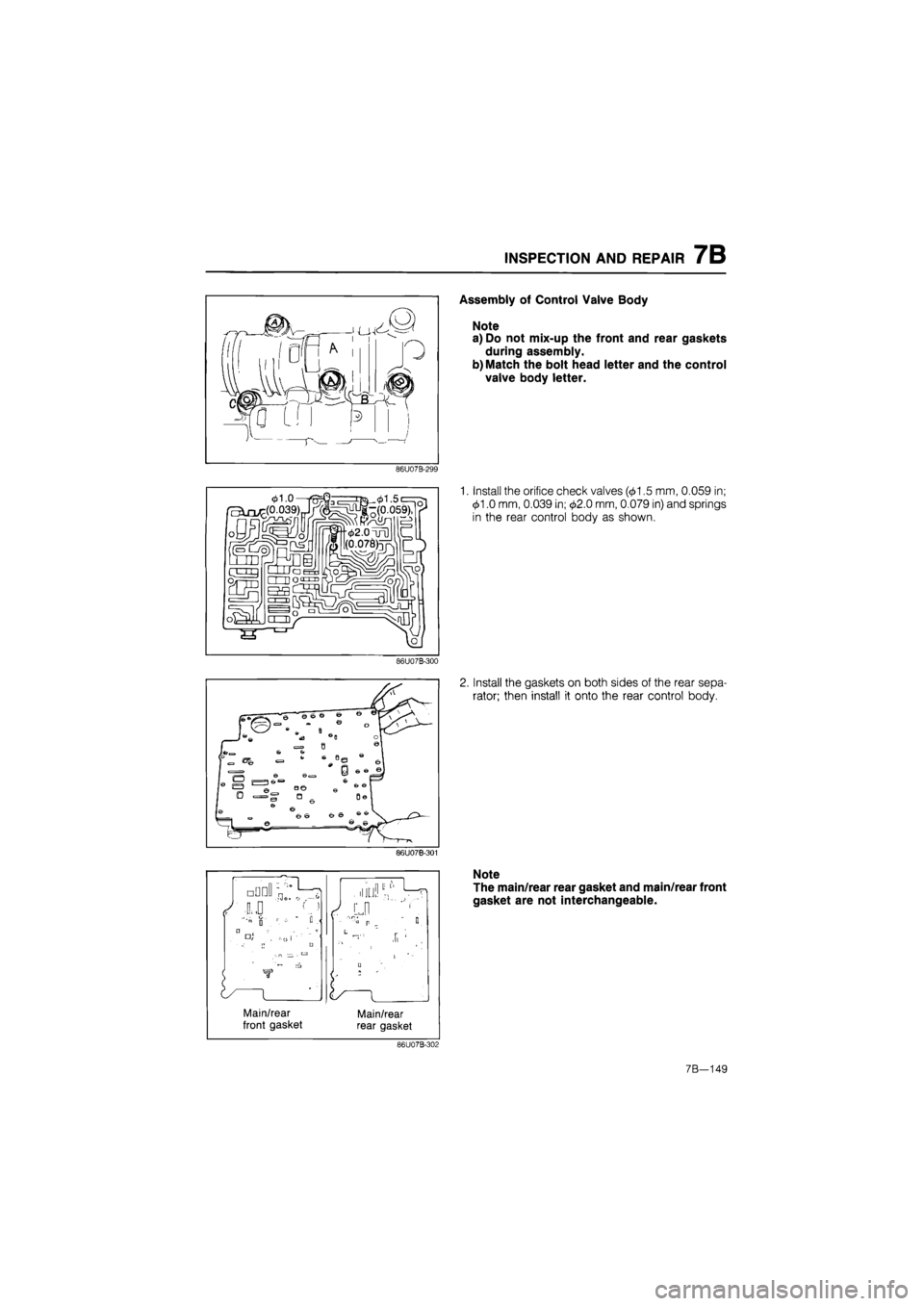

Assembly of Control Valve Body
Note
a) Do not mix-up the front and rear gaskets
during assembly.
b) Match the bolt head letter and the control
valve body letter.
86U07B-299
1. Install the orifice check valves (01.5 mm, 0.059 in;
01.0 mm, 0.039 in; 02.0 mm, 0.079 in) and springs
in the rear control body as shown.
86U07B-300
2. Install the gaskets on both sides of the rear sepa-
rator; then install it onto the rear control body.
86U07B-301
Main/rear Main/rear
front gasket rear gasket
Note
The main/rear rear gasket and main/rear front
gasket are not interchangeable.
86U07B-302
7B—149

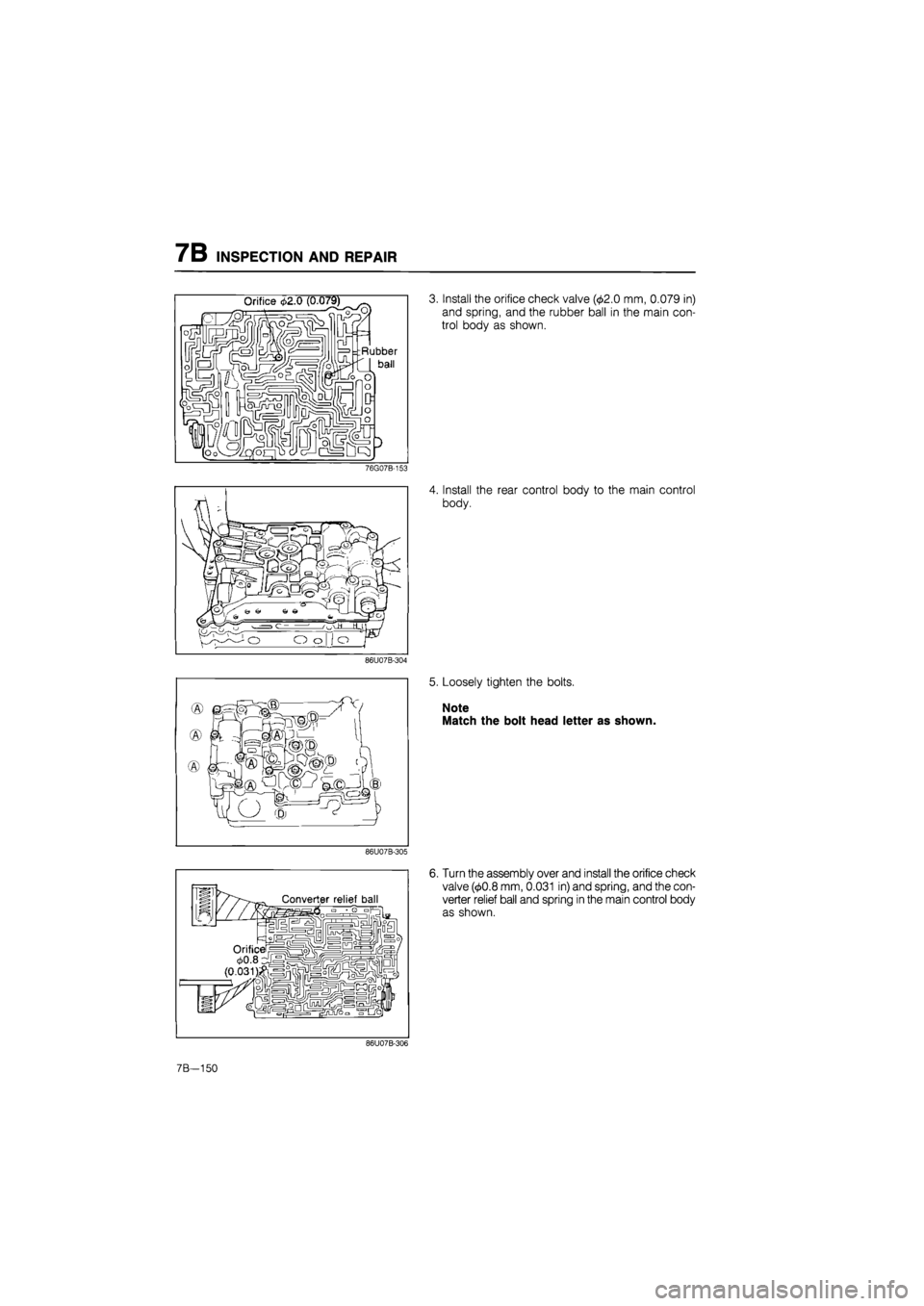

7B INSPECTION AND REPAIR
3. Install the orifice check valve (<£2.0 mm, 0.079 in)
and spring, and the rubber ball in the main con-
trol body as shown.
76G07B-153
4. Install the rear control body to the main control
body.
86U07B-304
5. Loosely tighten the bolts.
Note
Match the bolt head letter as shown.
86U07B-305
Converter relief ball
6. Turn the assembly over and install the orifice check
valve
(0.8
mm, 0.031 in) and spring, and the con-
verter relief ball and spring in the main control body
as shown.
86U07B-306
