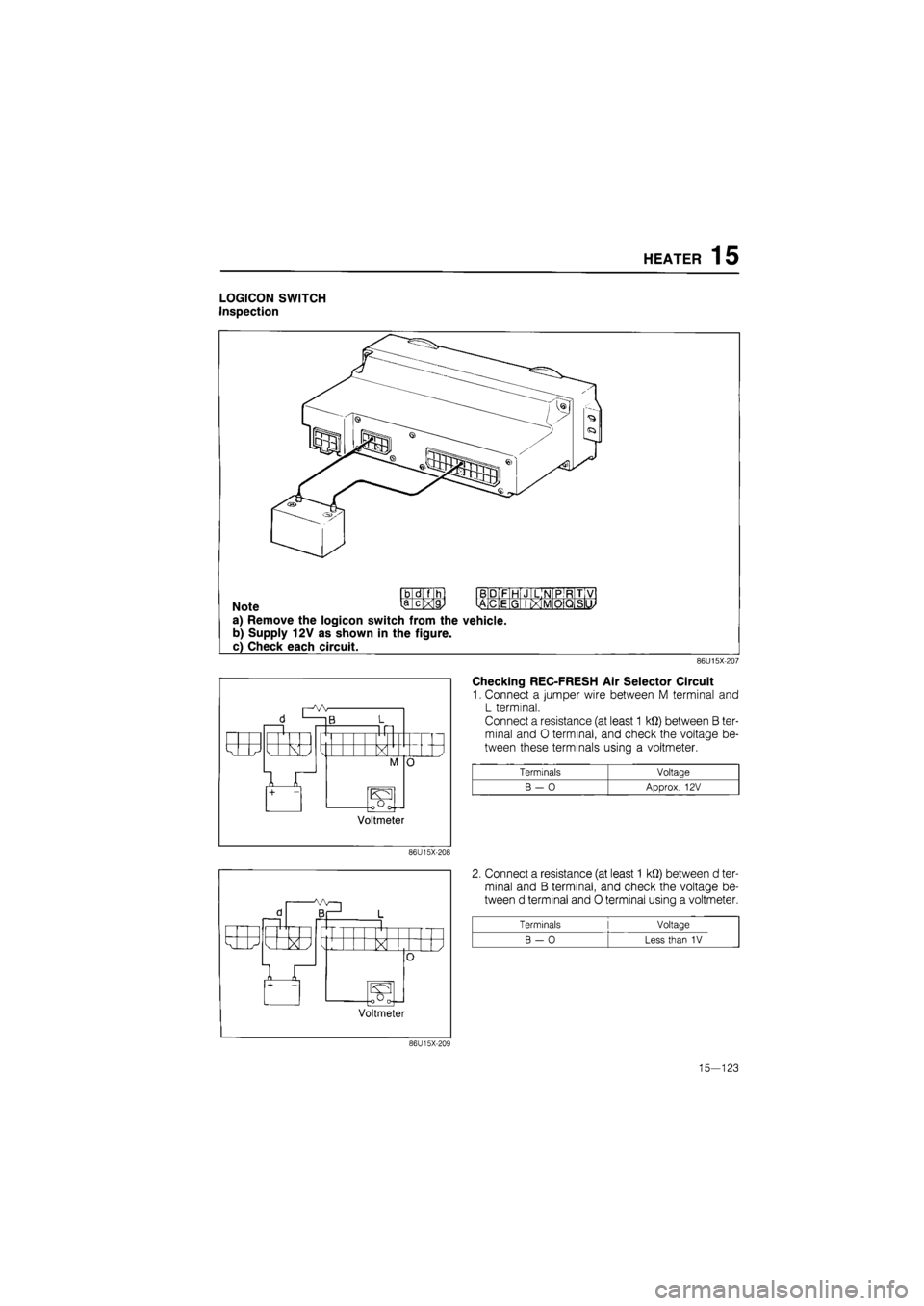

1987 MAZDA 626 Workshop Manual

15 HEATER

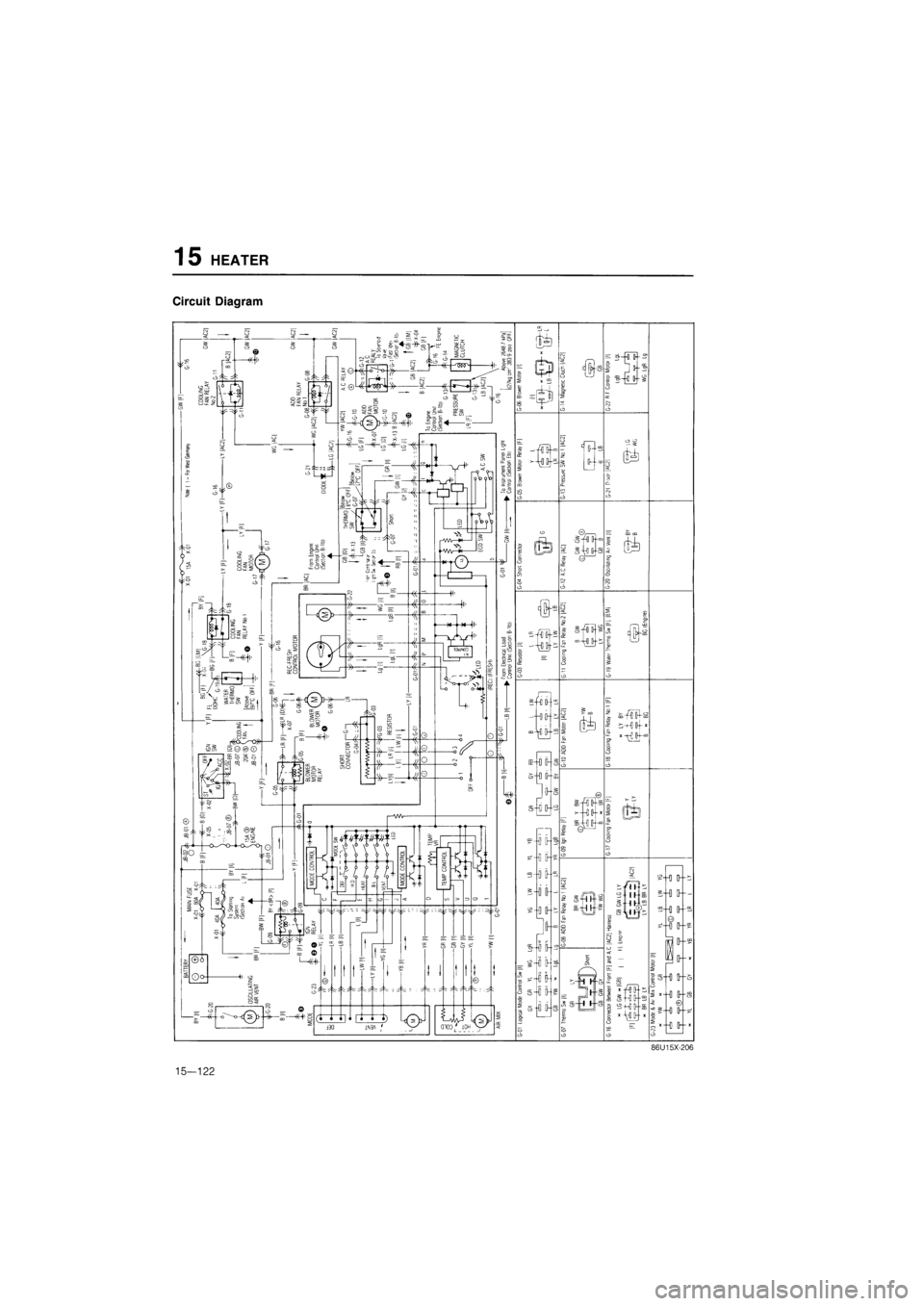

Circuit Diagram
15—122

HEATER 15
LOGICON SWITCH
Inspection
b d f h
I? c V Note
a) Remove the logicon switch from the vehicle.
b) Supply 12V as shown in the figure.
c) Check each circuit.
B
lA
DiF H J LjN pIr T V B
lA c|e G I XIM 0|Q S w
86U15X-207
Checking REC-FRESH Air Selector Circuit
1. Connect a jumper wire between M terminal and
L terminal.
Connect a resistance (at least
1
kfi) between
B
ter-
minal and 0 terminal, and check the voltage be-
tween these terminals using a voltmeter.
Terminals Voltage
B - 0 Approx. 12V
86U15X-208
d I
J X J

~Sfr
_ „ — —
2. Connect a resistance (at least
1
kS2) between d ter-
minal and B terminal, and check the voltage be-
tween d terminal and 0 terminal using a voltmeter.
\ . X ) 0
Terminals Voltage
B - 0 Less than 1V
Voltmeter
86U15X-209
15—123

15 HEATER
86U15X-210
86U15X-211
86U15X-212

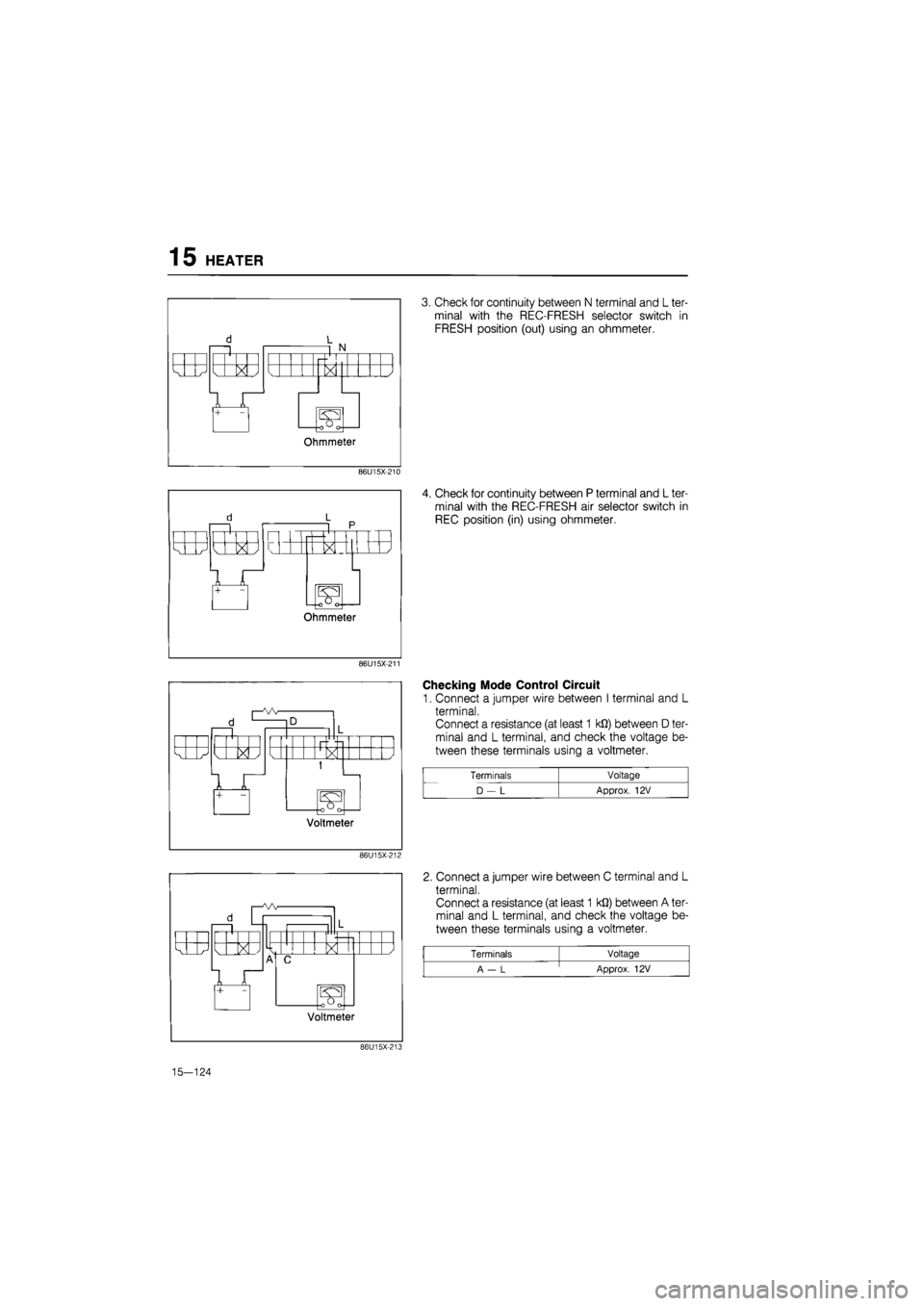

3. Check for continuity between N terminal and L ter-
minal with the REC-FRESH selector switch in
FRESH position (out) using an ohmmeter.
4. Check for continuity between P terminal and L ter-
minal with the REC-FRESH air selector switch in
REC position (in) using ohmmeter.
Checking Mode Control Circuit
1. Connect a jumper wire between I terminal and L
terminal,
Connect a resistance (at least 1 kQ) between D ter-
minal and L terminal, and check the voltage be-
tween these terminals using a voltmeter.

Terminals Voltage

D
- L
Approx.
12V
2. Connect a jumper wire between C terminal and L
terminal.
Connect a resistance (at least 1 kfi) between A ter-
minal and L terminal, and check the voltage be-
tween these terminals using a voltmeter.

Terminals Voltage

A
— L
Approx.
12V
86U15X-213
15—124

HEATER 15

Effl
k /
Voltmeter
86U15X-214
d I
k J X
S3
Voltmeter
86U15X-215
[ I H
k J X /
xj;
iD5F]H|j
ll iE;G Ll.i.i..
Ohmmeter
86U15X-216
d C
•W
©
i IL i
X / X
Qi ! i
+
u
Voltmeter

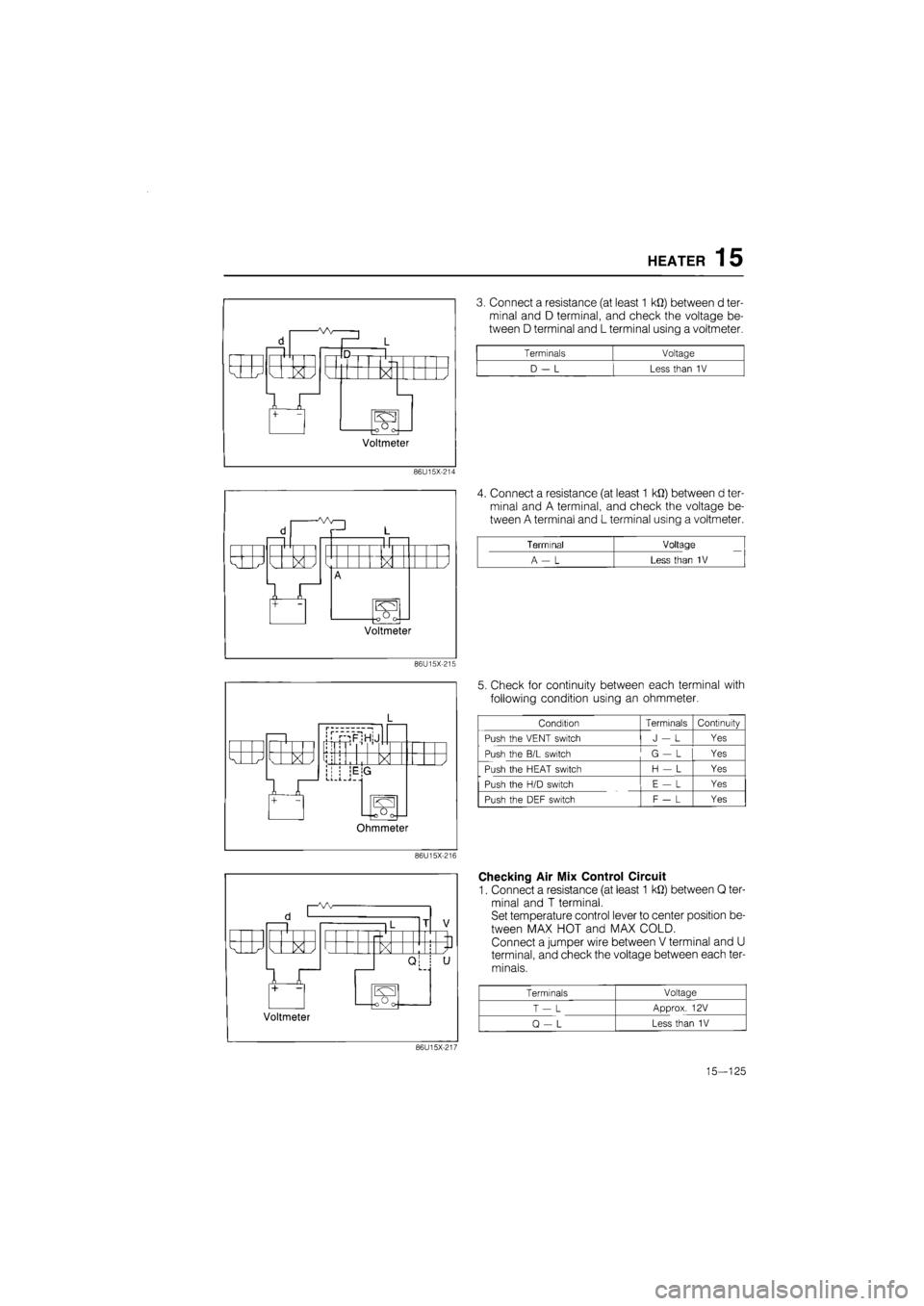

3. Connect a resistance (at least 1 kfi) between d ter-
minal and D terminal, and check the voltage be-
tween D terminal and L terminal using a voltmeter.

Terminals Voltage
D
- L
Less than
1V
4. Connect a resistance (at least 1 kfl) between d ter-
minal and A terminal, and check the voltage be-
tween A terminal and L terminal using a voltmeter.
Terminal Voltage
A - L Less than 1V
5. Check for continuity between each terminal with
following condition using an ohmmeter.

Condition Terminals Continuity
Push the VENT switch J
- L
Yes
Push the B/L switch G
- L
Yes
Push the HEAT switch H
— L
Yes
Push the H/D switch E
- L
Yes
Push the DEF switch F
- L
Yes

Checking Air Mix Control Circuit
1. Connect a resistance (at least 1 kfl) between Q ter-
minal and T terminal.
Set temperature control lever to center position be-
tween MAX HOT and MAX COLD.
Connect a jumper wire between V terminal and U
terminal, and check the voltage between each ter-
minals.

Terminals Voltage
T
- L
Approx.
12V

Q
- L
Less than
1V
86U15X-217
15—125

15 HEATER
86U15X-218
86U15X-219
86U15X-220
r.". 1
T 1 11 1.11 -4
y -L -v* X /
1
C I y
1 A +
Voltmeter

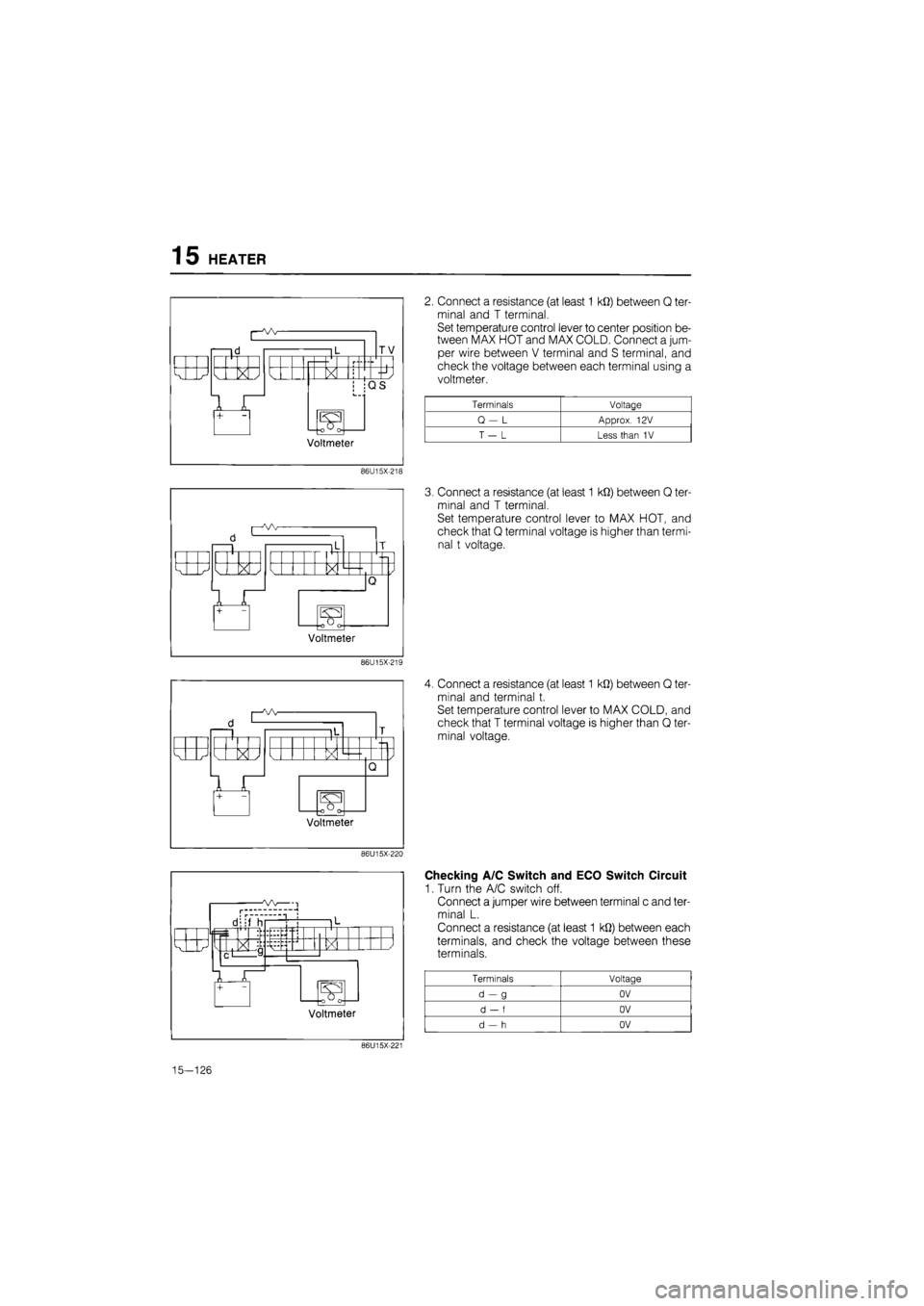

2. Connect a resistance (at least 1 kfi) between Q ter-
minal and T terminal.
Set temperature control lever to center position be-
tween MAX HOT and MAX COLD. Connect a jum-
per wire between V terminal and S terminal, and
check the voltage between each terminal using a
voltmeter.
Terminals Voltage
Q - L Approx. 12V
T - L Less than 1V
3. Connect a resistance (at least 1 kfi) between Q ter-
minal and T terminal.
Set temperature control lever to MAX HOT, and
check that Q terminal voltage is higher than termi-
nal t voltage.
4. Connect a resistance (at least 1 M2) between Q ter-
minal and terminal t.
Set temperature control lever to MAX COLD, and
check that T terminal voltage is higher than Q ter-
minal voltage.
Checking A/C Switch and ECO Switch Circuit
1. Turn the A/C switch off.
Connect a jumper wire between terminal c and ter-
minal L.
Connect a resistance (at least 1 kQ) between each
terminals, and check the voltage between these
terminals.
Terminals Voltage
d-g OV
d - f OV
d - h OV
86U15X-221
15-126

HEATER 15
f! !"H

a

+
1 d-V' X /
S3
Voltmeter
86U15X-222

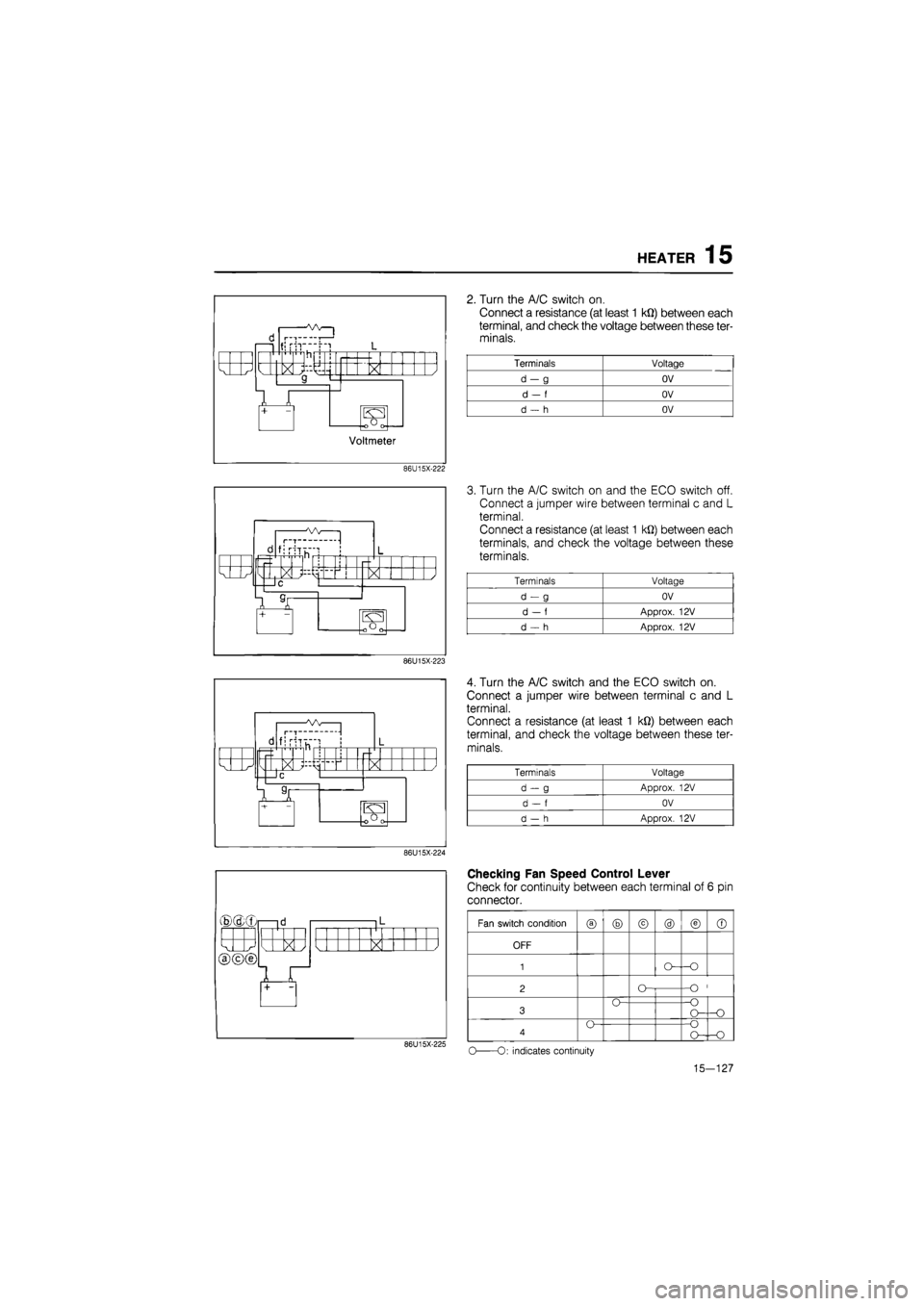

2. Turn the A/C switch on.
Connect a resistance (at least 1 kQ) between each
terminal, and check the voltage between these ter-
minals.

Terminals Voltage
d-g OV
d
- f
OV
d
- h
OV

d I—T-
fjrh
X }
®(dxr
X /
86U15X-223
d fi riTu~"! 1 L r-
k J M > < / —IC
7 T — 101 [oOrv
86U15X-224
X
86U15X-225
3. Turn the A/C switch on and the ECO switch off.
Connect a jumper wire between terminal c and L
terminal.
Connect a resistance (at least 1 kQ) between each
terminals, and check the voltage between these
terminals.

Terminals Voltage
d-g OV
d
- f
Approx.
12V

d
- h
Approx.
12V
4. Turn the A/C switch and the ECO switch on.
Connect a jumper wire between terminal c and L
terminal.
Connect a resistance (at least 1 kQ) between each
terminal, and check the voltage between these ter-
minals.

Terminals Voltage
d-g Approx.
12V

d
- f
OV
d
- h
Approx.
12V
Checking Fan Speed Control Lever
Check for continuity between each terminal of 6 pin
connector.

Fan switch condition
® ® © @ © ©

OFF
1
2 O--O
3 O--O O— -O
4 O--O O--O

o
-O: indicates continuity

15-127

15 HEATER
i l< i |l
k J X / X X L<
1 +
L<
1 + 1

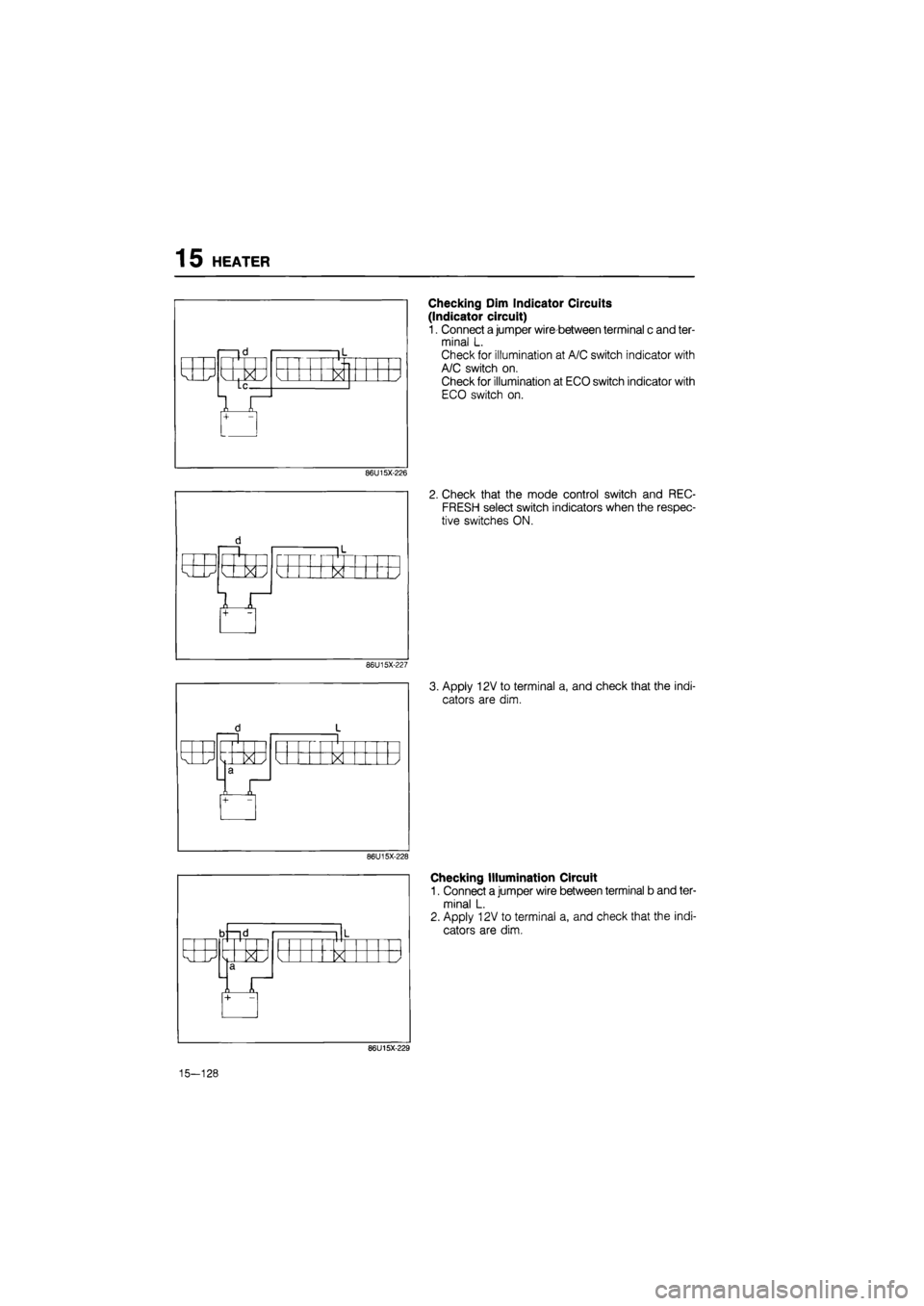

Checking Dim Indicator Circuits
(Indicator circuit)
1. Connect a jumper wire-between terminal c and ter-
minal L.
Check for illumination at A/C switch indicator with
A/C switch on.
Check for illumination at ECO switch indicator with
ECO switch on.
86U15X-226
d 1 |L
k J X / I k
1 Jl +
2. Check that the mode control switch and REC-
FRESH select switch indicators when the respec-
tive switches ON.
86U15X-227
3. Apply 12V to terminal a, and check that the indi-
cators are dim.
86U15X-228
b —id 1 L
1 1 j
k XI N_ > < / a
ir
Checking Illumination Circuit
1. Connect a jumper wire between terminal b and ter-
minal L.
2. Apply 12V to terminal a, and check that the indi-
cators are dim.
86U15X-229
15-128

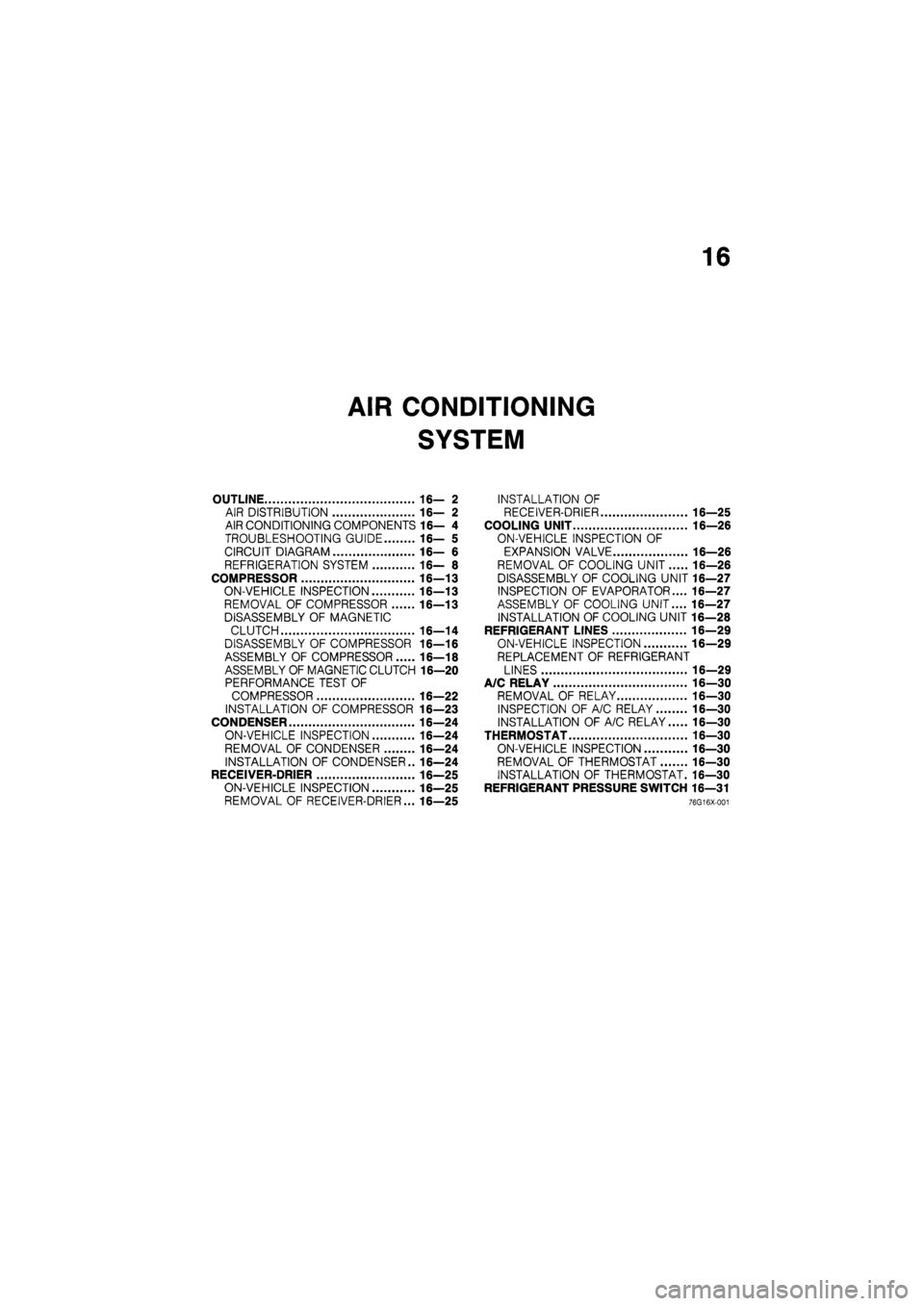

16
