1987 MAZDA 626 Workshop Manual

14 BONNET

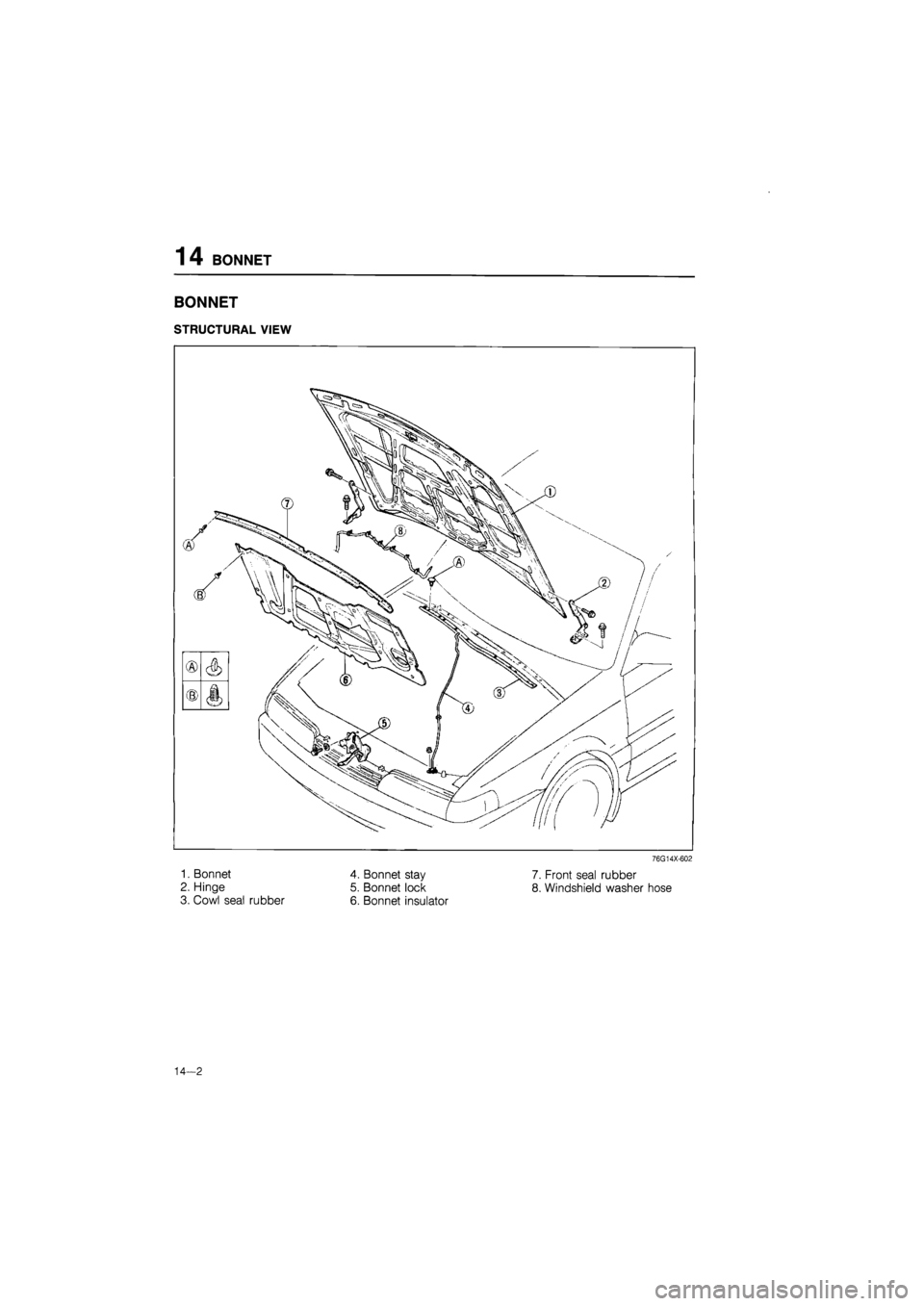

BONNET
STRUCTURAL VIEW
7. Front seal rubber
8. Windshield washer hose
14—2
1. Bonnet
2. Hinge
3. Cowl seal rubber
4. Bonnet stay
5. Bonnet lock
6. Bonnet insulator

BONNET 14

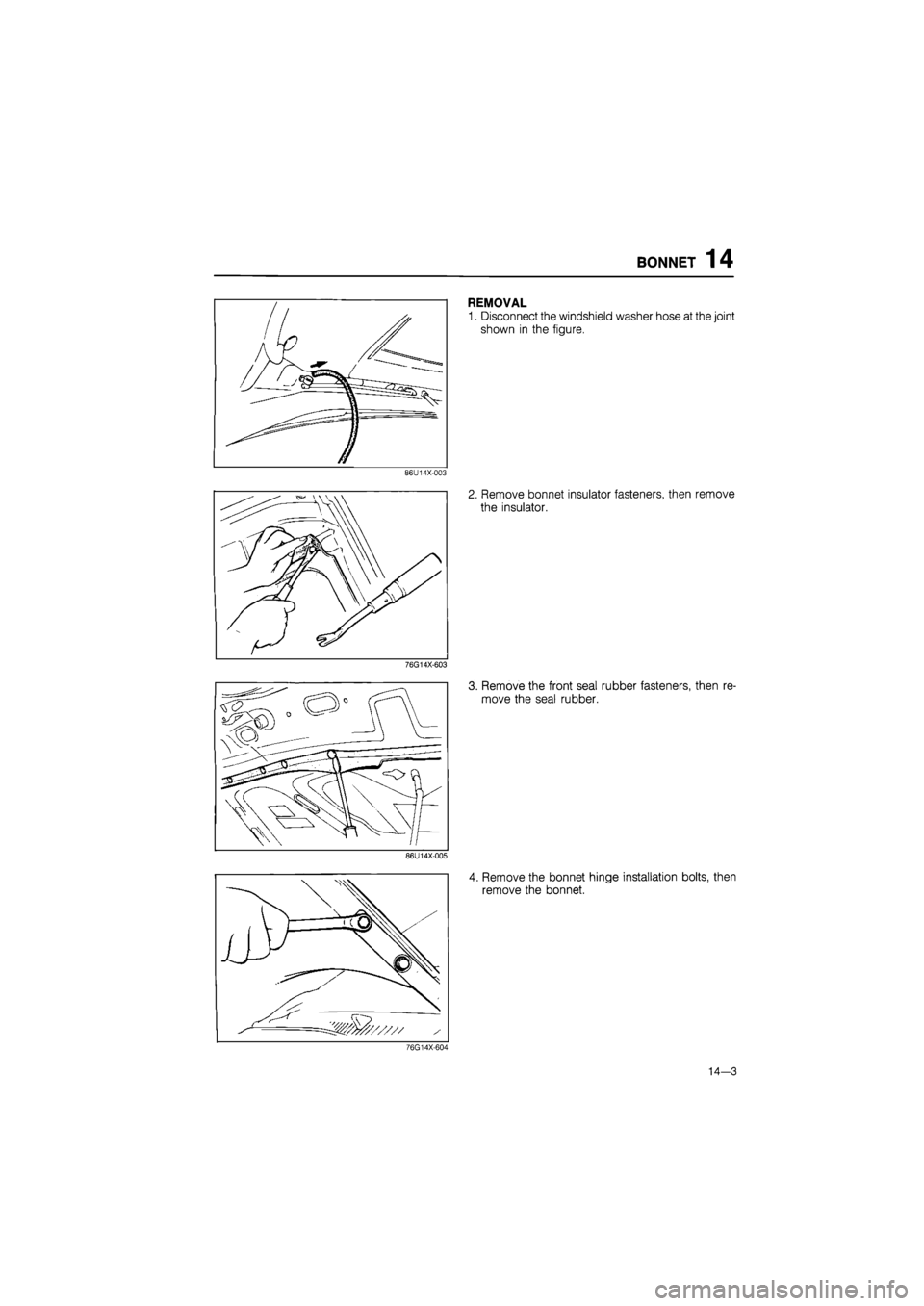

REMOVAL
1. Disconnect the windshield washer hose at the joint
shown in the figure.
86U14X-003
2. Remove bonnet insulator fasteners, then remove
the insulator.
86U14X-005
4. Remove the bonnet hinge installation bolts, then
remove the bonnet.
76G14X-604
14—3

14 BONNET
76G14X-605
76G14X-606
9 ± 1.5 mm (0.36 ± 0.06 in)
(a)
4 ± 1 mm
(0.66 ± 0.04 in)
(b)
76G14X-607

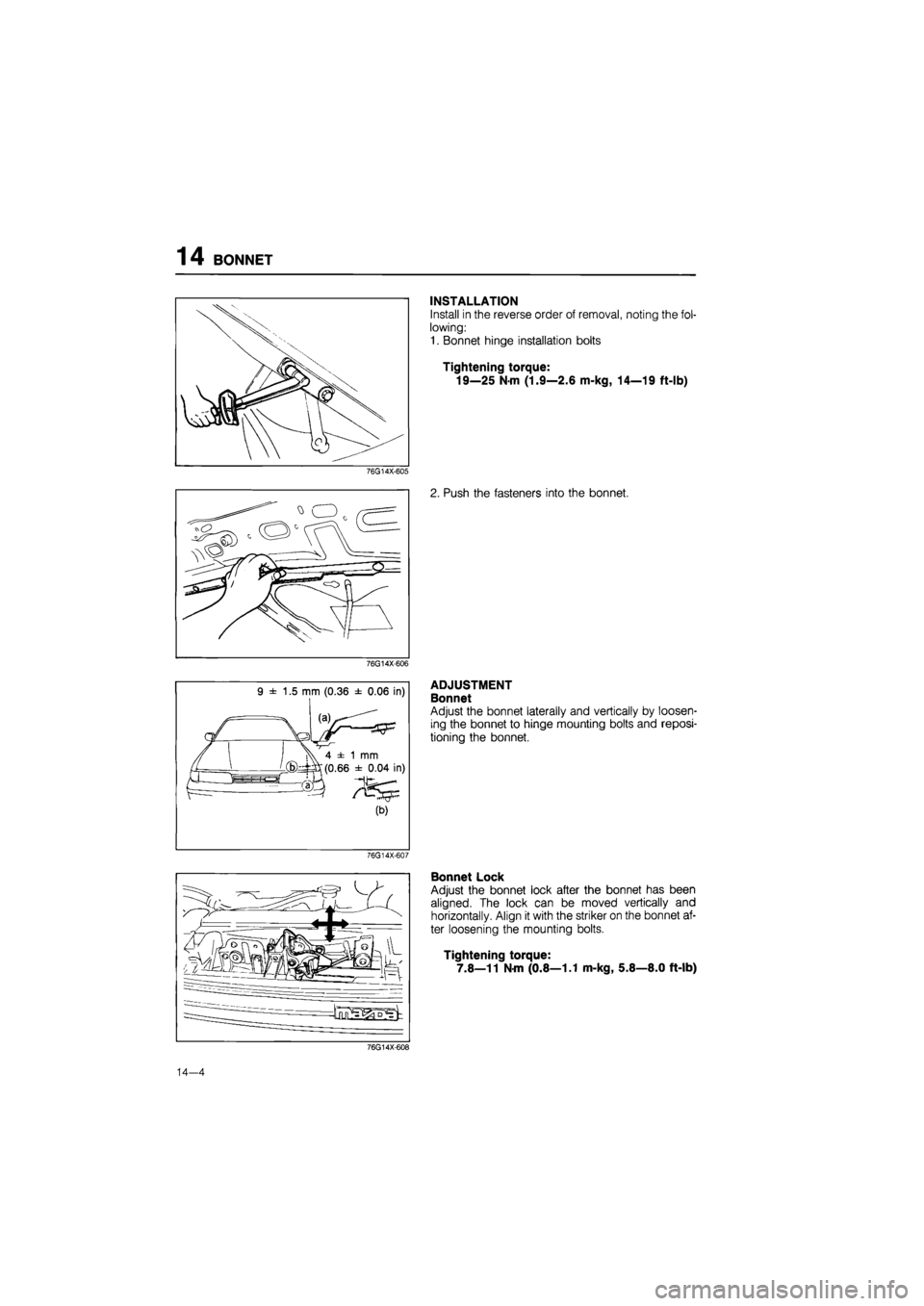

INSTALLATION
Install in the reverse order of removal, noting the fol-
lowing:
1. Bonnet hinge installation bolts
Tightening torque:
19—25 N-m (1.9—2.6 m-kg, 14—19 ft-lb)
2. Push the fasteners into the bonnet.
ADJUSTMENT
Bonnet
Adjust the bonnet laterally and vertically by loosen-
ing the bonnet to hinge mounting bolts and reposi-
tioning the bonnet.
Bonnet Lock
Adjust the bonnet lock after the bonnet has been
aligned. The lock can be moved vertically and
horizontally. Align it with the striker on the bonnet af-
ter loosening the mounting bolts.
Tightening torque:
7.8—11 N-m (0.8—1.1 m-kg, 5.8—8.0 ft-lb)
76G14X-608
14—4

TRUNK LID 14

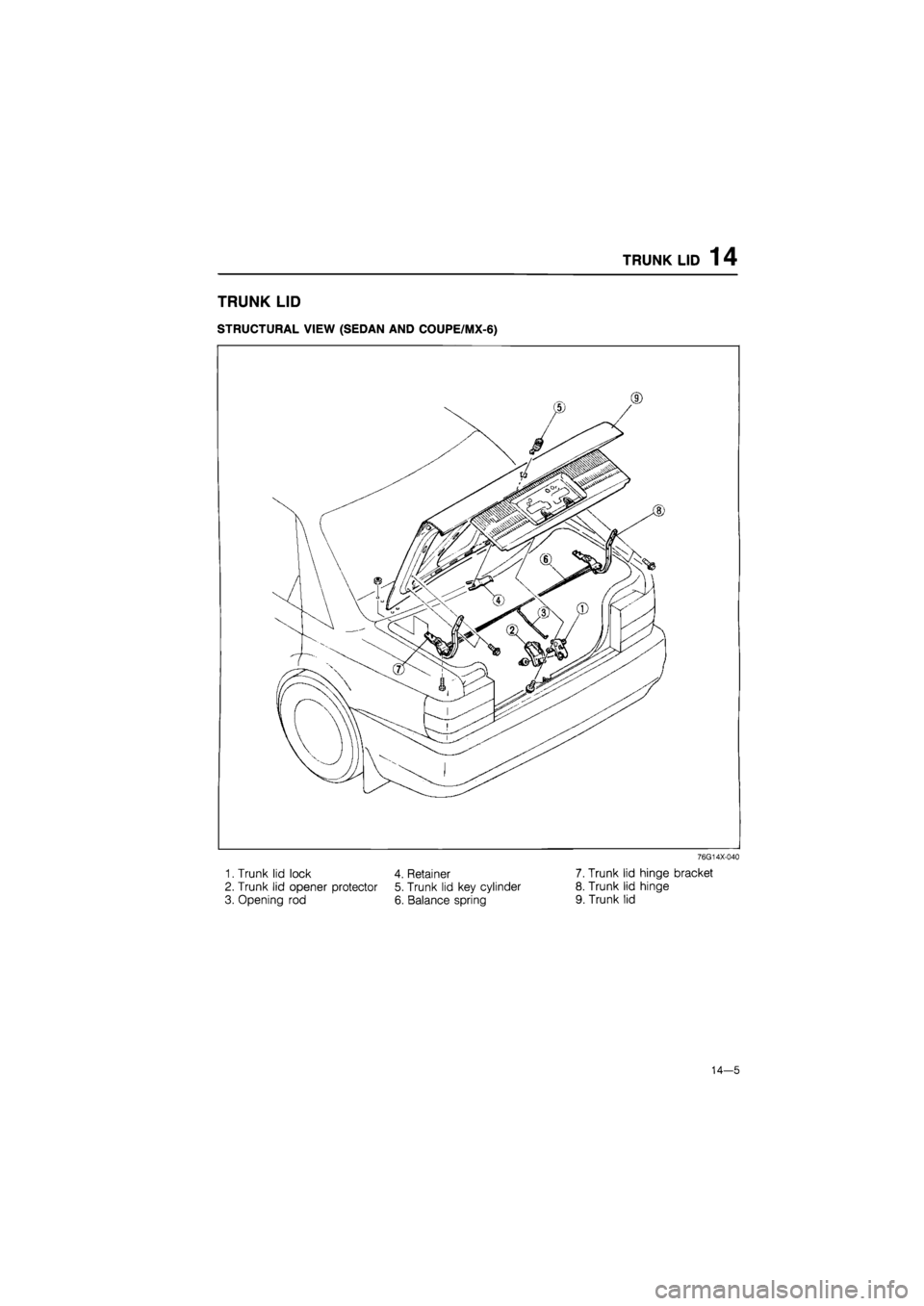

TRUNK
LID

STRUCTURAL VIEW (SEDAN AND COUPE/MX-6)
1. Trunk lid lock
2. Trunk lid opener protector
3. Opening rod
4. Retainer
5. Trunk lid key cylinder
6. Balance spring
76G14X-040
7. Trunk lid hinge bracket
8. Trunk lid hinge
9. Trunk lid
14—5

1 4 TRUNK LID
86U14X-012
Opening rod
86U14X-013
86U14X-014

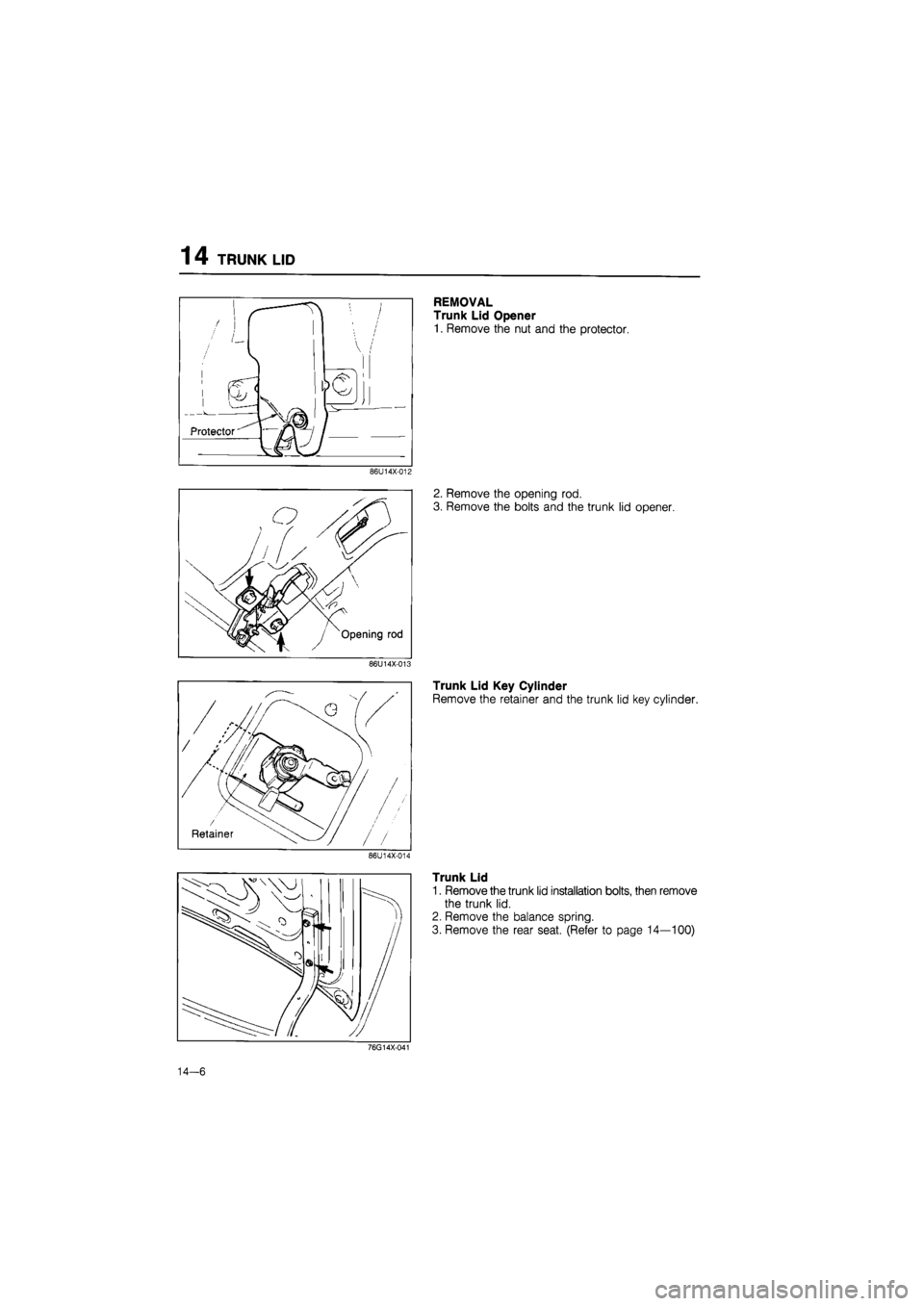

REMOVAL
Trunk Lid Opener
1. Remove the nut and the protector.
2. Remove the opening rod.
3. Remove the bolts and the trunk lid opener.
Trunk Lid Key Cylinder
Remove the retainer and the trunk lid key cylinder.
Trunk Lid
1. Remove the trunk lid installation bolts, then remove
the trunk lid.
2. Remove the balance spring.
3. Remove the rear seat. (Refer to page 14—100)
76G14X-041
14—6

TRUNK LID 14

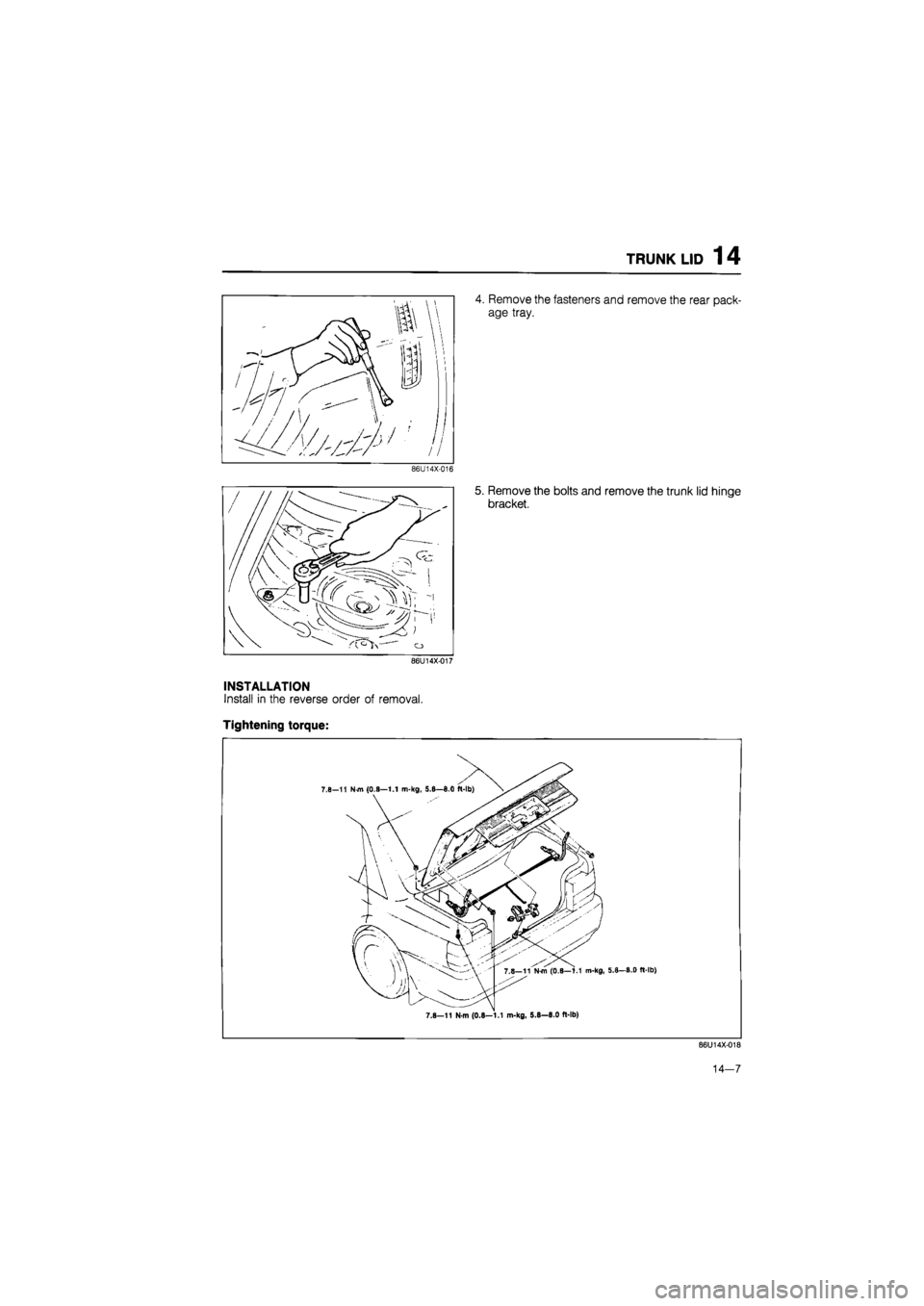

4. Remove the fasteners and remove the rear pack-
age tray.
86U14X-017
INSTALLATION
Install in the reverse order of removal.
Tightening torque:
86U14X-018
14—7

14 TRUNK LID
86U14X-019
86U14X-020

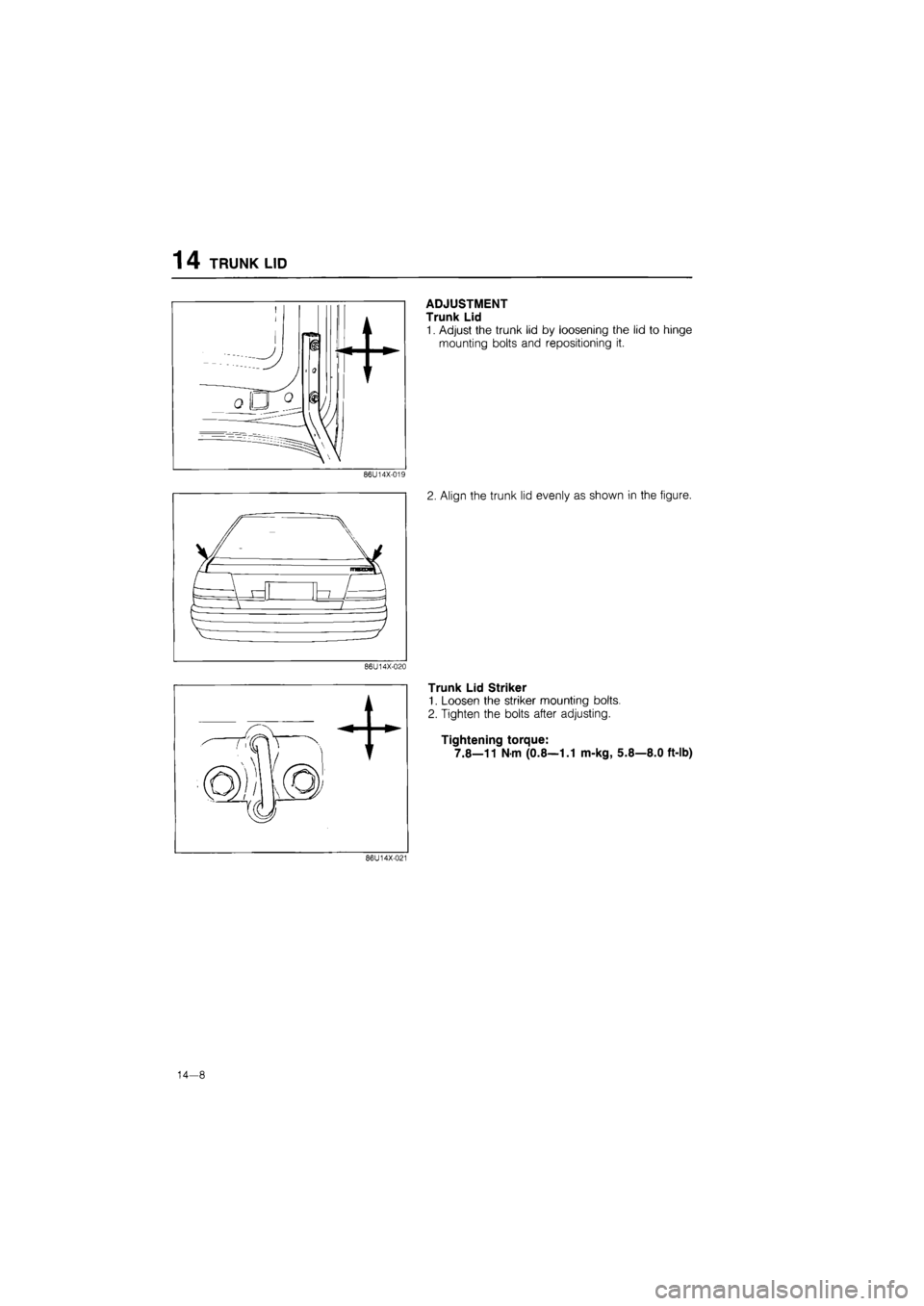

ADJUSTMENT
Trunk Lid
1. Adjust the trunk lid by loosening the lid to hinge
mounting bolts and repositioning it.
2. Align the trunk lid evenly as shown in the figure.
Trunk Lid Striker
1. Loosen the striker mounting bolts.
2. Tighten the bolts after adjusting.
Tightening torque:
7.8—11 N m (0.8—1.1 m-kg, 5.8—8.0 ft-lb)
86U14X-021
14—8

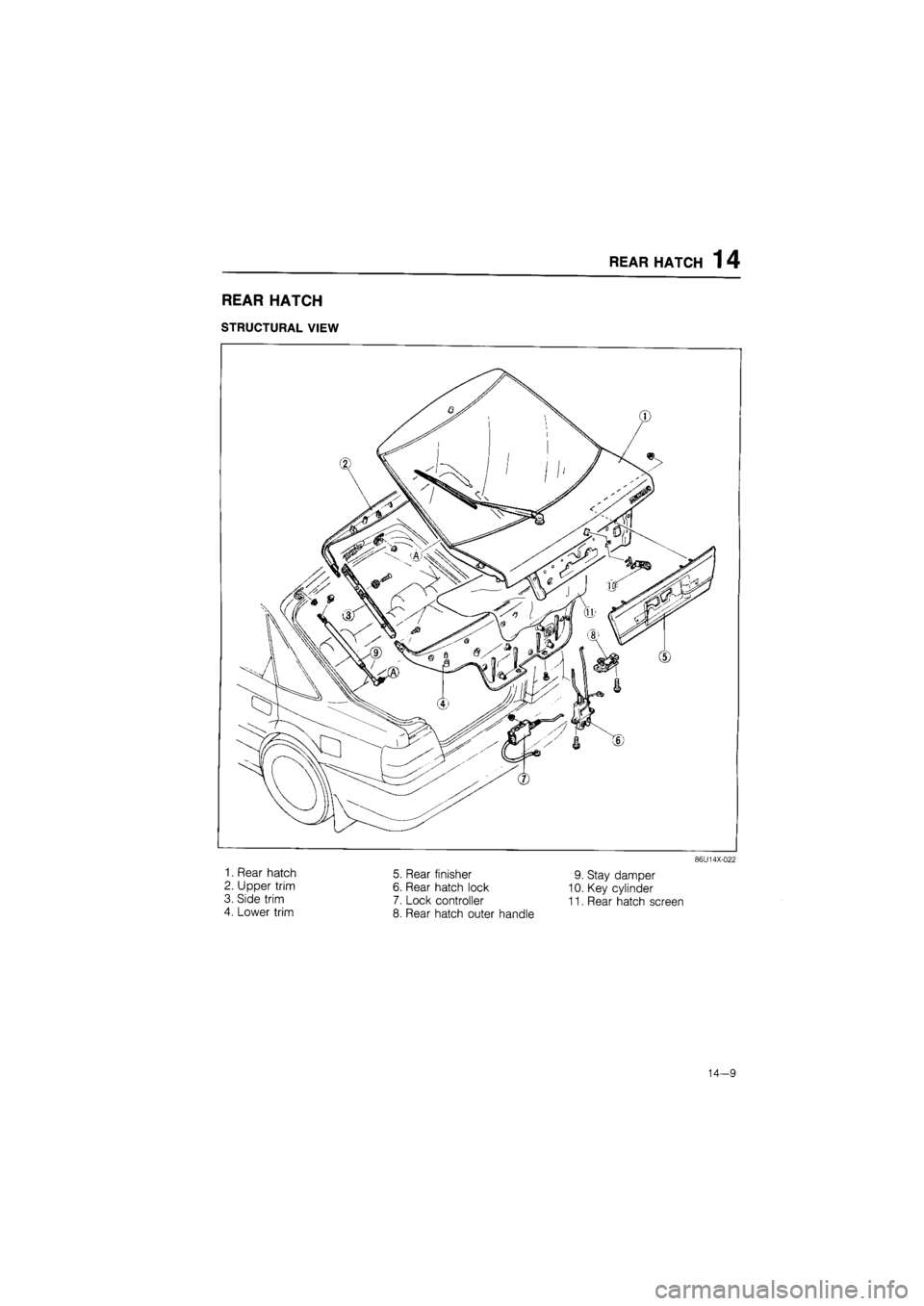

REAR HATCH 1 4
REAR HATCH
STRUCTURAL VIEW
86U14X-022
1. Rear hatch
2. Upper trim
3. Side trim
4. Lower trim
5. Rear finisher
6. Rear hatch lock
7. Lock controller
8. Rear hatch outer handle
9. Stay damper
10. Key cylinder
11. Rear hatch screen
14—9
