1 4 REAR BUMPER
\
1 '
4 / t i4 / t- / i
86U14X-061
86U14X-062

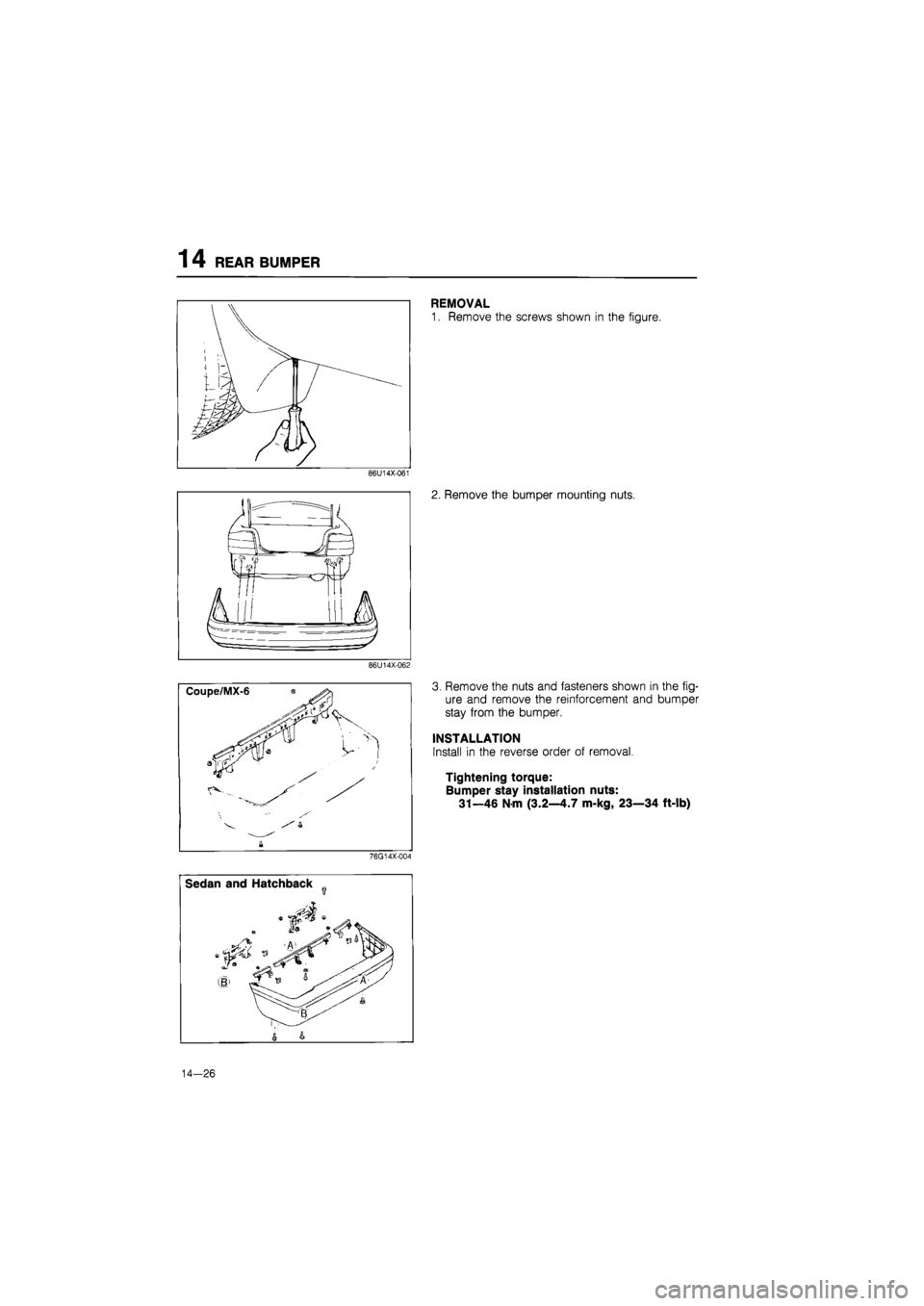

REMOVAL
1. Remove the screws shown in the figure.
2. Remove the bumper mounting nuts.
3. Remove the nuts and fasteners shown in the fig-
ure and remove the reinforcement and bumper
stay from the bumper.
INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Bumper stay installation nuts:
31—46 N m (3.2—4.7 m-kg, 23—34 ft-lb)
76G14X-004
14-26
Page 1578 of 1865
RADIATOR
GRILLE 1
4
RADIATOR GRILLE

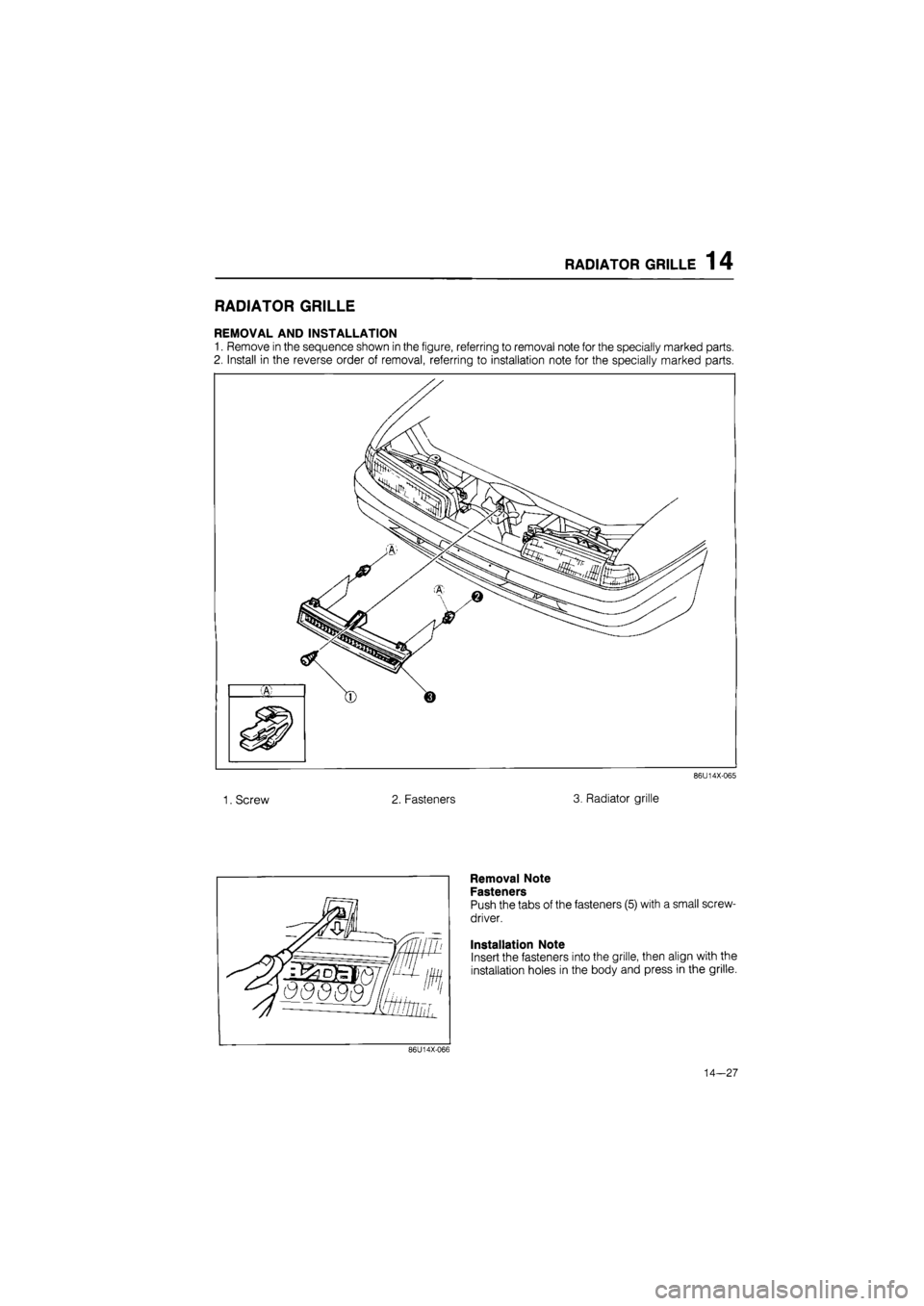

REMOVAL AND INSTALLATION
1. Remove in the sequence shown in the figure, referring to removal note for the specially marked parts.
2. Install in the reverse order of removal, referring to installation note for the specially marked parts.
86U14X-065
1. Screw 2. Fasteners 3. Radiator grille
Removal Note
Fasteners
Push the tabs of the fasteners (5) with a small screw-
driver.
Installation Note
Insert the fasteners into the grille, then align with the
installation holes in the body and press in the grille.
86U14X-066
14—27
Page 1579 of 1865
1 4 HEADLIGHT AND COMBINATION LIGHT
HEADLIGHT AND COMBINATION LIGHT
REMOVAL AND INSTALLATION
1. Disconnect the negative battery cable.
2. Remove in the sequence shown in the figure, referring to removal note for the specially marked parts.
3. Install in the reverse order of removal.
76G14X-005
1. Screw
2. Turn signal light assembly
3. Screw
4. Radiator grille
5. Bolts
6. Bolts
7. Headlight assembly
8. Screws
9. Light garnish
10. Headlight bulb
60 + 55W/55W
11. Parking light bulb 5W
12. Turn signal light bulb
21W
14—28
Page 1580 of 1865
HEADLIGHT AND COMBINATION LIGHT 1 4
76G14X-006
1. Screw 6. Bolts
2. Turn signal light assembly 7. Fastener
3. Screw 8. Screw
4. Radiator grille 9. Light garnish
5. Bolts 10. Headlight assembly
11. Headlight bulb
60 + 55/55W
12. Parking light bulb 5W
13. Turn signal light bulb
21W
14—29
Page 1581 of 1865
1 4 HEADLIGHT AND COMBINATION LIGHT
76G14X-007
86U14X-070

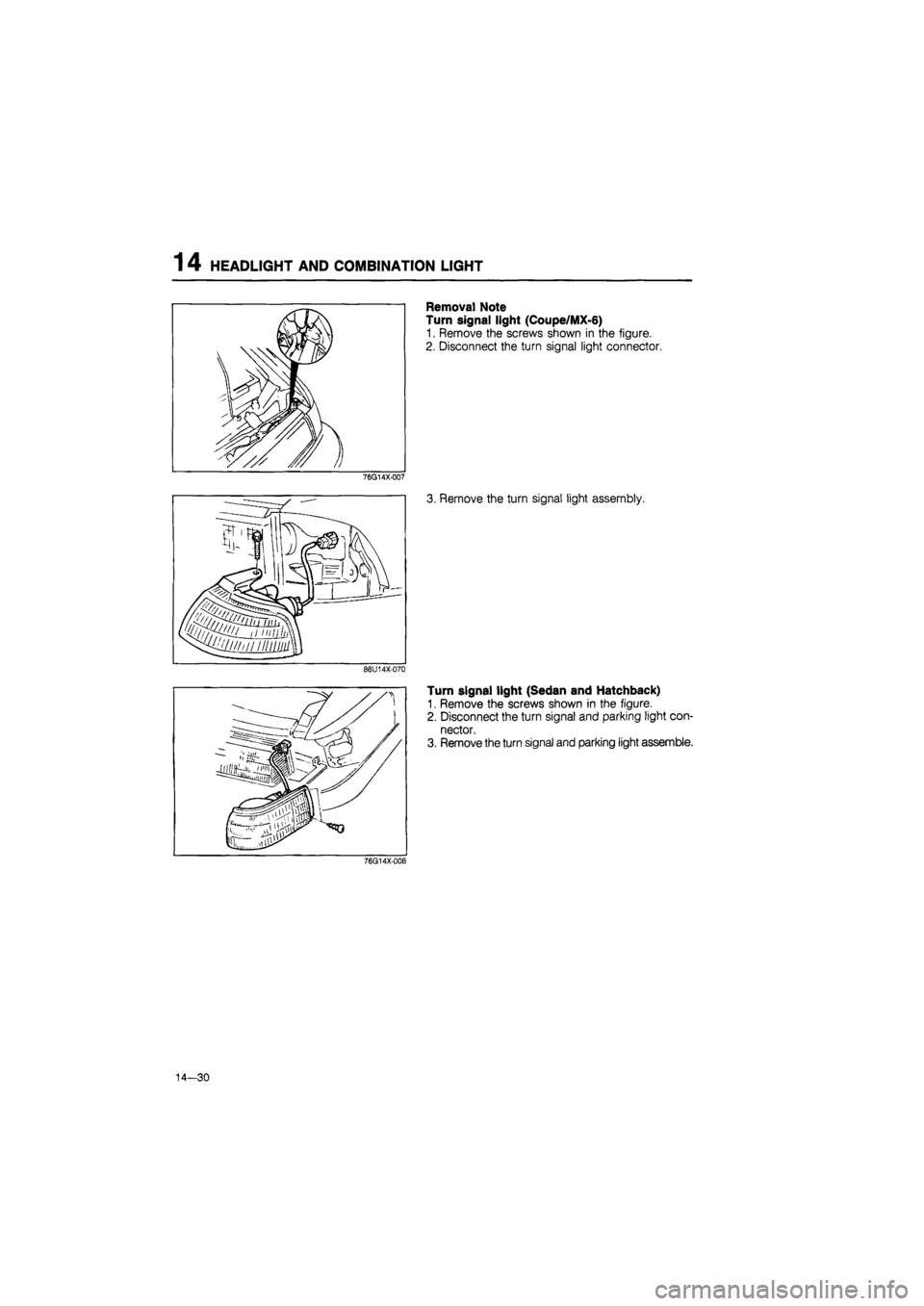

Removal Note
Turn signal light (Coupe/MX-6)
1. Remove the screws shown in the figure.
2. Disconnect the turn signal light connector.
3. Remove the turn signal light assembly.
Turn signal light (Sedan and Hatchback)
1. Remove the screws shown in the figure.
2. Disconnect the turn signal and parking light con-
nector.
3. Remove the turn signal and parking light assemble.
76G14X-008
14-30
Page 1582 of 1865
HEADLIGHT AND COMBINATION LIGHT 1 4

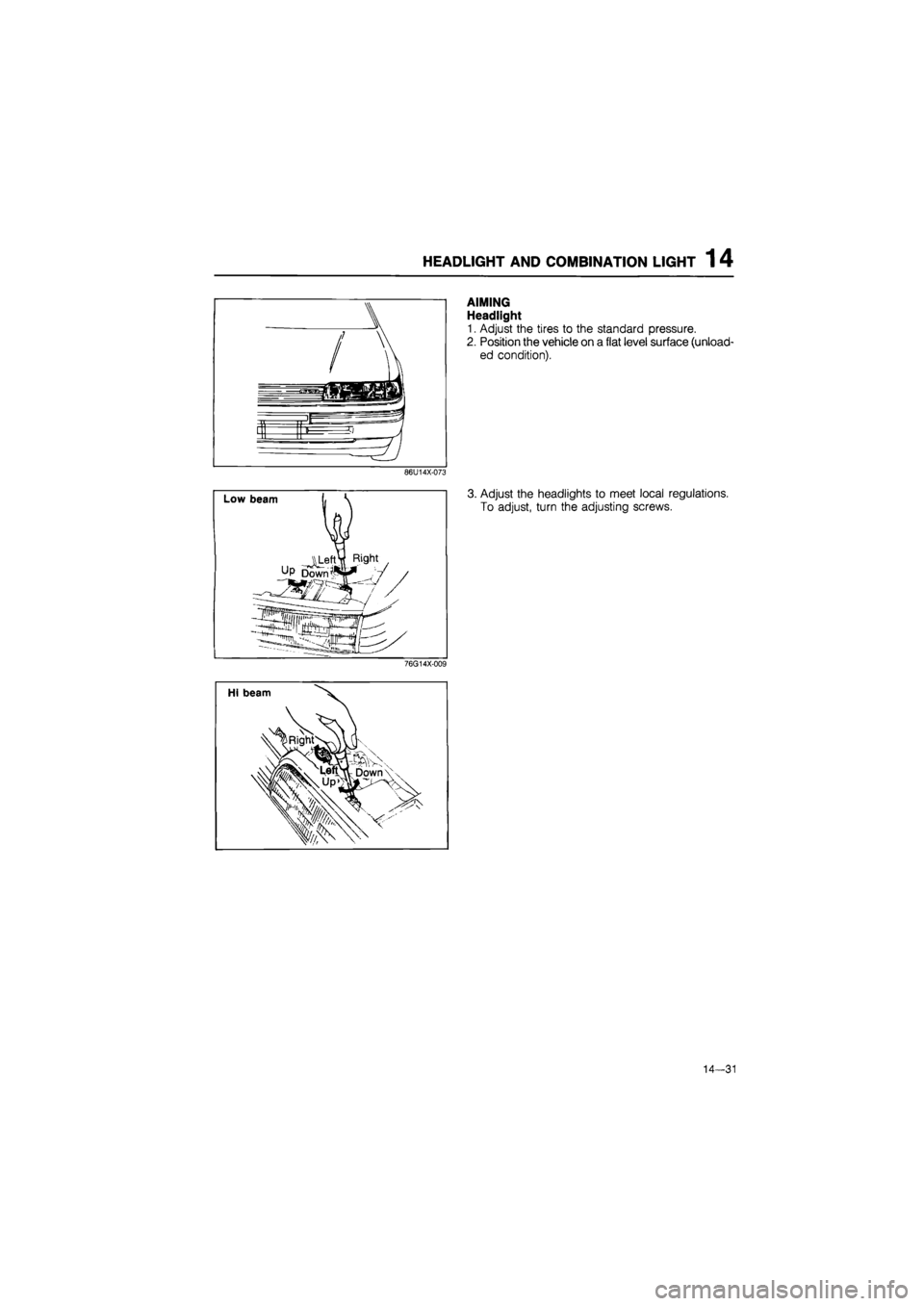

AIMING
Headlight
1. Adjust the tires to the standard pressure.
2. Position the vehicle on a flat level surface (unload-
ed condition).
86U14X-073
76G14X-009
14-31
Page 1583 of 1865
1 4 REAR COMBINATION LIGHTS
REAR COMBINATION LIGHTS
REMOVAL AND INSTALLATION
1. Disconnect the negative battery cable.
2. Remove in the sequence shown in the figure.
3. Install in the reverse order of removal.
76G14X-010
Hatchback
1. End trim
2. Nuts
3. Lens and body
4. Cover
5. Bulb: Turn signal light 21W
Brake and tail light 21W
Side marker light 5W
Sedan and Coupe/MX-6
1. End trim
2. Nuts
3. Lens and body
4. Cover
5. Bulb: Turn signal light 21W
Brake and tail light 21W
Side marker light 5W
14—32
Page 1584 of 1865
REAR COMBINATION LIGHTS 1 4

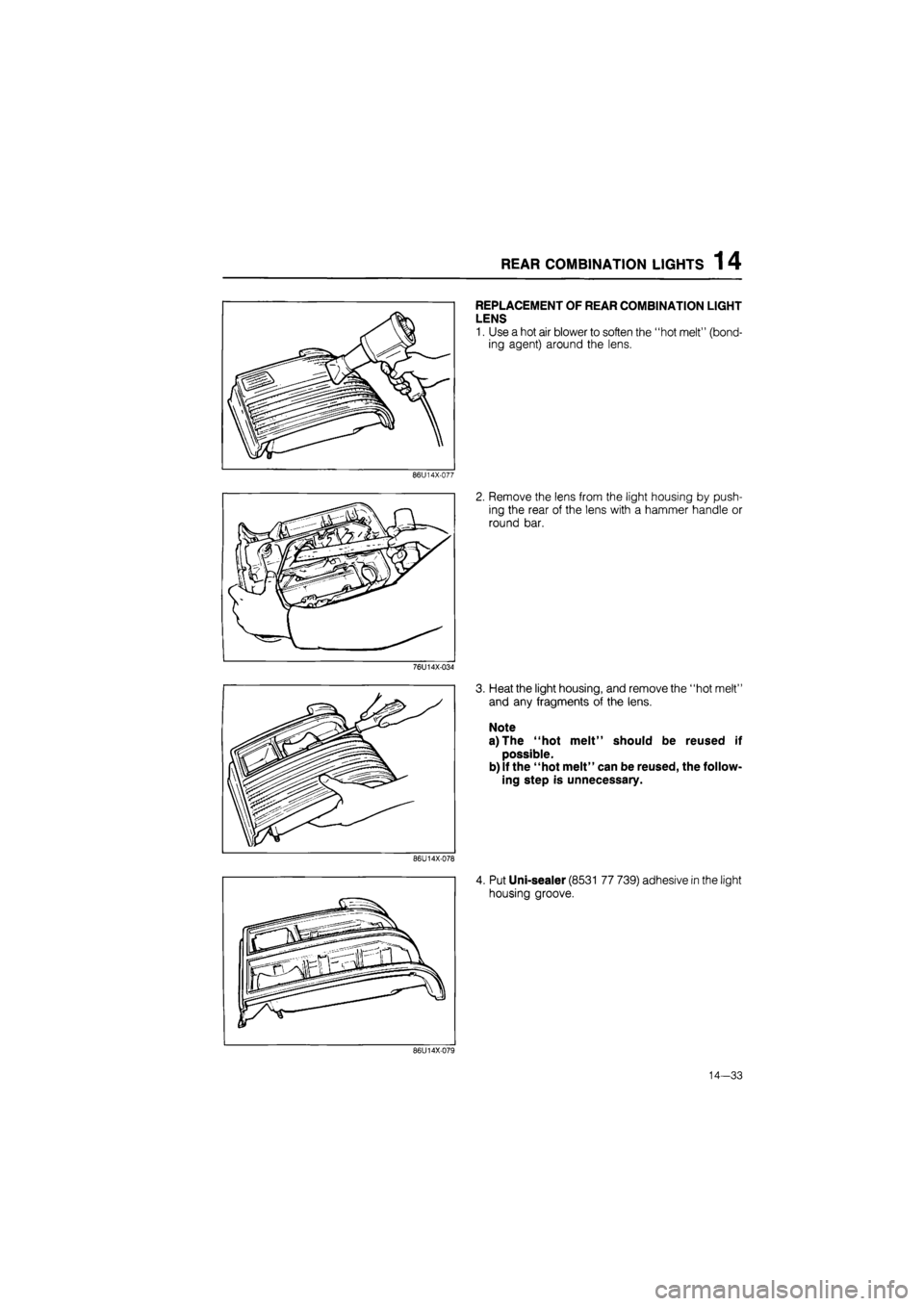

REPLACEMENT OF REAR COMBINATION LIGHT
LENS
1. Use a hot air blower to soften the "hot melt" (bond-
ing agent) around the lens.
86U14X-077
2. Remove the lens from the light housing by push-
ing the rear of the lens with a hammer handle or
round bar.
76U14X-034
3. Heat the light housing, and remove the "hot melt"
and any fragments of the lens.
Note
a) The "hot melt" should be reused if
possible.
b) If the "hot melt" can be reused, the follow-
ing step is unnecessary.
86U14X-078
4. Put Uni-sealer (8531 77 739) adhesive in the light
housing groove.
86U14X-079
14—33
