INSPECTION AND REPAIR 7B
Guid spring
86U07B-182
86U07B-183
86U07B-184

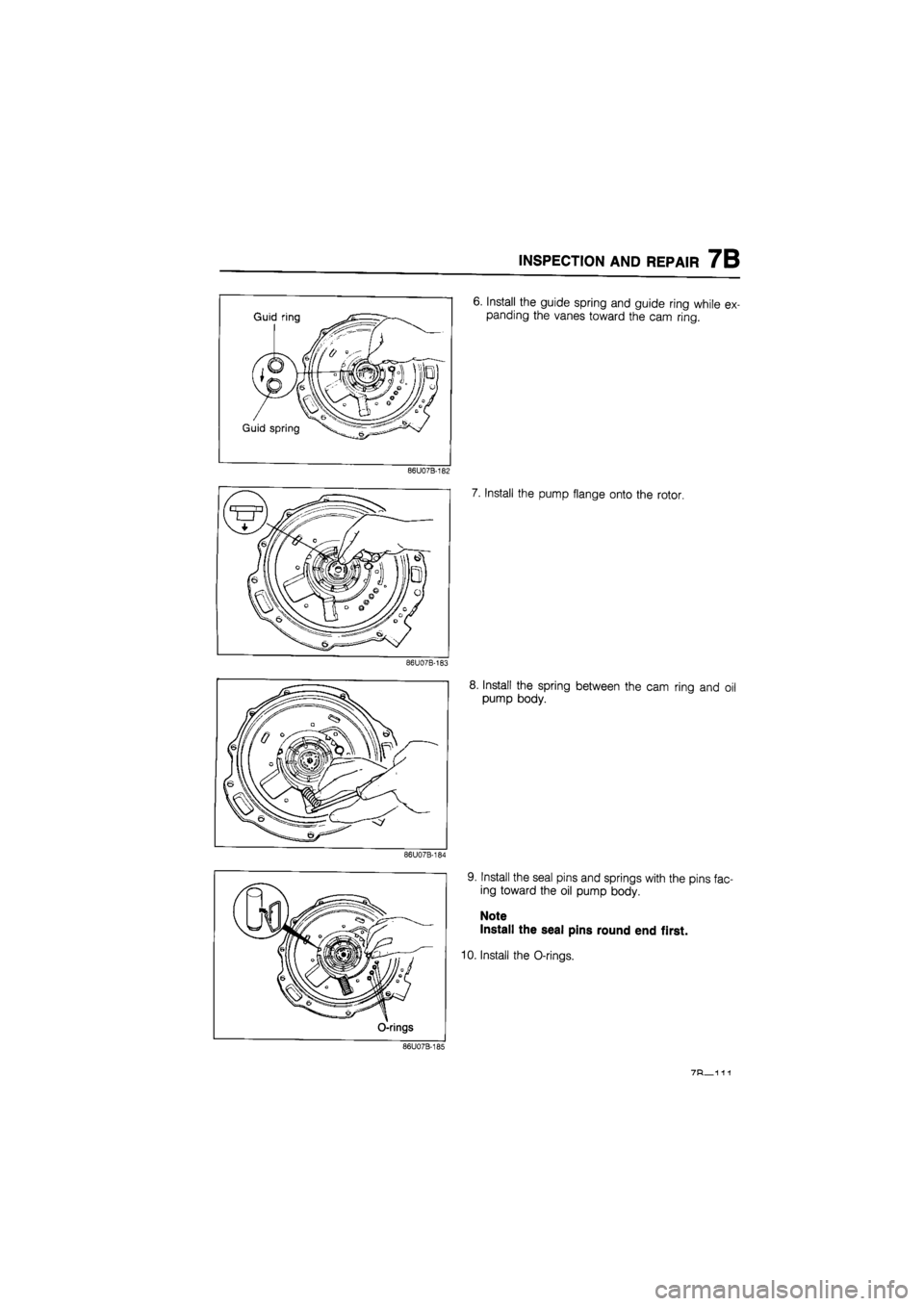

6. Install the guide spring and guide ring while ex-
panding the vanes toward the cam ring.
7. Install the pump flange onto the rotor.
8. Install the spring between the cam ring and oil
pump body.
9. Install the seal pins and springs with the pins fac-
ing toward the oil pump body.
Note
Install the seal pins round end first.
10. Install the O-rings.
86U07B-185
7R
1 11

7B INSPECTION AND REPAIR
86U07B-186
86U07B-187
11. Install the oil pump cover to the oil pump body.
Tighten the bolts in sequence.
Tightening torque:
8—11 Nm (82—112 cm-kg, 71—97 in-lb)
12. Install the oil pump shaft and check for smooth oil
pump operation.
13. Install the seal rings.
14. Apply petroleum jelly to the bearing race
to
secure
it to the oil pump cover; then install it on the oil
pump cover.
Bearing race outer diameter:
88.0 mm (3.46 in)
86U07B-188
7B—112

INSPECTION AND REPAIR 7B
CLUTCH ASSEMBLY
Disassembly
Disassemble in the sequence shown in the figure referring to the disassembly note for the specially
marked parts.
—Forward clutch—
1. Thrust bearings
2. Snap ring
3. Retaining plate
4. Drive and driven plates
5. Dished plate
—Coasting clutch—
6. Snap ring
7. Retaining plate
8. Drive and driven plates
9. Dished plate
10. Snap ring
11. Spring and retainer as-
sembly
12. Coasting clutch drum
13. Coasting piston
14. Outer seal
15. Inner seal
16. Outer seal
17. Seal rings
—Reverse clutch—
18. Snap ring
86U07B-189
19. Retaining plate
20. Drive and driven plates
21. Dished plate
22. Snap ring
23. Return spring stopper
24. Piston return spring
25. Reverse piston
26. Seal rings (inner and outer)
27. Reverse and forward drum
7B—113

7B INSPECTION AND REPAIR
86U07B-190
86U07B-191
76G07B-130
Disassembly note
Coasting clutch drum
1. Install the SST in the coasting clutch drum as
shown.
2. Compress the spring and retainer assembly.
3. Remove the snap ring.
4. Remove the SST, then remove the spring and re-
tainer assembly.
5. Remove the coasting clutch drum from the reverse
and forward drum by applying compressed air
through the fluid passage.
Coasting piston
1. Remove the coasting clutch piston from the coast-
ing clutch drum by applying compressed air
through the fluid passage.
Reverse piston
1. Install the SST in the reverse and forward drum
as shown.
2. Compress the piston return spring.
86U07B-193
7B—114

INSPECTION AND REPAIR 7B
3. Remove one end of the snap ring from the groove
with snap ring pliers.
86U07B-194
4. Remove the SST from the reverse and forward
drum.
5. Remove the snap ring with a screw driver.
86U07B-195
6. Place the reverse and forward drum on the oil
pump.
7. Remove the reverse piston by applying com-
pressed air through the fluid passage.
86U07B-19G
86U07B-197
Inspection
Check the following and repair or replace any faulty
parts.
1. Drive and driven plates for damage or wear
Drive plate thickness
Standard: 1.6 mm (0.063 in)
Minimum: 1.4 mm (0.055 in)
2. Clutch piston for damage or cracks
3. Clutch drum for damage or deformation
4. Seal contact area for damage
5. Check ball for leaking sticking
6. Broken or worn snap ring
7. Broken or weakened spring
7B—115

7B INSPECTION AND REPAIR
6. Spring and retainer assembly for separation or
deformation
Free length of spring:
29.8 mm (1.173 in)
86U07B-198
Assembly
Reverse clutch
1. Install the reverse piston.
(1) Apply ATF to inner and outer faces of the seals,
and install them to the reverse piston.
(2) Face the outer seal lip toward the inside by
gently rolling
it
down around the circumference
for easier installation into the reverse clutch
drum.
86U07B-199
(3) Install the reverse piston by pushing evenly
around the circumference, being careful not to
damage the seal rings.
86U07B-200
2. Install the piston return spring with the tabs facing
away from the reverse piston.
3. Install the return spring stopper with the step fac-
ing upwards.
86U07B-201
7B—116

INSPECTION AND REPAIR 7B
86U07B-202
49 G019 029
49 G019 026
49 G019 024
49 G019 027
86U07B-203
86U07B-204
4. Install the snap ring half-way down the reverse for-
ward drum as shown.
5. Install the SST on the reverse and forward drum.
6. Compress the spring and retainer assembly.
7. Install the snap ring with a screwdriver.
8. Remove the SST.
9. Install the dished plate with the dished side facing
the piston as shown.
10. Install the drive and driven plates.
Note
Installation order:
Driven-Drive-Driven-Drive
11. Install the retaining plate with the step facing
downward.
12. Install the snap ring.
13. Check the reverse clutch clearance.
(1) Measure the clearance between the snap ring
and the retaining plate of the reverse clutch.
(2) If the clearance is not within specification, ad-
just it by selecting a proper retaining plate.
Reverse clutch clearance:
2.1—2.4 mm (0.083—0.094 in)
Retaining plate sizes mm (in)
6.6 (0.260) 6.8 (0.268) 7.0 (0.276)
7.2 (0.283) 7.4 (0.291) 7.6 (0.299)
86U07B-205
7B-117

7B INSPECTION AND REPAIR
86U07B-206
86U07B-207
86U07B-208
Coasting clutch
1. Install the coasting clutch drum.
(1) Apply ATF to inner and outer faces of the seal,
and install it onto the coasting clutch drum.
(2) Face the outer seal lip toward the inside by
gently rolling it down around the circumference
for easier installation into the drum.
(3) Install the coasting clutch drum the correct po-
sition in the reverse and forward drum.
(4) Push evenly around the circumference, being
careful not to damage the outer seal.
2. Install the coasting piston
(1) Apply ATF to inner and outer faces of the seals
and install them onto the coasting piston.
(2) Face the outer seal lip toward the inside by
gently rolling it down around the circumference
for easier installation into the drum.
(3) Install the coasting piston by pushing evenly
around the circumference, being careful not to
damage the outer seal.
B6U07B-209
