ASSEMBLY 7C
76G07C-238
76G07C-239
76G07C-240

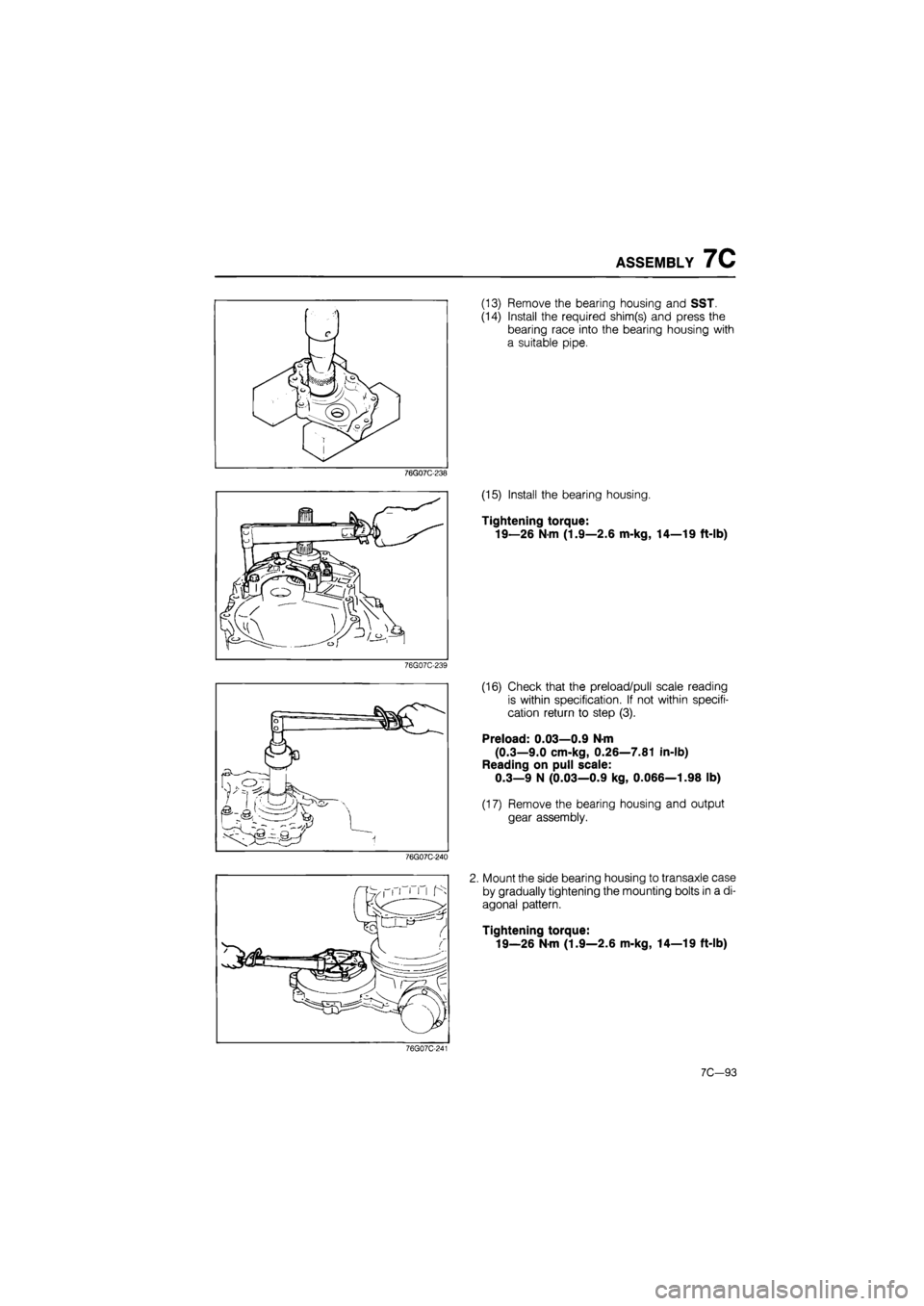

(13) Remove the bearing housing and SST.
(14) Install the required shim(s) and press the
bearing race into the bearing housing with
a suitable pipe.
(15) Install the bearing housing.
Tightening torque:
19—26 N m (1.9—2.6 m-kg, 14—19 ft-lb)
(16) Check that the preload/pull scale reading
is within specification. If not within specifi-
cation return to step (3).
Preload: 0.03—0.9 N-m
(0.3—9.0 cm-kg, 0.26—7.81 in-lb)
Reading on pull scale:
0.3—9 N (0.03—0.9 kg, 0.066—1.98 lb)
(17) Remove the bearing housing and output
gear assembly.
2. Mount the side bearing housing to transaxle case
by gradually tightening the mounting bolts in a di-
agonal pattern.
Tightening torque:
19—26 N-m (1.9—2.6 m-kg, 14—19 ft-lb)
76G07C-241
7C-93
