1987 MAZDA 626 Workshop Manual

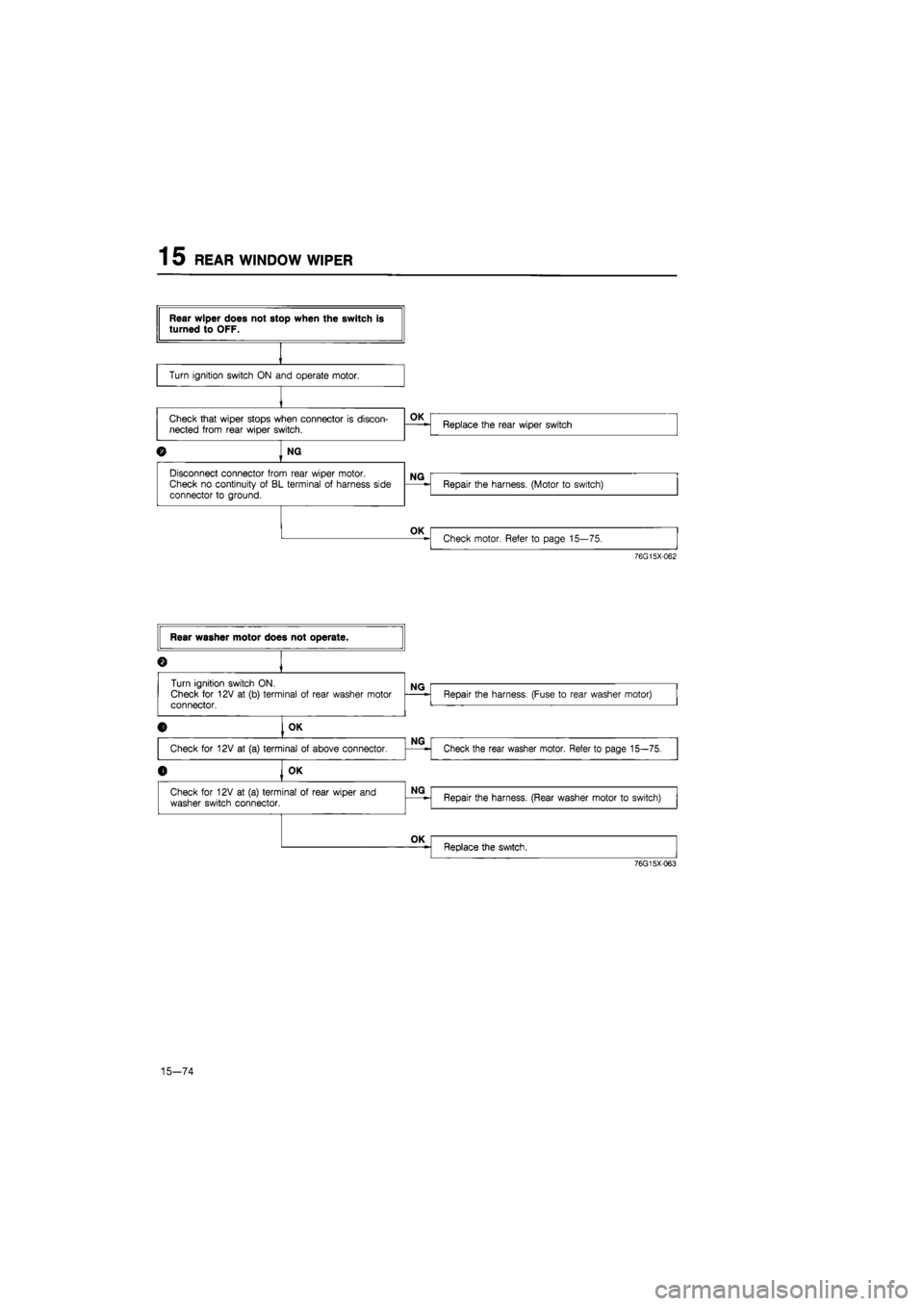

15 REAR WINDOW WIPER
76G15X-062
76G15X063
15-74

REAR WINDOW WIPER 1 5
86U15X-132
INSPECTION
Operation Check of Rear Wiper Motor
1. Check that the motor operates continuously when
12V is connected to the (a) terminal and ground
is connected to the (b) terminal of the motor.
2. Start the motor again.
Disconnect the ground from the (b) terminal, and
then connect the ground to the motor body im-
mediately. Check that the motor shaft reaches the
auto-stop position, and that there is conductivity
through the grounding of the motor body.
Note:
Be sure to re-install the rubber seal correctly.
Operation Check of Rear Washer Motor
1. Using a voltmeter, measure the voltage between
the (b) terminal and a body ground with the igni-
tion switch ON.
2. If no voltage, check the fuse or repair the harness.
3. If the (b) terminal voltage is 12 V, connect the (a)
terminal to a body ground.
4. If the washer motor does not operate, replace the
washer motor.
76G15X-094
15-75

1 5 WINDSHIELD WIPER

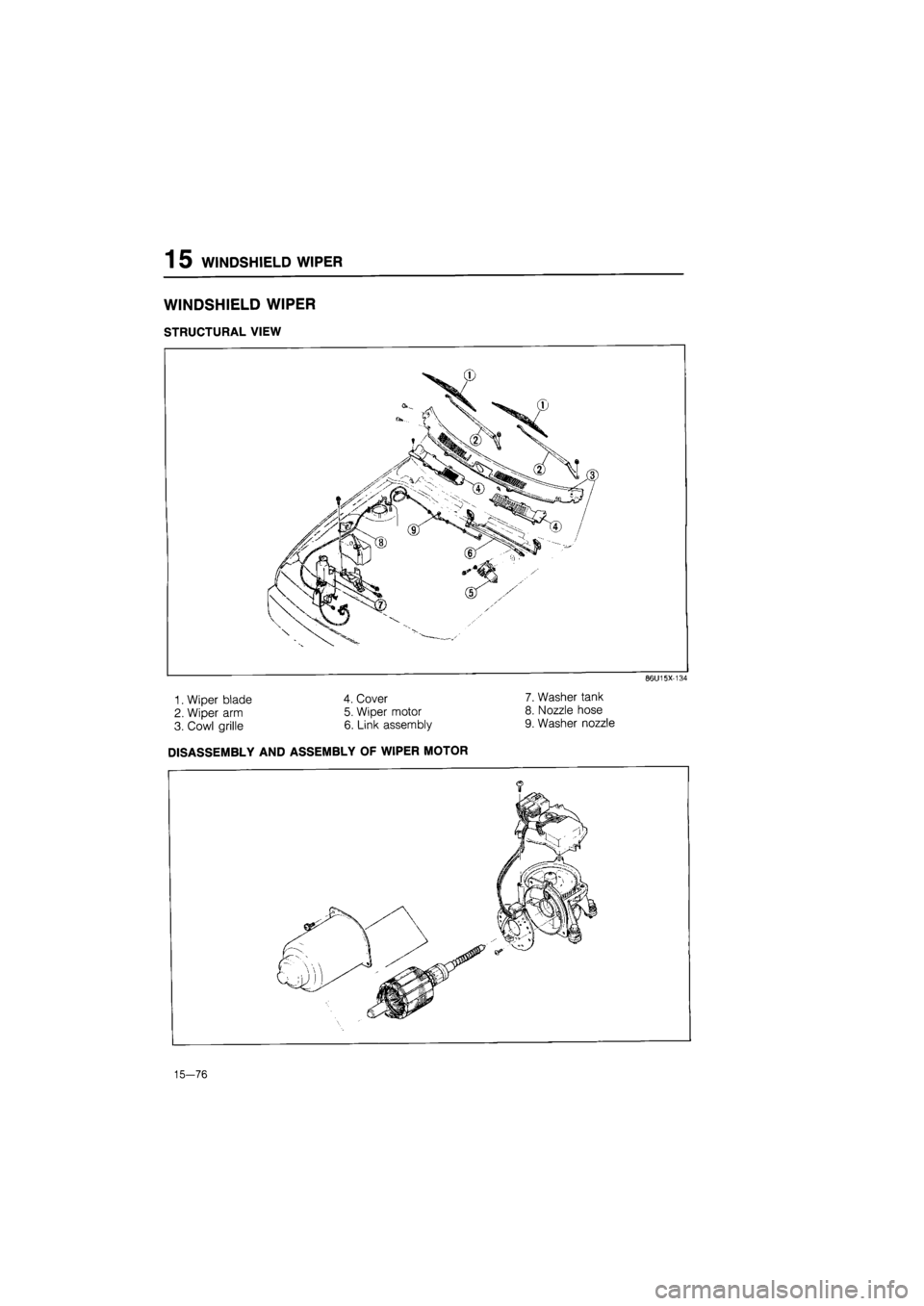

WINDSHIELD WIPER
STRUCTURAL VIEW
1. Wiper blade
2. Wiper arm
3. Cowl grille
4. Cover
5. Wiper motor
6. Link assembly
7. Washer tank
8. Nozzle hose
9. Washer nozzle
86U15X-134
DISASSEMBLY AND ASSEMBLY OF WIPER MOTOR
15-76

WINDSHIELD WIPER 15
CIRCUIT DIAGRAM

BATTERY
REAR WIPER
&
WASHER SW
GWIll^ Conlrol
. (Sectin ED)
To Instrument Panel Ligtil
D-01 Combination Sw
[

LO
L B ±±±

LW
LB LR

D-02 Front Wiper Motor [F]
B
LP LW
d±±
L LB L

D-03 Rear Wiper Sw
[I]
x
* GW
TTTT

(5 Door)
B
L BL RB

D-04 Rear Wiper Motor |R3]
(5 Door)
D-05 Rear Washer Motor [R]

^LG (5D°°r)

D-06 Headlight Cleaner Sw
LY
R0

LW GW
C-05 Washer Motor Assembly [F|
LW
LY L

f±±±1

wf 86U15X-135
15—77

1 5 WINDSHIELD WIPER

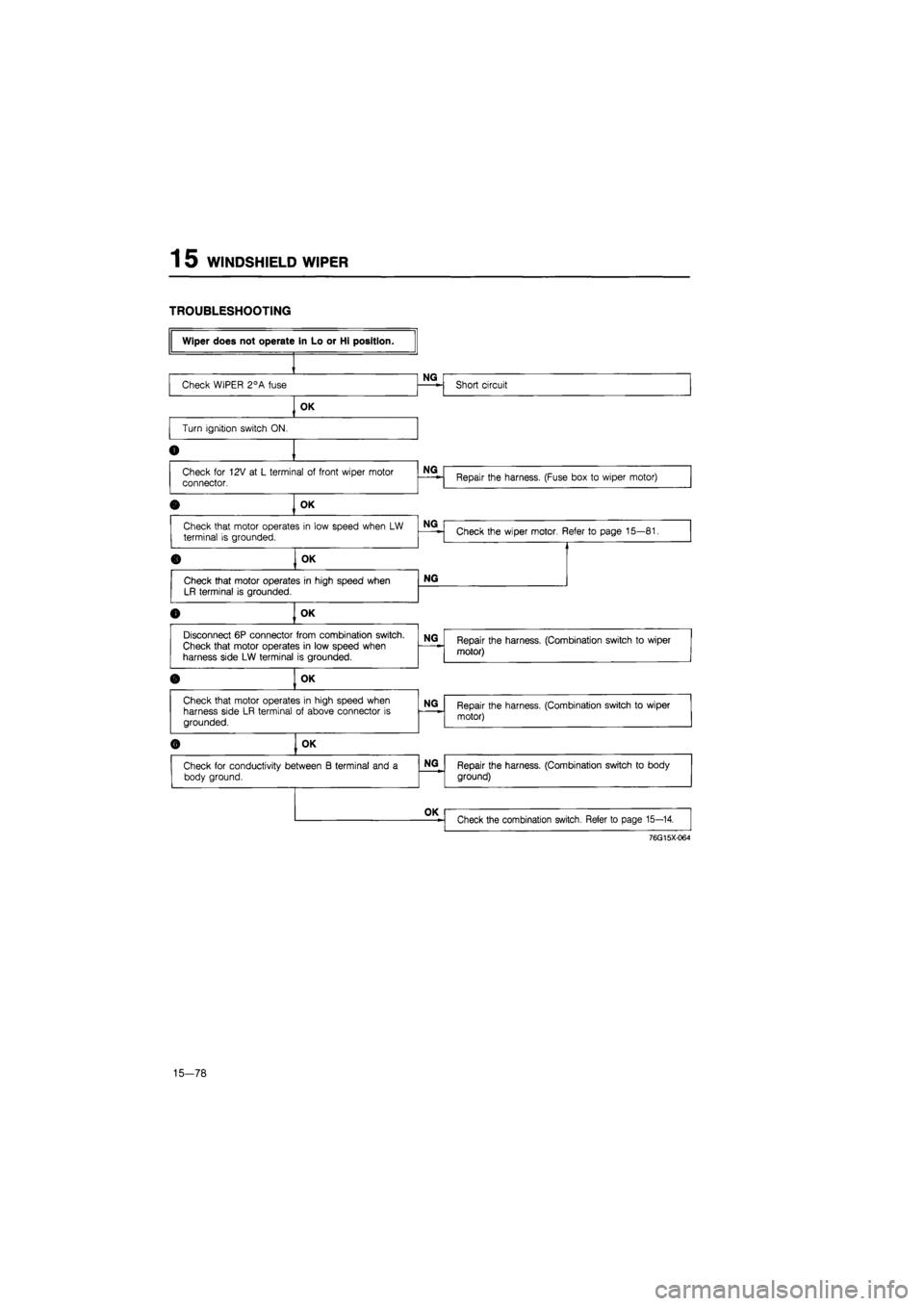

TROUBLESHOOTING
76G15X064
15-78

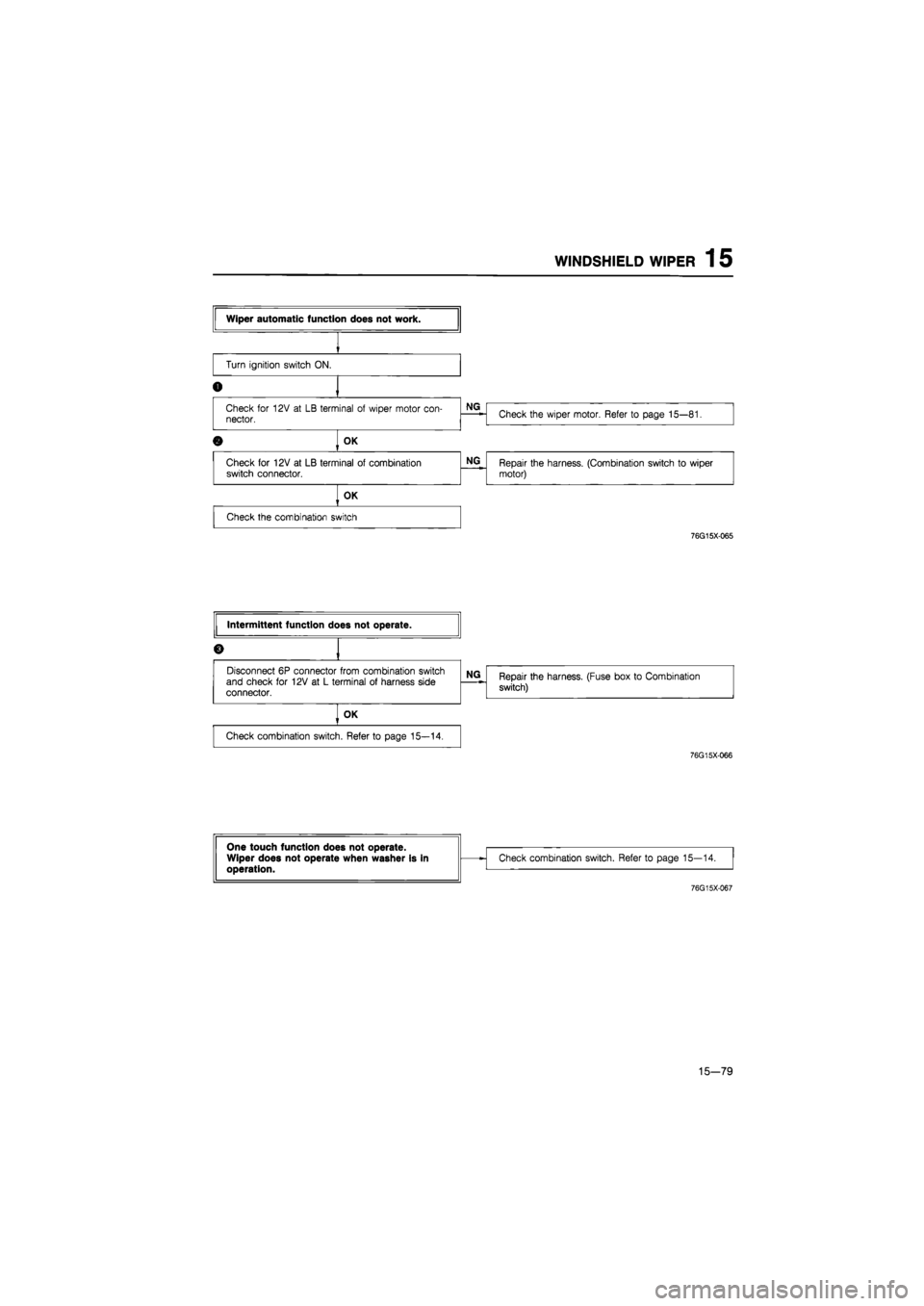

WINDSHIELD WIPER 1 5
76G15X-065
76G15X-066
One touch function does not operate. Wiper does not operate when washer is In operation.
One touch function does not operate. Wiper does not operate when washer is In operation.
Check combination switch. Refer
to
page 15—14.
One touch function does not operate. Wiper does not operate when washer is In operation.
76G15X-067
15-79

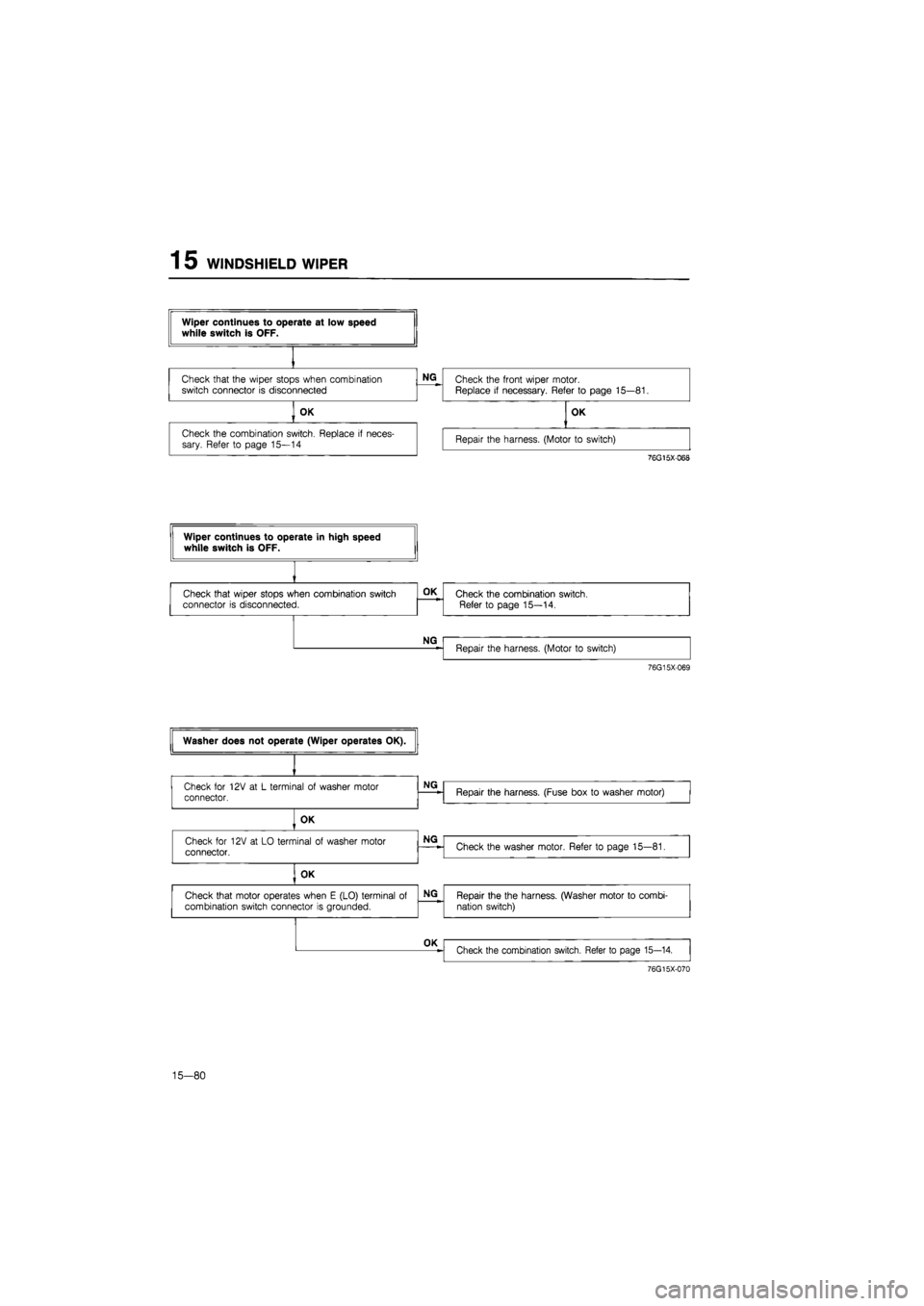

1 5 WINDSHIELD WIPER
76G15X-069
76G15X-070
15—80

WINDSHIELD WIPER 1 5
76G15X-071
86U15X-144

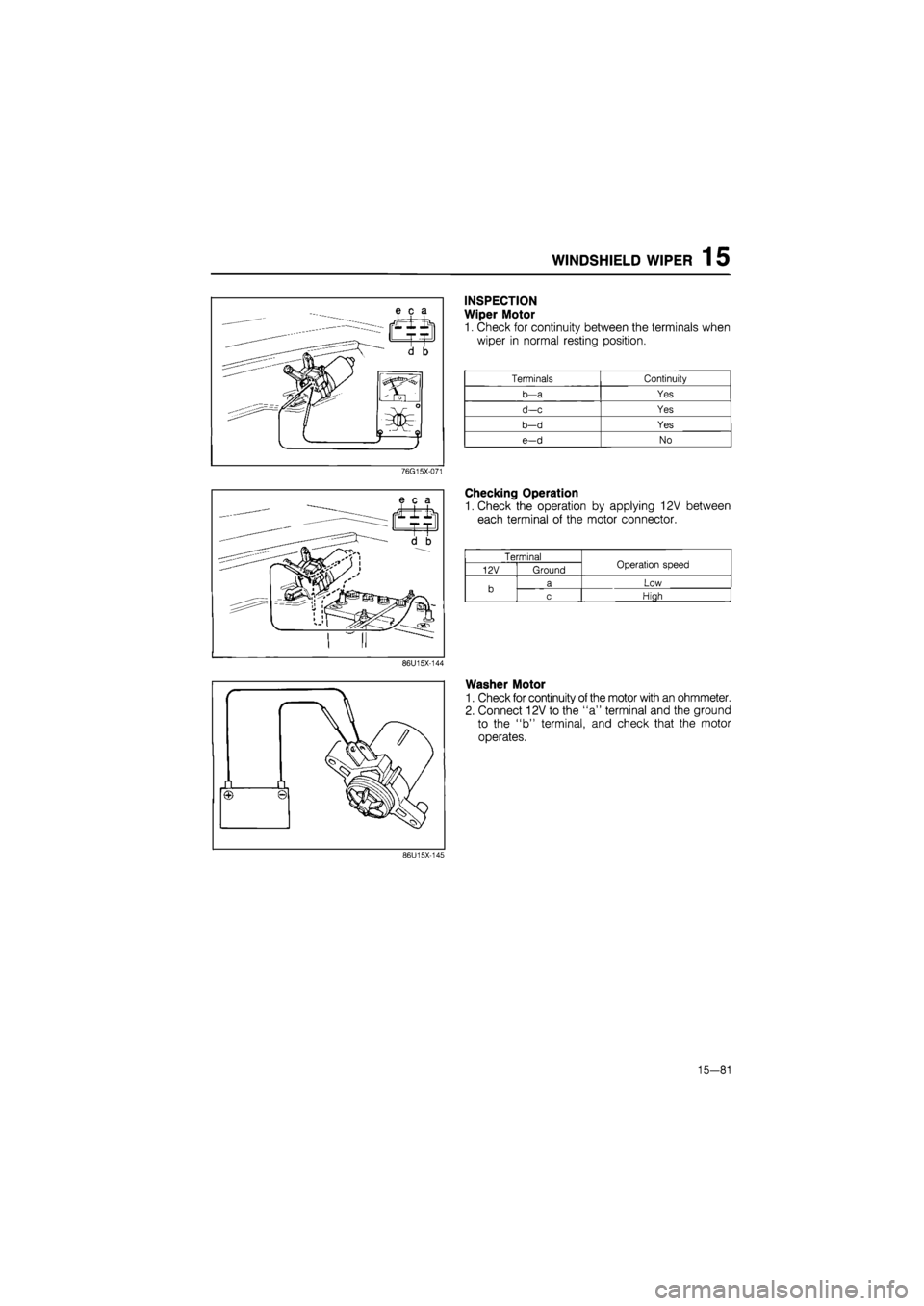

INSPECTION
Wiper Motor
1. Check for continuity between the terminals when
wiper in normal resting position.

Terminals Continuity

b—a Yes
d-c Yes
b—d Yes
e-d No

Checking Operation
1. Check the operation by applying 12V between
each terminal of the motor connector.

Terminal Operation speed
12V
Ground Operation speed

b a Low b c
High

Washer Motor
1. Check for continuity of the motor with an ohmmeter.
2. Connect 12V to the "a" terminal and the ground
to the "b" terminal, and check that the motor
operates.
86U15X-145
15-81
