1 5 CLUSTER SWITCH

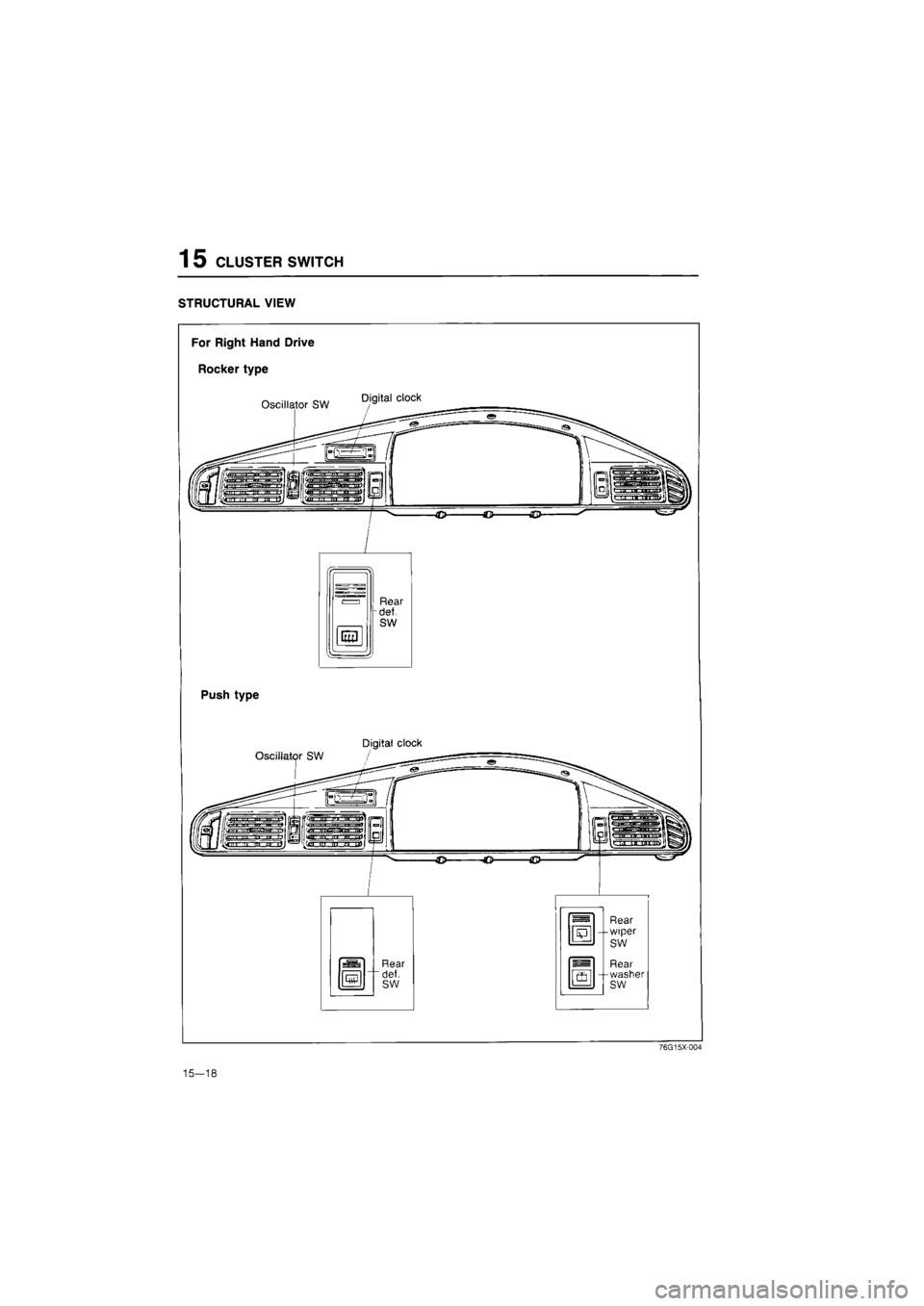

STRUCTURAL VIEW
15—18
Page 1674 of 1865

CLUSTER SWITCH 15
e a
frtum
Illumination light
b
f
e -Q-
f d b d I f
Indicator light
76G15X-088
86U15X-018
g
TTTT
h f d b
from f „
IG SW
from a def. relay^
from ~ TWS unit
15 minules timer
To ground
h To panel
"controller

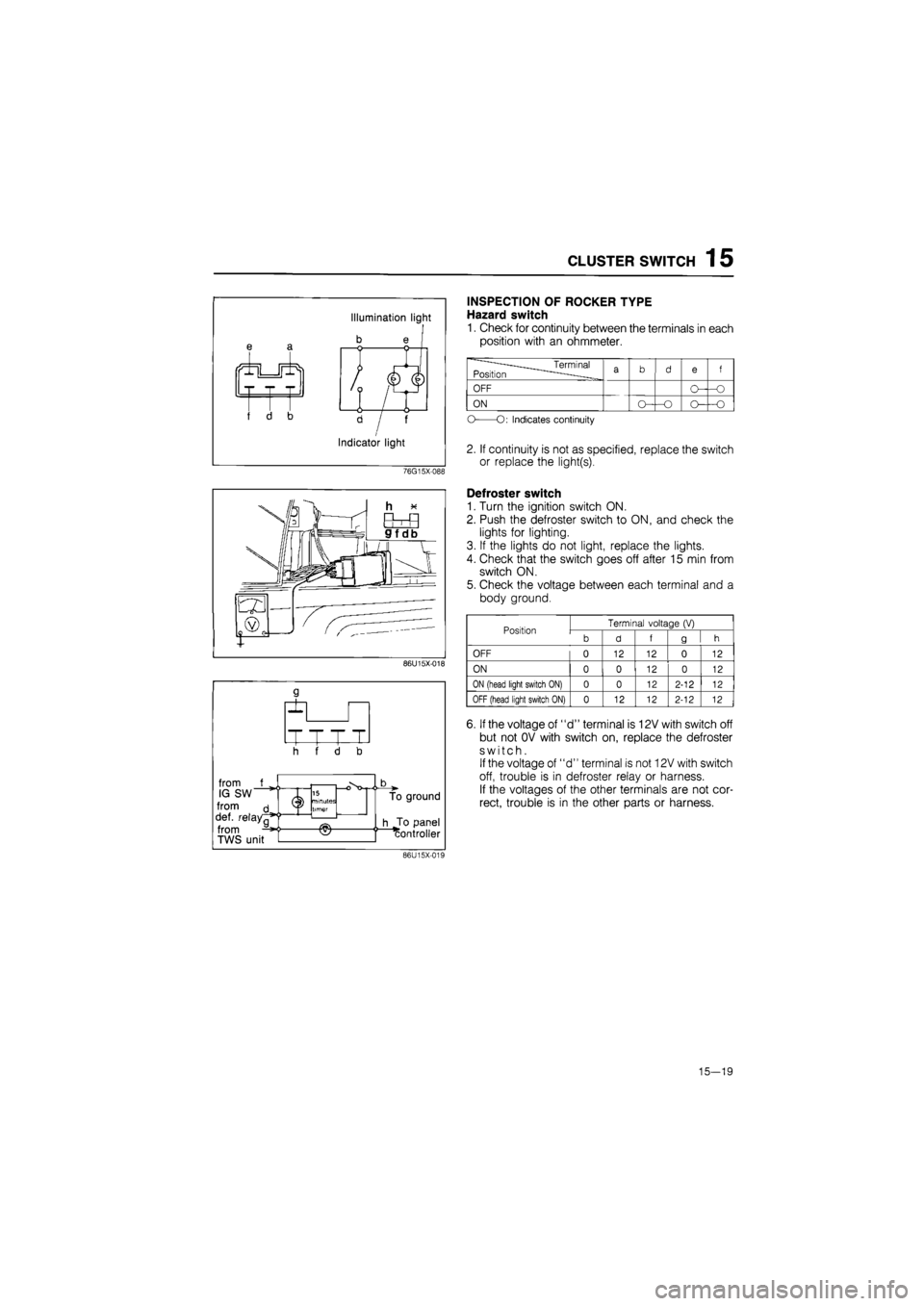

INSPECTION OF ROCKER TYPE
Hazard switch
1. Check for continuity between the terminals in each
position with an ohmmeter.
——____Terminal Position
^
a
b d
e
f
OFF
ON
-o
O
O:
Indicates continuity
2. If continuity is not as specified, replace the switch
or replace the light(s).
Defroster switch
1. Turn the ignition switch ON.
2. Push the defroster switch to ON, and check the
lights for lighting.
3. If the lights do not light, replace the lights.
4. Check that the switch goes off after 15 min from
switch ON.
5. Check the voltage between each terminal and a
body ground.
Position Terminal voltage
(V)
Position
b d f g h
OFF 0 12 12 0 12
ON 0 0 12 0 12
ON
(head light switch
ON) 0 0 12 2-12 12
OFF (head light switch
ON) 0 12 12 2-12 12
6. If the voltage of "d" terminal is 12V with switch off
but not OV with switch on, replace the defroster
switch.
If the voltage of "d" terminal is not 12V with switch
off, trouble is in defroster relay or harness.
If the voltages of the other terminals are not cor-
rect, trouble is in the other parts or harness.
86U15X-019
15—19
Page 1675 of 1865

15 CLUSTER SWITCH
86U15X-020
86U15X-021
A itt
TTTT h f
from f IG SW
from 9
def. relay
•>o-15 min. timer _To ground
86U15X-022

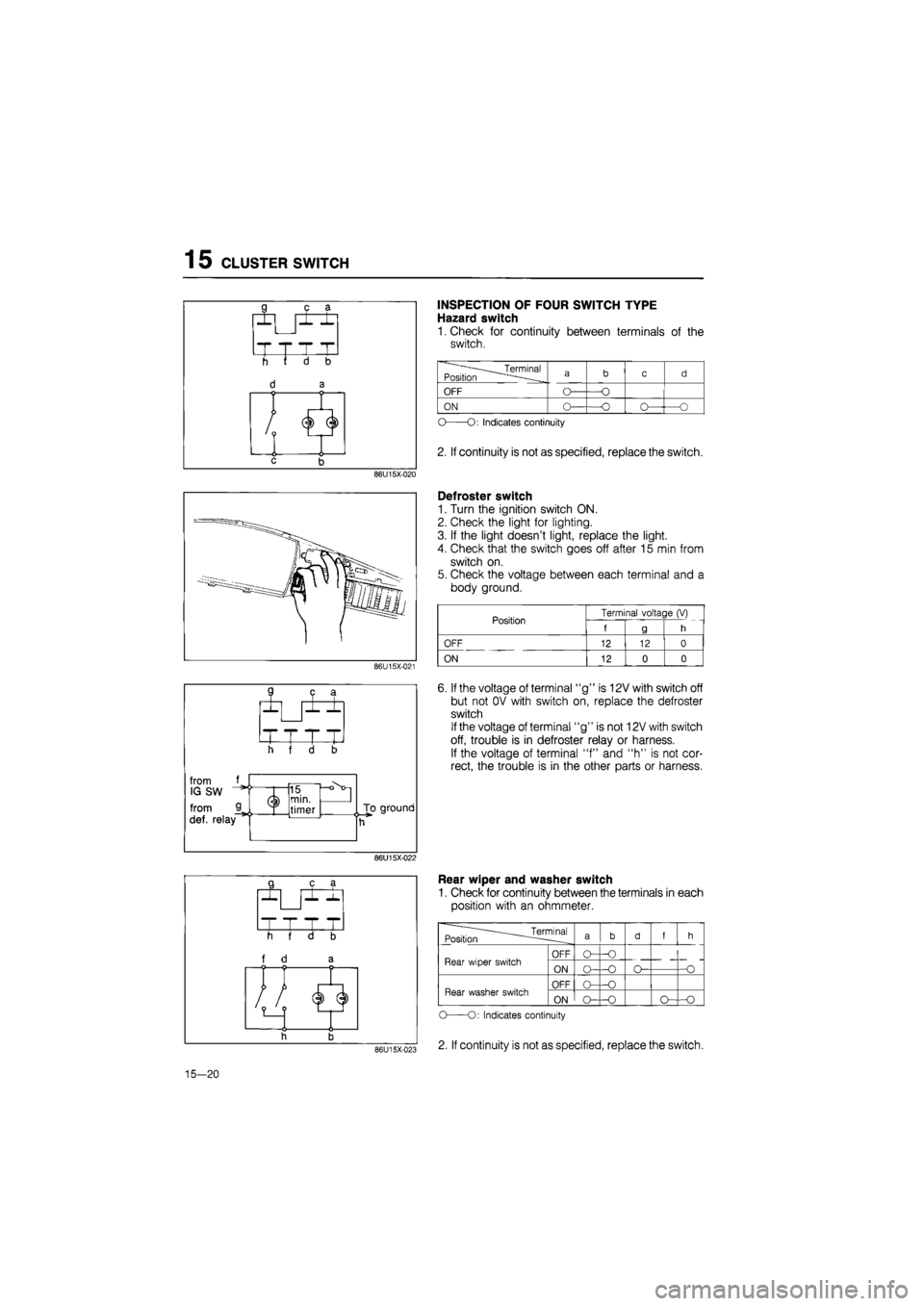

INSPECTION OF FOUR SWITCH TYPE
Hazard switch
1. Check for continuity between terminals of the
switch.
Position a b
C
d
OFF O— —0
ON
pi Pi Pl
ON
u
O O:
Indicates continuity
2. If continuity is not as specified, replace the switch.
Defroster switch
1. Turn the ignition switch ON.
2. Check the light for lighting.
3. If the light doesn't light, replace the light.
4. Check that the switch goes off after 15 min from
switch on.
5. Check the voltage between each terminal and a
body ground.
Position Terminal voltage
(V)
Position
f g h
OFF
12 12 0
ON
12 0 0
6. If the voltage of terminal "g" is 12V with switch off
but not OV with switch on, replace the defroster
switch
If the voltage of terminal "g" is not 12V with switch
off, trouble is in defroster relay or harness.
If the voltage of terminal "f" and "h" is not cor-
rect, the trouble is in the other parts or harness.
Rear wiper and washer switch
1. Check for continuity between the terminals in each
position with an ohmmeter.
1———___Terminal Position
"——
a b d f h
Rear wiper switch OFF CK -0
—O Rear wiper switch ON
o--0
O-—O
Rear washer switch OFF Rear washer switch ON
o-
-O O-
—o
86U15X-023
O O:
Indicates continuity
2. If continuity is not as specified, replace the switch.
15—20
Page 1676 of 1865
CLUSTER SWITCH 15
T T T T
h f d b
h
•I
9 76G15X-006
Rear fog light switch
1. Check for continuity between the terminals in each
position with an ohmmeter.
~
———
Terminal Position —•—— f
g
h
OFF O— —O
ON
o— —o— —o
O
O:
Indicates continuity
2. If continuity is not as specified, replace the switch
or replace the light(s).
15-21
Page 1677 of 1865
15 METER
METER
STRUCTURAL VIEW
DIGITAL ELECTRONIC DISPLAY METER
ANALOG DISPLAY METER
76G15X-007
1. Speedometer 5. Warning and indicator lights
2. Tachometer 6. Tripmeter
3. Water temperature gauge 7. Twin tripmeter change switch
4. Fuel gauge 8. Fuel garge scale change switch
15—22
Page 1678 of 1865
METER
15

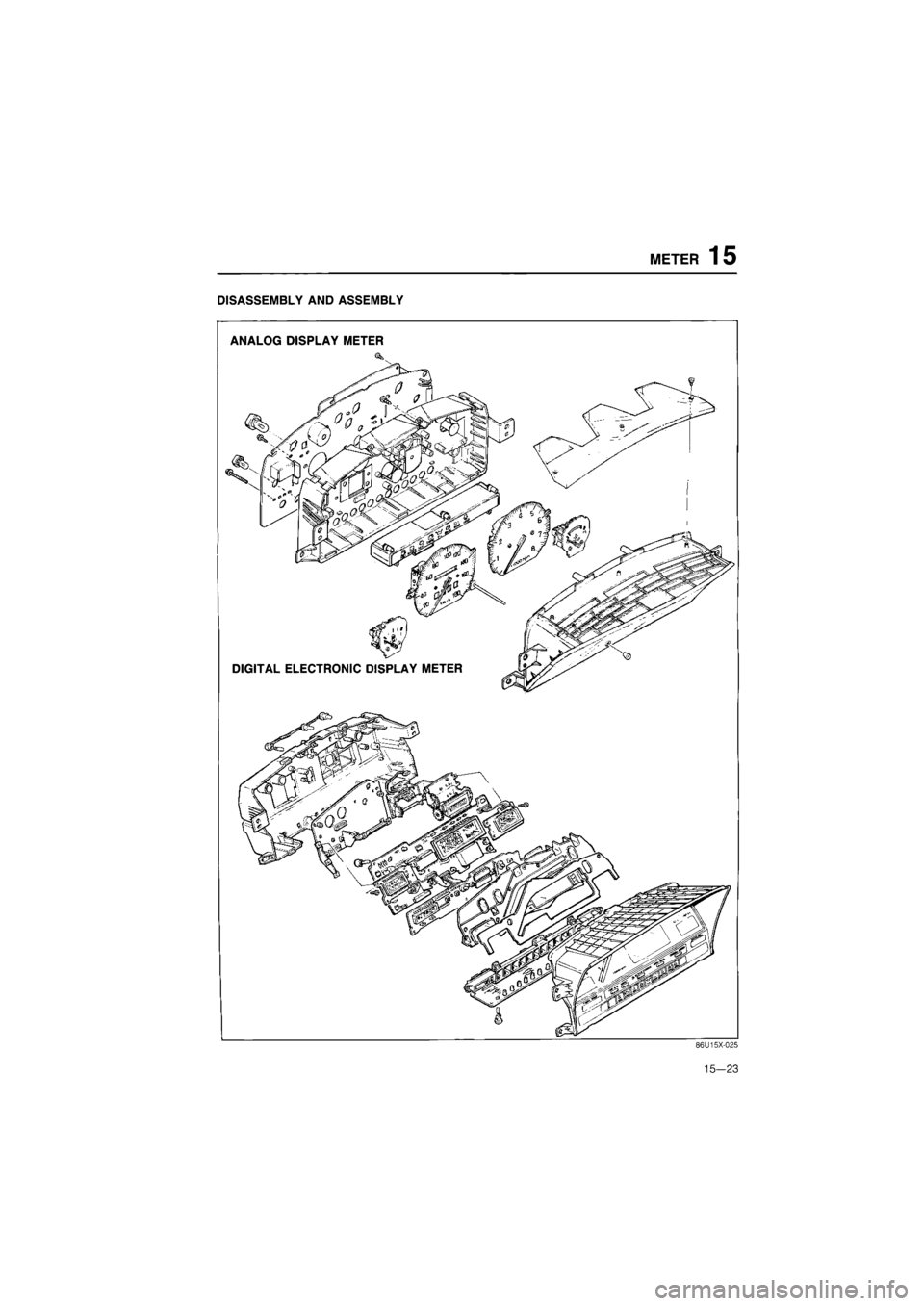

DISASSEMBLY
