1987 MAZDA 626 Workshop Manual

1 4 SEAT
SEAT

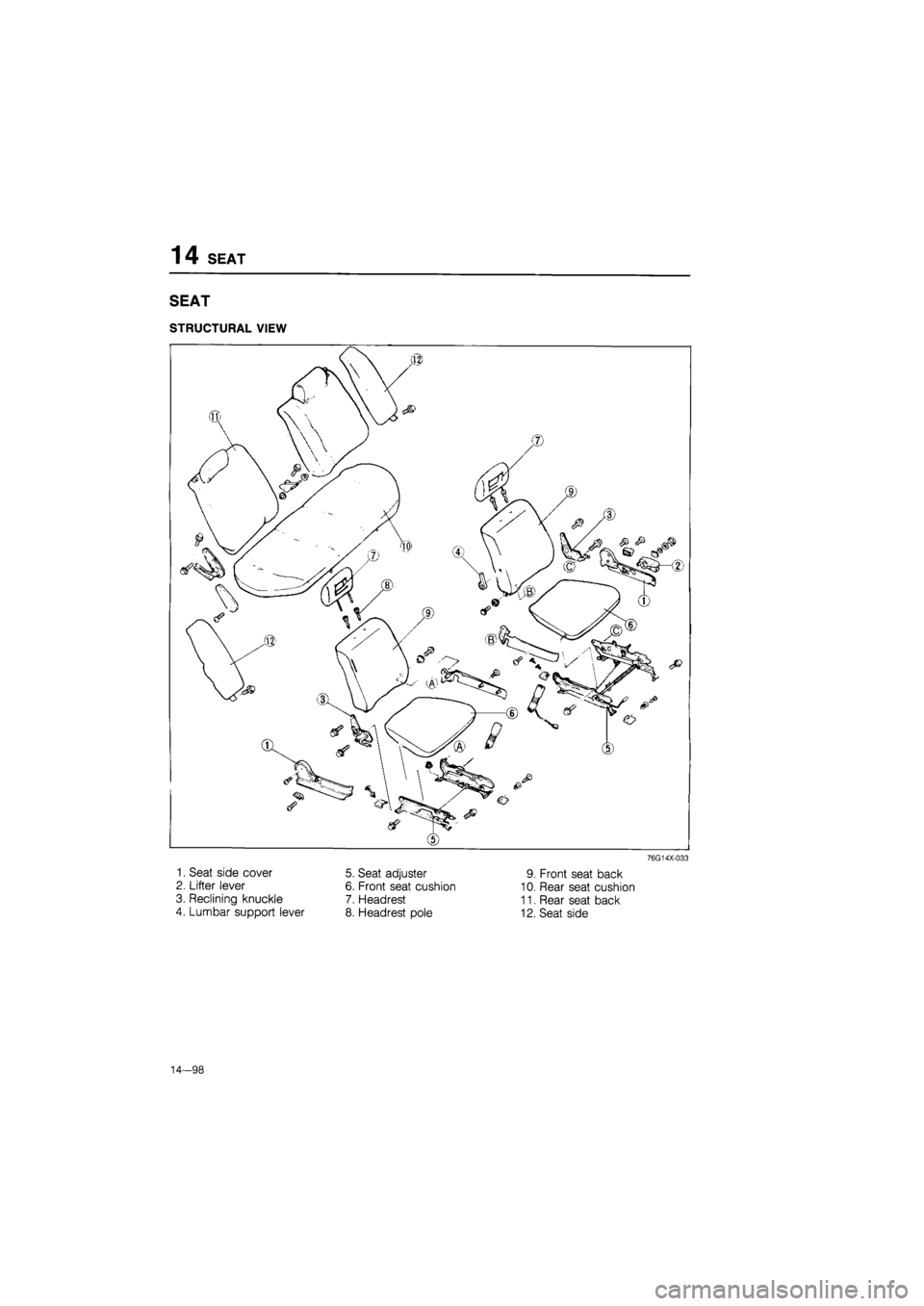

STRUCTURAL VIEW
76G14X-033
1. Seat side cover
2. Lifter lever
3. Reclining knuckle
4. Lumbar support lever
5. Seat adjuster
6. Front seat cushion
7. Headrest
8. Headrest pole
9. Front seat back
10. Rear seat cushion
11. Rear seat back
12. Seat side
14—98

SEAT 14

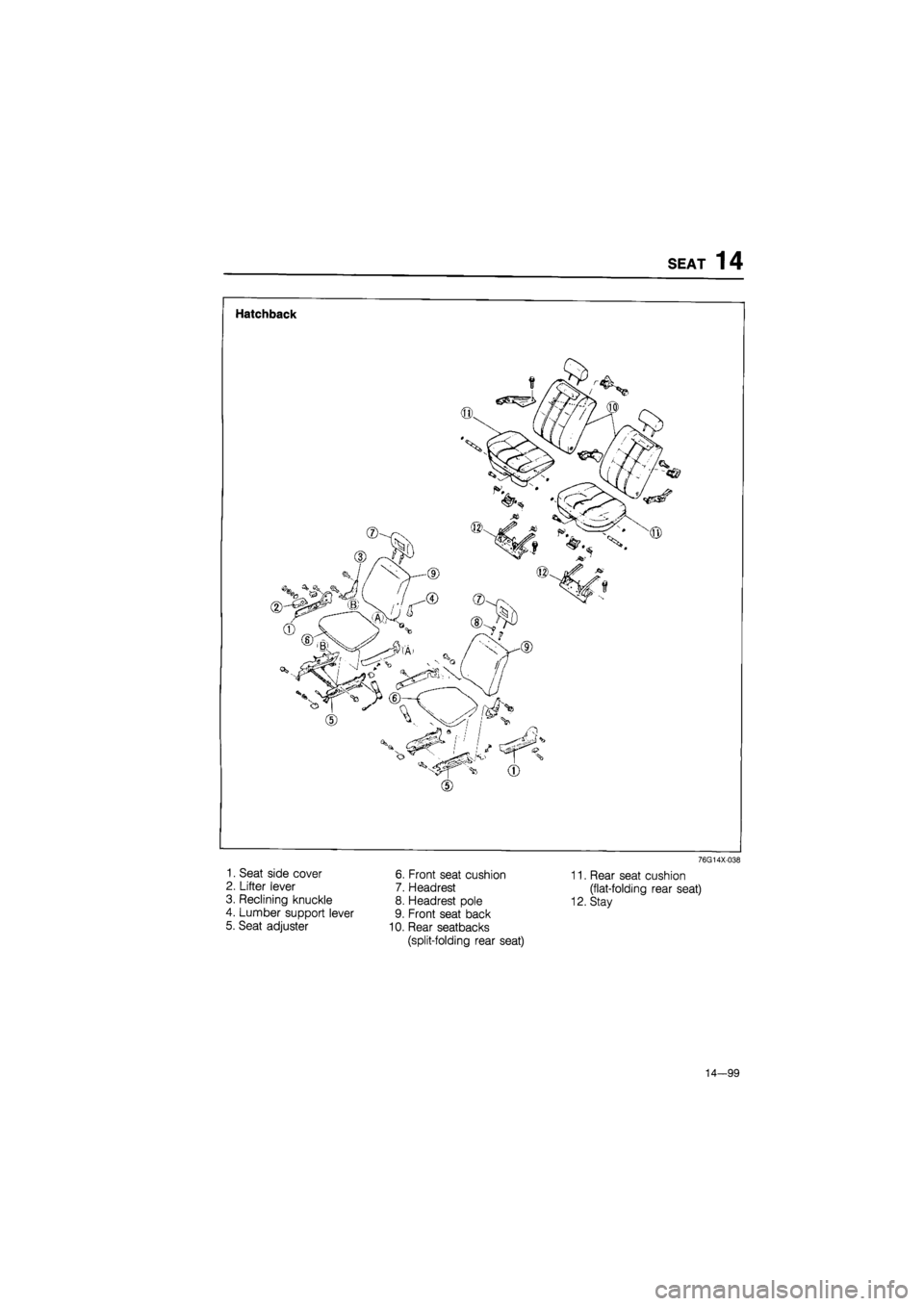

Hatchback
76G14X-038
1. Seat side cover
2. Lifter lever
3. Reclining knuckle
4. Lumber support lever
5. Seat adjuster
6. Front seat cushion
7. Headrest
8. Headrest pole
9. Front seat back
10. Rear seatbacks
(split-folding rear seat)
11. Rear seat cushion
(flat-folding rear seat)
12. Stay
14—99

1 4 SEAT
69G14X-228
INSPECTION

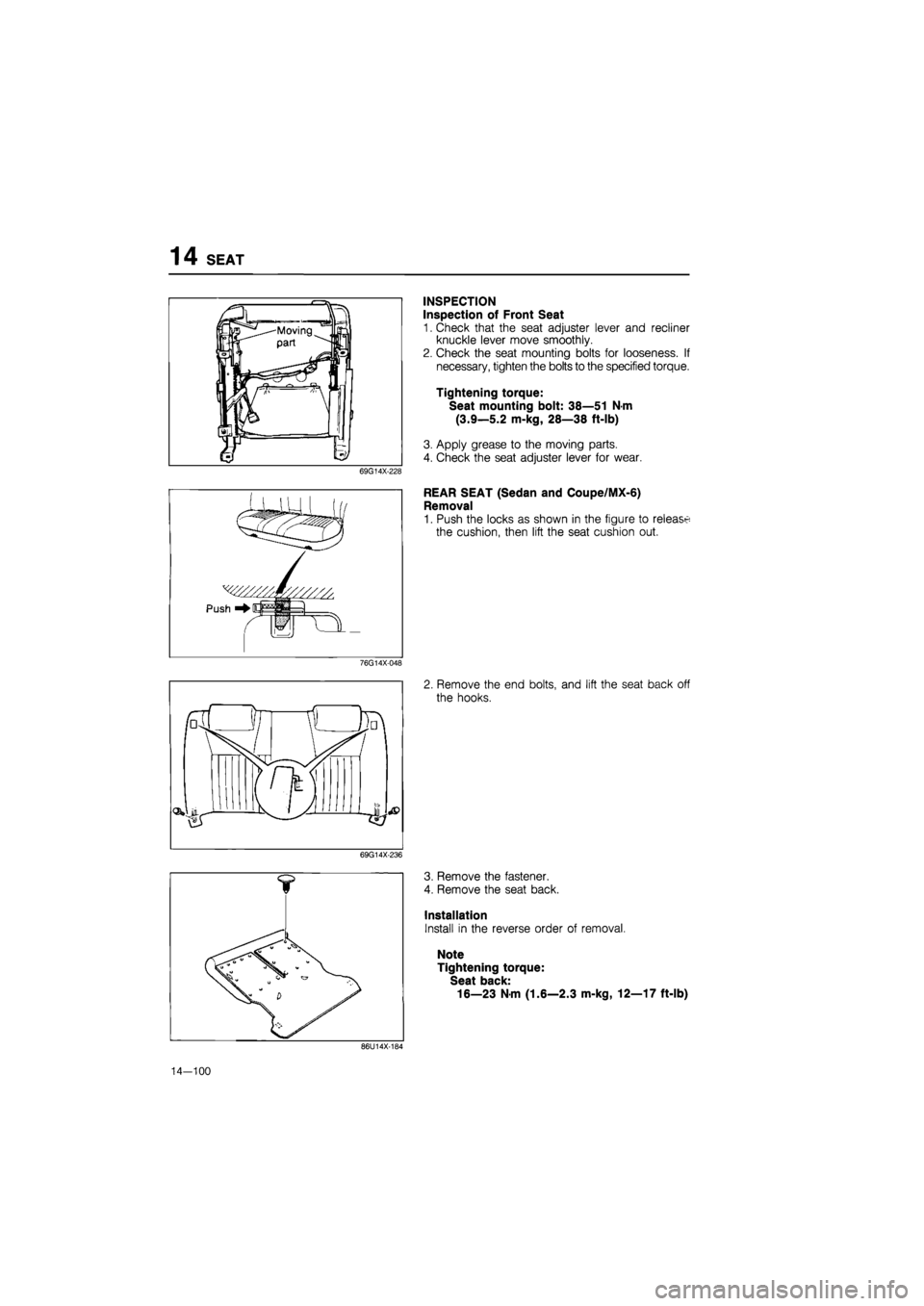

Inspection of Front Seat
1. Check that the seat adjuster lever and recliner
knuckle lever move smoothly.
2. Check the seat mounting bolts for looseness. If
necessary, tighten the bolts to the specified torque.
Tightening torque:
Seat mounting bolt: 38—51 N-m
(3.9—5.2 m-kg, 28—38 ft-lb)
3. Apply grease to the moving parts.
4. Check the seat adjuster lever for wear.
REAR SEAT (Sedan and Coupe/MX-6)
Removal
1. Push the locks as shown in the figure to release
the cushion, then lift the seat cushion out.
76G14X048
2. Remove the end bolts, and lift the seat back off
the hooks.
69G14X-236
14—100
3. Remove the fastener.
4. Remove the seat back.
Installation
Install in the reverse order of removal.
Note
Tightening torque:
Seat back:
16—23 N-m (1.6—2.3 m-kg, 12—17 ft-lb)

SEAT BELTS
1
4
SEAT BELTS

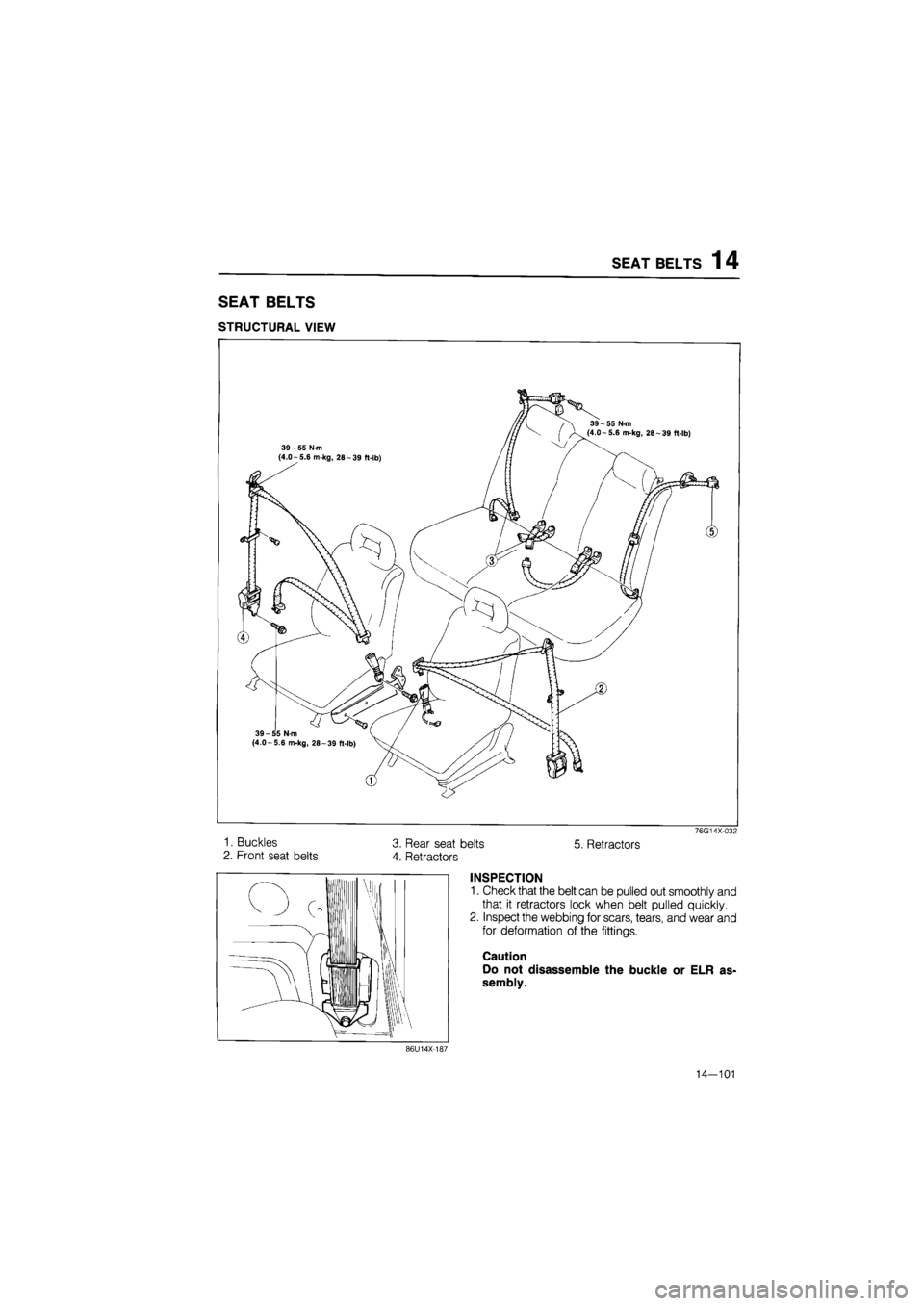

STRUCTURAL VIEW
76G14X-032
1. Buckles 3. Rear seat belts 5. Retractors
2. Front seat belts 4. Retractors
INSPECTION
1. Check that the belt can be pulled out smoothly and
that it retractors lock when belt pulled quickly.
2. Inspect the webbing for scars, tears, and wear and
for deformation of the fittings.
Caution
Do not disassemble the buckle or ELR as-
sembly.
14—101

1 4 UNDERBODY PROJECTED DIMENSIONS
UNDERBODY PROJECTED DIMENSIONS
(83'0l) 19Z SM (lYOL) 993
-
_ LO
CO
ij-f-Tl- (O
—
in co ^ e>J n,
(90'9)
Tl" 00 -r Si in oo oo
„ "fr m r>-.05
FTr-
CO
o o w O
CM oo
xco
in IX CC

C5
T-

in
in
~X X
® 2 <73
(03'0L) 6SS SMfr (66 6) frSS
86U14X-193
14-102

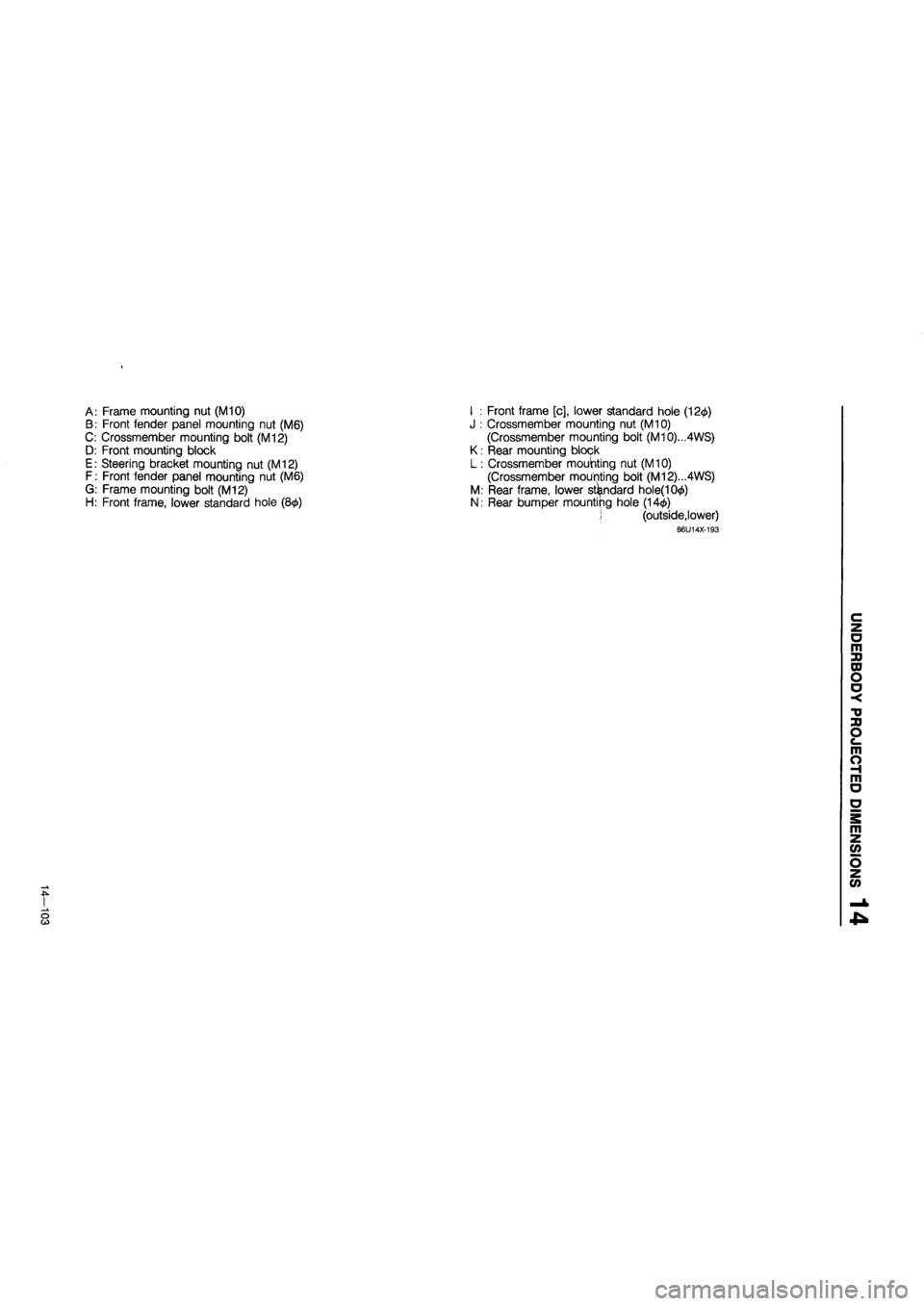

A: Frame mounting nut (M10)
B: Front fender panel mounting nut (M6)
C: Crossmember mounting bolt (M12)
D: Front mounting block
E: Steering bracket mounting nut (M12)
F: Front fender panel mounting nut (M6)
G: Frame mounting bolt (M12)
H: Front frame, lower standard hole (8)
I : Front frame [c], lower standard hole (12)
J : Crossmember mounting nut (M10)
(Crossmember mounting bolt (M10)...4WS)
K: Rear mounting block
L : Crossmember mounting nut (M10)
(Crossmember mounting bolt (M12)...4WS)
M: Rear frame, lower standard hole(10<£)
N: Rear bumper mounting hole (140)
l (outside, lower)
86U14X-193

I

o
oo o> c
X CD
mm (in)

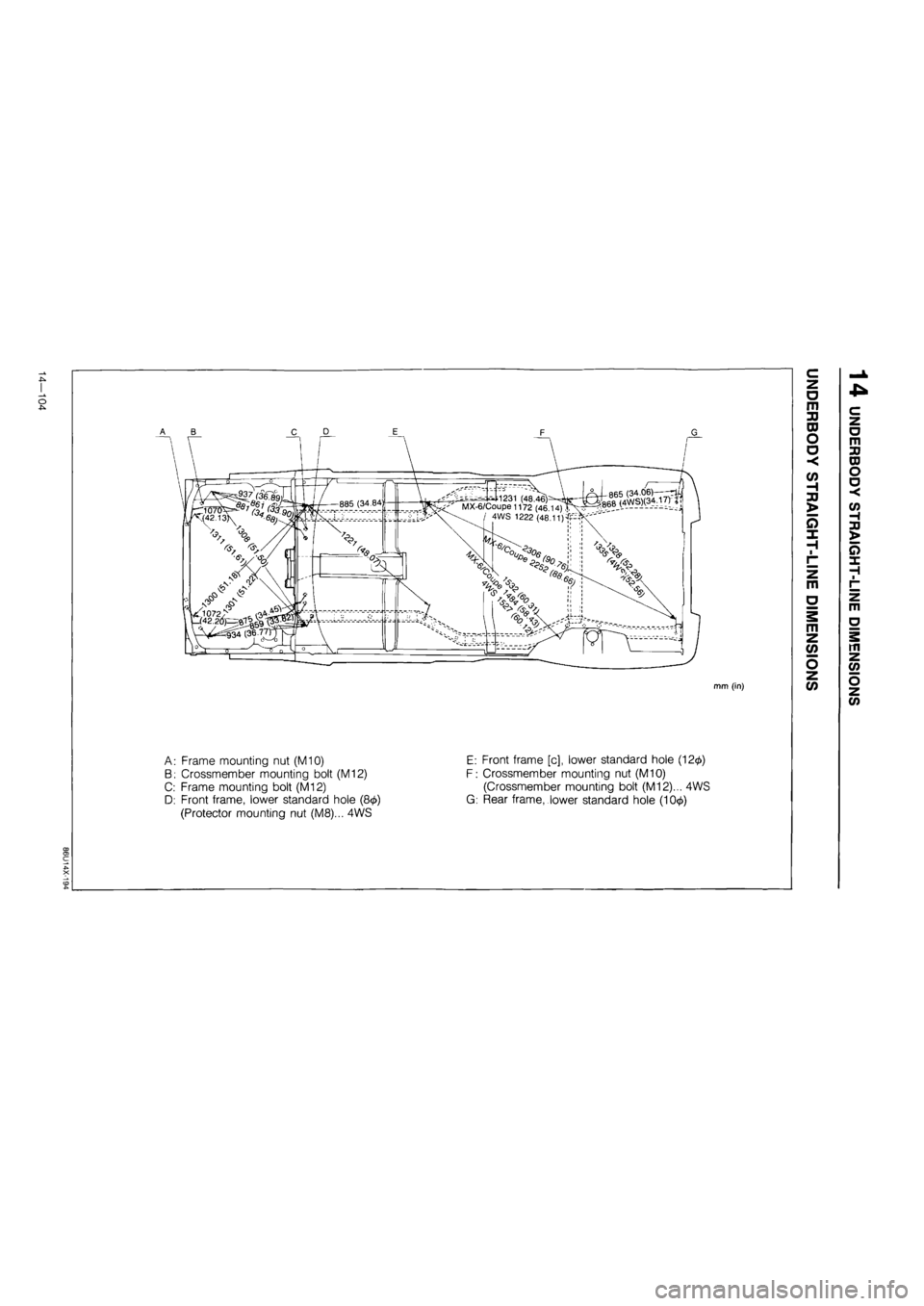

A: Frame mounting nut (M10)
B; Crossmember mounting bolt (M12)
C: Frame mounting bolt (M12)
D: Front frame, lower standard hole (80)
(Protector mounting nut (M8)... 4WS
E: Front frame [c], lower standard hole (120)
F: Crossmember mounting nut (M10)
(Crossmember mounting bolt (M12)... 4WS
G: Rear frame, lower standard hole (100)

15
BODY ELECTRICAL SYSTEM

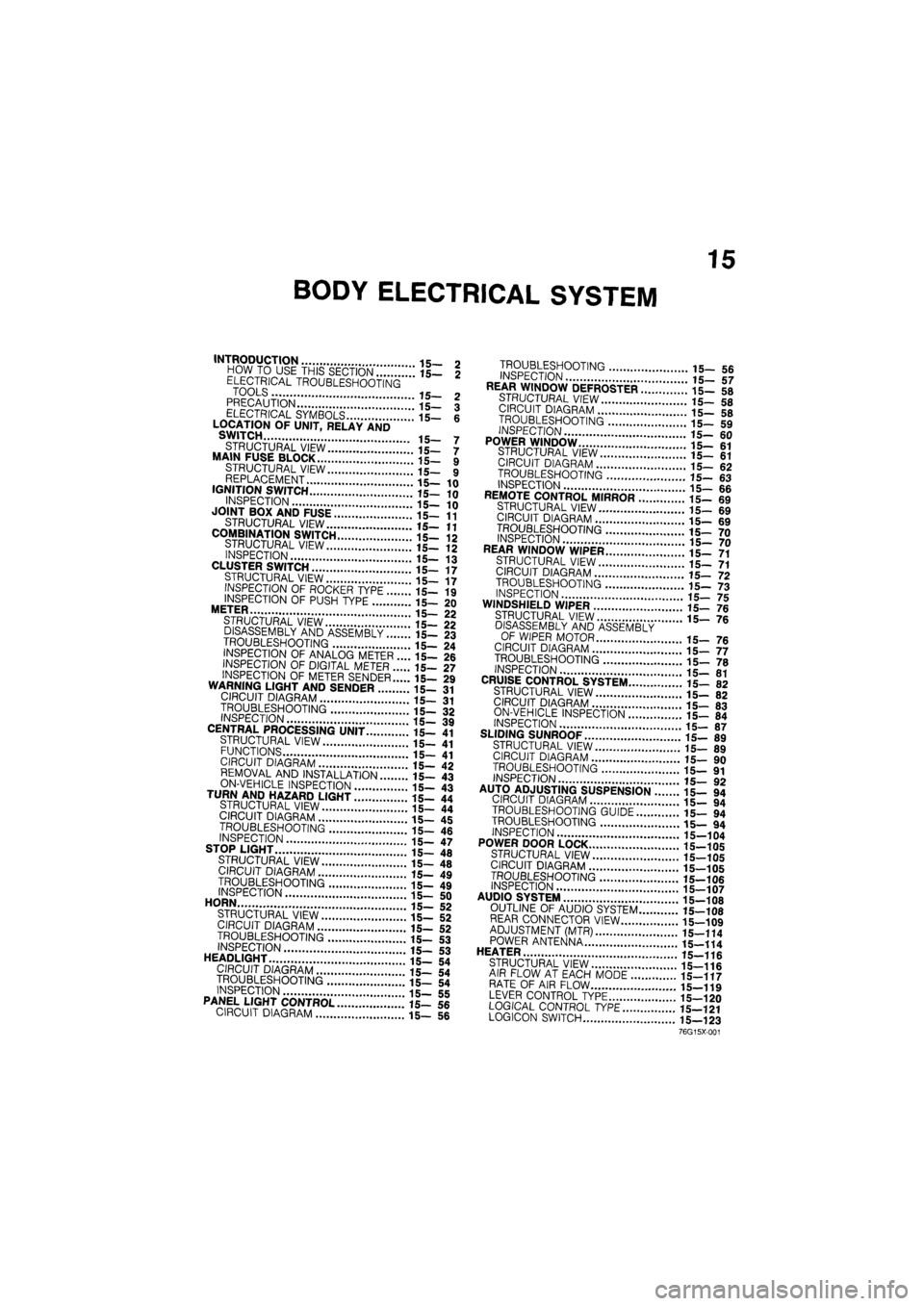

INTRODUCTION 15- 2 HOW TO USE THIS SECTION 15— 2 ELECTRICAL TROUBLESHOOTING TOOLS 15- 2 PRECAUTION 15— 3 ELECTRICAL SYMBOLS 15- 6 LOCATION OF UNIT, RELAY AND SWITCH 15- 7
