1987 MAZDA 626 Workshop Manual

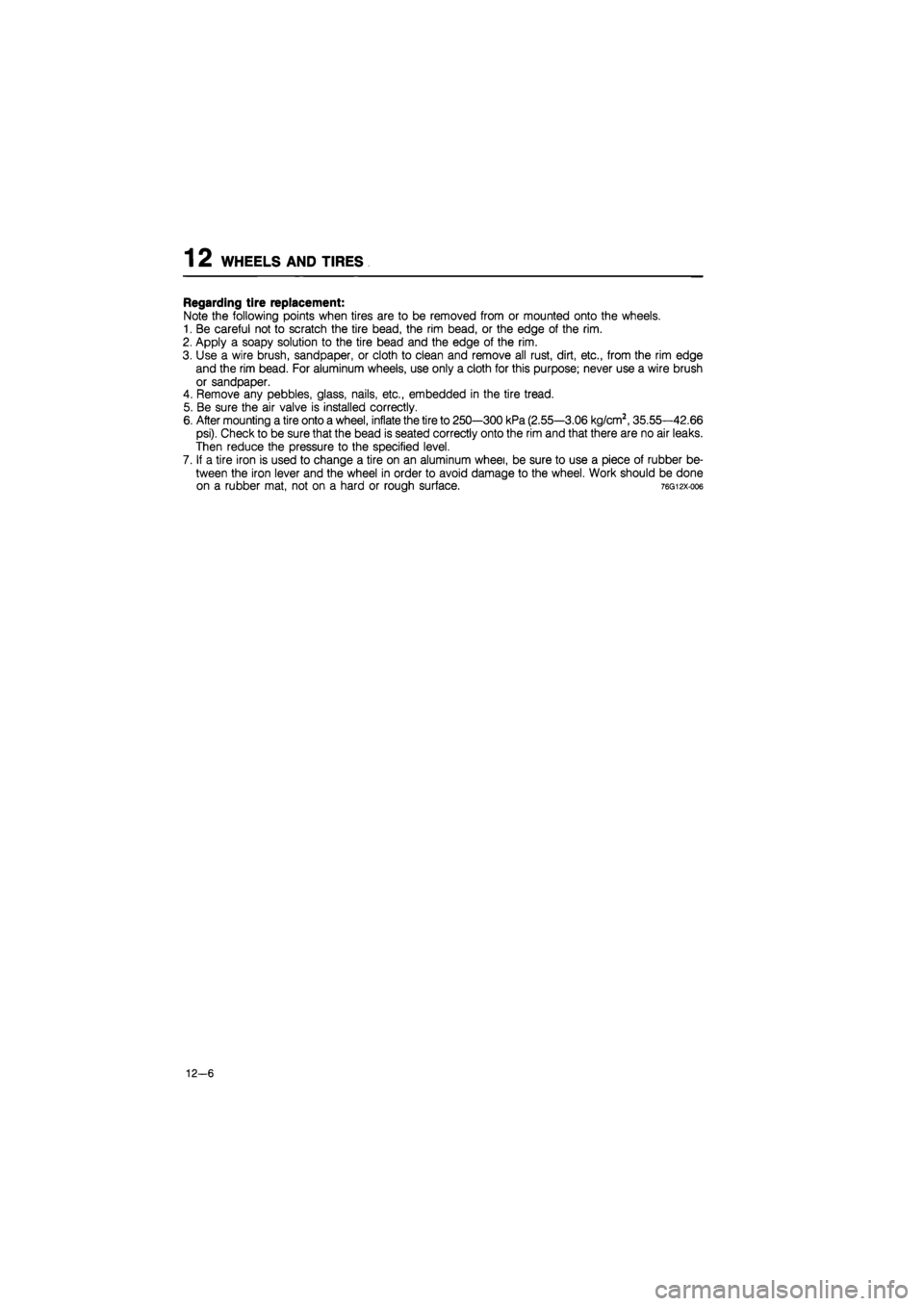

1 2 WHEELS AND TIRES
Regarding tire replacement:
Note the following points when tires are to be removed from or mounted onto the wheels.
1. Be careful not to scratch the tire bead, the rim bead, or the edge of the rim.
2. Apply a soapy solution to the tire bead and the edge of the rim.
3. Use a wire brush, sandpaper, or cloth to clean and remove all rust, dirt, etc., from the rim edge
and the rim bead. For aluminum wheels, use only a cloth for this purpose; never use a wire brush
or sandpaper.
4. Remove any pebbles, glass, nails, etc., embedded in the tire tread.
5. Be sure the air valve is installed correctly.
6. After mounting a tire onto a wheel, inflate the tire to 250—300 kPa (2.55—3.06 kg/cm2,35.55—42.66
psi). Check to be sure that the bead is seated correctly onto the rim and that there are no air leaks.
Then reduce the pressure to the specified level.
7. If a tire iron is used to change a tire on an aluminum wheei, be sure to use a piece of rubber be-
tween the iron lever and the wheel in order to avoid damage to the wheel. Work should be done
on a rubber mat, not on a hard or rough surface. 76G12X-006
12—6

13

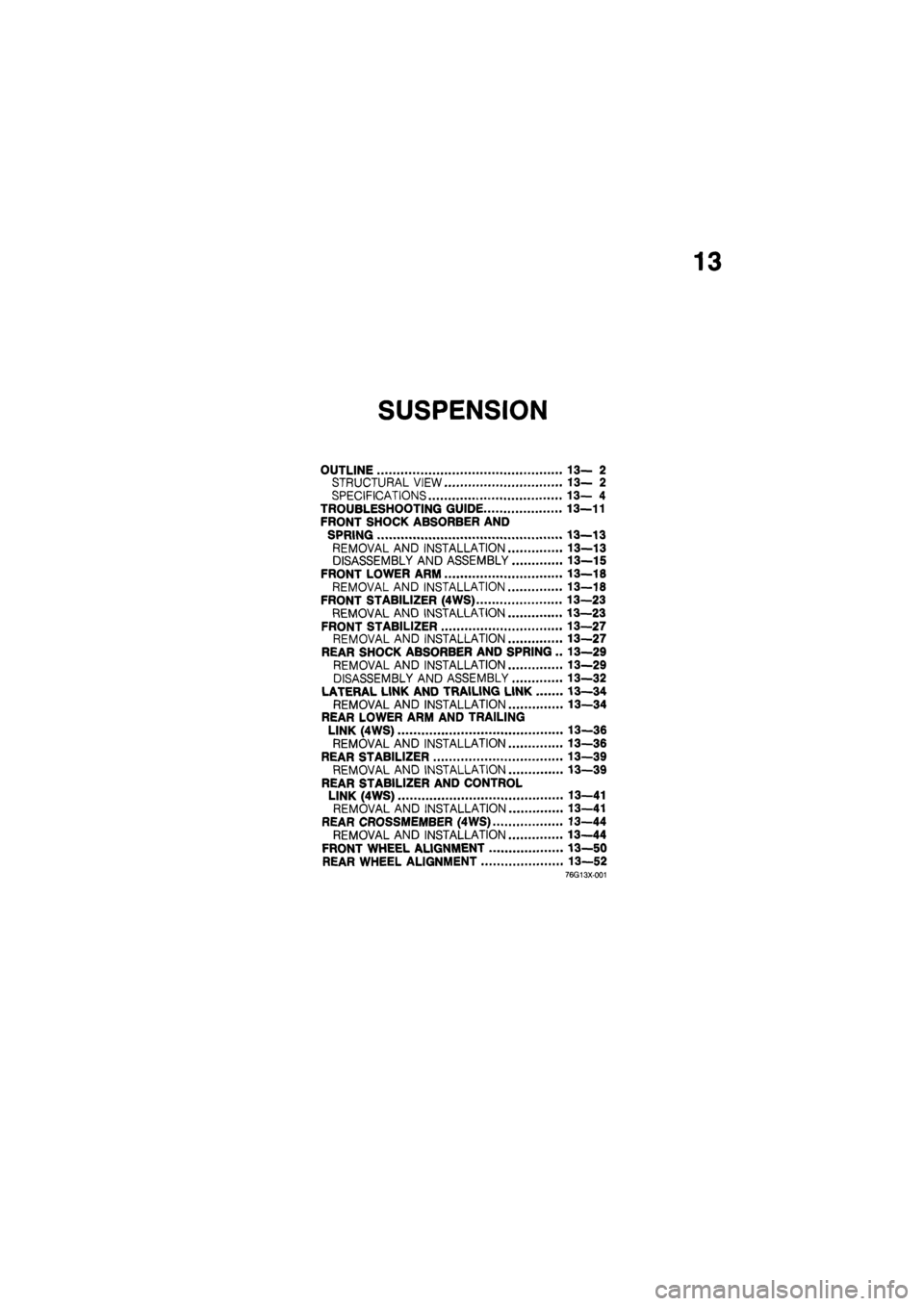

SUSPENSION
OUTLINE 13— 2
STRUCTURAL VIEW 13— 2
SPECIFICATIONS 13— 4
TROUBLESHOOTING GUIDE 13—11
FRONT SHOCK ABSORBER AND
SPRING 13—13
REMOVAL AND INSTALLATION 13—13
DISASSEMBLY AND ASSEMBLY 13—15
FRONT LOWER ARM 13—18
REMOVAL AND INSTALLATION 13—18
FRONT STABILIZER (4WS) 13—23
REMOVAL AND INSTALLATION 13—23
FRONT STABILIZER 13—27
REMOVAL AND INSTALLATION 13—27
REAR SHOCK ABSORBER AND SPRING .. 13—29
REMOVAL AND INSTALLATION 13—29
DISASSEMBLY AND ASSEMBLY 13—32
LATERAL LINK AND TRAILING LINK 13—34
REMOVAL AND INSTALLATION 13—34
REAR LOWER ARM AND TRAILING
LINK (4WS) 13—36
REMOVAL AND INSTALLATION 13—36
REAR STABILIZER 13—39
REMOVAL AND INSTALLATION 13—39
REAR STABILIZER AND CONTROL
LINK (4WS) 13—41
REMOVAL AND INSTALLATION 13—41
REAR CROSSMEMBER (4WS) 13—44
REMOVAL AND INSTALLATION 13—44
FRONT WHEEL ALIGNMENT 13—50
REAR WHEEL ALIGNMENT 13—52
76G13X-001

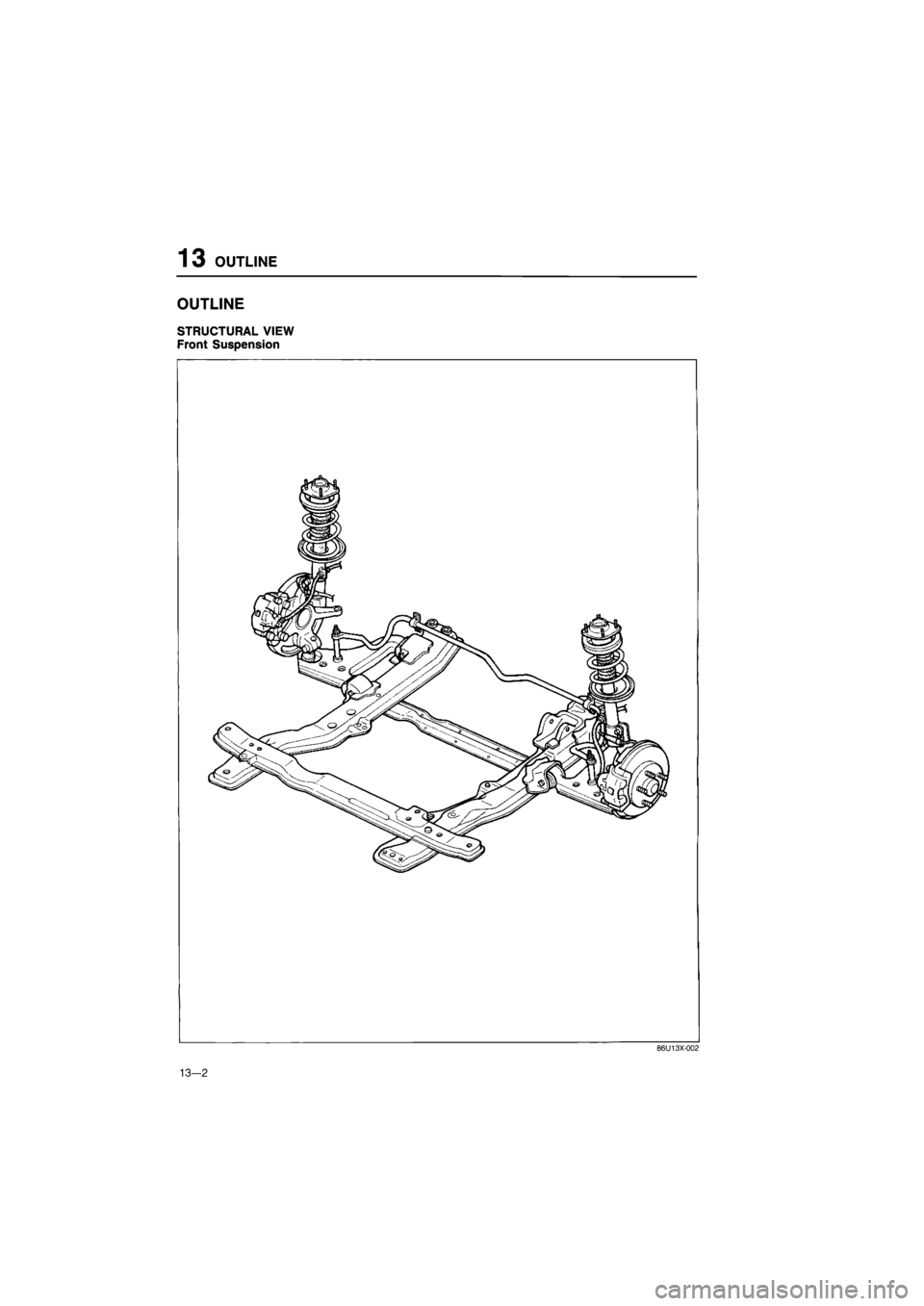

13 OUTLINE
OUTLINE
STRUCTURAL VIEW
Front Suspension
86U13X-002
13—2

OUTLINE 13

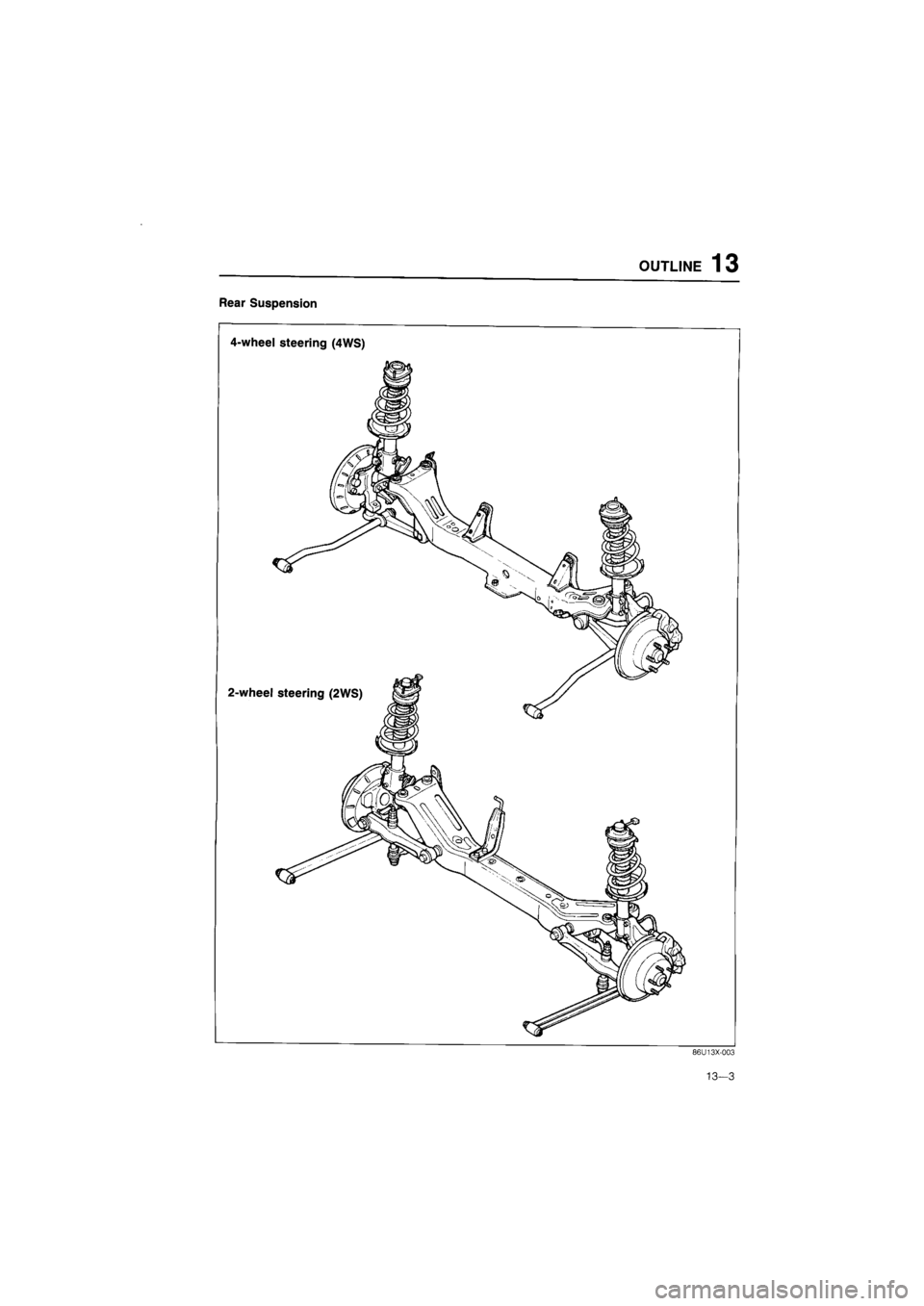

Rear Suspension
4-wheel steering (4WS)
86U13X-003
13—3

13 OUTLINE
SPECIFICATIONS
Front Suspension
Item Specifications
Suspension type Strut
Toe-in mm (in) 0 ± 3 (0 ± 0.12)
Front wheel alignment Camber angle 0C 17' ± 45' Front wheel alignment Caster angle 1c 13' ± 45'
King pin angle 12°47'
Maximum front steering Inner 36 °00' ± 2°
angle Outer 31 °00' ± 2°
Stabilizer Type Torsion bar Stabilizer Diameter mm (in) 20.0 (0.79)
Shock absorbers Standard suspension Oil type Shock absorbers Auto adjust suspension Low-pressure gas sealed type
Identification color Green Light green Pink Brown Purple Gray Orange
Wire diameter mm (in) 12.6 (0.49) 12.8 (0.50)
12.9
(0.51) 13.1 (0.52)
13.3 (0.53)
13.6
(0.54) 12.5 (0.49)
*Coil springs Coil inner diameter mm (in) 147.5 (5.8)
Free length mm (in) 353 (13.9)
362 (14.3) 370 (14.6) 372 (14.6) 365 (14.4)
350
(13.8)
344
(13.5)
Coil number 5.09 5.31 5 42 5.53 5.46 5.34 4.99
* Refer to pages 13—5, 6, 7 spring applications.
Rear Suspension
Item Specifications
SusDension tvDe Strut
Rear wheel alignment
Toe-in
mm (in)
2WS 0 ± 3 (0 ± 0.12)
Rear wheel alignment
Toe-in
mm (in) 4WS 3 ± 3 (0.12 ± 0.12) Rear wheel alignment Camber
anale
2WS -0°30' ± 45' Rear wheel alignment Camber
anale 4WS 0°00' ± 45'
Maximum rear steering angle (4WS) Inner 5°00' ± 45' Maximum rear steering angle (4WS) Outer 5°00' ± 45'
Stabilizer TvDe Torsion bar Stabilizer Diameter mm (in) 16 (0.63)
Shock absorbers Standard susDension Oil tvDe Shock absorbers Auto adiust suspension Low-pressure c las sealed type
'Coil springs
Identification color Orange White Yellow Brown Blue Green Red Pink
'Coil springs
Wire diameter mm (in) 11.6
(0.45)
11.7 (0.46) 11.8
(0.46)
11.9 (0.47)
12.1
(0.48)
12.2
(0.48)
12.4 (0.49) 12.6 (0.50)
'Coil springs Coil inner diameter mm (in) 127.5 (5.0) 'Coil springs
Free length mm (in) 297 (11.7) 306 (12.0)
314 (12.4) 323 (12.7) 327 (12.9) 332 (13.1) 336 (13.21 340 (13.4)
'Coil springs
Coil number 5.44 5.58 5.72 5.87 6.03 6.04 6.21 6.36
'Refer to pages 13—8, 9, 10 spring applications.
13—4

OUTLINE 13

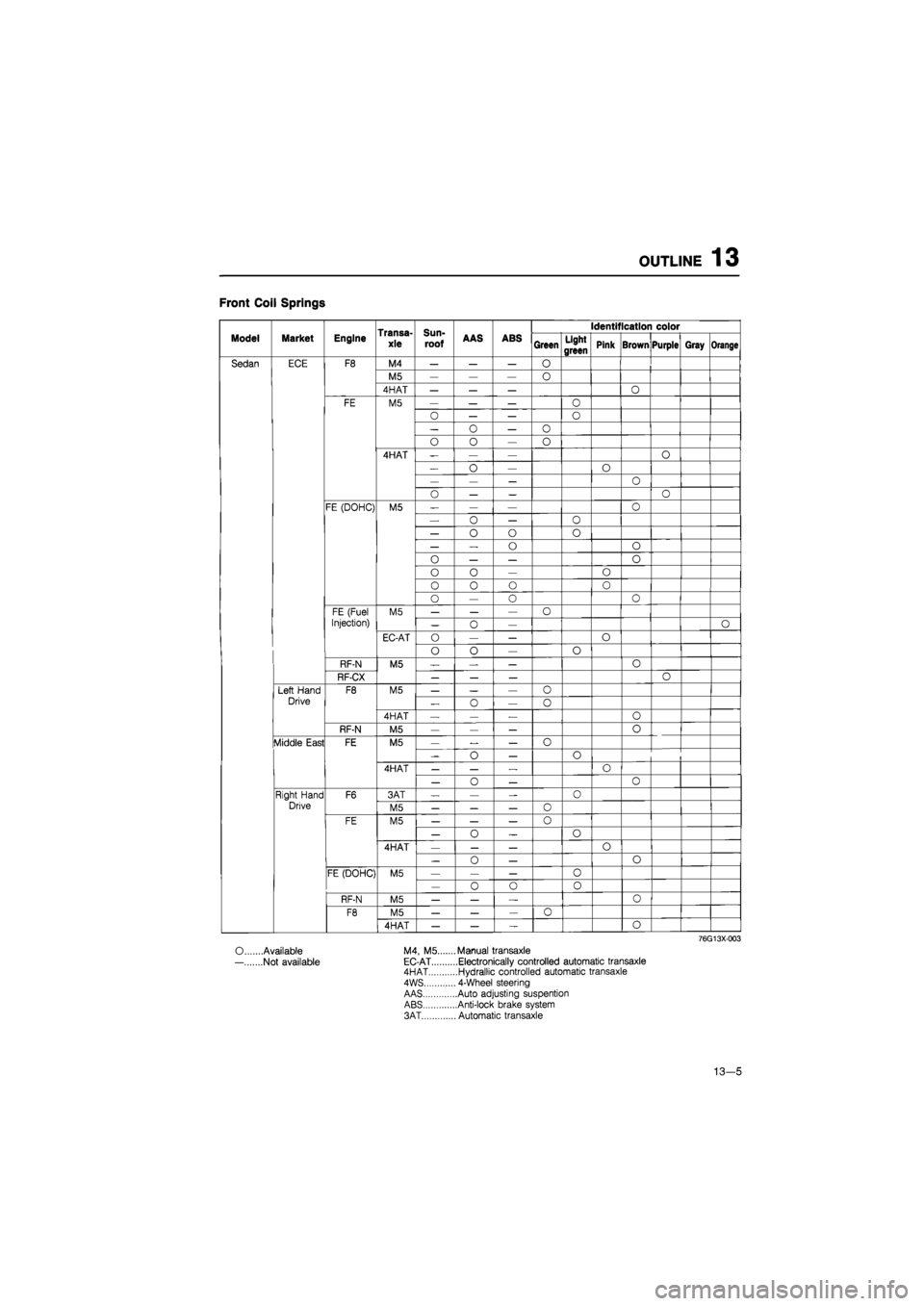

Front Coil Springs
Transa-
xle
Sun-
roof
Identification color
Model Market Engine Transa-
xle
Sun-
roof AAS ABS Green Light
green Pink Brown Purple Gray Orange
Sedan ECE F8 M4 — — — O
M5 — — — 0
4HAT — — — O
FE M5 — — — O
0 — — O
— o — o
o o — o
4HAT -— — o
— o — O
— — — o
o — — o
FE (DOHC) M5 — — — o
— o — 0
— o o o
— — o o
0 — — o
o o — o
0 0 o o
o — 0 o
FE (Fuel M5 — — — o
Injection) — 0 — O
EC-AT O — — o
o o — o
RF-N M5 — — — 0
RF-CX — — — o
Left Hand F8 M5 — — — o
Drive „ o — o
4HAT — — — o
RF-N M5 — — — o
Middle East FE M5 — — — o
-o — o
4HAT — — — o
— o — 0
Right Hand F6 3AT — — — 0
Drive M5 — — — o
FE M5 — — — 0
— o _ o
4HAT — — — o
— 0 — o
FE (DOHC) M5 — — — o
— o o 0
RF-N M5 — — — o
F8 M5 — — — 0
4HAT — — — o
76G13X003
O Available M4, M5.... ...Manual transaxle
— Not available EC-AT ....Electronically controlled automatic transaxle 4HAT ....Hydrallic controlled automatic transaxle
4WS ... 4-Wheel steering
AAS ....Auto adjusting suspention ABS ....Anti-lock brake system
3AT ... Automatic transaxle
13—5

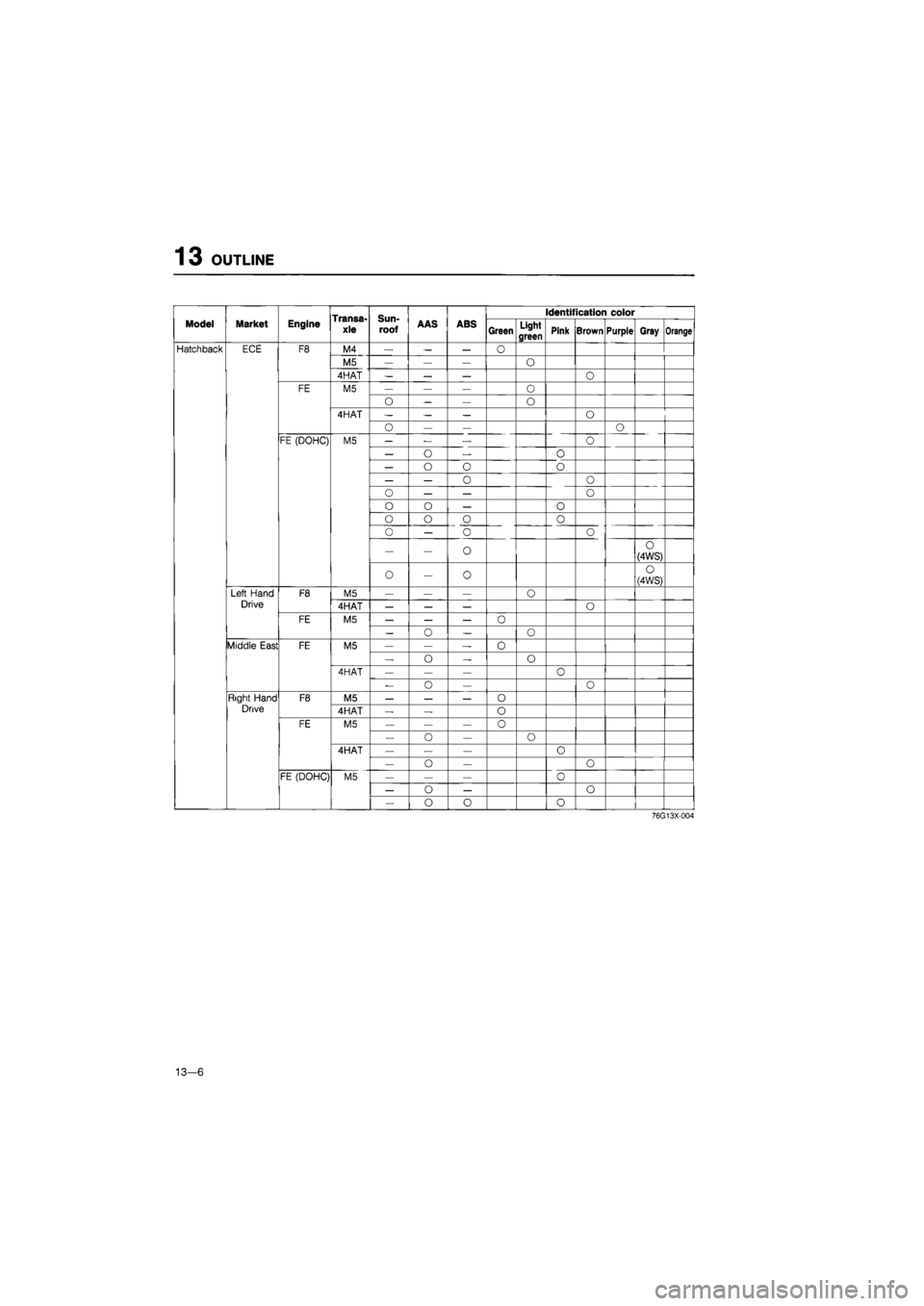

13
OUTLINE
Transa-
xle Sun-

roof
Identification color
Model Market Engine Transa-
xle Sun-

roof
AAS ABS
Green Light
green Pink Brown Purple Gray Orange
Hatchback
ECE F8 M4 — — — O
M5 — — — O

4HAT
— — — O
FE M5 — — — o
O — — o

4HAT
-— — o
o — — O
FE
(DOHC)
M5 — — — o
— o — O
— o 0 o
— — 0 o
o — — o
o o — o
o o o 0
o — 0 o
— — 0 O (4WS)
o — 0 o
(4WS)

Left Hand
F8 M5 — — o
Drive 4HAT
— — — o
FE M5 — — — 0
— o — o

Middle East
FE M5 — — — o
— o — o

4HAT
— — — 0
-o — 0

Right Hand
F8 M5 — — — o
Drive 4HAT
— — o
FE M5 — — — o
— o — o

4HAT
— — — o
— o — o
FE
(DOHC)
M5 — — — o
— o — o
— o o

76G13X-004

13—6

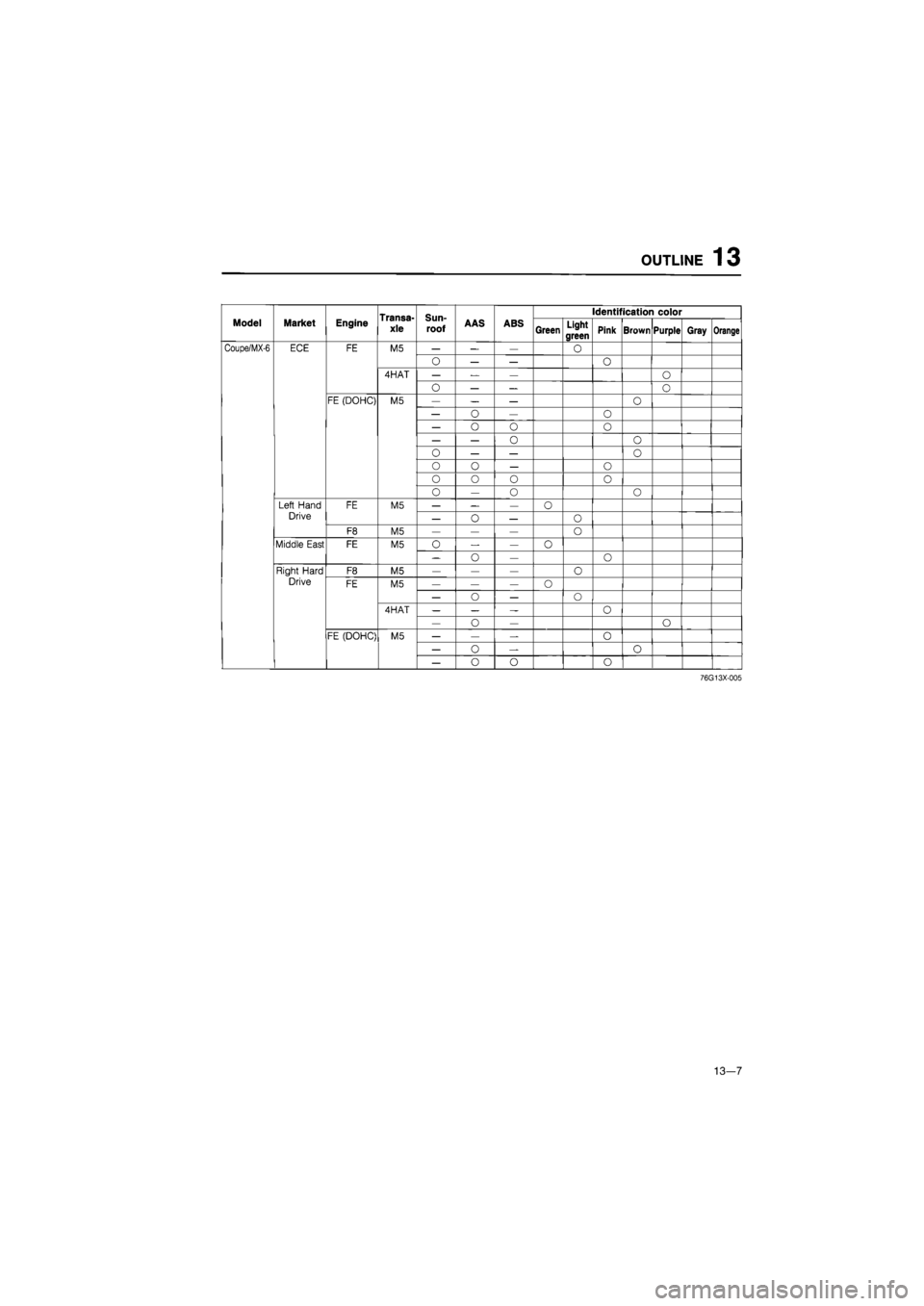

OUTLINE
13

Transa-
xle Sun-

roof
Identification color
Model Market Engine Transa-
xle Sun-

roof
AAS ABS
Green Light
green Pink Brown Purple Gray Orange
Coupe/MX-6
ECE FE M5 — — — 0
O — — O

4HAT
— — — O
o — — 0
FE
(DOHC)
M5 — — — O
— o — o
— o o o
— — o o
o — — o
o o — o
o o o o
o — o o

Left Hand
FE M5 — — — O
Drive
— o — O
F8 M5 — — — o

Middle East
FE M5 o — — O
— o — o

Right Hard
F8 M5 — — — o
Drive
FE M5 — — — o
— o — o

4HAT
— — — o
— o — o
FE
(DOHC)
M5 — — — o
— o — o
— o o o

76G13X-005

13—7
