4C CONTROL SYSTEM
EGI MAIN FUSE
Inspection
Check the continuity of EGI main fuse.
69G04A-161
CONTROL RELAY
Power Supply Circuit
1. Check that a "clicking" sound is heard at the con-
trol relay when turning the ignition switch ON and
OFF.
Note
The control relay is located under the center
console.
76G04C-171
2. Apply 12V to the 2B terminal and ground the 2D
terminal of the control relay.
3. Check voltage at the terminals with an voltmeter.
terminal
Terminals Grounded Not grounded
2C 12V OV
2E 12V OV
76G04C-172
From EGI From '9' From Ig. main fuse switch (ON) / switch
(ST)
To C/U / 9round To main To injector fuel Pump
Fuel Pump Circuit
1. Apply 12V and a ground to the terminals described
below and check the terminals with an ohmmeter
or voltmeter.
Terminal applied 12V
Terminal
grounded
Terminal checked
Correct condition
1B 1D 2F-1A Continuity
2F 1C 1A ADDrox.12V
76G04C-173
4C-96

HEADLINER 14
HEADLINER

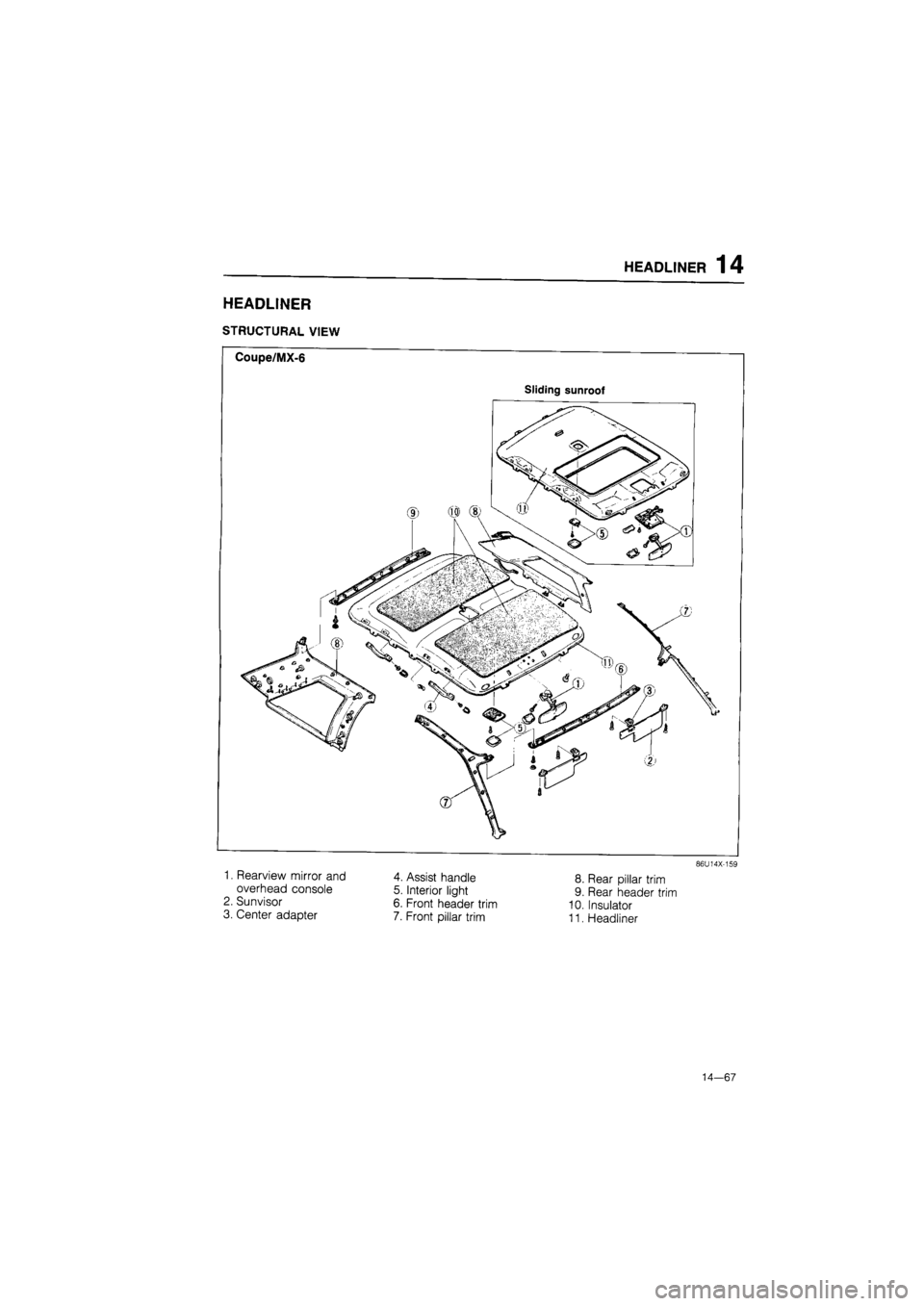

STRUCTURAL VIEW
Coupe/MX-6
Sliding sunroof
1. Rearview mirror and
overhead console
2. Sunvisor
3. Center adapter
4. Assist handle
5. Interior light
6. Front header trim
7. Front pillar trim
8. Rear pillar trim
9. Rear header trim
10. Insulator
11. Headliner
86U14X-159
14—67

14 HEADLINER

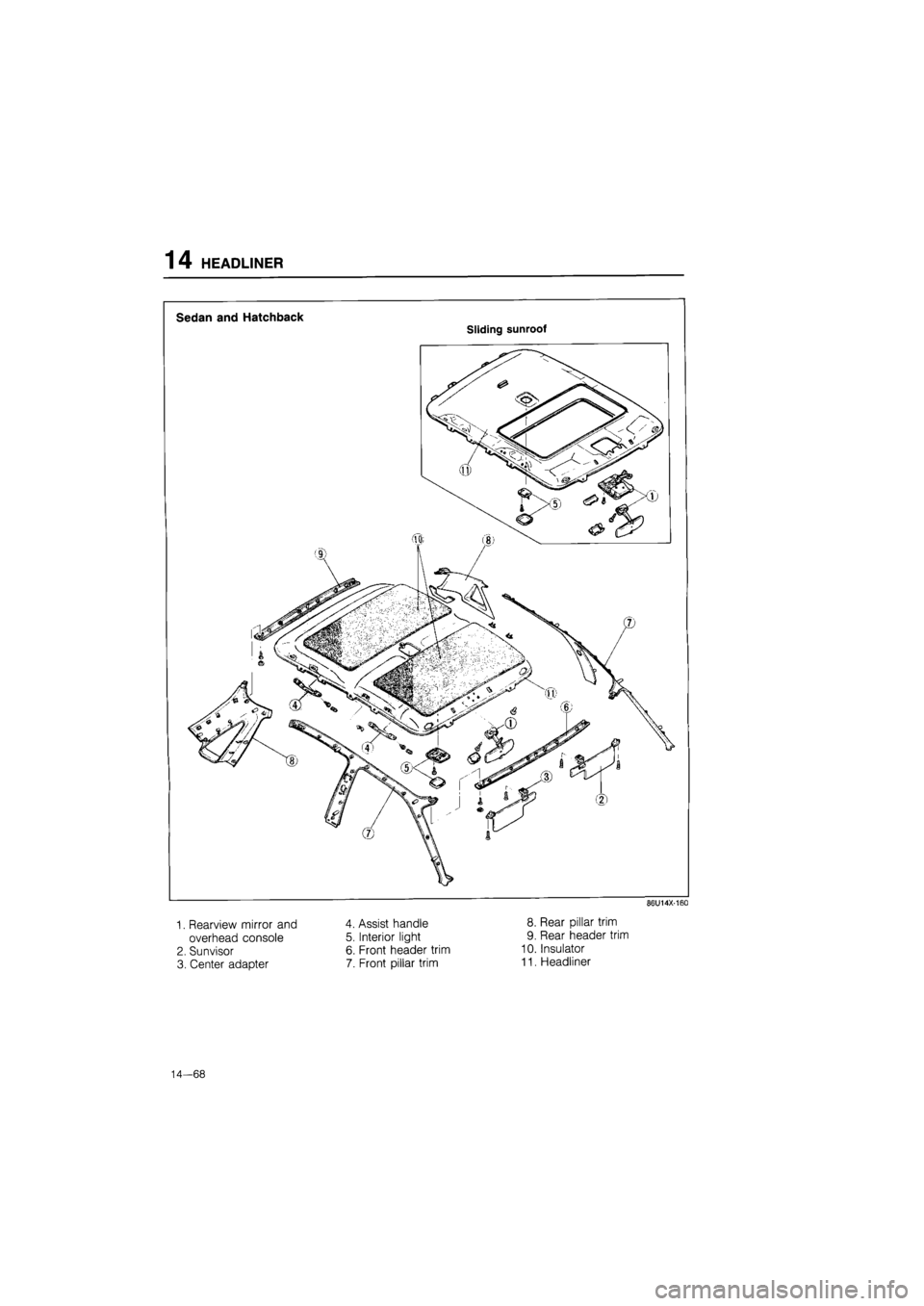

Sedan and Hatchback
Sliding sunroof
86U14X-160
1. Rearview mirror and
overhead console
2. Sunvisor
3. Center adapter
4. Assist handle
5. Interior light
6. Front header trim
7. Front pillar trim
8. Rear pillar trim
9. Rear header trim
10. Insulator
11. Headliner
14—68

HEADLINER 14

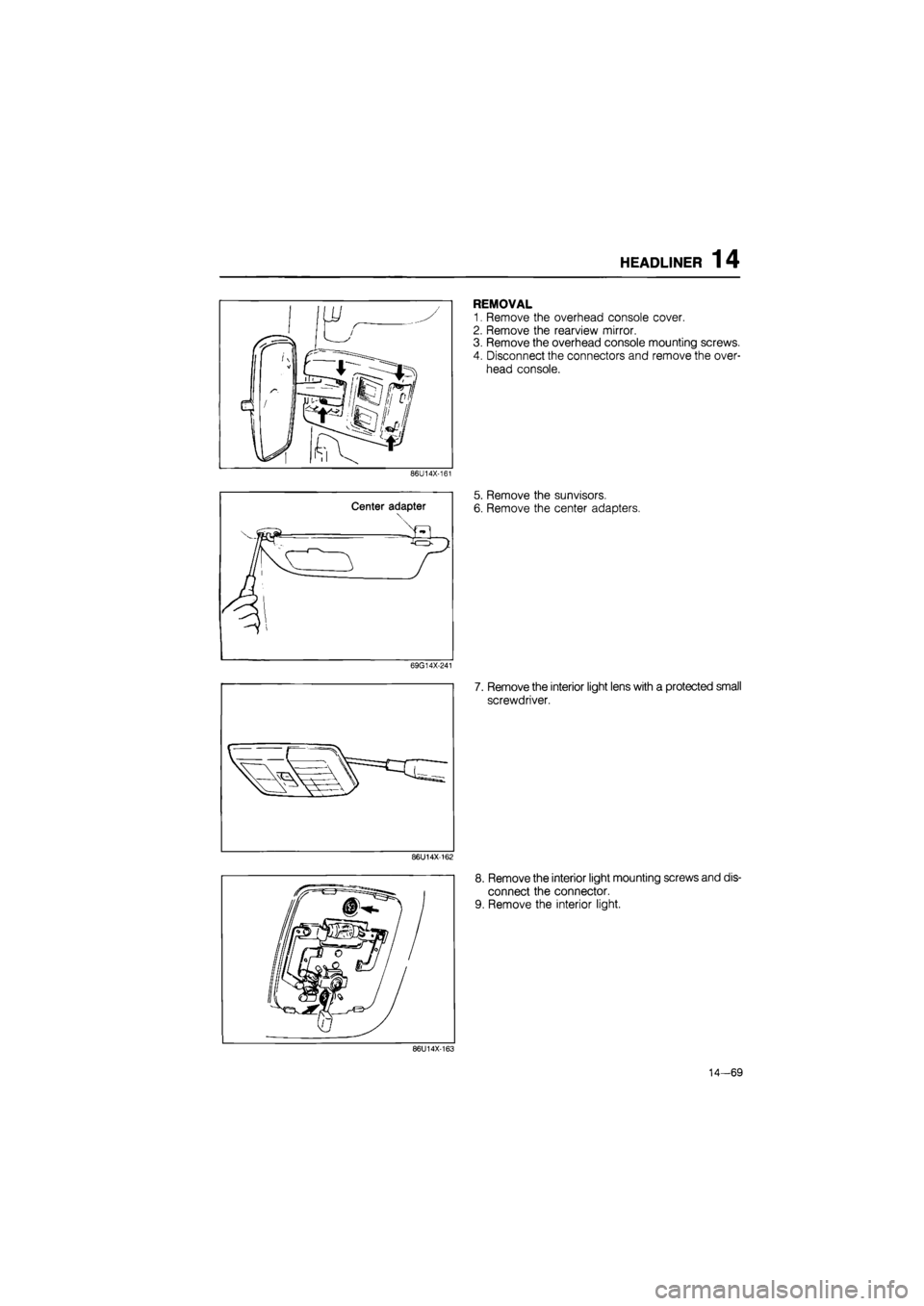

REMOVAL
1. Remove the overhead console cover.
2. Remove the rearview mirror.
3. Remove the overhead console mounting screws.
4. Disconnect the connectors and remove the over-
head console.
86U14X-161
69G14X-241
5. Remove the sunvisors.
6. Remove the center adapters.
7. Remove the interior light lens with a protected small
screwdriver.
86U14X-162
8. Remove the interior light mounting screws and dis-
connect the connector.
9. Remove the interior light.
86U14X-163
14—69

INSTRUMENT PANEL 1 4
INSTRUMENT PANEL
STRUCTURAL VIEW
1. Rear console
2. Upper plate.
3. Front console
4. Glove compartment
5. Side cover
6. Side cover
7. Box
8. Ashtray
9. Center panel
10. Heater control assembly
11. Steering wheel cap
12. Steering wheel
13. Column cover
14. Switch panel
76G14X-036
15. Cap
16. Meter hood
17. Duct
18. Duct and under cover
19. Under cover
20. Duct
21. Meter assembly
22. Instrument panel
14—73
