1987 MAZDA 626 Workshop Manual

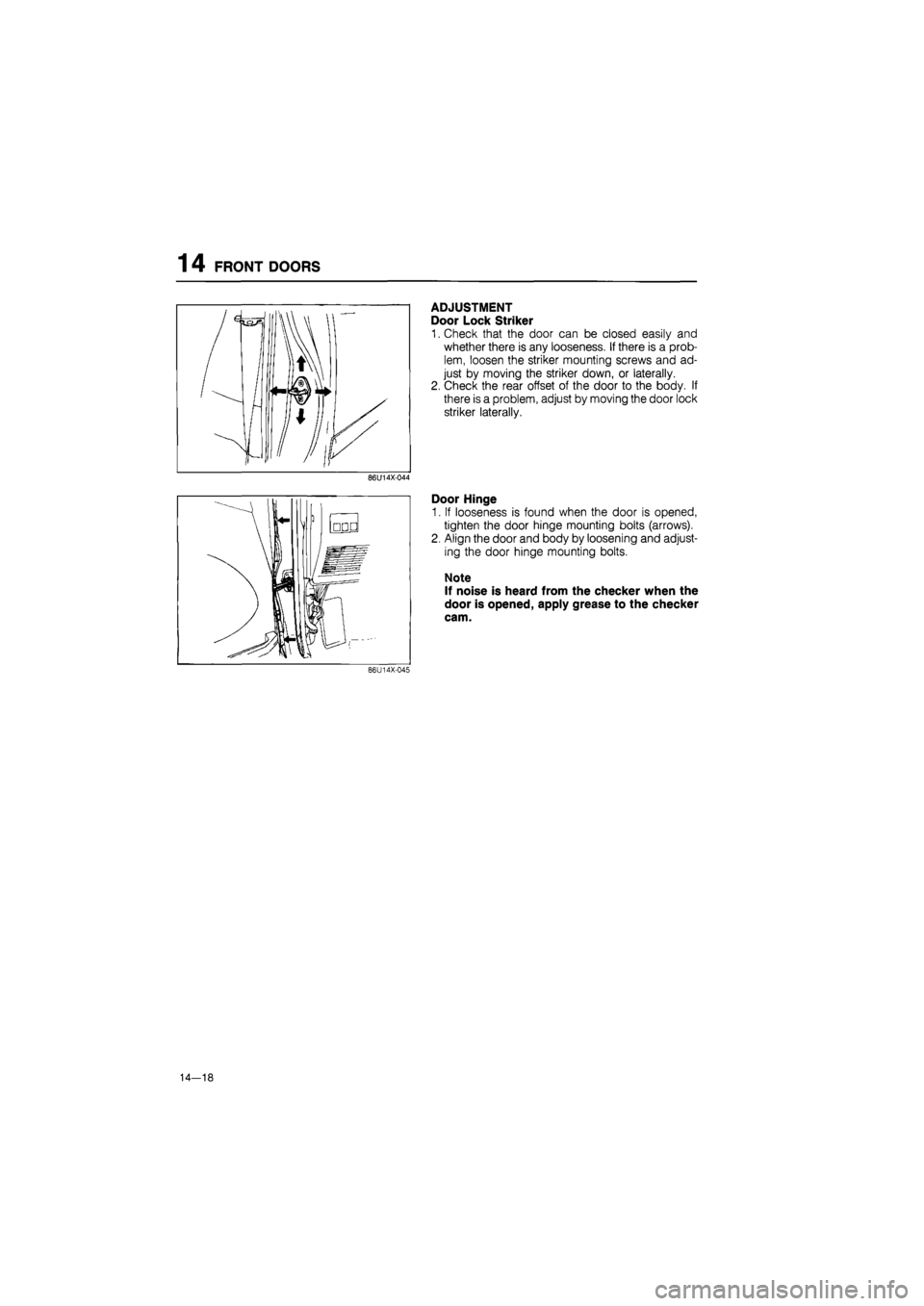

1 4 FRONT DOORS
ADJUSTMENT
Door Lock Striker
1. Check that the door can be closed easily and
whether there is any looseness. If there is a prob-
lem, loosen the striker mounting screws and ad-
just by moving the striker down, or laterally.
2. Check the rear offset of the door to the body. If
there is a problem, adjust by moving the door lock
striker laterally.
86U14X-044
Door Hinge
1. If looseness is found when the door is opened,
tighten the door hinge mounting bolts (arrows).
2. Align the door and body by loosening and adjust-
ing the door hinge mounting bolts.
Note
If noise is heard from the checker when the
door is opened, apply grease to the checker
cam.
86U14X-045
14—18

REAR DOORS 1 4
REAR DOORS
STRUCTURAL VIEW
Sedan and Hatchback
86U14X-046
1. Regulator handle
(manual type)
2. Arm rest
3. Power window switch
4. Inner handle cover
5. Door trim
6. Belt line molding
7. Door screen
8. Door lock
9. Outer handle
10. Regulator (power type)
11. Regulator (manual type)
12. Glass guide
13. Glass
14. Weatherstrip
15. Weatherstrip
16. Door checker
17. Door
18. Weatherstrip
19. Sail inner garnish
20. Sail outer garnish
14—19

1 4 REAR DOORS
86U14X-047
86U14X-048
86U14X-049
REMOVAL
Rear Door Glass and Regulator
1. Lower the door glass the way.
2. Remove the clip. (Manual type)
3. Remove the regulator handle. (Manual type)
4. Remove the inner handle cover.
5. Remove the door trim.
Note
For vehicles with power windows, disconnect
the connectors.
6. Remove the door screen.
Caution
Remove the screen carefully so that it may be
reused.
7. Position the door glass so that the mounting bolts
can be removed from the service hole.
8. Remove the mounting bolts.
86U14X-050
14—20

REAR DOORS 1 4
9. Remove the door glass upward.
86U14X-051
Remove the mounting bolts, and remove the win-
dow regulator through the service hole.
Remove the window motor mounting bolts, then
remove the motor from the regulator (power
window).
86U14X052
INSTALLATION
Install in the reverse order of removal, noting the fol-
lowing.
Tightening torque:
Nm (m-kg, ft-lb)
Door lock assembly 4.22-6 18 (0 43-0 63, 3,10—4.54)
Outer handle 8.8-13 (0.9-1.3. 6.5-9.4)
Glass Quide 7.8—11 (0.8—1.1, 5.8—8.0)
Regulator Nut 8 8—13 (0.9—1.3, 6.5—9.4) Regulator Bolt 7.8-11 (0.8-1.1. 5.8-8.0)
Door lock striker 18-26 (1.8-2.7, 13-20)
Before installing the motor, connect the leads to a bat-
tery and run regulator down to the position shown.
14—21

1 4 REAR DOORS
Installation of door lock and outer handle
1. Before installing the door lock, apply grease to the
places shown in the figure.
2. After installation, check that the door opens
smoothly, and that the operation of the lock is cor-
rect when using the key and the door lock knob.
86U14X-054
ADJUSTMENT
Door Lock Striker
1. Check that the door can be closed easily and
whether there is any looseness. If there is a prob-
lem, loosen the striker mounting screws and ad-
just by moving the striker vertically, or laterally.
2. Check the rear offset of the door to the body. If
there is a problem, adjust by moving the door lock
striker laterally.
86U14X-055
14—22

FRONT BUMPER 14

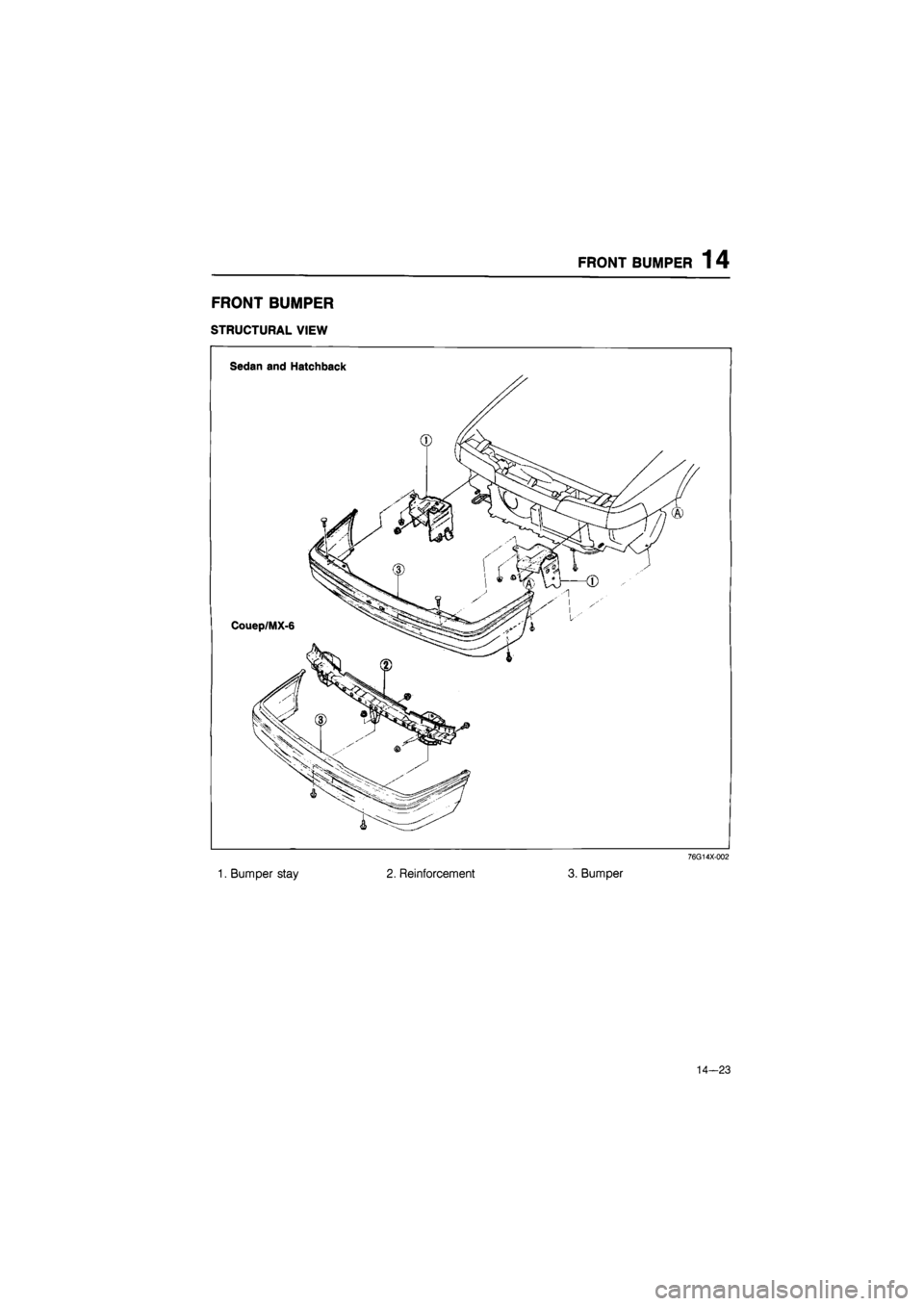

FRONT BUMPER
STRUCTURAL VIEW
Sedan and Hatchback
76G14X-002
1. Bumper stay 2. Reinforcement 3. Bumper
14-23

1 4 FRONT BUMPER
86U14X-057
86U14X-058

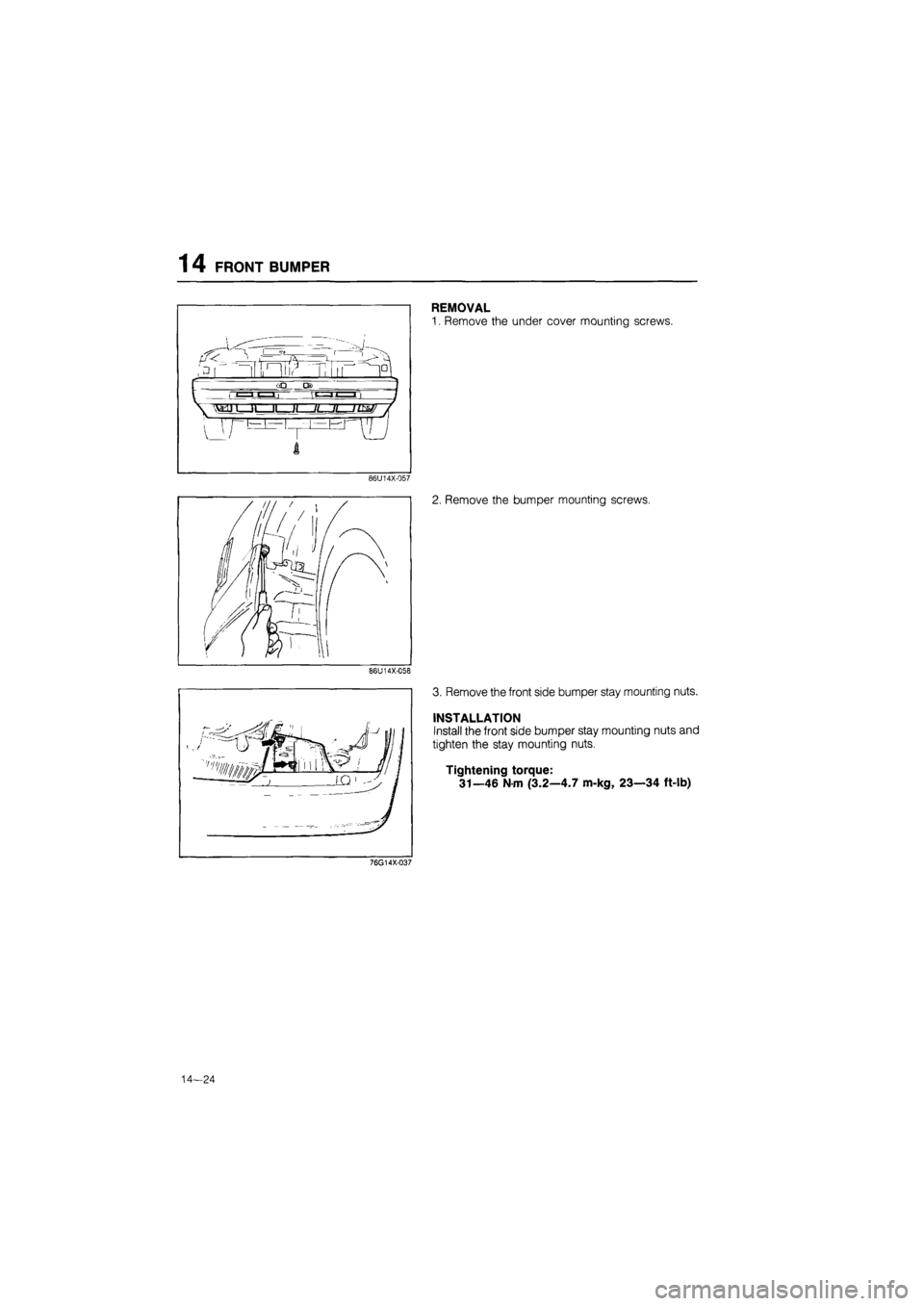

REMOVAL
1. Remove the under cover mounting screws.
2. Remove the bumper mounting screws.
3. Remove the front side bumper stay mounting nuts.
INSTALLATION
Install the front side bumper stay mounting nuts and
tighten the stay mounting nuts.
Tightening torque:
31—46 N-m (3.2—4.7 m-kg, 23—34 ft-lb)
76G14X-037
14—24

REAR BUMPER
1
4

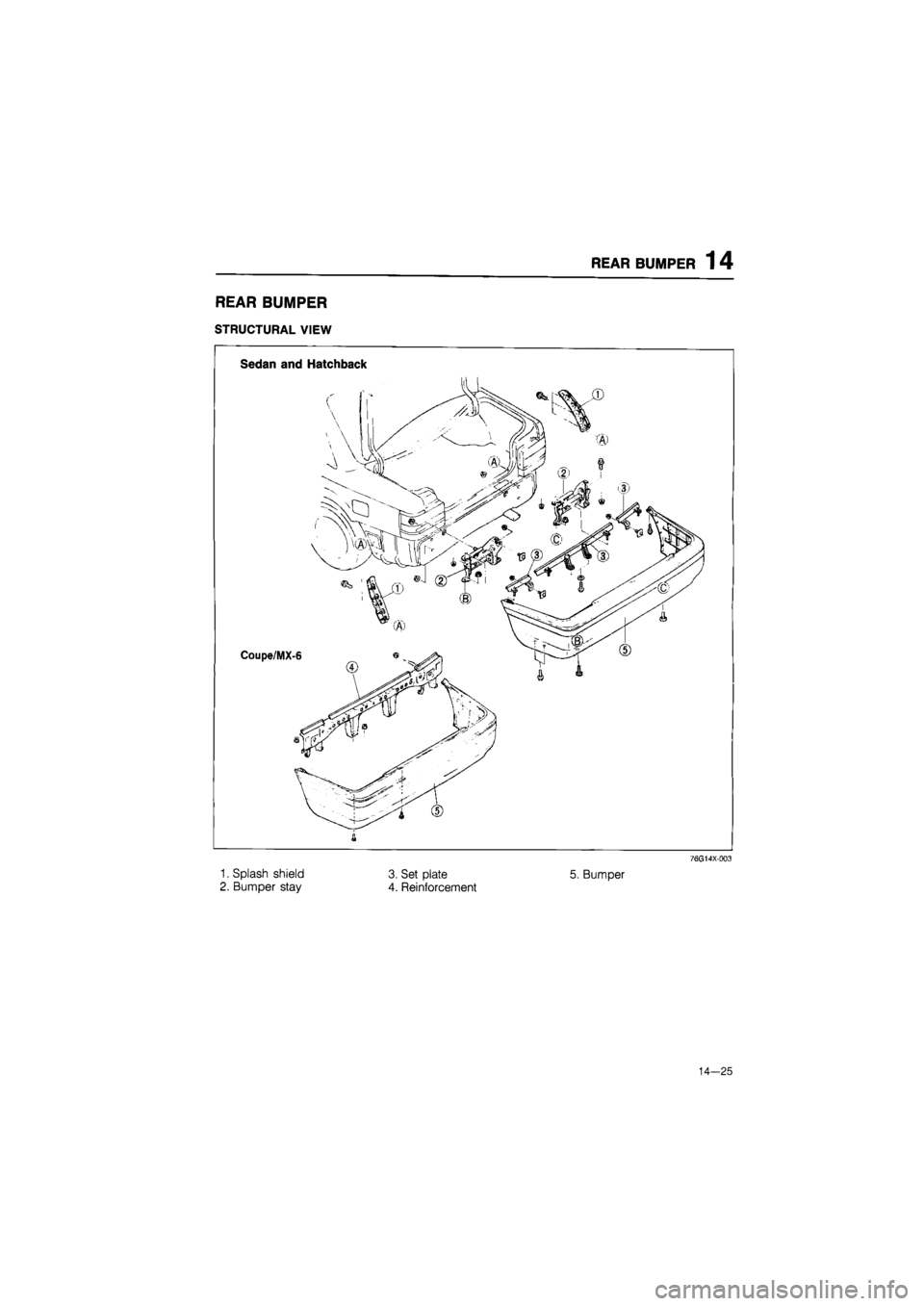

REAR BUMPER
STRUCTURAL VIEW
Sedan and Hatchback
Coupe/MX-6
1. Splash shield
2. Bumper stay
3. Set plate
4. Reinforcement
5. Bumper
76G14X-0D3
14—25
