1987 MAZDA 626 Workshop Manual

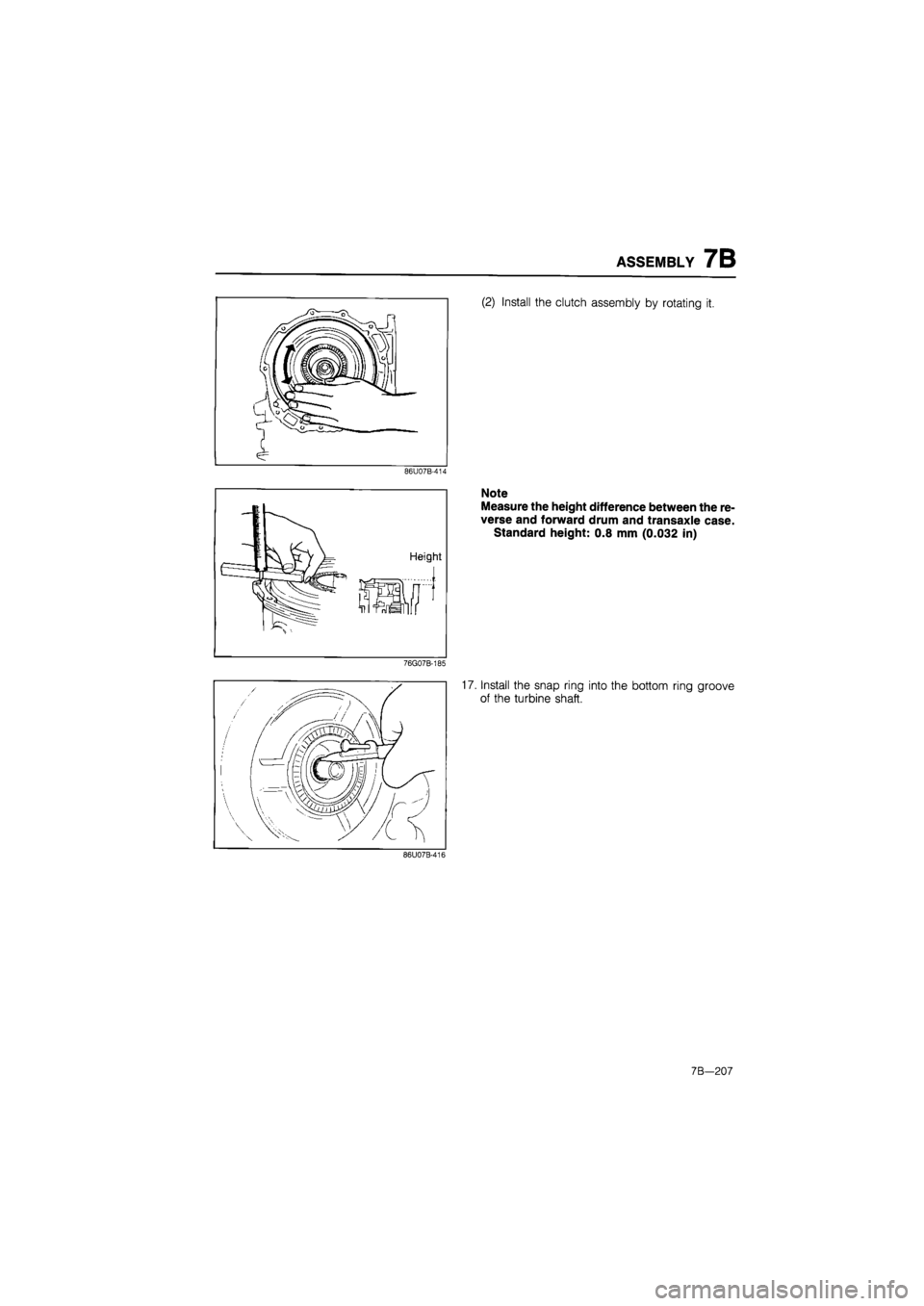

ASSEMBLY 7B
(2) Install the clutch assembly by rotating it.
86U07B-414
Note
Measure the height difference between the re-
verse and forward drum and transaxle case.
Standard height: 0.8 mm (0.032 in)
76G07B-185
17. Install the snap ring into the bottom ring groove
of the turbine shaft.
86U07B-416
7B—207

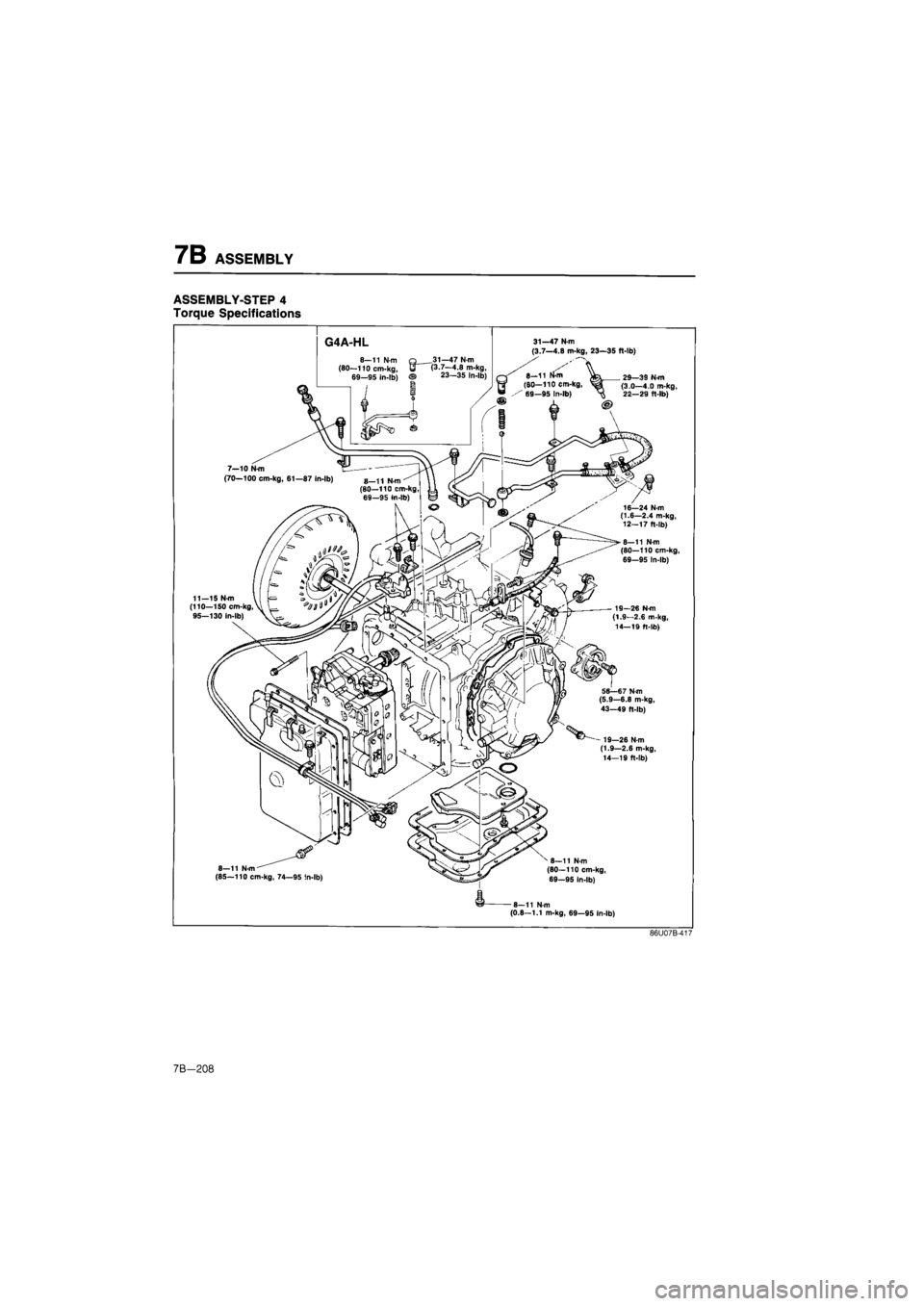

7B ASSEMBLY
ASSEMBLY-STEP 4
Torque Specifications
31—47 N-m (3.7—4.8 m-kg, 23—35 ft-lb)
. 29—39 N-m (3.0—4.0 m-kg, 22—29 ft-lb)
16—24 N m (1.6—2.4 m-kg, 12-17 ft-lb)
8—11 N-m (80—110 cm-kg, 69—95 In-lb)
19—26 N-m I.9—2.6 m-kg, 14—19 ft-lb)
SB—67 N-m (5.9—6.8 m-kg, 43—49 ft-lb)
— 19—26 N-m (1.9—2.6 m-kg, 14—19 ft-lb)
8—11 N-m (85—110 cm-kg, 74—95 in-lb)
8—11 N-m (80—110 cm-kg, 69-95 in-lb)
8—11 N-m (0.8—1.1 m-kg, 69—95 In-lb)
86U07B-417
7B-208

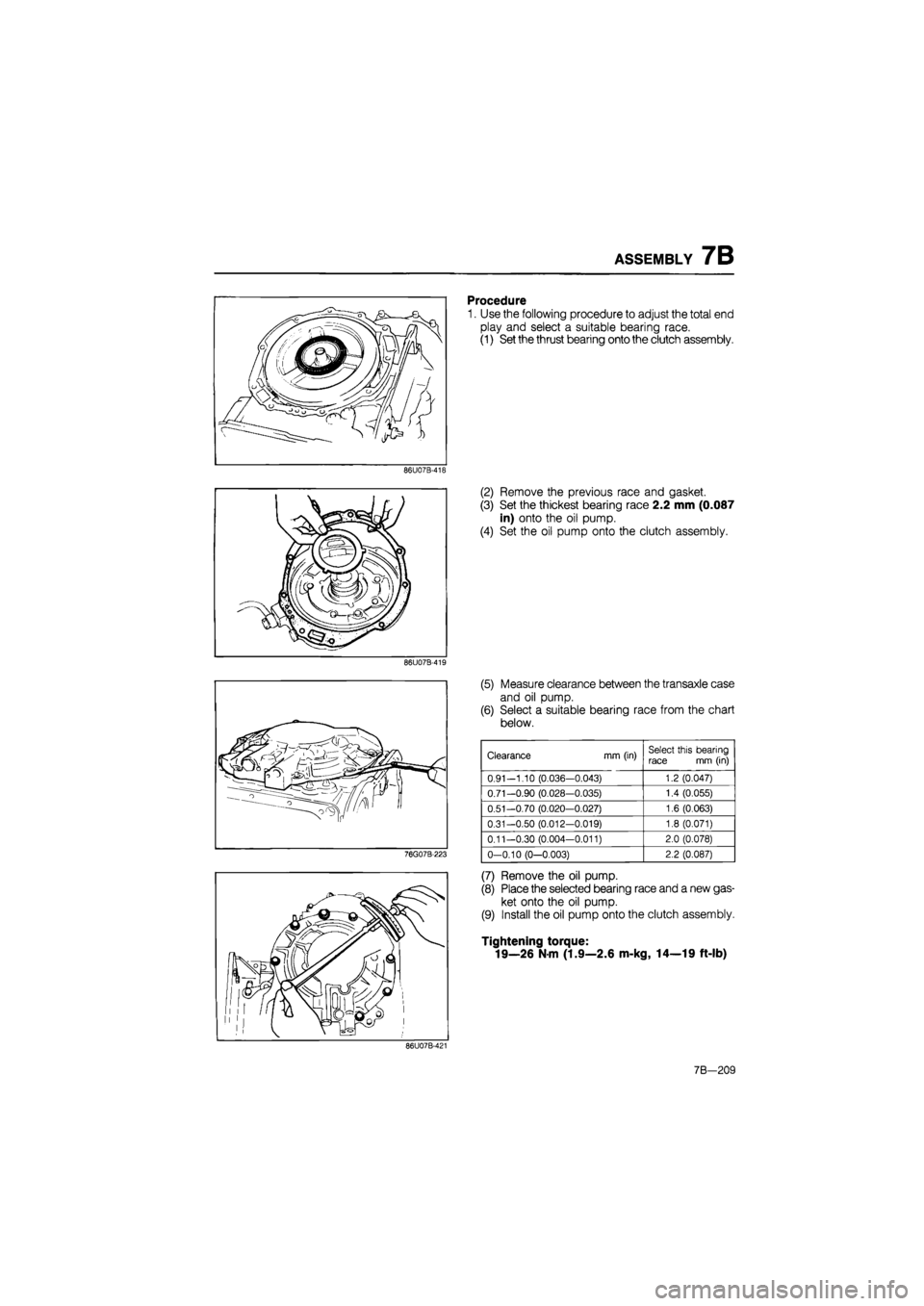

ASSEMBLY 7B
86U07B-418
86U07B-419
76G07B-223
Procedure
1. Use the following procedure to adjust the total end
play and select a suitable bearing race.
(1) Set the thrust bearing onto the clutch assembly.
(2) Remove the previous race and gasket.
(3) Set the thickest bearing race 2.2 mm (0.087
in) onto the oil pump.
(4) Set the oil pump onto the clutch assembly.
(5) Measure clearance between the transaxle case
and oil pump.
(6) Select a suitable bearing race from the chart
below.
Clearance mm (in) Select this bearing race mm (in)
0.91-1.10 (0.036—0.043) 1.2 (0.047)
0.71-0.90 (0.028-0.035) 1.4 (0.055)
0.51-0.70 (0.020—0.027) 1.6 (0.063)
0.31-0.50 (0.012-0.019) 1.8 (0.071)
0.11-0.30 (0.004-0.011) 2.0 (0.078)
0-0.10 (0-0.003) 2.2 (0.087)
(7) Remove the oil pump.
(8) Place the selected bearing race and a new gas-
ket onto the oil pump.
(9) Install the oil pump onto the clutch assembly.
Tightening torque:
19—26 Nm (1.9—2.6 m-kg, 14—19 ft-lb)
86U07B-421
7B-209

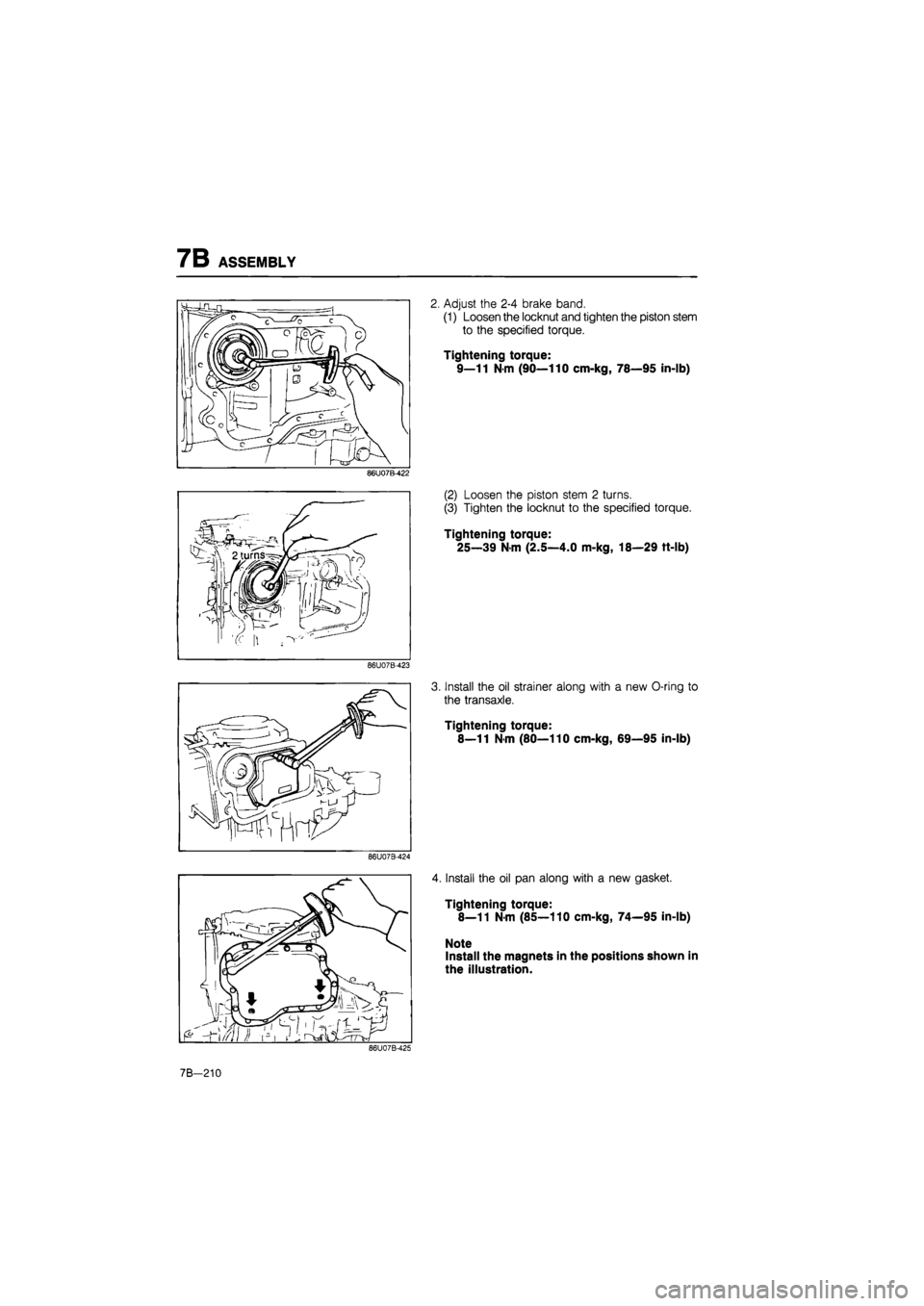

7B ASSEMBLY
2. Adjust the 2-4 brake band.
(1) Loosen the locknut and tighten the piston stem
to the specified torque.
Tightening torque:
9—11
N
m (90—110 cm-kg, 78—95 in-lb)
86U07B-422
(2) Loosen the piston stem 2 turns.
(3) Tighten the locknut to the specified torque.
Tightening torque:
25—39 N-m (2.5—4.0 m-kg, 18—29 tt-lb)
86U07B-423
Install the oil strainer along with a new O-ring to
the transaxle.
Tightening torque:
8—11 N-m (80—110 cm-kg, 69—95 in-lb)
86U07B-424
4. Install the oil pan along with a new gasket.
Tightening torque:
8—11 N-m (85—110 cm-kg, 74—95 in-lb)
Note
Install the magnets in the positions shown in
the illustration.
86U07B-425
7B—210

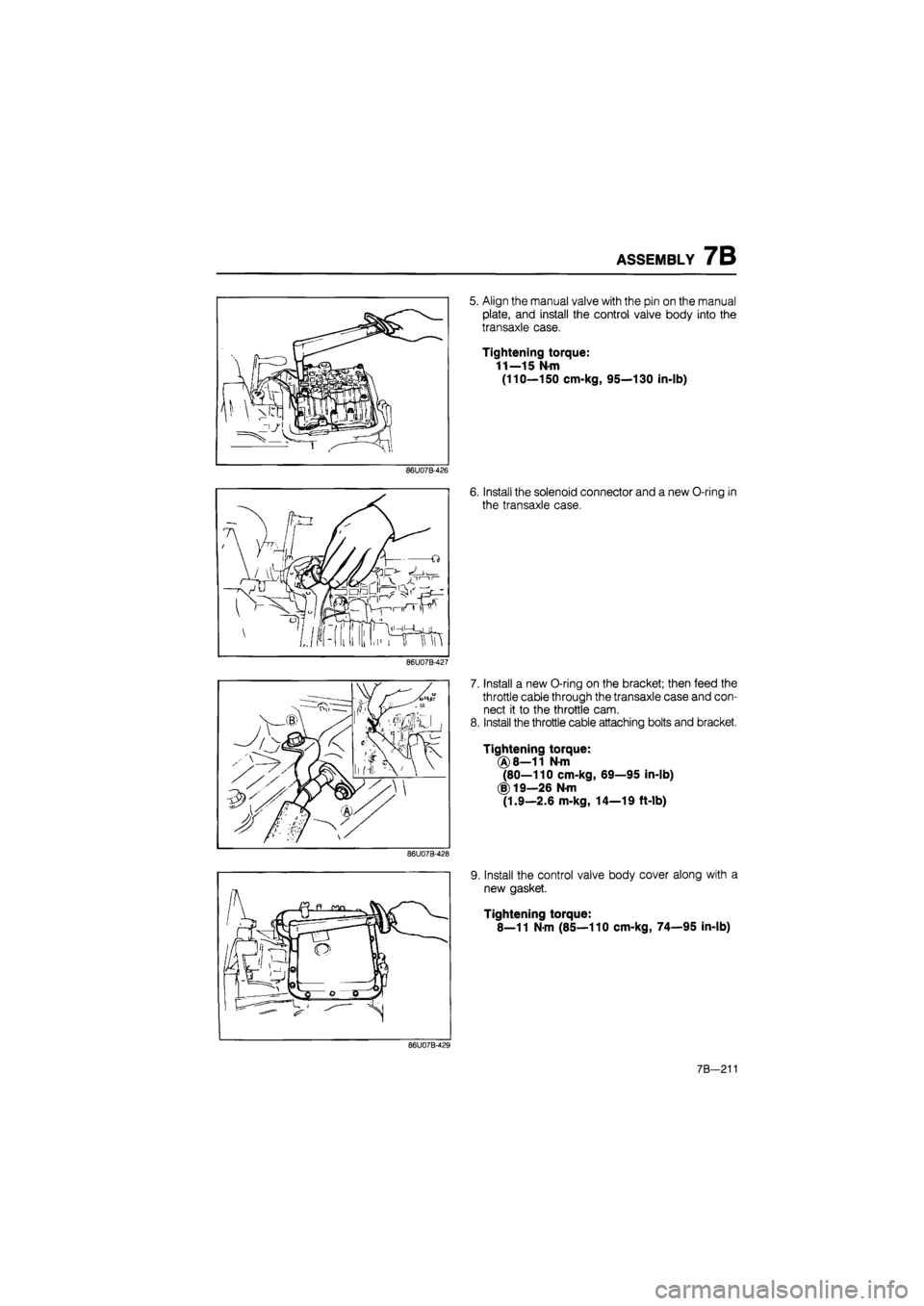

ASSEMBLY 7B
5. Align the manual valve with the pin on the manual
plate, and install the control valve body into the
transaxle case.
Tightening torque:
11—15 Nm
(110—150 cm-kg, 95—130 in-lb)
86U07B-426
6. Install the solenoid connector and a new O-ring in
the transaxle case.
86U07B-427
7. Install a new O-ring on the bracket; then feed the
throttle cable through the transaxle case and con-
nect it to the throttle cam.
8. Install the throttle cable attaching bolts and bracket.
Tightening torque:
(§)8—11 Nm
(80—110 cm-kg, 69—95 in-lb)
(1)19—26
N
m
(1.9—2.6 m-kg, 14—19 ft-lb)
86U07B-428
9. Install the control valve body cover along with a
new gasket.
Tightening torque:
8—11
N
m (85—110 cm-kg, 74—95 in-lb)
86U07B-429
7 B—211

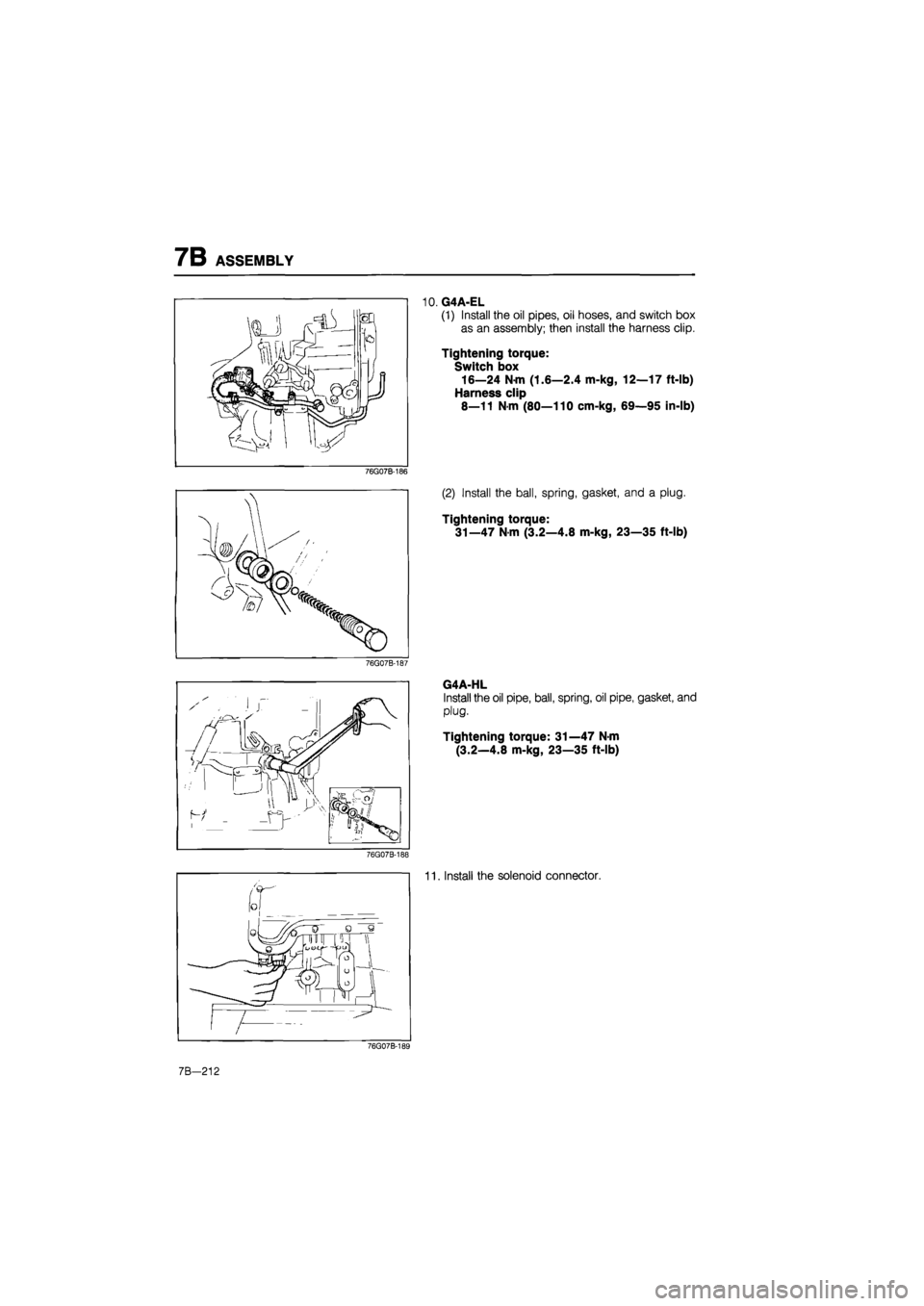

7B ASSEMBLY
76G07B-186
76G07B-187
76G07B-188
10. G4A-EL
(1) Install the oil pipes, oil hoses, and switch box
as an assembly; then install the harness clip.
Tightening torque:
Switch box
16—24 Nm (1.6—2.4 m-kg, 12—17 ft-lb)
Harness clip
8—11 Nm (80—110 cm-kg, 69—95 in-lb)
(2) Install the ball, spring, gasket, and a plug.
Tightening torque:
31—47
N
m (3.2—4.8 m-kg, 23—35 ft-lb)
G4A-HL
Install the oil pipe, ball, spring, oil pipe, gasket, and
plug.
Tightening torque: 31—47
N
m
(3.2—4.8 m-kg, 23—35 ft-lb)
11. Install the solenoid connector.
76G07B-189
7B—212

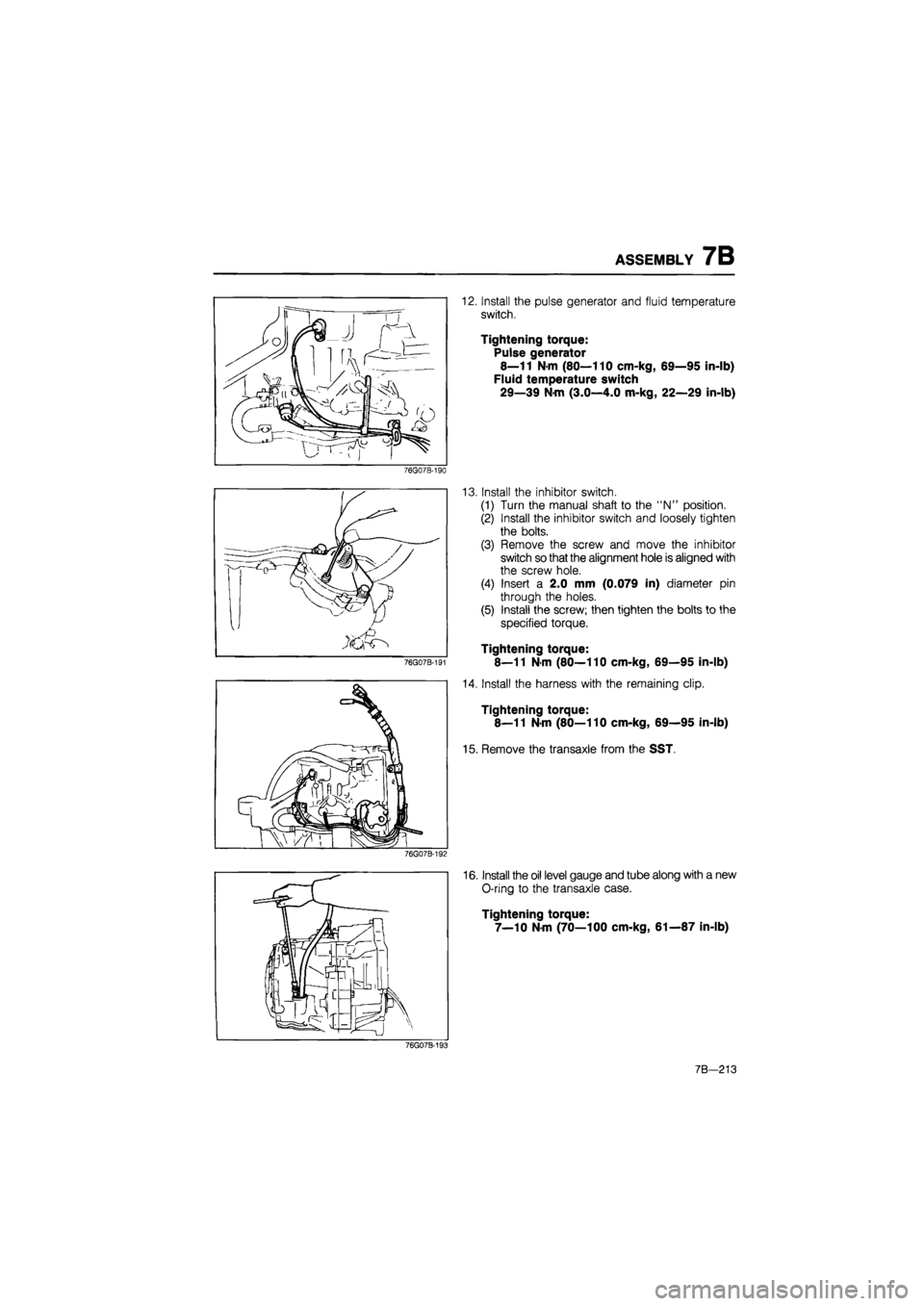

ASSEMBLY 7B
12. Install the pulse generator and fluid temperature
switch.
Tightening torque:
Pulse generator
8—11 N-m (80—110 cm-kg, 69—95 in-lb)
Fluid temperature switch
29—39 N-m (3.0—4.0 m-kg, 22—29 in-lb)
76G07B-190
76G07B-191
13. Install the inhibitor switch.
(1) Turn the manual shaft to the "N" position.
(2) Install the inhibitor switch and loosely tighten
the bolts.
(3) Remove the screw and move the inhibitor
switch so that the alignment hole is aligned with
the screw hole.
(4) Insert a 2.0 mm (0.079 in) diameter pin
through the holes.
(5) Install the screw; then tighten the bolts to the
specified torque.
Tightening torque:
8—11 N-m (80—110 cm-kg, 69—95 in-lb)
14. Install the harness with the remaining clip.
Tightening torque:
8—11 N-m (80—110 cm-kg, 69—95 in-lb)
15. Remove the transaxle from the SST.
76G07B-192
16. Install the oil level gauge and tube along with a new
O-ring to the transaxle case.
Tightening torque:
7—10 N-m (70—100 cm-kg, 61—87 in-lb)
76G07B-193
7B-213

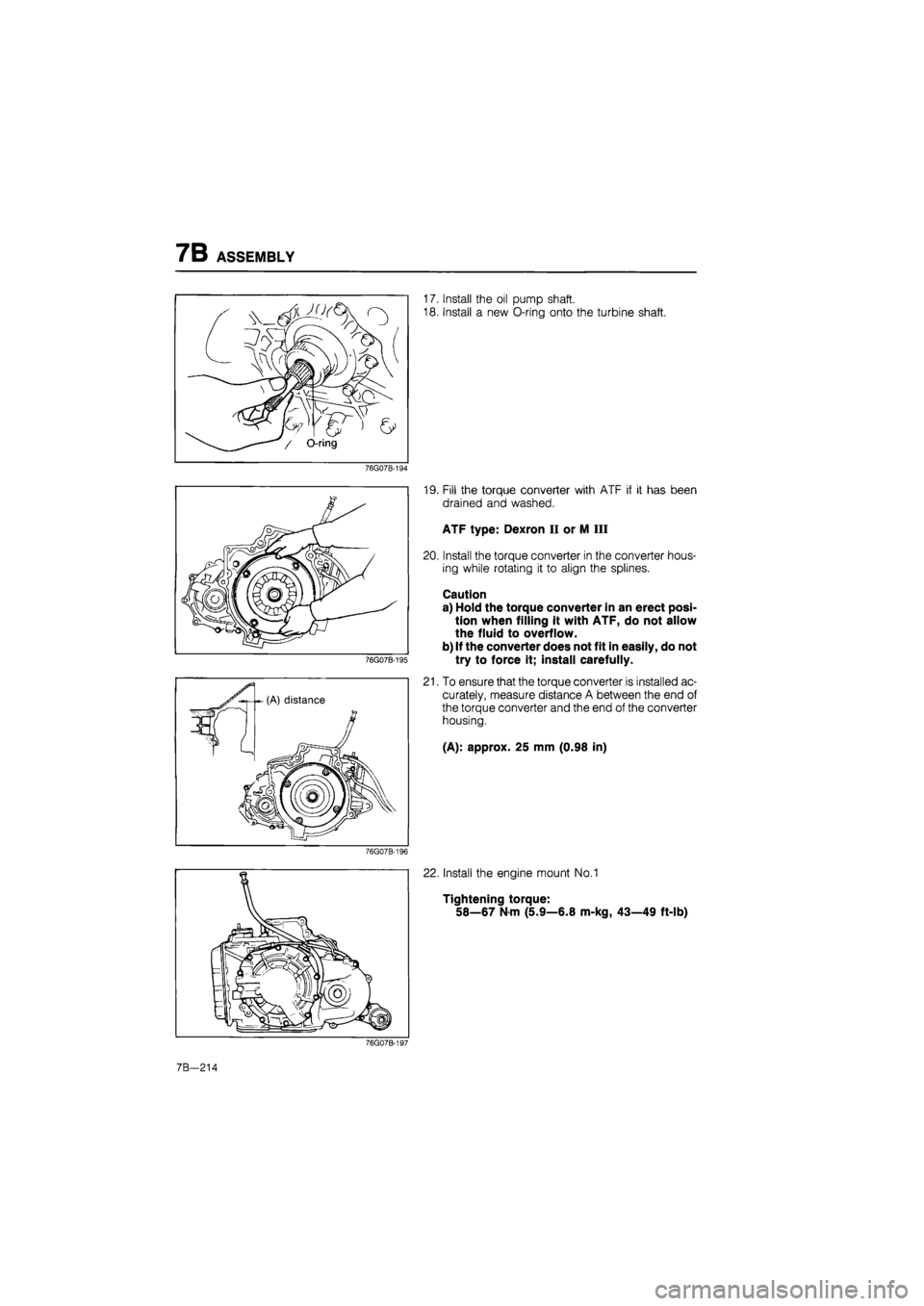

7B ASSEMBLY
/ O-ring
17. Install the oil pump shaft.
18. Install a new O-ring onto the turbine shaft.
76G07B-194
76G07B-195
19. Fill the torque converter with ATF if it has been
drained and washed.
ATF type: Dexron II or M III
20. Install the torque converter in the converter hous-
ing while rotating it to align the splines.
Caution
a) Hold the torque converter in an erect posi-
tion when filling it with ATF, do not allow
the fluid to overflow.
b) If the converter does not fit in easily, do not
try to force it; install carefully.
21. To ensure that the torque converter is installed ac-
curately, measure distance A between the end of
the torque converter and the end of the converter
housing.
(A): approx. 25 mm (0.98 in)
22. Install the engine mount No.1
Tightening torque:
58—67
N
m (5.9—6.8 m-kg, 43—49 ft-lb)
76G07B-197
7B-214
