1987 MAZDA 626 Workshop Manual

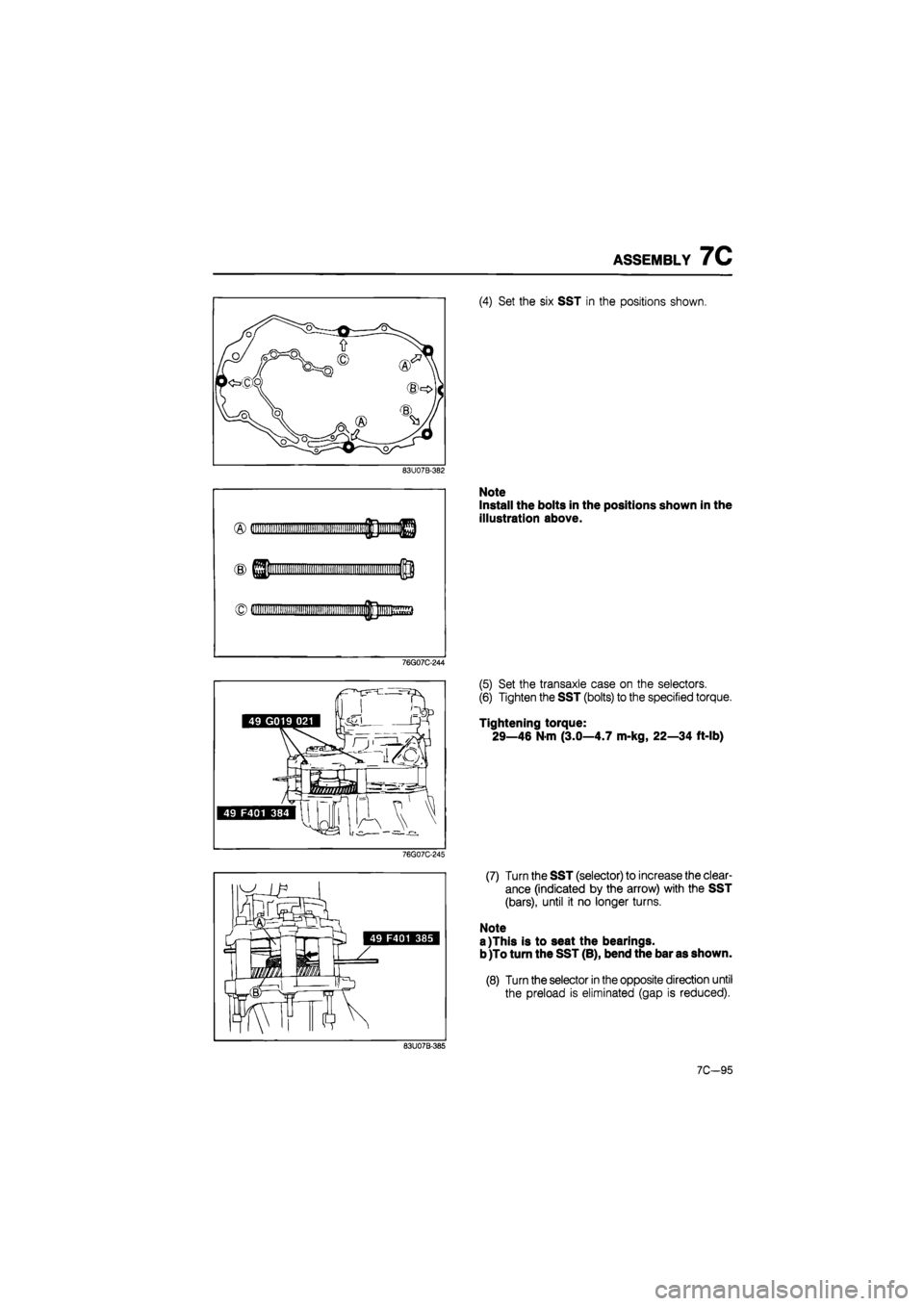

ASSEMBLY 7C
(4) Set the six SST in the positions shown.
83U07B-382
Note
Install the bolts in the positions shown in the
illustration above.
76G07C-244
(5) Set the transaxle case on the selectors.
(6) Tighten the SST (bolts) to the specified torque.
Tightening torque:
29—46 Nm (3.0—4.7 m-kg, 22—34 ft-lb)
76G07C-245
(7) Turn the SST (selector) to increase the clear-
ance (indicated by the arrow) with the SST
(bars), until it no longer turns.
Note
a )This is to seat the bearings.
b )To turn the SST (B), bend the bar as shown.
(8) Turn the selector in the opposite direction until
the preload is eliminated (gap is reduced).
83U07B-385
7C-95

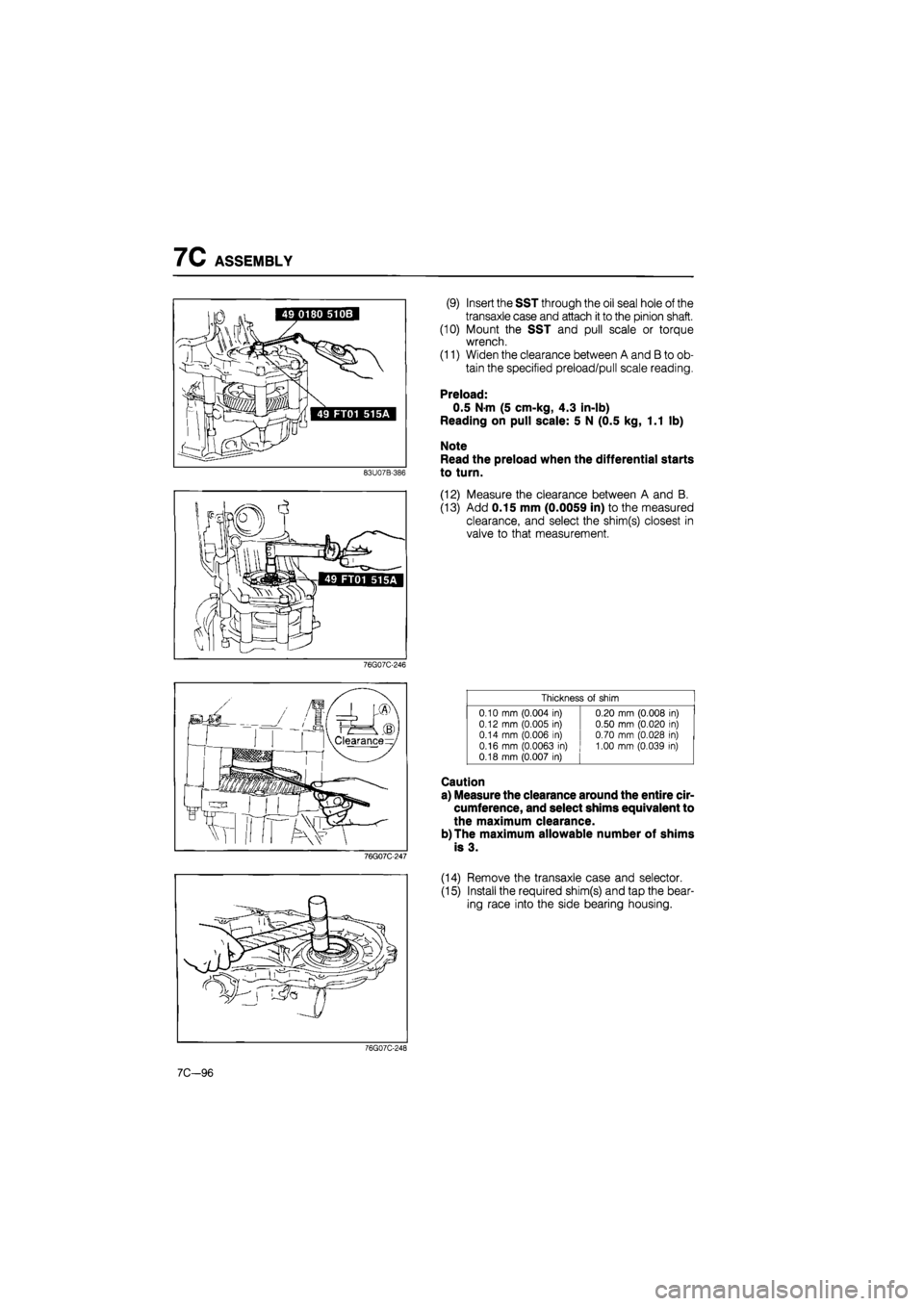

7C ASSEMBLY
(9) Insert the SST through the oil seal hole of the
transaxle case and attach
it
to the pinion shaft.
(10) Mount the SST and pull scale or torque
wrench.
(11) Widen the clearance between A and B to ob-
tain the specified preload/pull scale reading.
Preload:
0.5 N-m (5 cm-kg, 4.3 in-lb)
Reading on pull scale: 5 N (0.5 kg, 1.1 lb)
Note
Read the preload when the differential starts
to turn.
(12) Measure the clearance between A and B.
(13) Add 0.15 mm (0.0059 in) to the measured
clearance, and select the shim(s) closest in
valve to that measurement.
76G07C-246

Thickness
of
shim
0.10
mm
(0.004
in)
0.12
mm
(0.005
in)
0.14
mm
(0.006
in)
0.16
mm
(0.0063
in)
0.18 mm (0.007
in)

0.20 mm (0.008
in)
0.50 mm (0.020
in)
0.70
mm
(0.028
in)
1.00 mm (0.039
in)
76G07C-247
Caution
a) Measure the clearance around the entire cir-
cumference, and select shims equivalent to
the maximum clearance.
b)The maximum allowable number of shims
is 3.
(14) Remove the transaxle case and selector.
(15) Install the required shim(s) and tap the bear-
ing race into the side bearing housing.
76G07C-248
7C-96

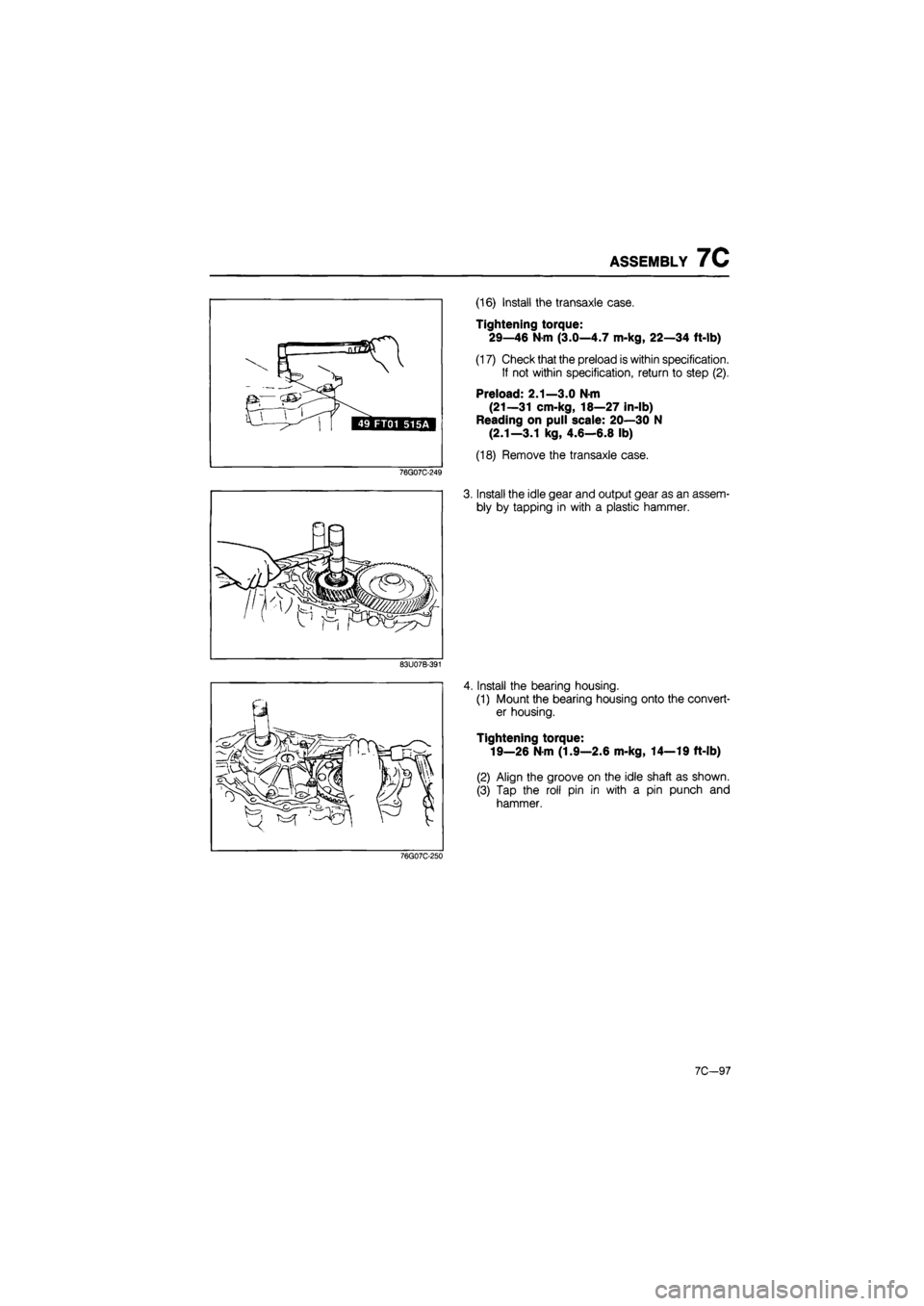

ASSEMBLY 7C
76G07C-249
(16) Install the transaxle case.
Tightening torque:
29—46 N-m (3.0—4.7 m-kg, 22—34 ft-lb)
(17) Check that the preload is within specification.
If not within specification, return to step (2).
Preload: 2.1—3.0 N-m
(21—31 cm-kg, 18—27 in-lb)
Reading on pull scale: 20—30 N
(2.1—3.1 kg, 4.6—6.8 lb)
(18) Remove the transaxle case.
3. Install the idle gear and output gear as an assem-
bly by tapping in with a plastic hammer.
83U07B-391
4. Install the bearing housing.
(1) Mount the bearing housing onto the convert-
er housing.
Tightening torque:
19—26 N-m (1.9—2.6 m-kg, 14—19 ft-lb)
(2) Align the groove on the idle shaft as shown.
(3) Tap the roll pin in with a pin punch and
hammer.
76G07C-250
7C-97

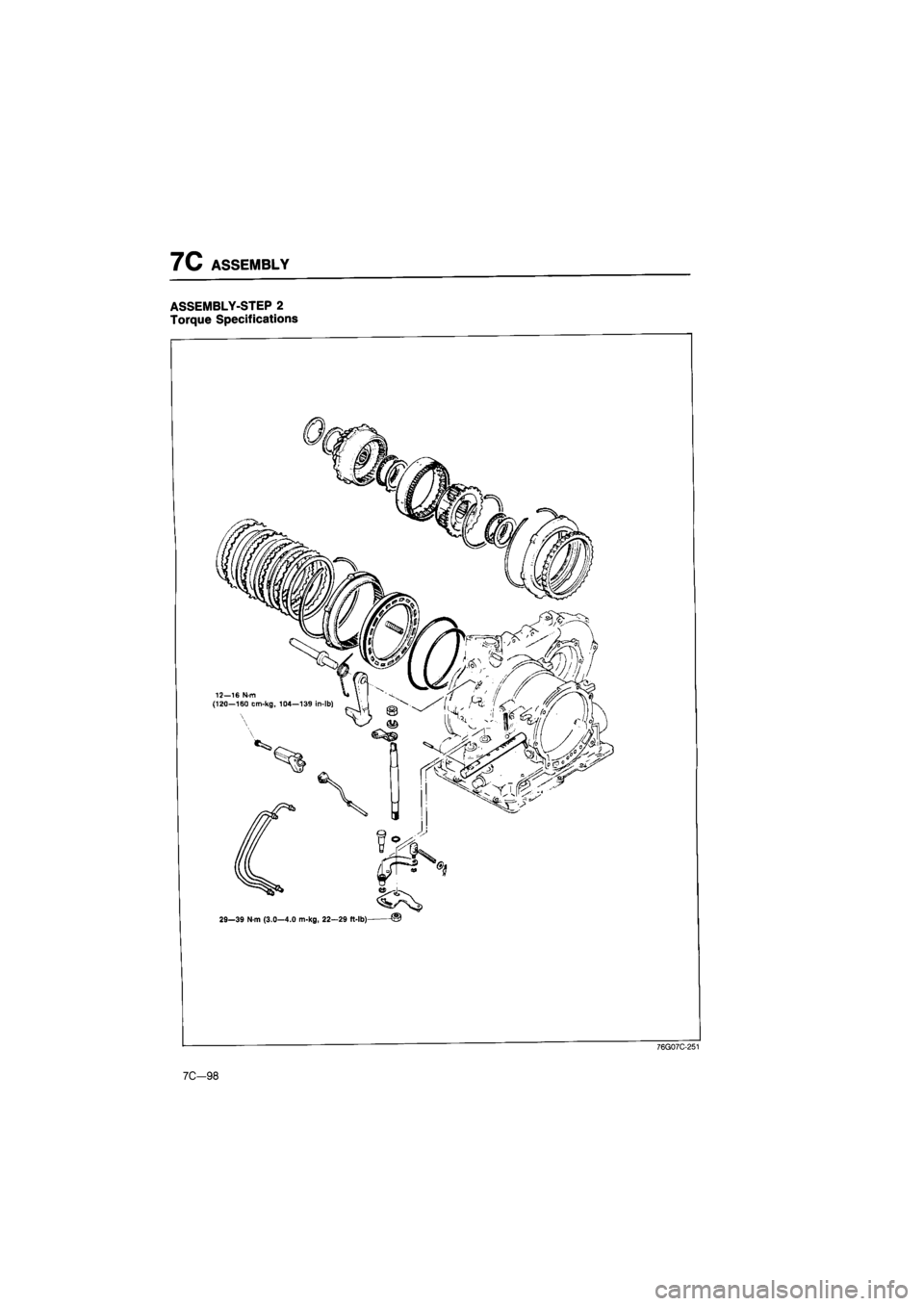

7C ASSEMBLY
ASSEMBLY-STEP 2
Torque Specifications
29—39 N-m (3.0—4.0 m-kg, 22—29 ft-lb) ©
7C-98
76G07C-251

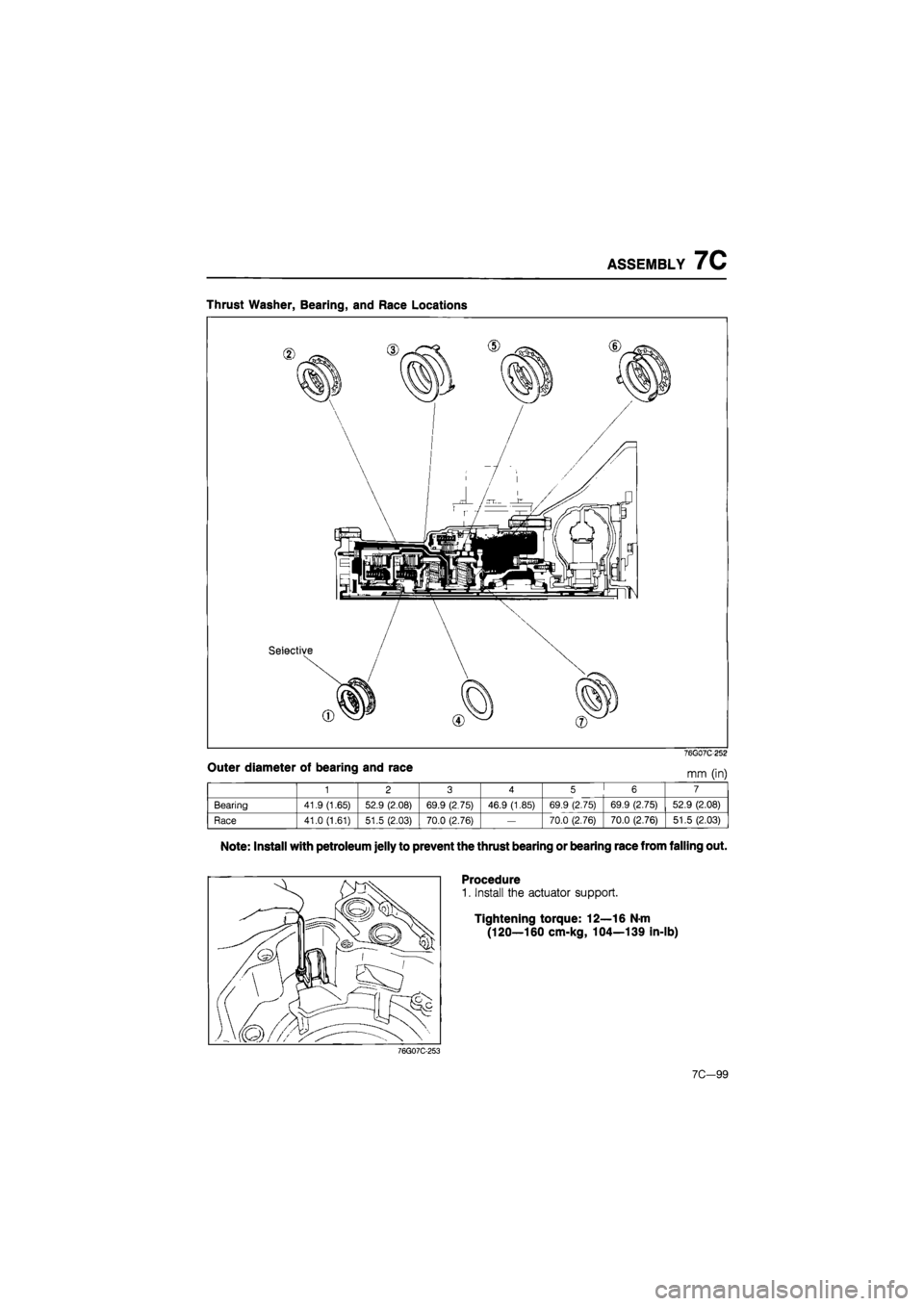

ASSEMBLY 7C
Thrust Washer, Bearing, and Race Locations
Outer diameter of bearing and race
76G07C252
mm (in)

1 2 3 4 5 6 7
Bearing 41.9 (1.65) 52.9 (2.08) 69.9 (2.75) 46.9 (1.85) 69.9 (2.75) 69.9 (2.75) 52.9 (2.08)
Race 41.0 (1.61) 51.5 (2.03) 70.0 (2.76)
—
70.0 (2.76) 70.0 (2.76) 51.5 (2.03)

Note: Install with petroleum jelly to prevent the thrust bearing or bearing race from falling out.
Procedure
1. Install the actuator support.
Tightening torque: 12—16 N-m
(120—160 cm-kg, 104—139 in-lb)
76G07C-253
7C—99

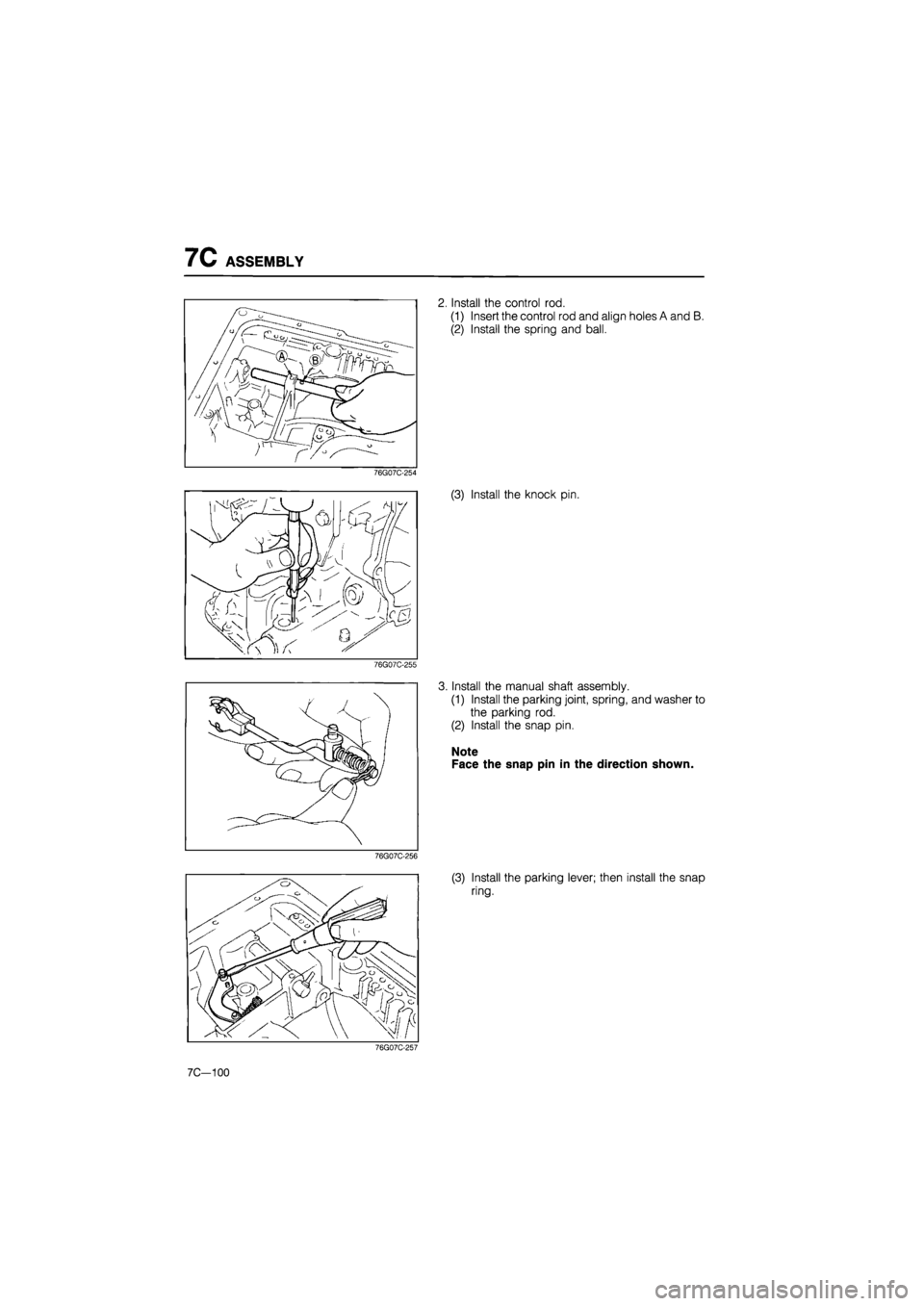

7C ASSEMBLY
76G07C-254
76G07C-255
76G07C-256
2. Install the control rod.
(1) Insert the control rod and align holes A and B.
(2) Install the spring and ball.
(3) Install the knock pin.
3. Install the manual shaft assembly.
(1) Install the parking joint, spring, and washer to
the parking rod.
(2) Install the snap pin.
Note
Face the snap pin in the direction shown.
(3) Install the parking lever; then install the snap
ring.
76G07C-257
7C—100

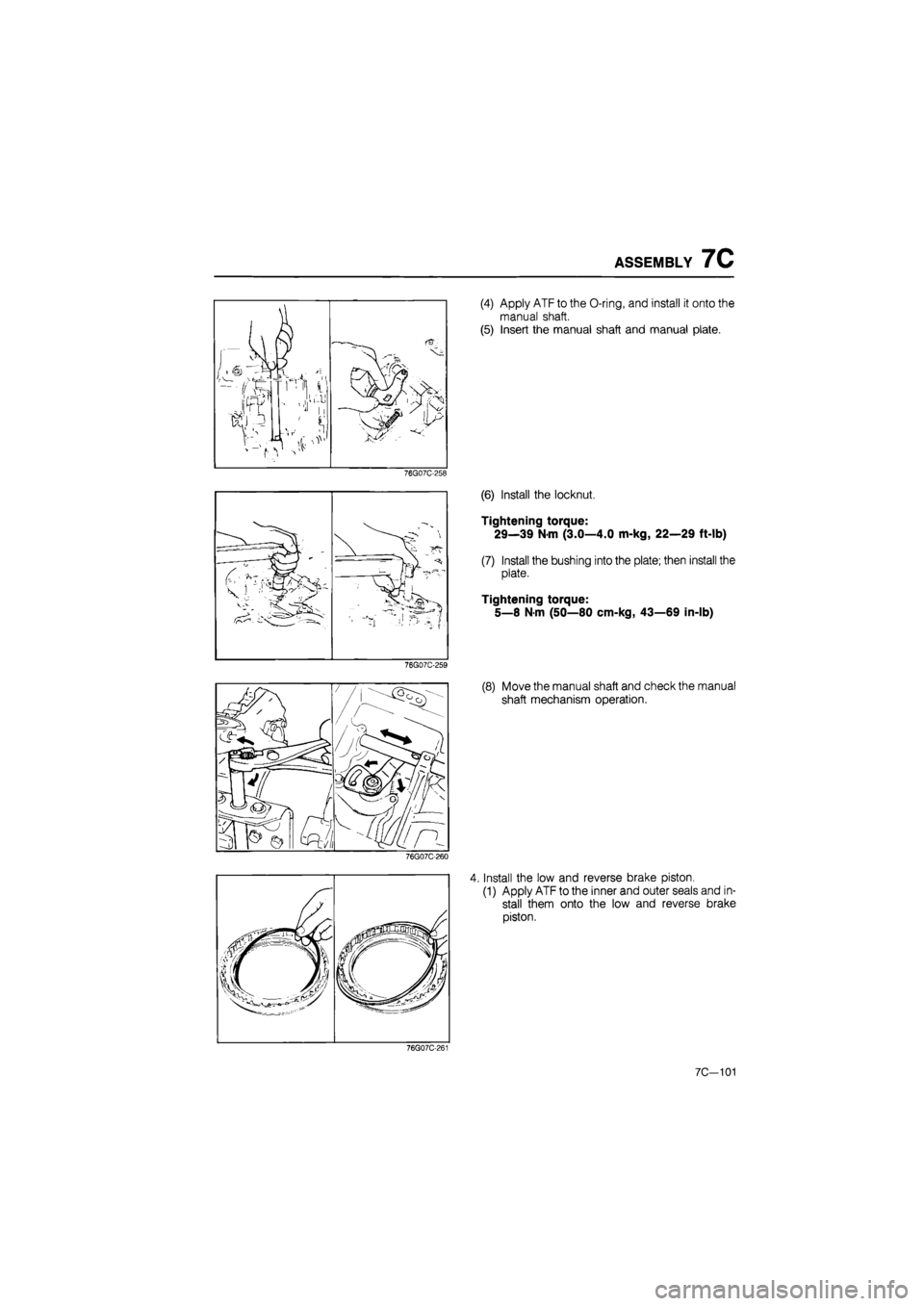

ASSEMBLY 7C
(4) Apply ATF to the O-ring, and install it onto the
manual shaft.
(5) Insert the manual shaft and manual plate.
76G07C-258
(6) Install the locknut.
Tightening torque:
29—39 N-m (3.0—4.0 m-kg, 22—29 ft-lb)
(7) Install the bushing into the plate; then install the
plate.
Tightening torque:
5—8 N-m (50—80 cm-kg, 43—69 in-lb)
76G07C-260
4. Install the low and reverse brake piston.
(1) Apply ATF to the inner and outer seals and in-
stall them onto the low and reverse brake
piston.
76G07C-261
7C-101

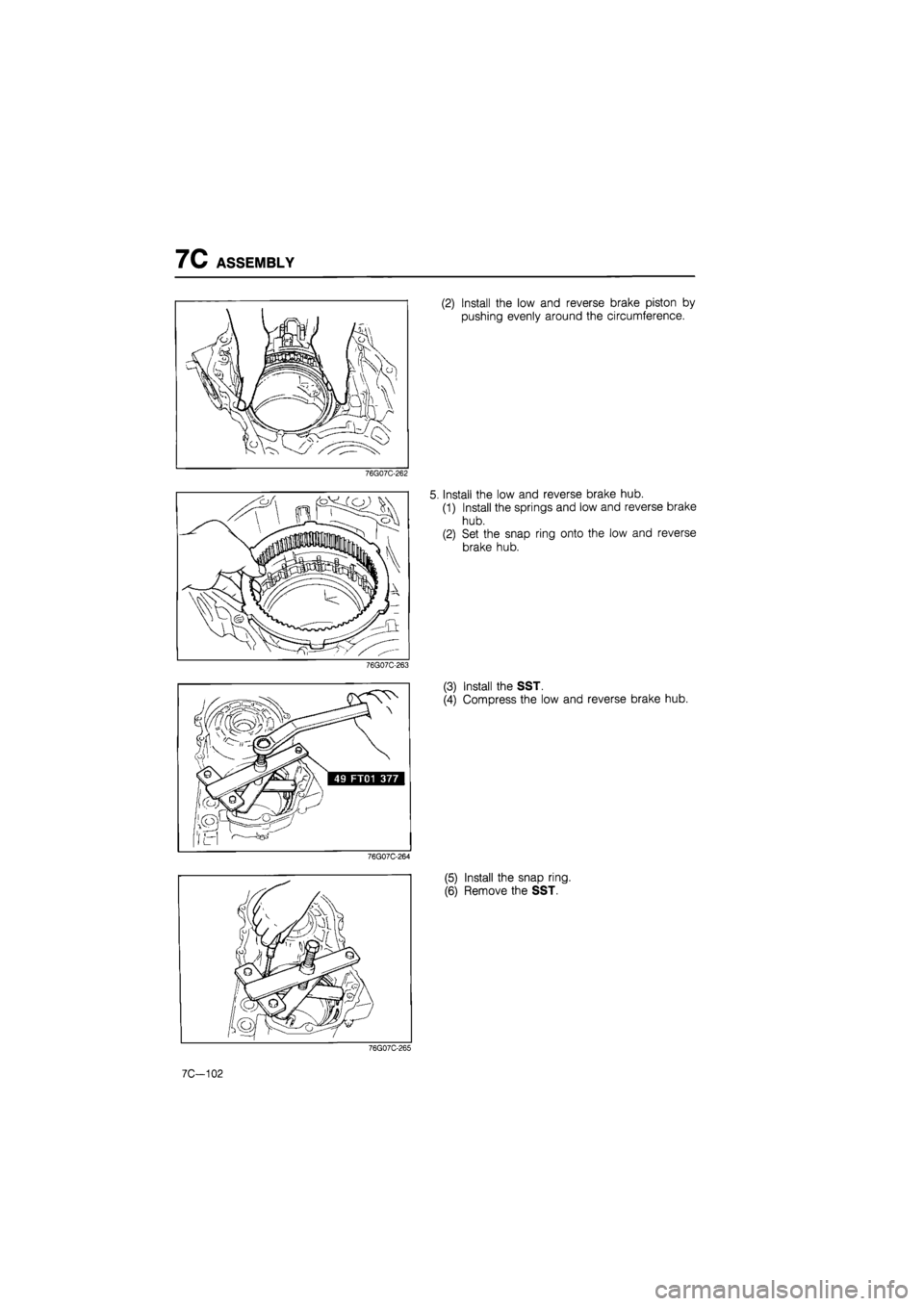

7C ASSEMBLY
(2) Install the low and reverse brake piston by
pushing evenly around the circumference.
76G07C-262
Install the low and reverse brake hub.
(1) Install the springs and low and reverse brake
hub.
(2) Set the snap ring onto the low and reverse
brake hub.
76G07C-263
(3) Install the SST.
(4) Compress the low and reverse brake hub.
76G07C-264
(5) Install the snap ring.
(6) Remove the SST.
76G07C-265
7C—102
