1987 MAZDA 626 Workshop Manual

14 QUARTER WINDOW GLASS
14—66

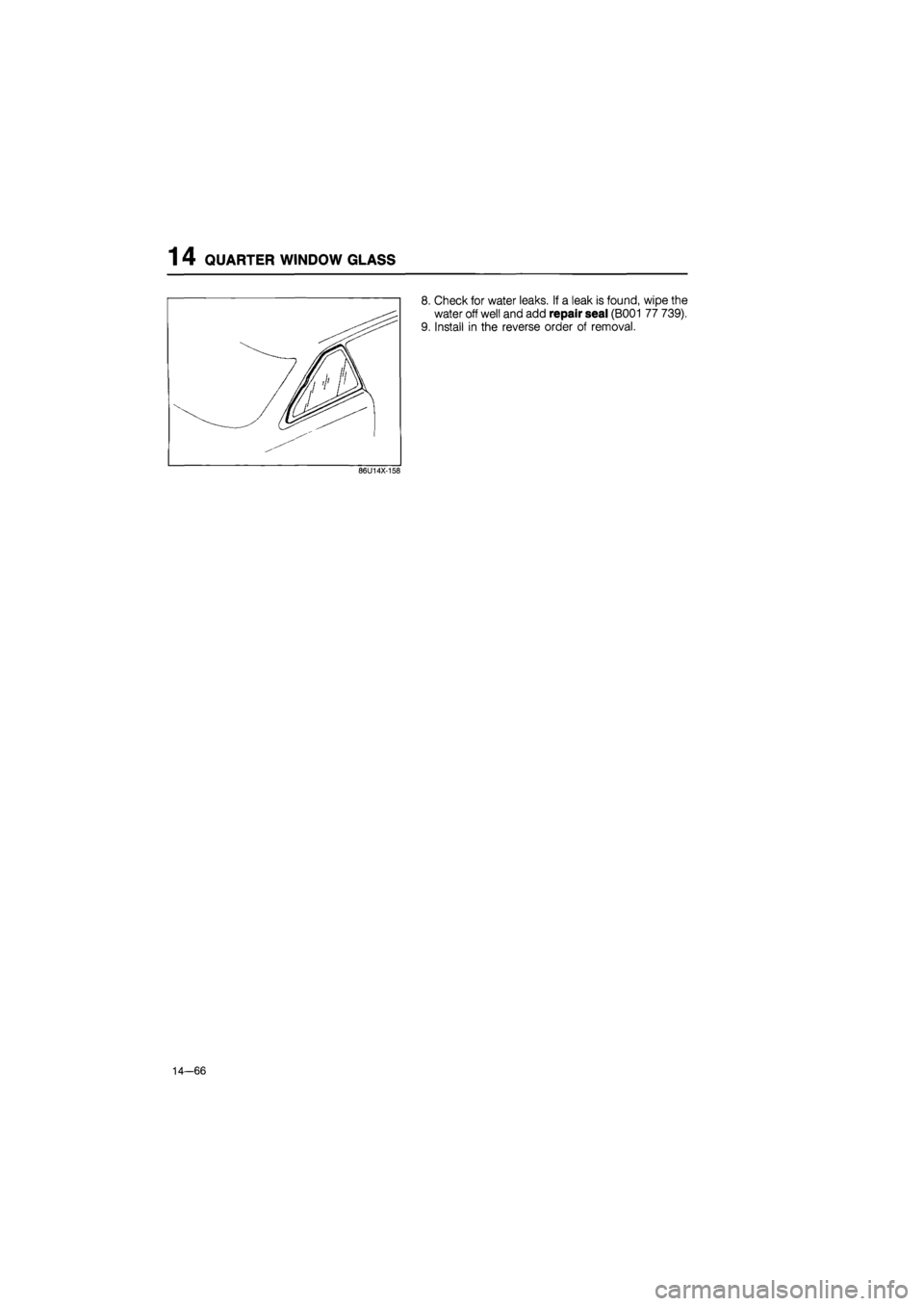

Check for water leaks. If a leak is found, wipe the
water off well and add repair seal (B001 77 739).
Install in the reverse order of removal.

HEADLINER 14
HEADLINER
STRUCTURAL VIEW
Coupe/MX-6
Sliding sunroof
1. Rearview mirror and
overhead console
2. Sunvisor
3. Center adapter
4. Assist handle
5. Interior light
6. Front header trim
7. Front pillar trim
8. Rear pillar trim
9. Rear header trim
10. Insulator
11. Headliner
86U14X-159
14—67

14 HEADLINER
Sedan and Hatchback
Sliding sunroof
86U14X-160
1. Rearview mirror and
overhead console
2. Sunvisor
3. Center adapter
4. Assist handle
5. Interior light
6. Front header trim
7. Front pillar trim
8. Rear pillar trim
9. Rear header trim
10. Insulator
11. Headliner
14—68

HEADLINER 14
REMOVAL
1. Remove the overhead console cover.
2. Remove the rearview mirror.
3. Remove the overhead console mounting screws.
4. Disconnect the connectors and remove the over-
head console.
86U14X-161
69G14X-241
5. Remove the sunvisors.
6. Remove the center adapters.
7. Remove the interior light lens with a protected small
screwdriver.
86U14X-162
8. Remove the interior light mounting screws and dis-
connect the connector.
9. Remove the interior light.
86U14X-163
14—69

14 HEADLINER
10. Remove the caps and screws at the ends of the
front header trim.
86U14X-164
11. Remove the caps and screws at the ends of the
rear header trim.
86U14X-165
| 12. Remove the rear side trim.
86U14X-166
13. Remove the seat belt mounting bolts.
86U14X-167
14-70

HEADLINER 14

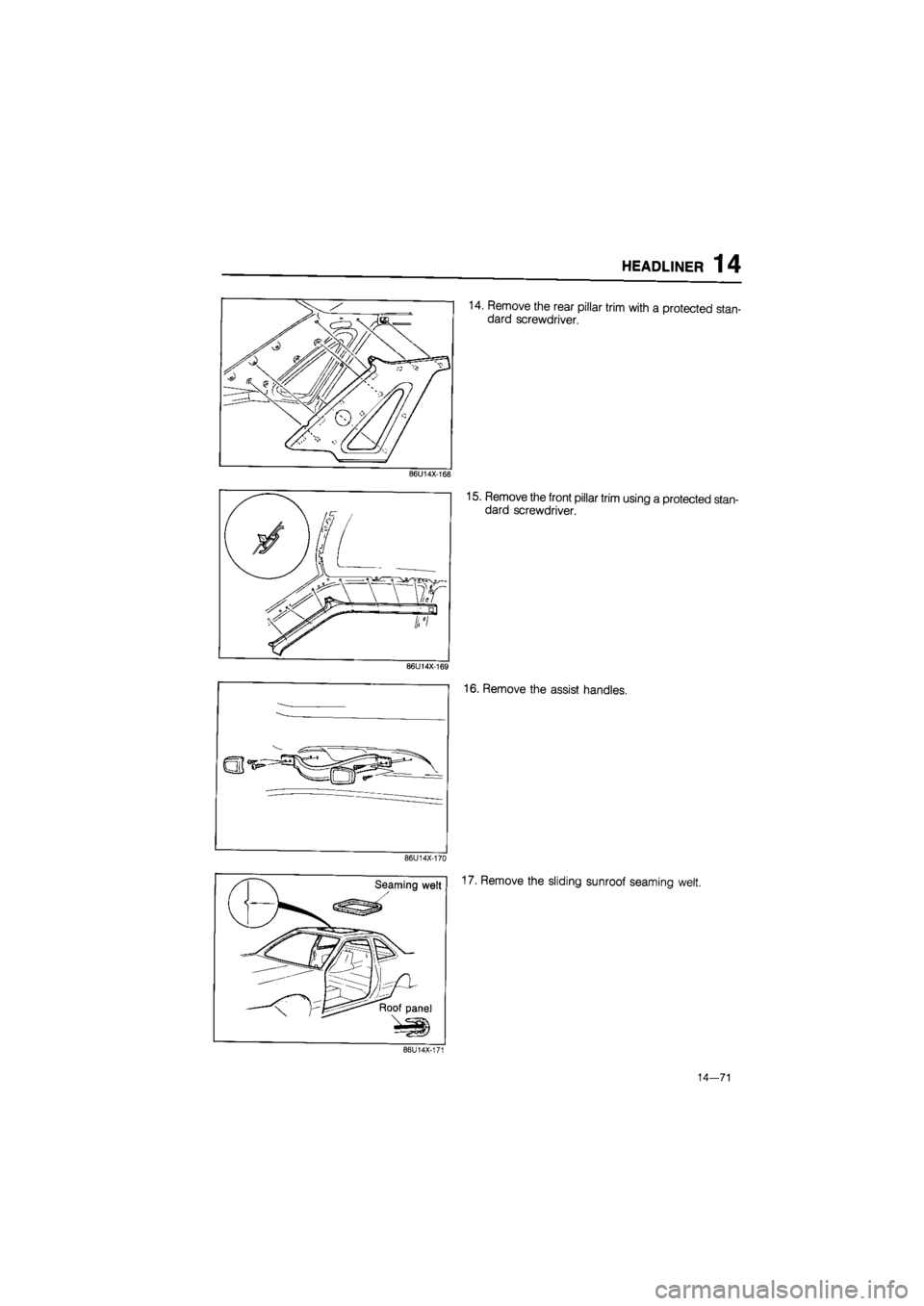

14. Remove the rear pillar trim with a protected stan-
dard screwdriver.
86U14X-168
15. Remove the front pillar trim using a protected stan-
dard screwdriver.
16. Remove the assist handles.
86U14X-170
Seaming welt
J
17, Remove the sliding sunroof seaming welt.
86U14X-171
14-71

14 HEADLINER

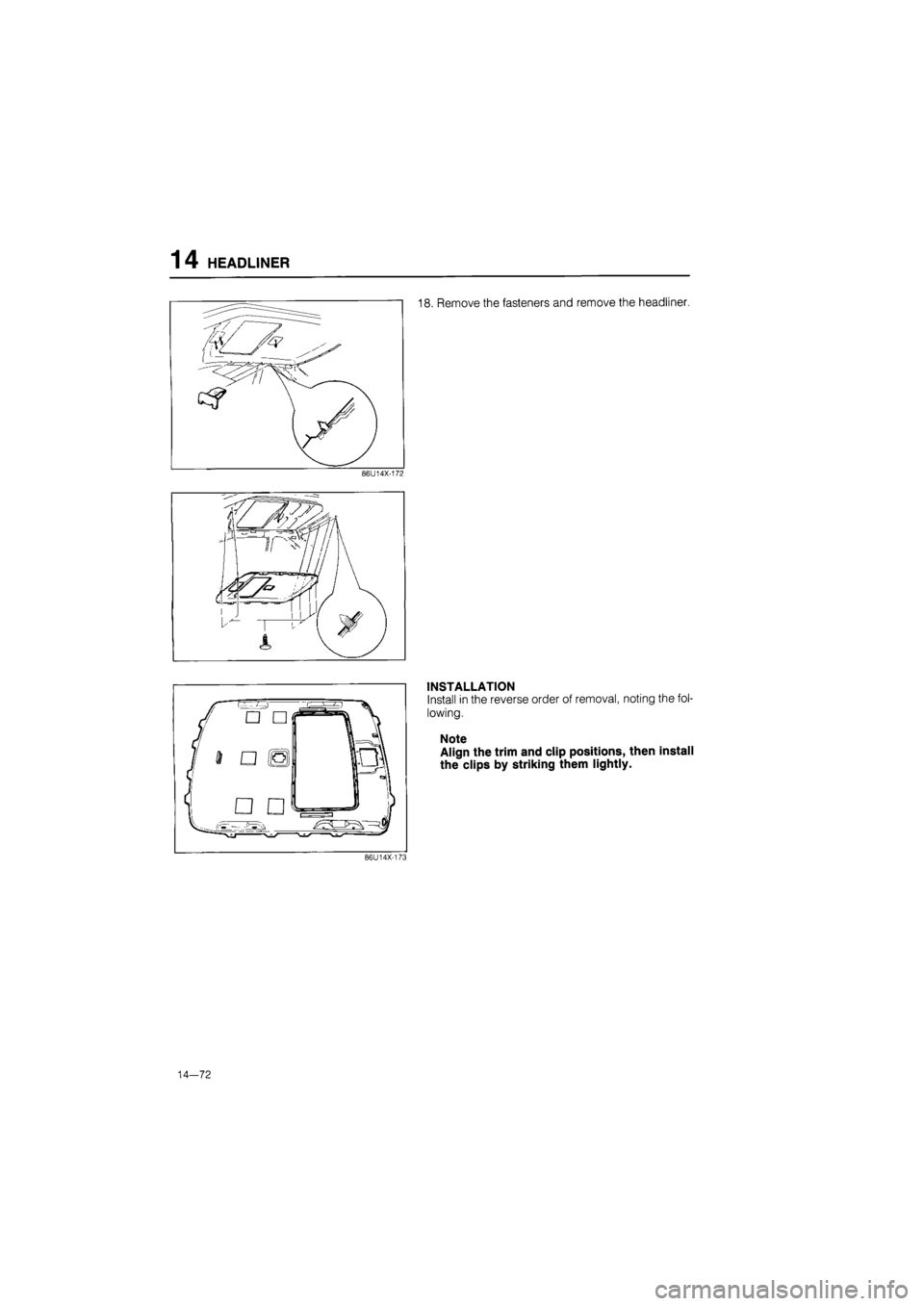

18. Remove the fasteners and remove the headliner.
86U14X-172
INSTALLATION
Install in the reverse order of removal, noting the fol-
lowing.
Note
Align the trim and clip positions, then install
the clips by striking them lightly.
86U14X-173
14—72

INSTRUMENT PANEL 1 4
INSTRUMENT PANEL
STRUCTURAL VIEW
1. Rear console
2. Upper plate.
3. Front console
4. Glove compartment
5. Side cover
6. Side cover
7. Box
8. Ashtray
9. Center panel
10. Heater control assembly
11. Steering wheel cap
12. Steering wheel
13. Column cover
14. Switch panel
76G14X-036
15. Cap
16. Meter hood
17. Duct
18. Duct and under cover
19. Under cover
20. Duct
21. Meter assembly
22. Instrument panel
14—73
