AIR CONDITIONING REAR BLOWER MOTOR
1381
Author: Date:
1996 LAND CRUISER (RM451U)
REAR BLOWER MOTOR
REMOVAL
1. REMOVE FRONT RH SEAT
2. REMOVE BLOWER MOTOR
(a) Disconnect the connectors from the blower motor and
rear heater relay.
(b) Remove the bolt and rear heater relay.
(c) Remove the 2 screws and side cover.
(d) Remove the bolt and 7 screws, then remove the upper cover with the blower motor.
(e) Remove the 3 screws and the blower motor.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2S1−02
12
−

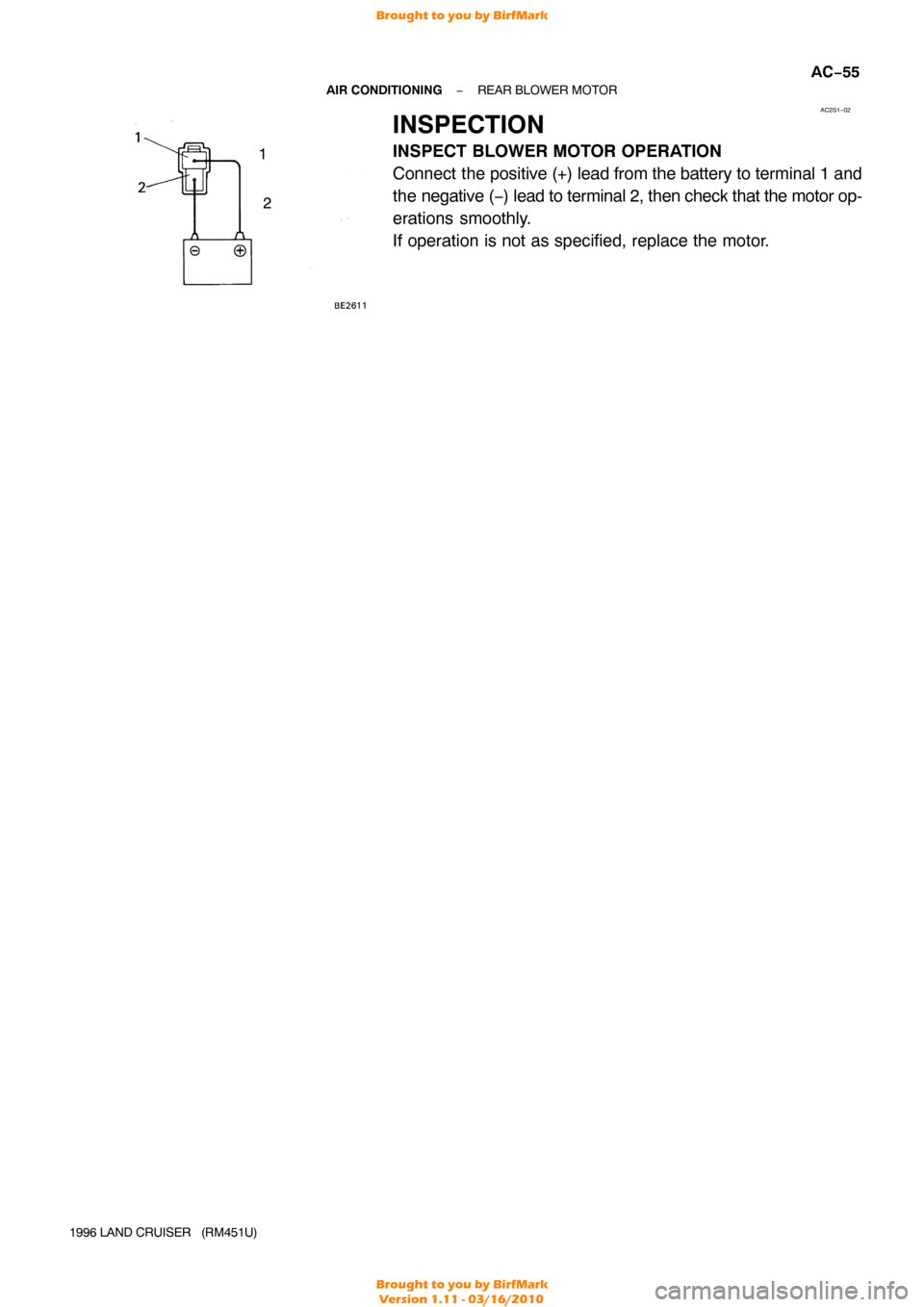

AIR CONDITIONING REAR BLOWER MOTOR
AC−55
1996 LAND CRUISER (RM451U)
INSPECTION
INSPECT BLOWER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 1 and
the negative (− ) lead to terminal 2, then check that the motor op-
erations smoothly.
If operation is not as specified, replace the motor.
2
BE2611
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2S2−01
AC−56
−
AIR CONDITIONING REAR BLOWER MOTOR
1996 LAND CRUISER (RM451U)
INSTALLATION
Installation is in the reverse order of removal (See page AC−54 ).
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC3JO−01
N09039
1
2
34
−
AIR CONDITIONING BLOWER RESISTOR
AC−57
1384
Author: Date:
1996 LAND CRUISER (RM451U)
BLOWER RESISTOR
INSPECTION
1. REMOVE GLOVE COMPARTMENT DOOR (See page
BO−76 )
2. REMOVE BLOWER RESISTOR
Disconnect the connector and remove the 2 screws and blower
resistor.
3. INSPECT BLOWER RESISTOR RESISTANCE
Measure resistance between terminals 1 and 4. Standard resistance: 1.8 − 2.2 Ω
If resistance is not as specified, replace the blower resistor.
4. REINSTALL BLOWER RESISTOR
H-4-2
ru;S12
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

N06513
AC3JP−01
Z09802
Connector ”A”Connector ”B”
1 2
1
2
3
AC−58
−
AIR CONDITIONING REAR BLOWER RESISTOR
1385
Author: Date:
1996 LAND CRUISER (RM451U)
REAR BLOWER RESISTOR
INSPECTION
1. REMOVE FRONT SEAT RH
2. REMOVE BLOWER RESISTOR
(a) Disconnect the connector.
(b) Remove the 2 screws and blower resistor.
3. INSPECT REAR BLOWER RESISTOR CONTINUITY
ConditionTester connectionSpecified condition
ConstantA1 − B1
A2 − A3 − B2Continuity
If continuity is not as specified, replace the blower resistor.
4. REINSTALL REAR BLOWER RESISTOR
H-3-2 H-2-2
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

N14295
AC2S9−01
−
AIR CONDITIONING THERMISTOR
AC−59
1386
Author: Date:
1996 LAND CRUISER (RM451U)
THERMISTOR
ON−VEHICLE INSPECTION
1. REMOVE GLOVE COMPARTMENT PARTS
(See page BO−76 )
2. INSPECT THERMISTOR RESISTANCE
Measure the resistance between terminals.
Standard resistance:
1,500 Ω at 25 ° C (77 °F)
If resistance is not as specified, replace the sensor.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2SA−01
I03338
ThermometerIce
10 cm
(3.9 in.)
Thermistor Ohmmeter
Z04352
(
Ω )
0
500
1,000 1,500 2,000
2,500
3,000 3,500 4,000 4,500 5,000
0 510152025(
°C)
32 41 50 59 68 77 ( °F)
AC−60
−

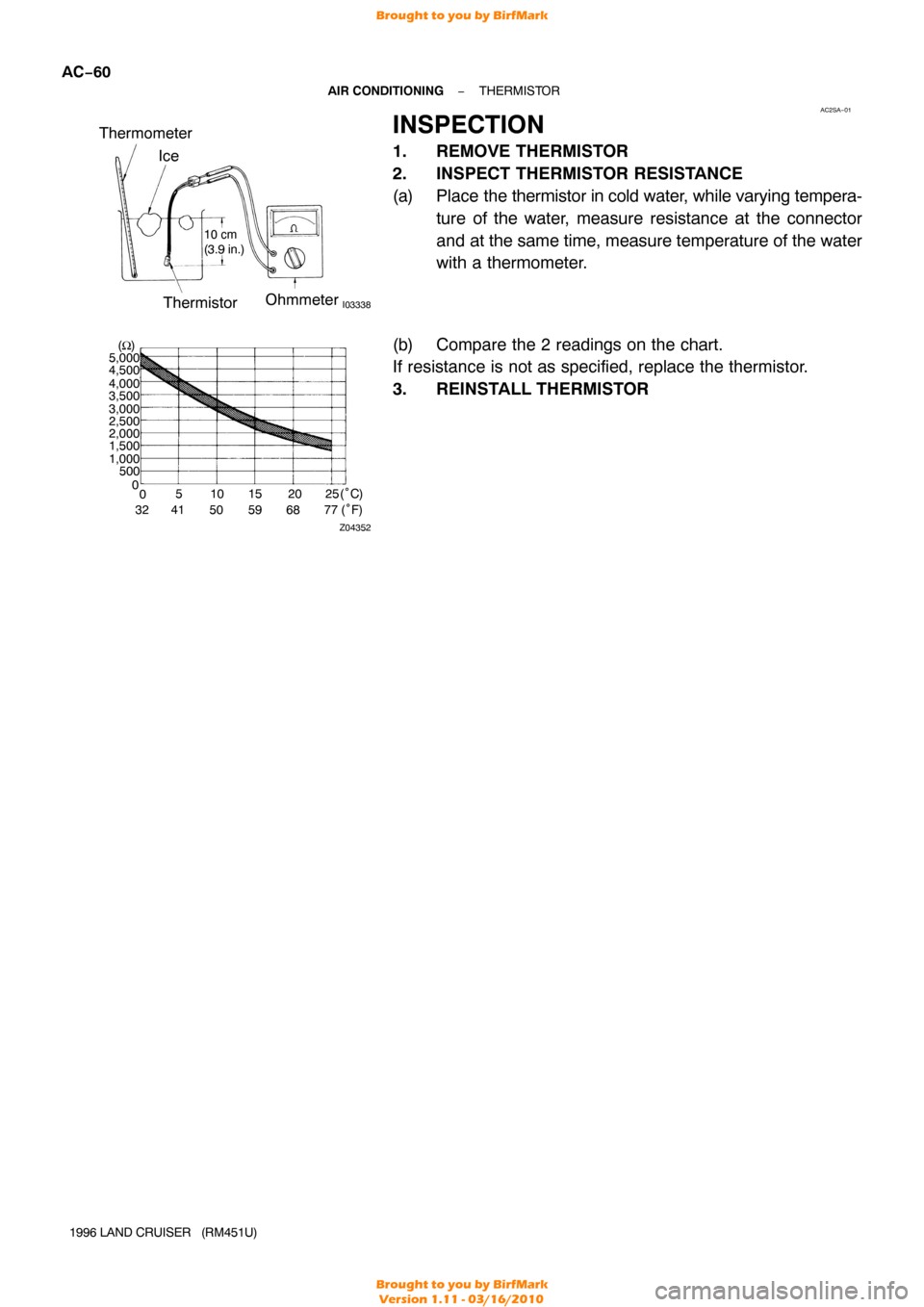

AIR CONDITIONING THERMISTOR
1996 LAND CRUISER (RM451U)
INSPECTION
1. REMOVE THERMISTOR
2. INSPECT THERMISTOR RESISTANCE
(a) Place the thermistor in cold water, while varying tempera-
ture of the water, measure resistance at the connector
and at the same time, measure temperature of the water
with a thermometer.
(b) Compare the 2 readings on the chart.
If resistance is not as specified, replace the thermistor.
3. REINSTALL THERMISTOR
~I~~~l!o.
~
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

N16452
AC2SB−01
Z13470
Low Pressure Side
ON (Continuity)
196 kpa
(2.0 kgf·cm
2, 28 psi)
OFF (No Continuity) High Pressure Side
3,140 kpa
(32.0 kgf·cm2, 455 psi)
OFF (No Continuity)
−

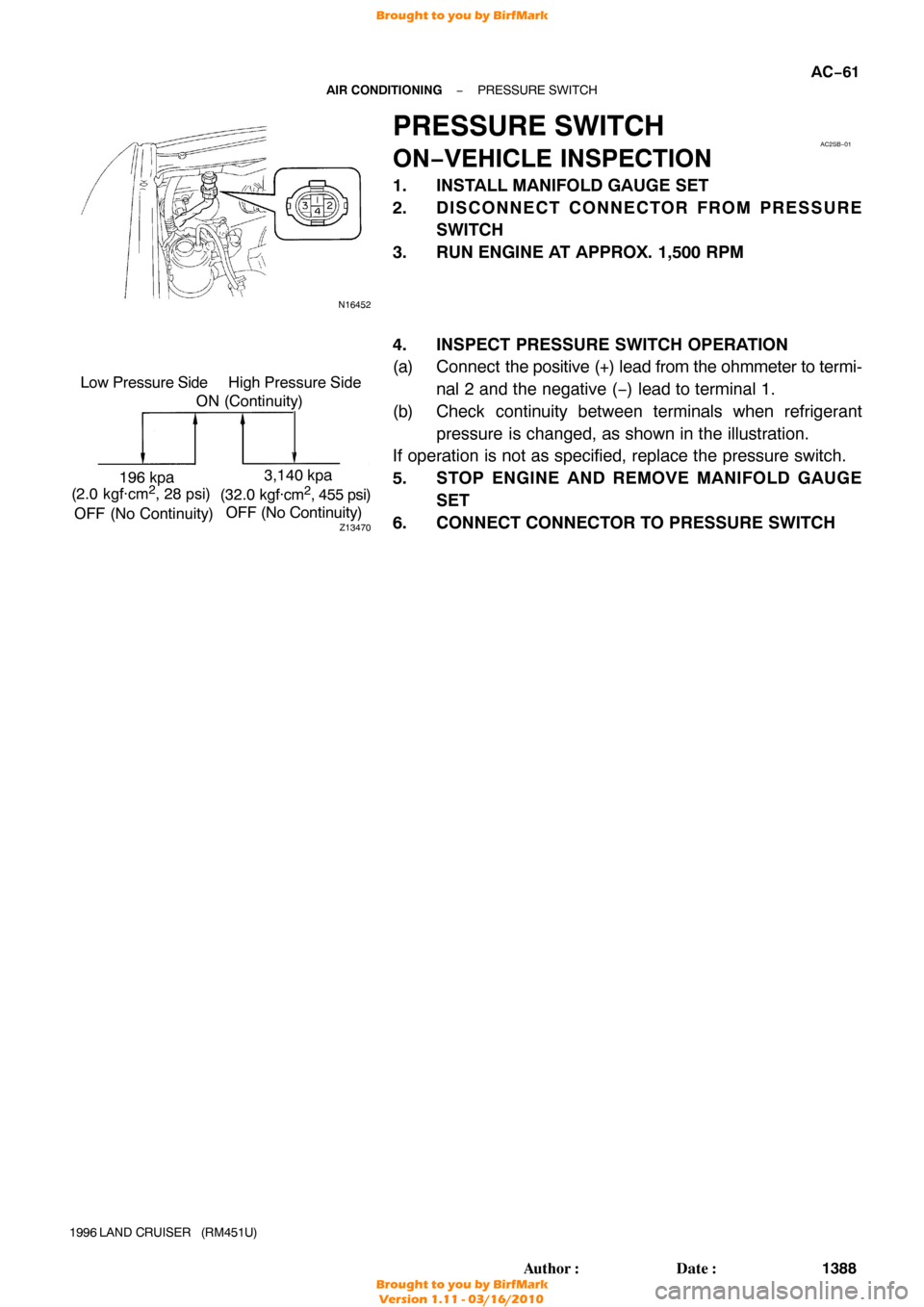

AIR CONDITIONING PRESSURE SWITCH
AC−61
1388
Author: Date:
1996 LAND CRUISER (RM451U)
PRESSURE SWITCH
ON−VEHICLE INSPECTION
1. INSTALL MANIFOLD GAUGE SET
2. DISCONNECT CONNECTOR FROM PRESSURE
SWITCH
3. RUN ENGINE AT APPROX. 1,500 RPM
4. INSPECT PRESSURE SWITCH OPERATION
(a) Connect the positive (+) lead from the ohmmeter to termi-
nal 2 and the negative ( −) lead to terminal 1.
(b) Check continuity between terminals when refrigerant pressure is changed, as shown in the illustration.
If operation is not as specified, replace the pressure switch.
5. STOP ENGINE AND REMOVE MANIFOLD GAUGE
SET
6. CONNECT CONNECTOR TO PRESSURE SWITCH
~11L
