AIR CONDITIONING COMPRESSOR AND MAGNETIC CLUTCH
1996 LAND CRUISER (RM451U)
REASSEMBLY
1. INSTALL COMPRESSOR
(a) Install the compressor with the 4 bolts. Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
(b) Connect the connector.
2. CONNECT DISCHARGE AND SUCTION HOSES Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
NOTICE:
Hoses should be connected immediately after the caps
have been removed.
HINT:
Lubricate 2 new O −rings with compressor oil and install the
hoses.
3. INSTALL AND INSPECT DRIVE BELT (See page AC−17 )
4. INSTALL ENGINE UNDER COVER
5. CONNECT NEGATIVE ( −) TERMINAL CABLE TO BAT-
TERY
6. EVACUATE AIR FROM REFRIGERATION SYSTEM
7. CHARGE SYSTEM WITH REFRIGERANT AND IN- SPECT FOR LEAKAGE OF REFRIGERANT
Specified amount:
850 ± 50 g (29.98 ± 1.76 oz.)
Using a gas leak detector, check for leakage of refrigerant.
If there is leakage, check the tightening torque at the joints.
8. INSPECT A/C OPERATION
Reassembly is in the reverse order of disassembly (See
page AC−35 ).
9. CHECK CLEARANCE OF MAGNETIC CLUTCH
(a) Set the dial indicator to the pressure plate of the magnetic
clutch.
(b) Connect the magnetic clutch lead wire to the positive (+) terminal of the battery.
(c) Check the clearance between the pressure plate and ro- tor when connecting the negative ( −) terminal to the bat-
tery.
Standard clearance:
0.5 ± 0.15 mm (0.020 ± 0.0059 in.)
If the clearance is not within the standard clearance, adjust the
clearance using shims to obtain the standard clearance. Shim Thickness:
0.1 mm (0.004 in.)
0.3 mm (0.012 in.)
0.5 mm (0.020 in.)
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2RB−01
−
AIR CONDITIONING RECEIVER
AC−39
1366
Author: Date:
1996 LAND CRUISER (RM451U)
RECEIVER
ON−VEHICLE INSPECTION
INSPECT FITTINGS FOR LEAKAGE
Using a gas leak detector, check for leakage.
If there is leakage, check the tightening toque at the joints.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2RC−01
N13975
AC−40
−
AIR CONDITIONING RECEIVER
1996 LAND CRUISER (RM451U)

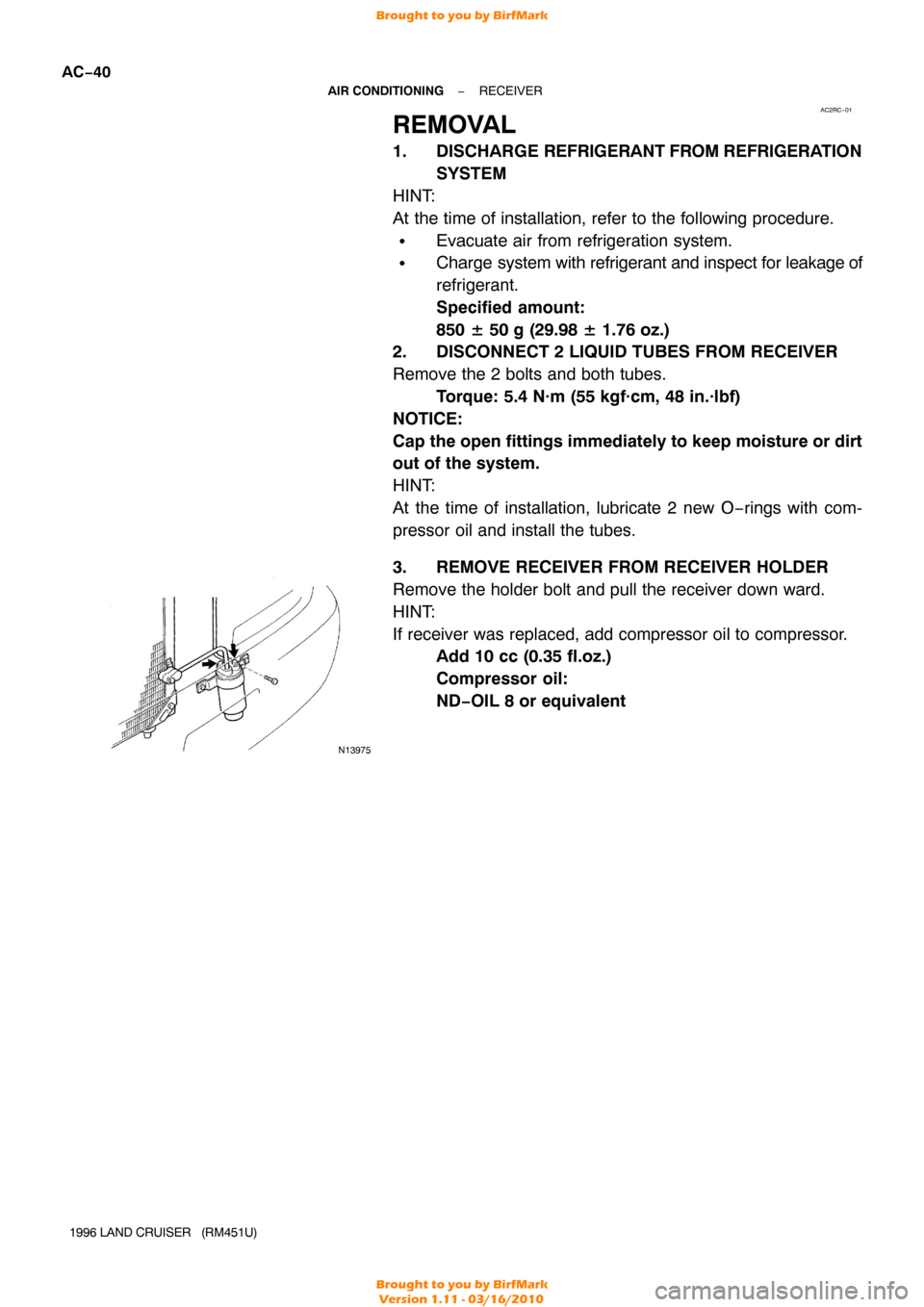

REMOVAL
1. DISCHARGE REFRIGERANT FROM REFRIGERA TION
SYSTEM
HINT:
At the time of installation, refer to the following procedure.
Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of
refrigerant.
Specified amount:
850 ± 50 g (29.98 ± 1.76 oz.)
2. DISCONNECT 2 LIQUID TUBES FROM RECEIVER
Remove the 2 bolts and both tubes.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
NOTICE:
Cap the open fittings immediately to keep moisture or dirt
out of the system.
HINT:
At the time of installation, lubricate 2 new O −rings with com-
pressor oil and install the tubes.
3. REMOVE RECEIVER FROM RECEIVER HOLDER
Remove the holder bolt and pull the receiver down ward.
HINT:
If receiver was replaced, add compressor oil to compressor. Add 10 cc (0.35 fl.oz.)
Compressor oil:
ND−OIL 8 or equivalent
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2RD−01
−
AIR CONDITIONING RECEIVER
AC−41
1996 LAND CRUISER (RM451U)
INSTALLATION
Installation is in the reverse order of removal (See page AC−40 ).
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2RG−01
AC−42
−
AIR CONDITIONING CONDENSER
1369
Author: Date:
1996 LAND CRUISER (RM451U)
CONDENSER
ON−VEHICLE INSPECTION
1. INSPECT CONDENSER FINS FOR BLOCKAGE OR DAMAGE
If the fins are clogged, wash them with water and dry with compressed ai\
r.
NOTICE:
Be careful not to damage the fins.
If the fins are bent, straighten them with a screwdriver or pliers.
2. INSPECT CONDENSER AND FITTINGS FOR LEAKAGE
Repair as necessary.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2RE−01
AC2674
Condenser
−
AIR CONDITIONING CONDENSER
AC−43
1996 LAND CRUISER (RM451U)
REMOVAL
1. DISCHARGE REFRIGERANT FROM REFRIGERA TION
SYSTEM
HINT:
At the time of installation, refer to the following procedure.
Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of
refrigerant.
Specified amount:
850 ± 50 g (29.98 ± 1.76 oz.)
2. REMOVE THESE PARTS:
(a) Hood lock brace
(b) Center brace
3. DISCONNECT DISCHARGE HOSE AND LIQUID TUBE
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
NOTICE:
Cap the open fittings immediately to keep moisture or dirt
out of the system.
HINT:
At the time of installation, lubricate 2 new O −rings with com-
pressor oil to compressor.
4. REMOVE CONDENSER
(a) Remove 2 condenser mounting bolts.
(b) Pull out the condenser between the radiator and the body.
HINT:
If condenser was replaced, add compressor oil to compressor.
Add 40 cc (1.4 fl.oz.)
Compressor oil:
ND−OIL 8 or equivalent
r-=:J__---_______----.-~------=.:-----
