AIR CONDITIONING HEATER UNIT
1996 LAND CRUISER (RM451U)
INSTALLATION
Installation is in the reverse order of removal (See page AC−28 ).
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2R1−03
−
AIR CONDITIONING BLOWER UNIT
AC−31
1358
Author: Date:
1996 LAND CRUISER (RM451U)
BLOWER UNIT
REMOVAL
1. REMOVE INSTRUMENT PANEL AND REINFORCE-
MENT (See page BO−76)
2. REMOVE COOLING UNIT (See page AC−24)
3. REMOVE BLOWER UNIT
(a) Disconnect the connectors.
(b) Remove the bolt and 2 nuts, then remove the blower unit.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2R4−01
AC−32
−
AIR CONDITIONING BLOWER UNIT
1996 LAND CRUISER (RM451U)
INSTALLATION
Installation is in the reverse order of removal (See page AC−31 ).
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2R5−01
N06158
−
AIR CONDITIONING COMPRESSOR AND MAGNETIC CLUTCH
AC−33
1360
Author: Date:
1996 LAND CRUISER (RM451U)
COMPRESSOR AND MAGNETIC
CLUTCH
ON−VEHICLE INSPECTION
1. INSTALL MANIFOLD GAUGE SET (See page AC−18 )
2. START ENGINE
Run the engine at 1,500 rpm.
3. INSPECT COMPRESSOR FOR METALLIC SOUND
Check if there is a metallic sound from the compressor when the
A/C switch is on.
If metallic sound is heard, replace the compressor assembly.
4. INSPECT REFRIGERANT PRESSURE (See page AC−5 )
5. STOP ENGINE
6. INSPECT VISUALLY FOR LEAKAGE OF REFRIGER- ANT FROM SAFETY SEAL
Using a gas leak detector, check for leakage of refrigerant.
If there is any leakage, replace the compressor assembly.
7. REMOVE MANIFOLD GAUGE SET (See page
AC−19 )
8. MAKE THESE VISUAL CHECKS:
(a) Leakage of grease from the clutch bearing.
(b) Signs of oil on the pressure plate or rotor. Repair or replace, as necessary.
9. INSPECT MAGNETIC CLUTCH BEARING FOR NOISE
(a) Start engine.
(b) Check for abnormal noise from near the compressor when the A/C switch is OFF.
If abnormal noise is being emitted, replace the magnetic clutch.
10. INSPECT MAGNETIC CLUTCH
(a) Disconnect the connector from the magnetic clutch.
(b) Connect the positive (+) lead from the battery to the termi-
nal on the magnetic clutch connector and the negative ( −)
lead to the body ground.
(c) Check that the magnetic clutch is energized.
If operation is not as specified, replace the magnetic clutch.
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2R6−01
Z17949
Pressure Plate Rotor
Shim
Startor
Snap Ring Compressor
13.2
(135, 9)
Z17948
Suction Hose
Discharge Hose
Drive Belt
Compressor Compressor Bracket
O−Ring O−Ring
37 (375, 27)
N·m (kgf·cm, ft·lbf) : Specified torque
 Non− reusable part
10 (100, 7)
25 (250, 18)
37 (375, 27)
10 (100, 7)
AC−34
−
AIR CONDITIONING COMPRESSOR AND MAGNETIC CLUTCH
1996 LAND CRUISER (RM451U)
COMPONENTS
N16453 N14067
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC2R7−04
AC0943
SST
AC0944
SST
AC0945
SST
−
AIR CONDITIONING COMPRESSOR AND MAGNETIC CLUTCH
AC−35
1996 LAND CRUISER (RM451U)
DISASSEMBLY
1. RUN ENGINE AT IDLE SPEED WITH A/C SWITCH ON
FOR 10 MINUTES
2. STOP ENGINE
3. DISCONNECT NEGATIVE ( −) TERMINAL CABLE
FROM BATTERY
4. DISCHARGE REFRIGERANT FROM REFRIGERA TION
SYSTEM
5. DISCONNECT DISCHARGE AND SUCTION HOSES
Remove the 2 bolts and disconnect the both hoses.
NOTICE:
Cap the open fittings immediately to keep the moisture or
dirt out of the system.
6. REMOVE ENGINE UNDER COVER
7. REMOVE DRIVE BELT (See page AC−16)
8. REMOVE COMPRESSOR
(a) Disconnect the connector.
(b) Remove the 4 bolts and pull the compressor upward.
9. REMOVE COMPRESSOR (See page AC−35 )
10. REMOVE PRESSURE PLATE
(a) Using SST and a socket wrench, remove the shaft bolt. Torque: 13.2 N·m (135 kgf·cm, 9 ft·lbf)
SST 07112 −76060
(b) Install a SST on the pressure plate. SST 07112 −66040
(c) Using SST and a socket wrench, remove the pressure plate.
SST 07112 −76060
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC0946
ShimPressure
Plate
AC0947
SST
N20013
Snap Ring
R−Shape Compressor
AC1743
AC1744
AC−36
−
AIR CONDITIONING COMPRESSOR AND MAGNETIC CLUTCH
1996 LAND CRUISER (RM451U)

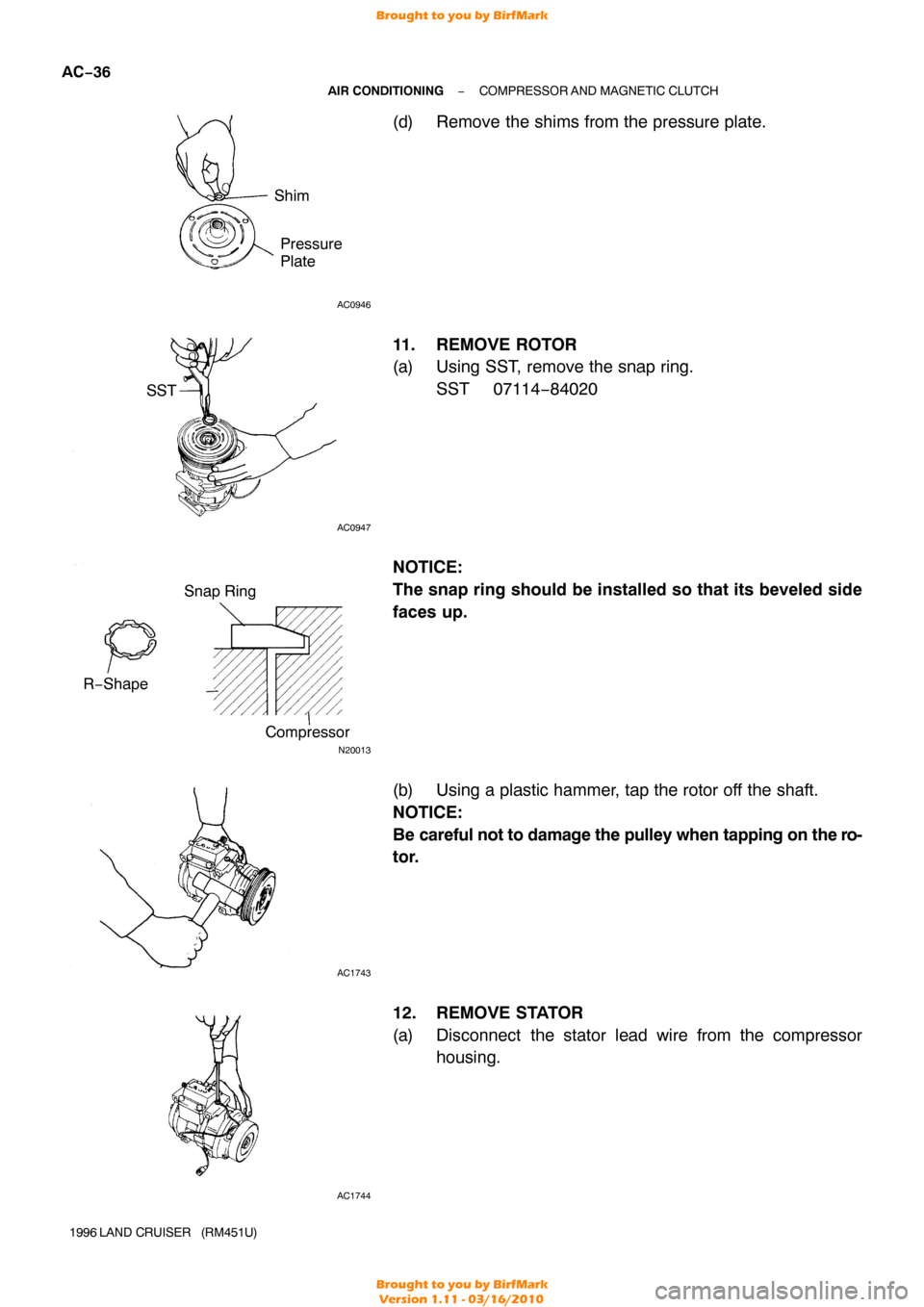

(d) Remove the shims from the pressure plate.
11. REMOVE ROTOR
(a) Using SST, remove the snap ring.
SST 07114 −84020
NOTICE:
The snap ring should be installed so that its beveled side
faces up.
(b) Using a plastic hammer, tap the rotor off the shaft.
NOTICE:
Be careful not to damage the pulley when tapping on the ro-
tor.
12. REMOVE STATOR
(a) Disconnect the stator lead wire from the compressor housing.
p
Brought to you by BirfMark
Brought to you by BirfMark
Version 1.11 - 03/16/2010

AC0950
SST
N20012
R−ShapeStatorSnap Ring
Compressor
AC0951
Stator
−
AIR CONDITIONING COMPRESSOR AND MAGNETIC CLUTCH
AC−37
1996 LAND CRUISER (RM451U)

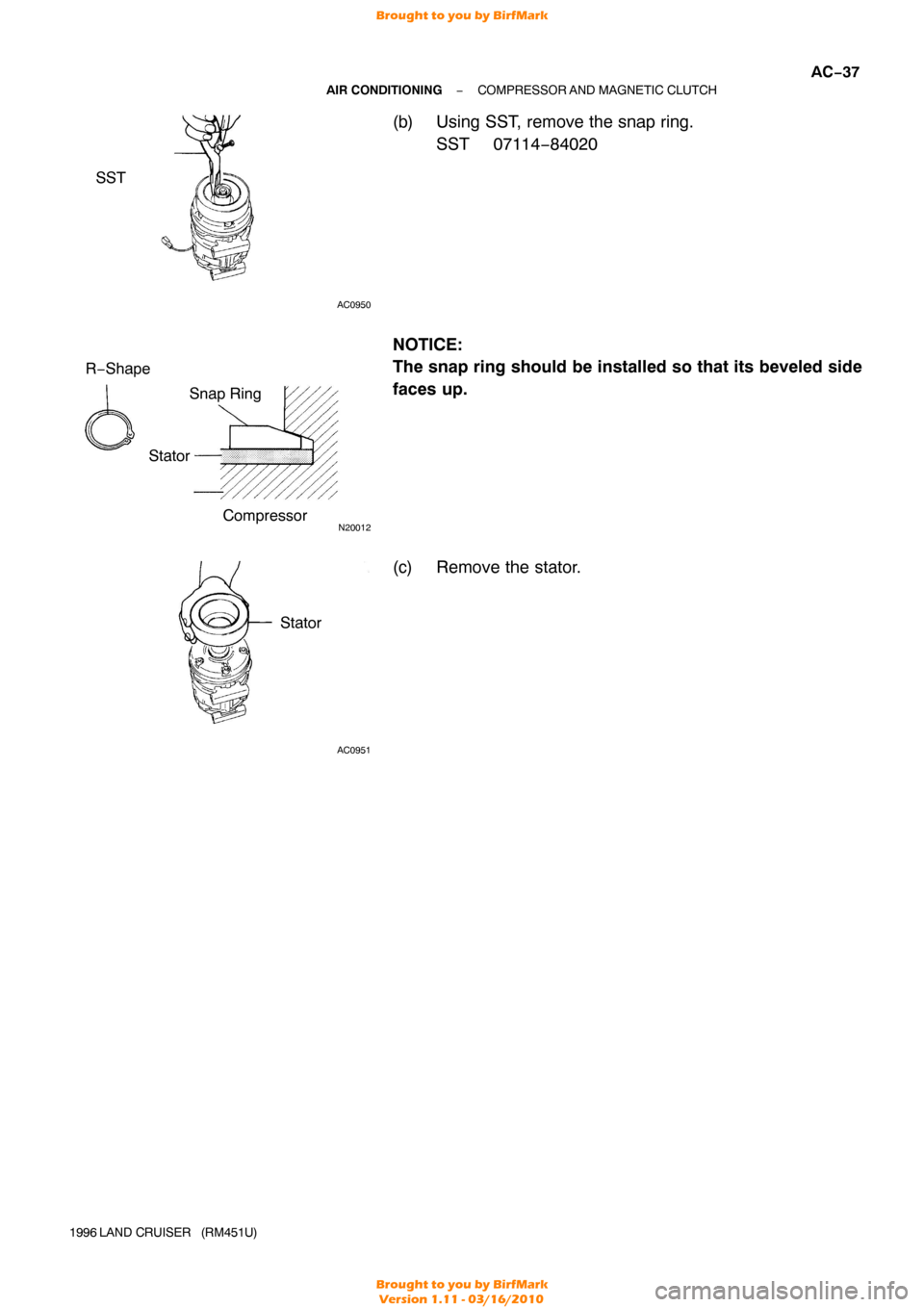

(b) Using SST, remove the snap ring.
