Page 249 of 1501

MITSUBISHI MONTERO 1998 Service Manual Oil ................................................. 7500
Oil Filter .................................... (3) 15,000
Spark Plugs ....................................... 30,000
Spark Plug Wires

Oil ................................................. 7500
Oil Filter .................................... (3) 15,000
Spark Plugs ....................................... 30,000
Spark Plug Wires .................................. 60,000
Timing & Balance Shaft Belts ...................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (MIRAGE)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant .............................................. ( 2)
Oil ................................................. 7500
Oil Filter .................................... ( 3) 15,000
Spark Plugs ....................................... 30,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (MONTERO)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transmission Fluid ......................... ( 1)
Coolant ........................................... 30,000
Front & Rear Axle Fluid ( 2) ....................... 30,000
Oil ................................................. 7500
Oil Filter .................................... ( 3) 15,000
Manual Transmission .................................. ( 4)
Spark Plugs ( 5) ................................... 60,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Limited-slip differential.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
( 4) - Inspect fluid every 30,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.

Page 250 of 1501

$MITSUBISHI MONTERO 1998 Service Manual (5) - Use Platinum spark plugs only.��\ ��\ ��\ ��\ ��\ ��\ �� REPLACEMENT INTERVALS TABLE (MON$

(5) - Use Platinum spark plugs only.\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (MONTERO SPORT)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transmission
Except 4WD ......................................... ( 1)
4WD ............................................. 30,000
Axle Fluid ( 2) .................................... 30,000
Coolant ........................................... 30,000
Oil ................................................. 7500
Oil Filter .................................... ( 3) 15,000
Spark Plugs ( 4) ................................... 60,000
Spark Plug Wires .................................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Limited-slip differential.
( 3) - Replace oil filter at oil change if annual mileage is
less than 7500 miles.
( 4) - Use Platinum spark plugs only.
\
\
\
\
\
\

REPLACEMENT INTERVALS TABLE (3000GT)\
\
\
\
\
\

Component Miles
Air Filter ........................................ 30,000
Automatic Transaxle Fluid ............................ ( 1)
Coolant ........................................... 30,000
Oil
Non-Turbo ......................................... 7500
Turbo ............................................. 5000
Oil Filter
Non-Turbo ....................................... 15,000
Turbo ........................................... 10,000
Spark Plugs
Except Platinum ................................. 30,000
Platinum ........................................ 60,000
Spark Plug Wires ( 2) .............................. 60,000
Timing Belt ....................................... 60,000
( 1) - Inspect fluid every 15,000 miles. Replace fluid if
evidence of contamination appears, after repairing
reason for contamination.
( 2) - Except vehicles equipped with Federal Emissions.
\
\
\
\
\
\

BELT ADJUSTMENT TABLE\
\
\
\
\
\
\

( 1) Deflection ( 1) Deflection
Application New Belt - In. (mm) Used Belt - In. (mm\
)
Diamante
Generator & A/C .... .24-.28 (6.0-7.2) ....... .32-.37 (8.2-9.3\
)
P/S ................ .33-.37 (8.4-9.3) ..... .46-.52 (11.7-13.4\
)
Eclipse
2.0L Non-Turbo

Page 251 of 1501

$MITSUBISHI MONTERO 1998 Service Manual Generator ........ .30-.41 (7.5-10.5) ..... .35-.47 (9.0-12.0\ ) P/S (W/O A/C) .... .26-.37 (6.5-9.5) ..... .43-.55 (11.0-14\ .0) P/S & A/C ........ .32-.35 (8.0-9.0) ..... .39$

Generator ........ .30-.41 (7.5-10.5) ..... .35-.47 (9.0-12.0\
)
P/S (W/O A/C) .... .26-.37 (6.5-9.5) ..... .43-.55 (11.0-14\
.0)
P/S & A/C ........ .32-.35 (8.0-9.0) ..... .39-.43 (10.0-11.0\
)
2.0L Turbo & 2.4L
A/C .............. .22-.24 (5.5-6.0) ....... .26-.30 (6.5-7.5\
)
Generator ........ .30-.35 (7.5-9.0) .............. .39 (10.0\
)
P/S .............. .18-.22 (4.5-5.5) ....... .24-.28 (6.0-7.0\
)
Galant
A/C ................ .22-.24 (5.5-6.0) ....... .26-.30 (6.5-7.6\
)
Generator .......... .30-.35 (7.5-8.8) .............. .39 (10.0\
)
P/S ................ .18-.22 (4.5-5.6) ....... .24-.28 (6.0-7.0\
)
Mirage
1.5L
A/C .............. .13-.17 (3.4-4.3) ....... .20-.22 (5.0-5.7\
)
Generator ........ .26-.33 (6.6-8.3) ...... .36-.42 (9.2-10.6\
)
P/S .............. .28-.36 (7.2-9.0) ..... .40-.46 (10.2-11.6\
)
1.8L
Generator ........ .28-.31 (7.0-8.0) ...... .33-.39 (8.5-10.0\
)
P/S & A/C ........ .28-.36 (7.0-9.0) ..... .39-.43 (10.0-11.0\
)
Montero
A/C ................ .20-.24 (5.0-6.0) ....... .26-.30 (6.5-7.5\
)
Generator .......... .16-.20 (4.0-5.0) ....... .22-.26 (5.5-6.5\
)
P/S ................ .42-.54 (10.7-13.7) ... .58-.66 (14.8-16.8\
)
Montero Sport
2.4L
A/C .............. .20-.22 (5.0-6.0) ....... .24-.26 (6.0-6.5\
)
Generator ........ .22-.29 (5.5-7.5) ....... .30-.33 (7.5-8.5\
)
P/S .............. .16-.24 (4.0-6.0) ....... .24-.28 (6.0-7.0\
)
3.0L
A/C .............. .17-.20 (4.3-5.1) ....... .22-.26 (5.6-6.5\
)
Generator ........ .22-.29 (5.5-7.5) ....... .31-.35 (8.0-9.0\
)
P/S .............. .44-.52 (11.0-13.0) ... .56-.64 (14.0-16.0\
)
3000GT
SOHC
A/C .............. .26-.28 (6.5-7.0) ....... .30-.34 (7.5-8.5\
)
Generator & P/S .. .16-.20 (4.0-5.0) ....... .24-.32 (6.0-8.0\
)
DOHC
Generator ........ .14-.16 (3.5-4.0) ....... .16-.20 (4.0-5.0\
)
P/S .............. .30-.35 (7.5-9.0) ..... .41-.49 (10.4-12.4\
)
(1) - With 22 lbs. (10 kg) pressure applied midway between pulleys.
\
\
\
\
\
\
\

MECHANICAL CHECKS
ENGINE COMPRESSION
Check engine compression with engine at normal operating
temperature, all spark plugs removed and throttle wide open.
COMPRESSION SPECIFICATIONS TABLE
\
\
\
\
\
\

Application (1) Specification
Compression Ratio
1.5L (VIN A) ..................................... 9.0:1
1.8L (VIN C) ..................................... 9.5:1
2.0L
(VIN F) ........................................ 8.5:1
(VIN Y) ........................................ 9.6:1
2.4L (VIN G) ..................................... 9.5:1
3.0L

Page 252 of 1501

MITSUBISHI MONTERO 1998 Service Manual (VIN H) ........................................ 8.9:1
(VIN J) ....................................... 10.0:1
(VIN K) ........................................ 8.0:1
(VIN P) ....

(VIN H) ........................................ 8.9:1
(VIN J) ....................................... 10.0:1
(VIN K) ........................................ 8.0:1
(VIN P) ........................................ 9.0:1
3.5L (VIN M & P) ................................. 9.0:1
Compression Pressure
1.5L (VIN A) ..................... 192 psi (13.4 kg/cm
)
1.8L (VIN C) ..................... 199 psi (13.9 kg/cm)
2.0L (VIN F) ..................... 178 psi (12.5 kg/cm)
2.0L (VIN Y) ............ 170-225 psi (11.7-15.5 kg/cm)
2.4L (VIN G) ..................... 192 psi (13.4 kg/cm)
3.0L
(VIN H & P) .................... 171 psi (12.0 kg/cm
)
(VIN J) ........................ 185 psi (13.0 kg/cm)
(VIN K) ........................ 156 psi (10.9 kg/cm)
3.5L (VIN M & P) ................. 171 psi (12.0 kg/cm)
Maximum Variation
Between Cylinders ( 2) ............... 14 psi (1.0 kg/cm
)
( 1) - See A - ENGINE/VIN ID article for VIN information.
( 2) - On Eclipse 2.0L non-turbo engine, maximum variation
between cylinders is 25 percent.
\
\
\
\
\
\

VALVE CLEARANCE
NOTE: All engines are equipped with hydraulic lifters. No
adjustment is required.
IGNITION SYSTEM
IGNITION COIL
IGNITION COIL RESISTANCE - Ohms @ 68F (20C) TABLE\
\
\
\
\
\

Application (1) Primary Secondary
1.5L (VIN A) ............ .5-.7 .......... 15,000-22,000
1.8L (VIN C) ............. ( 2) ........... 14,000-21,000
2.0L
(VIN F) .............. .70-.86 ......... 11,300-15,300
(VIN Y) .............. .51-.61 ......... 11,500-13,500
2.4L (VIN G)
Eclipse .............. .74-.90 ......... 20,100-27,300
Galant ............... .9-1.2 .......... 20,000-29,000
Montero Sport ........ .67-.81 ......... 11,300-15,300
3.0L
(VIN H) .............. .72-.88 ......... 10,300-13,900
(VIN J & K) .......... .67-.81 ......... 11,300-15,300
(VIN P) .............. .74-.90 ......... 20,100-27,300
3.5L
(VIN M) .............. .74-90 .......... 20,100-27,300
(VIN P) .............. .50-.70 ........... 9000-13,000
( 1) - See A - ENGINE/VIN ID article for VIN information.
( 2) - Information is not available from manufacturer at time
of publication.
\
\
\
\
\
\

HIGH TENSION WIRE RESISTANCE
Wire resistance should not exceed 22,000 ohms for all models

Page 253 of 1501

MITSUBISHI MONTERO 1998 Service Manual except Eclipse 2.0L non-turbo and Montero. On Eclipse 2.0L non-turbo,
resistance should not exceed 8000 ohms. On Montero, resistance should
not exceed 26,000 ohms.
SPARK PLUGS
SPARK PLUG TYPE

Page 254 of 1501

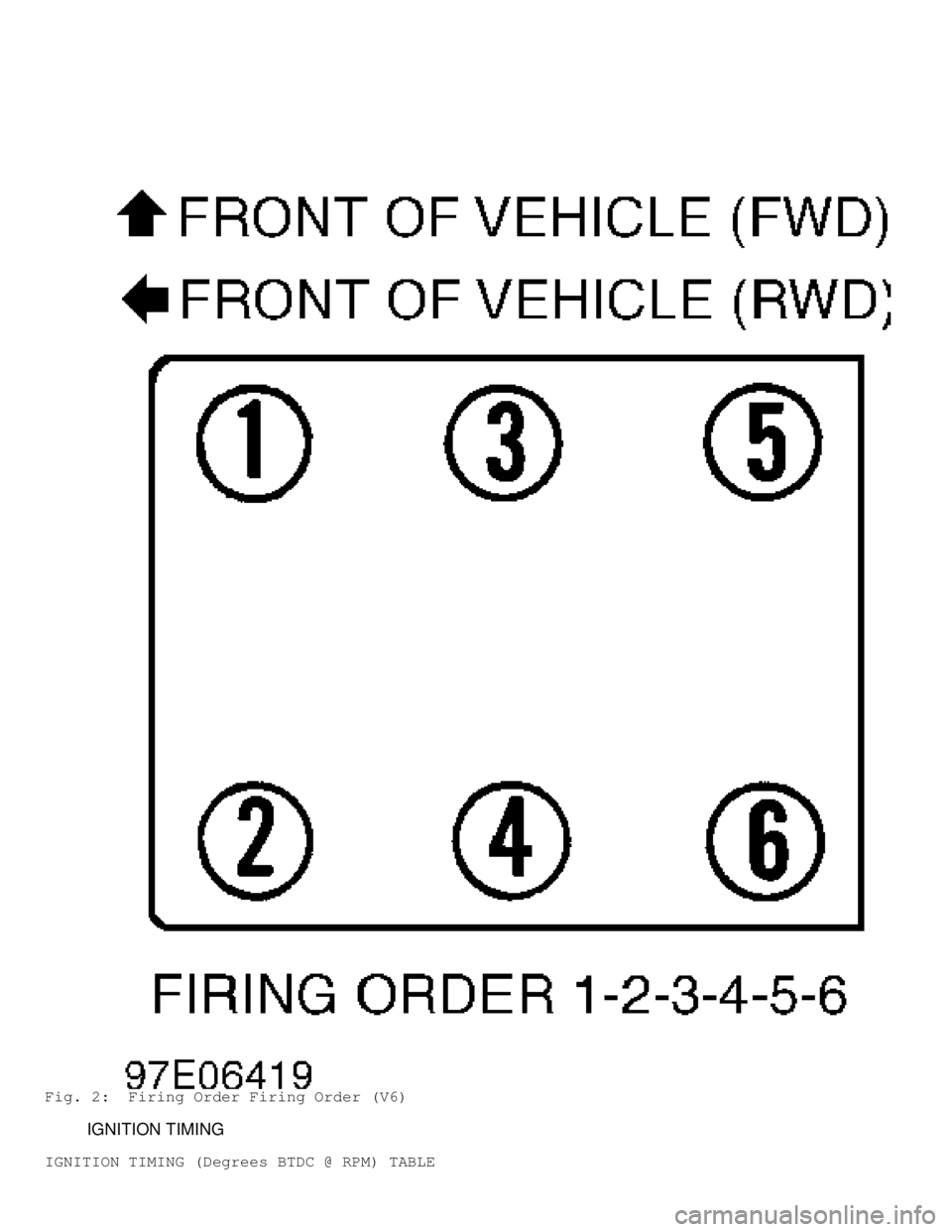

MITSUBISHI MONTERO 1998 Service Manual Fig. 2: Firing Order Firing Order (V6)
IGNITION TIMING
IGNITION TIMING (Degrees BTDC @ RPM) TABLE

Page 255 of 1501

$MITSUBISHI MONTERO 1998 Service Manual ��\ ��\ ��\ ��\ ��\ ��\ �� Application ( 1) Basic ( 2) ( 3) ( 4) Actual$

\
\
\
\
\
\

Application ( 1) Basic ( 2) ( 3) ( 4) Actual
1.5L ............. 2-78@ 650-750 .......... 10 @ 600-800
1.8L ............. 2-8 @ 600-800 ........... 5 @ 600-800
2.0L
Non-Turbo ........... ( 5) ........................ ( 5)
Turbo .......... 2-8 @ 650-850 ........... 8 @ 650-850
2.4L ............. 2-8 @ 650-850 .......... 10 @ 650-850
3.0L ............. 2-8 @ 600-800 .......... 15 @ 600-800
3.5L ............. 2-8 @ 600-800 .......... 15 @ 600-800
( 1) - With ignition timing adjustment connector grounded or
vacuum hose (farthest from distributor) disconnected.
( 2) - With ignition timing adjustment connector ungrounded
or vacuum hose (farthest from distributor) connected.
( 3) - If vehicle altitude is more than 2300 feet above sea
level, actualtiming may be advanced (5 degrees).
( 4) - Actual ignition timing is approximate and may
fluctuate plus or minus 7 degrees.
( 5) - Ignition timing is NOT adjustable.
\
\
\
\
\
\

FUEL SYSTEM
FUEL PUMP
REGULATED FUEL PRESSURE TABLE\
\
\
\
\
\

At Idle w/Vacuum At Idle w/o Vacuum
Application psi (kg/cm) psi (kg/cm)
Eclipse 2.0L
Non-Turbo ............ ( 1) ........... 47-50 (3.3-3.5)
Turbo ............. 33 (2.3) ......... 42-45 (3.0-3.5)
3000GT Turbo ........ 34 (2.4) ......... 43-45 (3.0-3.1)
All Other Models .... 38 (2.7) ......... 47-50 (3.3-3.5)
( 1) - Information is not available from manufacturer at time
of publication.
\
\
\
\
\
\

IDLE SPEED
IDLE SPEED SPECIFICATIONS TABLE\
\
\
\
\
\

Application Curb Idle Basic Idle
1.5L & 1.8L ............ 600-800 ............... 650-750
2.0L
Non-Turbo ............ 700-900 ................... ( 1)
Turbo ................ 650-850 ............... 700-800
2.4L ................... 650-850 ............... 700-800
3.0L & 3.5L ............ 600-800 ............... 650-750
( 1) - Information is not available from manufacturer at time
of publication.
\
\
\
\
\
\

INJECTOR RESISTANCE
INJECTOR RESISTANCE TABLE

Page 256 of 1501

$MITSUBISHI MONTERO 1998 Service Manual ��\ ��\ ��\ ��\ ��\ ��\ �� Application Ohms Non-Tur$

Load next 8 pages

Page: < prev 1-10 ... 217-224 225-232 233-240 241-248 249-256 257-264 265-272 273-280 281-288 ... 1504 next >

dimensions keyless instrument panel battery replacement CD changer auxiliary battery
