Place front mode selector knob at defrost setting. Press
damper lever inward, in direction of arrow. See Fig. 3. Connect inner
cable of mode selector cable to damper lever. Secure outer wire of
selector cable with clip.

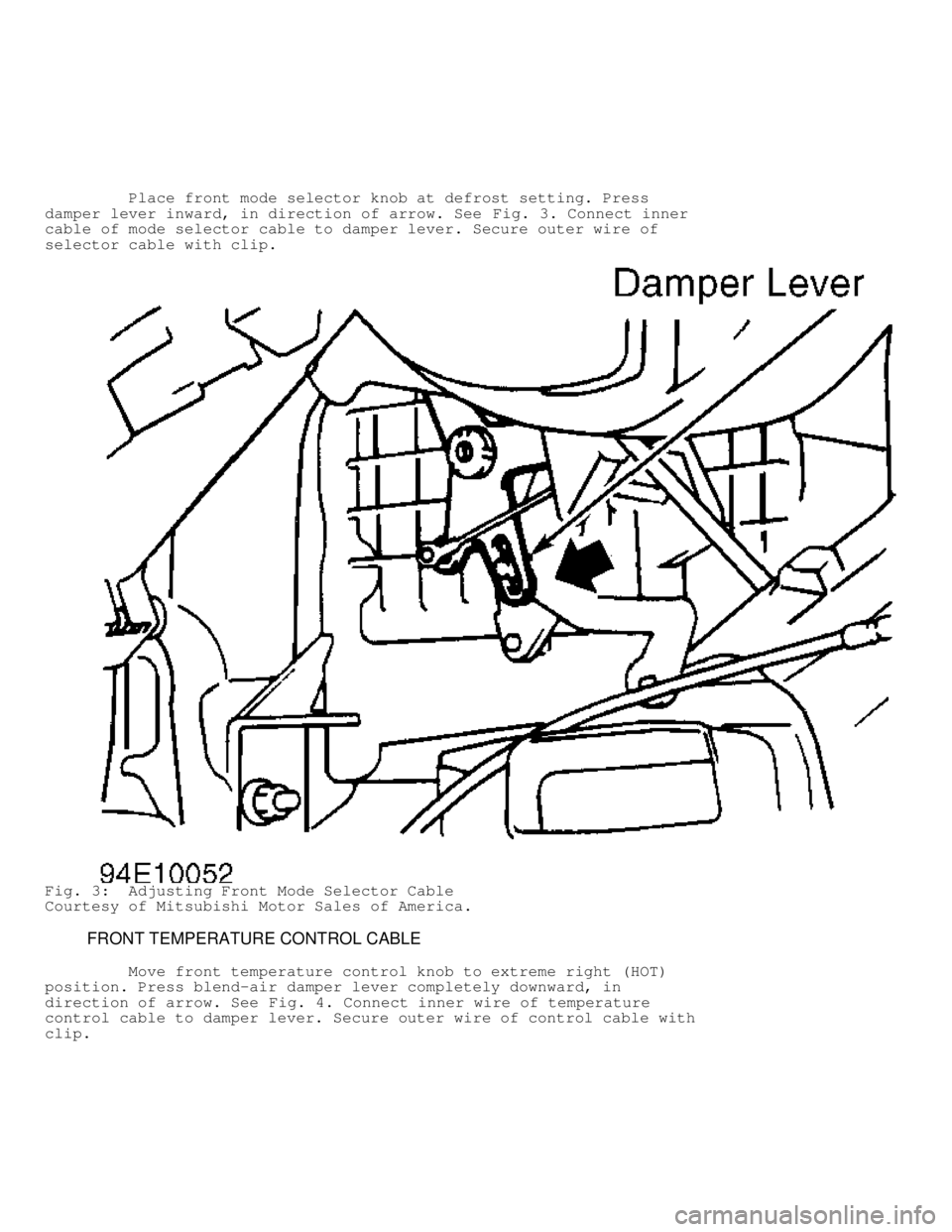

Fig. 3: Adjusting Front Mode Selector Cable
Courtesy of Mitsubishi Motor Sales of America.
FRONT TEMPERATURE CONTROL CABLE
Move front temperature control knob to extreme right (HOT)
position. Press blend-air damper lever completely downward, in
direction of arrow. See Fig. 4. Connect inner wire of temperature
control cable to damper lever. Secure outer wire of control cable with
clip.
Page 802 of 1501
Fig. 4: Adjusting Front Temperature Control Cable
Courtesy of Mitsubishi Motor Sales of America.
FRONT VENTILATION CONTROL CABLE
Turn cool air by-pass lever/knob to far right/clockwise
(closed position). See Fig. 5. Lever should slightly touch stopper.
Connect ventilation control cable, and secure with clip.
Fig. 5: Adjusting Front Ventilation Control Cable
Courtesy of Mitsubishi Motor Sales of America.
TROUBLE SHOOTING
Page 803 of 1501

BLOWER MOTOR
If blower motor will only run at high speed, check blower
motor resistor. See BLOWER MOTOR RESISTOR under TESTING.
INSUFFICIENT HEAT
Obstructed floor outlets or heater hoses. Bound or improperly
adjusted dampers. Improperly adjusted control cable. Plugged heater
core.
NO VENTILATION
Improper damper adjustment. Incorrect mode selector cable
installation. Improper duct connection, or duct damage.
TESTING
* PLEASE READ THIS FIRST *
WARNING: To avoid injury from accidental air bag deployment, read and
carefully follow all SERVICE PRECAUTIONS and DISABLING &
ACTIVATING AIR BAG SYSTEM procedures in AIR BAG RESTRAINT
SYSTEM article.
BLOWER SWITCH
Disconnect switch, and check continuity between indicated
terminals using ohmmeter. See BLOWER SWITCH CONTINUITY table. See
Fig. 6 .
BLOWER SWITCH CONTINUITY TABLE
\
\
\
\
\
\
Switch Continuity Between
Position Terminal No.
Low ......................................... 1 & 8; 3 & 5
Medium-Low .................................. 1 & 8; 5 & 6
Medium-High .......................... 1 & 4; 1 & 8; 2 & 5
High ................................. 1 & 4; 1 & 8; 5 & 7
\
\
\
\
\
\
Fig. 6: Identifying Blower Switch Terminals
Courtesy of Mitsubishi Motor Sales of America.
BLOWER MOTOR
Page 804 of 1501
Disconnect blower motor connector. Connect battery directly
to blower motor terminals. Ensure blower motor operates smoothly.
Reverse polarity, and ensure blower motor operates smoothly in reverse
direction. Replace blower motor if it does not function as specified.
BLOWER MOTOR RELAY
1) Remove blower motor relay from junction block, located
under hood on driver's side fenderwell. Using ohmmeter, check
continuity between terminals No. 1 and 3. See Fig. 7. Continuity
should not be present.
2) Check continuity between terminals No. 2 and 4. Ensure
continuity is present. Connect 12-volt battery to terminals No. 2 and
4. See Fig. 7. Ensure continuity exists between terminals No. 1 and 3
with voltage applied. If continuity is not as specified, replace
relay.
Fig. 7: Identifying Blower Relay Terminals
Courtesy of Mitsubishi Motor Sales of America.
BLOWER MOTOR RESISTOR
Page 805 of 1501
Disconnect harness connector from resistor, located in blower
assembly. See Fig. 1. Using ohmmeter, check resistance between
indicated terminals. See BLOWER MOTOR RESISTOR RESISTANCE table. See
Fig. 8 . If resistance is not as specified, replace resistor.
BLOWER MOTOR RESISTOR RESISTANCE TABLE
\
\
\
\
\
\
Application & Ohms
Terminal No.
2 & 3 .......................................... 0.31-0.35
2 & 1 .......................................... 0.88-1.02
2 & 4 .......................................... 1.82-2.10
\
\
\
\
\
\
Fig. 8: Identifying Blower Motor Resistor Terminals
Courtesy of Mitsubishi Motor Sales of America.
REMOVAL & INSTALLATION
Page 806 of 1501

* PLEASE READ THIS FIRST *
WARNING: To avoid injury from accidental air bag deployment, read and
carefully follow all SERVICE PRECAUTIONS and DISABLING &
ACTIVATING AIR BAG SYSTEM procedures in AIR BAG RESTRAINT
SYSTEM article.
CAUTION: When removing or installing floor console, DO NOT allow any
impact or shock to Supplemental Restraint System Electronic
Control Unit (SRS-ECU).
FRONT HEATER UNIT & HEATER CORE
Removal
1) Deactivate air bag system. See AIR BAG RESTRAINT SYSTEM
article. Remove front and rear floor consoles. Remove hood release
handle. Remove fuel door release handle. Remove knee protector and
support brackets. Remove speaker covers.
NOTE: On A/T models, when removing front floor console, set A/T
selector lever in "L" position.
2) Remove glove box door stop, glove box and glove box frame.
Remove passenger-side air bag module. Remove heater control panel
cover. Remove heater control panel and radio. Remove plug from
instrument cluster cover. Remove instrument cluster cover and
instrument cluster.
3) Remove steering column cover. Remove clock or plug. Remove
side defroster covers. Remove side mirror control switch. Remove front
speakers.
4) Remove rheostat, rear wiper/washer switch, and door lock
switch. Disconnect ventilation control cable and harness connector.
See Fig. 9. Remove instrument panel. See INSTRUMENT PANEL. Drain
coolant and disconnect heater hoses from heater unit.
5) Remove shower ducts, lap duct, joint duct and center duct.
See Fig. 1 . Remove center reinforcement. Remove heater unit. Remove
distribution duct. Remove heater core.
Installation
Install heater core, distribution duct, heater unit and
center reinforcement. Install remaining ducts in reverse order of
removal. Install instrument panel. Tighten steering column bolts to 16
ft. lbs. (22 N.m). Install and adjust ventilation control cable. See
ADJUSTMENTS . To complete installation, reverse removal procedure. Add
coolant and check for leaks.
INSTRUMENT PANEL
Removal & Installation
Remove instrument panel components and then instrument panel,
in order listed on appropriate illustration. See Fig. 9. To install,
reverse removal procedures.
Page 807 of 1501
Fig. 9: Removing Instrument Panel
Courtesy of Mazda Motors Corp.
Removal & Installation
1) Remove right side foot shower duct. Remove glove box door
Page 808 of 1501
stops. Disconnect fresh/recirculated air selector cable and
temperature control cable. Remove knee protector. Remove lap duct and
left shower duct. See Fig. 1. Disconnect mode selector cable.
2) Remove heater control panel cover and panel. Remove heater
control panel bezel and knobs. Remove blower switch. Using a
screwdriver, remove wire clips. Remove heater control cables from
heater control panel. To install, reverse removal procedure. Adjust
heater control cables. See ADJUSTMENTS.
BLOWER ASSEMBLY
Removal & Installation
Remove glove box, speaker cover and speaker or corner cover.
See Fig. 1 . Remove glove box frame. Disconnect right shower duct.
Remove engine control relay and bracket. Disconnect fresh/recirculated
air selector cable and joint duct. Remove blower assembly. To install,
reverse removal procedure. Adjust air selector cable. See ADJUSTMENTS.
