1998 MITSUBISHI MONTERO Service Manual

Fig. 7: Vacuum Diagram (Mirage 1.5L)
Courtesy of Mitsubishi Motor Sales of America
Fig. 8: Vacuum Diagram (Mirage 1.8L)
Courtesy of Mitsubishi Motor Sales of America

Fig. 9: Vacuum Diagram (Montero)
Courtesy of Mitsubishi Motor Sales of America
Fig. 10: Vacuum Diagram (Montero Sport 2.4L - California)
Courtesy of Mitsubishi Motor Sales of America

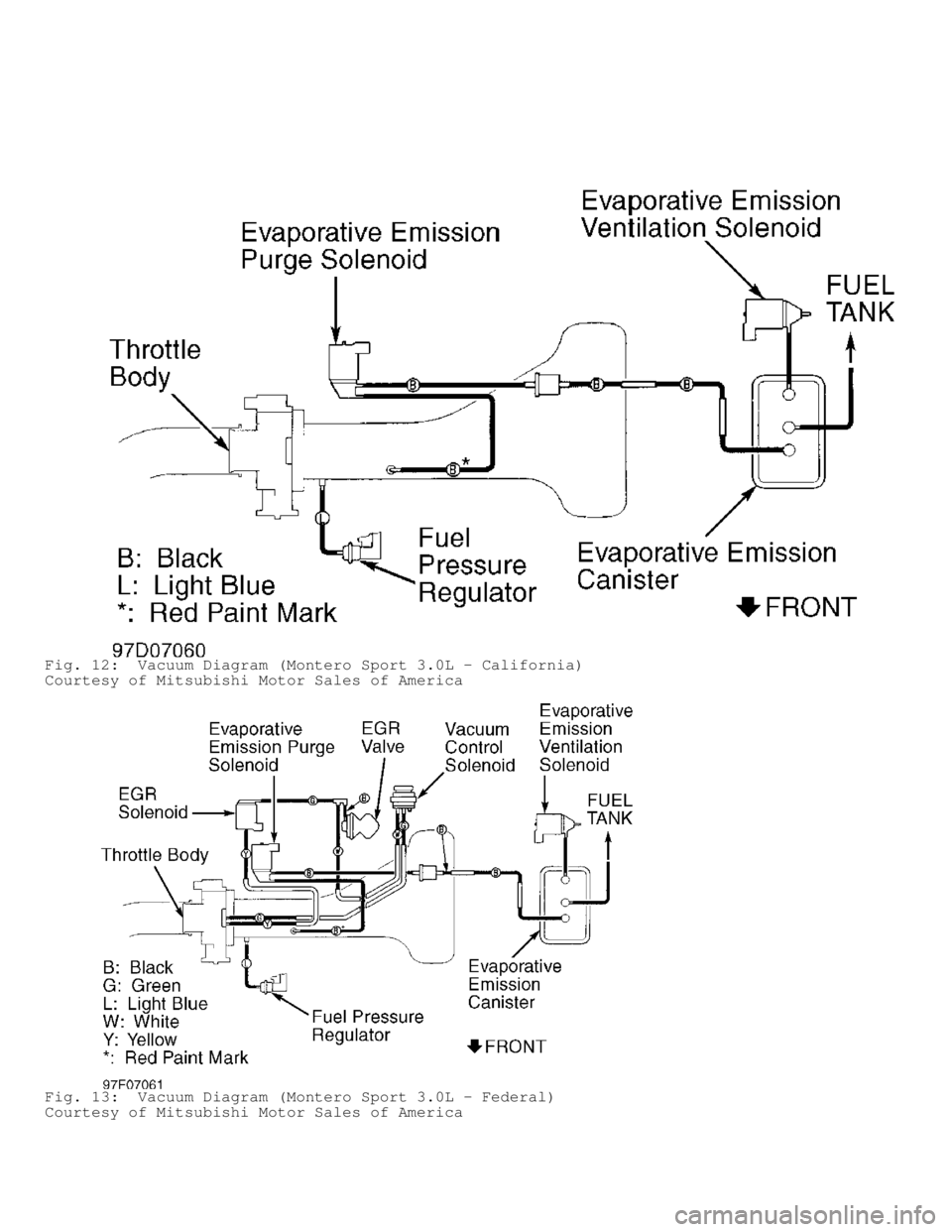

Fig. 11: Vacuum Diagram (Montero 2.4L - Federal)
Courtesy of Mitsubishi Motor Sales of America

Fig. 12: Vacuum Diagram (Montero Sport 3.0L - California)
Courtesy of Mitsubishi Motor Sales of America
Fig. 13: Vacuum Diagram (Montero Sport 3.0L - Federal)
Courtesy of Mitsubishi Motor Sales of America

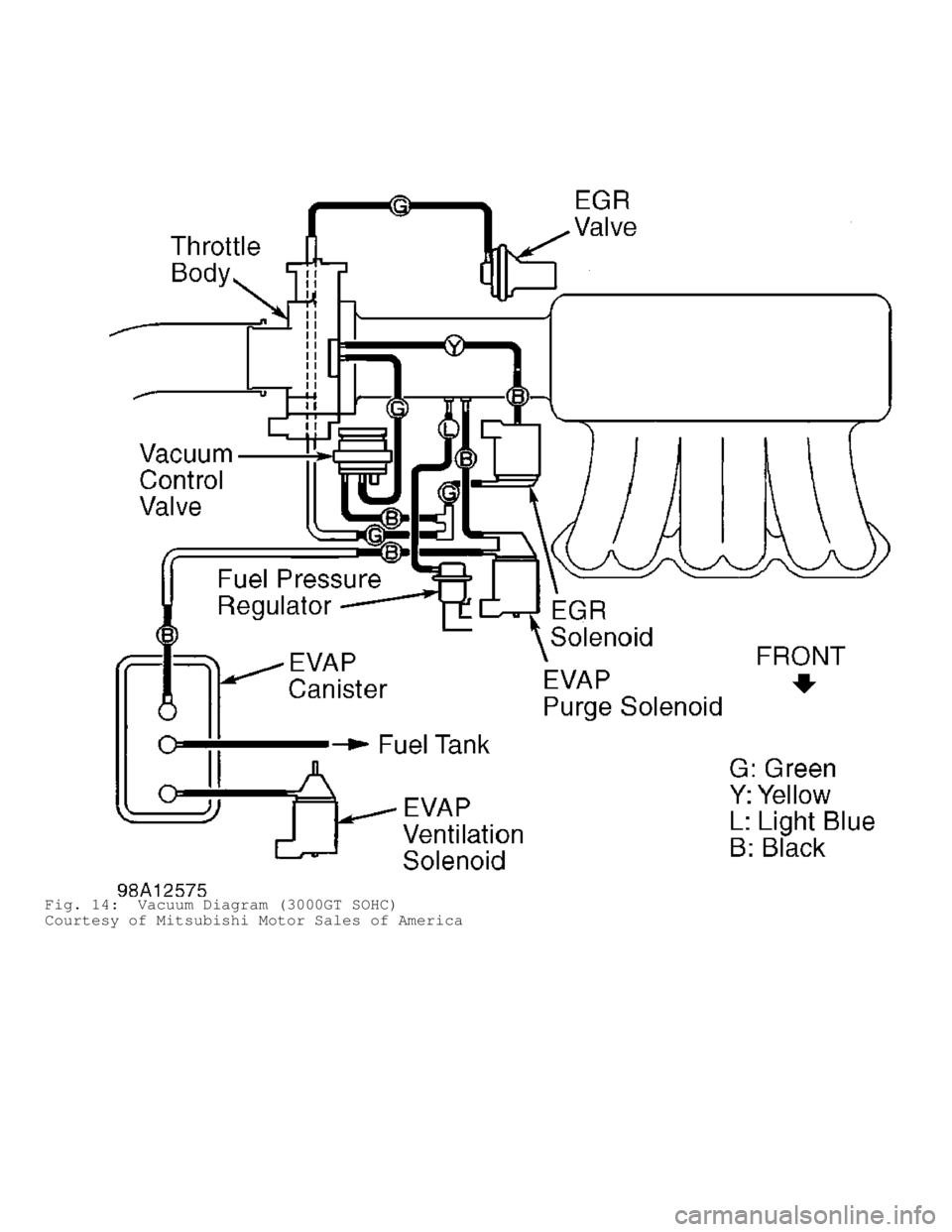

Fig. 14: Vacuum Diagram (3000GT SOHC)
Courtesy of Mitsubishi Motor Sales of America

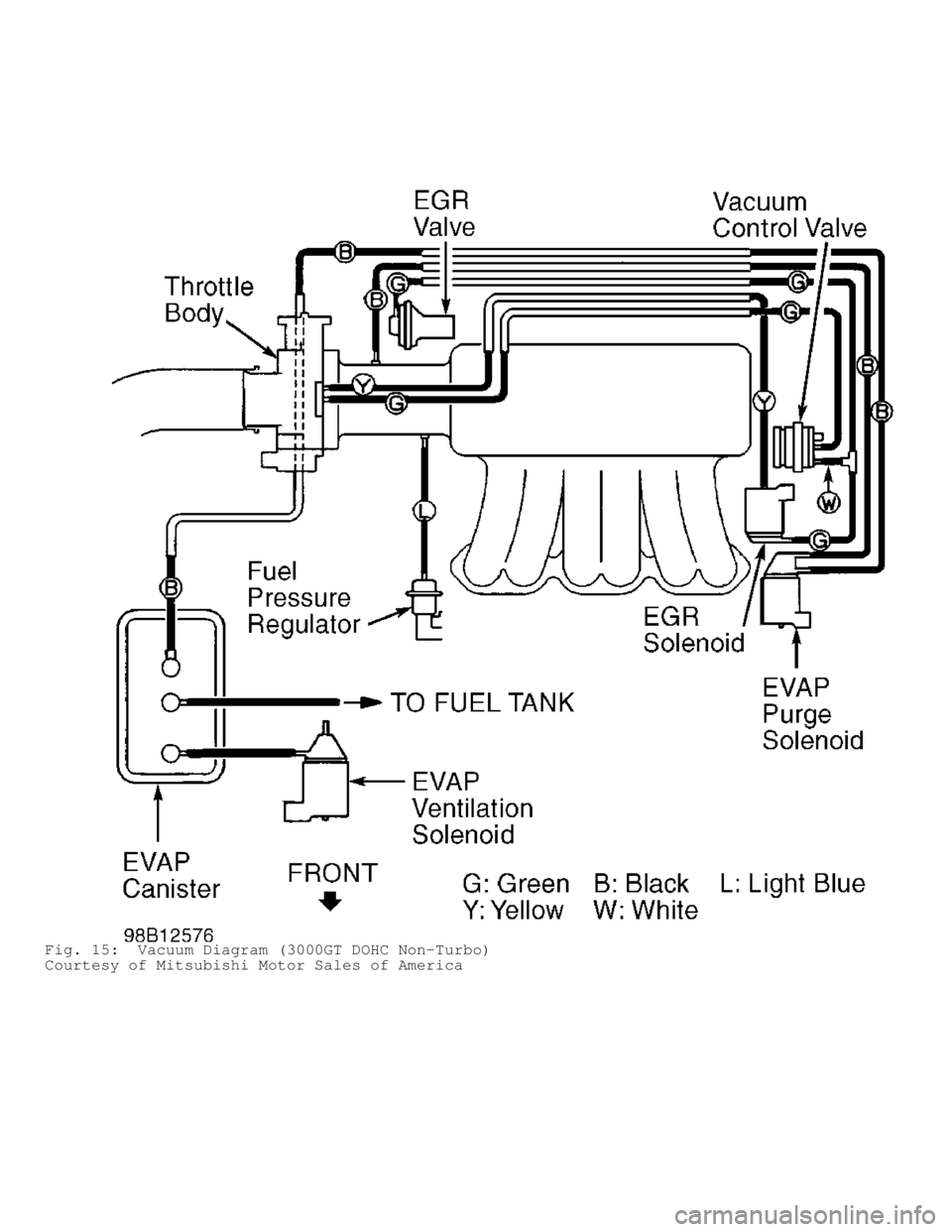

Fig. 15: Vacuum Diagram (3000GT DOHC Non-Turbo)
Courtesy of Mitsubishi Motor Sales of America

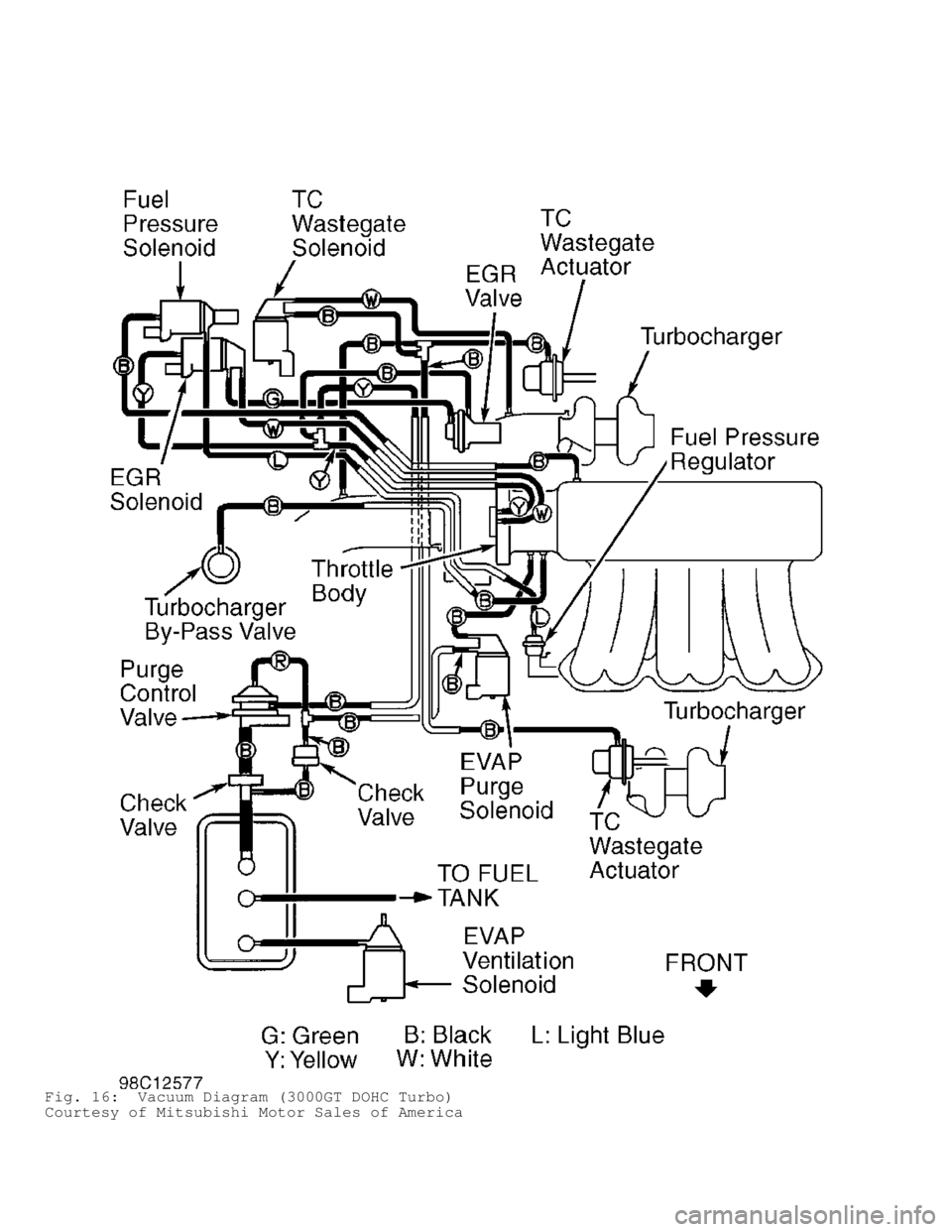

Fig. 16: Vacuum Diagram (3000GT DOHC Turbo)
Courtesy of Mitsubishi Motor Sales of America

MAINTENANCE INFORMATION
1998 Mitsubishi Montero
1997-98 MAINTENANCE
Mitsubishi Maintenance Information
Montero Sport
* PLEASE READ THIS FIRST *
NOTE: For scheduled maintenance intervals and the related fluid
capacities, fluid specifications and labor times for major
service intervals, see SCHEDULED SERVICES article below:
* SCHEDULED SERVICES
Warranty information and specifications for fluid
capacities, lubrication specifications, wheel and tire size,
and battery type are covered in this article.
MODEL IDENTIFICATION
VIN LOCATION
The Vehicle Identification Number (VIN) is located on the
left side of the dash panel at the base of the windshield. The VIN
chart explains the code characters.
VIN CODE ID EXPLANATION
Numbers preceding the explanations in the legend below refer
to the sequence of characters as listed on VIN identification label.
See VIN example below.








\









\









\









\









\









\









(VIN) J A 4 F J 4 3 E 1 H J 0 0 0 0 0 1


1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17










\









\









\









\









\









\








1 - Manufacturing Country
J
* Japan
2 - Manufacturer
A * Mitsubishi Motor Corp.
3 - Vehicle Type
4 * Multi-Purpose Vehicle
4 - GVW & Brake Type
M * 5001-6000 Lbs., Hydraulic Brakes
5 - Vehicle Line
R * Montero
6 - Vehicle Series
4 * High
5 * Premium
7 - Body Type
1 * 5-Door Wagon
